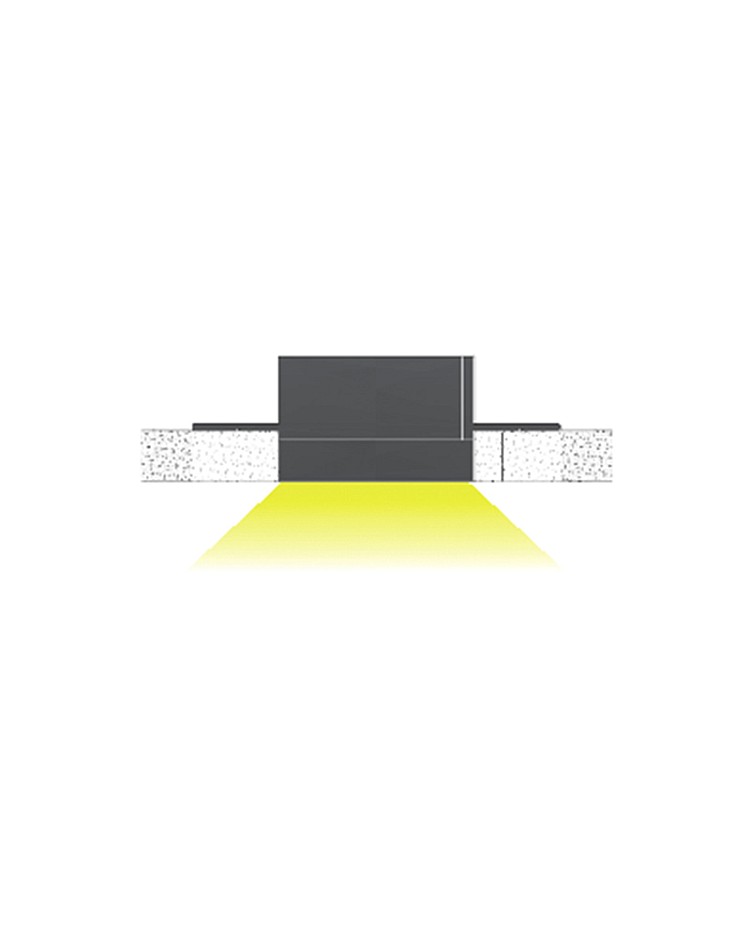

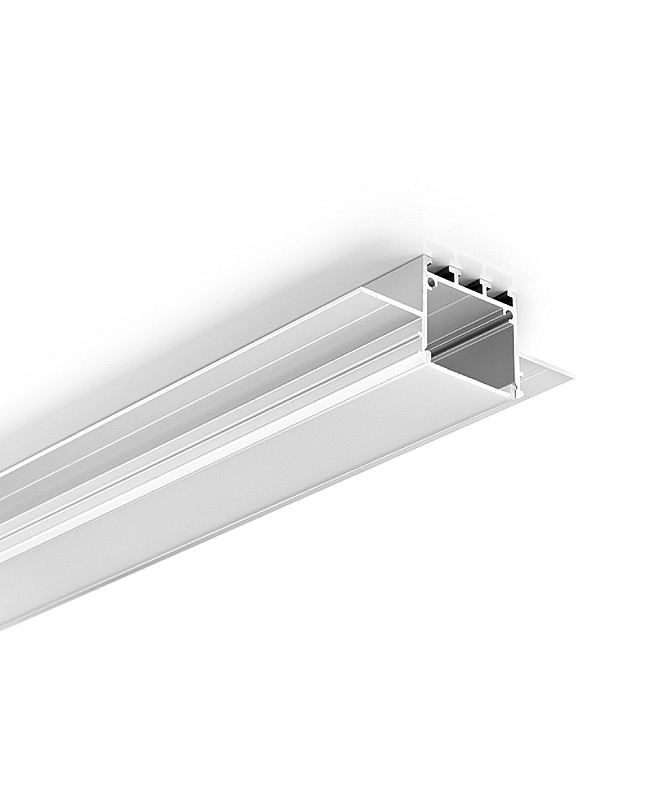

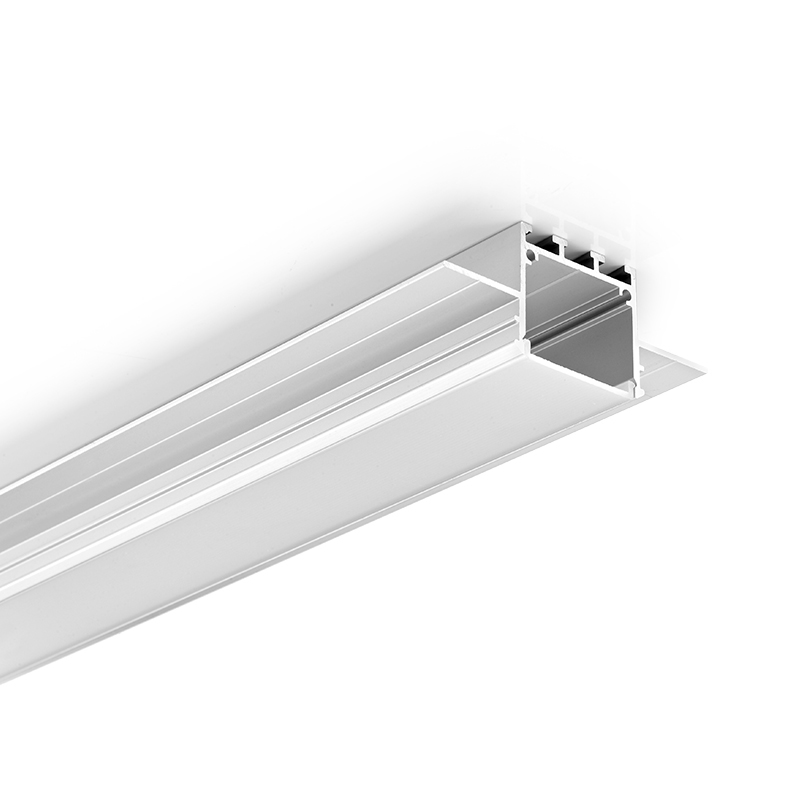

The ALP092 Plaster Trimless Recessed Drywall LED Profiles fit for a 12.5mm thick plasterboard flush mount installation, with a compact design to recess into ceilings or walls easily with a thin layer of plaster. This minimalist linear solution has been designed to sit flush with the surface to give a sleek appearance and create a modern look for ceiling lighting, perfect for tight spaces where other lighting fixtures wouldn't fit. The inner width is 24.5mm, allowing the max width of Strip Lights to be 24mm, compatible with double rows of 8mm, 10mm, or 12mm COB or RGB LED Strip Lights as the light source. End caps are included, easy to connect the LED RGB Strips to Linear Driver to light up, the LED Profile Ceiling can be used as heat sinkers for better heat dissipation. Plasterboard LED Profiles are made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, dustproof and waterproof, and have a longer lifespan than similar products. Three types of diffusers are available: brand-stable material, anti-yellowing, perfect light distribution, and evenly light output. The standard length is 1M and 2M, the max length is 5 meters per piece and cuttable, the "L" and "-" connectors are sold separately, you can use them for the interior linear lighting project design.


  • Model: ALP092
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

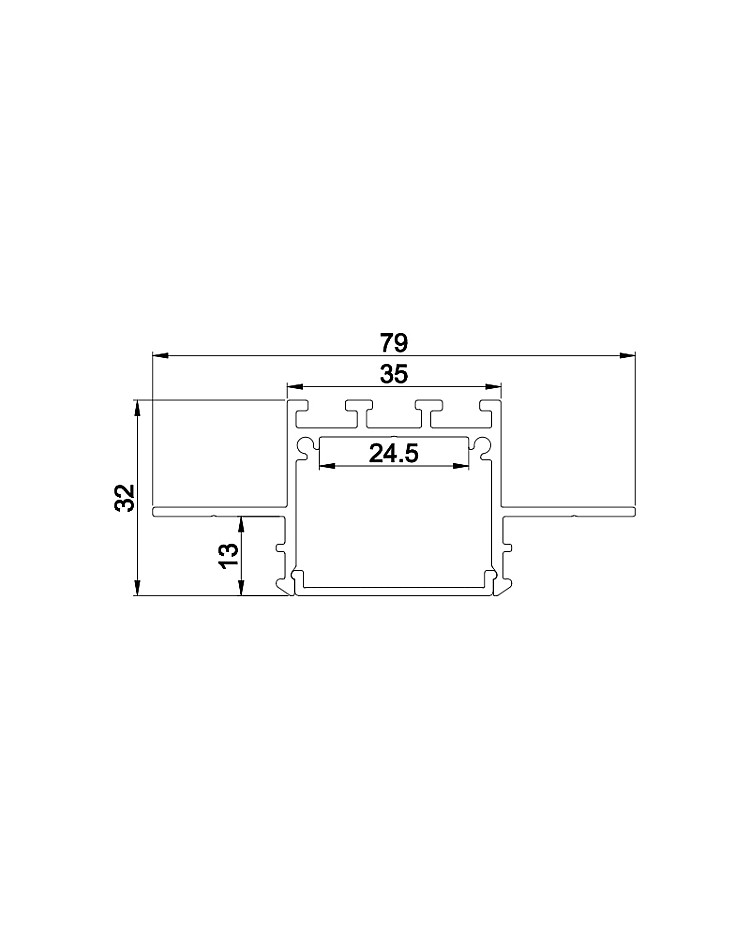

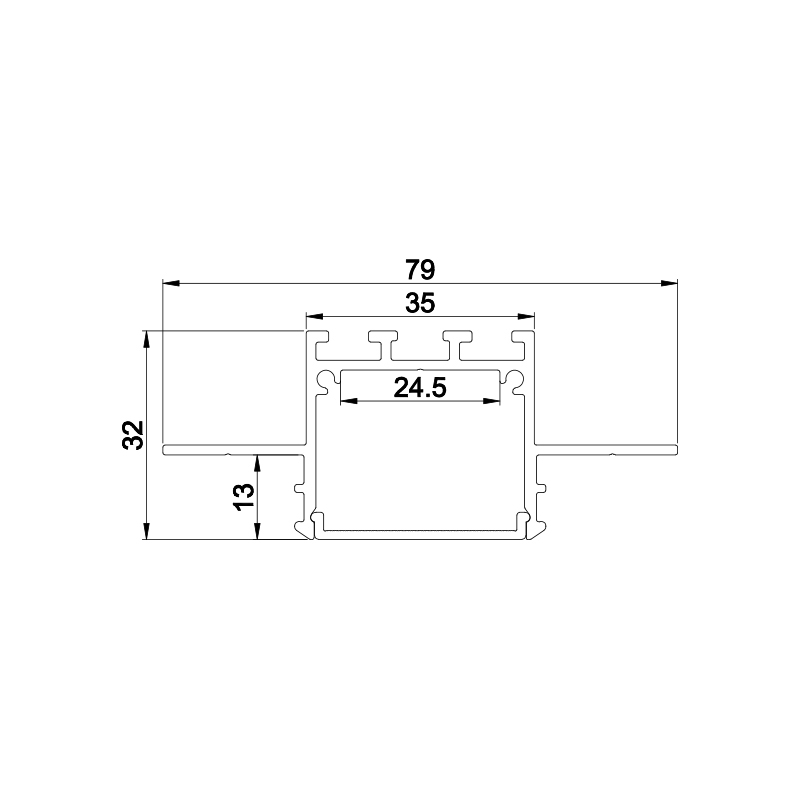

  • Size: 79*32mm(W*H)
  • Inner Width: 24.5mm
  • Compatible With Double Rows 8mm, 10mm, and 12mm COB Or SMD LED Strip Lights
  • Max Power: <25W/M
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M
  • Custom Length Available: YES
  • Diffusers: PC Opal Matte Diffuser, PC Semi-Clear Diffuser, PC Clear Diffuser

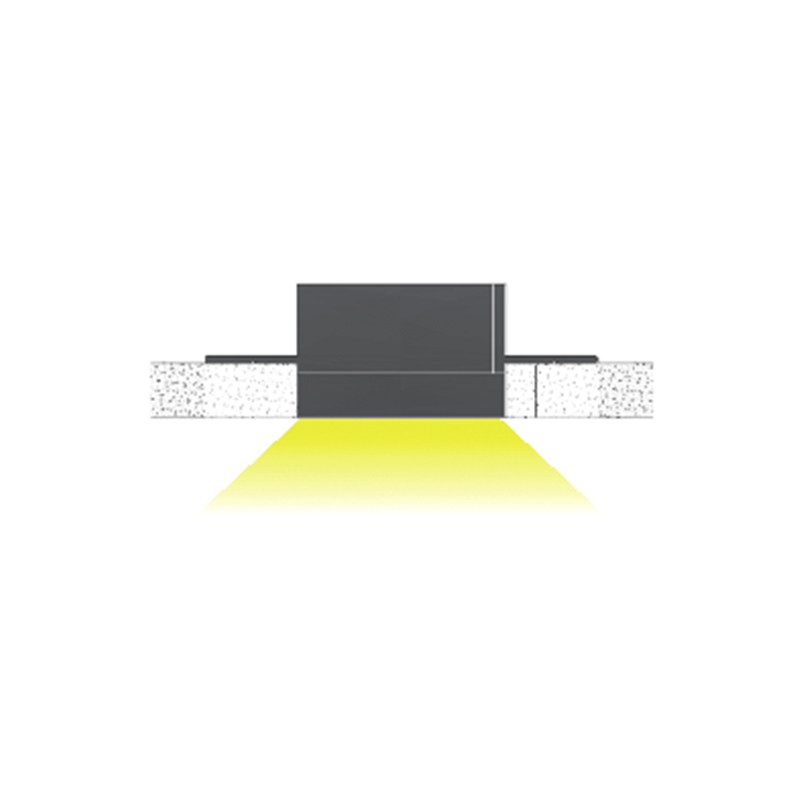

  • Installation: Recessed

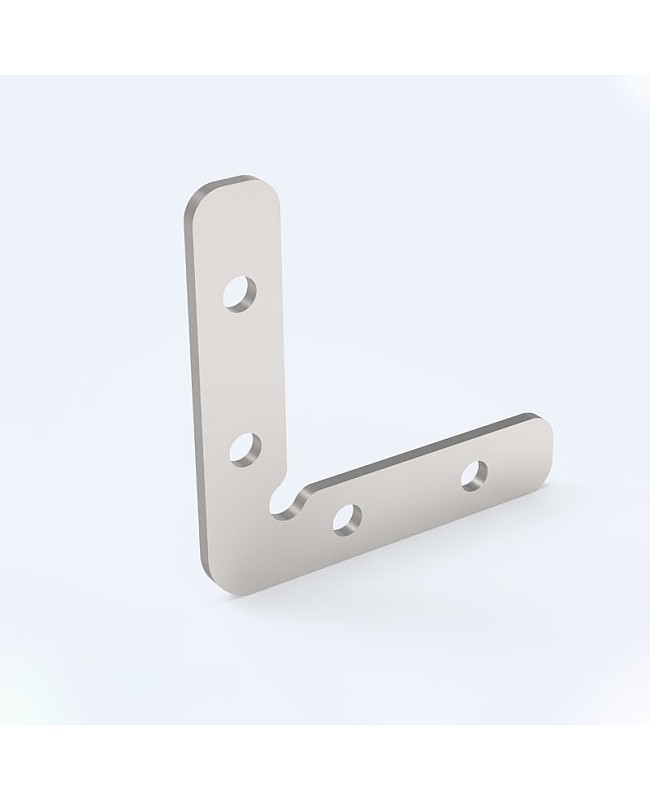

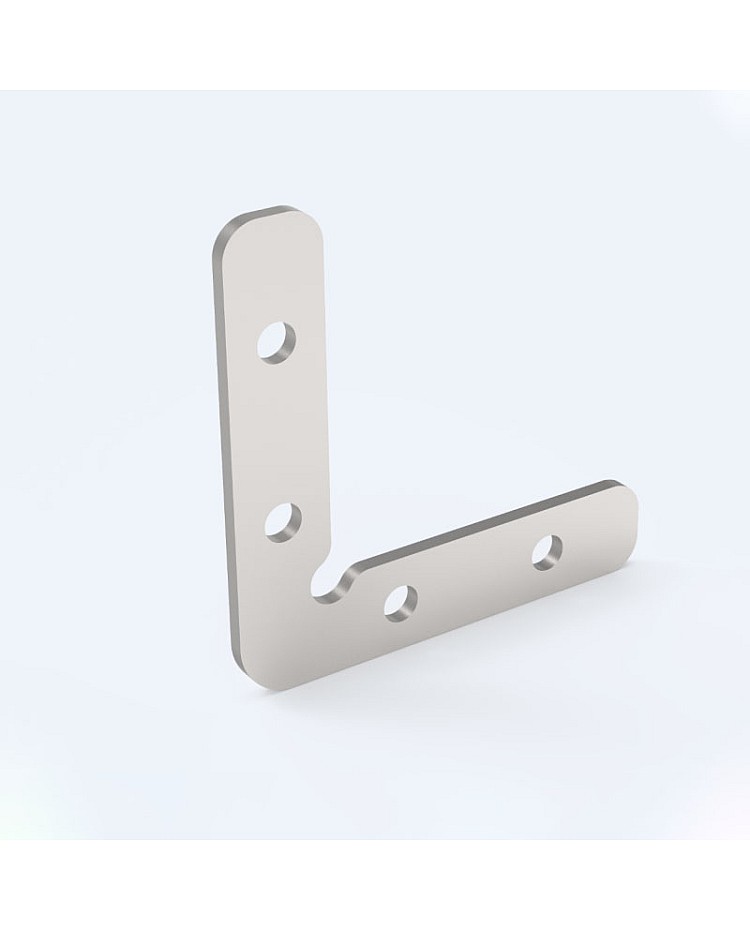

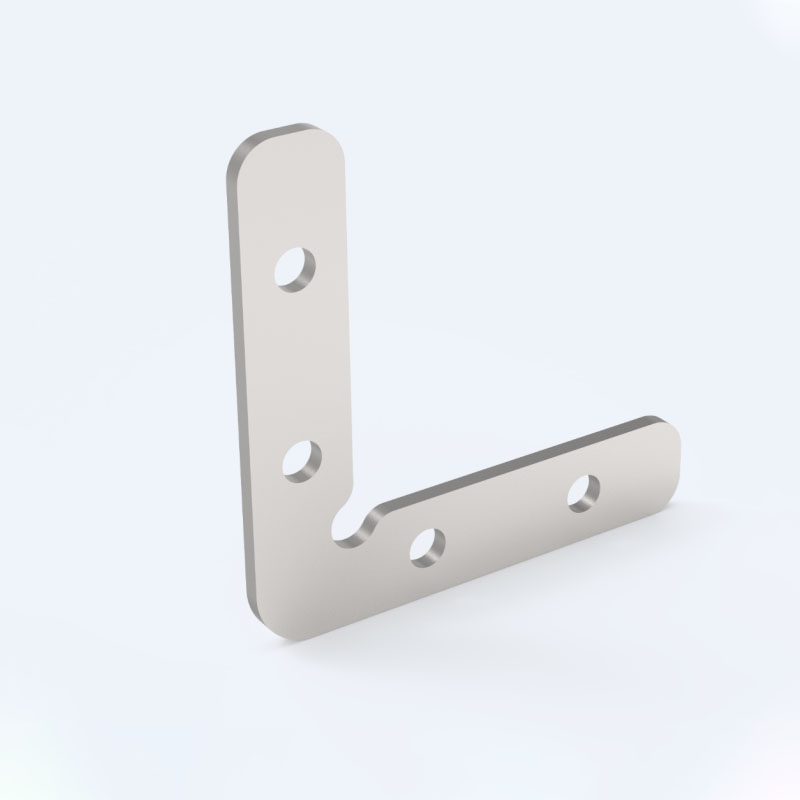

  • 180°,90° and 90° Vertical Connectors Sold Separately

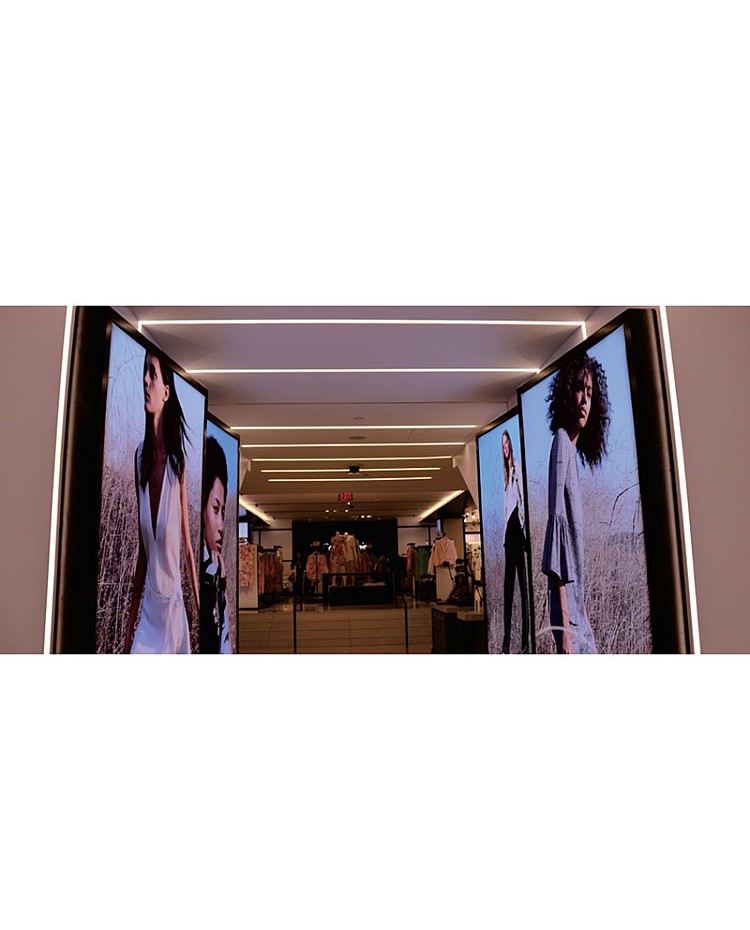

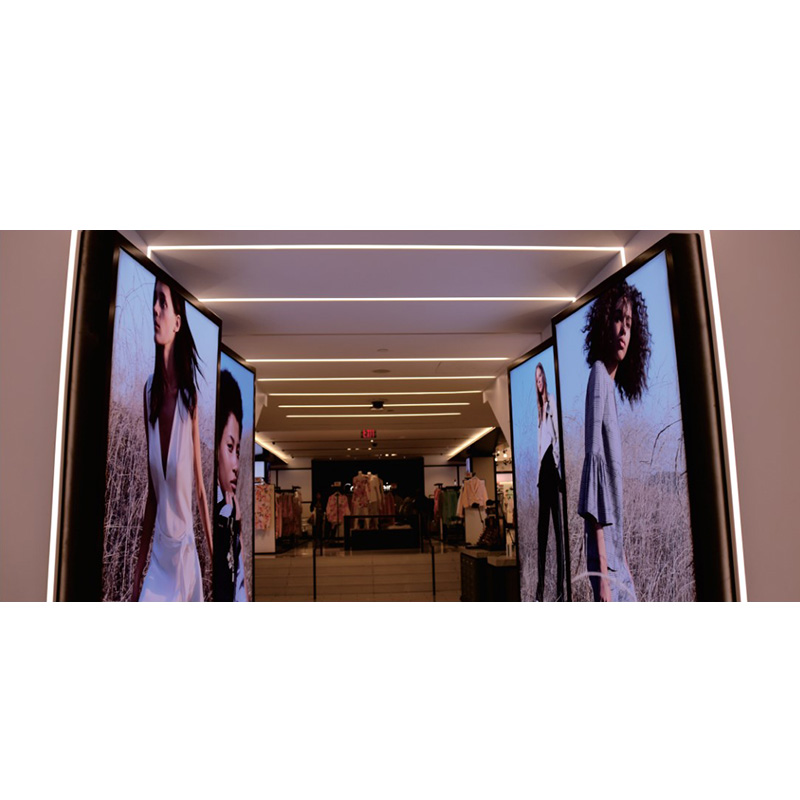

  • Applications: Fit For 12.5mm Thick Plasterboard Interior Linear Lighting Project
  • 5 Years Warranty


1*LED Drywall Profile With Diffuser

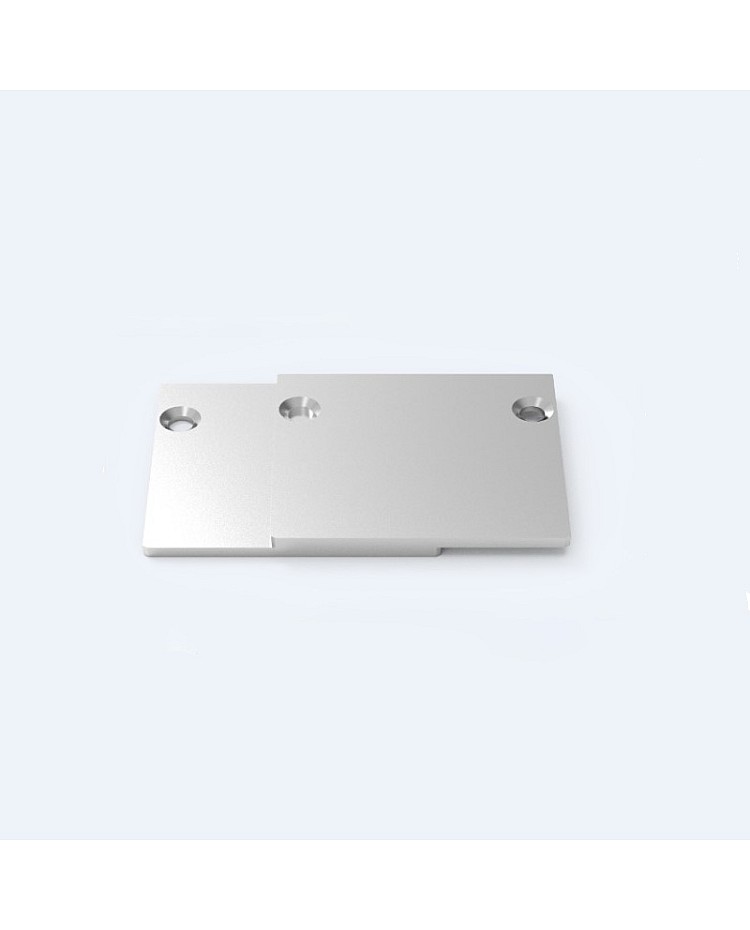

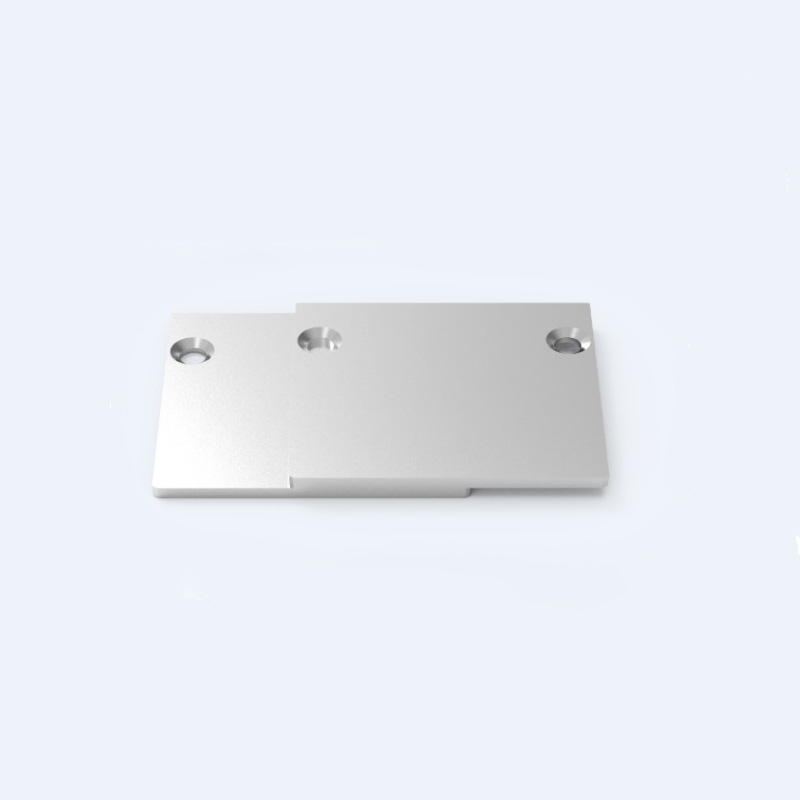

End Caps

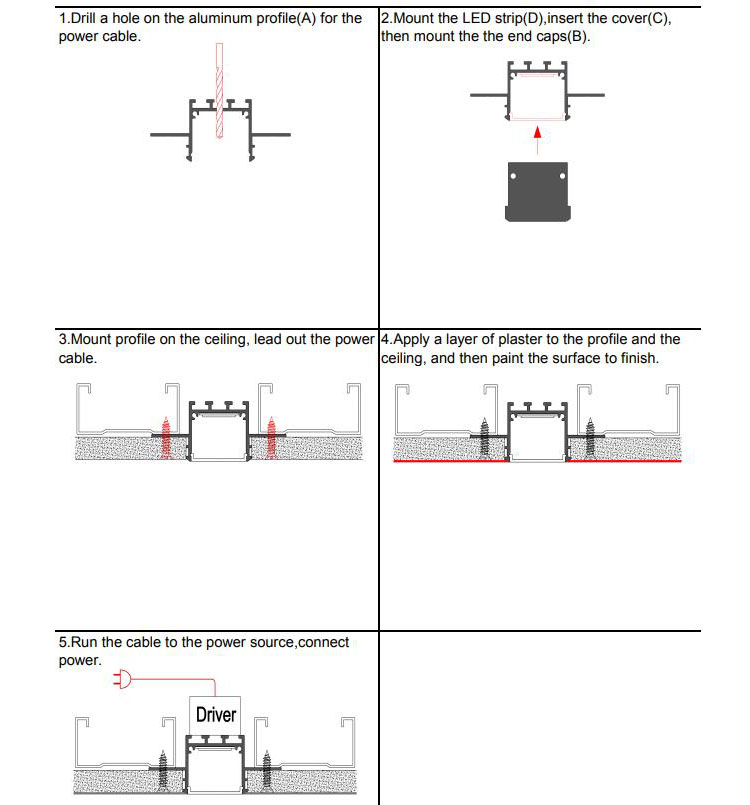

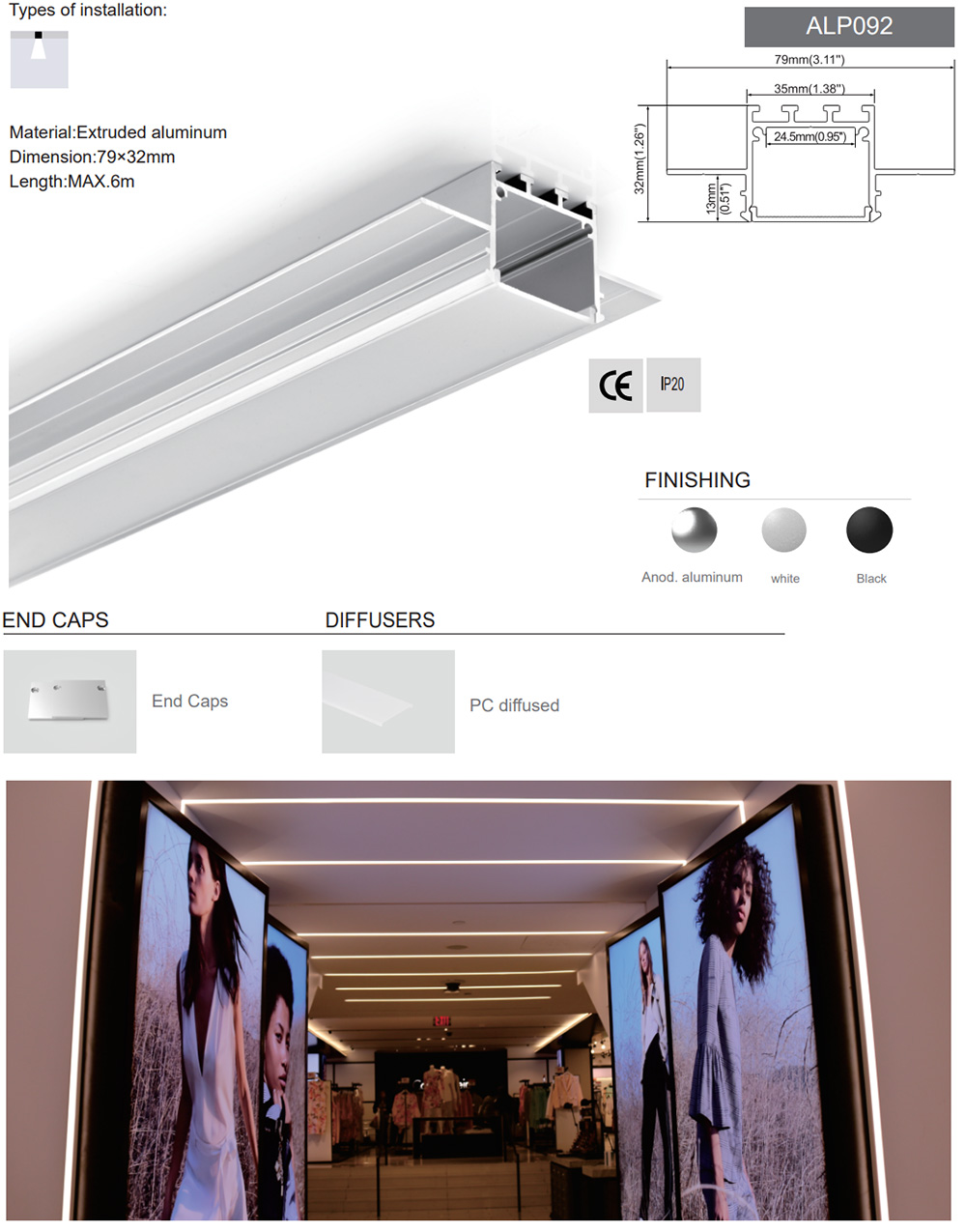

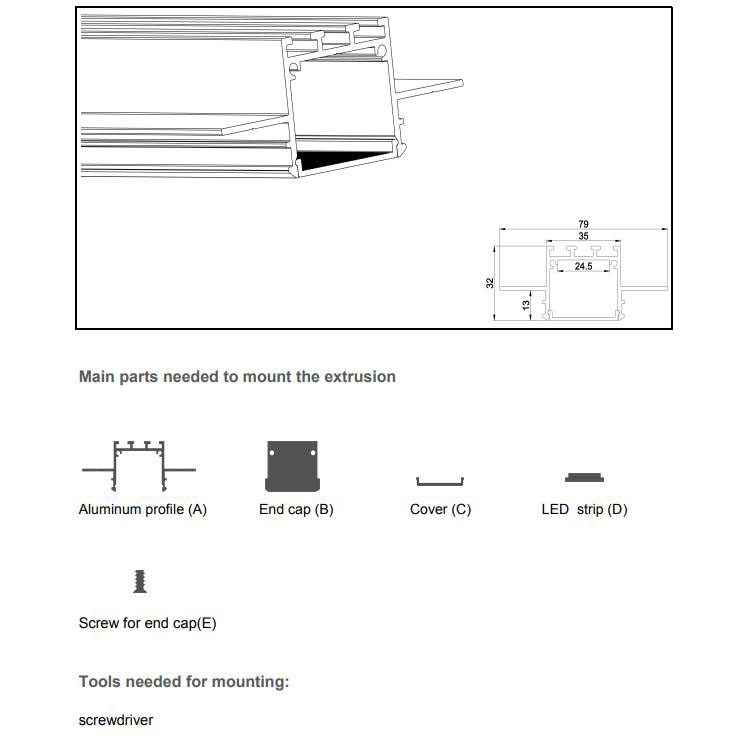

Recessed Drywall LED Channels Plaster Drywall LED Profiles How To Install Plaster Drywall LED Profiles
