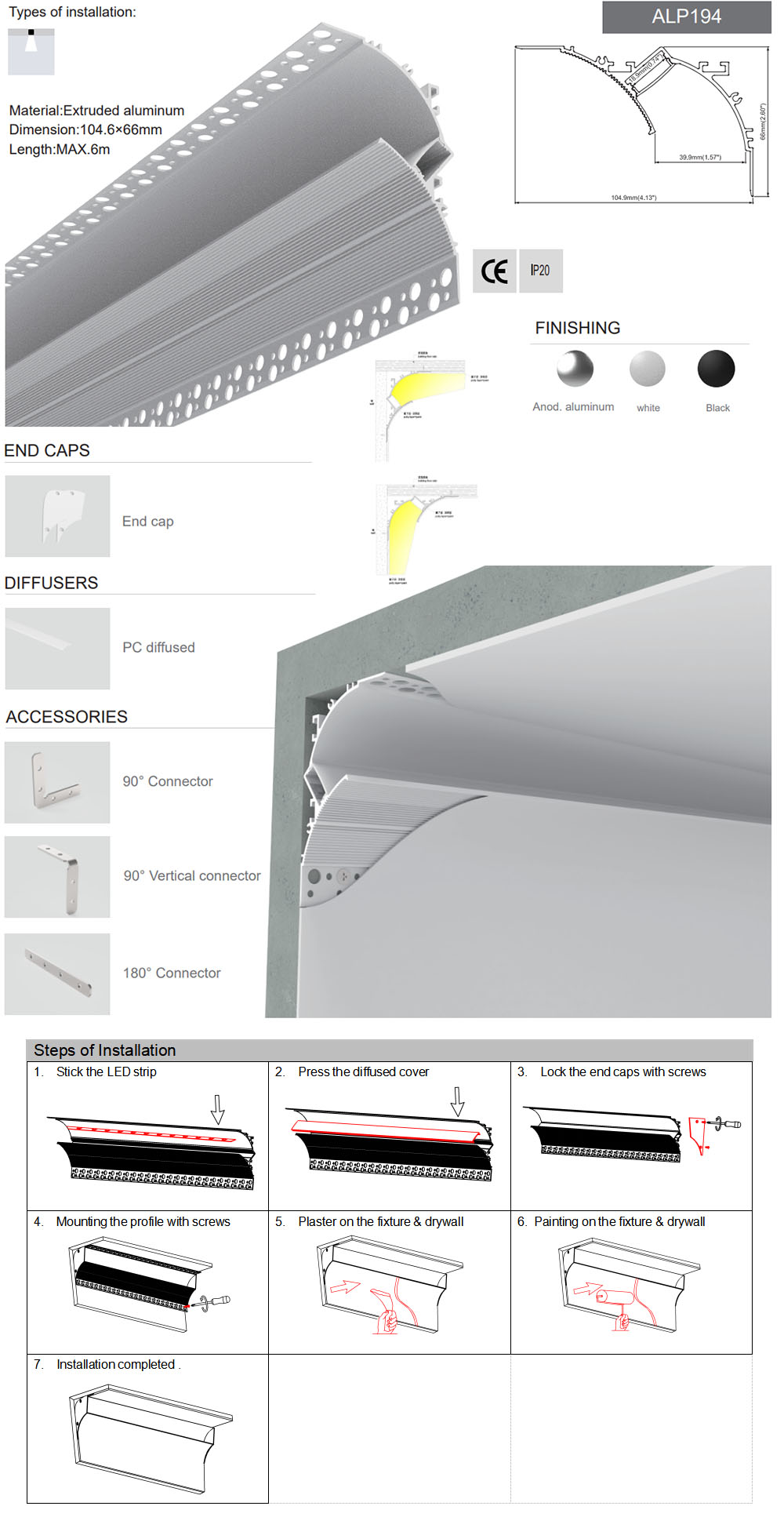

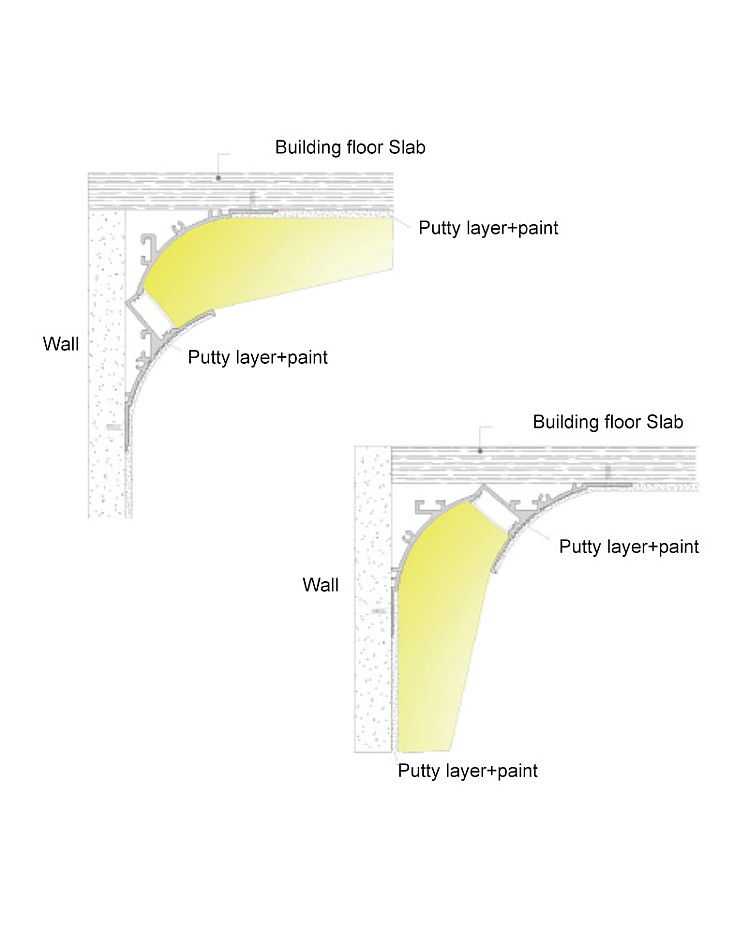

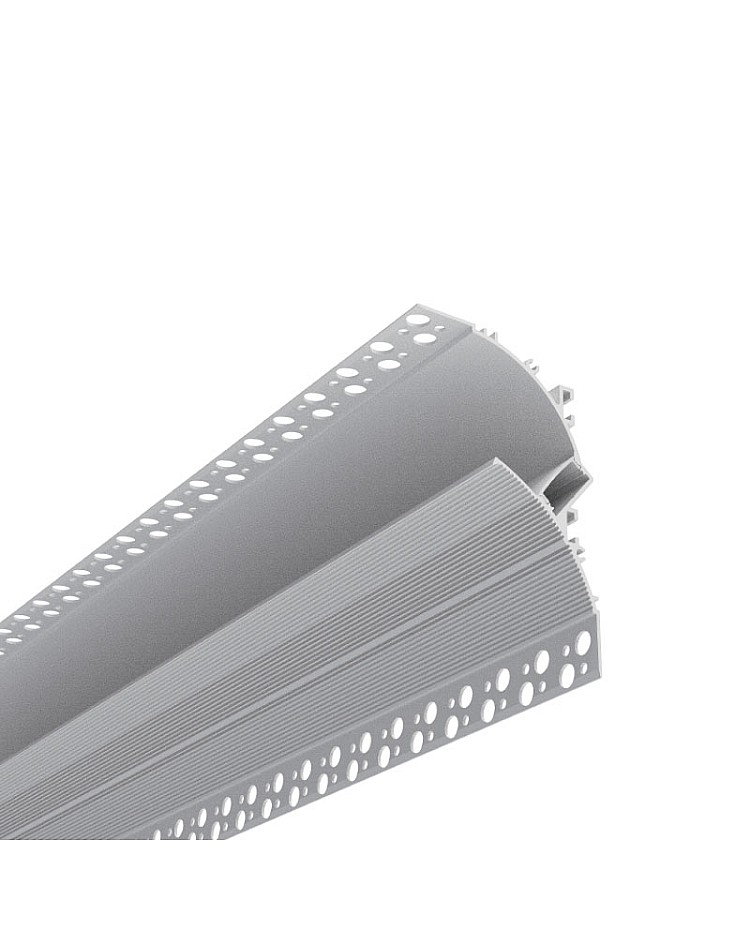

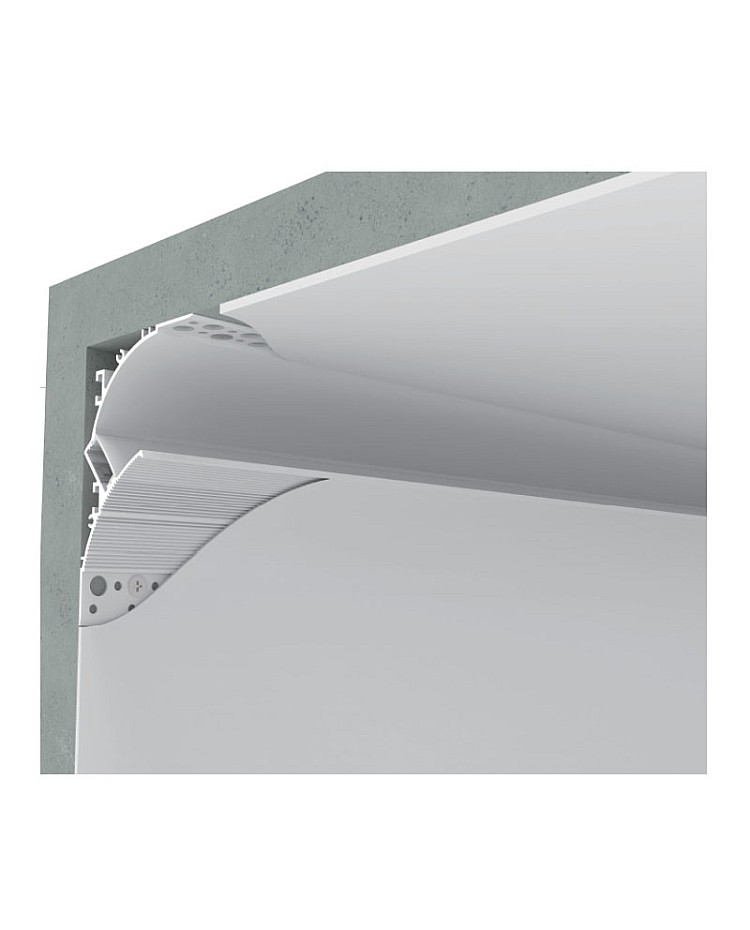

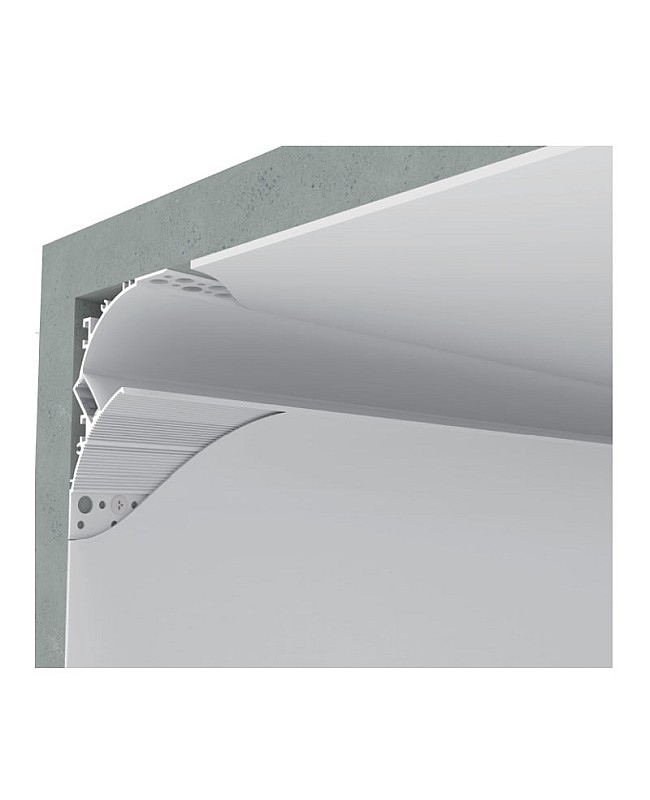

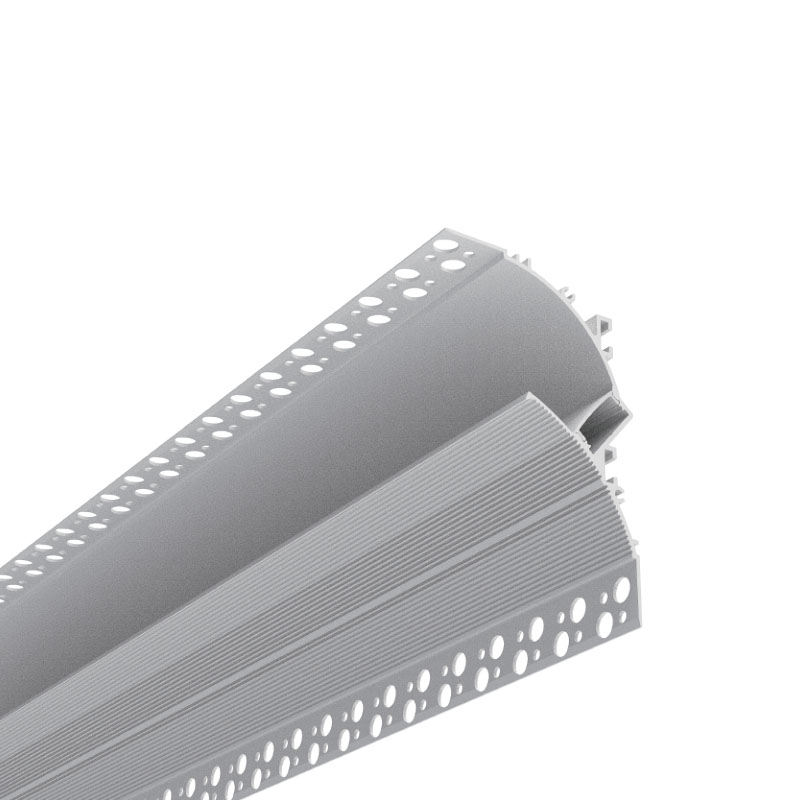

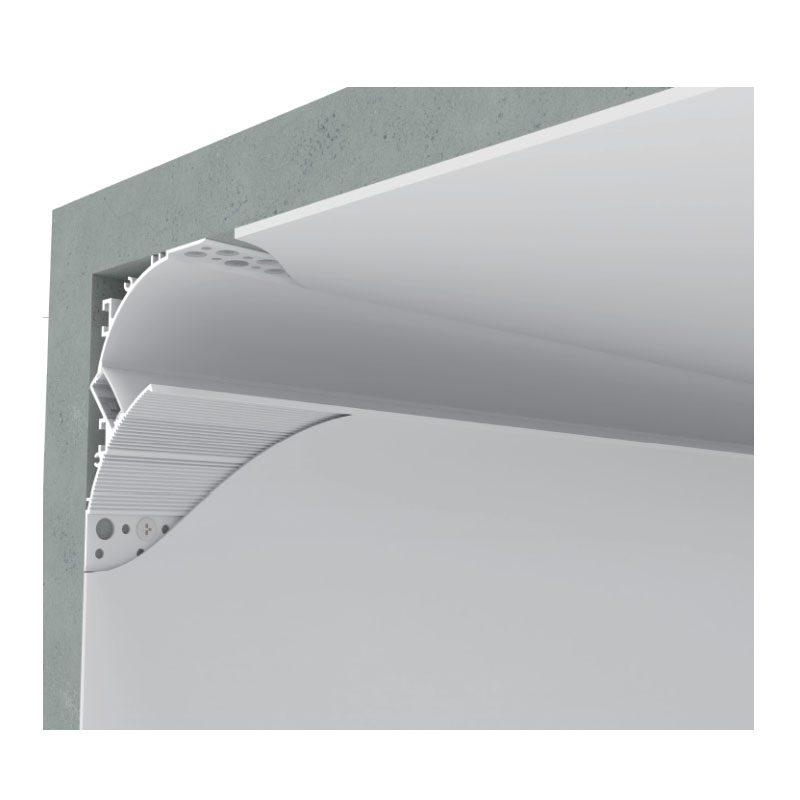

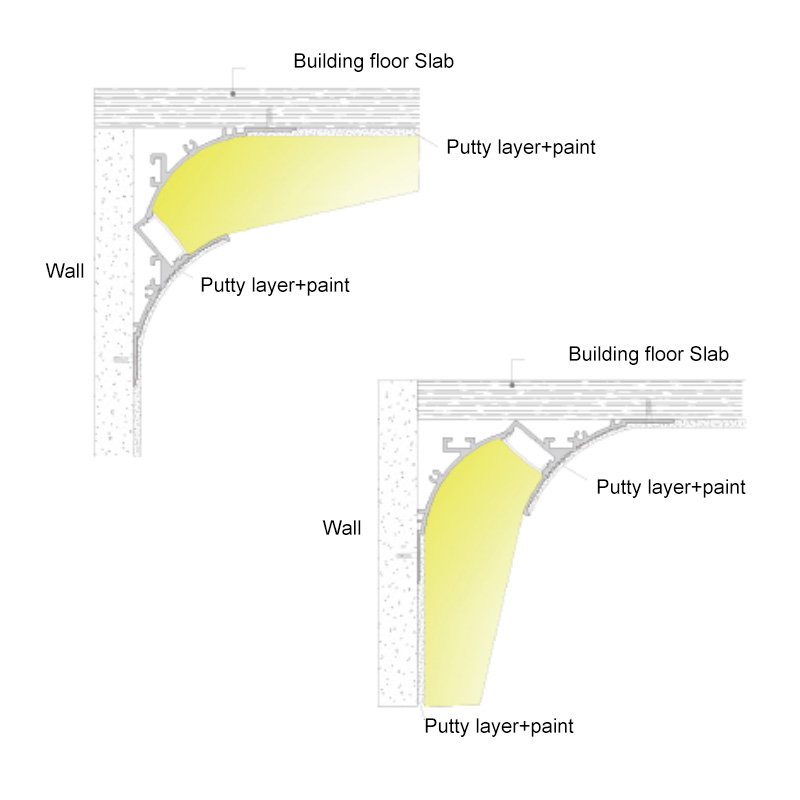

The Plasterboard LED channels are designed for indirect architectural lighting. They can be seamlessly embedded into wall and ceiling junctions for a seamless, trimless look. They feature a curved lighting design, and the light source faces outward at a 45° angle to bounce off the ceiling or wall, creating a soft, indirect glow. They can be installed upward for cove lighting or downward for wall washing lighting. The standard lengths are 1 m and 2 m, and can be cut to any length; custom lengths are also available. LED ceiling cove channels are made of 6063-T5 aluminum material and feature a white powder-coated surface treatment, providing oxidation resistance and effective heat dissipation. Only one type of diffuser is available: the PC diffused cover, made of imported brand material, is anti-yellowing and perfect for light distribution. The inner width is 18.9 mm, allowing for a maximum width of indirect LED lights of 18 mm. We recommend installing double rows of COB or rigid LED strips as the light source, with no visible light dots or dark areas. End caps are included. Three types of LED profile connectors are sold separately: 90°, 90° vertical, and 180° connectors for angled or straight connections.
Specifications:
- Model: ALP194
- Material: 6063-T5 aluminum

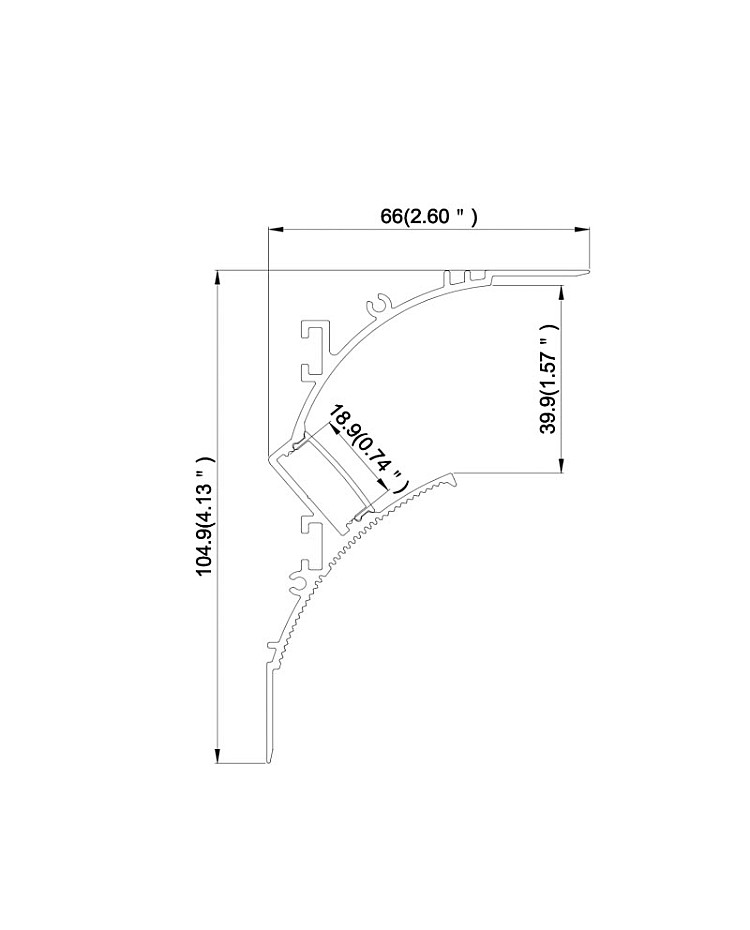

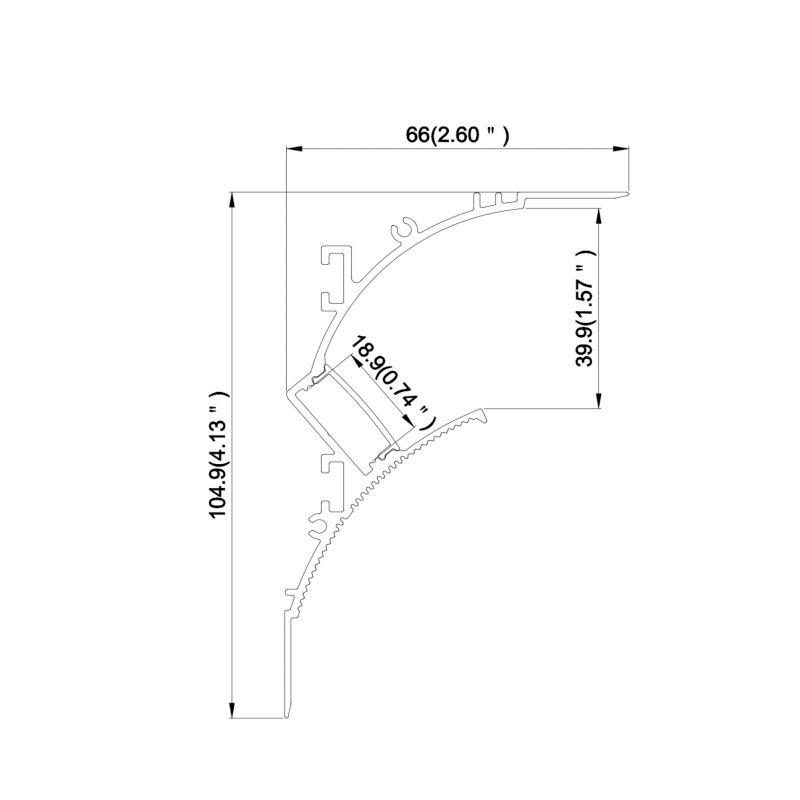

- Size( W x H ): 104.6 mm x 66 mm ( 4.12" x 2.6" )
- Surface treatment: Powder-coating
- Colors: White
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover
- Inner width: 18.9 mm ( 0.74" )
- Max width of LED sights: 18 mm ( 0.71" )
- Max power: 18W/m
- Beam angle: 100°

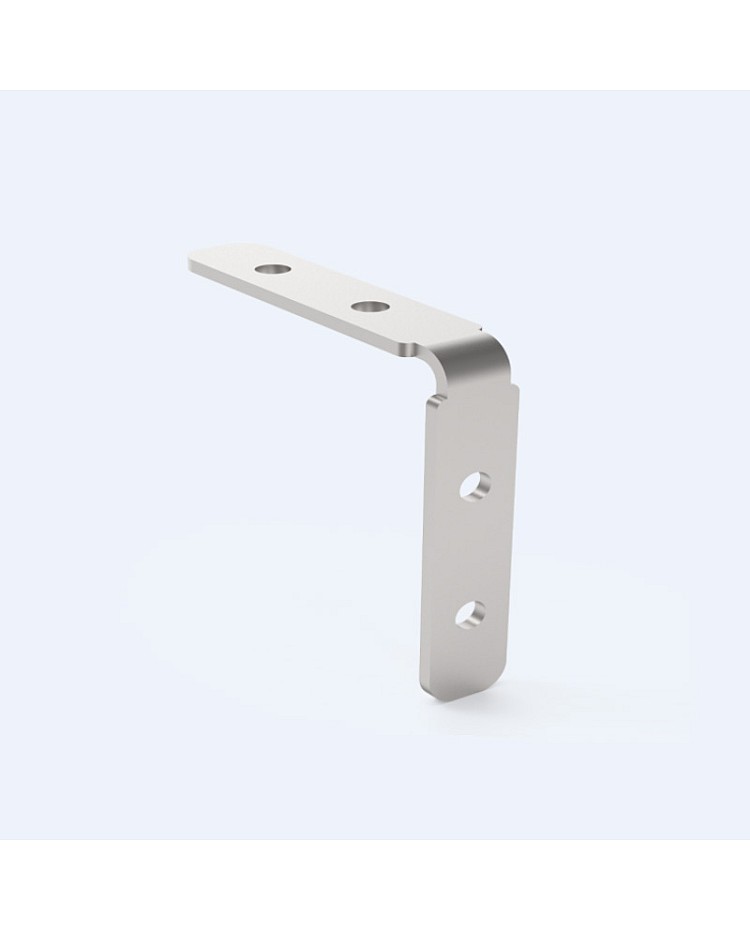

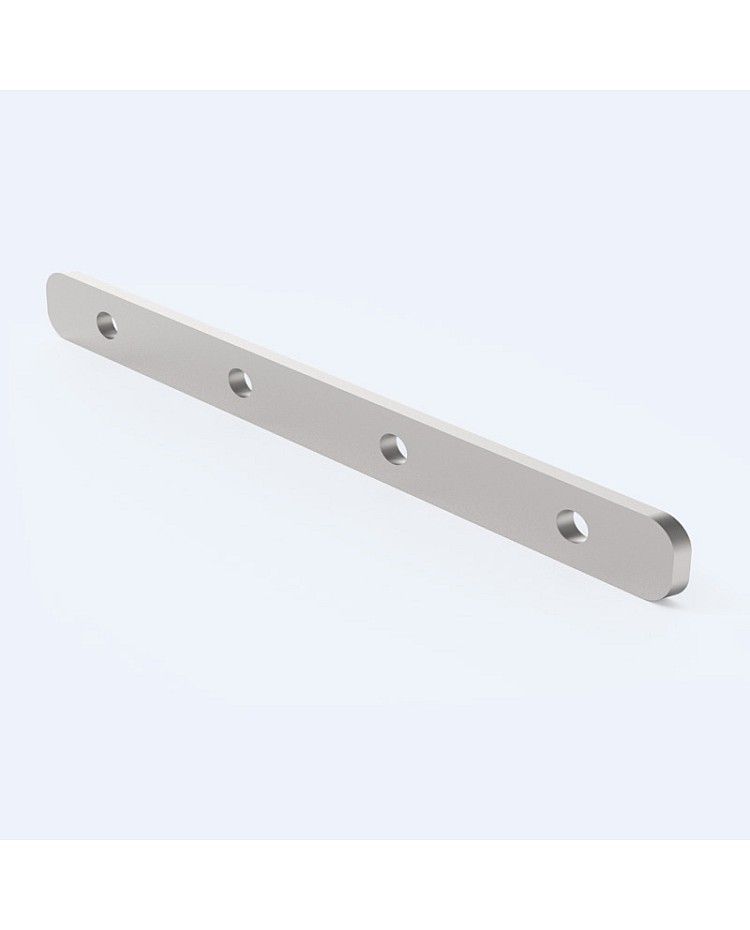

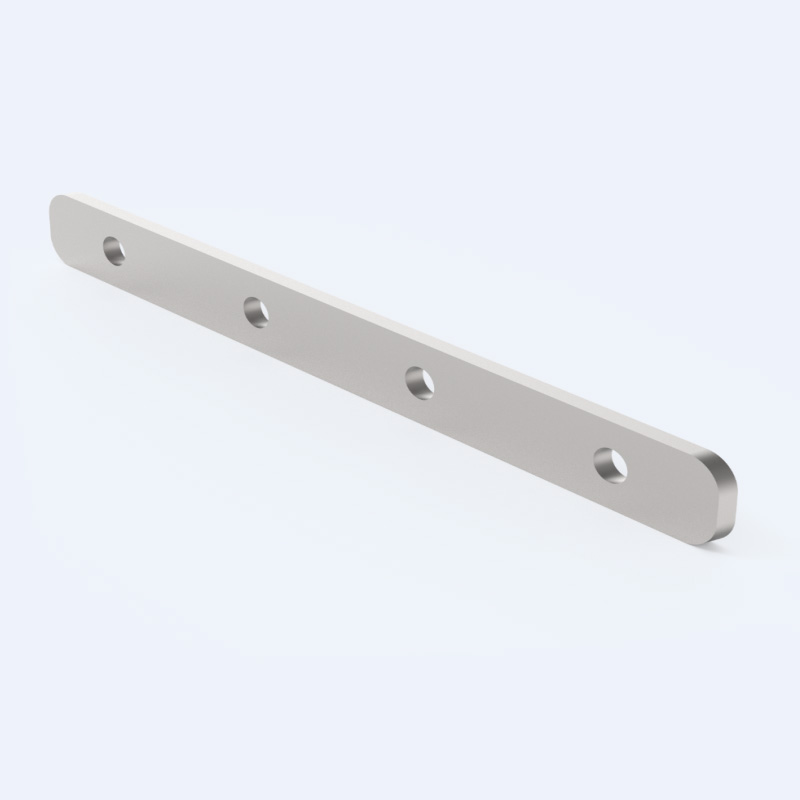

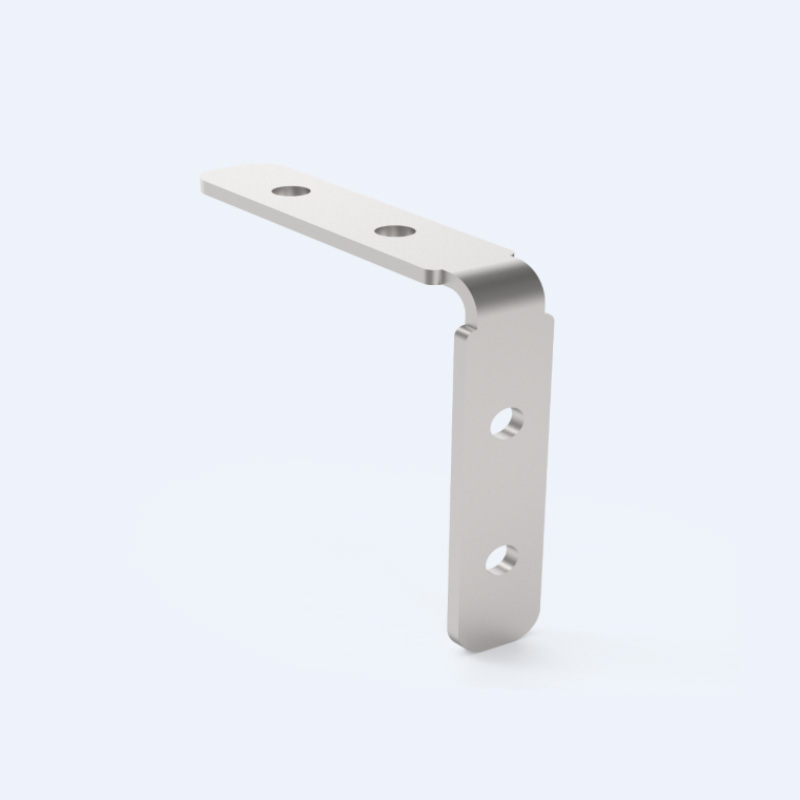

- 90°, 90° vertical and 180° connectors sold separately
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

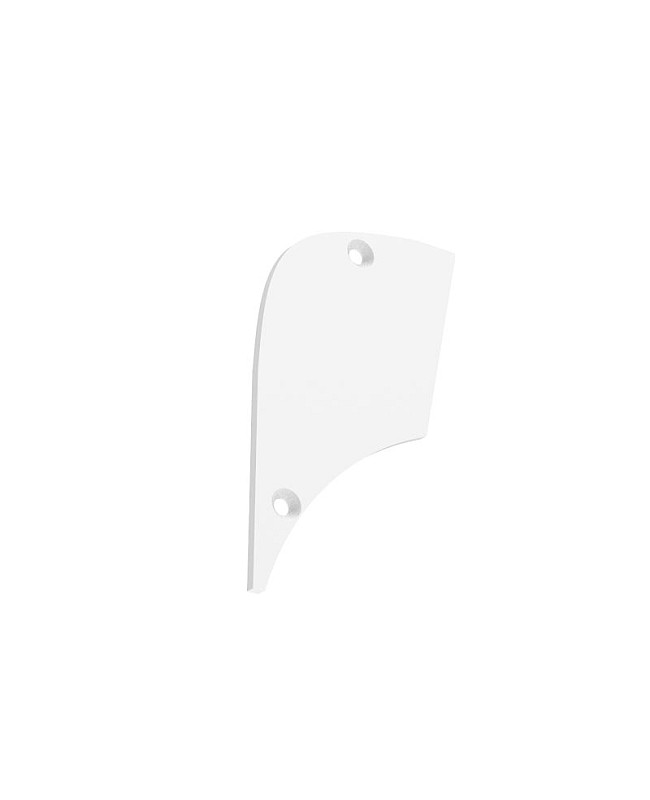

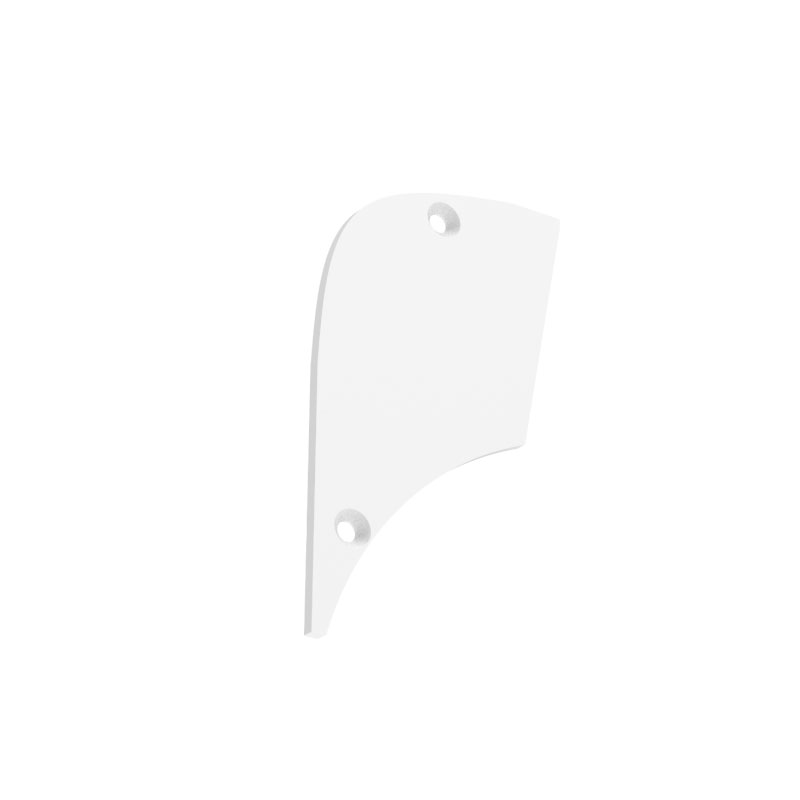

- End caps are included
- Installation: Surface mounting
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

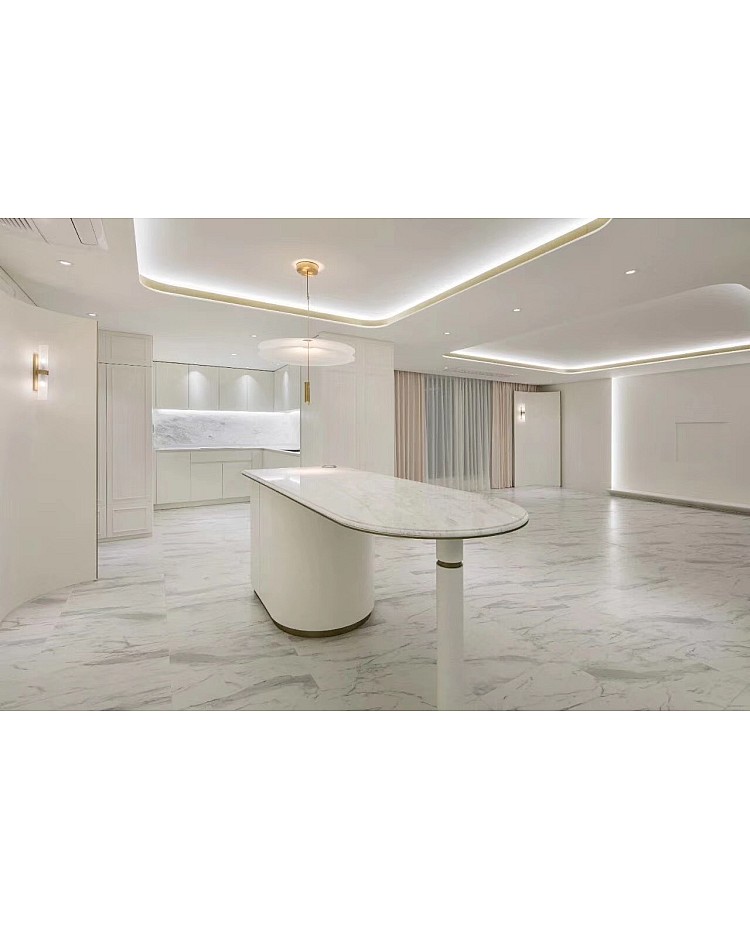

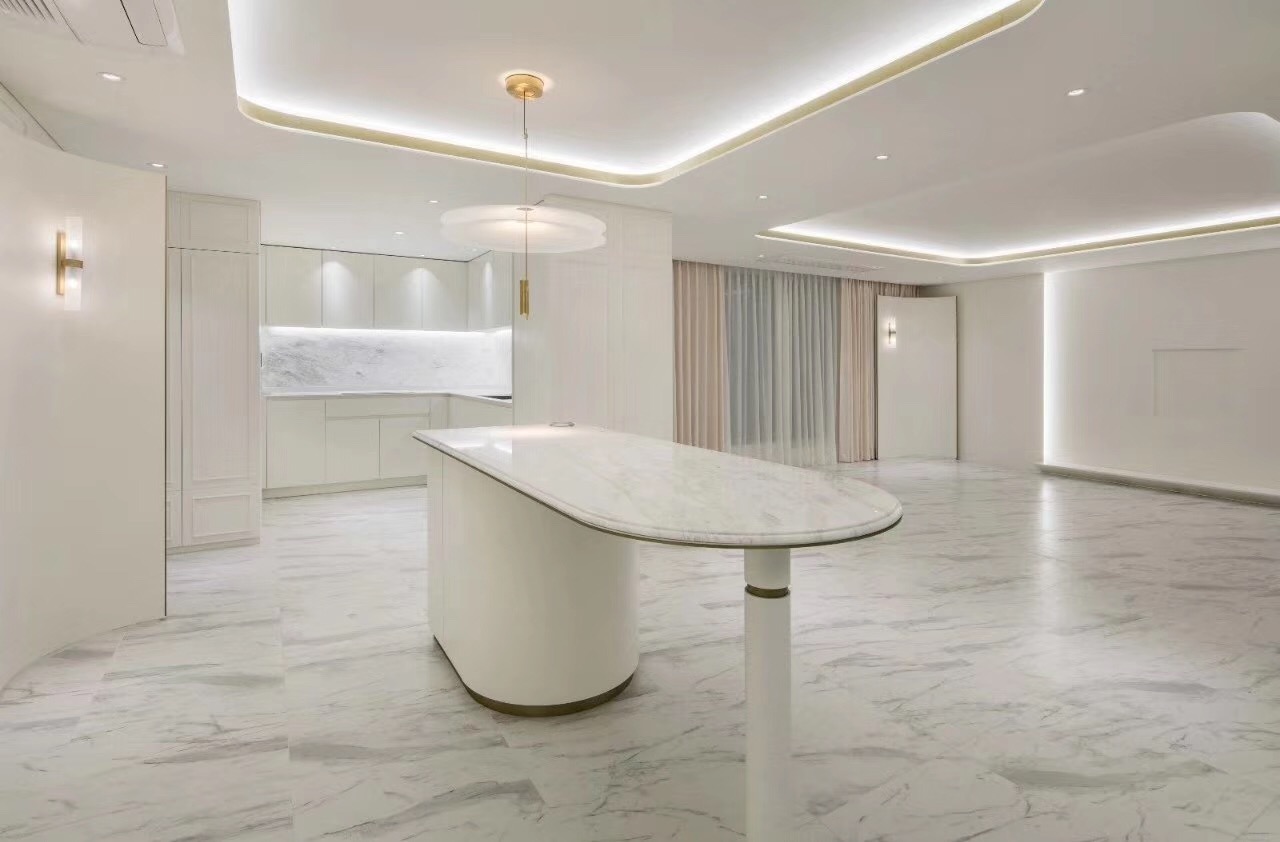

- Residential ceiling perimeter lighting
- Hotel lobby and corridor ambient lighting
- Museum and gallery wall-wash effects
- Theater and retail mood lighting
- High-end architectural and decorative lighting
Includes:
1 * 45° LED channel with diffuser
End caps
