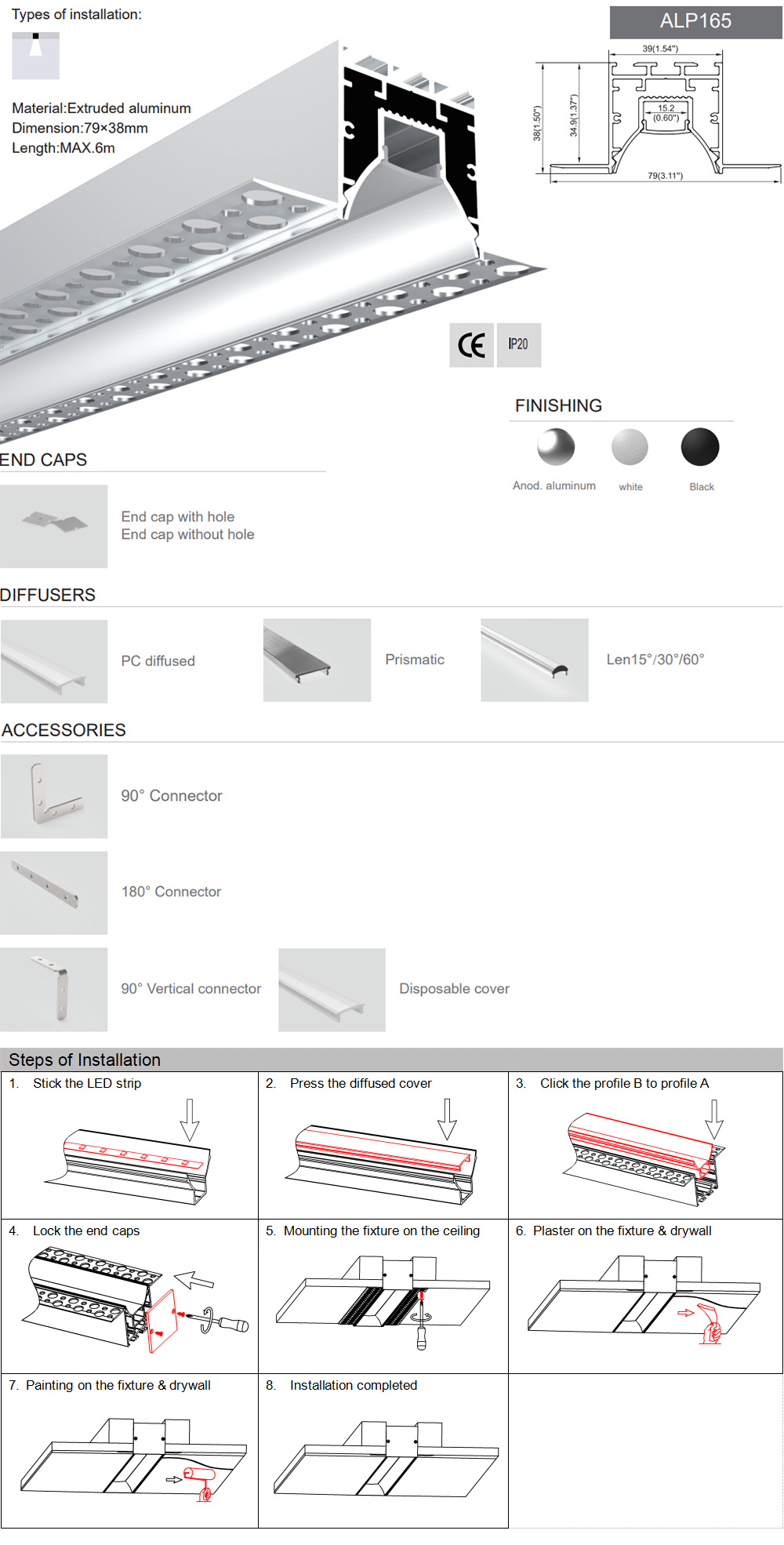

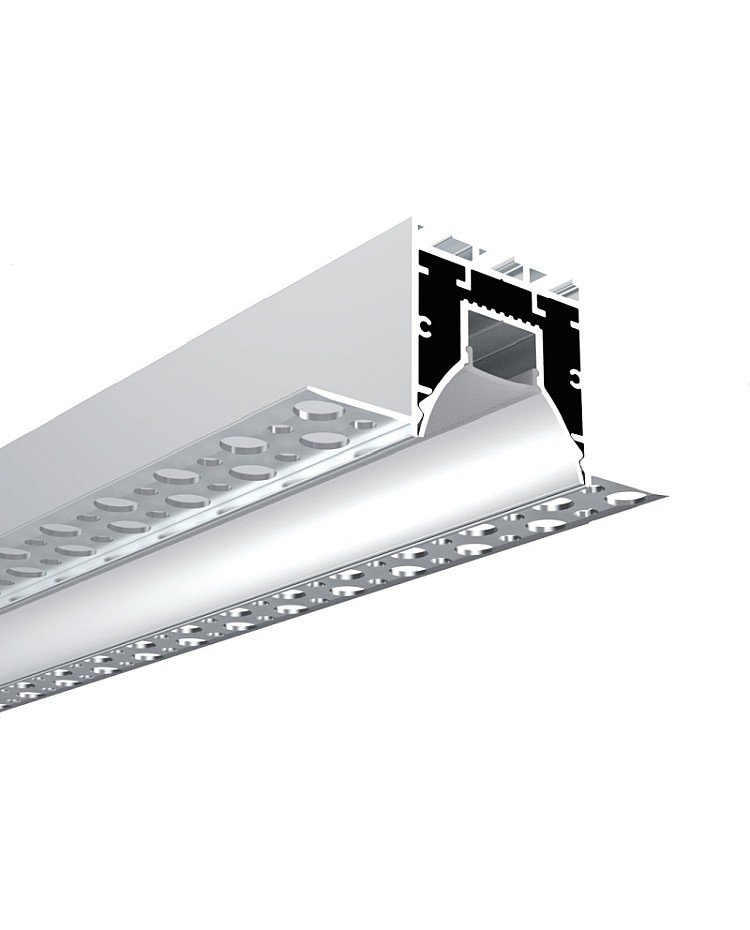

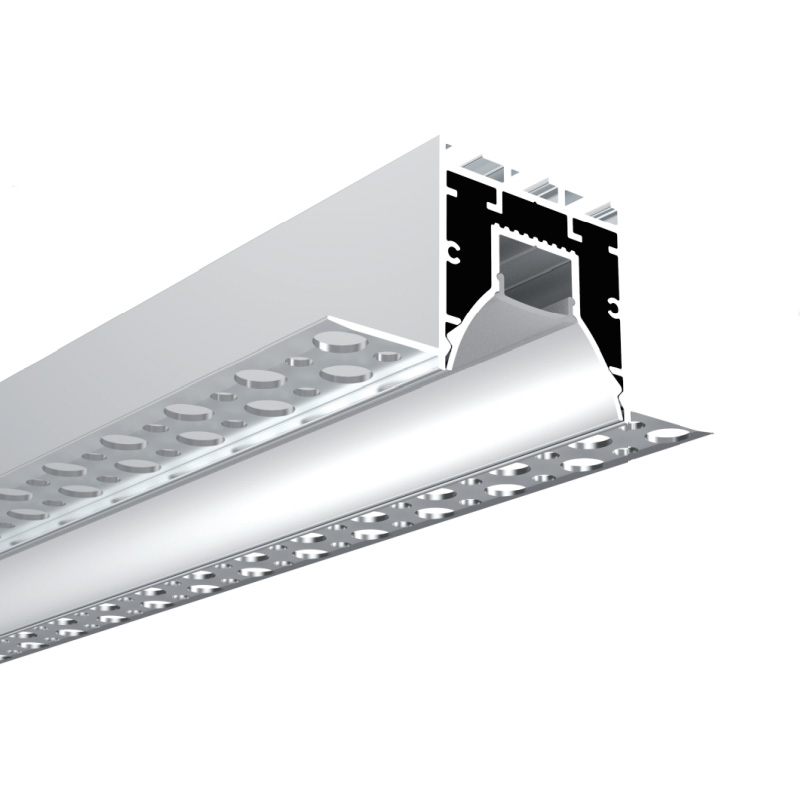

The ALP165 LED extrusion profiles with a regressed cover design offer a sleek, modern lighting solution that blends seamlessly into drywall and plaster ceilings. The deep, regressed diffusers will deliver soft, glare-free illumination ideal for high-end architectural and interior lighting applications. The trimless design allows for a clean, frame-free ceiling appearance. Creating continuous lines of light that complement contemporary spaces. They are widely used in living rooms, offices, hotels, retail spaces, and galleries. The regressed cover design ensures uniform light distribution while hiding LED hotspots, making it ideal for both general and accent lighting. The stock lengths are 1 m and 2 m, and can be cut to any length for your project; custom lengths are available. The trimless light profiles are made from 6063-T5 aluminum with anodized surfaces for oxidation resistance and a longer lifespan. The inner width is 15.2 mm, allowing a maximum light strip width of 12 mm. The aluminum base serves as a heat sink, improving heat dissipation and extending the lifespan of LED tapes. There are 8 types of diffusers available, each made from high-quality materials, featuring anti-yellowing properties, and providing perfect lighting distribution and smooth light output. The 90°, 90° vertical, and 180 joiners are sold separately; you can use them to connect the plasterboard LED profiles for angled or straight connections.
Specifications:
- Model: ALP165
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

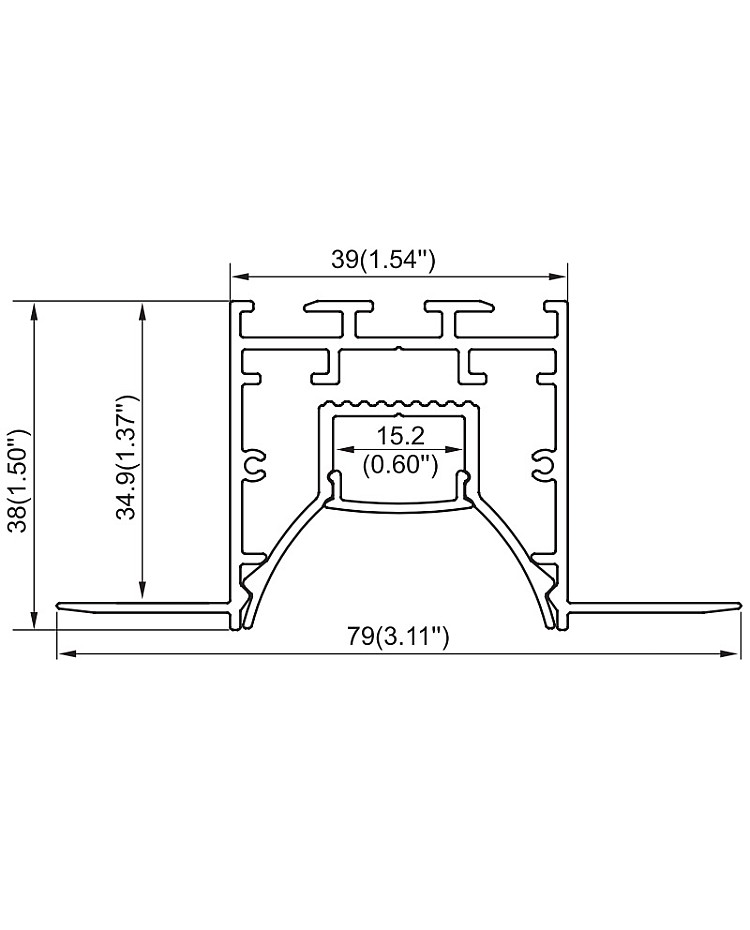

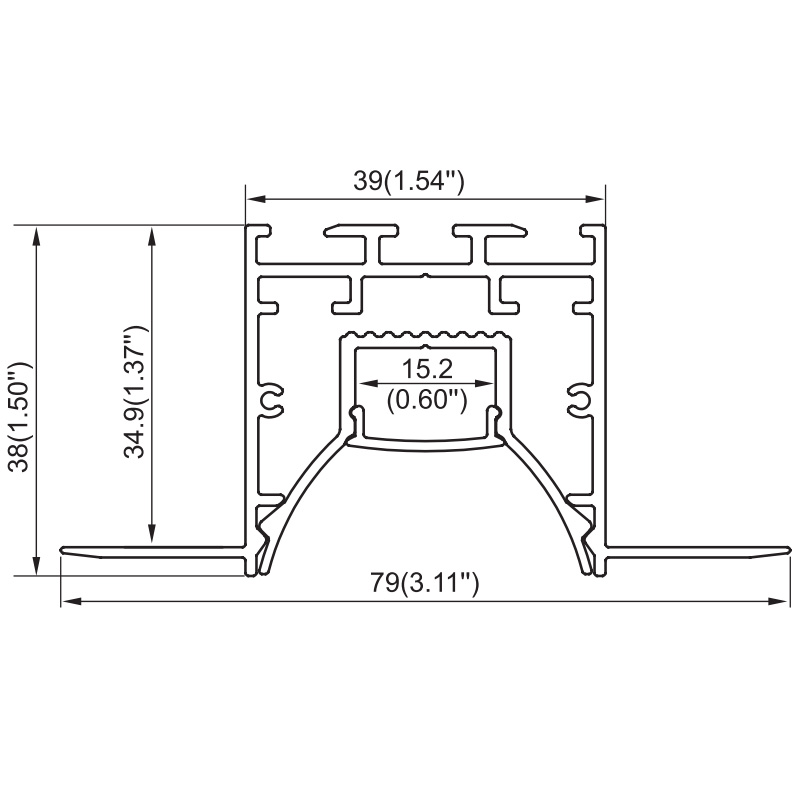

- Size ( W x H ): 79 x 38 mm / 3.11" x 1.5"
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover, PC semi-clear cover, prismatic cover
- Inner width: 15.2 mm / 0.6"
- Max width of LED strips: 12 mm / 0.47"
- Max power: 18W/M
- Beam angle: 90°
- Tolerance: ±1%
- IP rating: IP20 non-waterproof
- Installation: Recessed

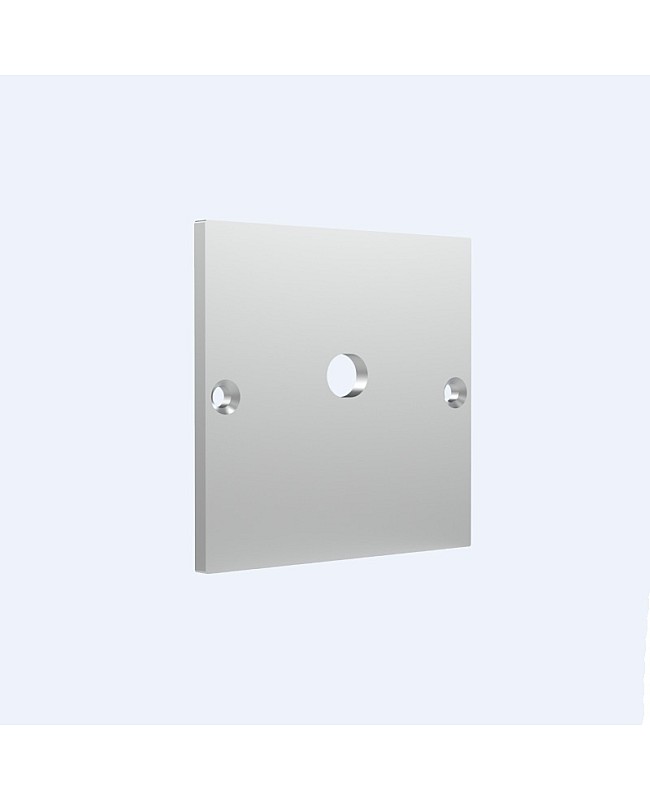

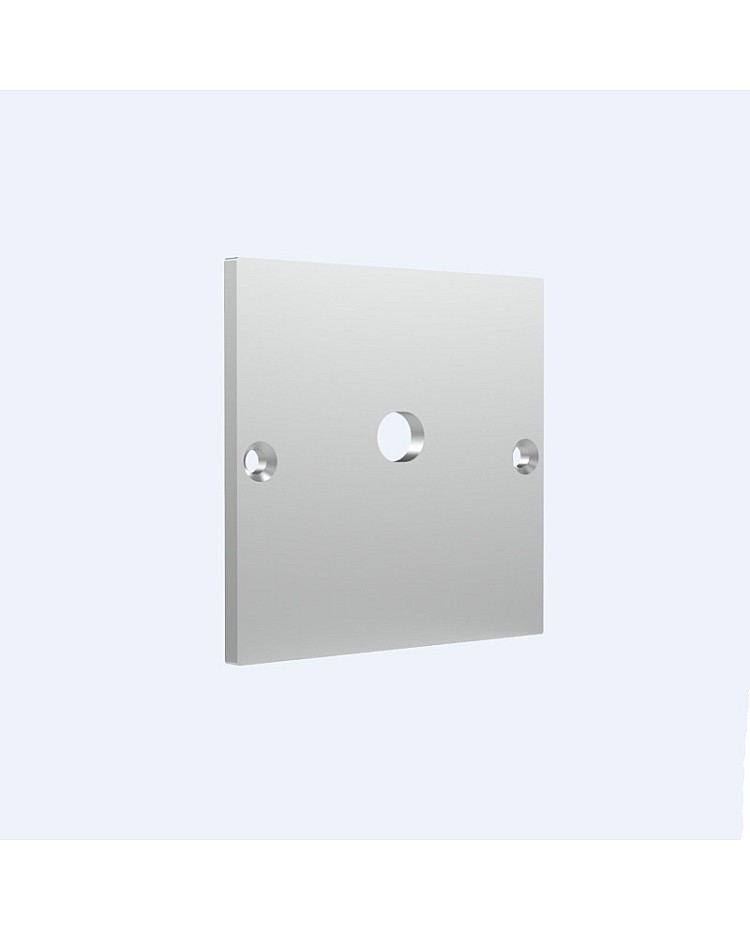

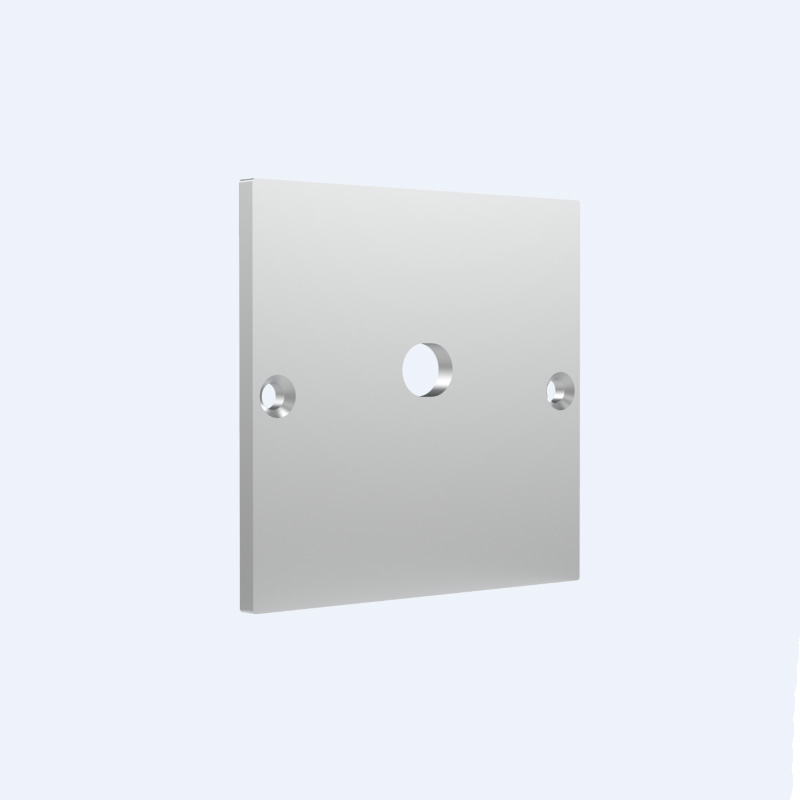

- End caps with and without wire holes are included

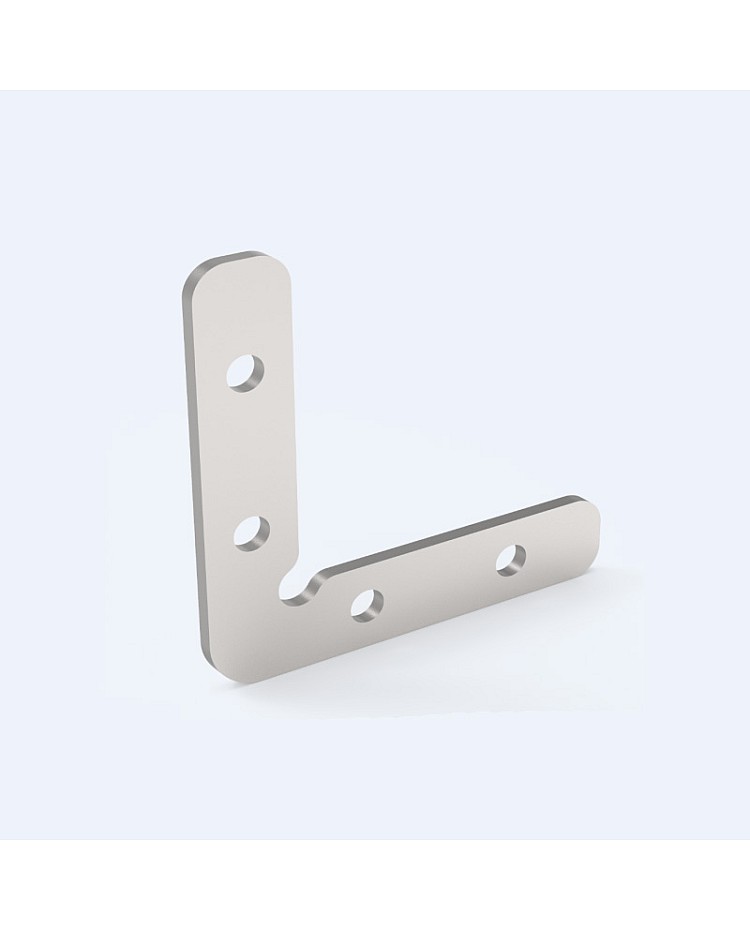

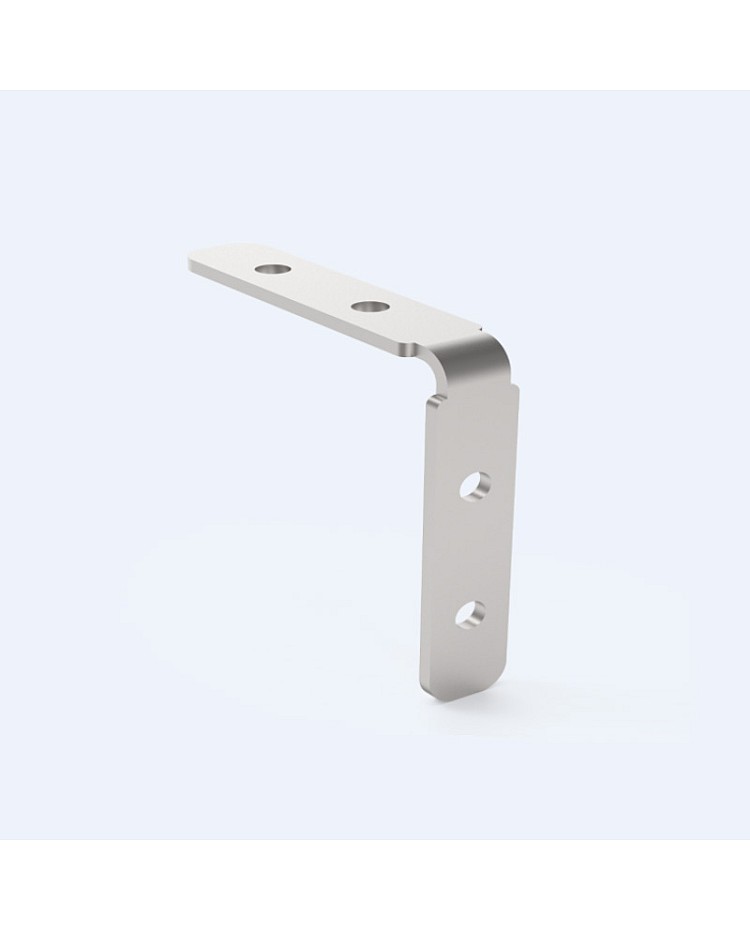

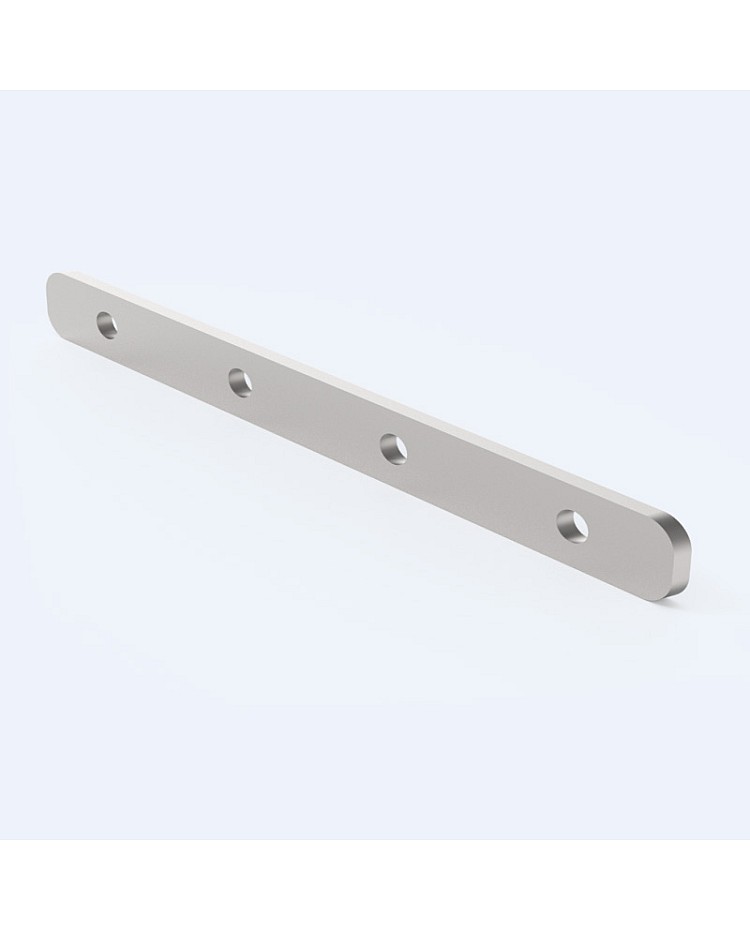

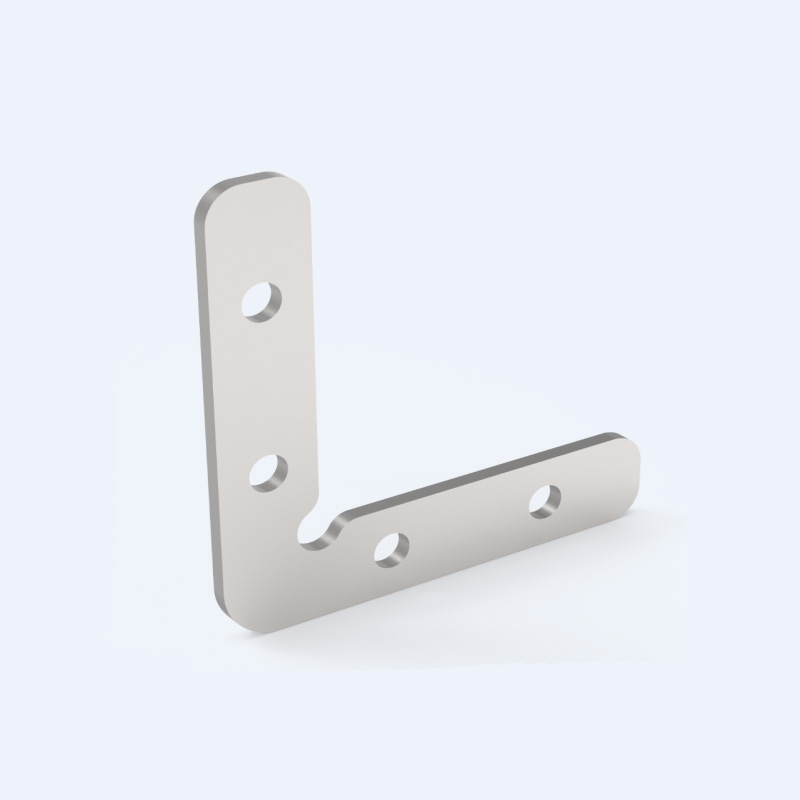

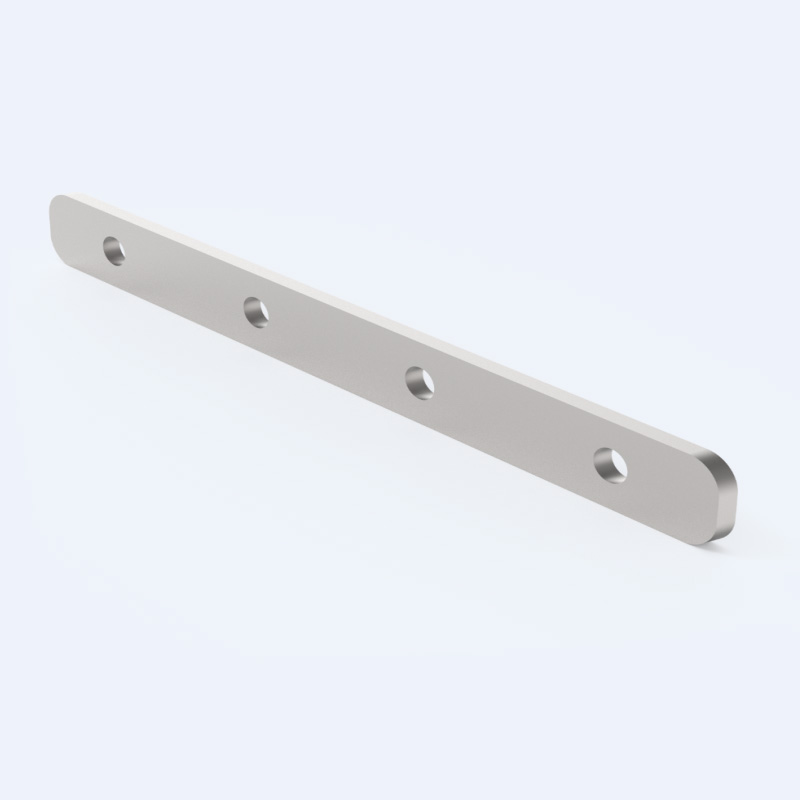

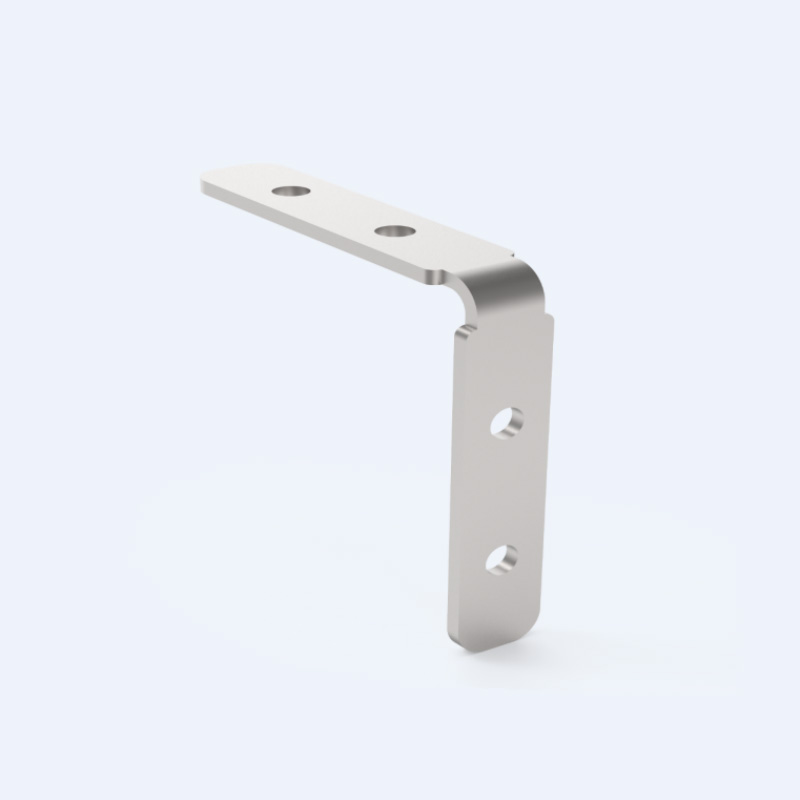

- 90°，90° vertical, 180° joiners are sold separately
- Warranty: 5 years
Applications:
Commonly used in modern interior and architectural lighting:
1. Living rooms & lounges: Create seamless, glare-free ceiling lighting for a clean architectural look.
2. Bedrooms: For soft-perimeter or cove illumination, providing indirect ambient light.
3. Kitchen & dining areas: Highlight countertops or dining zones while maintaining a flush, minimalist ceiling finish.
4. Home theaters: Regressed design minimizes glare and enhances visual comfort in low-light environments.
5. Office & meeting room ceiling: Ideal for uniform task lighting with minimal glare; blends seamlessly into gypsum ceilings.
Includes:
1 * LED extrusion profile with diffuser
End caps (With/without wire hole)
