In Stock
$8.99
Reward Points: 9
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP142

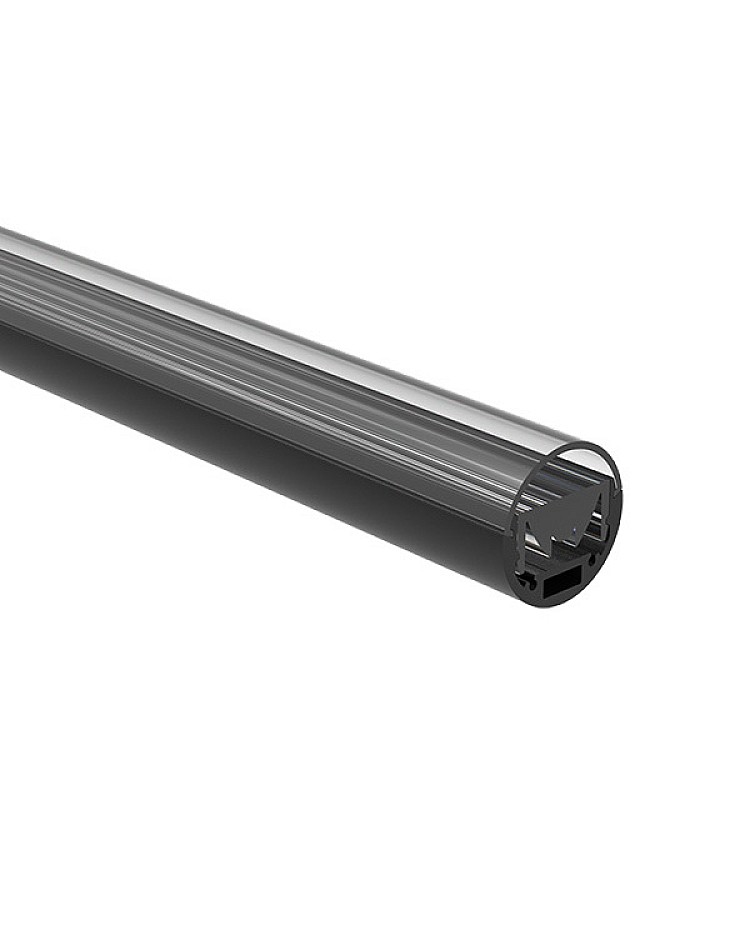

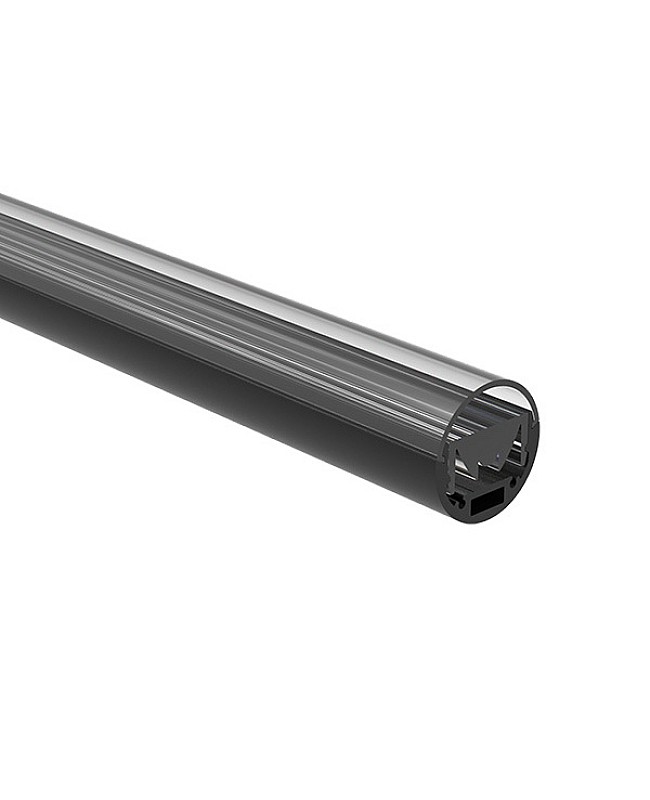

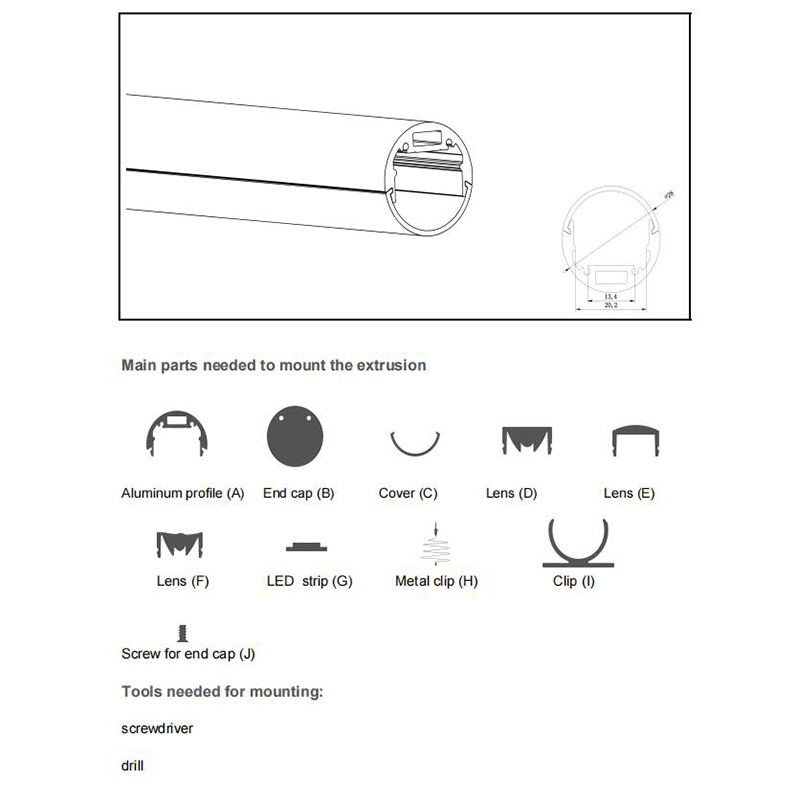

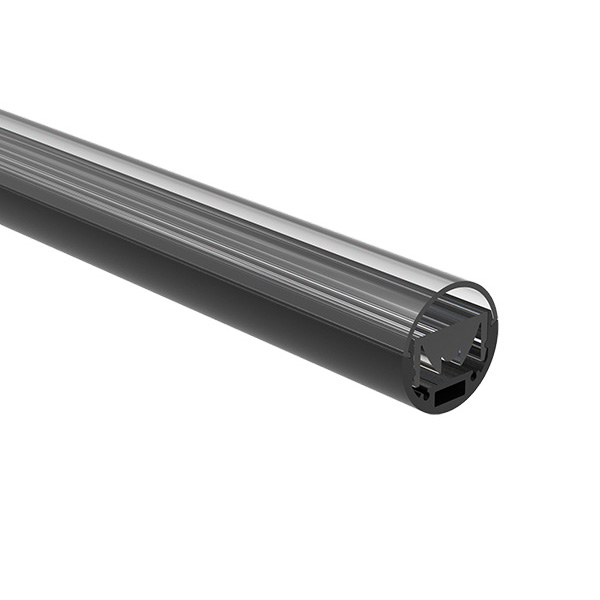

The round black LED extrusions, with a diameter of 28mm, can be mounted on walls and ceilings for accent lighting, task lighting, and more.  There are ALP142-A models and ALP142-B models available for indirect lighting. There are four types of covers available: 30 ° lens + PC diffused cover, 60° lens + PC diffused cover, wall grazer lens + PC diffused cover, and PC diffused cover for various lighting effects. The LED extrusion is made of 6063-T5 aluminum material with an anodized black surface treatment, providing anti-oxidation resistance and a longer lifespan compared to similar products. The standard lengths are 1 m and 2 m, and cuttable and custom lengths are also available. The aluminum Extrusions are non-waterproof and only recommended for indoor lighting projects. The inner width is 13mm, making it easy to install flexible LED strips or COB LED tapes, allowing the maximum width of the Strip Lights to be 13mm. End caps and plastic clips are included and are easy to install on various surfaces, including walls, cabinets, ceilings, wardrobes, shelves, and more. The suspension wires are sold separately, which allows for pendant installation.

Quick Links:

Suspension Wire Kit


Specifications:

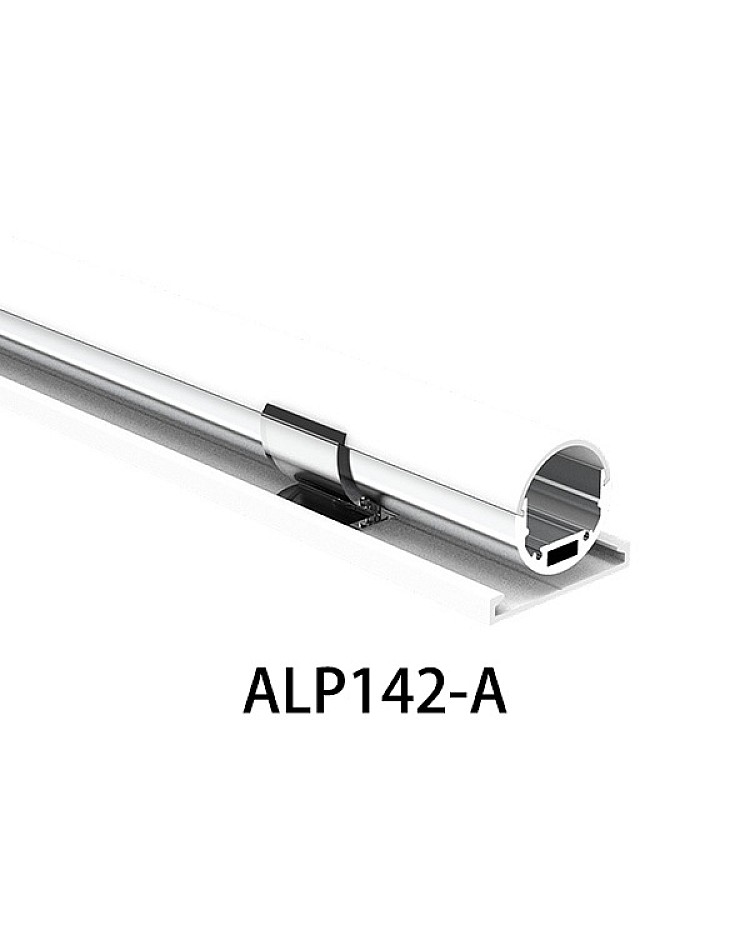

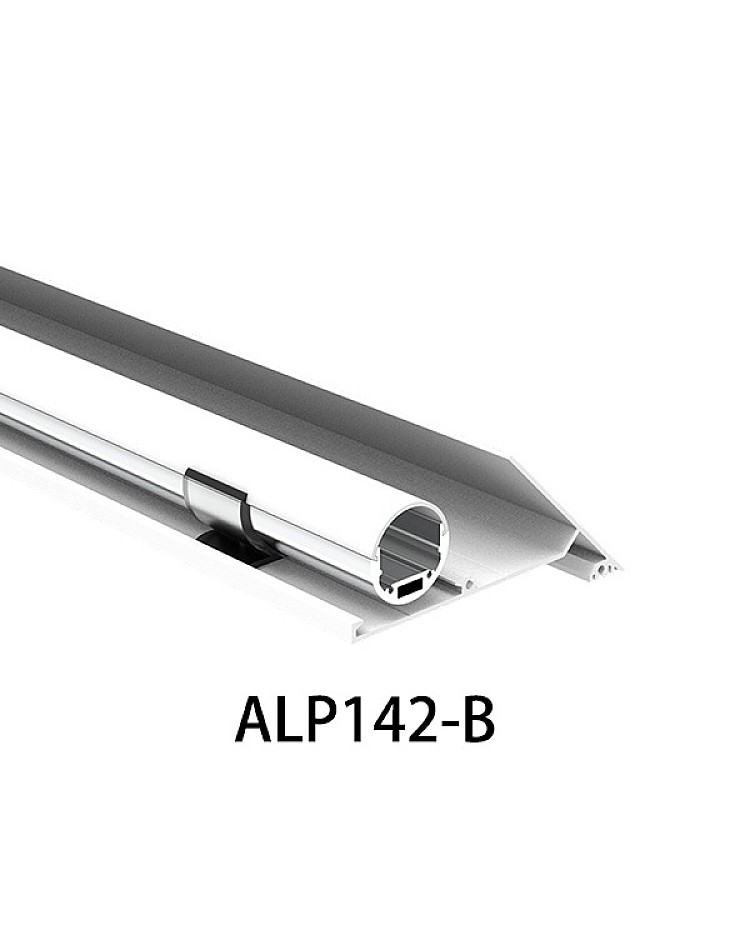

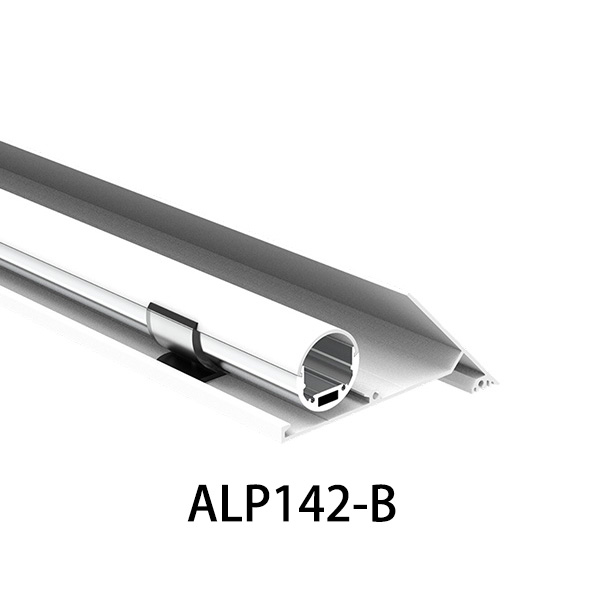

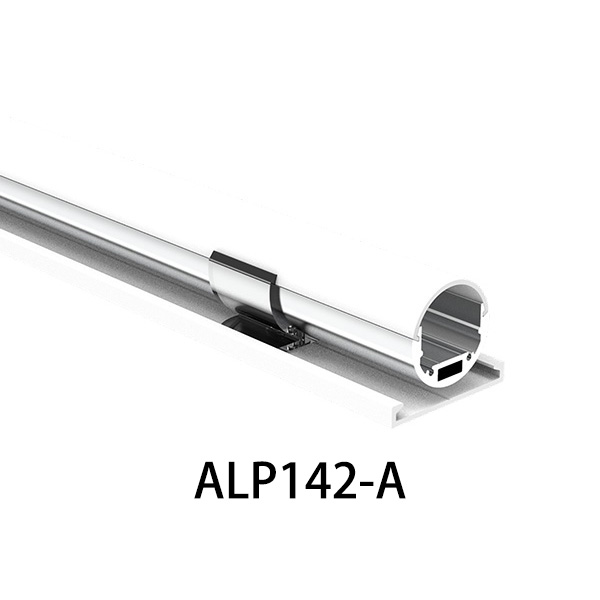

  • Model: ALP142, ALP142-A(Plaster LED Extrusion Ceiling Indirect), ALP142-B(Plasterboard LED Extrusion Ceiling Indirect)
  • Material: Extruded Aluminium
  • Anodized Black Surface Treatment

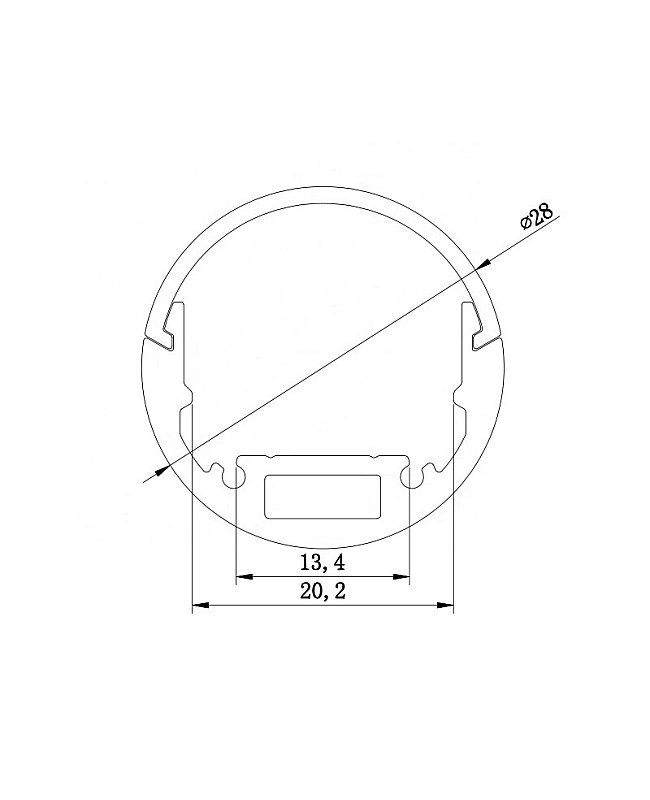

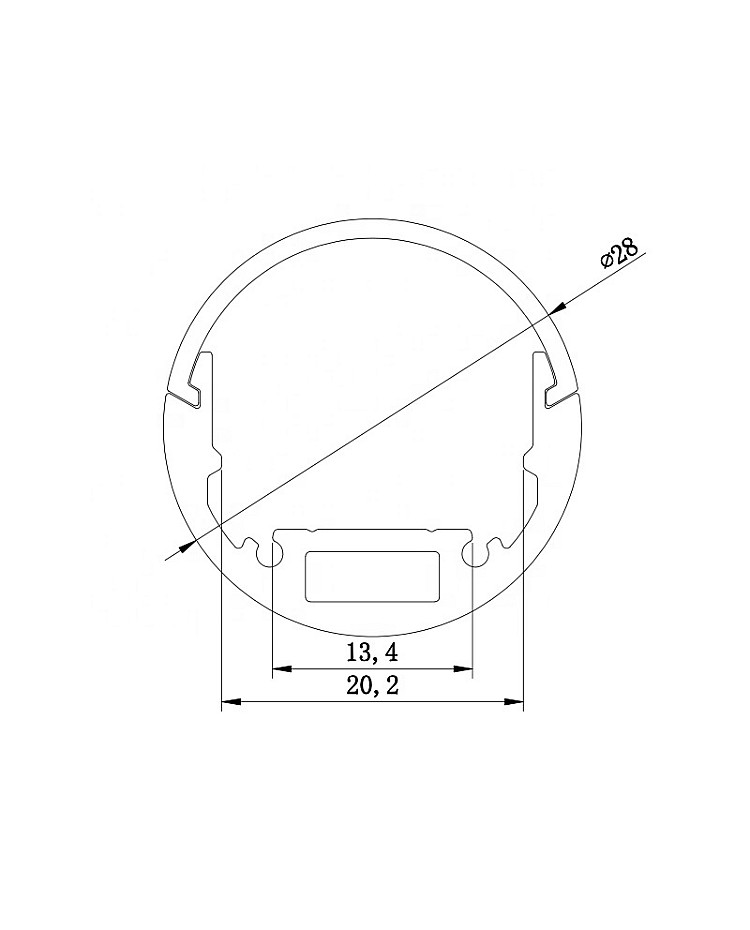

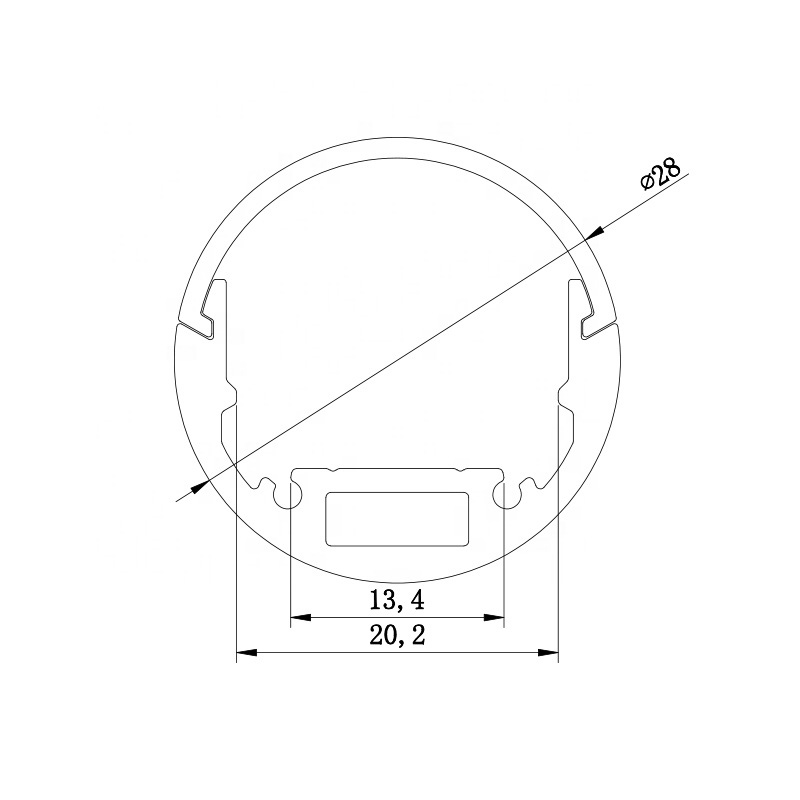

  • Diameter: 28mm
  • Colors: Black
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES

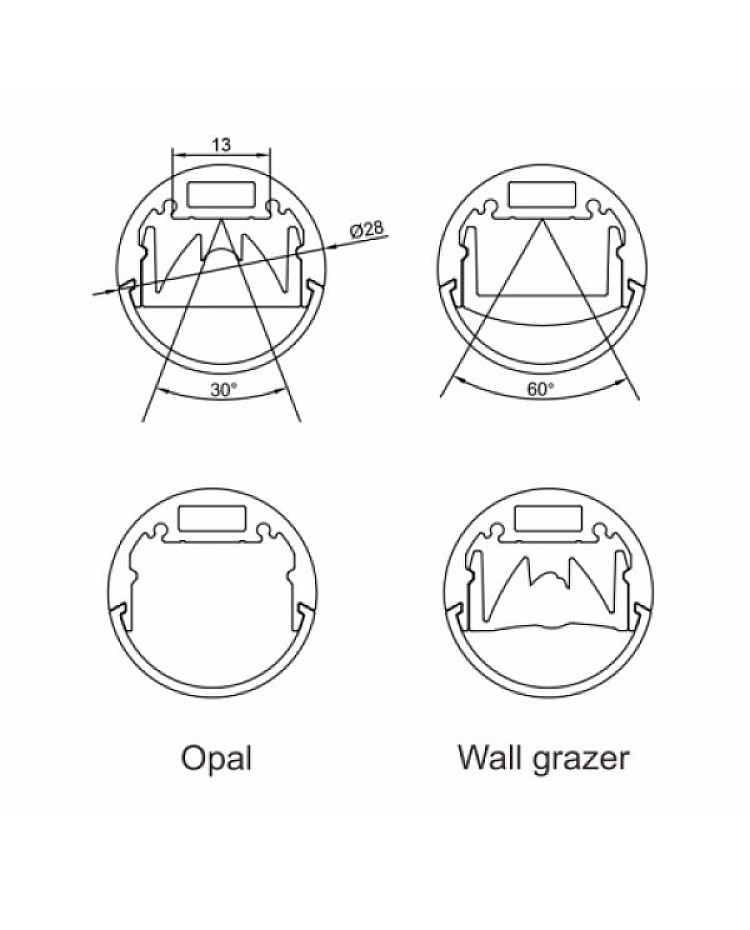

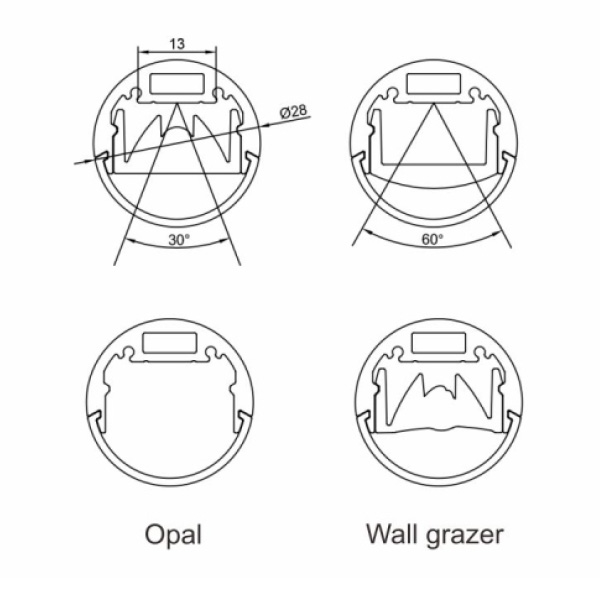

  • Diffusers: 30° Lens + PC Diffused Cover, 60° Lens + PC Diffused Cover, Wall Grazer Lens + PC Diffused Cover, PC Diffused Cover
  • Inner Width: 13mm
  • Max Width Of PCB Board: 13mm
  • Compatible With SMD LED Strip Lights And COB LED Tapes
  • IP Rating: IP20 Non-Waterproof

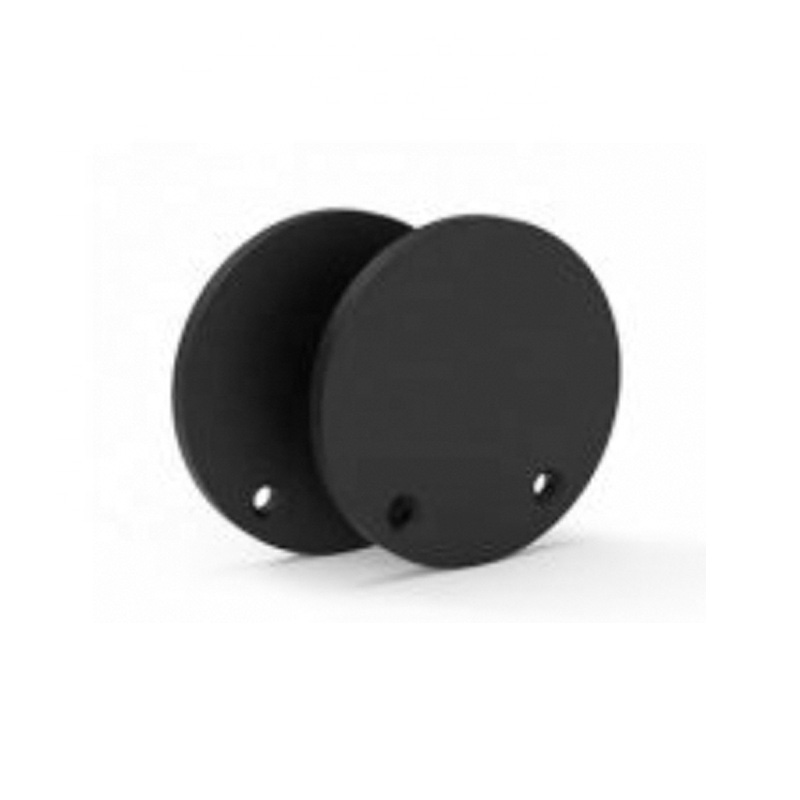

  • End Caps Included

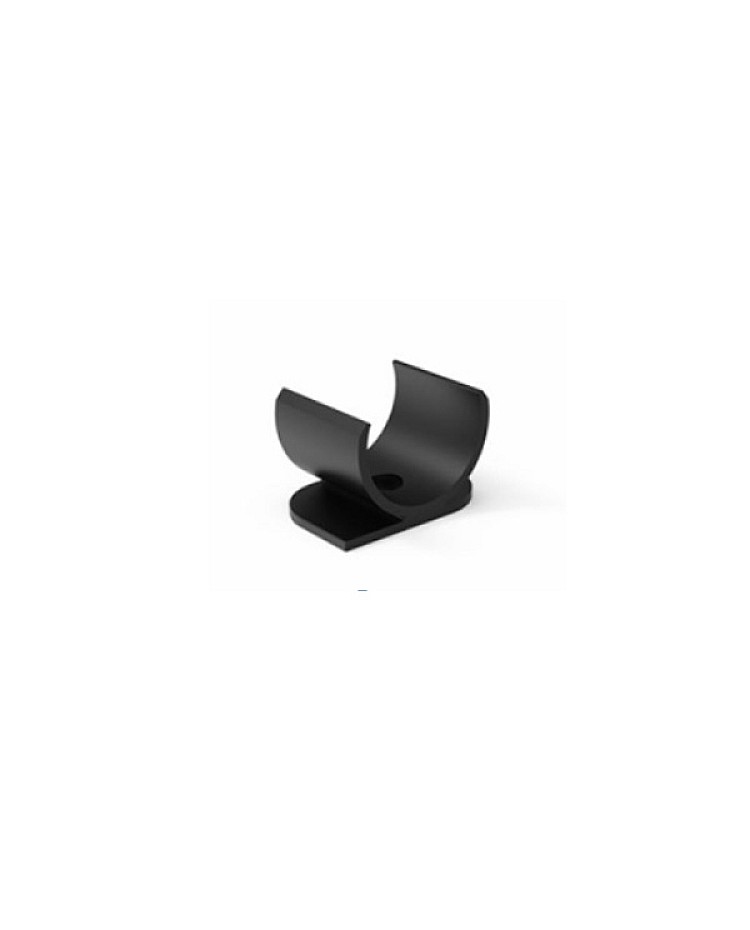

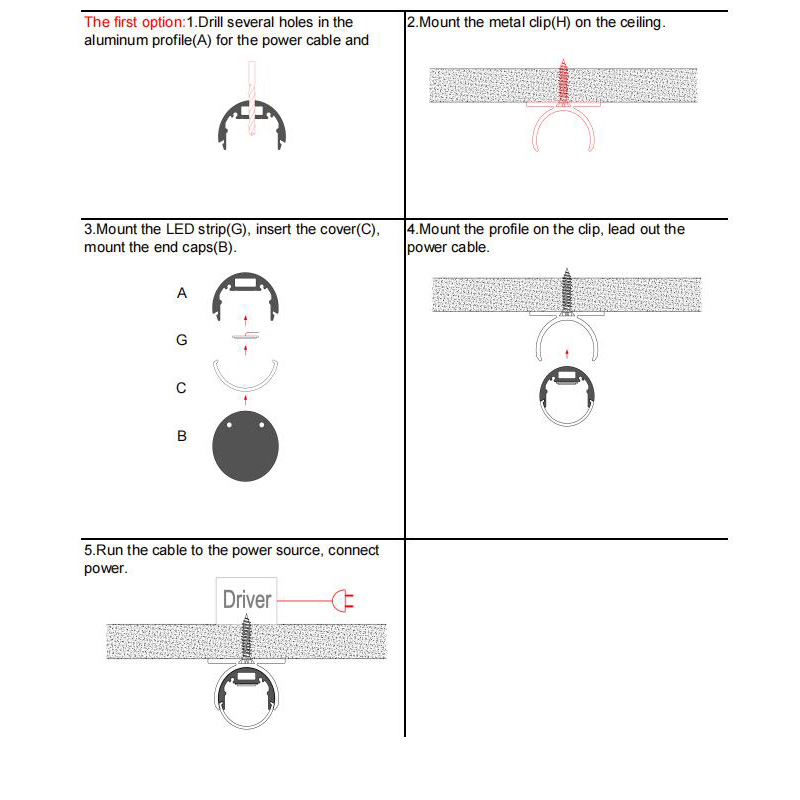

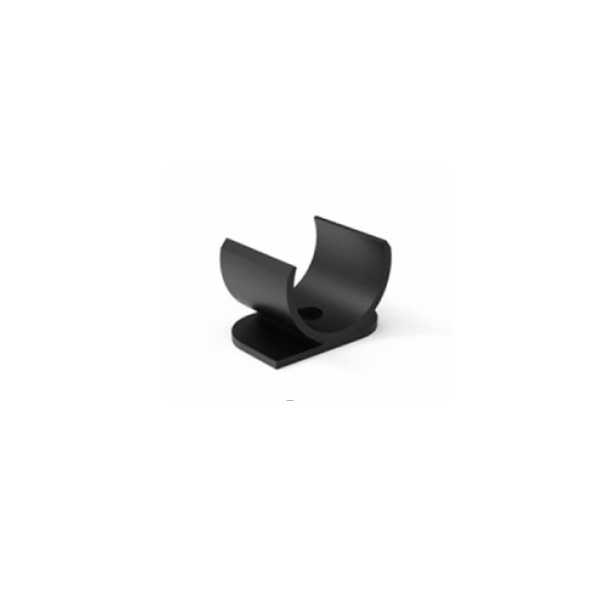

  • Plastic Clips Included

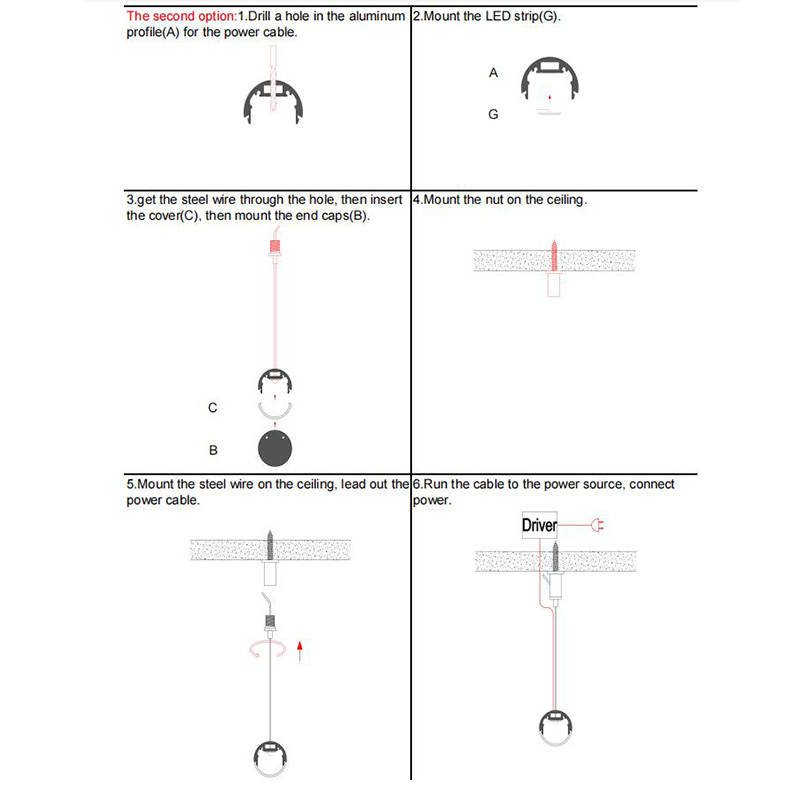

  • Suspension Wires Sold Separately
  • Strip Lights, Dimmers, And Transformers Sold Separately
  • Installation: Surface Mounted
  • 5 Years Warranty


Includes:

1 * Black LED Extrusion With Diffuser

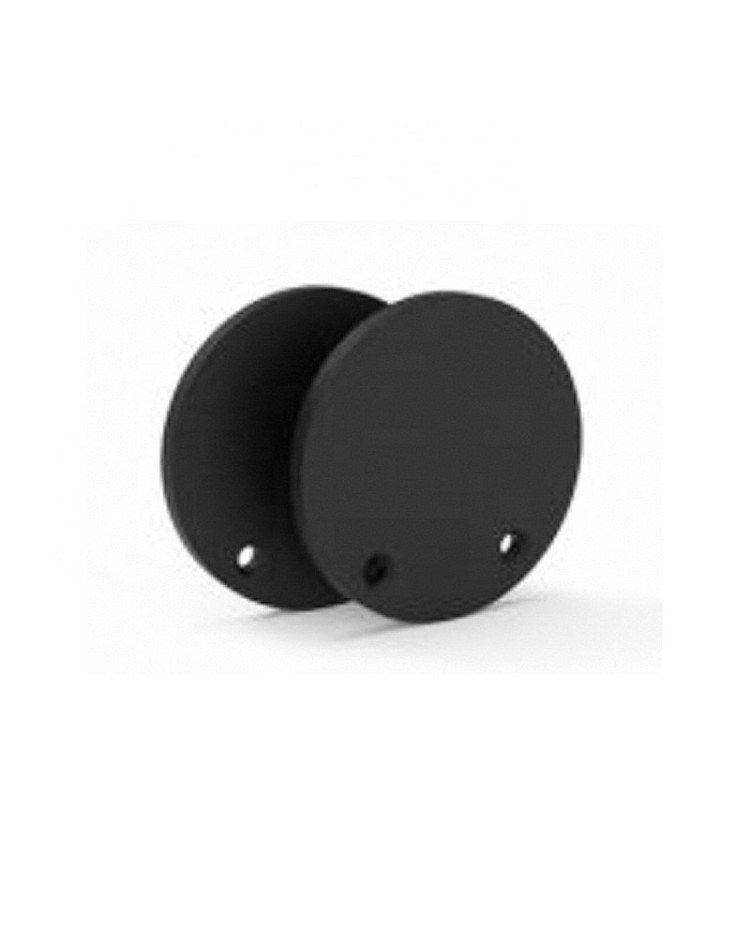

End Caps(With Wire Hole And Without Wire Hole)

Plastic Clips

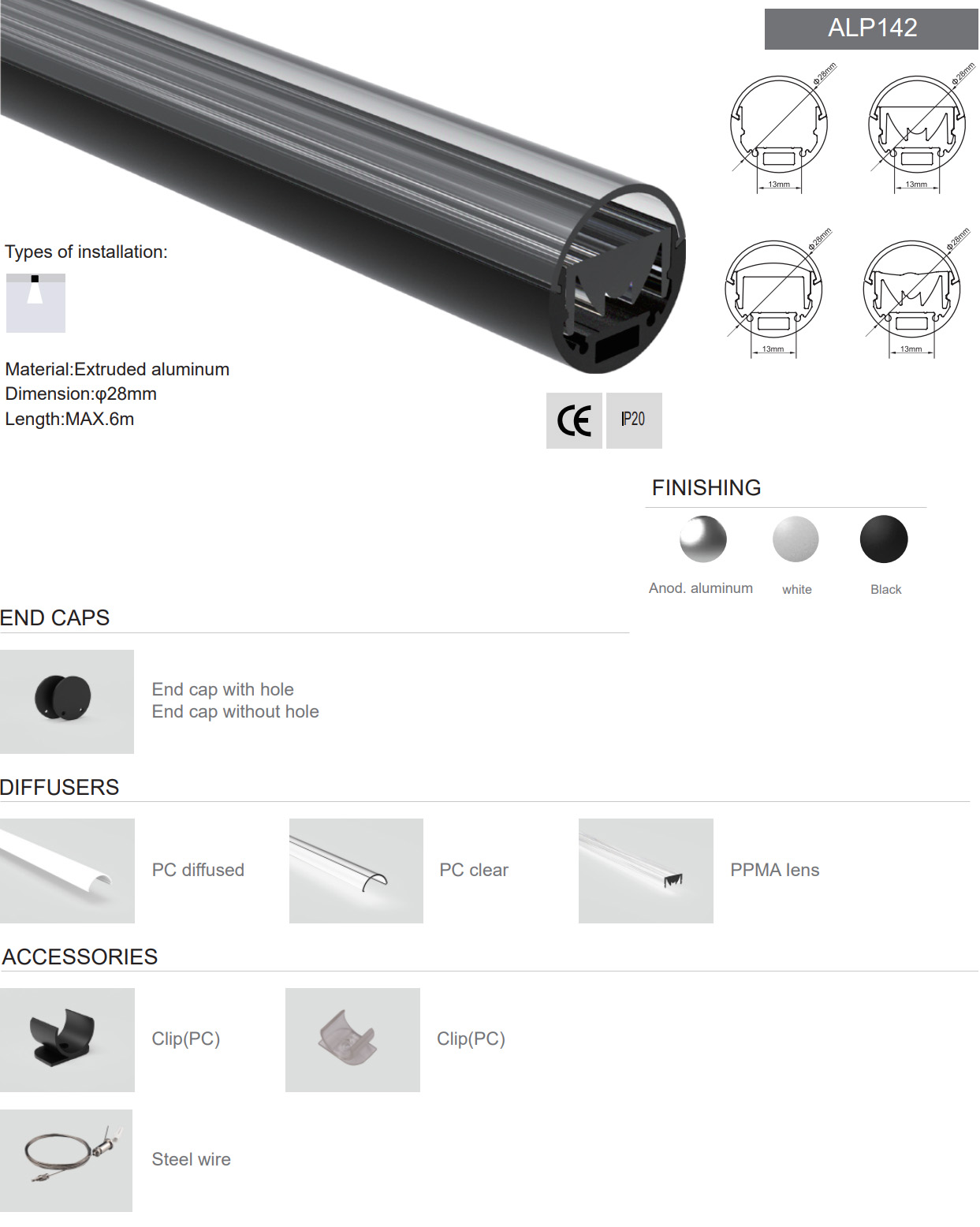

Black LED Channels Black Aluminum LED Channel Black LED Channel Black LED Strip Extrusion
