- Brand: Ledbe
- Product Code: ALP001-R

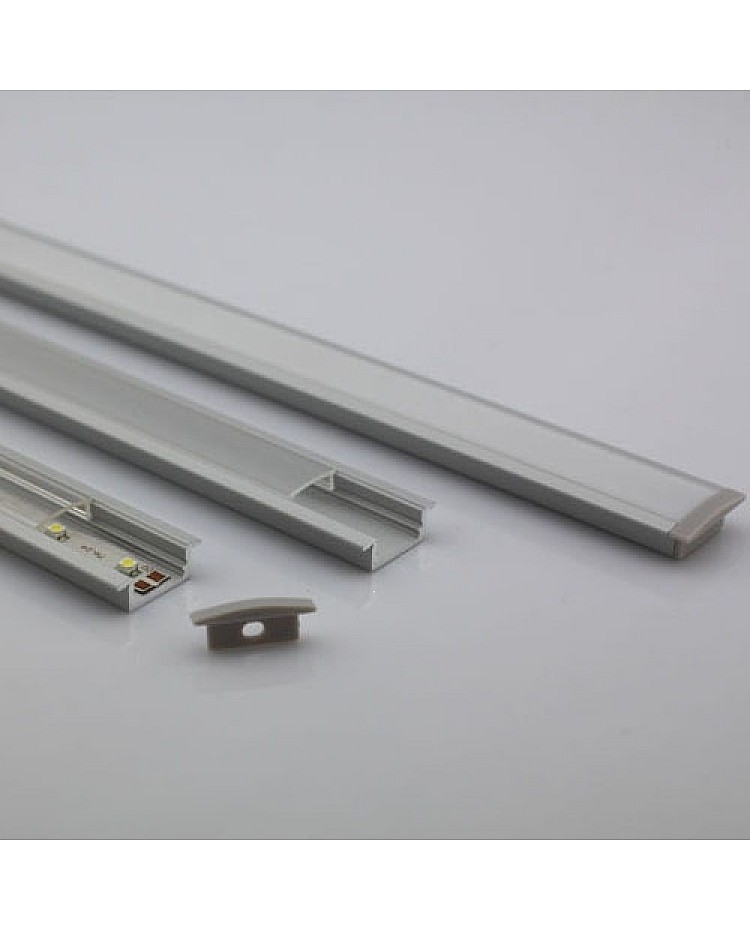

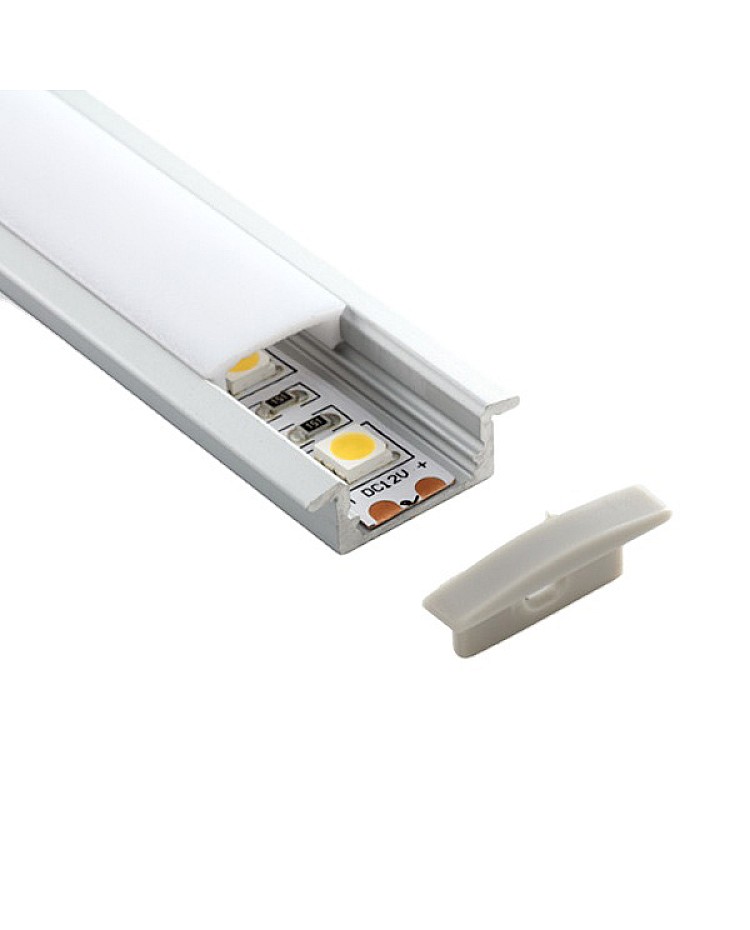

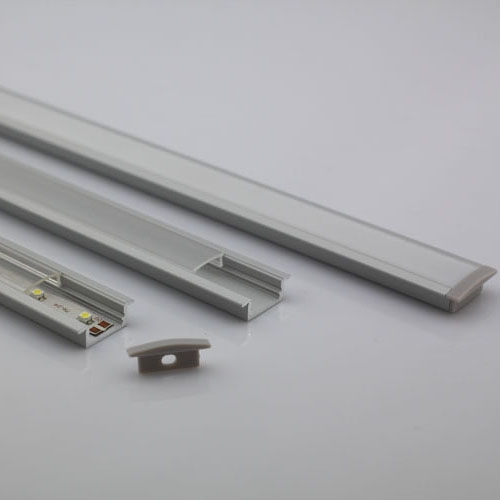

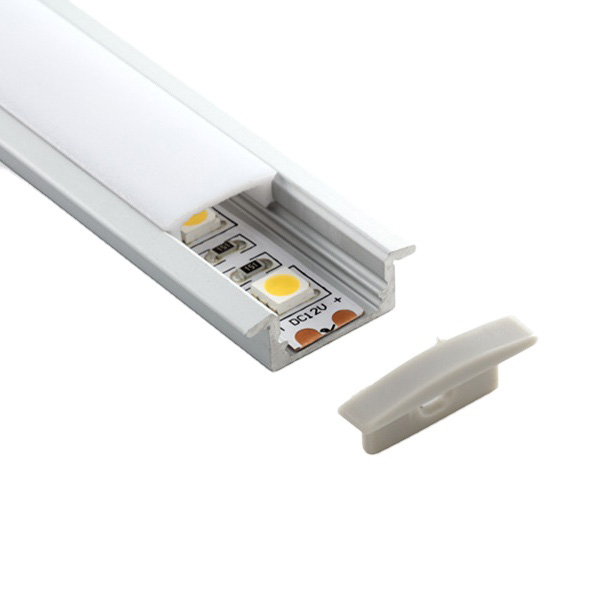

The ALP001-R is one type of affordable, versatile, and slim LED profile featuring thin lips that enable easy recessing into walls, ceilings, furniture, millwork, and other areas where uniform illumination is desired. They are designed for flush mounting into surfaces, ensuring a clean, modern look while enhancing light diffusion and heat dissipation. They are made of high-quality 6063-T5 aluminum material with anodized or powder-coated surface treatments for anti-oxidation resistance and a longer lifespan. Eight types of diffusers are available: PC and PMMA series covers. They are made of brand-imported material, anti-yellowing, and have different transmittance and lighting effects to meet your needs. The stock lengths are 1 m, 2 m, and 3 m, and you can cut them to any desired length. The inner width is 12.2 mm, allowing them to house a maximum width of 12 mm LED strips. You can use our dotless tunable white COB LED strips as the light source and adjust the color temperature for various scenes; the diffused covers ensure seamless, even illumination without hotspots. End caps with and without wire holes are included.
Specifications:
- Material: 6063-T5 aluminum alloy
- Surface Treatment: Anodized / powder-coated

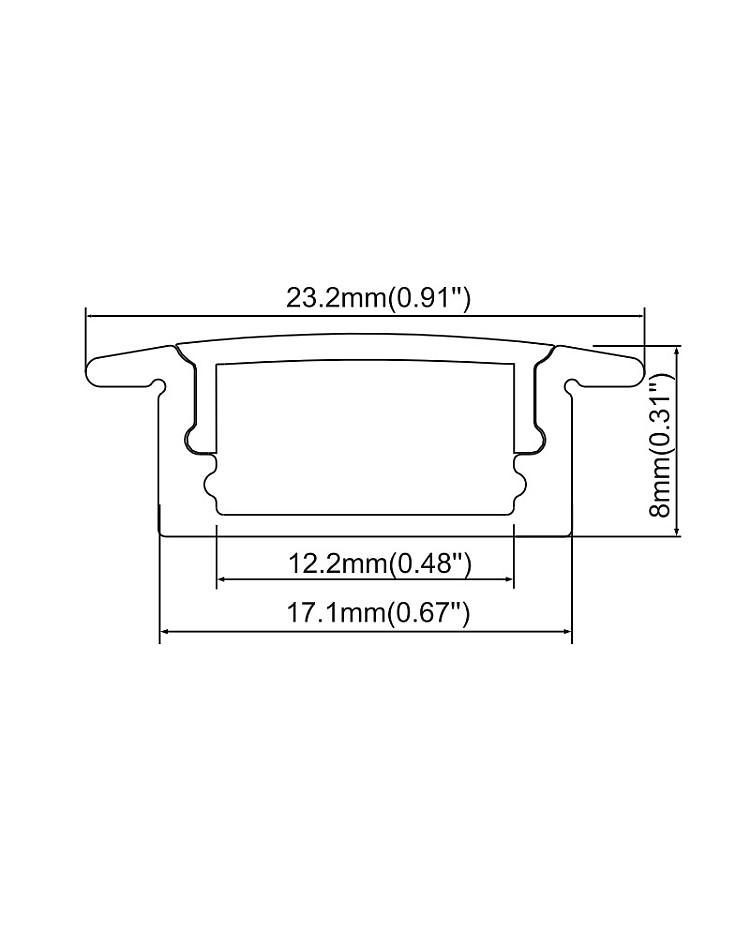

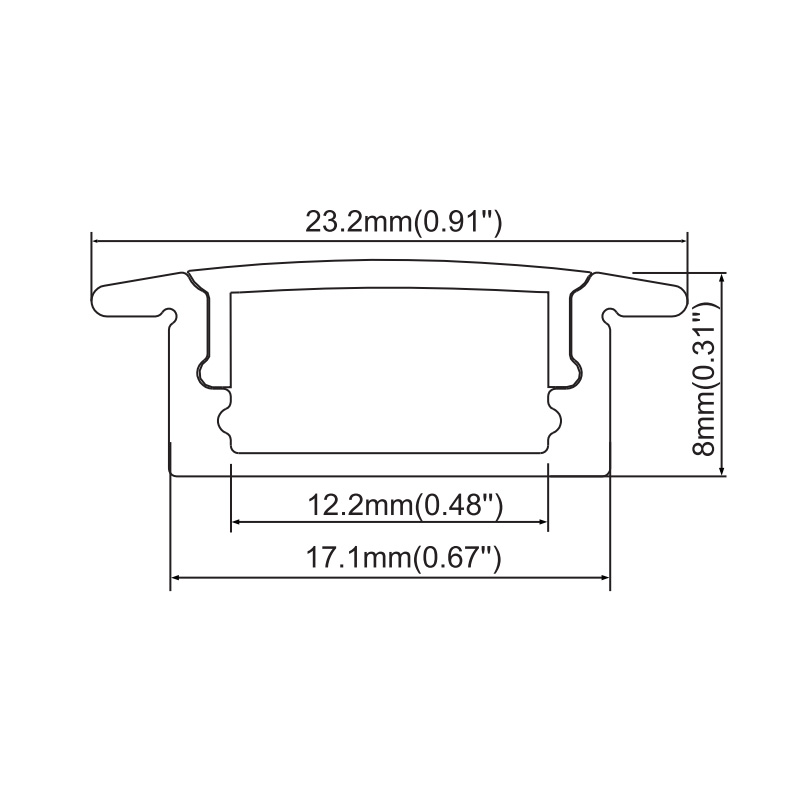

- Size(W*H): 23.1 mm x 8.6 mm ( 0.91" x 0.34" )
- Colors: Silver, white, black
- Standard Length: 1 m ( 39" ), 2 m ( 78" ), 3 m ( 118" )
- Custom Length Available: YES
- Inner Width: 12.3 mm ( 0.48" )
- Max Width Of LED Strips: 12mm ( 0.47" )
- Power: <15W/M

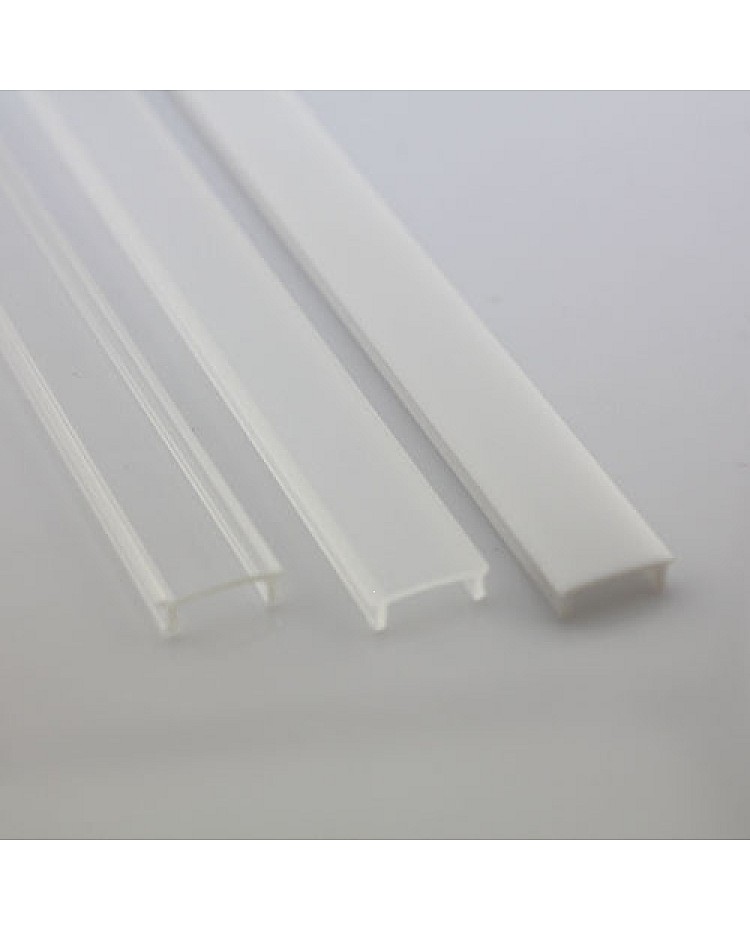

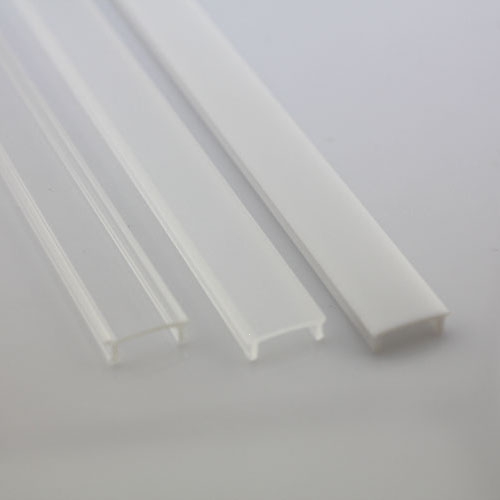

- Diffusers Available: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover, black PC cover
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rating: IP20 non-waterproof

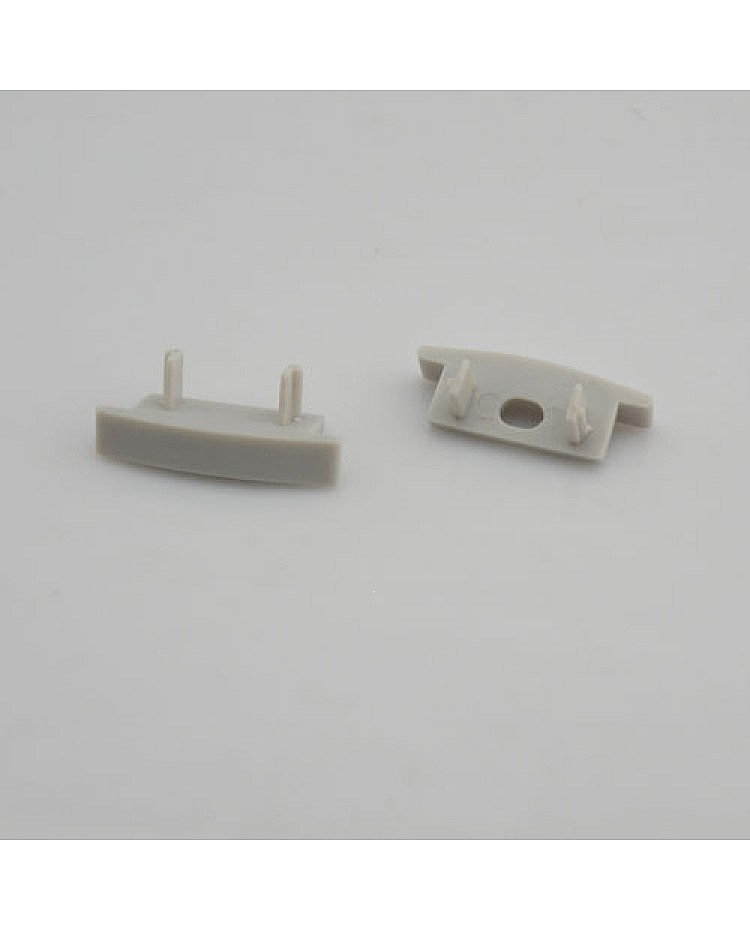

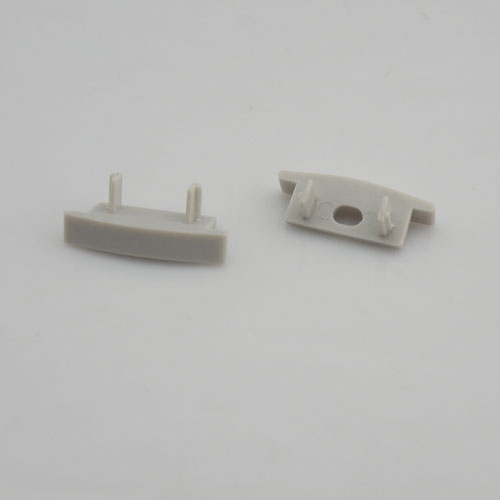

- ABS end caps with/without holes are included

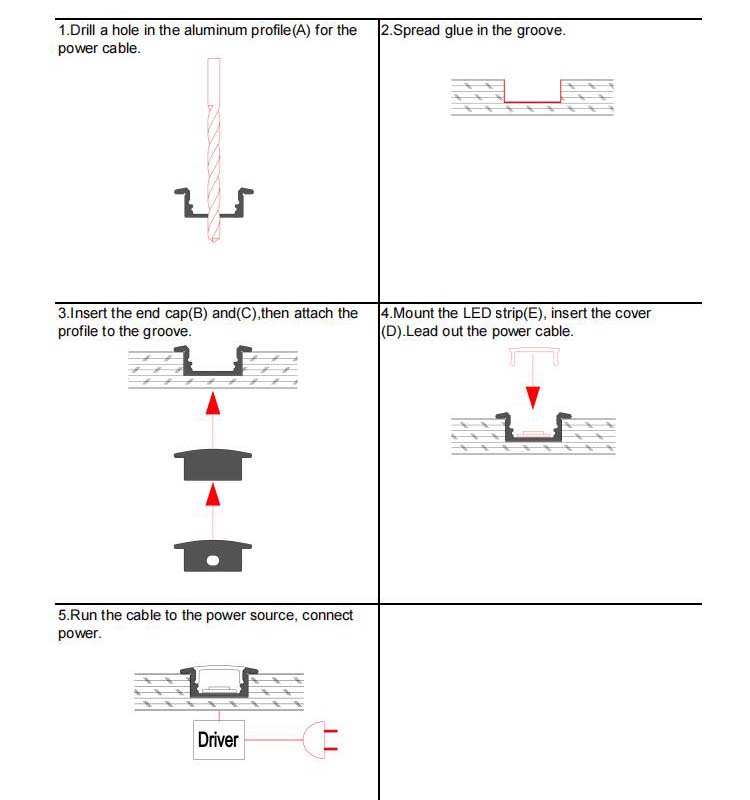

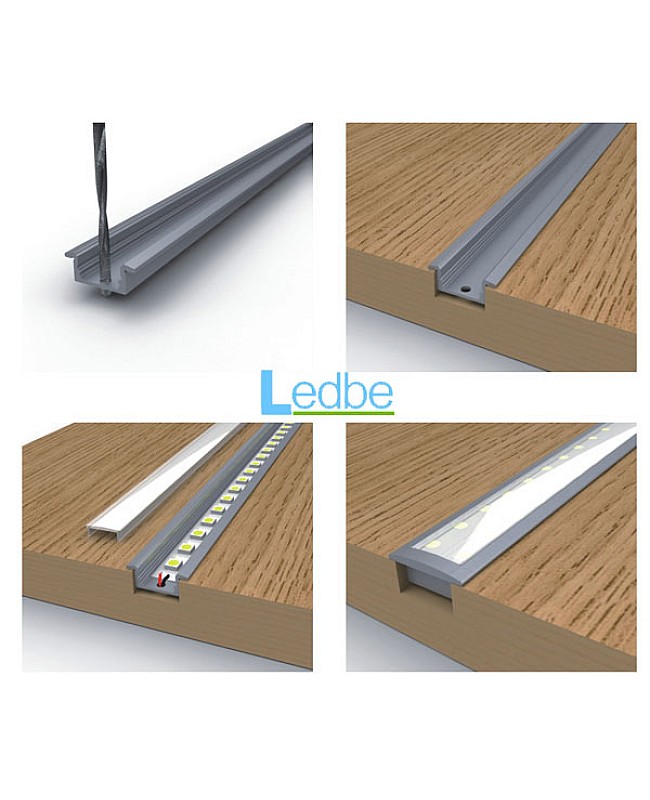

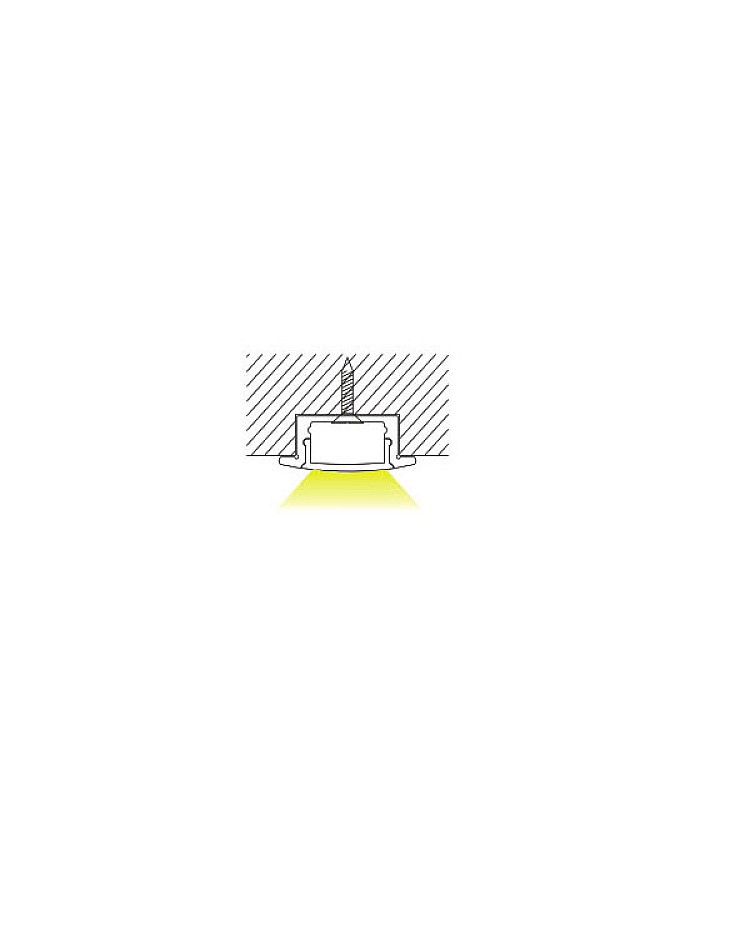

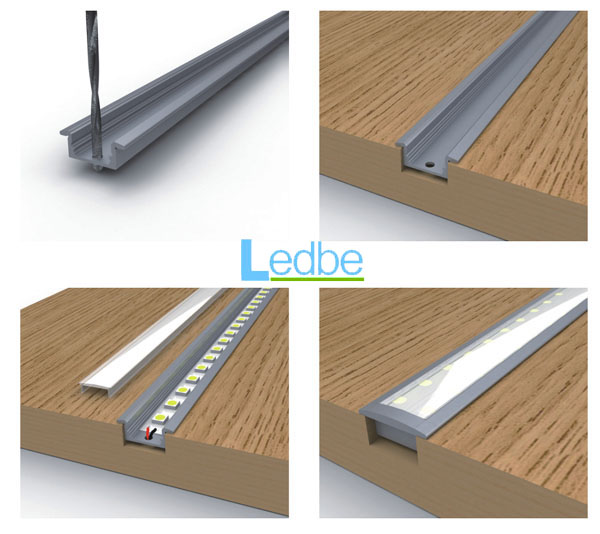

- Installation: Recessed
- Applications: Recessed in millwork, cabinets, desks, showcases, etc
- Power supply, WiFi LED dimmer, and LED strips sold separately
- Certification: CE, ROHS
- Warranty: 5 years
Package:

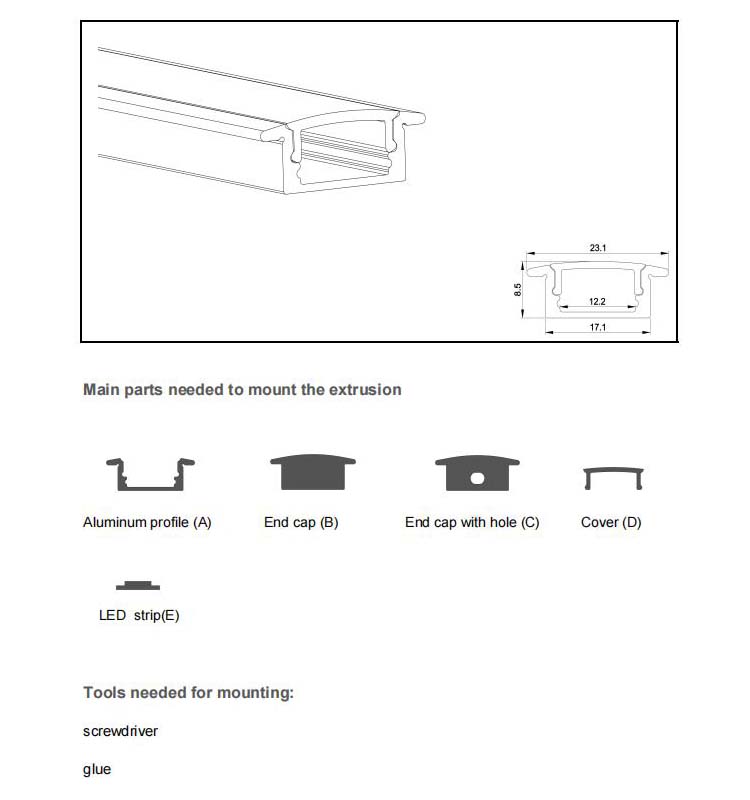

1 * T-shaped LED channel with diffuser
End caps(with and without wire holes)
Applications:
Under-cabinet and shelf lighting
Retail and display lighting

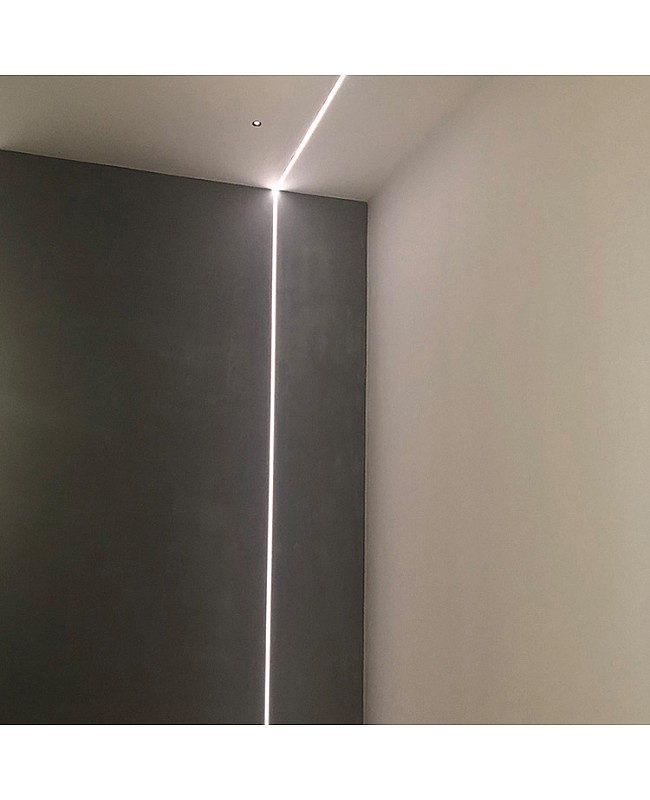

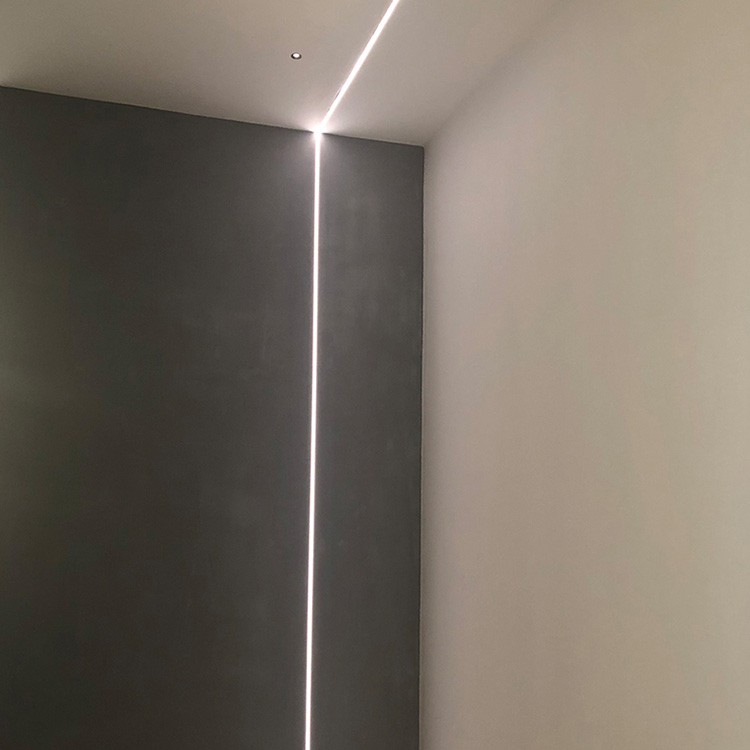

Recessed wall or ceiling accent lighting
furniture and showcase integration
Architectural linear highlights
