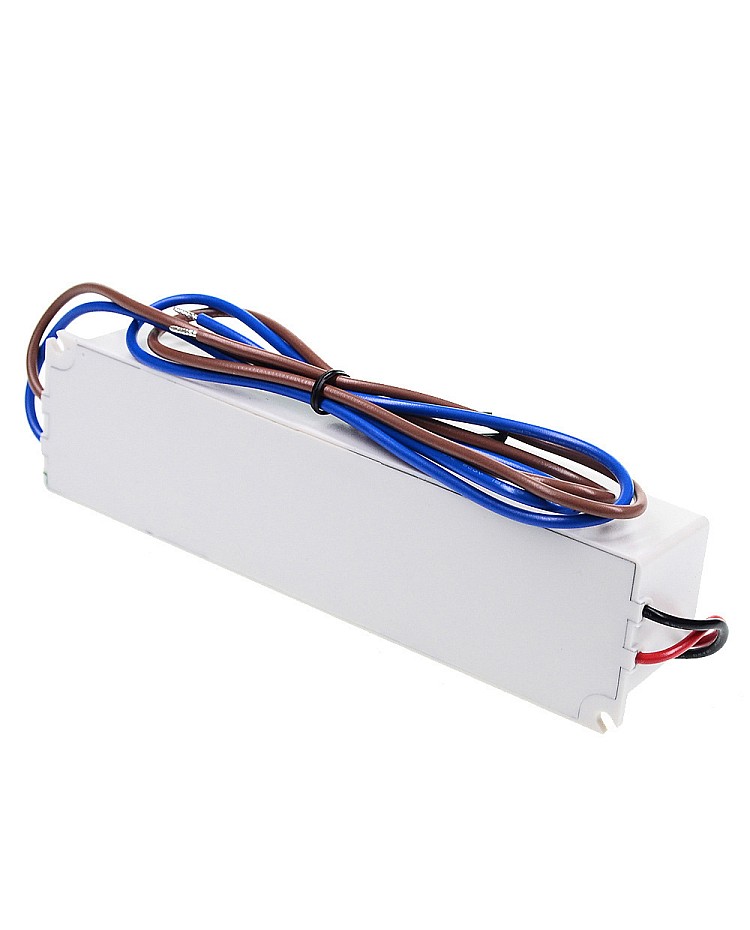

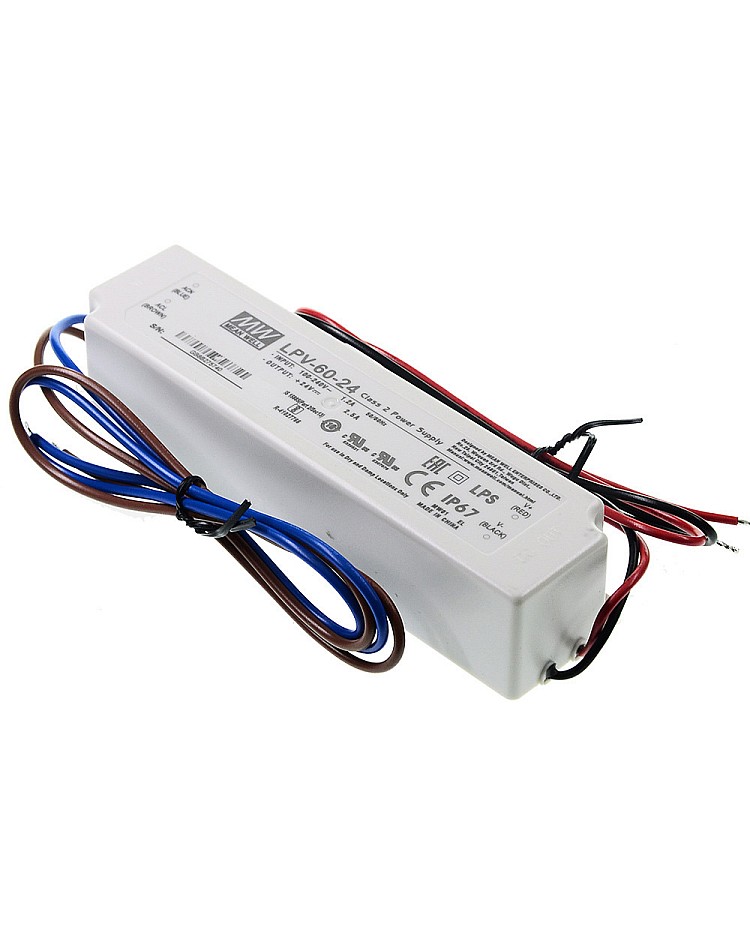

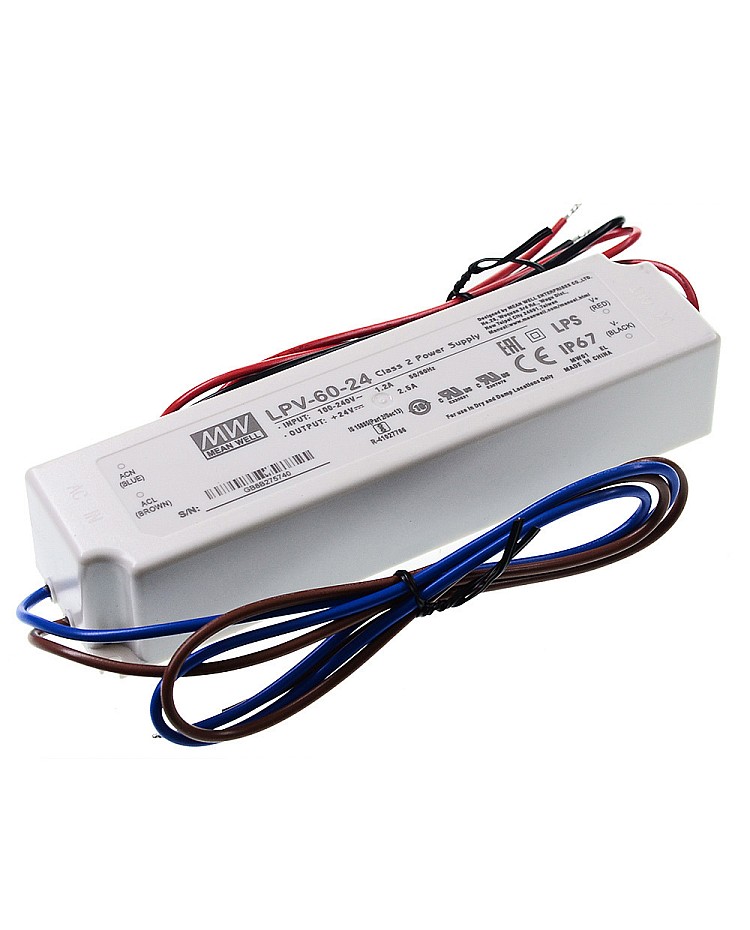

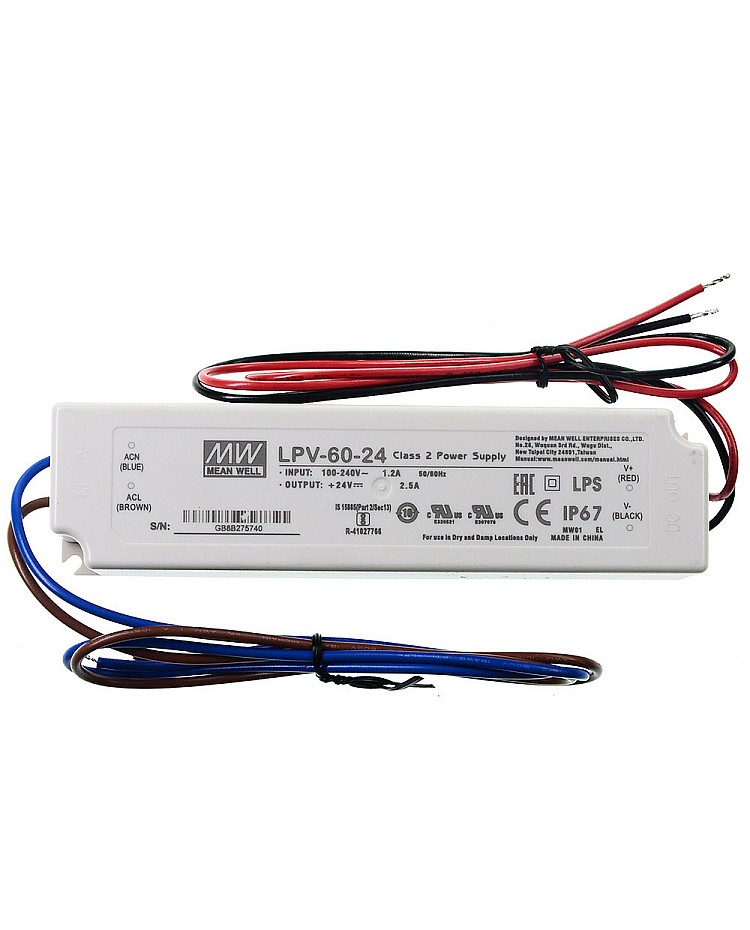

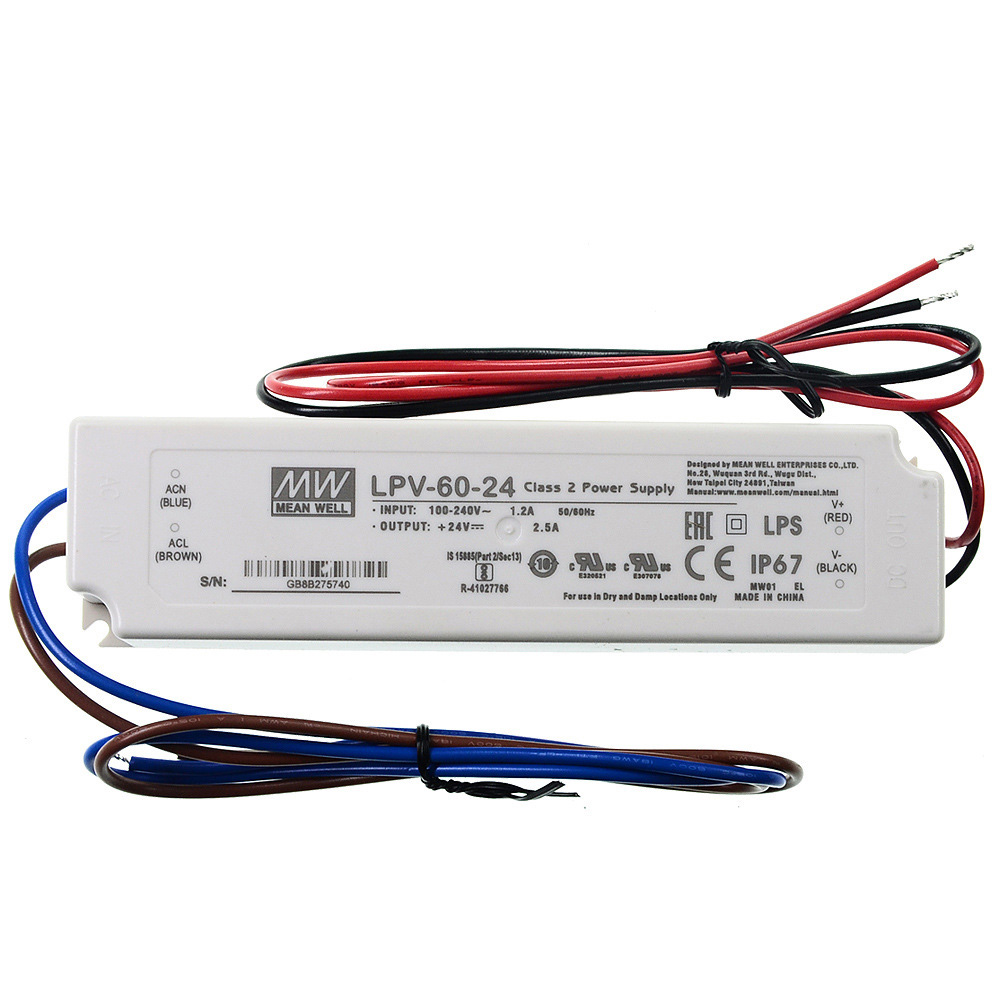

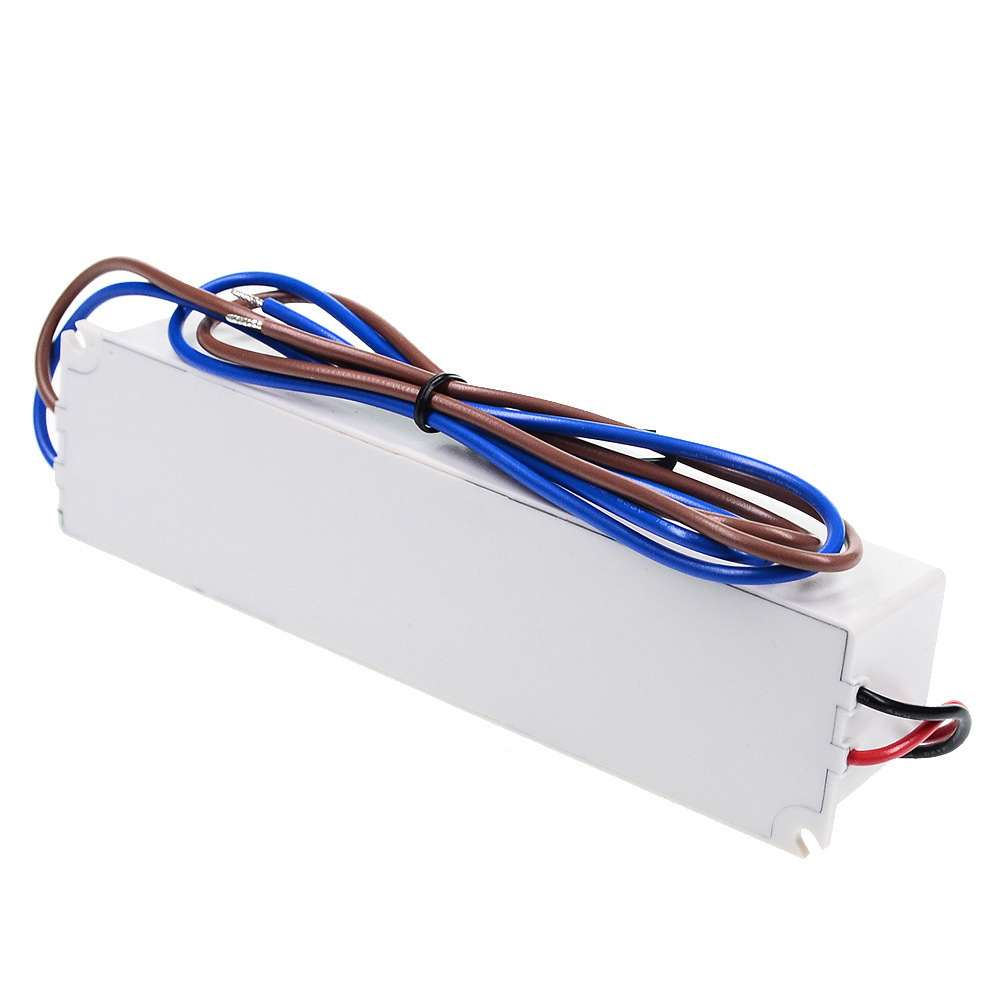

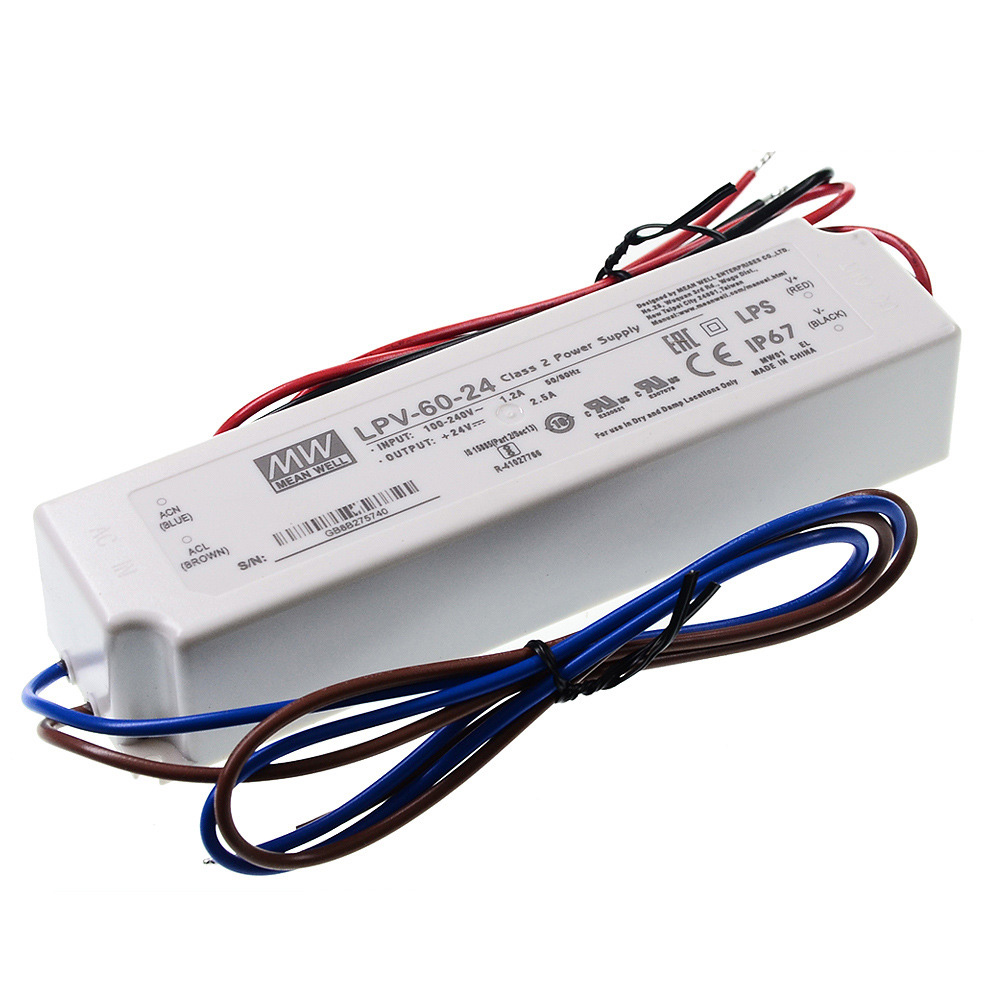

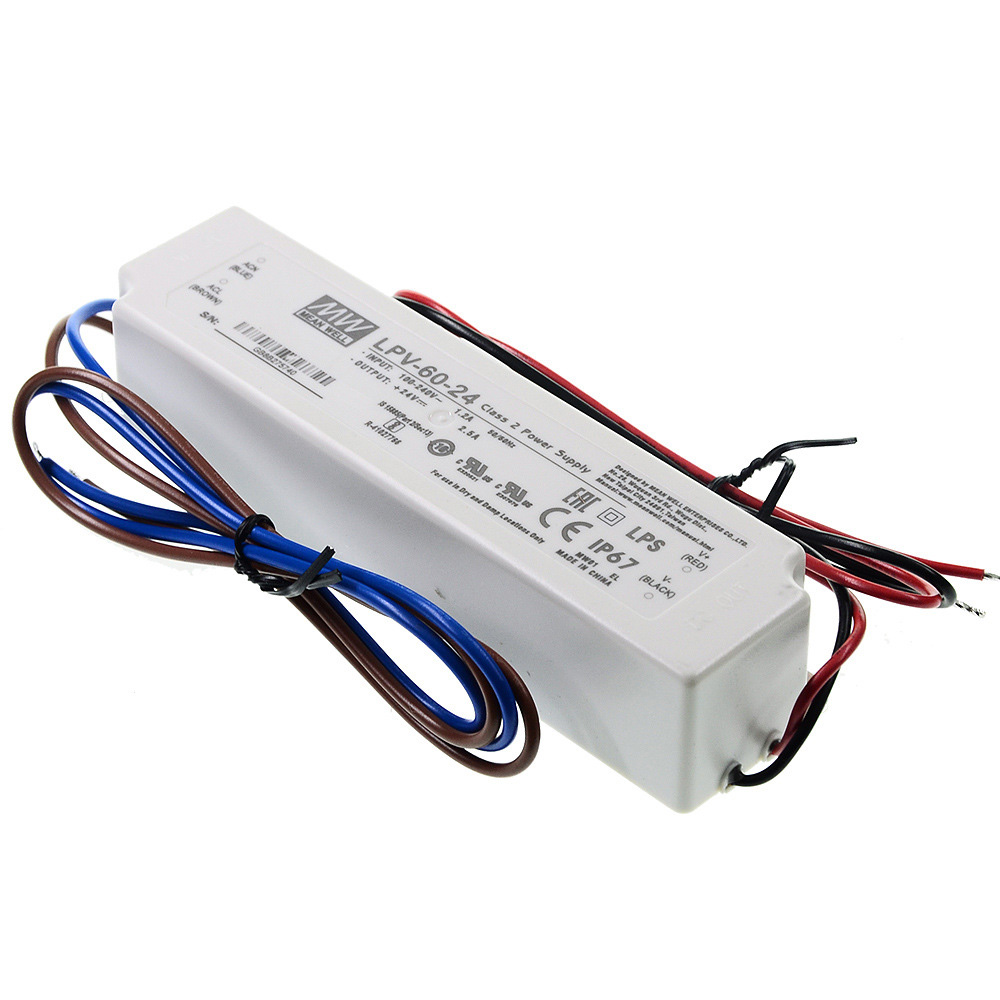

Check the Meanwell LPV-60 series AC DC Converter, with constant voltage output design, you can choose the various output voltage products from DC5V to DC48V, max loading power is 60W, the AC-DC Converter is isolated in a plastic case, dustproof and waterproof, the waterproof level up to IP67, can use in wet, rainy or harsh locations, suitable for the constant voltage Outdoor LED Lighting. high efficiency, low cost and high reliability.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • Cooling By Free Air Convection
  • Fully Encapsulated With IP67
  • Fully Isolated Plastic Case
  • Class II Power Unit, no FG
  • Class 2 Power Unit
  • Pass LPS
  • Suitable For Constant Voltage Outdoor LED Lighting
  • 100% Full Load Burn-in Test
  • Low Cost, High Reliability

Link: Meanwell LPV-60 Manual


  • Model: LPV-60
  • Size: 162.5*42.5*32mm(L*W*H)
  • Input Voltage: 90-264VAC, 127-370VAC
  • Output Voltage: 5VDC, 12VDC, 15VDC, 24VC, 36VDC, 48VDC
  • Rated Current: 8A(5V), 5A(12V), 4A(15V), 2.5A(24V), 1.67A(36V), 1.25A(48V)
  • Rated Power: 40W, 60W, 60W, 60W, 60W, 60W
  • Setup, Rise Time: 500ms, 20ms/230VAC, 500ms, 20ms/115VAC At Full Load(For 5-36V), 500ms 30ms/230VAC, 500ms, 30ms/115VAC At Full Load(For 48V)
  • Hold Up Time: 50ms/230VAC, 16ms/115VAC At Full Load
  • Frequency Range: 47-63Hz
  • Efficiency: 76%(5V), 83%(12V), 83%(15V), 86%(24V), 86%(36V), 86%(48V)
  • AC Current: 1.2A/115VAC, 1A/230VAC
  • Leakage Current: 0.25mA/240VAC
  • Working Temperature: -30-70℃
  • Working Humidity: 20-90% RH Non-condensing
  • Vibration: 10-500Hz, 2G 10min./1Cycle, Period For 60 min. Each Along X, Y, Z axes
  • Safety Standards: UL879(Except For LPV-60-5), UL1310(Except For LPV-60-5), CSA C22.2 No.207-M89(Except For LPV-60-5, LPV-60-48), CAN/CSA C22.2 No.223-m91(Except For LPV-60-5, LPV-60-48), bis is 15885(For LPV-60-12, LPV-60-24 Only), EAC TP TC 004, IP67, IEC62368-1. BS EN/EN62368-1 Approved
  • Withstand Voltage: I/P-O/P: 3KVAC
  • Isolation Resistance: I/P-O/P: >100M Ohms / 500VDC / 25℃ / 70% RH
  • Over Load Protection
  • Over Voltage Protection
  • Short Circuit Protection
  • 2 Years Warranty


1*Meanwell AC DC Converter
