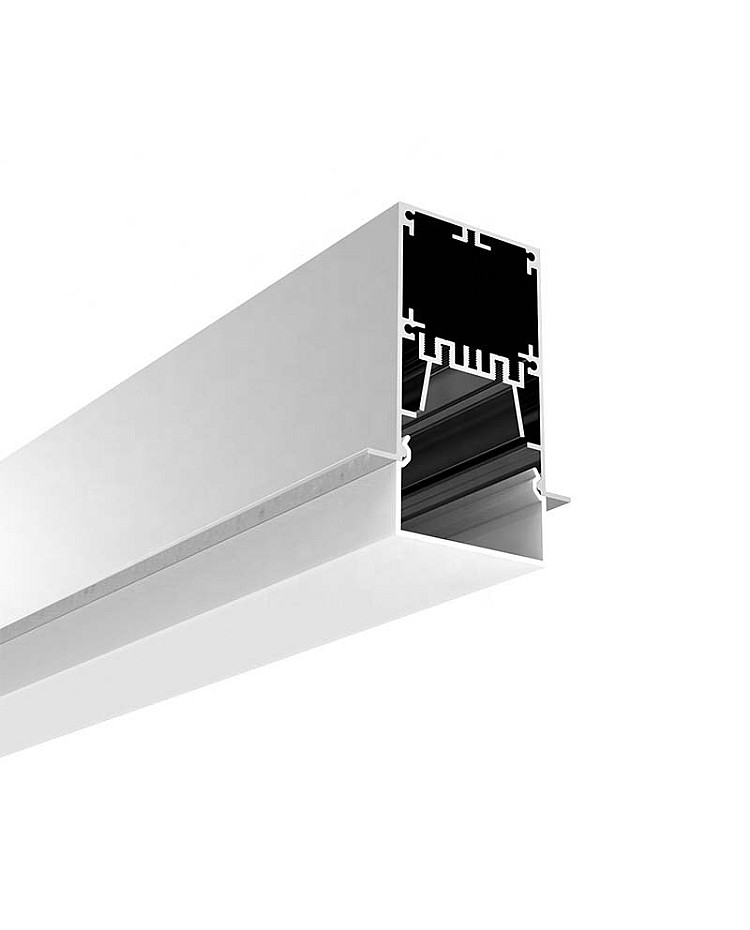

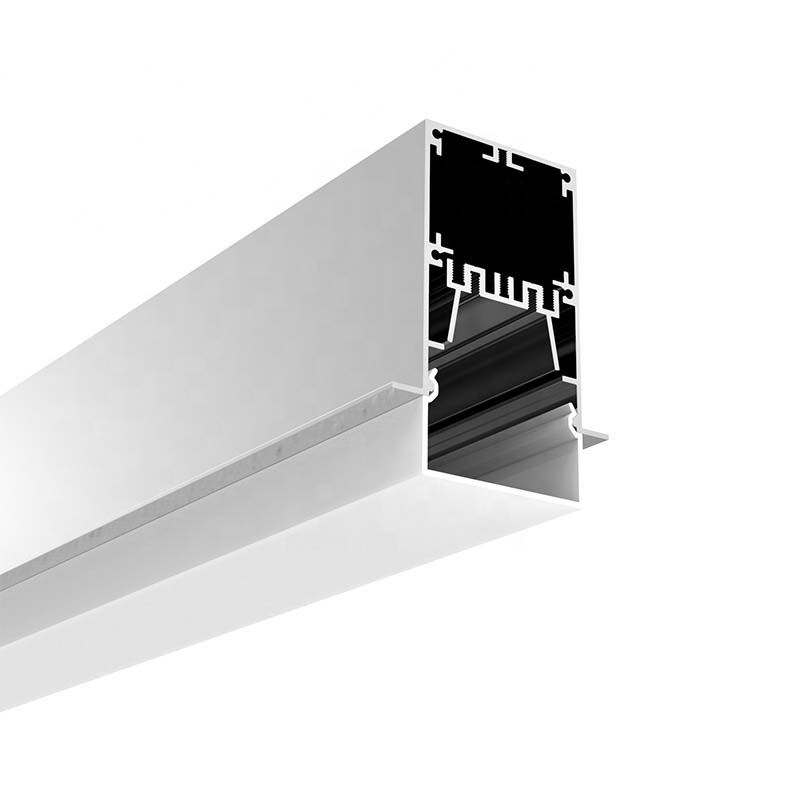

The aluminum diffuser with a dropped lens is designed to provide even, efficient lighting for LED strip applications. It's made of 6063-T5 aluminum alloy with a silver anodized surface treatment, offering oxidation resistance and a longer lifespan than similar products. The standard length is 1M, and the max length is 2.5 m per piece; it can be cut to any size fit for your project.
The LED aluminum channels come with LED strip diffusers made of brand-name material with stable quality and anti-yellowing properties, and they help spread light evenly across a wide range of angles. The inner width is 18.5mm, allowing the maximum strip light width to be 18mm. We recommend adding high-density COB strip lights as the light source, with no visible light spots or dark areas.
The aluminum end caps, mounting brackets, and internal clips are included, allowing for easy installation into walls and ceilings and providing a sleek, modern look, perfect for adding an even, uniform light to any room.
Specifications:

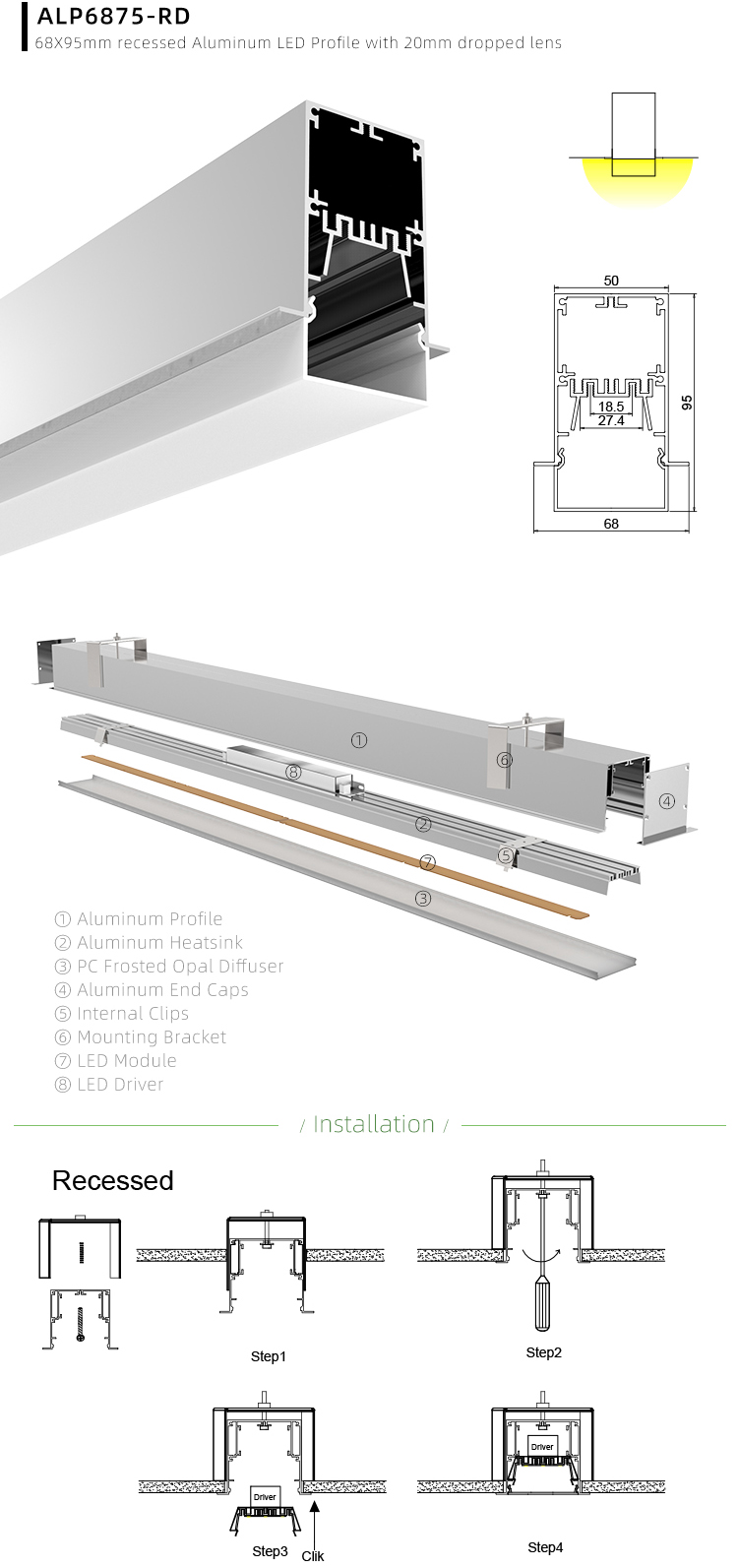

- Model: ALP6875-RD

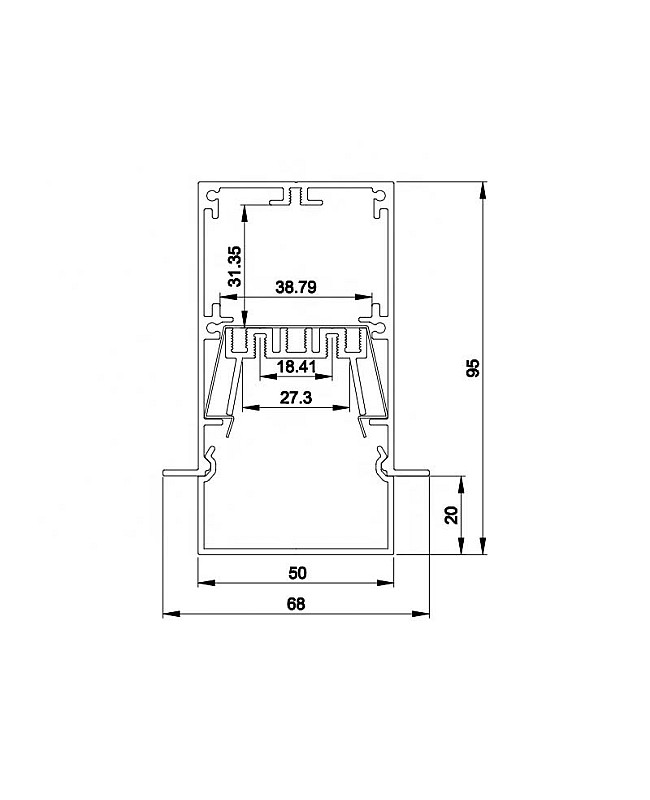

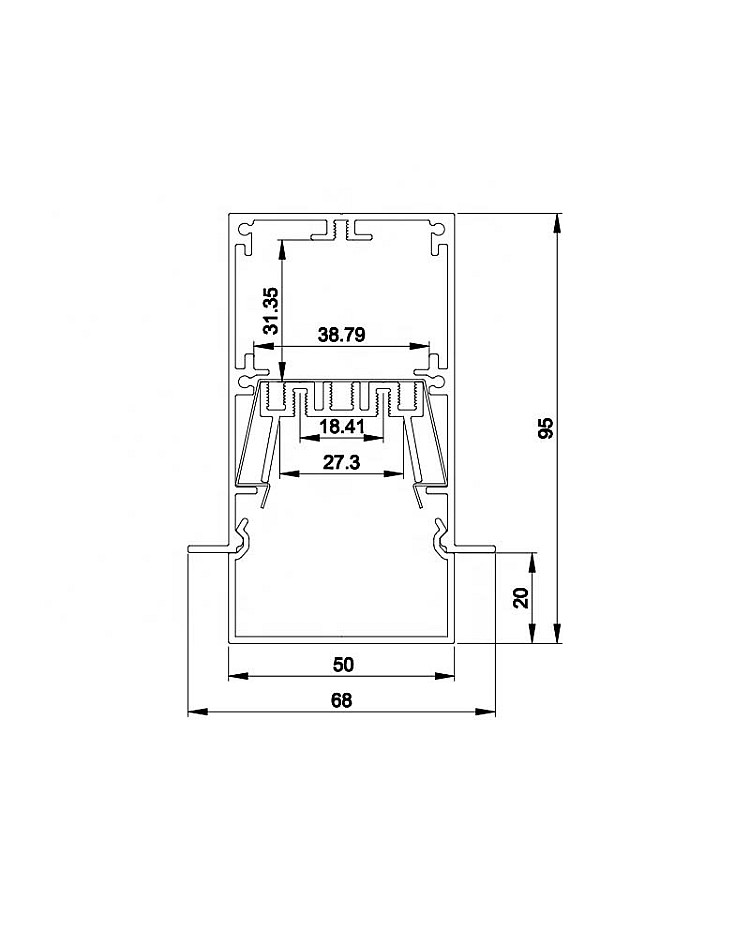

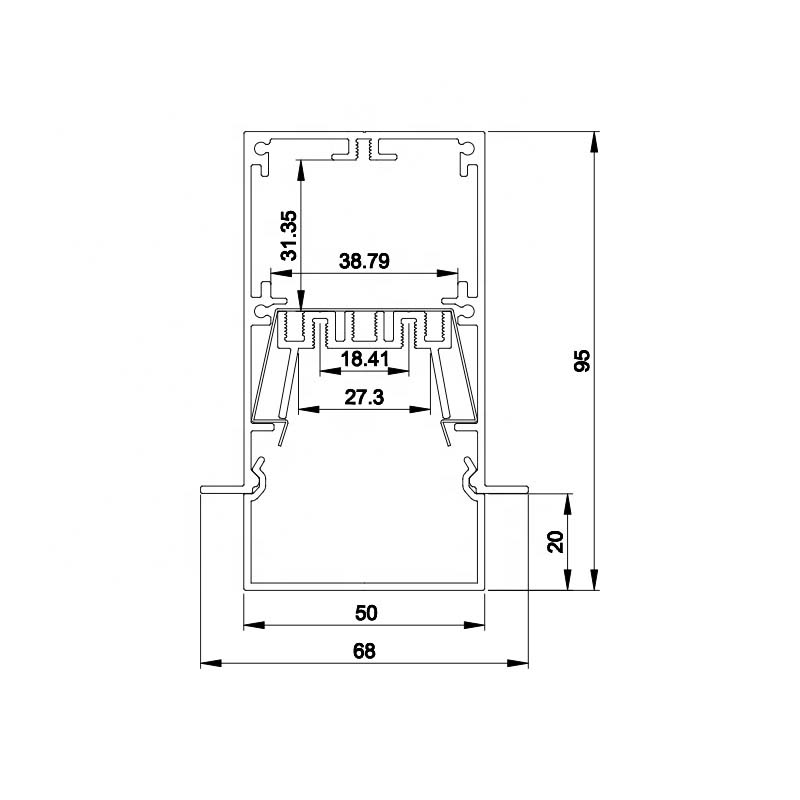

- Size: 68*95mm(W*H)
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Silver Anodized
- Colors: Silver(Default), White, Black
- Diffuser: PC Frosted Opal Cover
- Standard Length: 1 Meter
- Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
- Custom Length Available: YES
- Inner Width: 18.5mm
- Compatible With 140mm/280mm/560mm Rigid Constant Current LED Modules Or COB Strip Lights
- Max Power: <35W/Meter

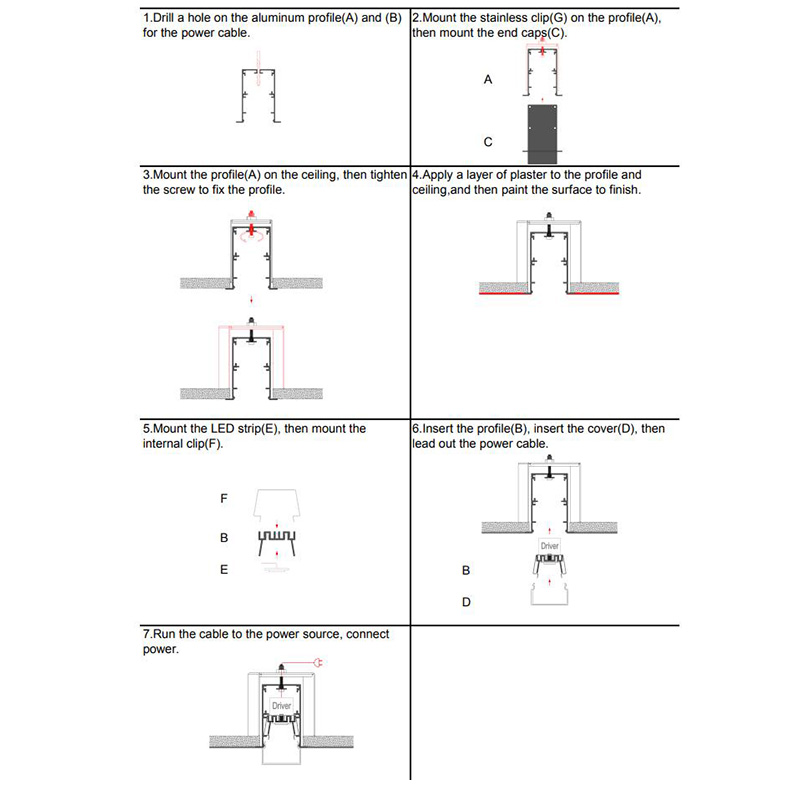

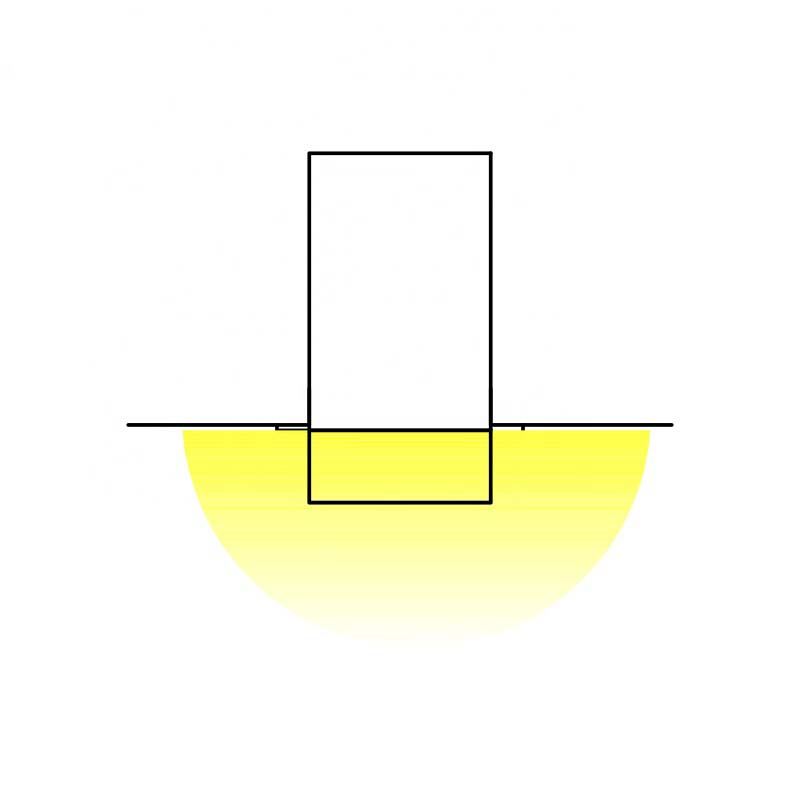

- Installation: Recessed
- Application: Office, Shop, Retail, Hotel, etc

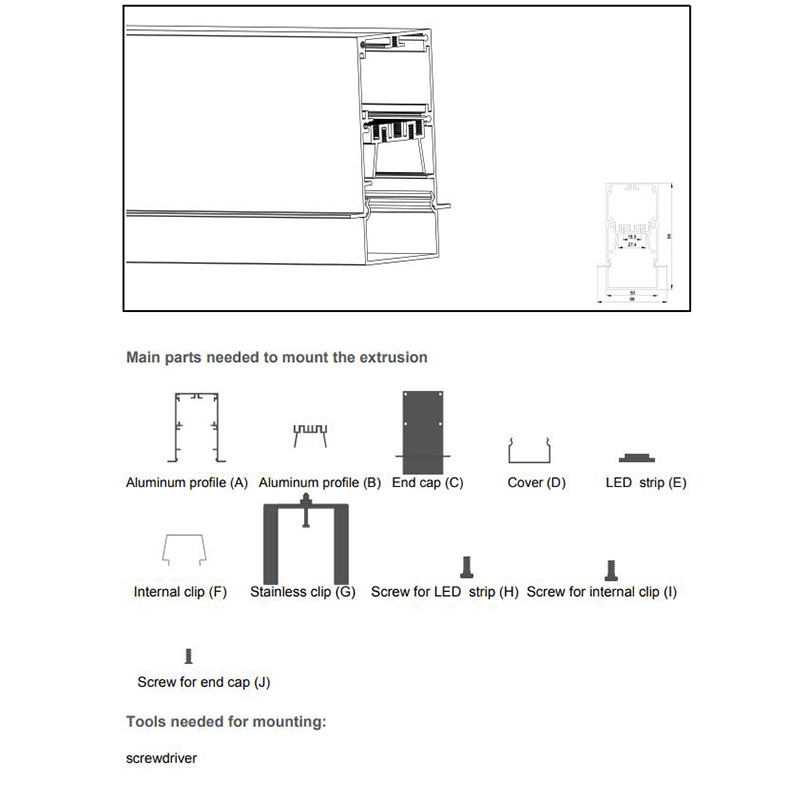

- Aluminum End Caps, Mounting Brackets, and Internal Clips Included
- 90°, 90° Vertical And 180° Couplers Sold Separately
- 5 Years Warranty
Includes:
1 * Recessed Aluminum Diffuser With Dropped Lens

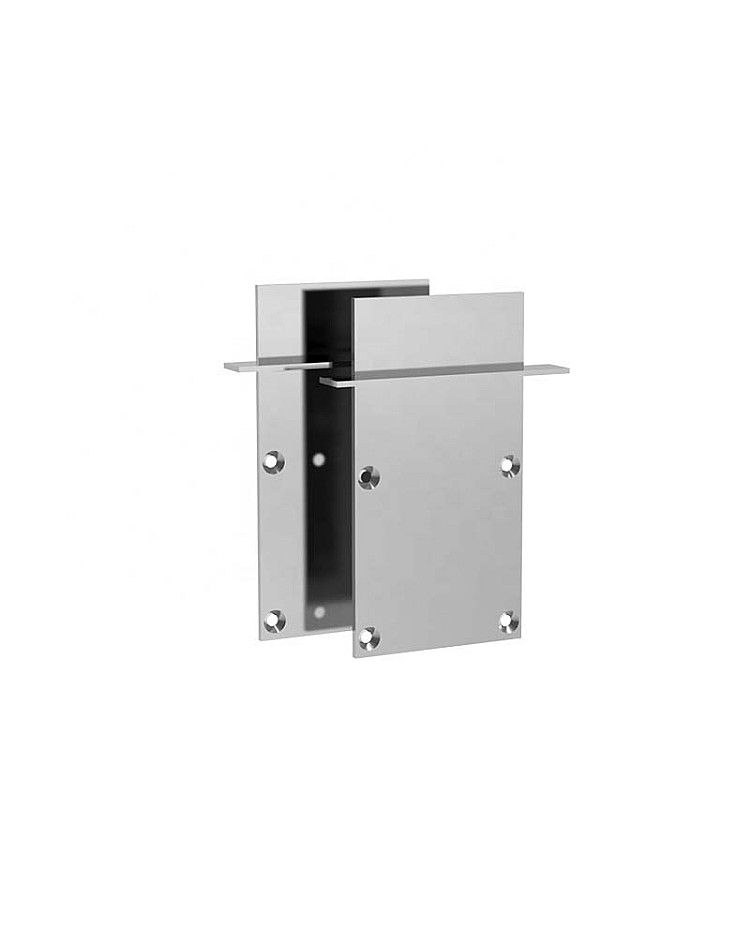

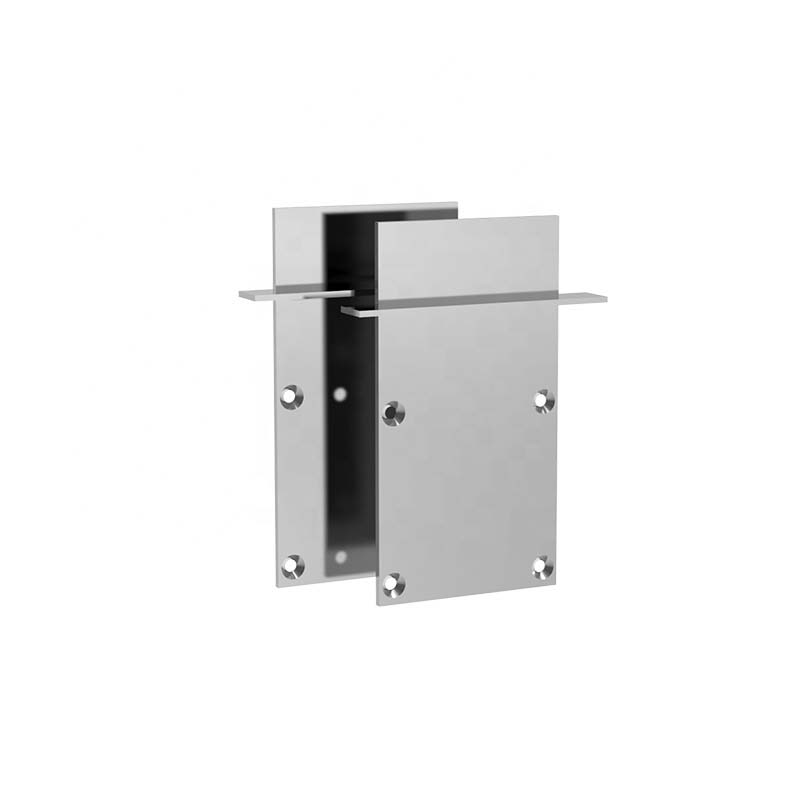

End Caps

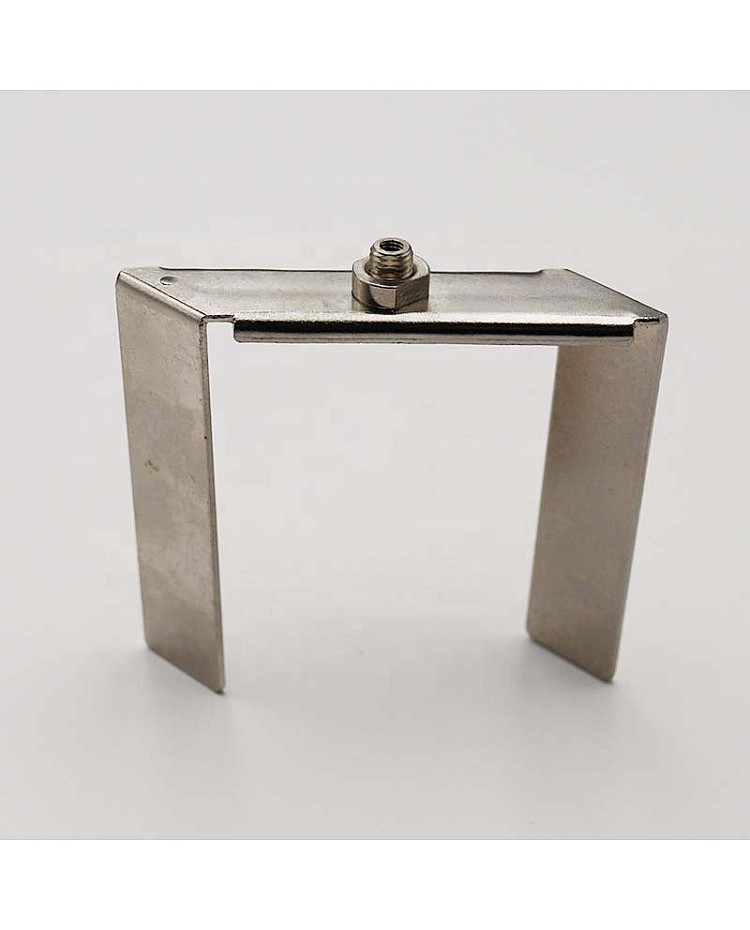

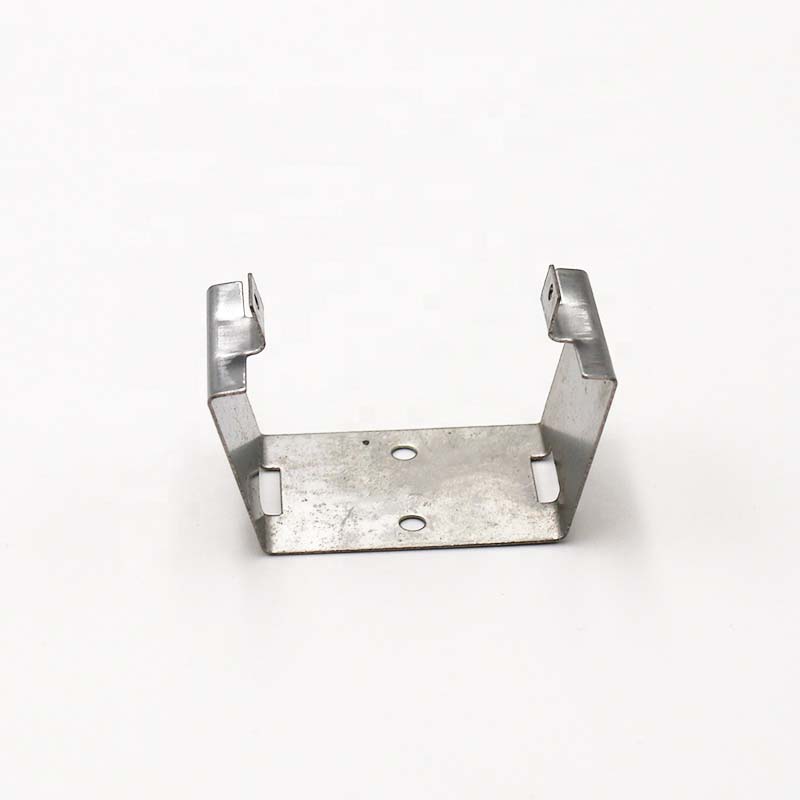

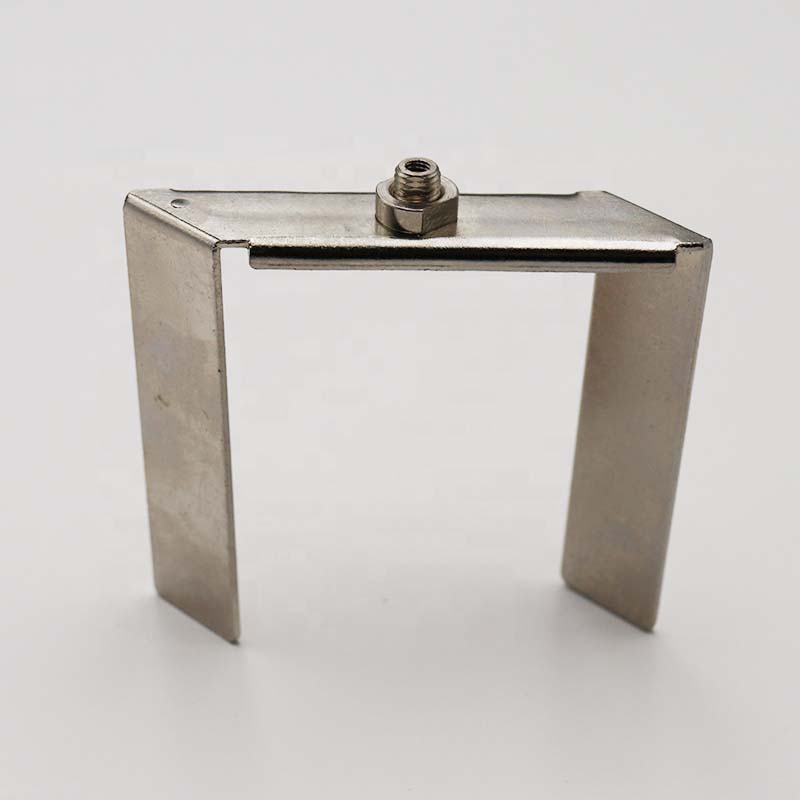

Mounting Brackets

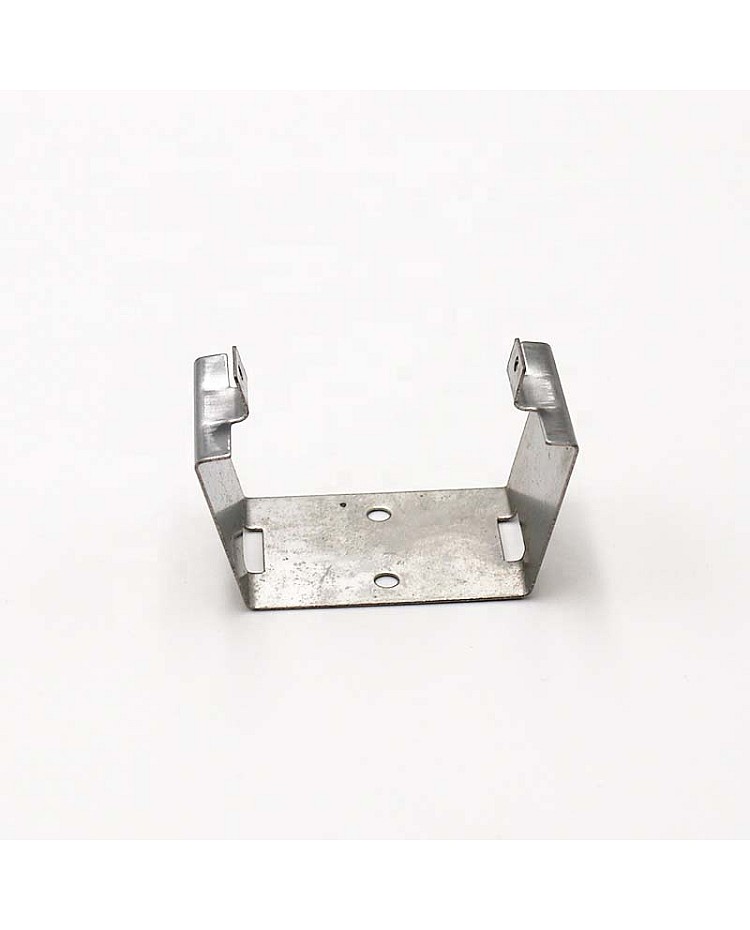

Internal Clips
