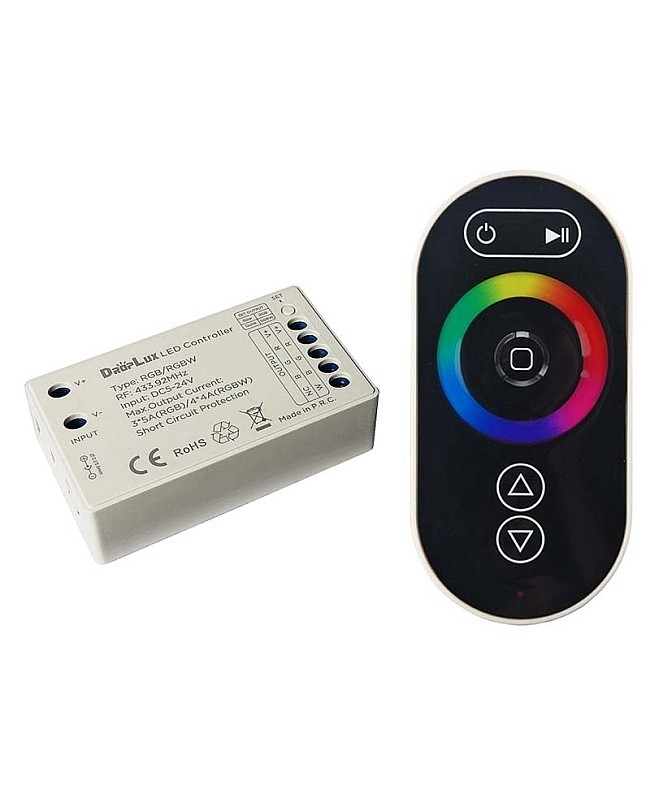

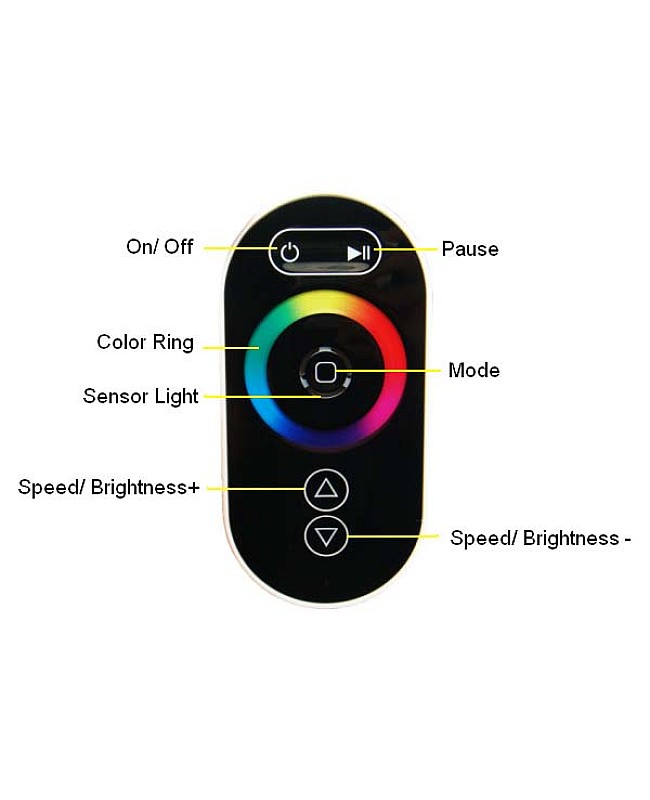

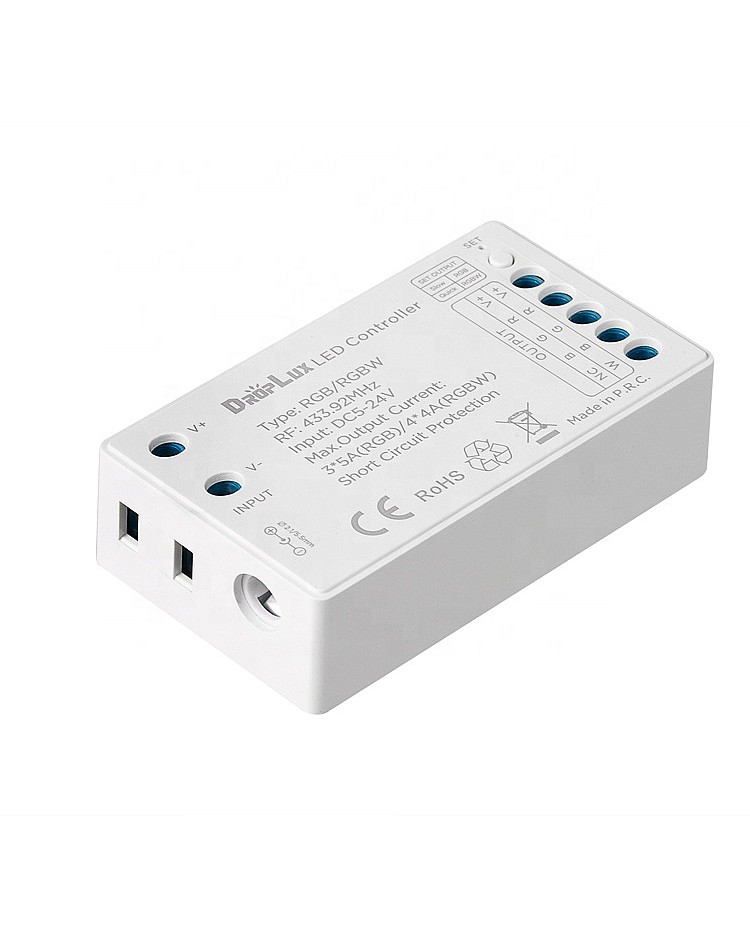

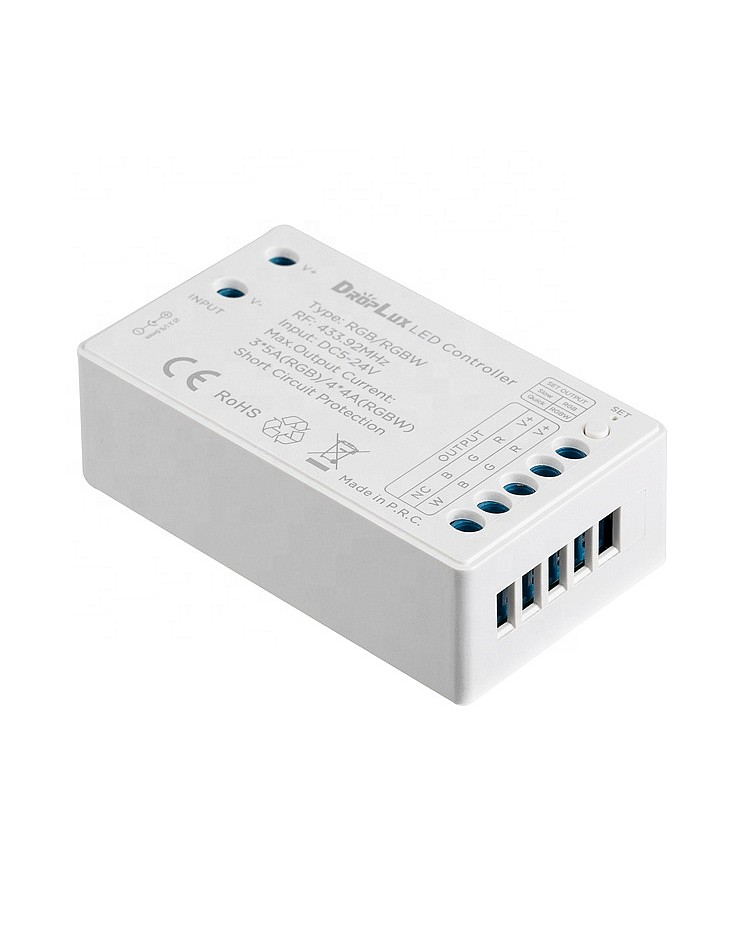

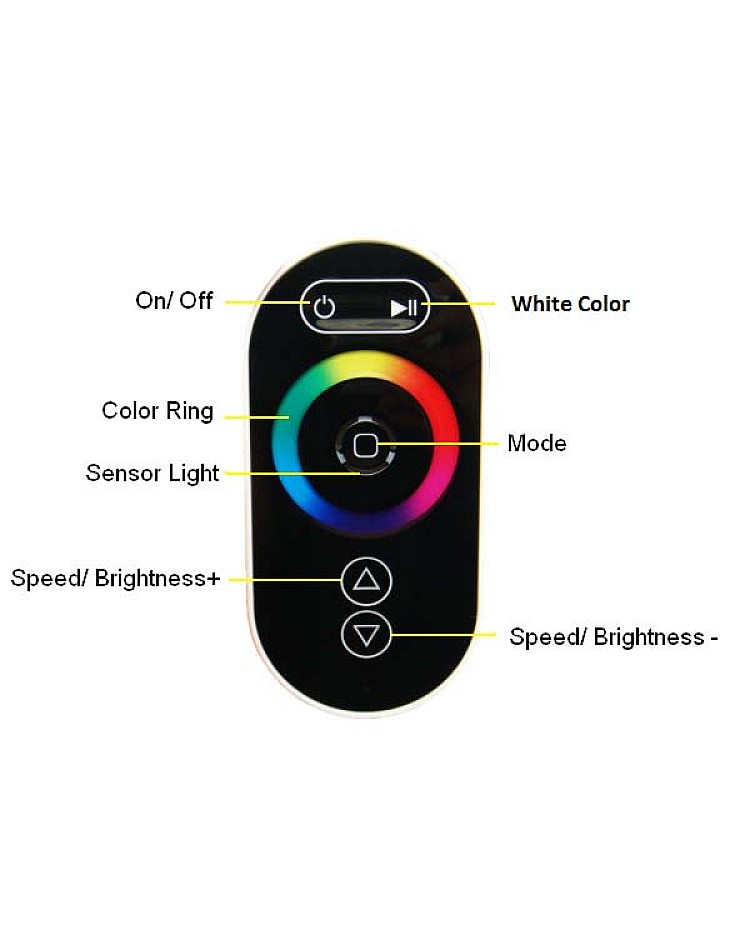

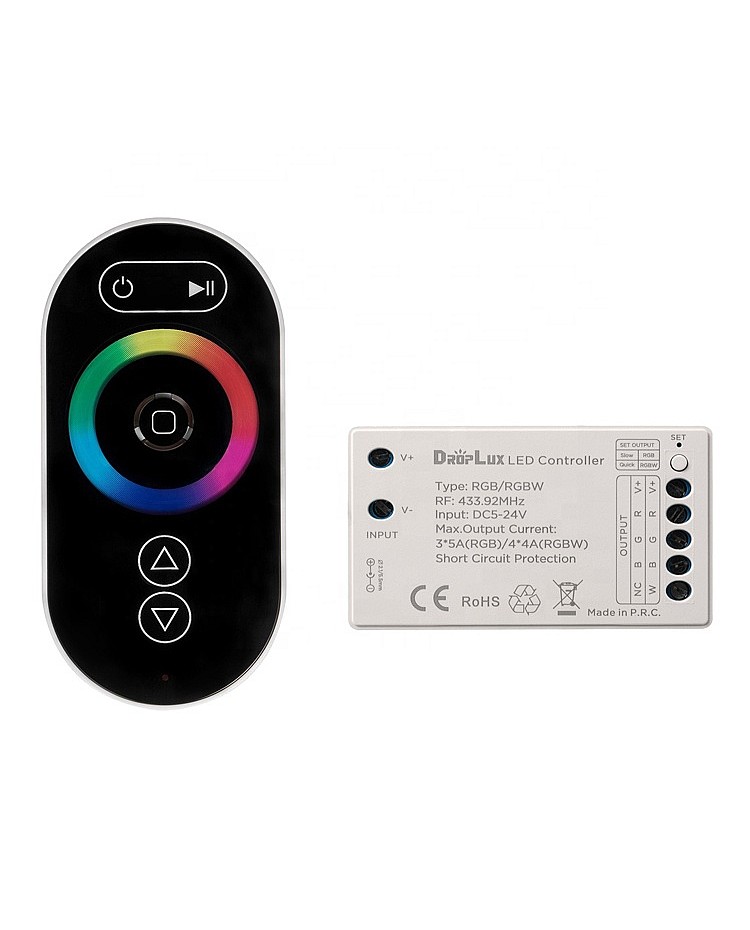

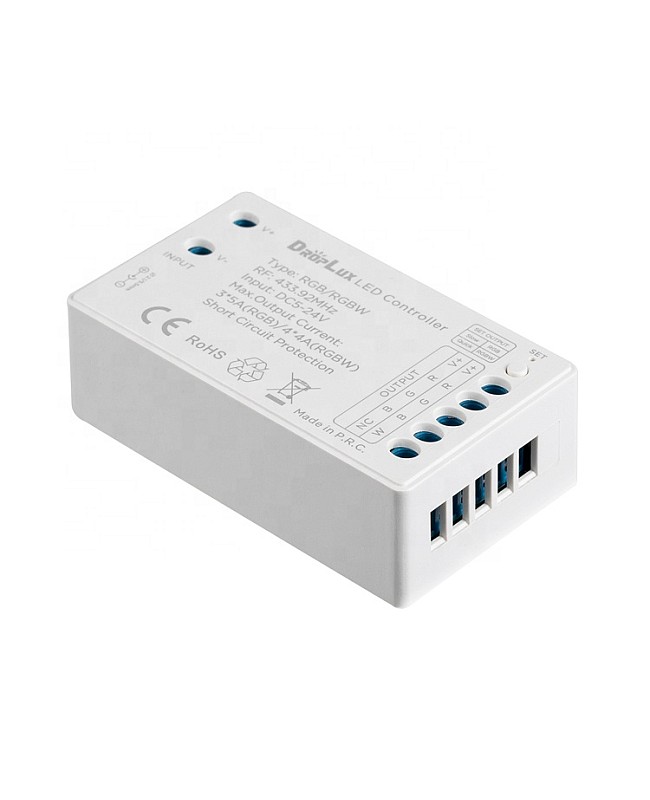

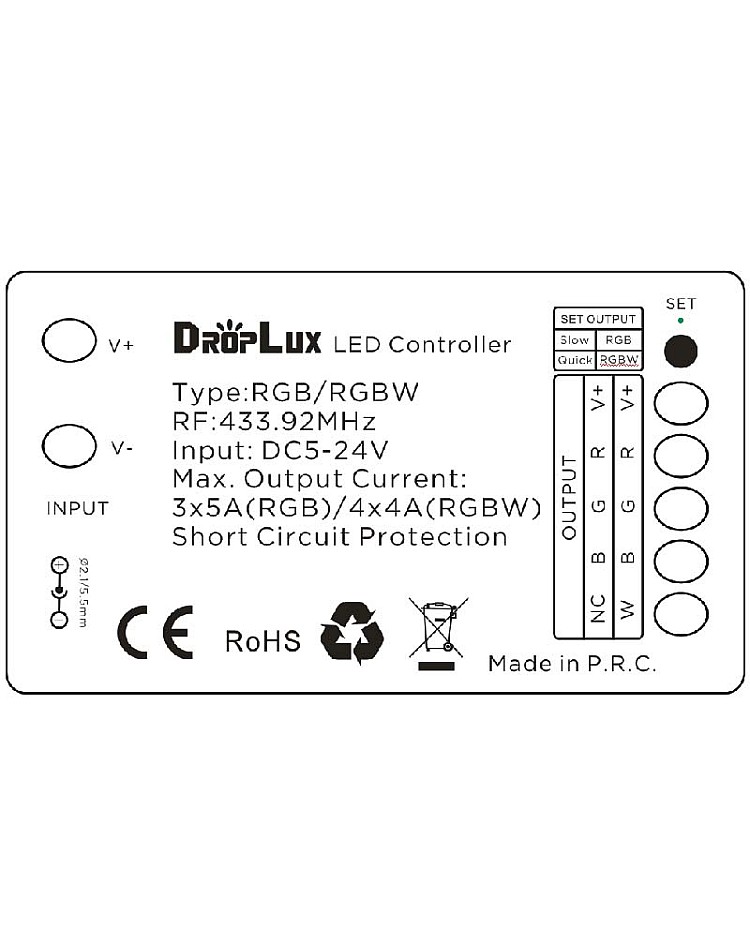

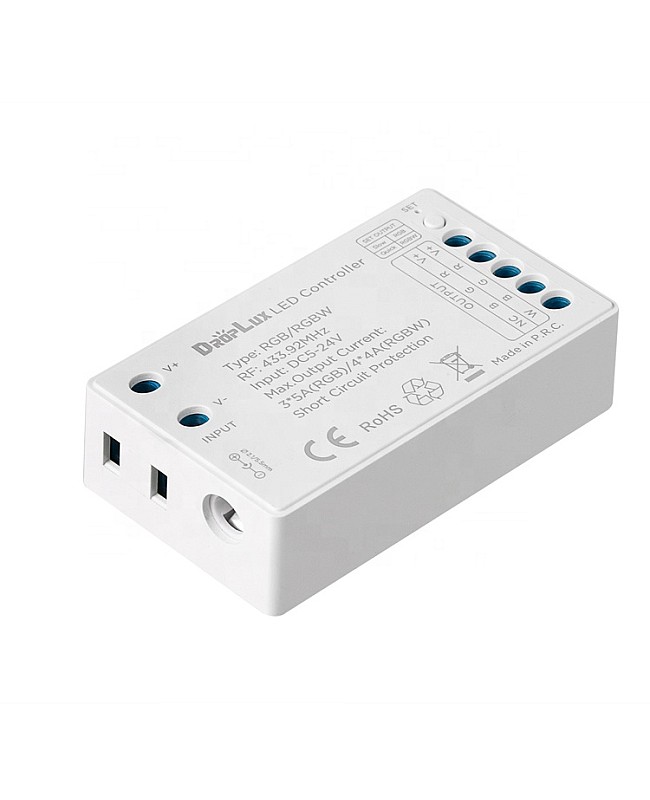

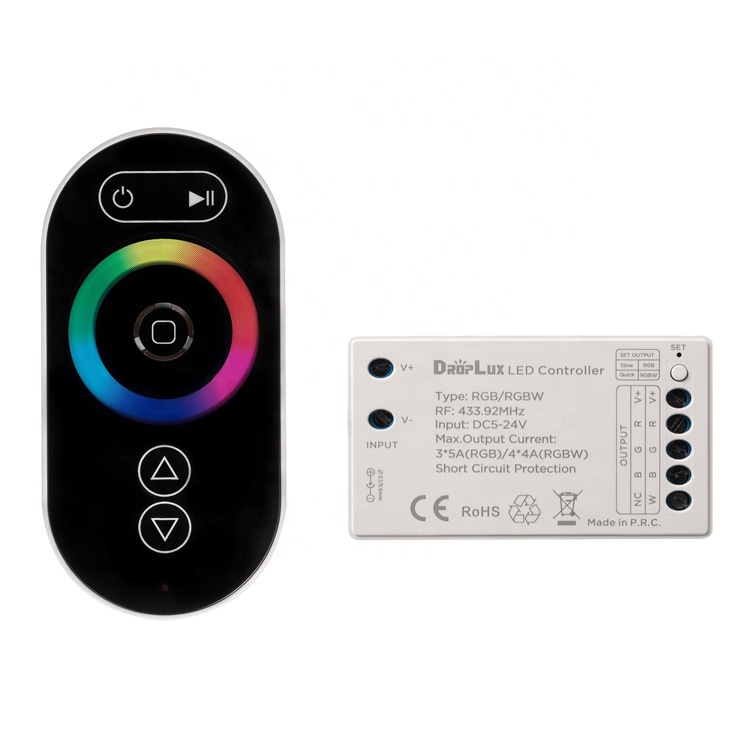

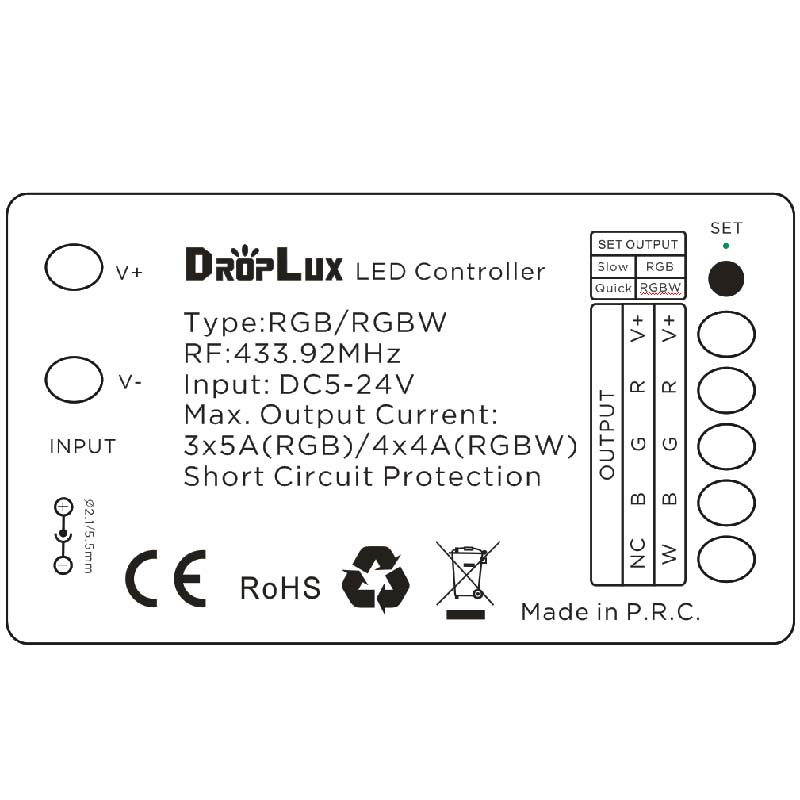

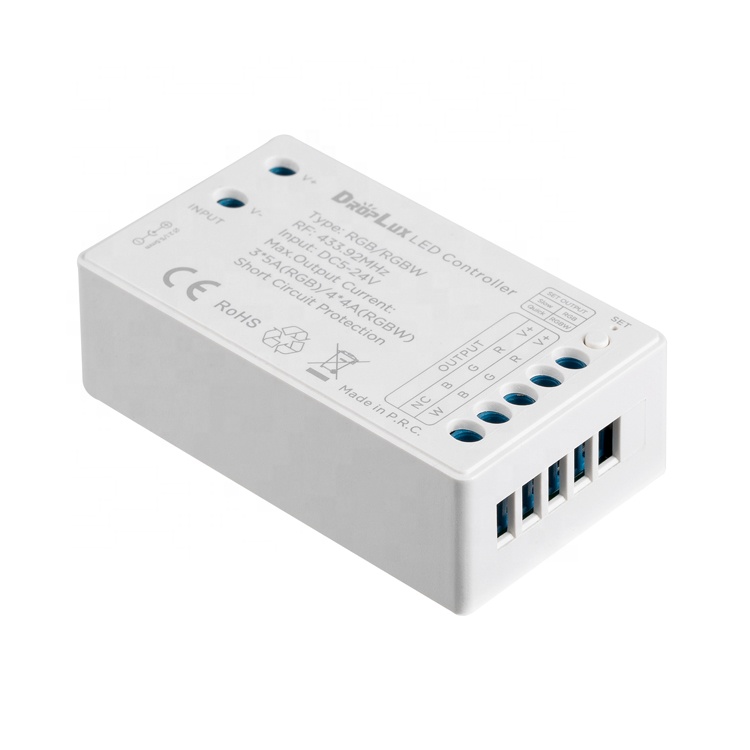

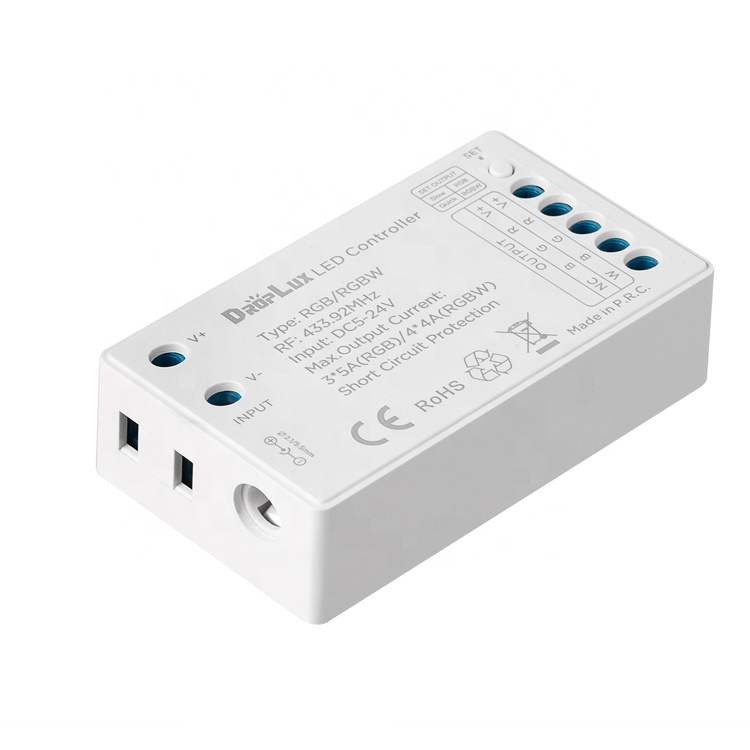

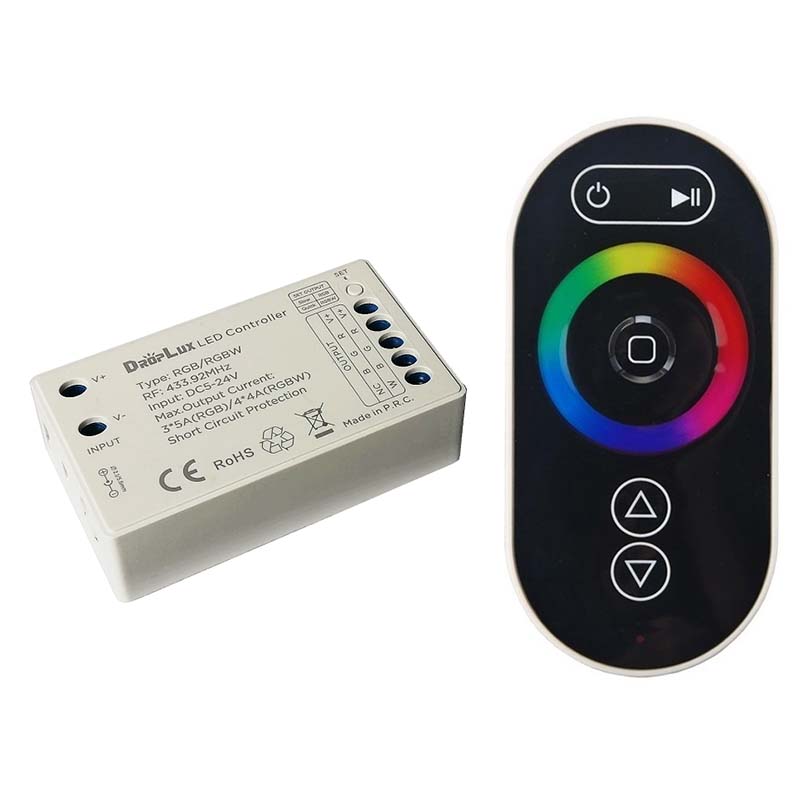

The RF wireless RGB RGBW 2 IN 1 LED controller 12V comes with a wireless LED touch remote control. The LED controller is designed for the constant voltage LED lights, with 2 1 functions for RGB or RGBW LED lights. The working voltage between DC5V and DC24V can work with LED strips, point source light, and wall washer lamp. With 3 or 4 output channels for RGB or RGBW LED lights, the max output current is 5A in RGB mode or 4A in RGBW mode. The memory function will store the power-off setting automatically. It comes with the wireless RF touch remote control, with a maximum control distance of up to 20 meters. You can use the Set button on the receiver to set the output type. The indicator flashes slowly, which means for RGB output; if it flashes quickly, it means RGBW. The RF touch control with one color ring and 5 function buttons, without any operation for more than 20 seconds, the touch remote will enter sleep mode. You can shake the remote to wake it up. You can use the RF remote control to adjust the brightness of static colors or the speed of dynamic modes. There are 10 modes in total.
LED Controller 12V Specifications:
- Working Temperature: -20℃-60℃
- Size: L70* W40* H20 mm
- Working Voltage: DC5V-DC24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Grayscale: 1024 Levels(RGB Each)
- Speed Stage: 100 Grade
- Output Current: 3CHs*5A(RGB)/4CHs*4A(RGBW)
- Max Output Current: 5A(RGB)/4A(RGBW)
- Max Output Power: RGB----75W(5V),180W(12V),360W(24V); RGBW----80W(5V),192W(12V), 384W(24V)
- PWM Frequency: 1.95 KHz
- RF Frequency: 433.92MHz
- Remote Control Distance: <20M
- Memory Function: YES
- Short Circuit Protection: YES
- Weight: 70g
- 3 Years Warranty

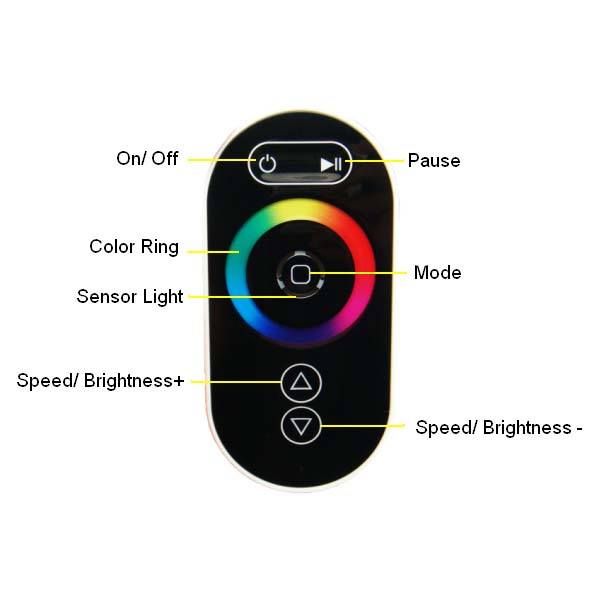

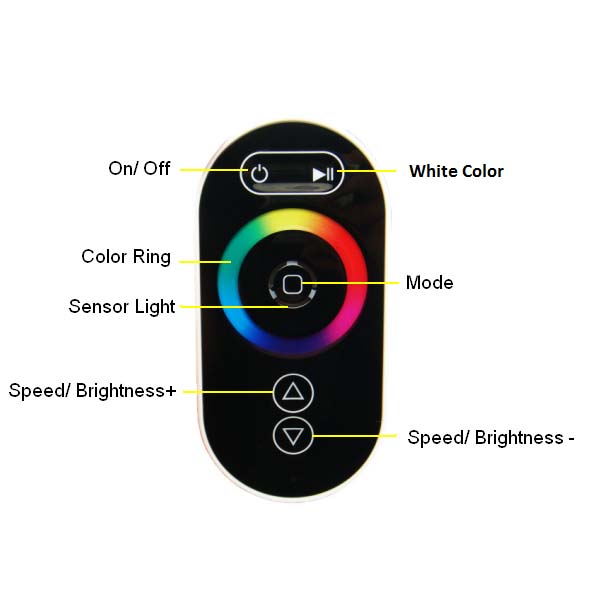

Touch Remote Control Specifications:
- Size: L150* W40* H20 mm
- Working Voltage: DC 4.5V
- Powered By 3PCS AAA Batteries
- Standby Current: 8uA
- Working Current: 30mA
- Standby Power: 36uW
- Working Power: 135mW
- RF Distance: <20m
- RF Frequency: 433.92MHz
Includes:
1 * LED Controller 12V
1 * Wireless LED Touch Remote Control
