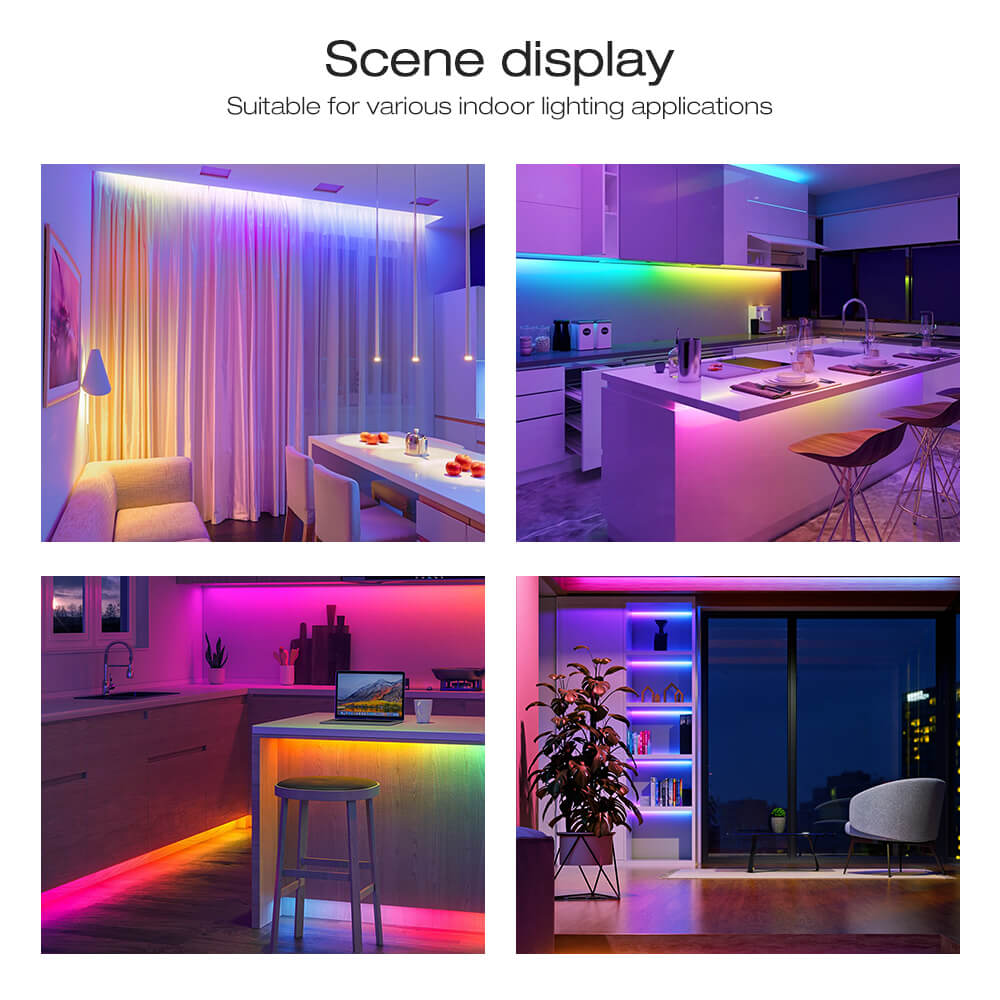

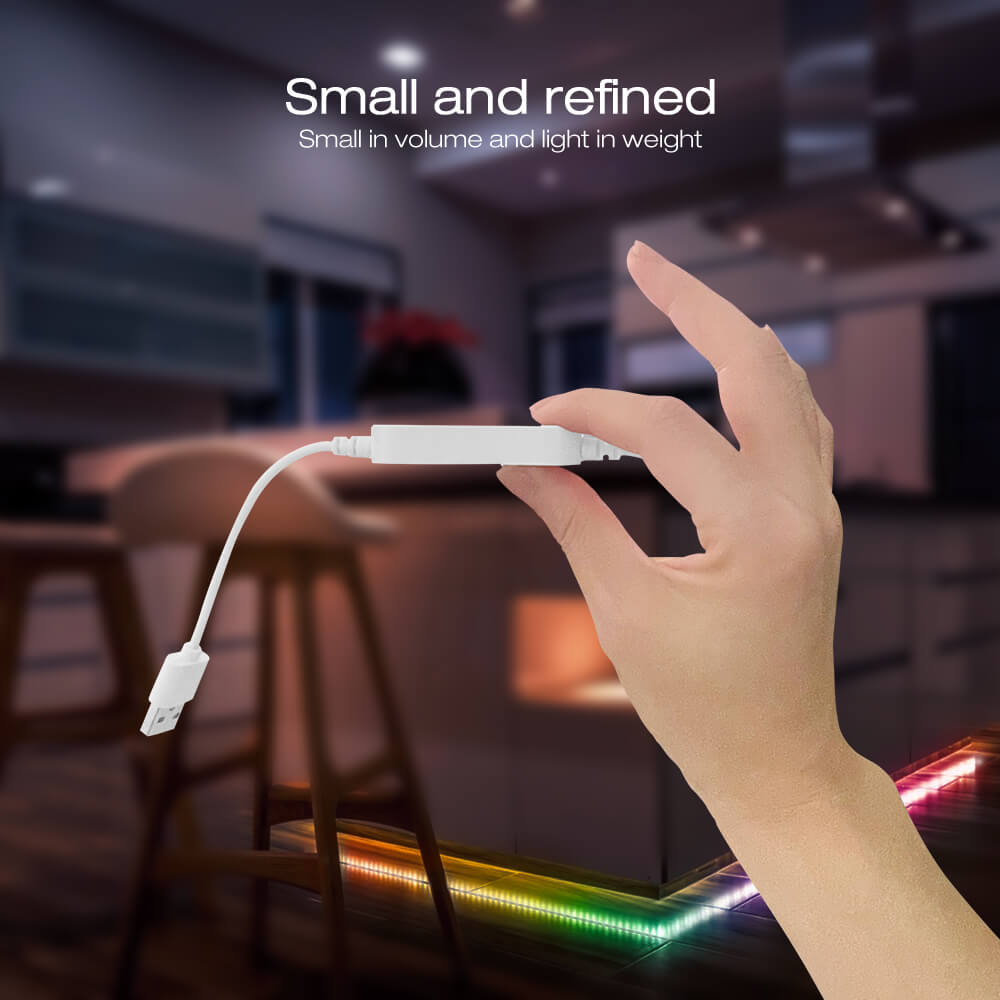

The Gledopto mini inline WLED LED controllers are compact and powerful units designed for addressable LED lighting. An ESP32 chipset powers them and can be controlled by the popular WLED Native app, offering advanced lighting effects, flexible control options, and reliable Wi-Fi performance in tight or limited-inline designs, such as cabinets, coves, shelves, and architectural lighting applications.
The inline ESP32 controllers support WiFi-based control, allowing you to manage the lighting effects via a phone WLED app, including ON/OFF, over 100 special lighting effects, segmented color control, and DIY scenes. The mini WLED controllers have a microphone that allows the lighting to follow the rhythm of the music. They support WLED remote control, allowing you to call up preset lighting effects without using your phone. There are two versions available: one with a USB port and one with a DC port, which allow you to connect to various power sources.
- WLED APP control

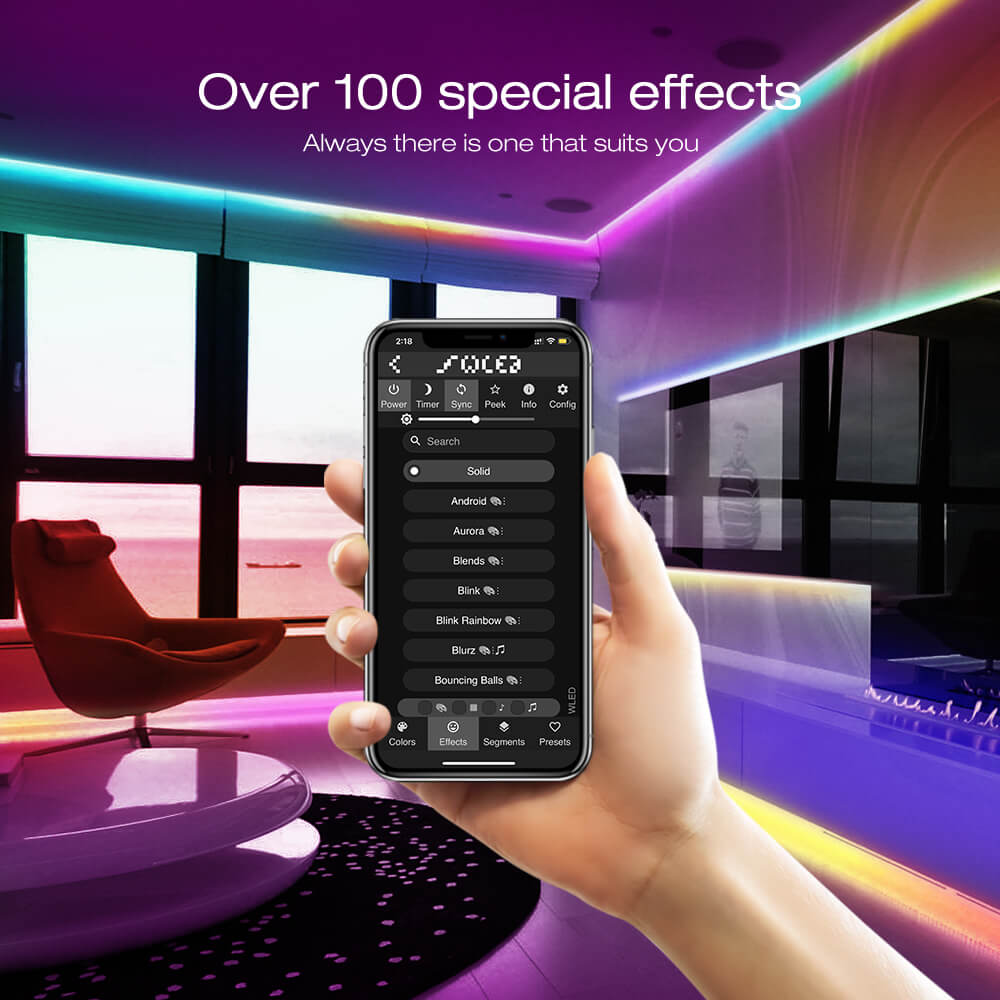

- Over 100 special lighting effects are selectable
- supported up to 250 DIY lighting effects
- Segmented color control

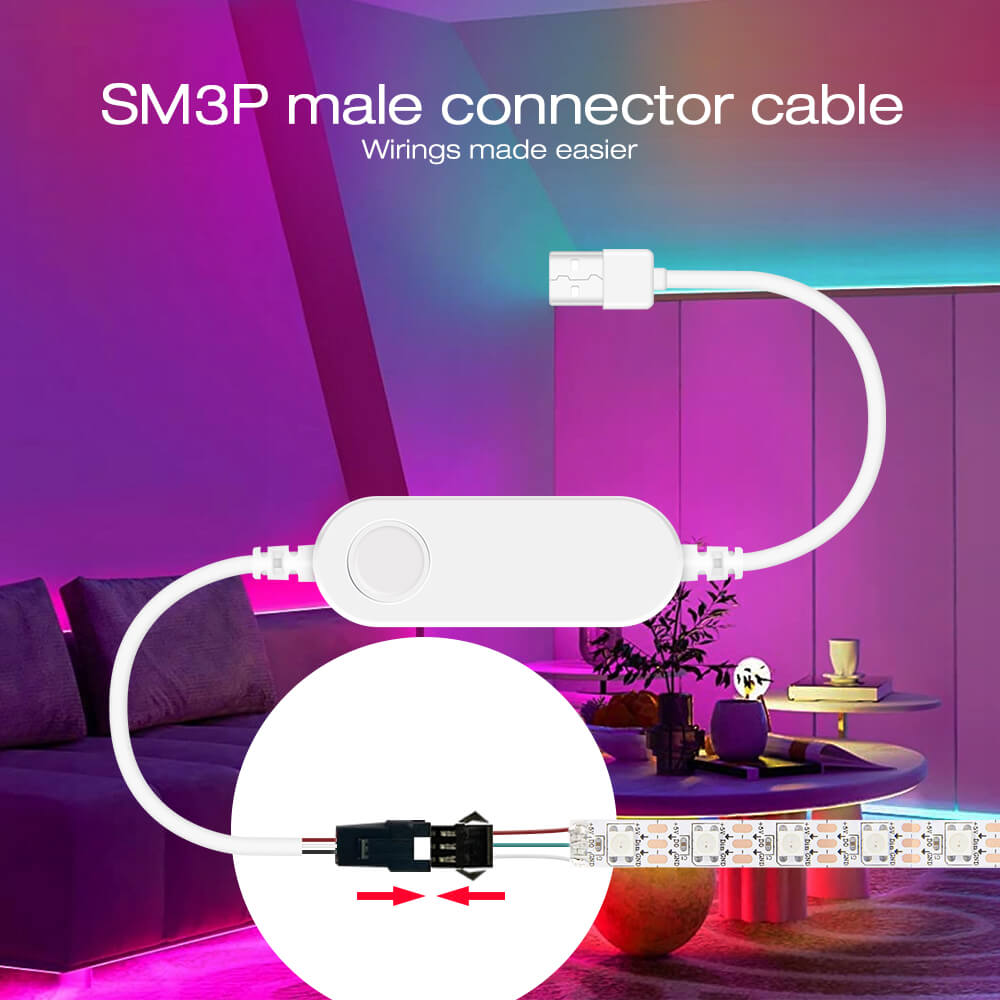

- SM3P male connector cable for easy addressable LED strips connection

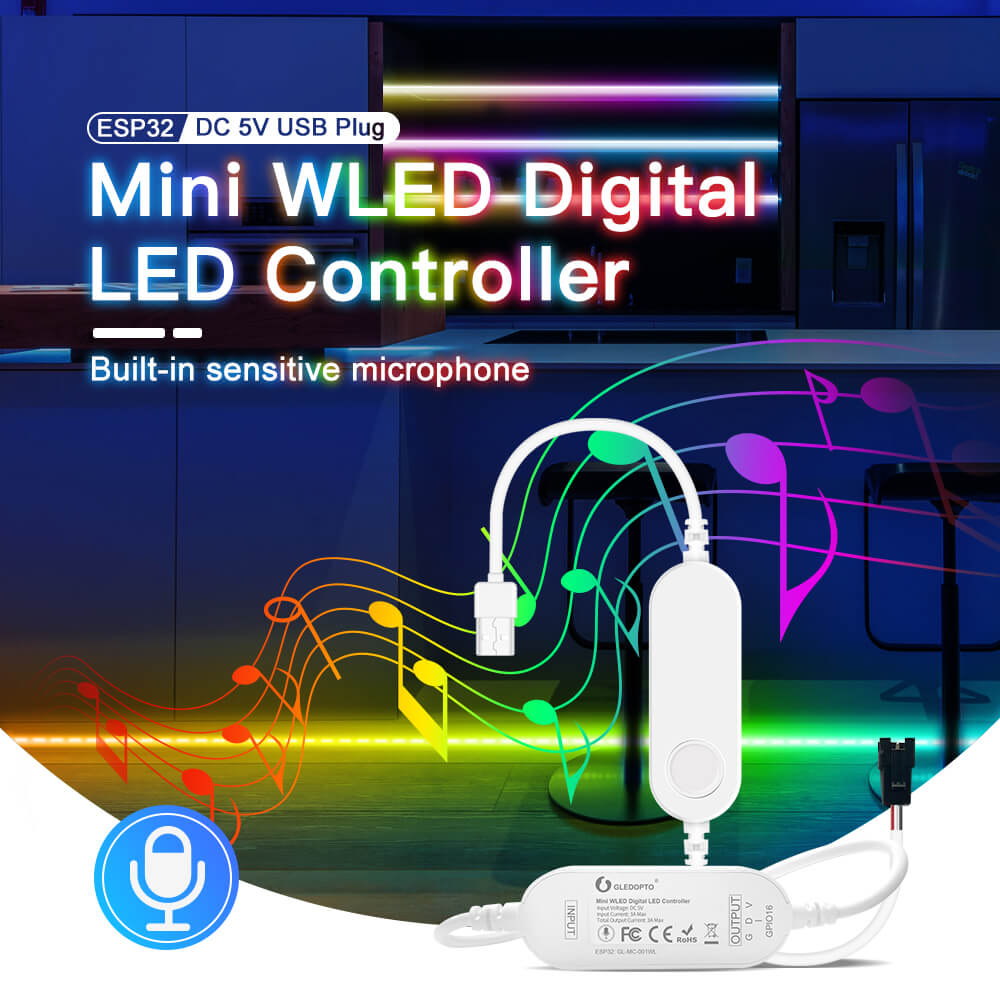

- Built-in microphone to follow the rhythm of the music beats
- WLED remote control
Link: Gledopto mini inline WLED LED Controller Instruction

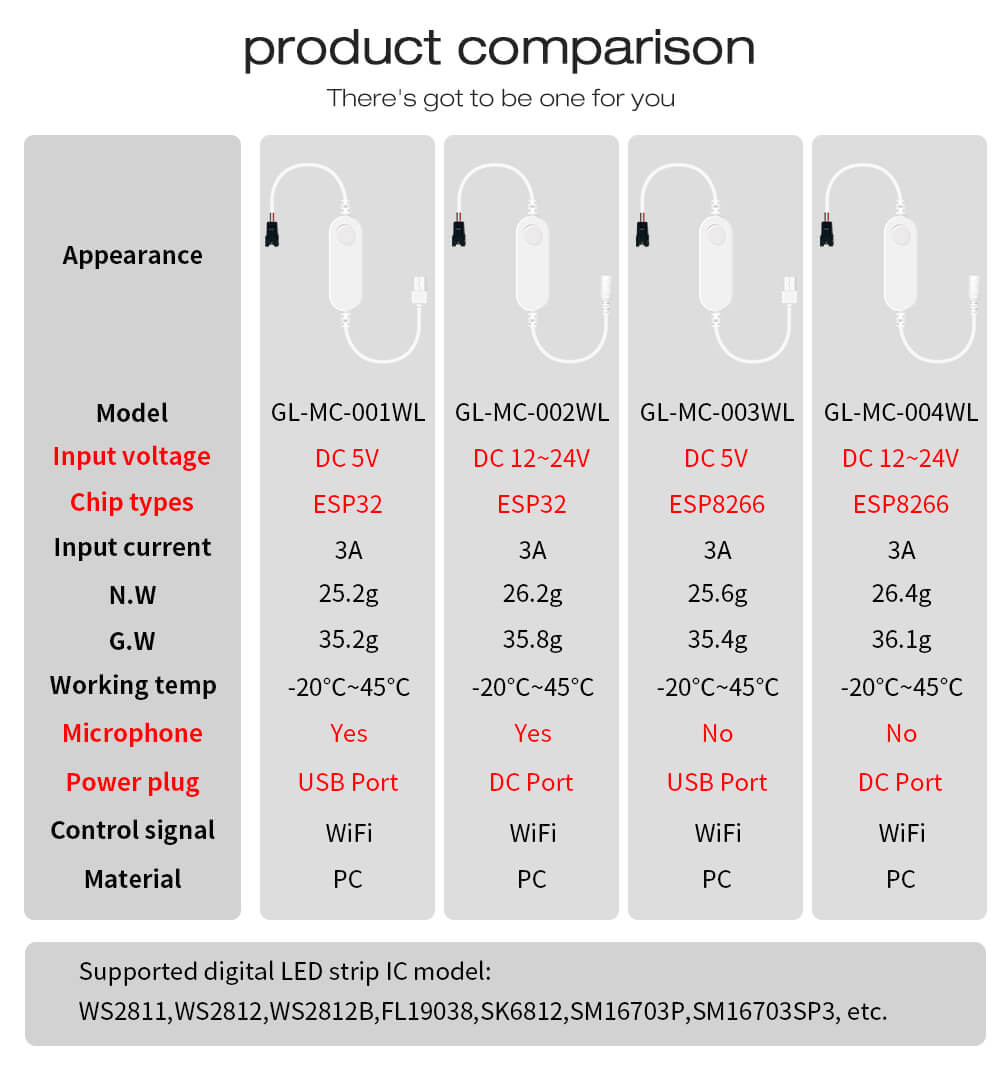

Specifications:

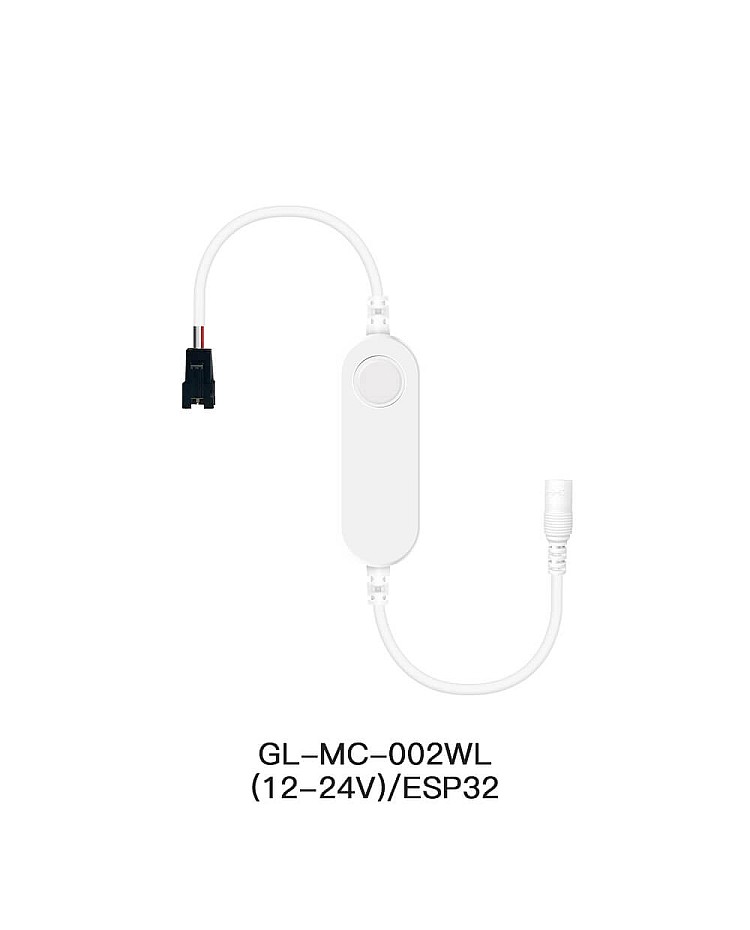

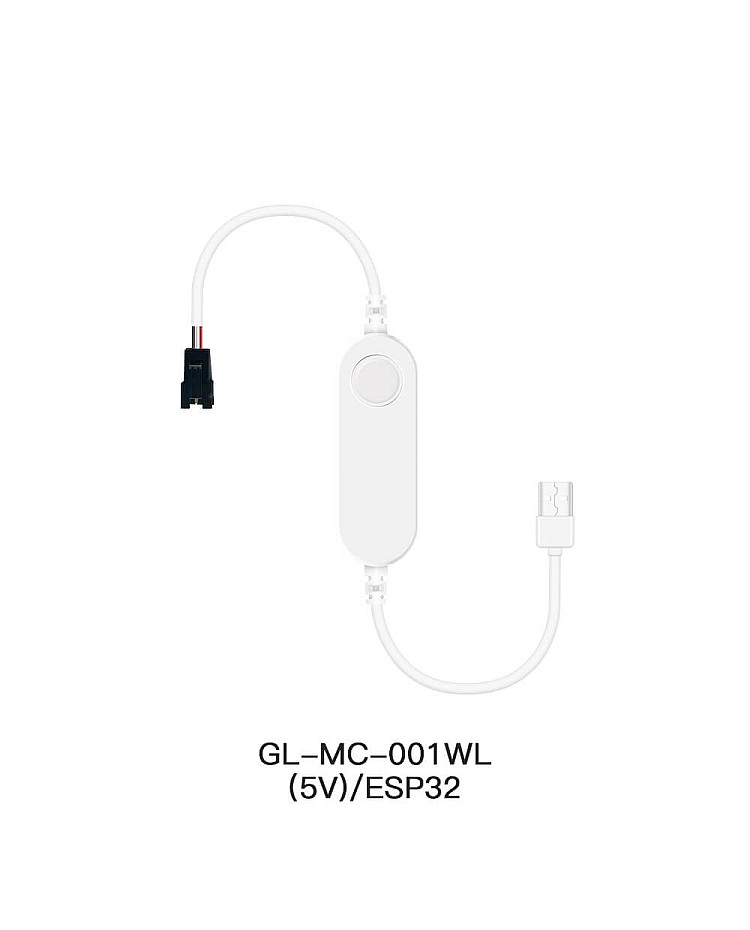

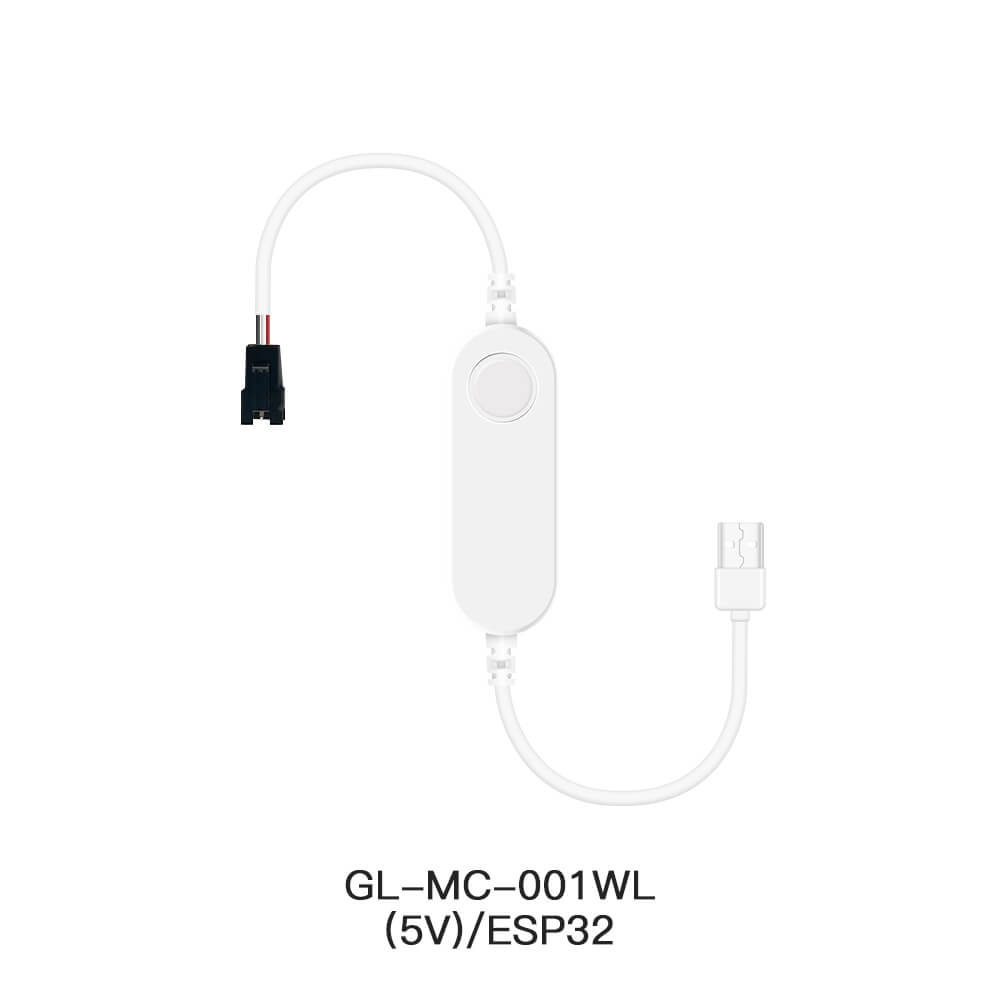

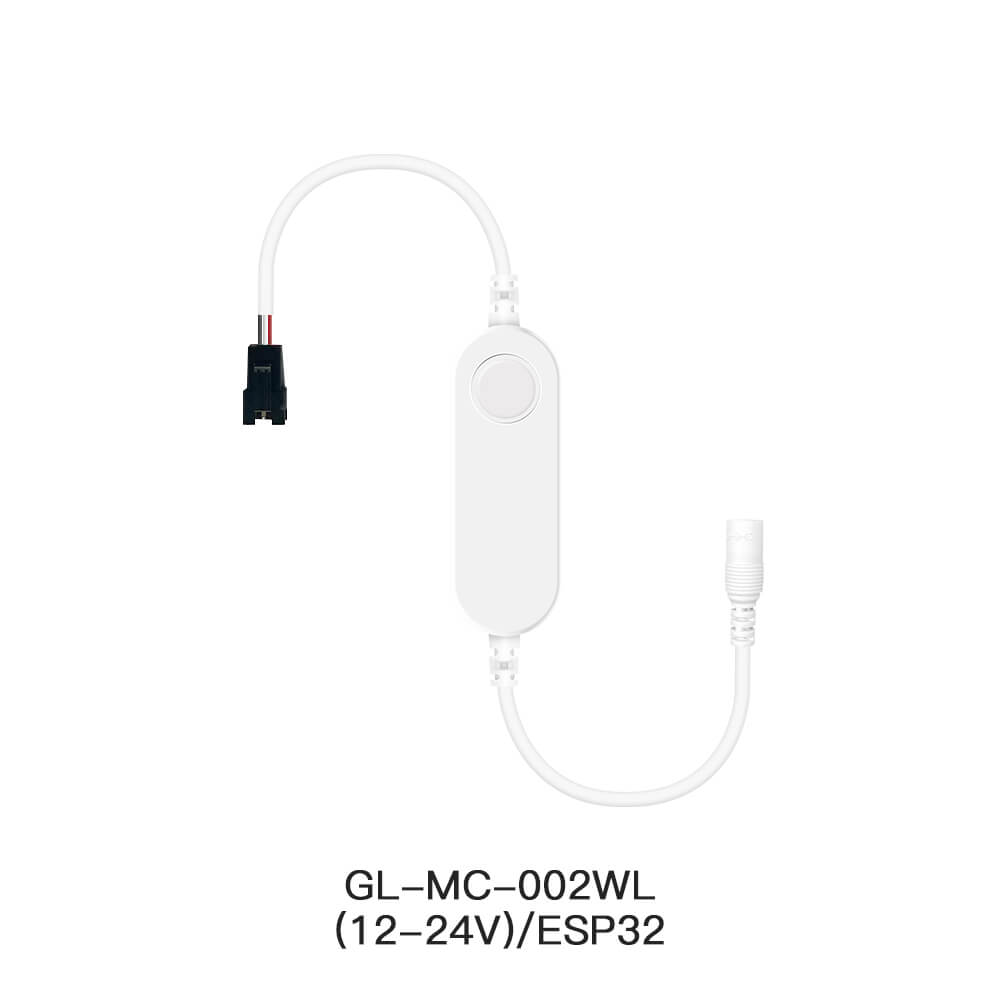

- Models: GL-MC-001WL ( UBS connector ) / GL-MC-002WL ( DC connector )
- Material: PC
- Chipset: ESP32
- Input voltage: 5VDC (GL-MC-001WL) / 12-24VDC (GL-MC-002WL)
- Input current: 3A max
- Total output current: 3A max
- Maximum supported pixels: 800PCS
- Communication method: WiFi
- App name: WLED Native
- Supported LED ICs: WS2811, WS2811F, WS2814A, WS2805, SM16703, FL19038, FW1935, FL19038, WS2812, WS2812B, FL19038, SK6812, SM16703P, SM16703SP3, etc
- Microphone: YES

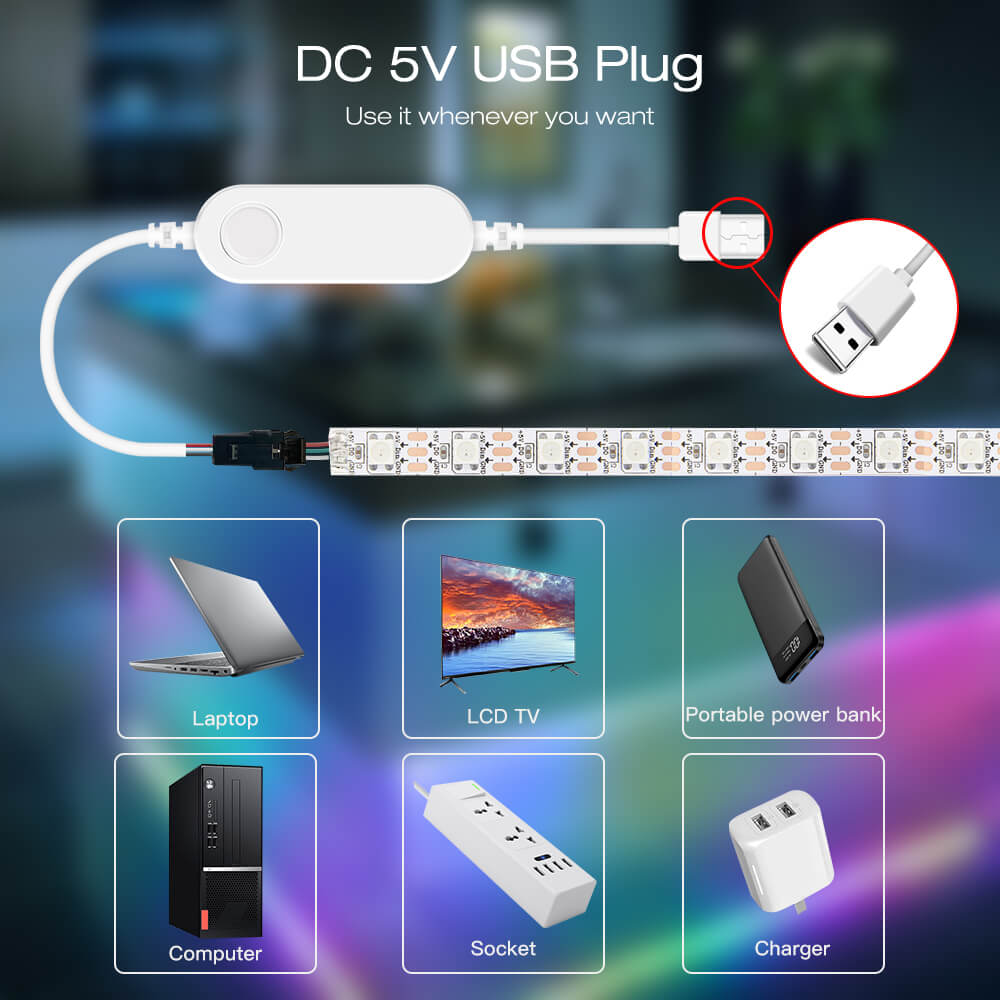

- Power plug: USB port ( GL-MC-001WL ) / DC port ( GL-MC-002WL )
- Working temperature: -20℃-+45℃
- Warranty: 2 years
Includes:
1 x Mini inline WLED controller
1 x User manual
