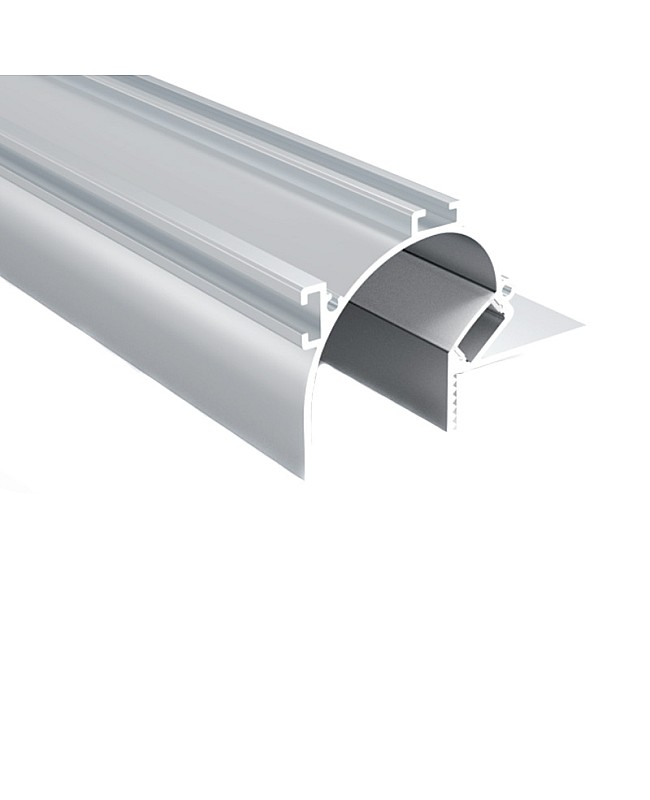

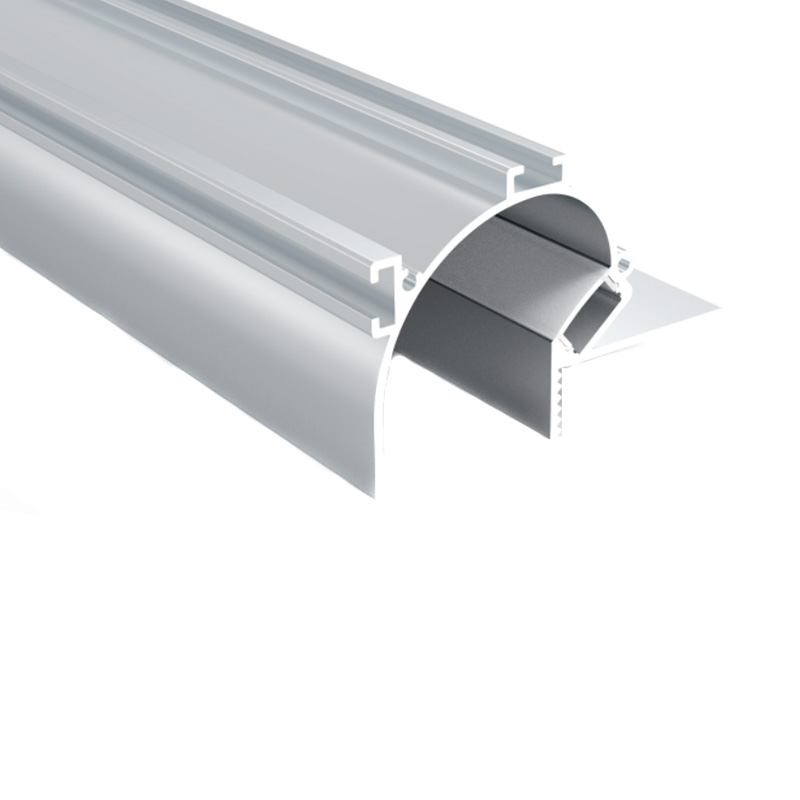

The ALP078-R LED channels are excellent for creating cove lighting on ceilings or walls, providing an even and attractive lighting solution. The light profiles feature a dome design with a white-coated body, allowing them to blend seamlessly with ceilings or walls. They are made of 6063-T5 aluminum material with white-coated surface treatment, anti-oxidation resistance, and a longer lifespan. The stock color is white, and other colors are available for customization. The standard lengths are 1 m and 2 m; custom lengths are also available. Recessed LED channels with a dry-wall design feature a white-coated body, allowing them to blend seamlessly with the surrounding white wall and diffuse light uniformly and smoothly. This indirect lighting is gentle on the eyes, providing anti-glare benefits without harm. They are a unique choice for hotel ceilings or other high-end lighting projects. The inner width is 12.3, allowing a maximum PCB board width of 12 mm. You can install the high-density SMD LED strips and COB LED tapes inside. Only one type of diffuser is available: the PC diffused covers, made of imported material, are anti-yellowing, feature perfect lighting distribution, and provide a soft light output. There are two mounting clip models available: one for walls and one for ceilings, which allow the mounting of the white LED channels at the perimeter of the ceiling against a wall or in the middle of the drywall ceiling.
Specifications:
- Model: ALP078-R
- Material: 6063-T3 extruded aluminum
- Surface treatment: Powder-coating

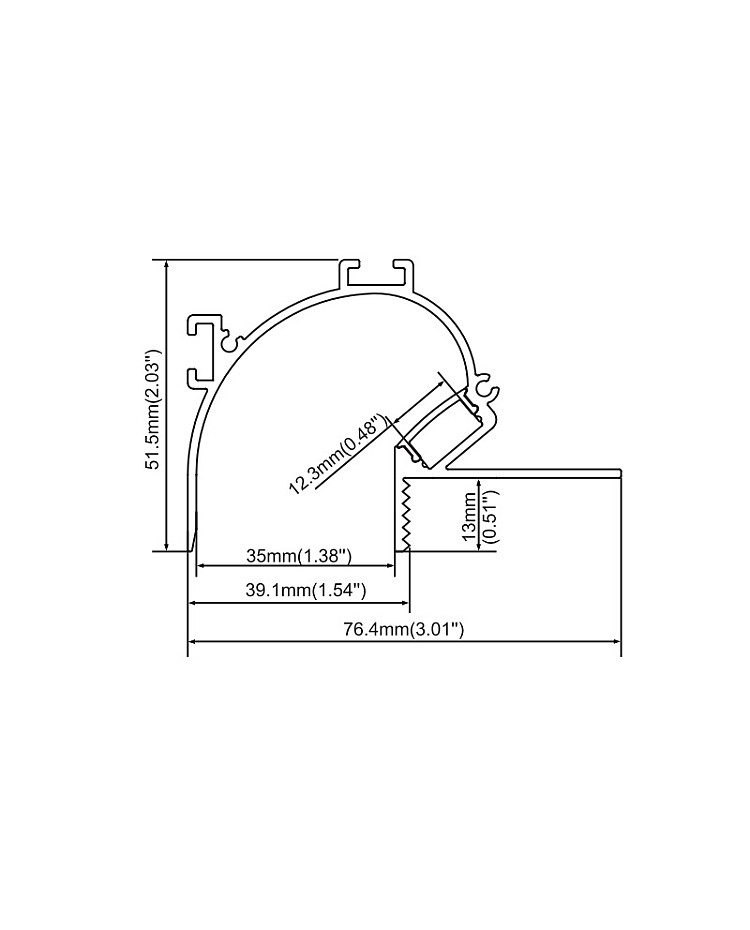

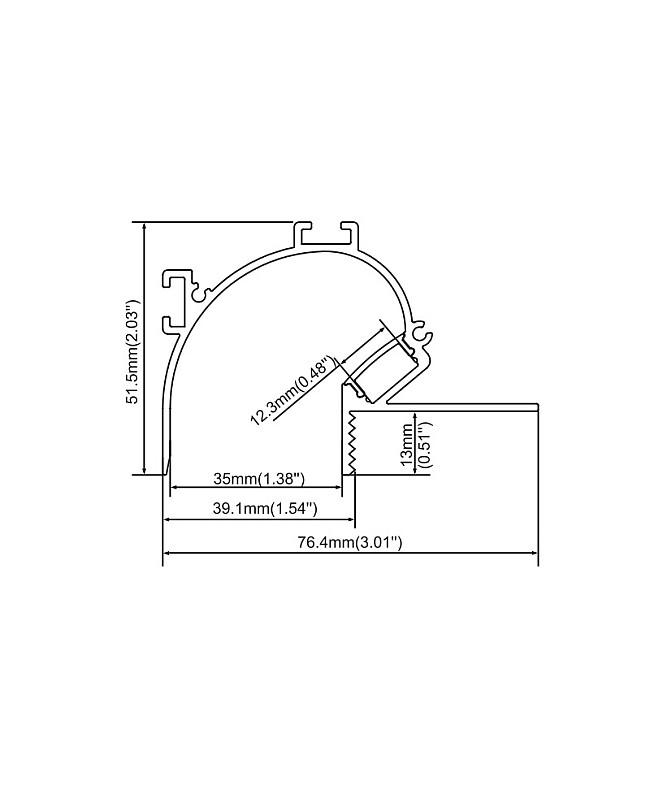

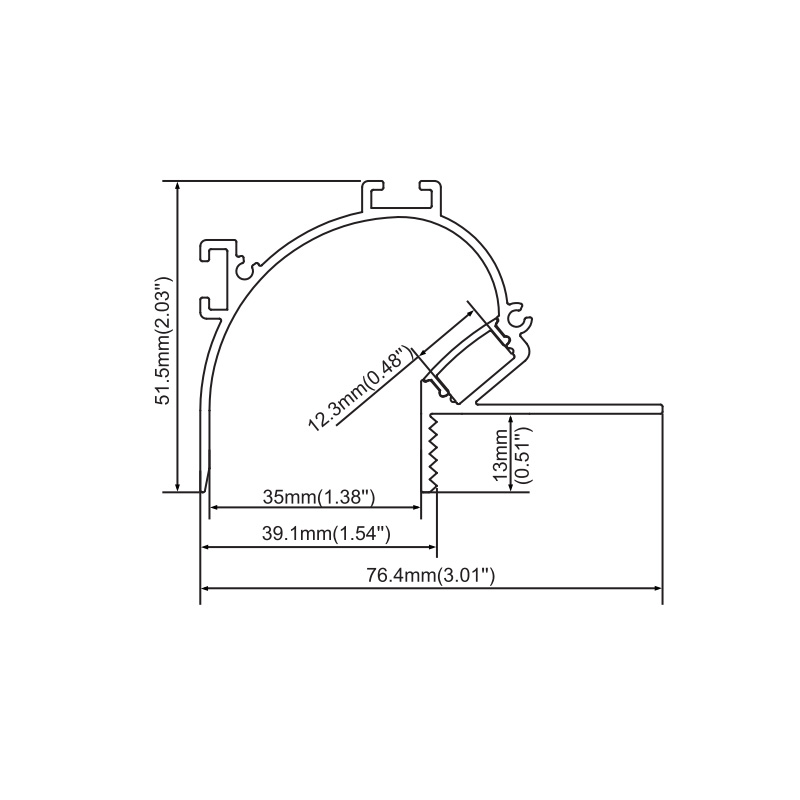

- Size( W x H ): 76.4 mm x 51.5 mm ( 3.01" x 2.03" )
- Colors: White
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffuser: PC diffused cover
- Inner width: 12.3 mm ( 0.48" )
- Max width of PCB board: 12 mm ( 0.47" )
- Power: < 25 W/m
- Tolerance: ±1%
- IP rate: IP20
- End caps and mounting clips included

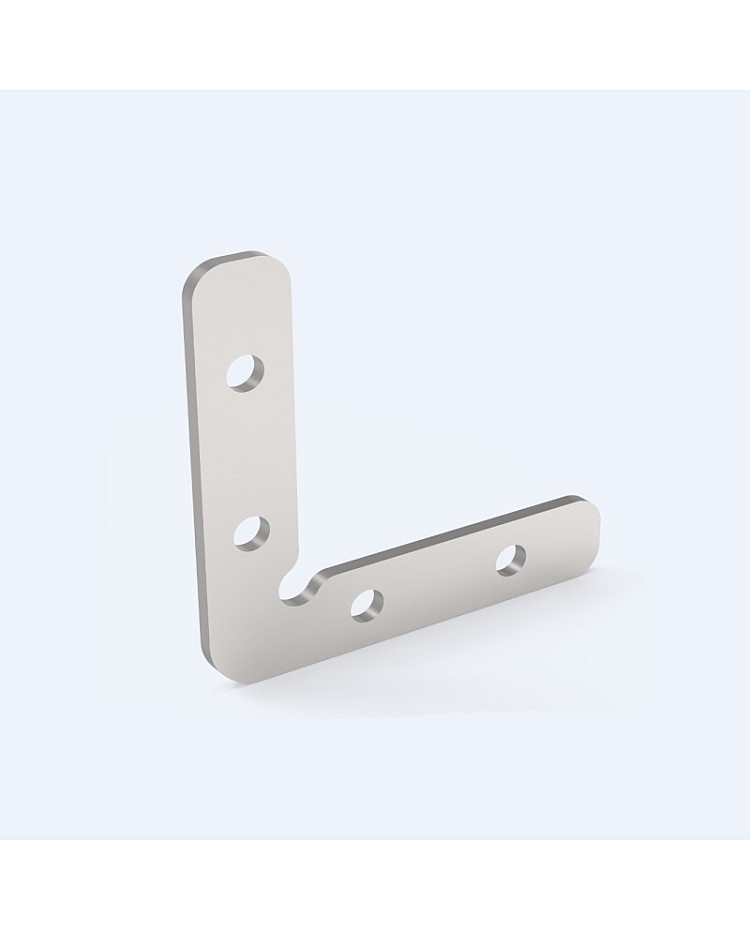

- 90° and 180° couplers sold separately
- Tapes, dimmers, controllers, and transformers are sold separately

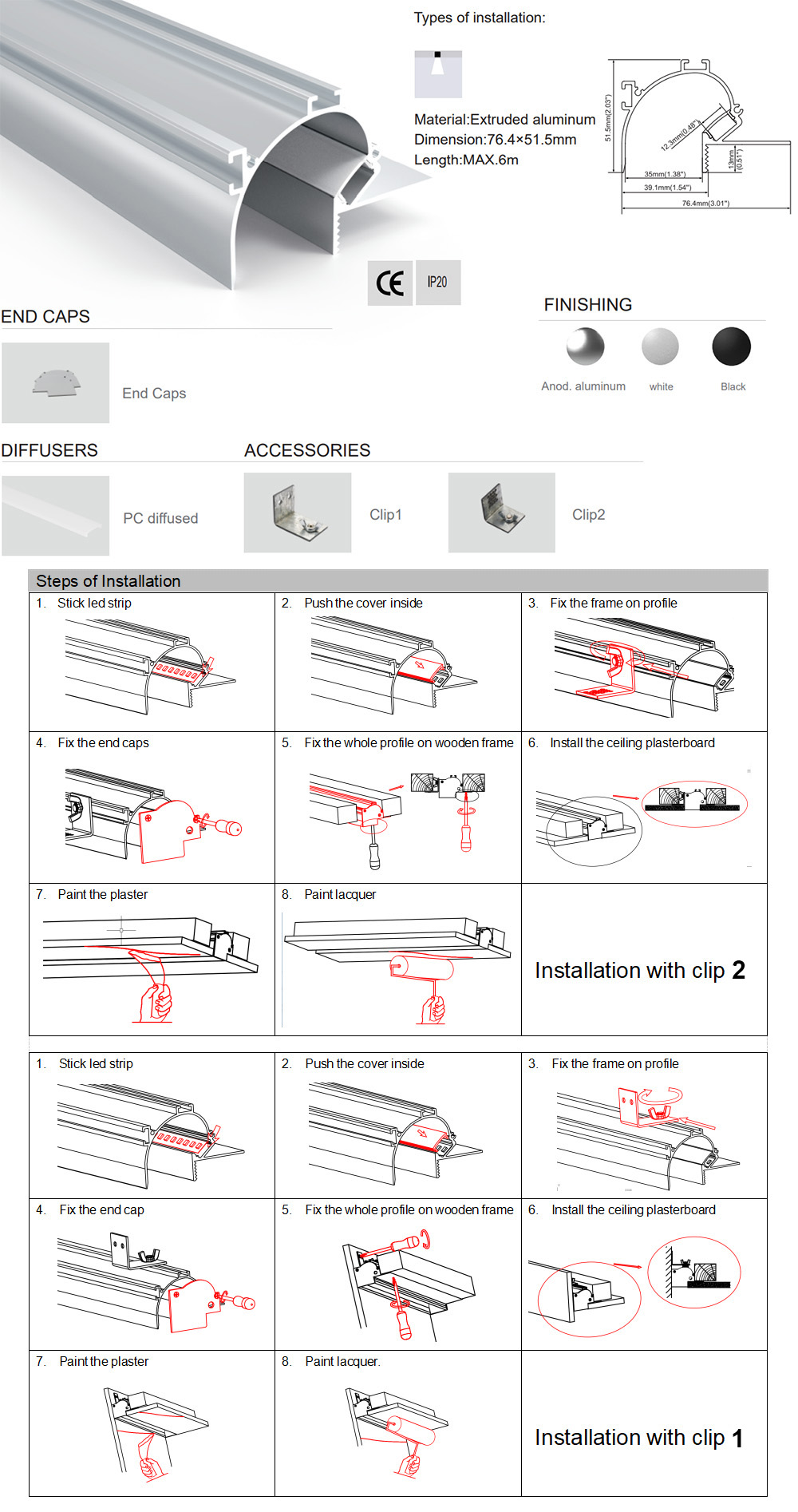

- Installation: Recessed

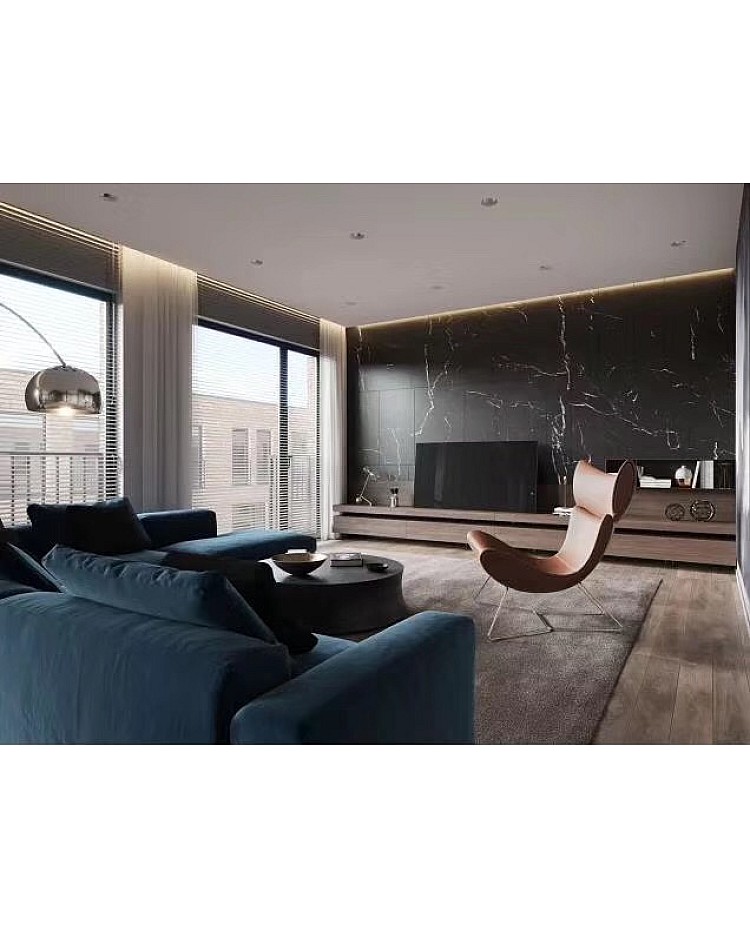

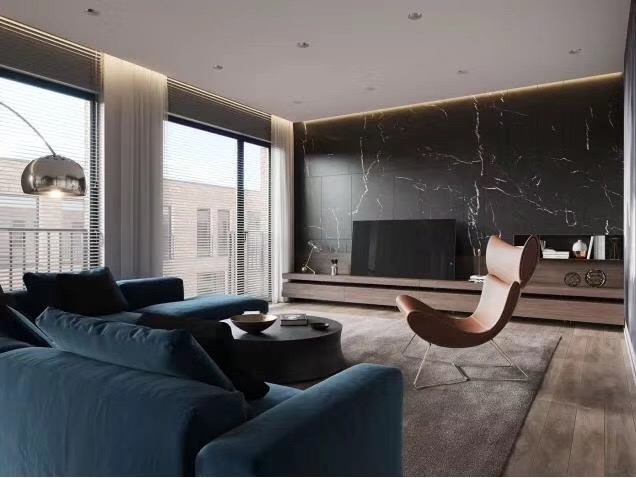

- Applications: Cove lighting
- Warranty: 5 years
Includes:
1 * Cove LED channel with diffuser

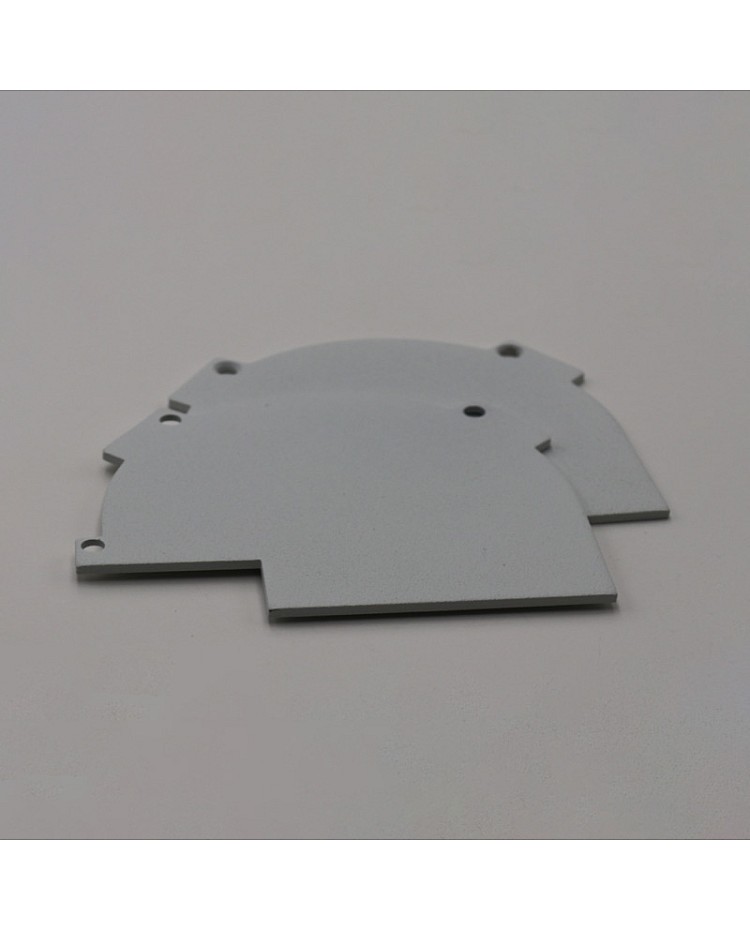

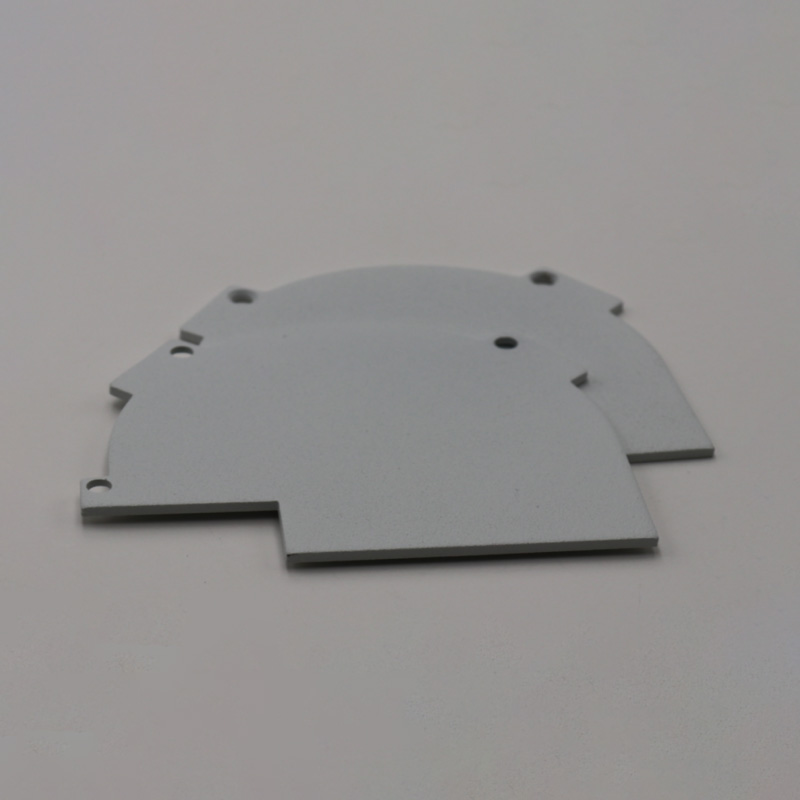

End caps

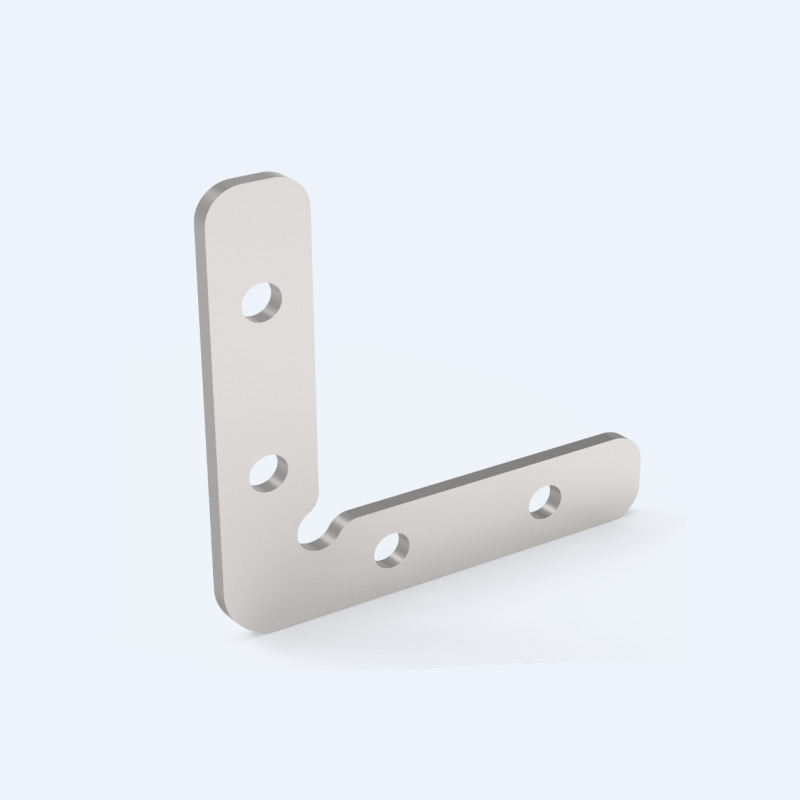

Metal clips (For wall or ceiling installation)
