In Stock
$10.06 $5.99 Sale -40% OFF
Reward Points: 6
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP129-O

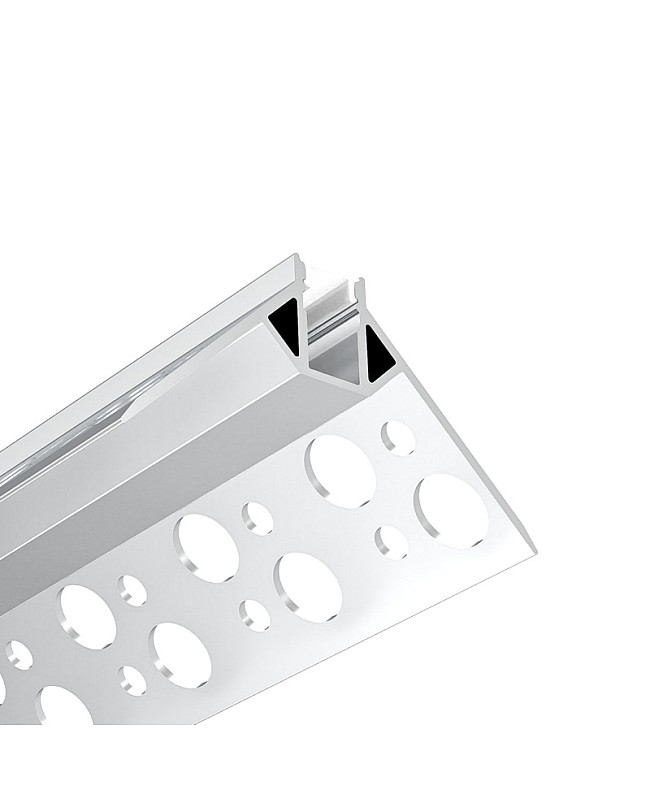

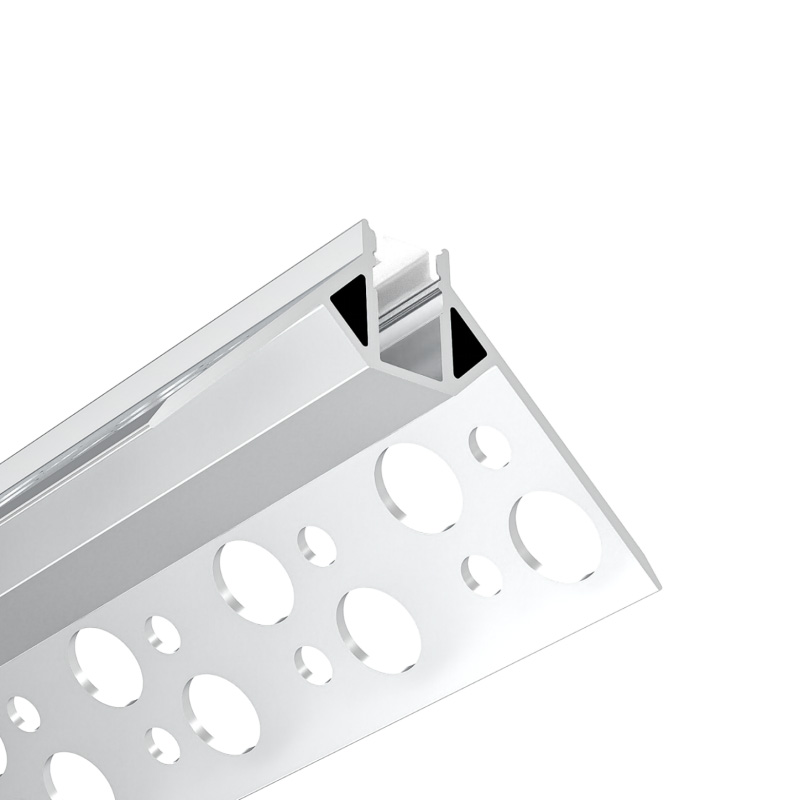

Check the LED Light Housing with flange, which with a slim and low profile design, can be recessed into the outside corner of the 12.5mm drywall or plasterboard. the inner width is 5.5mm and allows the max-width of LED Strips is 5mm, recommend installing the 3mm, 4mm or 5mm COB LED Strips that evenly diffuse light, the compact design allows for a seamless plaster-in installation inside 1/2" drywall without having to modify framing. easily recess in walls, ceilings and tight spaces or corners to cast beautiful, diffused and even lighting throughout your space. the LED Light House with flange and the flange with round holes, easy to mount on the wall with screws, plaster and painting on the drywall. the Drywall Housings are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance and a longer lifespan than other similar products. there are 3 colors available, the default color is white, you also can take the silver and black colors. the standard length is 1M, other lengths are available: 1.5M, 2M, 2.5M, 3M and max 6M per piece, custom lengths are available. there is one type of diffuser available, the PC diffused cover, which is made of imported brand material, anti-yellowing, perfect light distribution and smooth light output. the end caps with wire holes are included, easy to connect the COB LED Strip Lights to a LED Driver to light up.


  • Model: ALP129-O
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

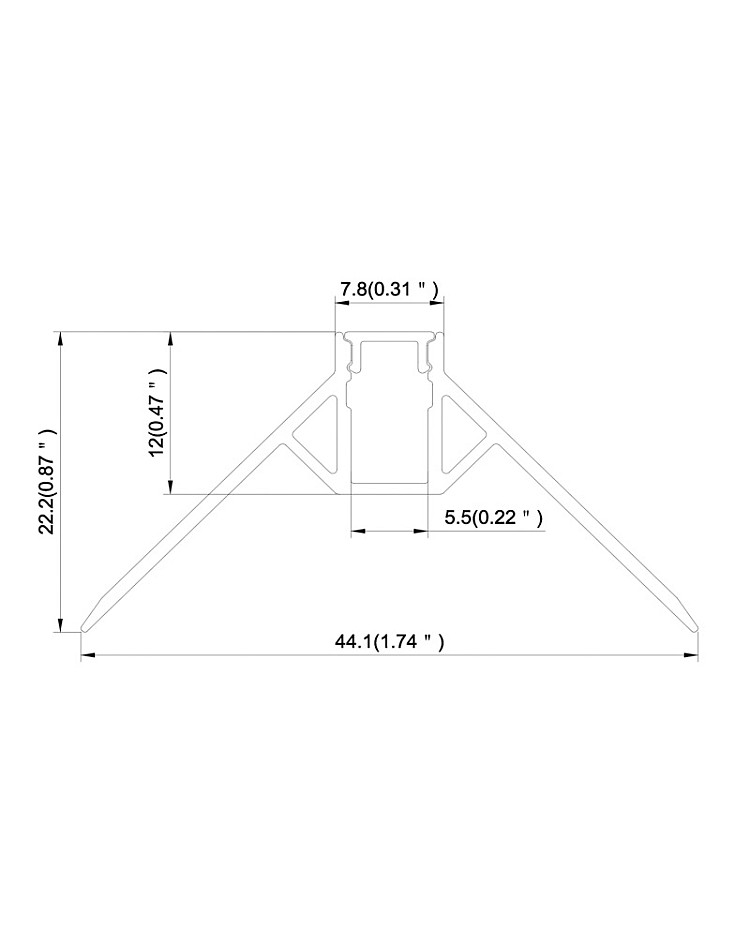

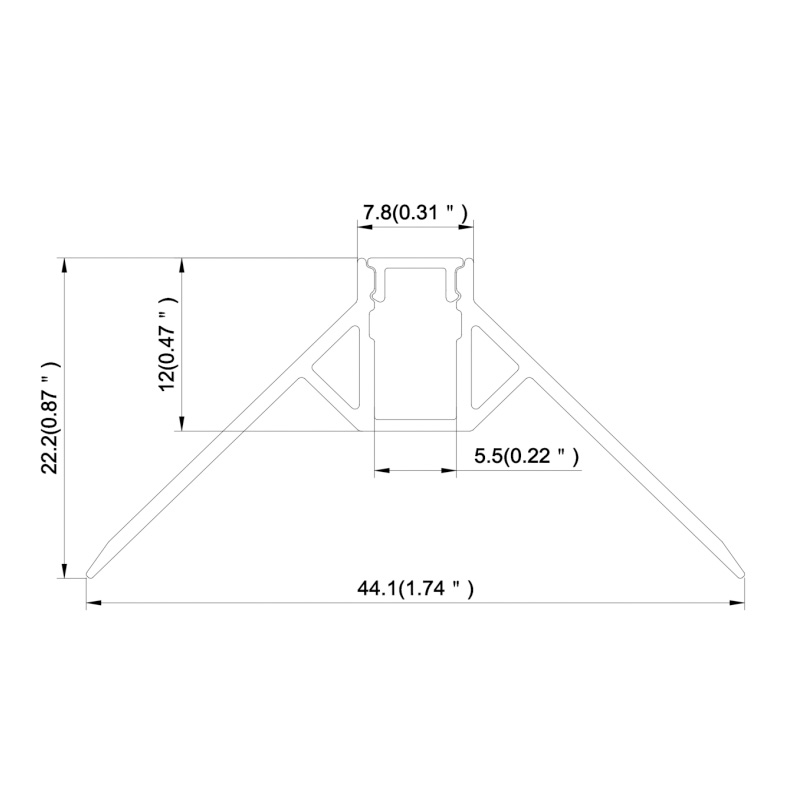

  • Size: 44.1*22.2mm(W*H)
  • Colors: White(Default), Silver, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Lengths Available: YES
  • Diffusers: PC Diffused Cover
  • Inner Width: 5.5mm
  • Max Width Of LED Strips: 5mm
  • Max Power Of LED Strips: 10W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps With Wire Holes And Without Wire Holes Included
  • COB LED Strip Lights Sold Separately
  • Installation: Recessed Into 12.5mm Drywall Or Plasterboard
  • 5 Years Warranty


1*Drywall LED Light Housing

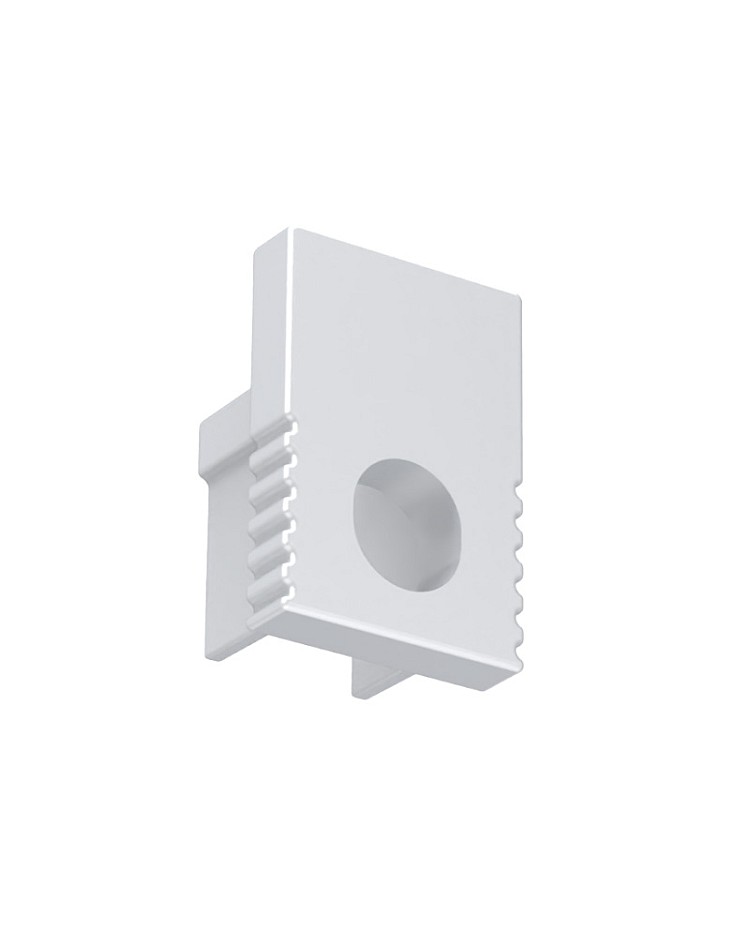

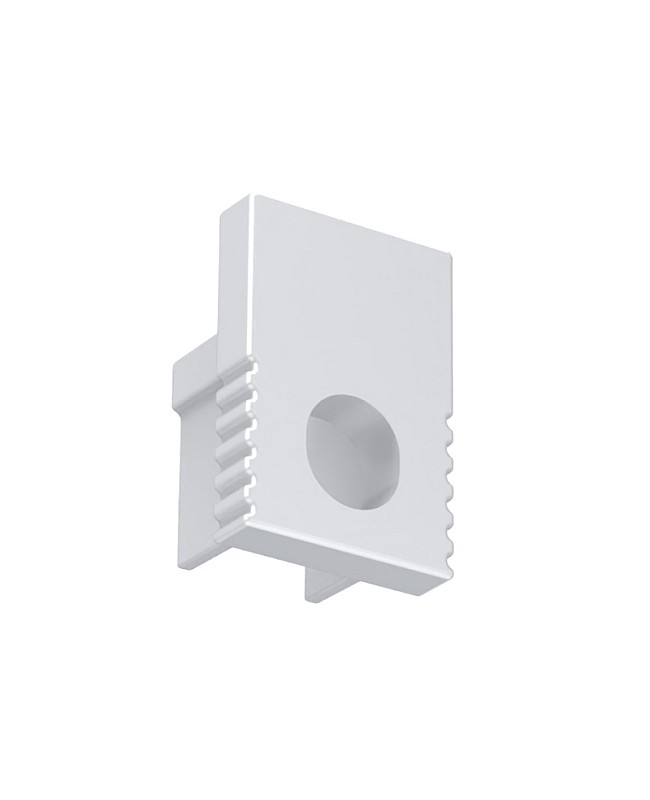

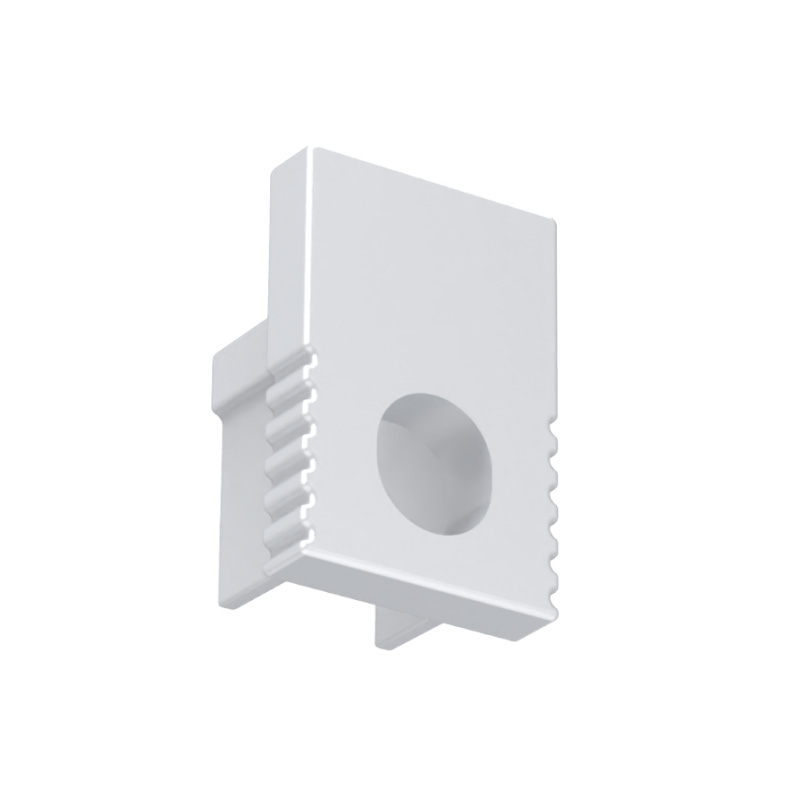

End Caps(With Wire Hole/Without Wire Hole)

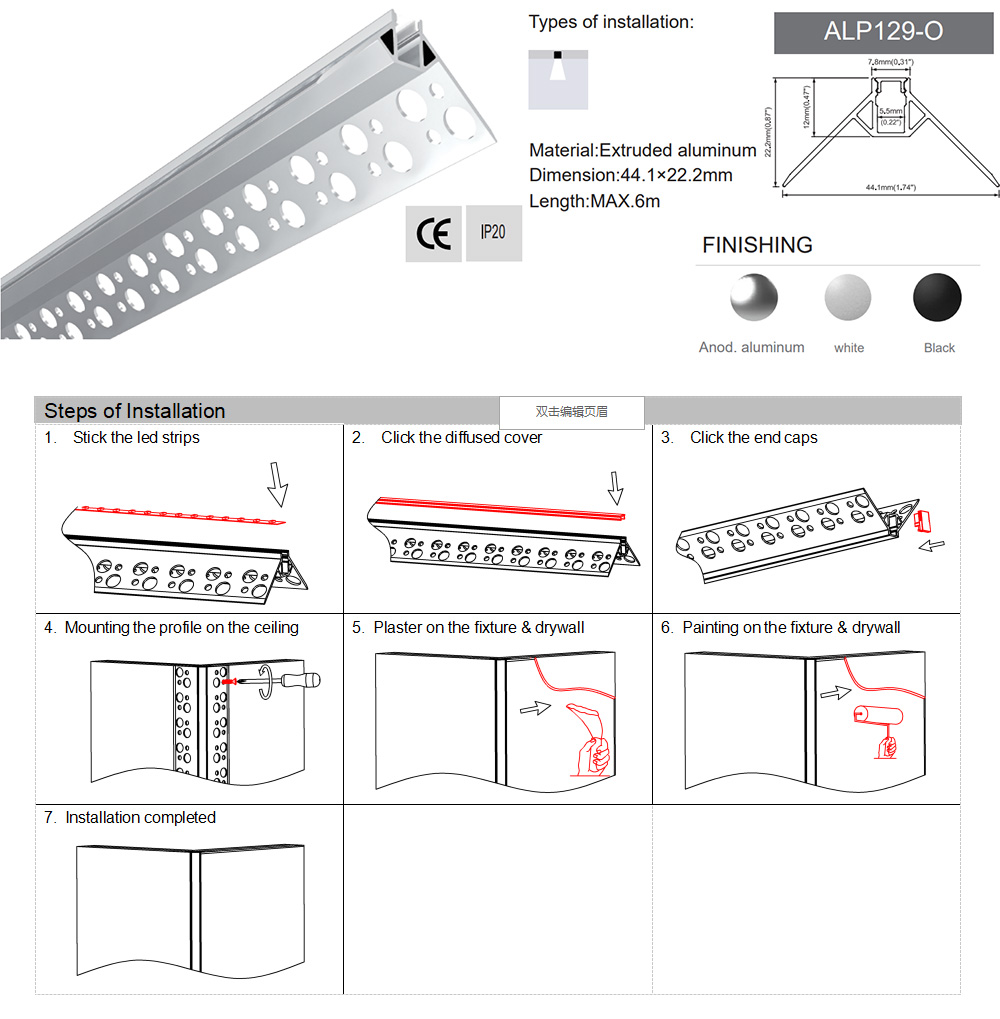

Plasterboard LED Light Housing
