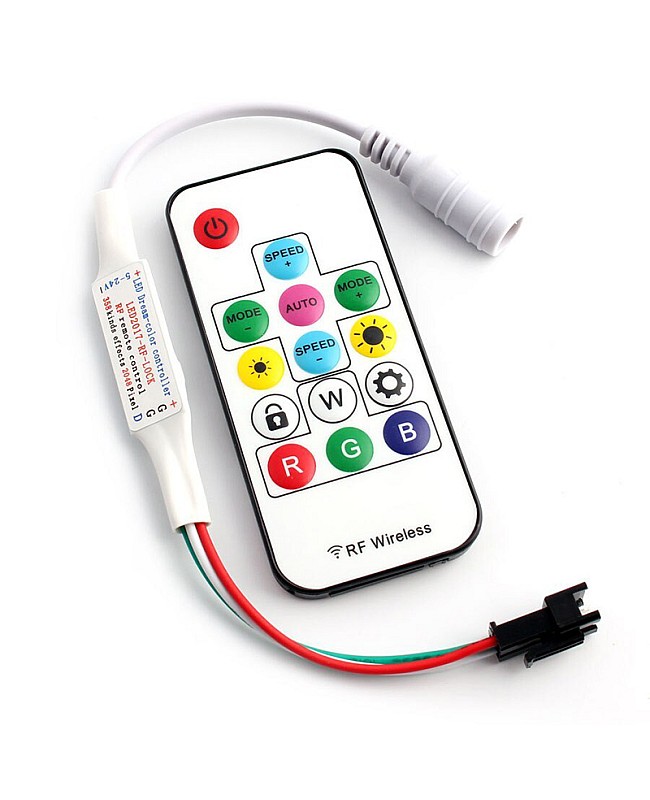

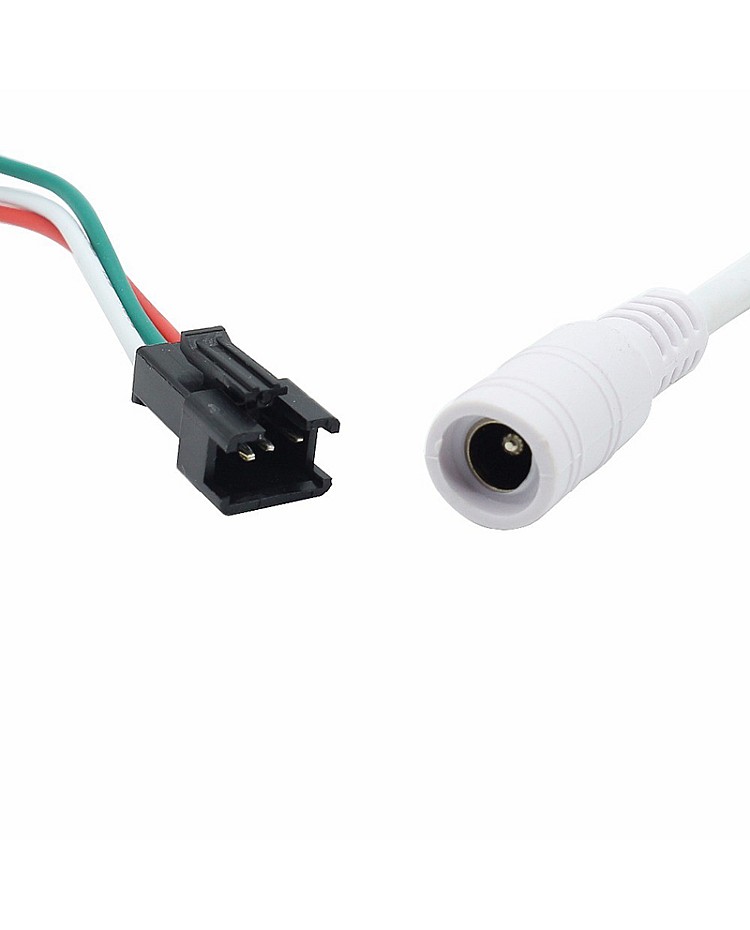

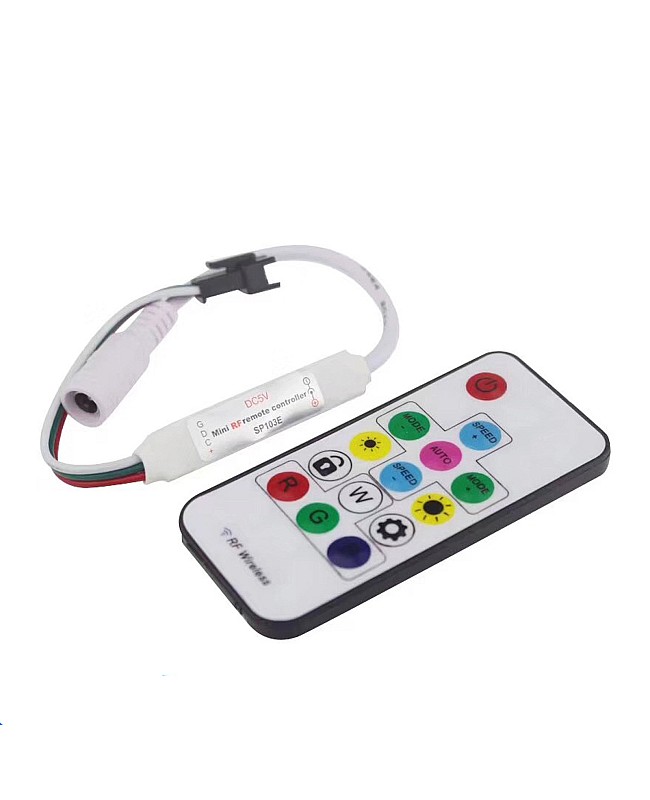

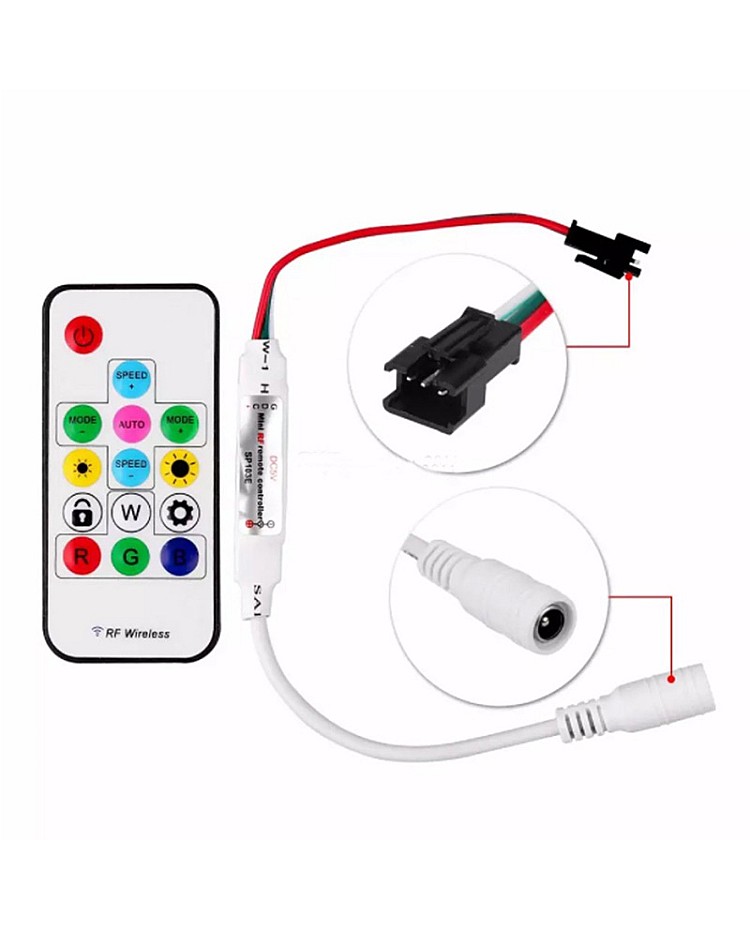

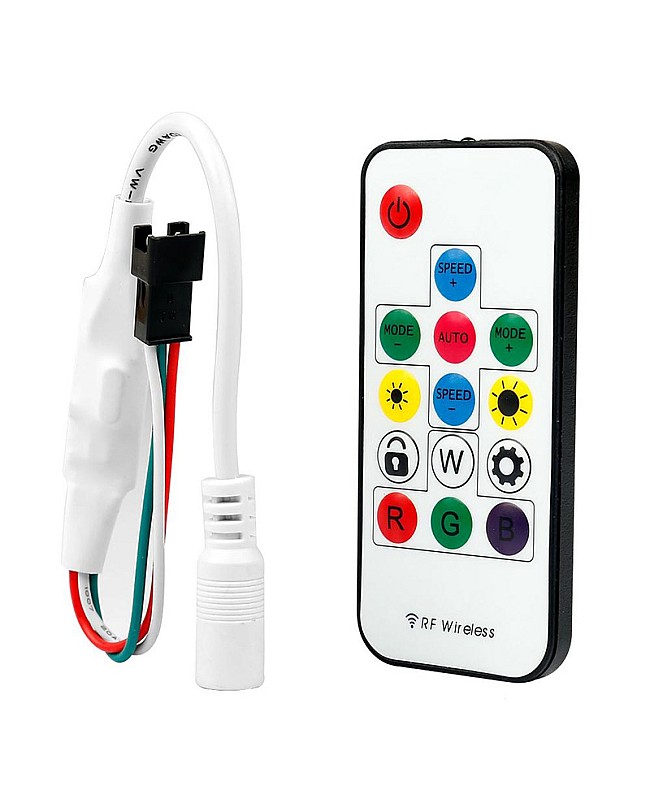

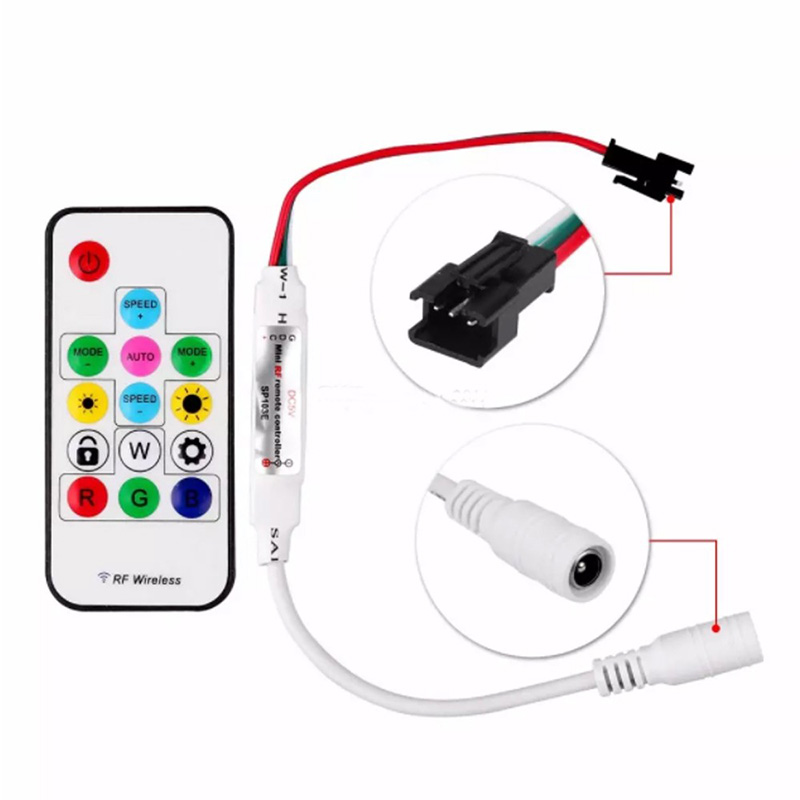

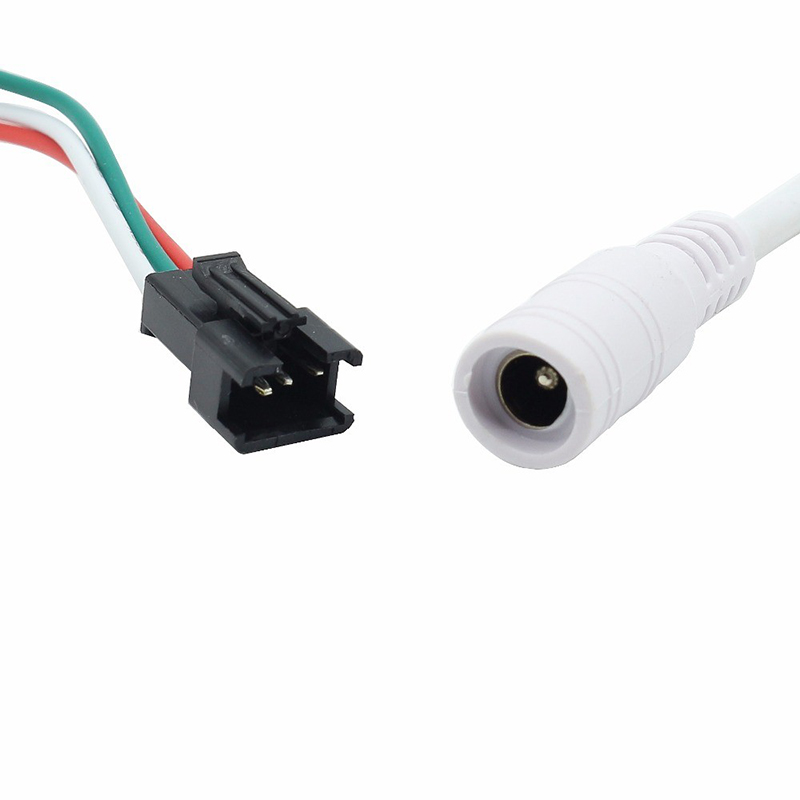

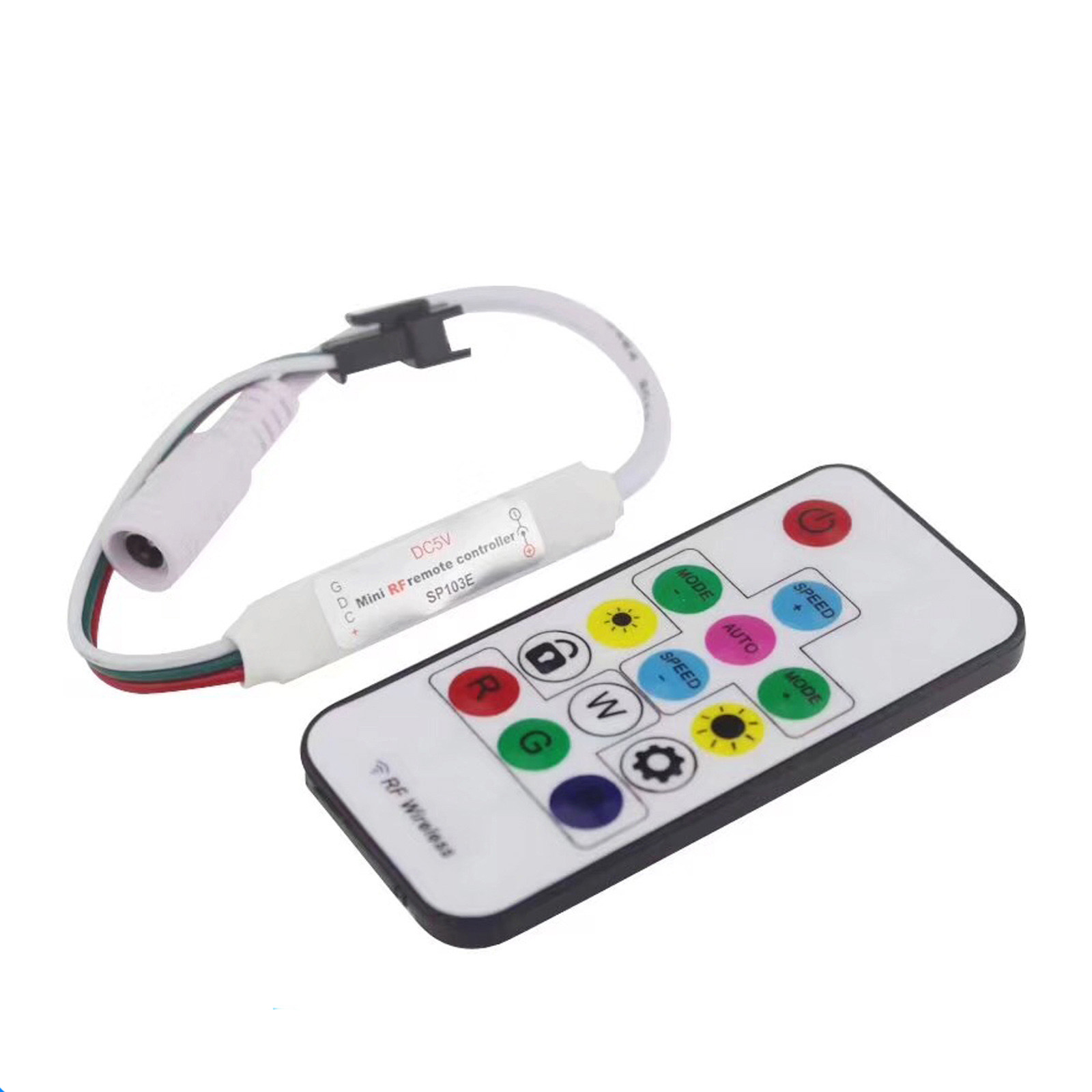

The SP103E programmable RGB LED controller has a mini size and an inline design, and comes with a 14-key RF remote control that is easy to install and use. The programmable RGB controller supports almost one-wire or two-wire smart ICs like WS2812B, WS2811, SK6812, and APA102, working in DC5V and with 300 lighting effects to meet the various scenes. Each controller can load a maximum of 2048 pieces of ICs. The brightness and speed of dynamic modes are adjustable, with memory function, and will retain the setting of the last time it was powered off. The SP103E with a female DC connector and 3PIN JST SM connector easily connects to the power supply and smart SMD LED strips.
Specifications:
- Size: 36*12*3mm
- Working Voltage: DC5V
- Max Control Number Of Pixels: 2048PCS
- 300 Kinds Of Lighting Effects
- Speed Adjustable
- Brightness Adjustable
- Support Almost All One-Wire Or Two-Wire Smart ICs: WS2812B, WS2811, SK6812, APA102

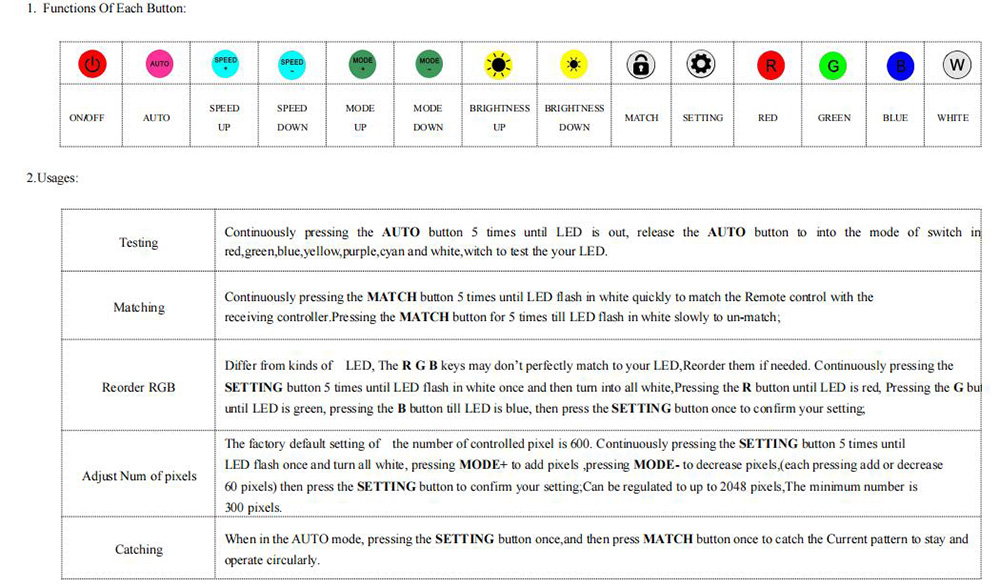

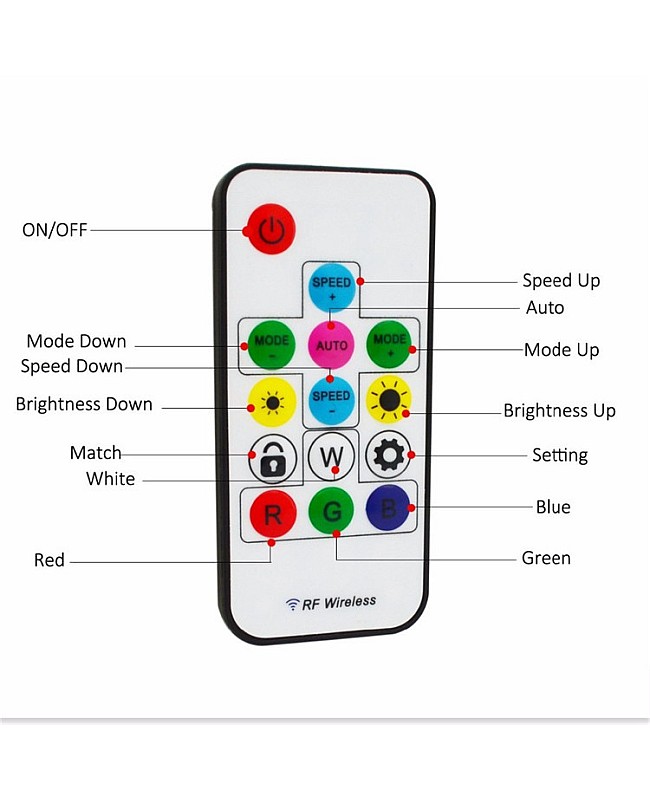

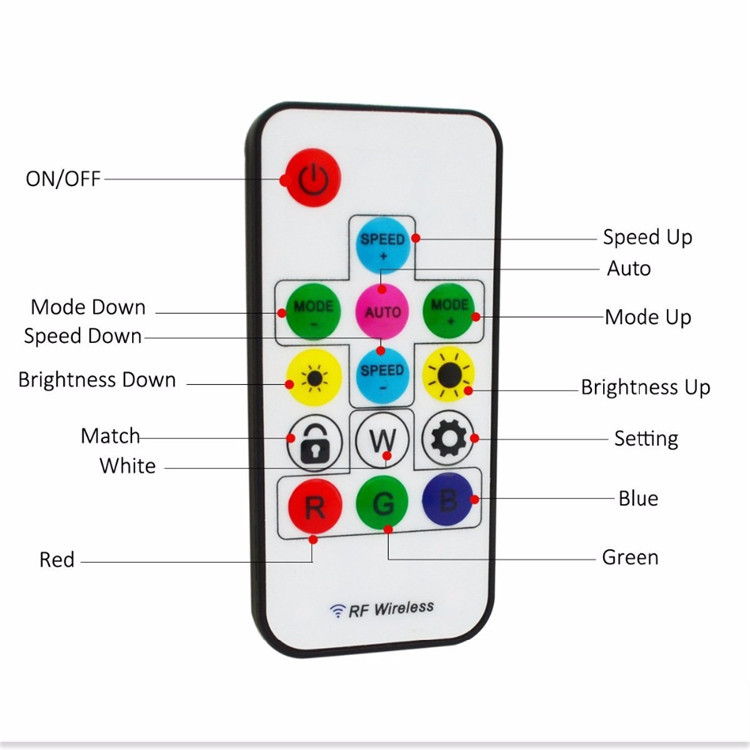

- 14 Keys RF Remote Control Included
- RF Wireless Frequency: 433MHz
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -20℃-+60℃
- 2 Years Warranty
Includes:

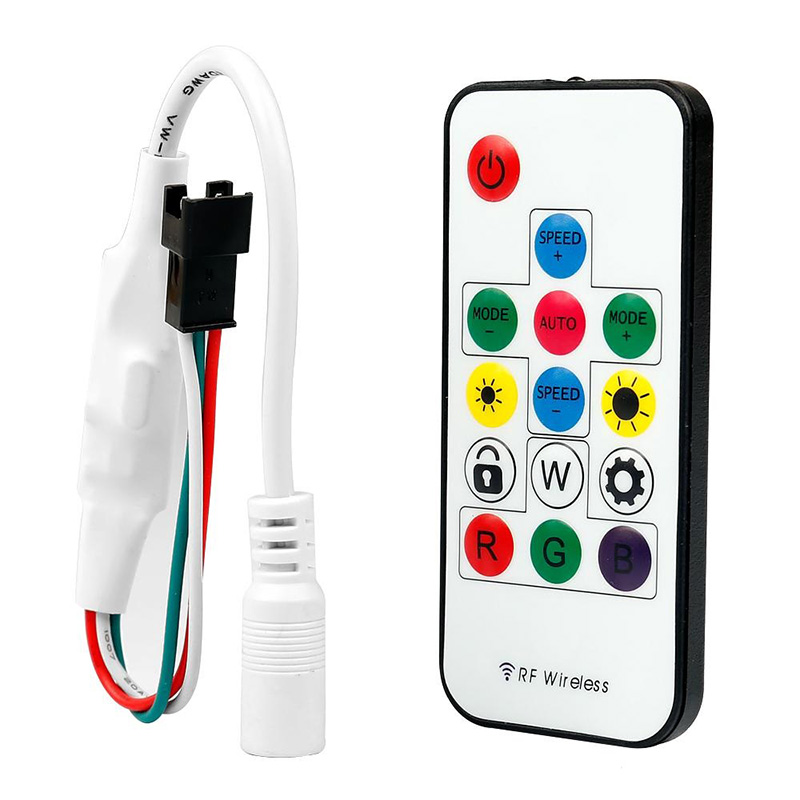

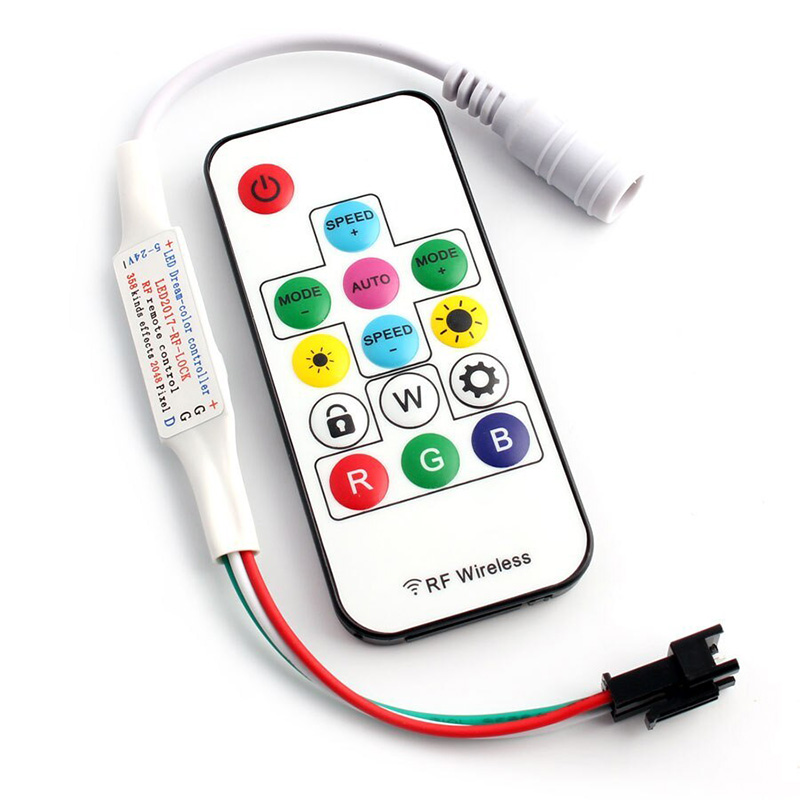

1 * SP103E Mini Programmable LED Controller
1 * 14Keys RF Remote
1 * User Manual
