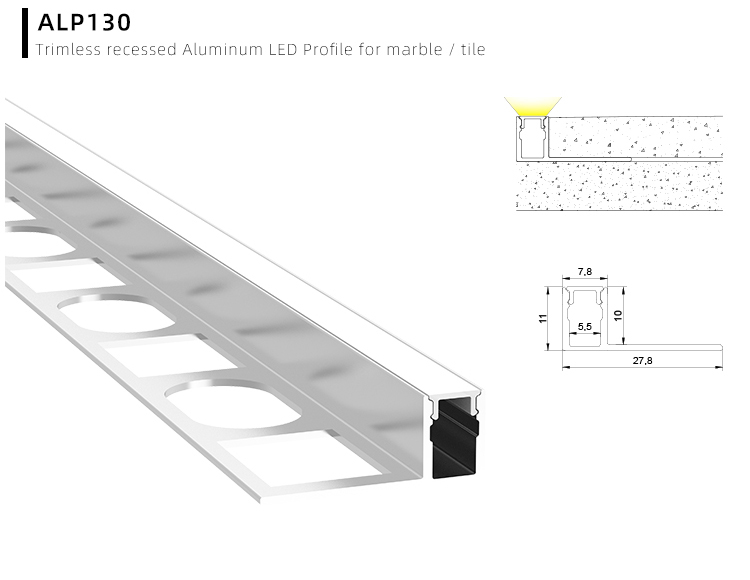

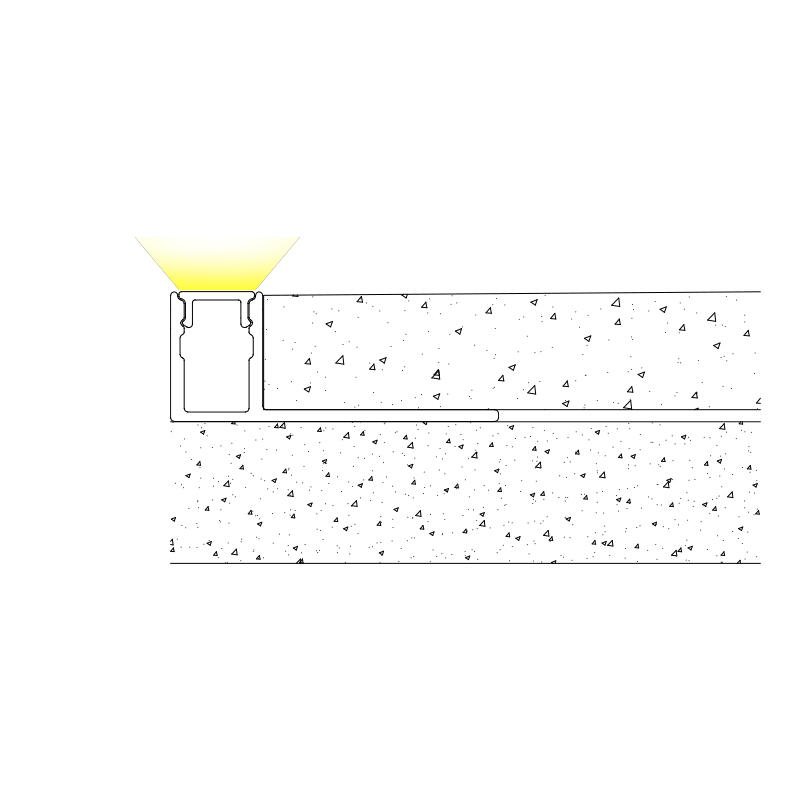

These recessed tile channels integrate seamlessly into tiled surfaces, delivering sleek, modern lighting effects. They can be flush-mounted with 10 mm tiles or marbles, providing a seamless, low-profile lighting solution for tile installations. Suitable for bathrooms, kitchens, hallways, and commercial spaces.

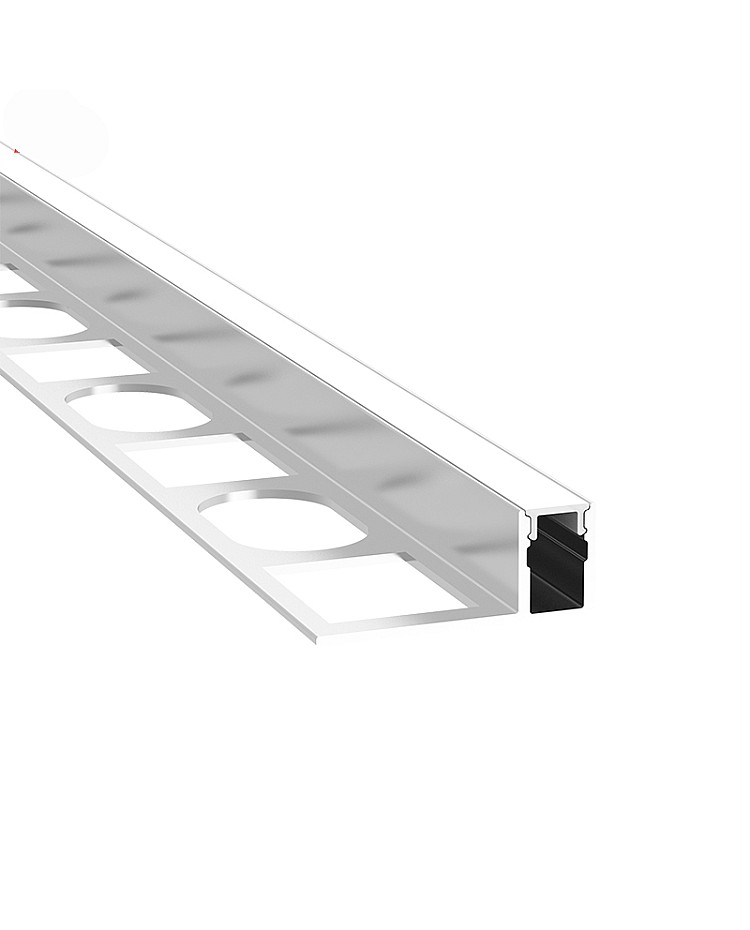

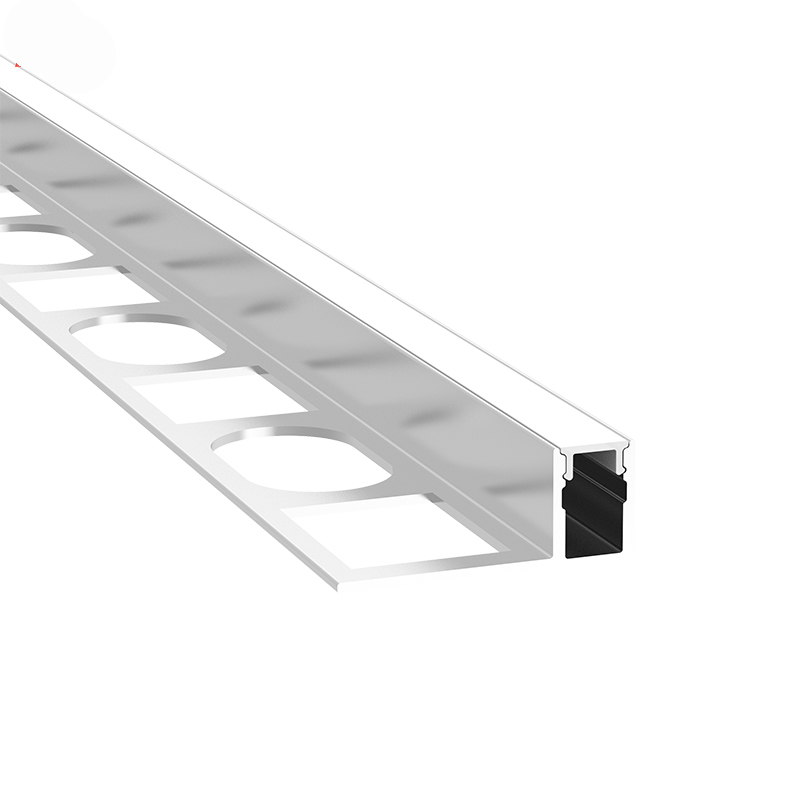

The tile J channel are made of 6063-T5 extruded aluminum material with an anodized surface treatment for enhanced oxidation resistance and a longer lifespan. Standard lengths are 1 m and 2 m, and can be easily cut to any length for your project. The inner width is 5.5 mm, allowing a maximum LED strip width of 5 mm.
The PC opal matte diffuser is included, made of a brand-stable material, and features anti-yellowing properties to ensure even light distribution and diffusion. End caps with wire holes are included.
Specifications:
- Model: ALP130
- Material: 6063-T5 aluminium alloy
- Surface treatment: Anodized
- Colors: Silver

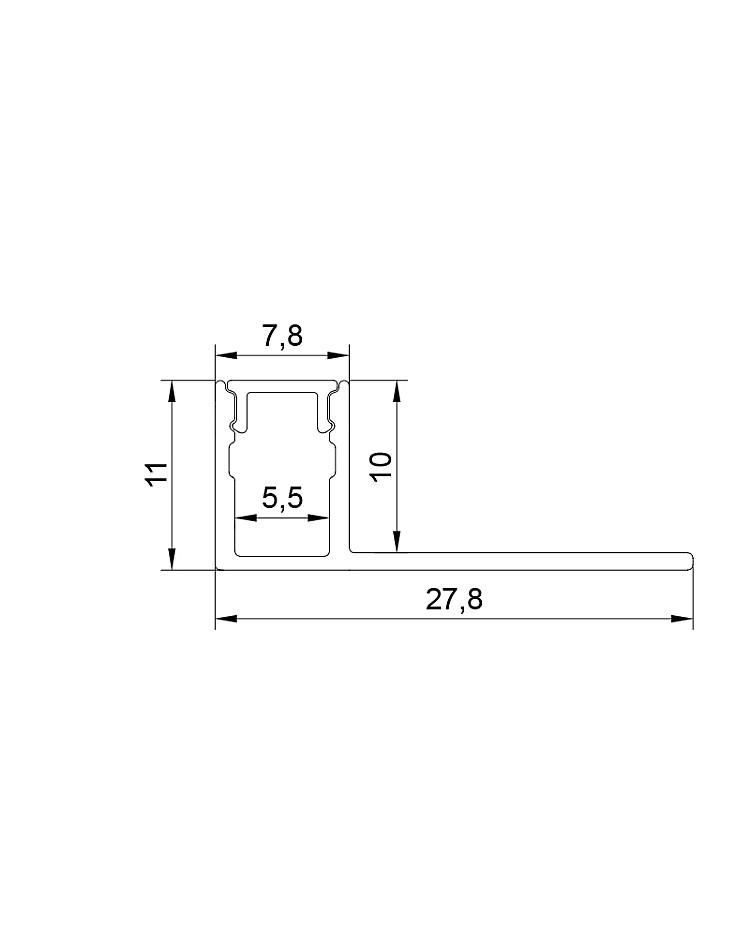

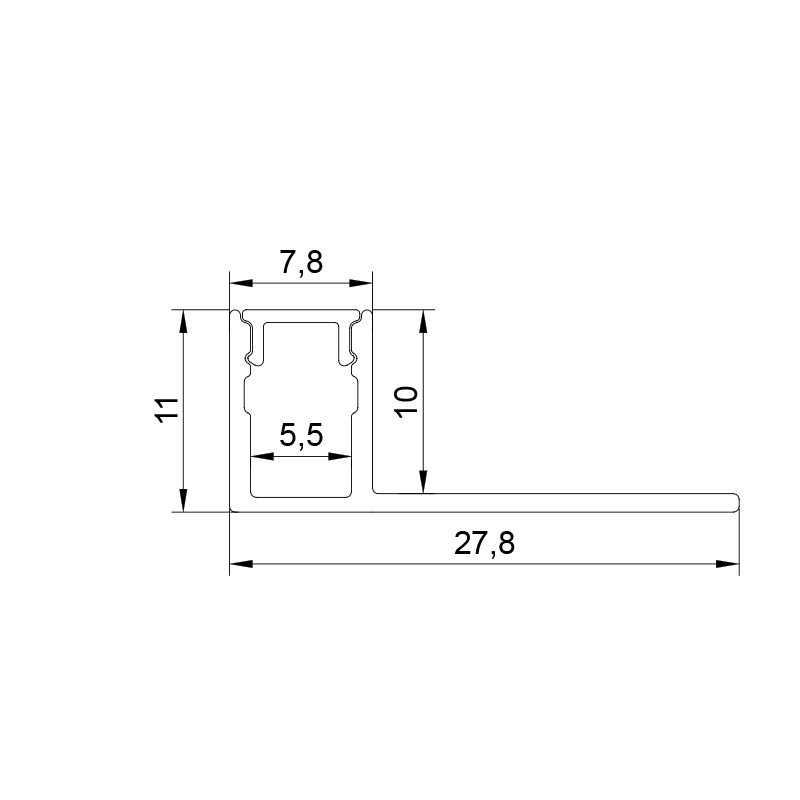

- Size ( W x H ): 27.8 mm x 11 mm ( 1.09" x 0.43" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 5.5 mm ( 0.22" )
- Allow the maximum width of LED strips: 5 mm ( 0.2" )
- Max power: <10W/m
- Diffuser: PC opal matte diffuser
- Beam angle: 100°
- End caps with and without wire holes are included

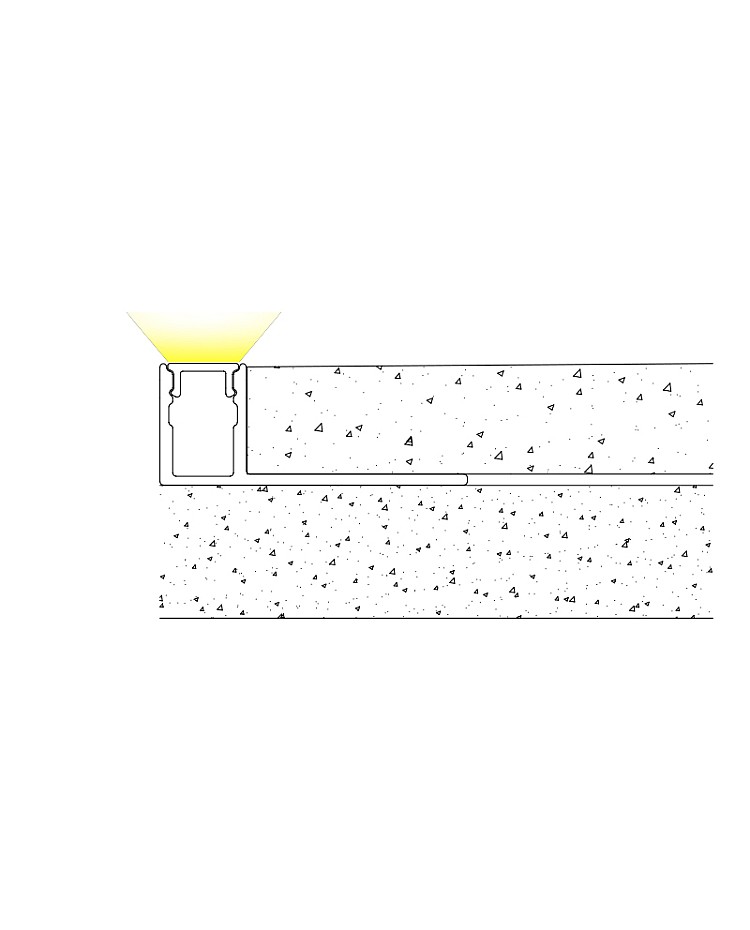

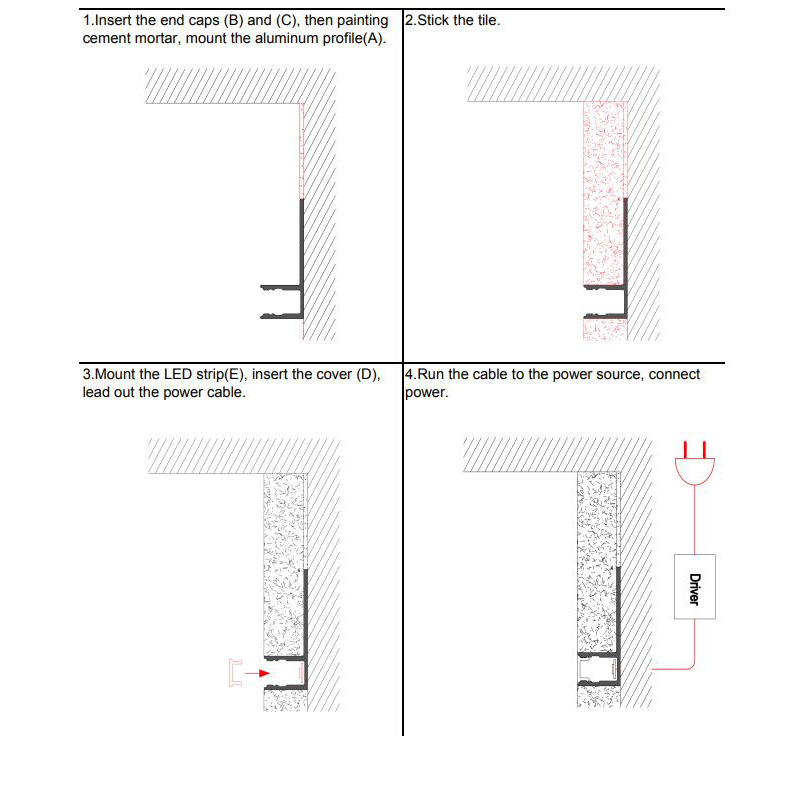

- Installation: Recessed

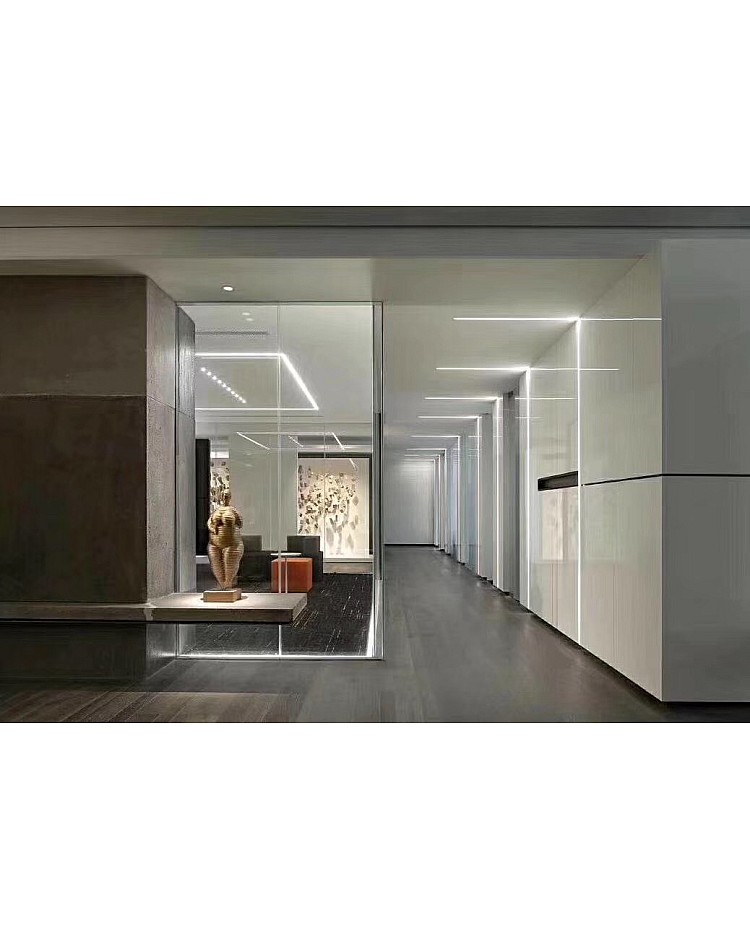

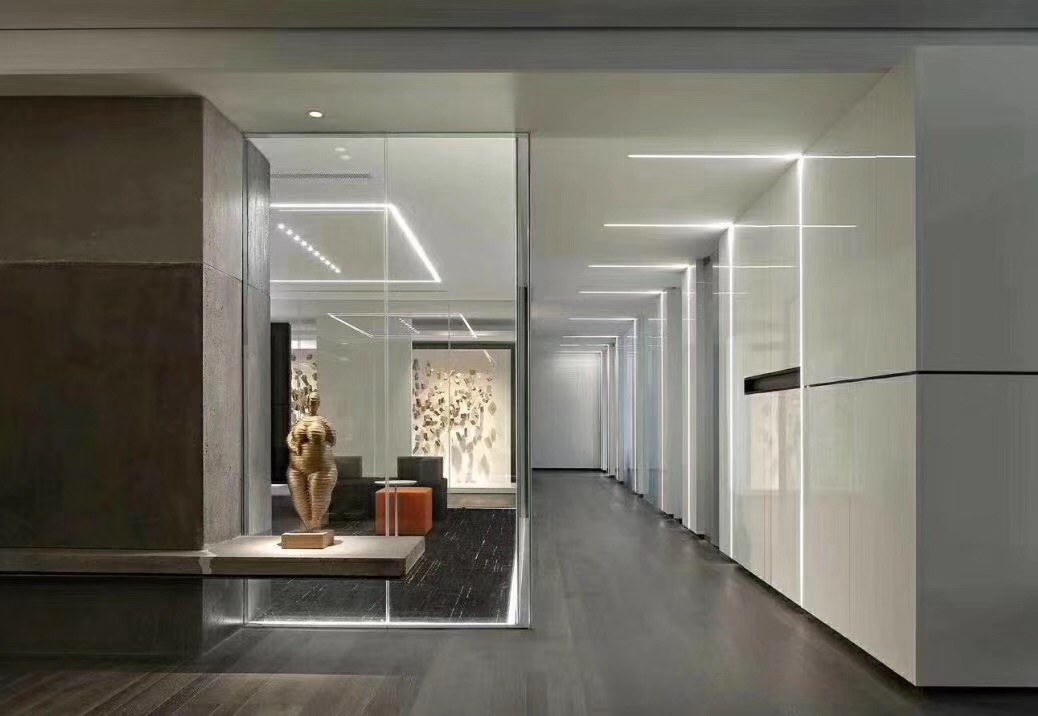

- Applications: Accent/linear lighting in kitchens, bathrooms, showers, etc
- Warranty: 5 years

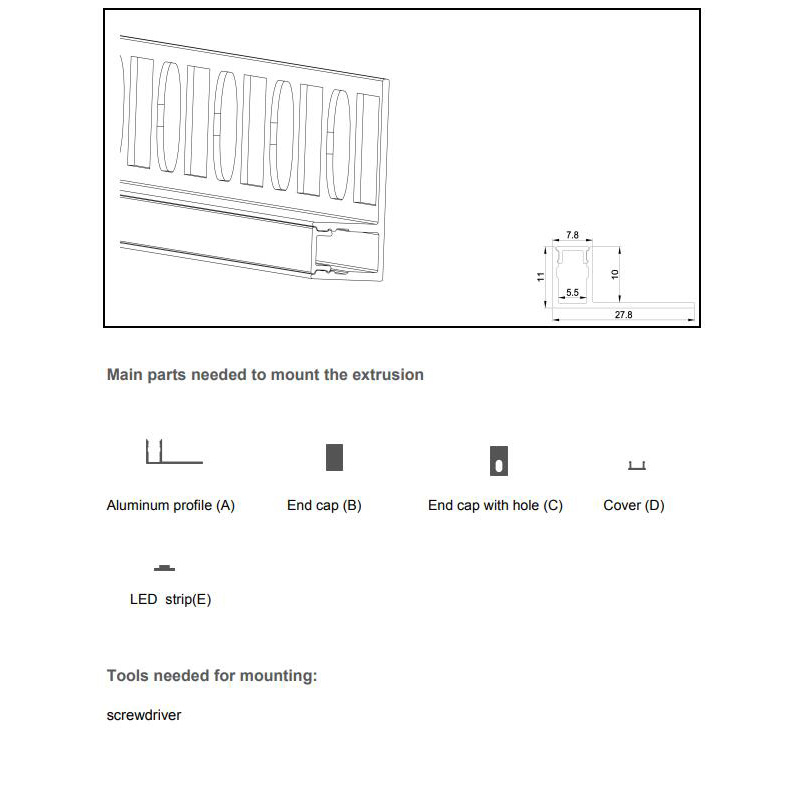

Includes:
1 * Tile LED tape profile with diffuser
End caps(with and without wire hole)
