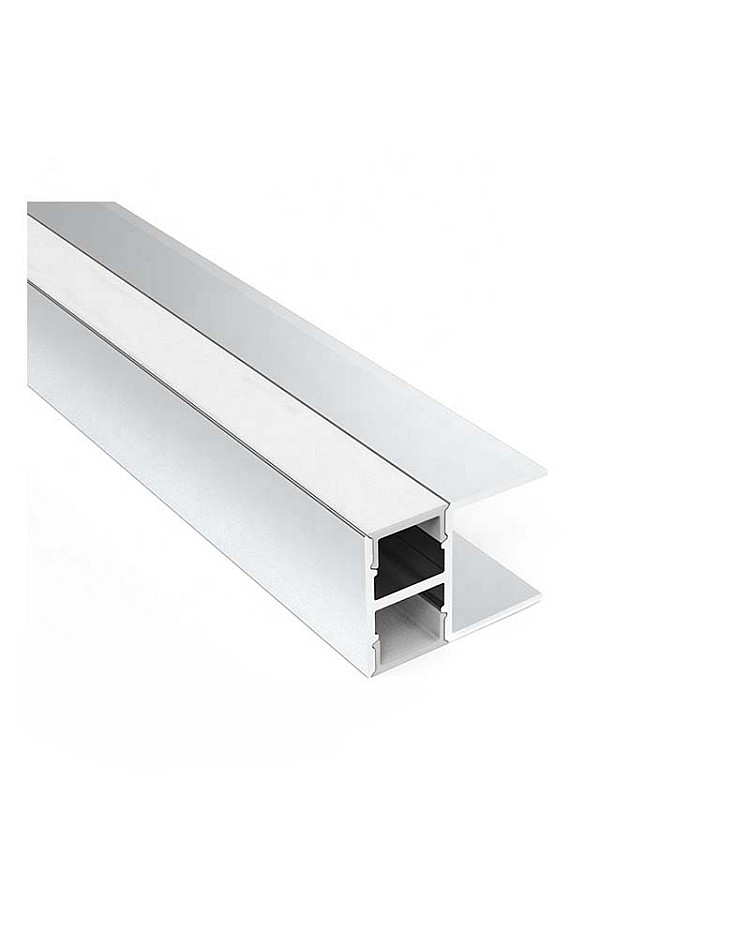

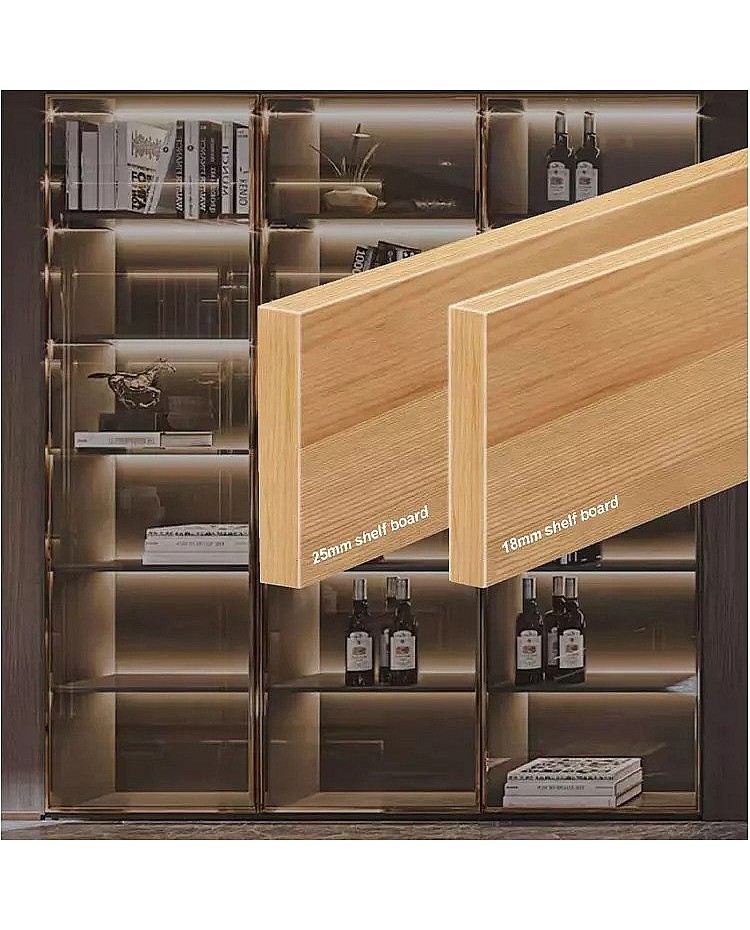

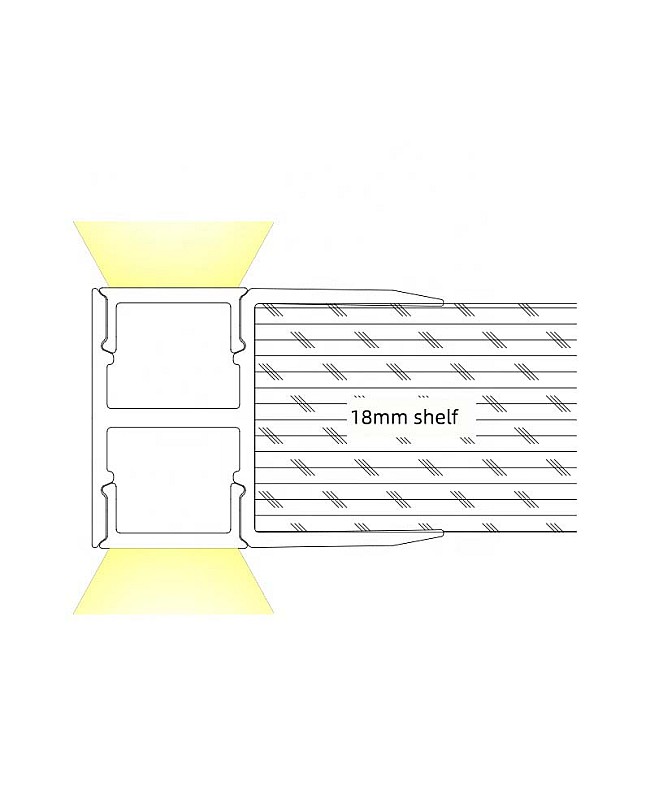

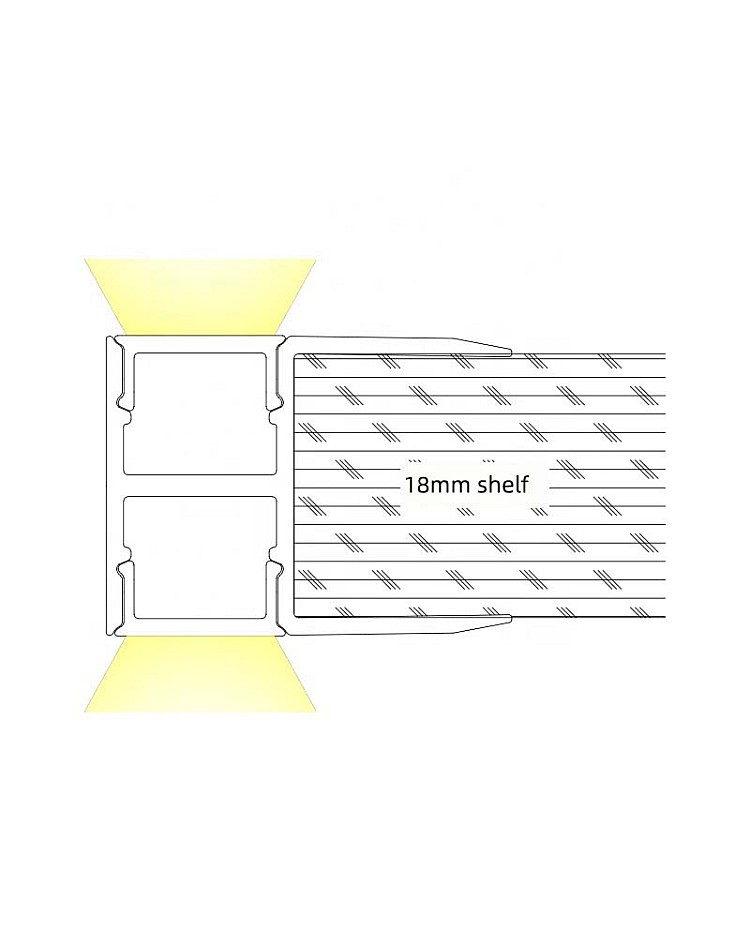

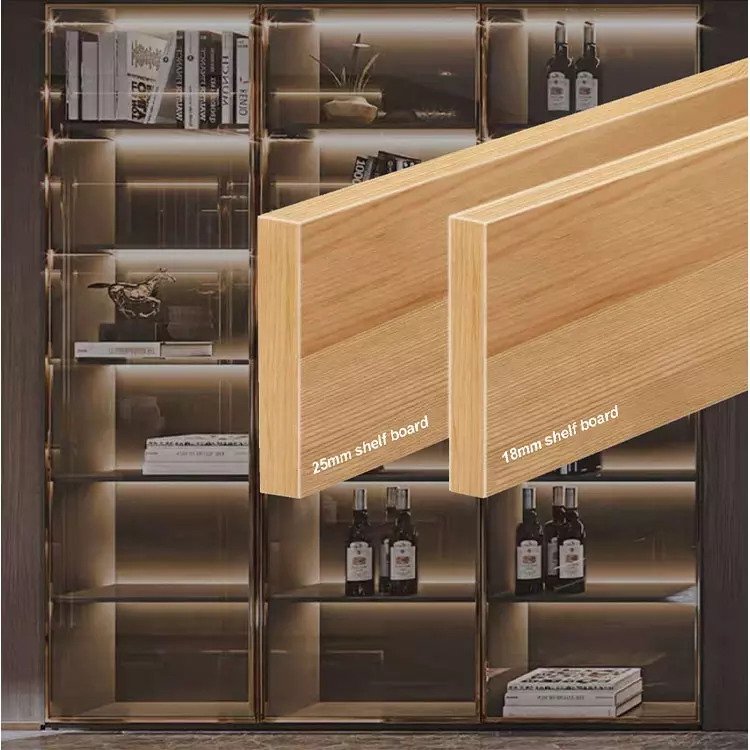

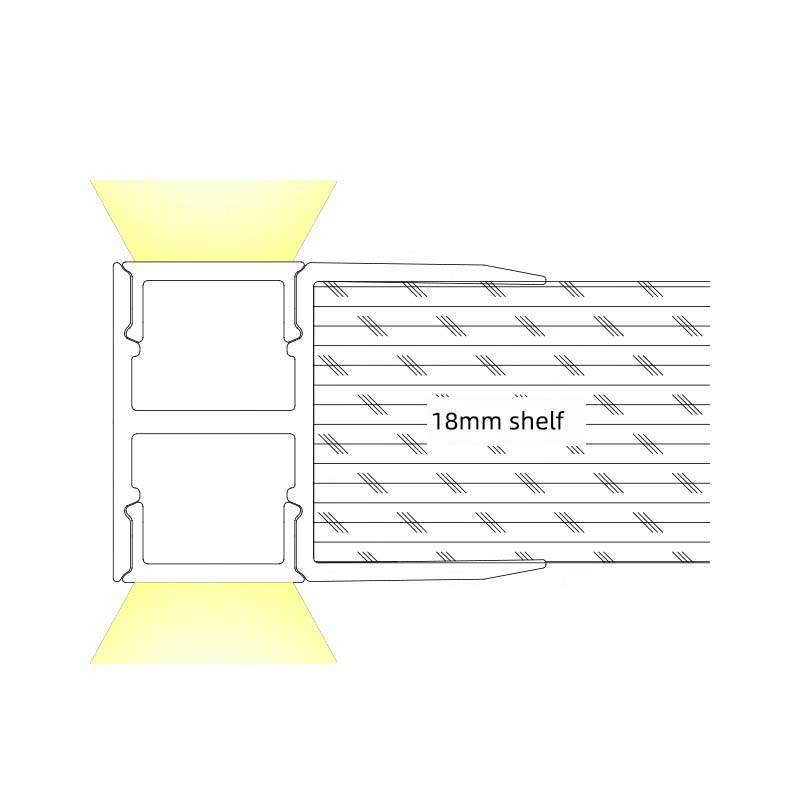

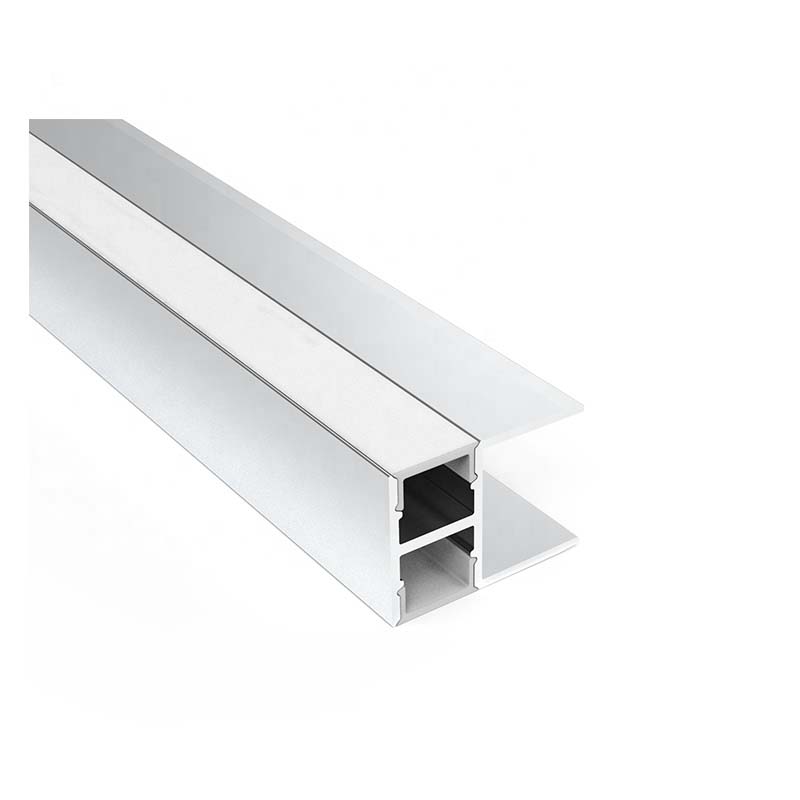

The recessed LED extrusion is designed specifically for an 18mm shelf board with up and down lighting design, delivering both functional and decorative illumination. The dual-channel design allows light to project upward and downward simultaneously, creating a balanced ambient glow and task lighting effect. The diffusers will diffuse the lighting evenly to create a cozy illumination. It's a perfect choice for modern kitchens, wardrobes, display units, and commercial shelving applications. The shelf edge LED channels are crafted from high-quality extruded aluminum material and have anodized surface treatment for anti-oxidation resistance and a longer lifespan. The stock lengths are 1 m and 2 m, and can be cut to your desired length easily. The inner width is 10 mm, allowing for a maximum width of strip lights of 10 mm. You can add our high-density COB strip lights as the light source for uniform lighting without hotspots. The aluminum channels can work as heat sinks for better heat dissipation to extend the lifespan of LED lighting. Only PC diffused covers are available, they will diffuse the lighting evenly for unifrom and glare-free illumination. The end caps and diffused covers are included, no need to order serparately.

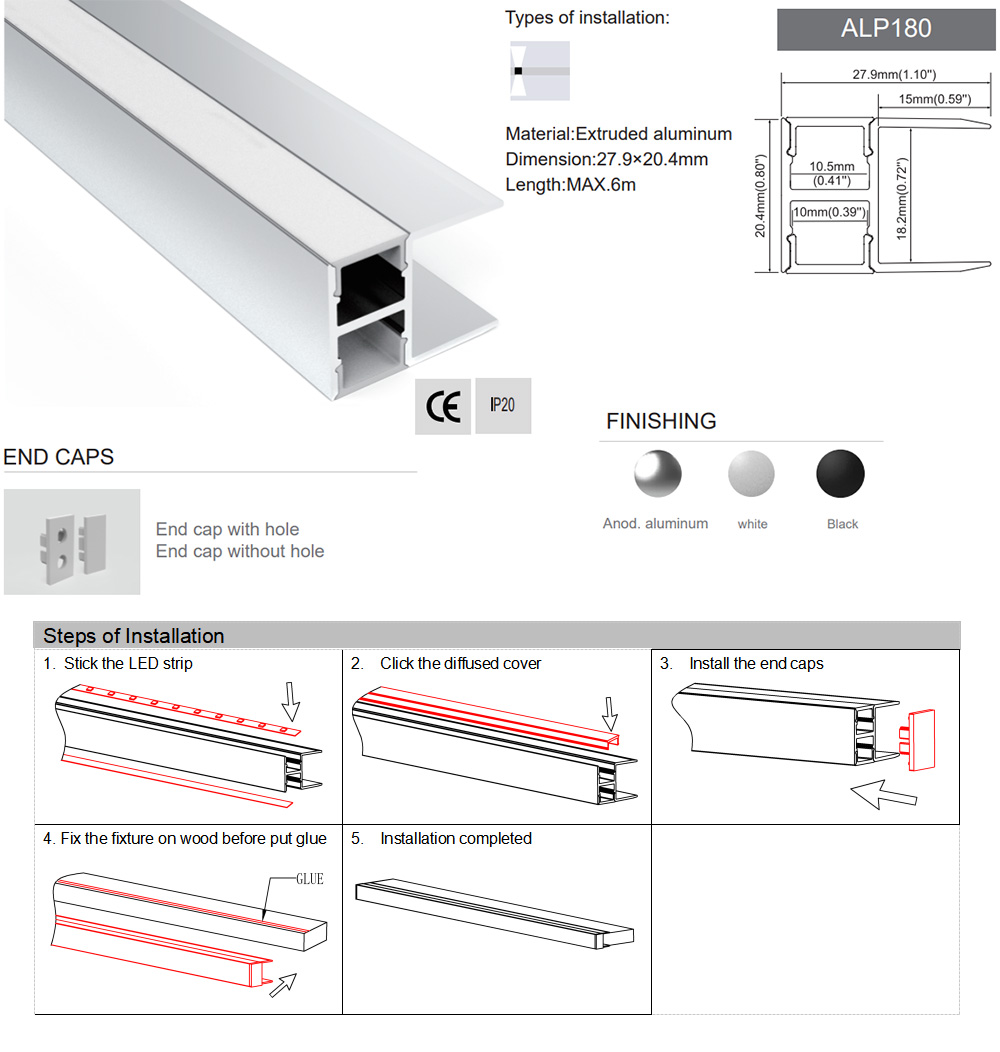

Specifications:
- Model: ALP180
- Material: Extruded aluminium
- Surface treatment: Anodized
- Colors: Silver

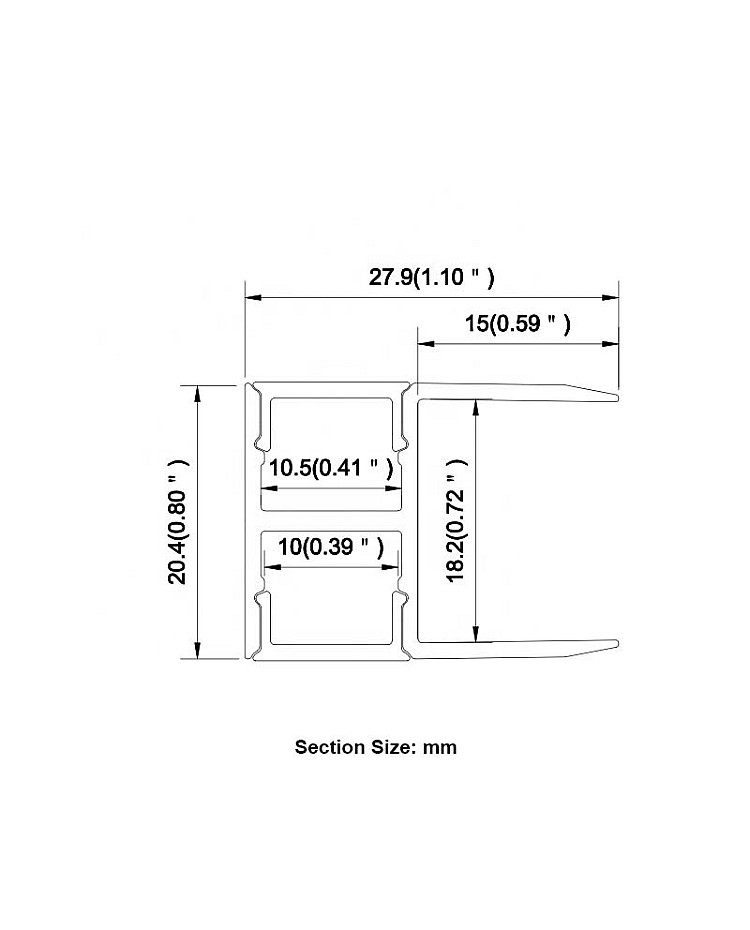

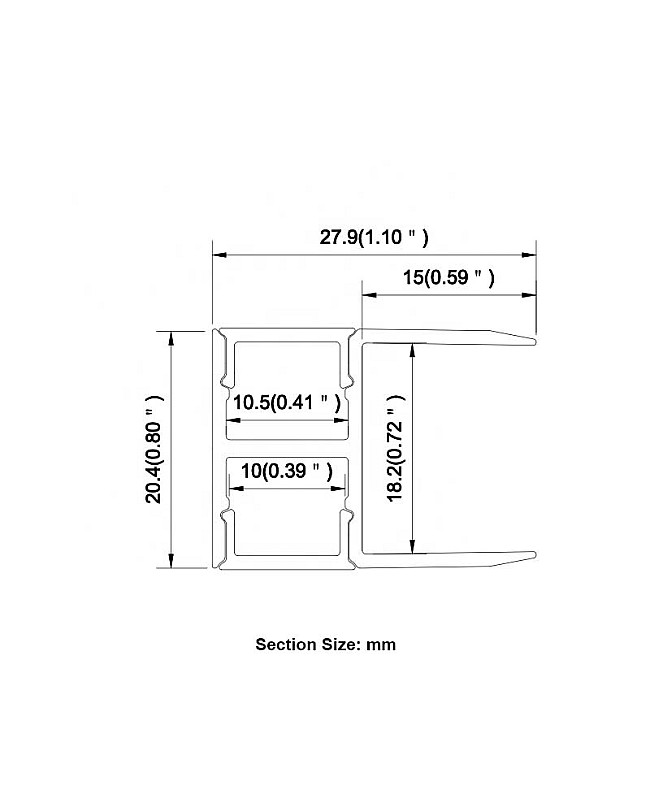

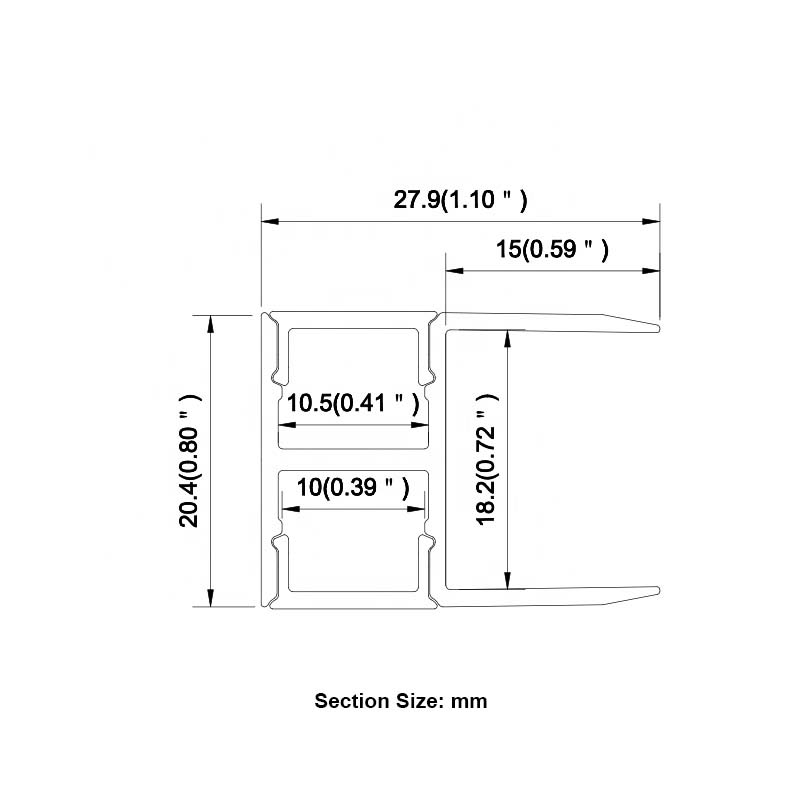

- Size( W x H ): 27.9 mm x 20.4 mm ( 1.1" x 0.8" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10 mm ( 0.39" ) and 10.5 mm (0.41" )
- Allows the maximum width of LED strips: 10 mm ( 0.39" )
- Max power: 20W/m
- Diffuser: PC diffused covers

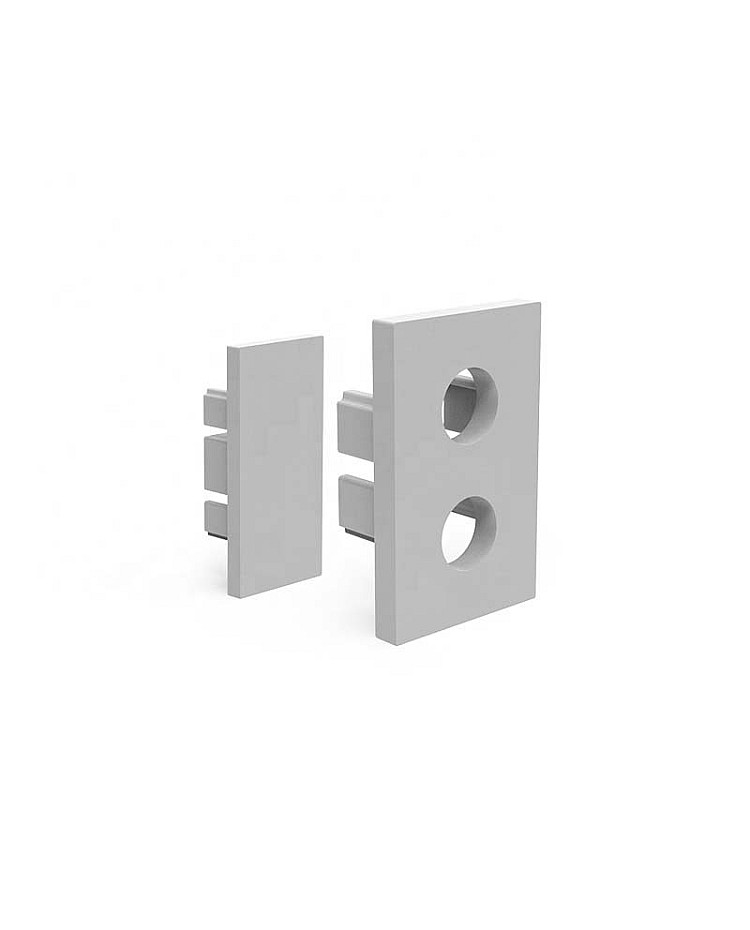

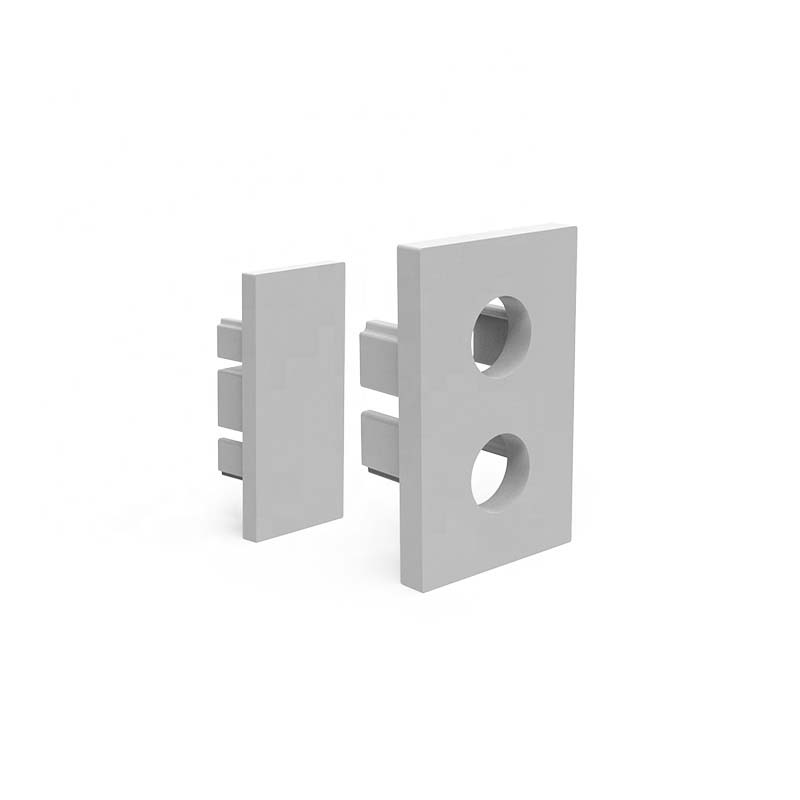

- End caps with and without wire holes are included
- Installation: Recessed
- Warranty: 5 years
Applications:
- Kitchen cabinets & shelves
- Wardrobe & closets
- Bookcases & display units
- Retail store fixtures
- Office & workspace furniture
- Architectural furniture design
Includes:
1 * Cabinet shelf lighting LED extrusion
End caps(With and without wire hole)
