In Stock
$15.17 $9.99 Sale -34% OFF
Reward Points: 10
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP161

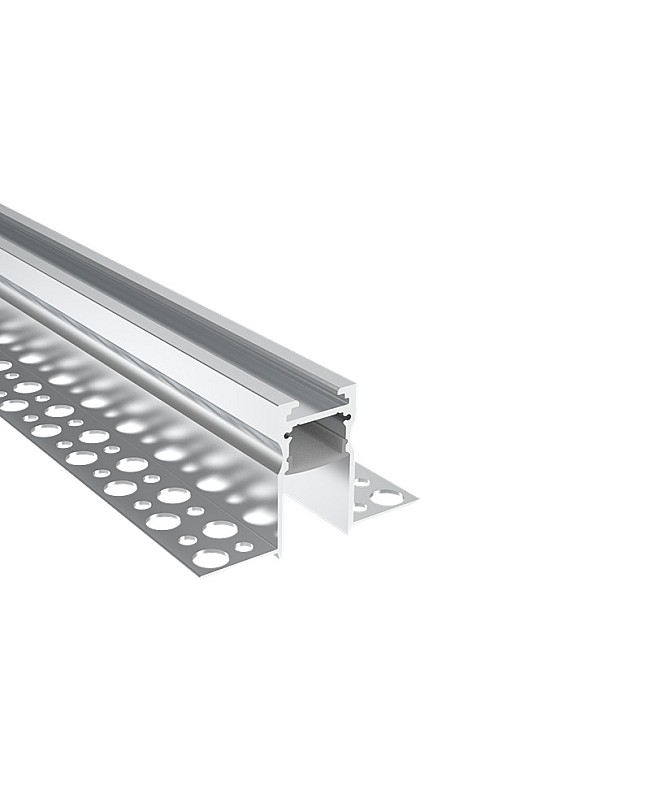

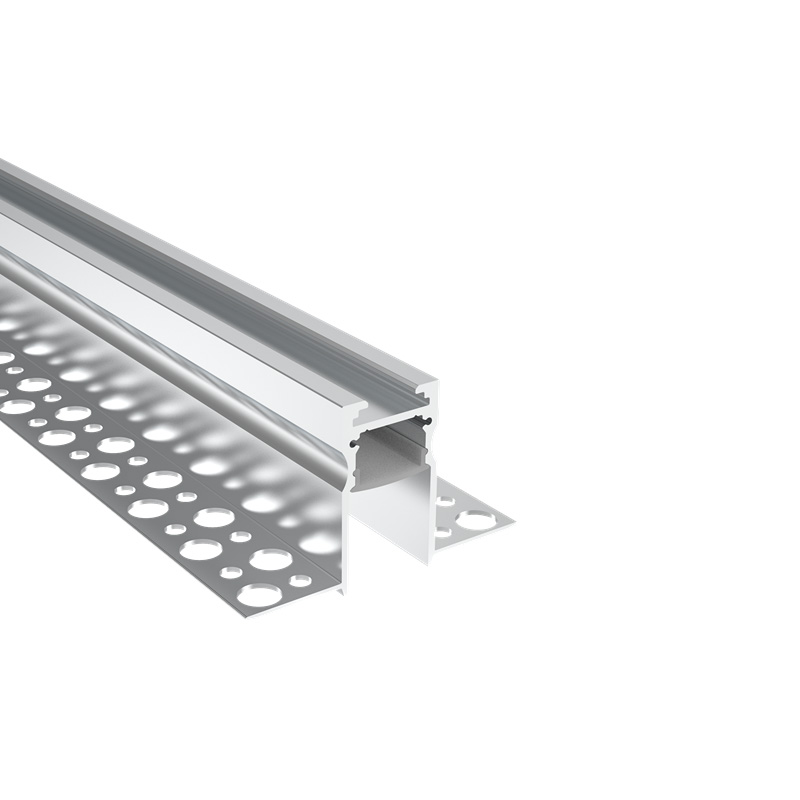

Check the Trimless Aluminium LED Light Channels, which with low glare profile design for indoor architectural lighting. the LED Aluminum Channels for drywall, plasterboard, marble or tile structure, can be mounted on the surface of the dry wall and used for the linear lighting system for the architectural designs, the LED Light Channels are made of extruded aluminum material and with silver anodized surface treatment, anti-oxidation and has a longer lifespan than other similar products, there are 3 colors available, silver, white and black. the standard length is 1 meter per piece, other lengths available and max length can do 6M, custom length available. there are 2 types of diffusers available, the PC semi-clear cover and prismatic cover, you can use them for various lighting effects. the inner width is 13.5mm and can work with COB LED Light Strips and SMD LED Strips, the max-width of the PCB board can not over 13mm. the LED Channels are non-waterproof, only recommend for indoor use.


Features:

  • Model: ALP161
  • Material: Extruded Aluminum

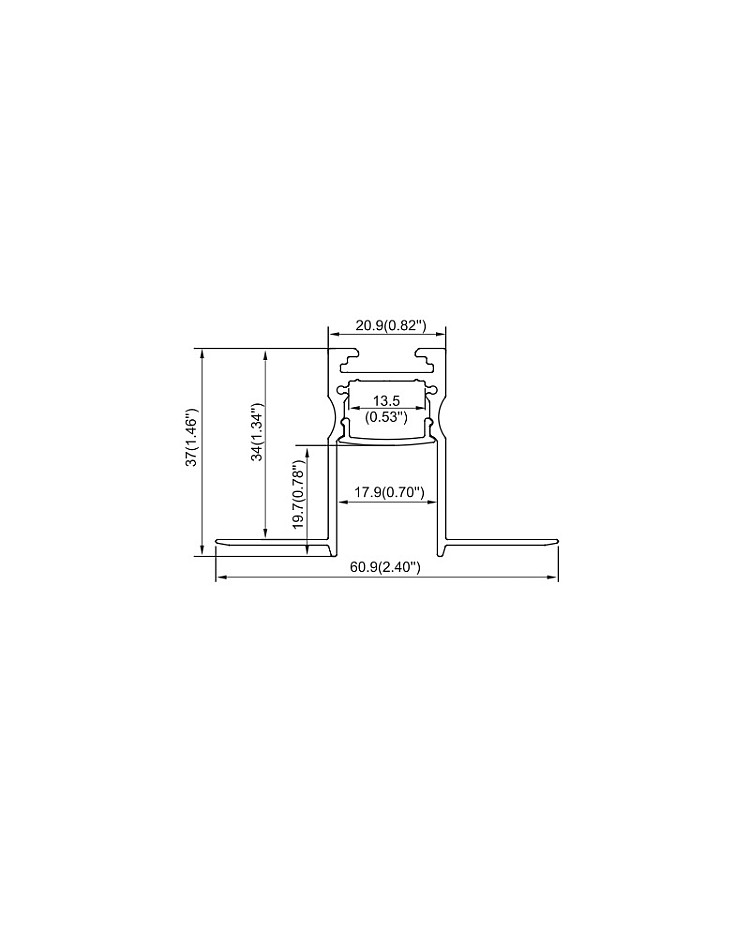

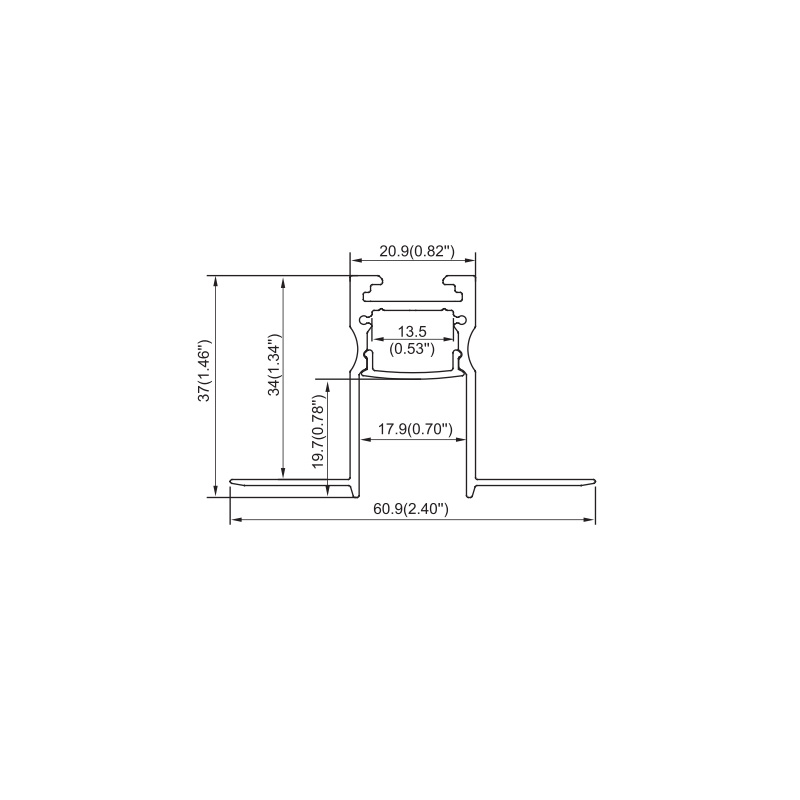

  • Size: 60.9*37mm(W*H)
  • Surface Treatment: Anodized Silver
  • Colors: Silver(Default), Black, White
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES
  • Inner Width: 13.5mm
  • Can Work With Flexible LED Light Strips(Width Of PCB Board Not Over 13mm)

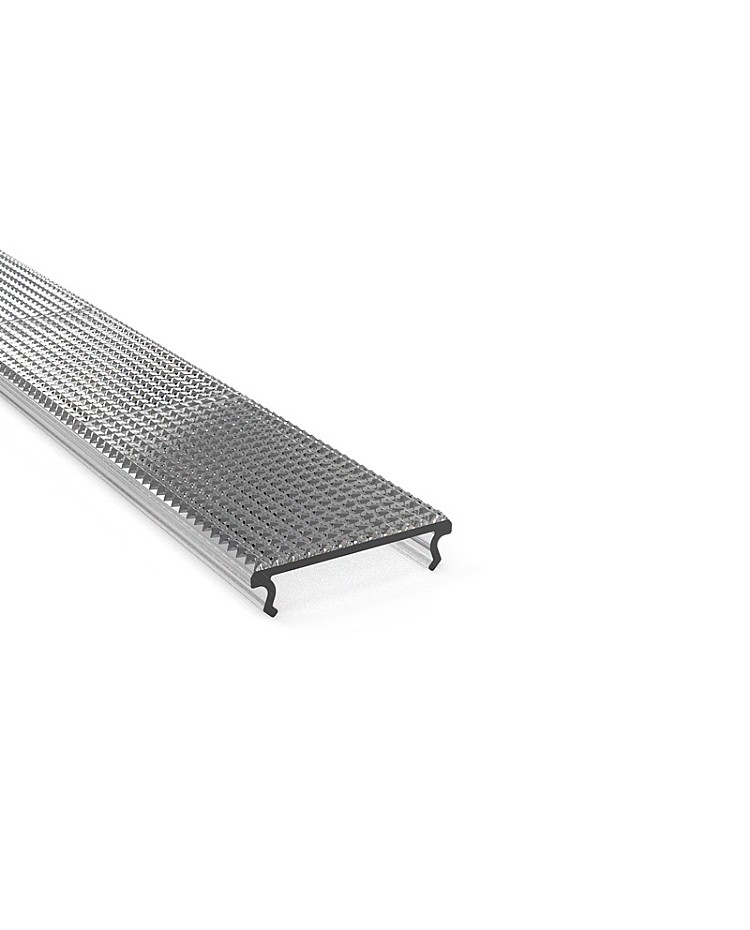

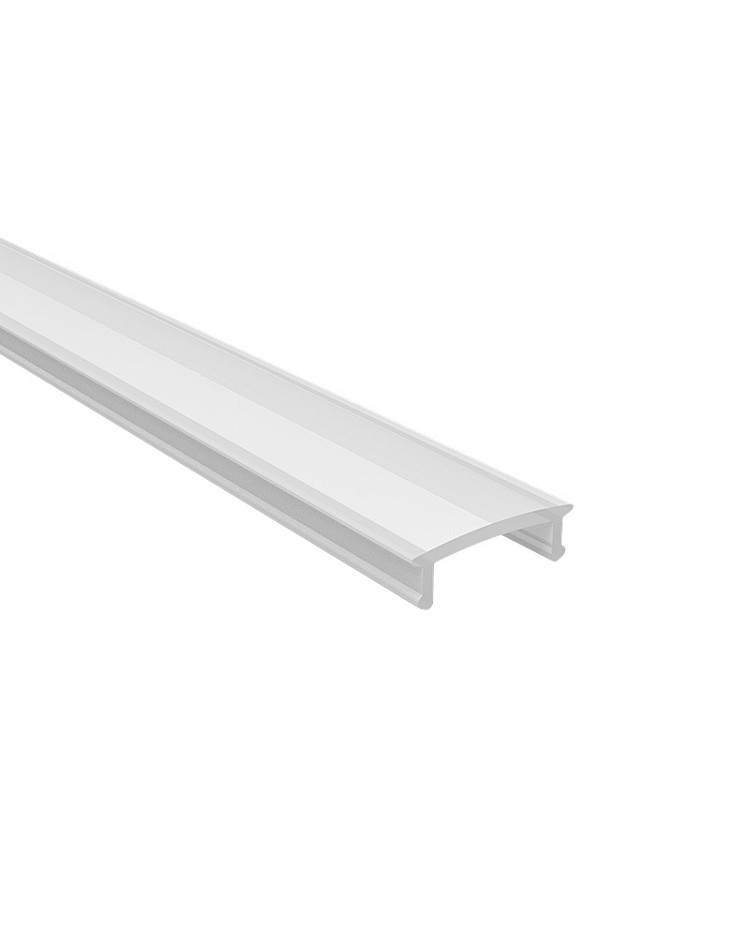

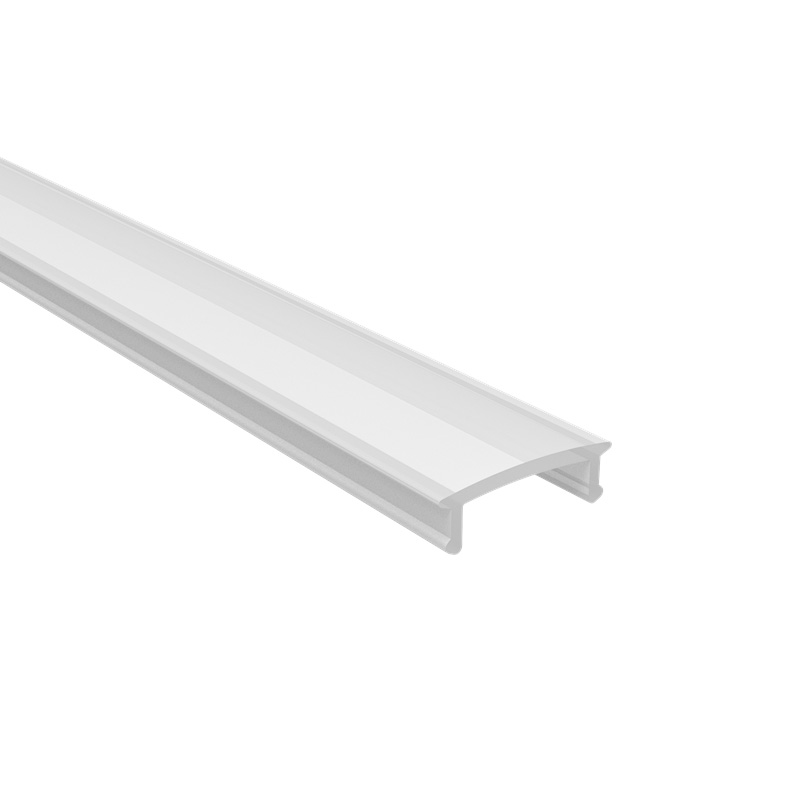

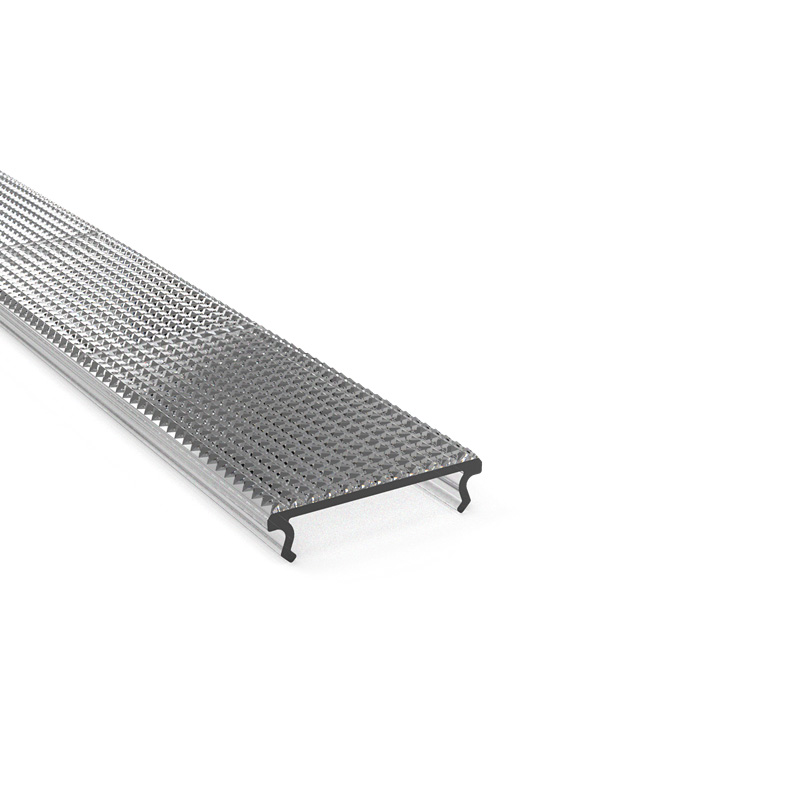

  • Diffusers: PC Diffused Cover, Semi-Clear Diffused Cover, Prismatic Cover
  • Tolerance: ±1%
  • IP Rating: IP20 Non-Waterproof

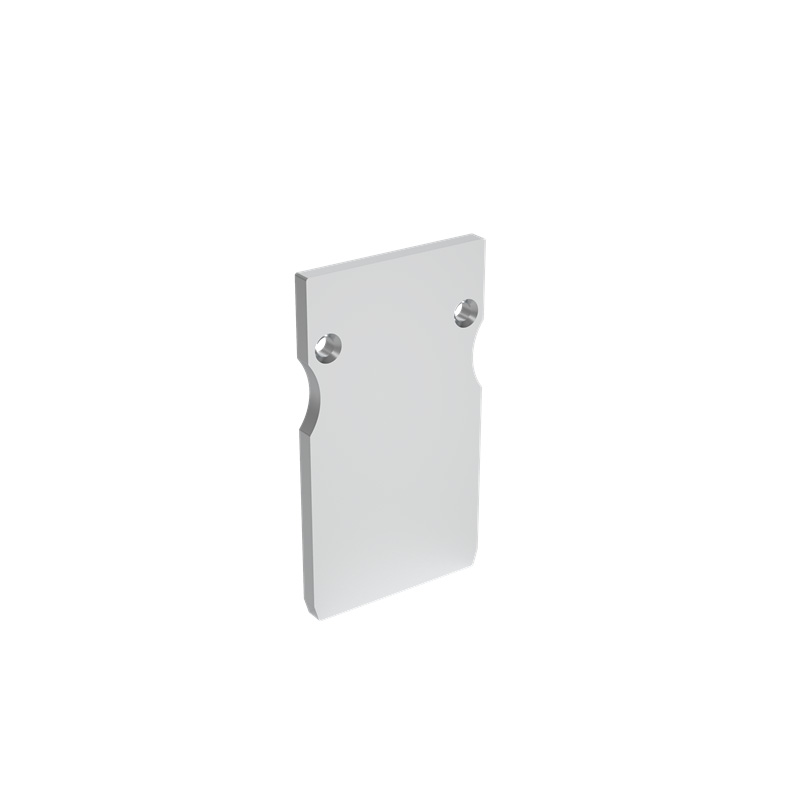

  • End Caps With Hole/Without Hole Included
  • 90°,180° And 90° Vertical Connectors Sold Separately
  • Installation: Trimless Recessed Mounting
  • 5 Years Warranty


Includes:

1*LED Light Channel

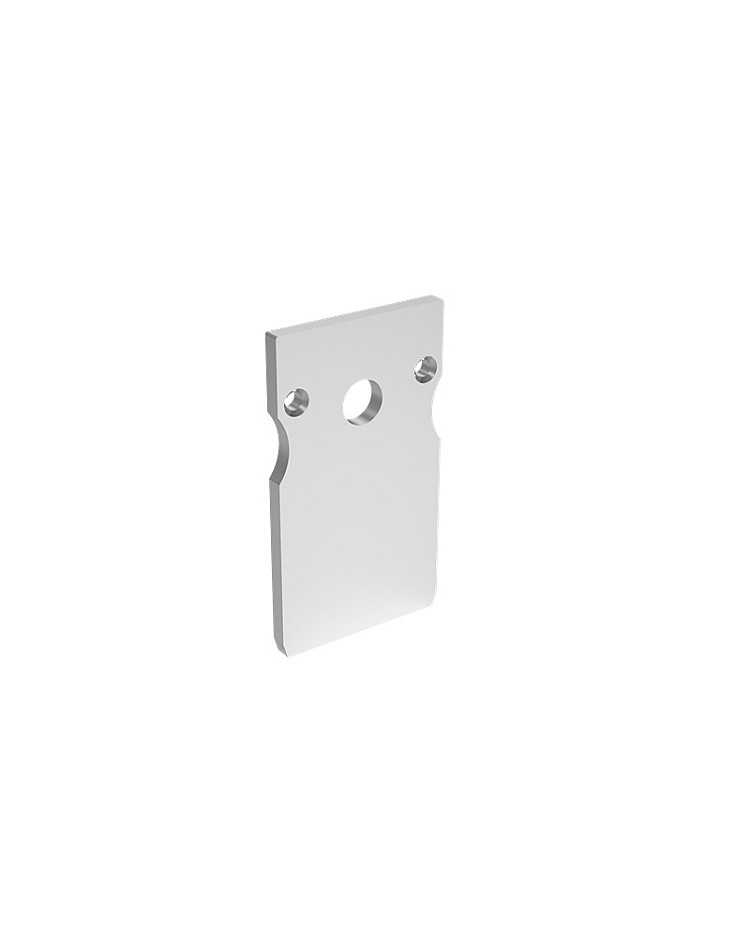

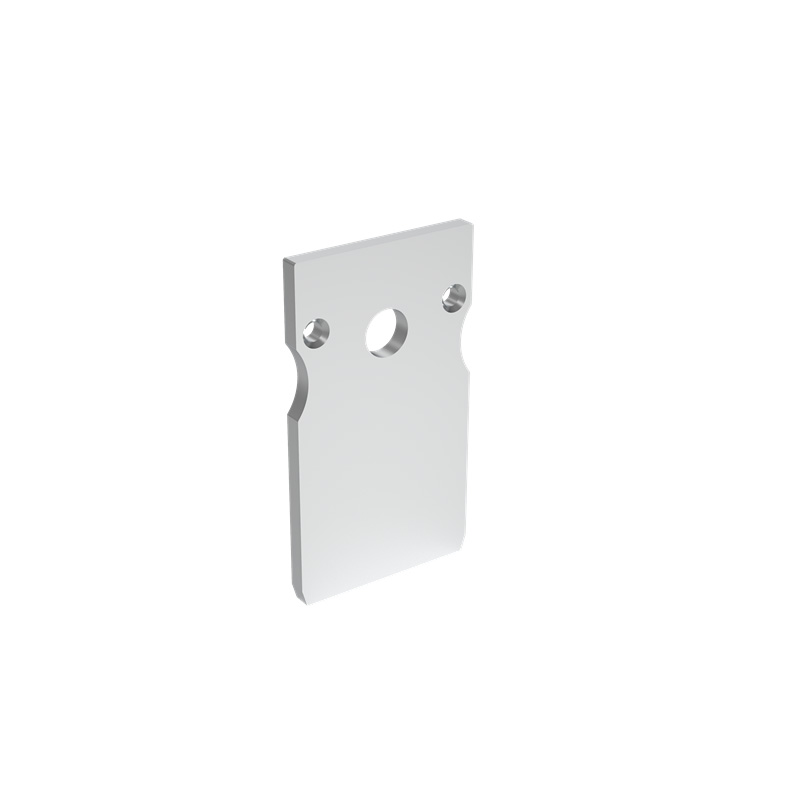

End Cap With Hole

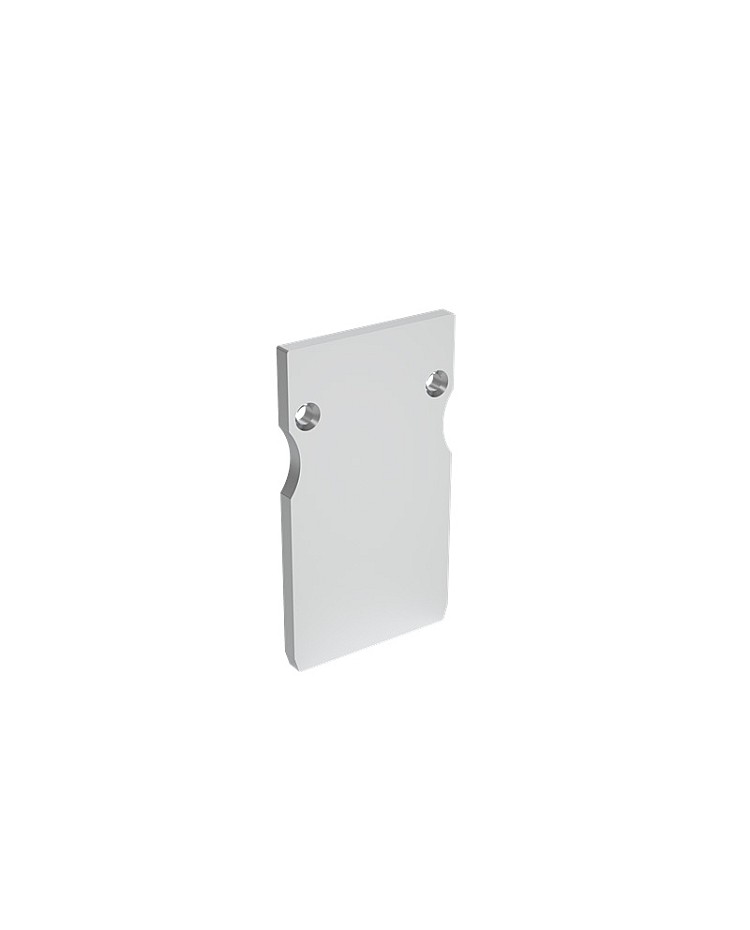

End Cap Without Hole

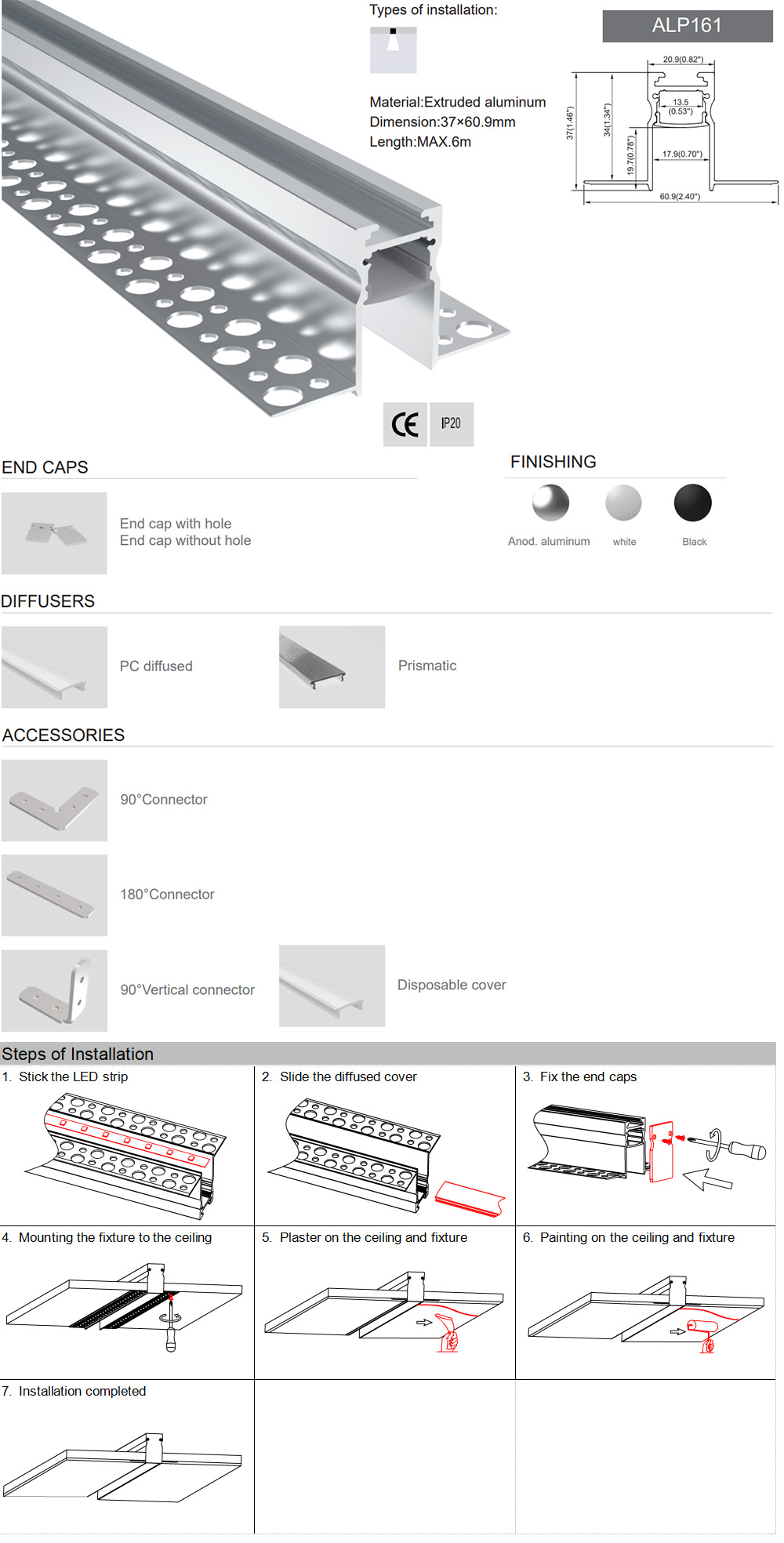

Aluminum LED Channels
