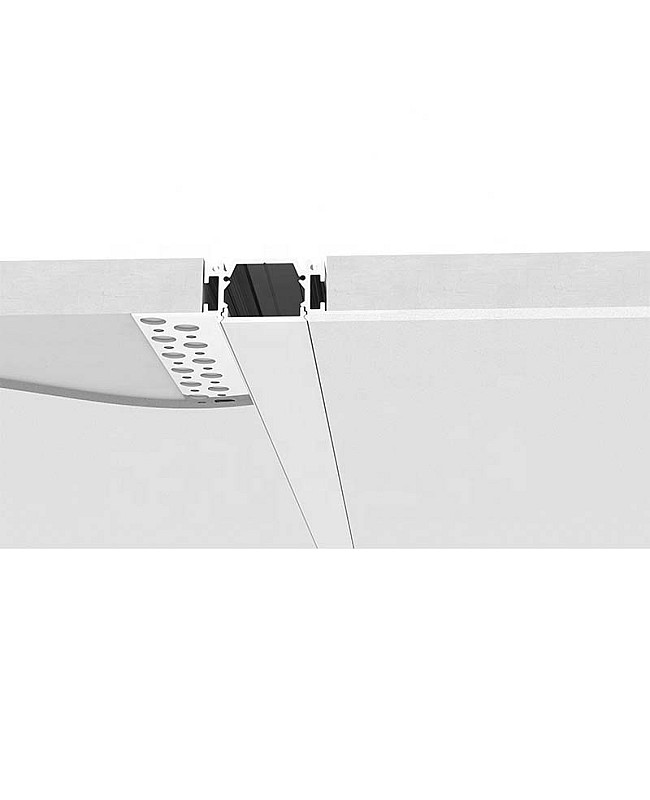

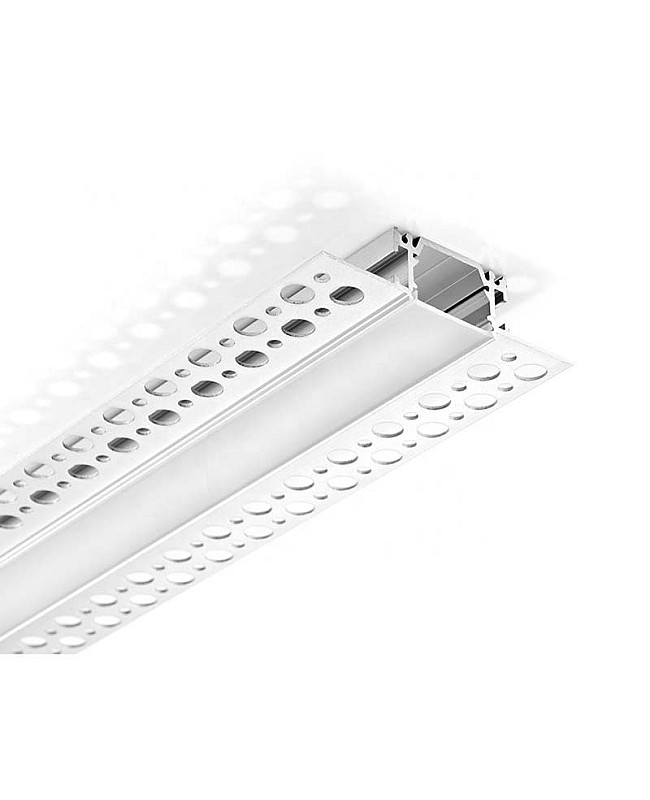

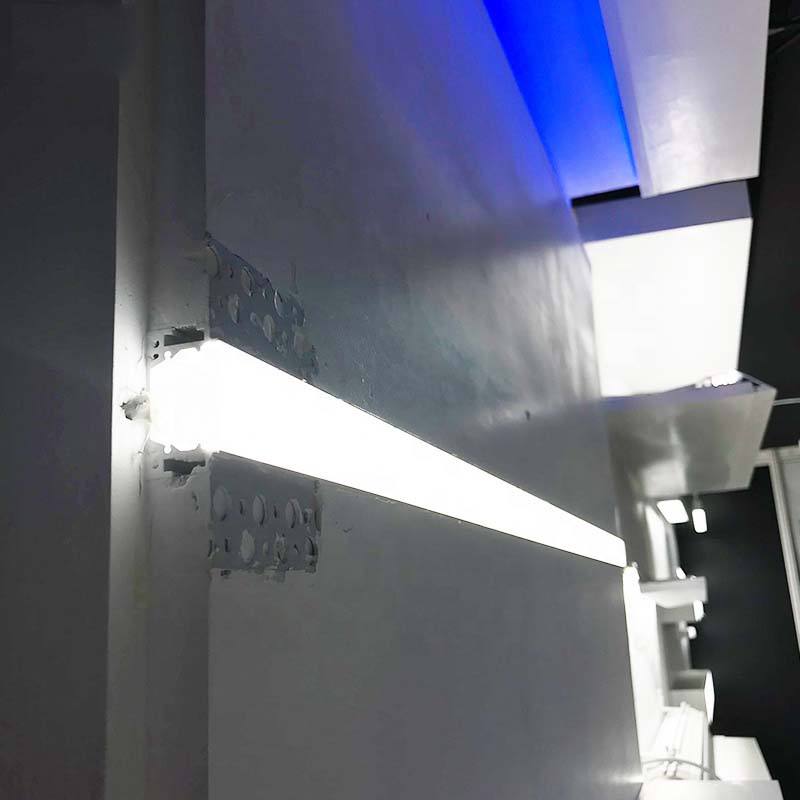

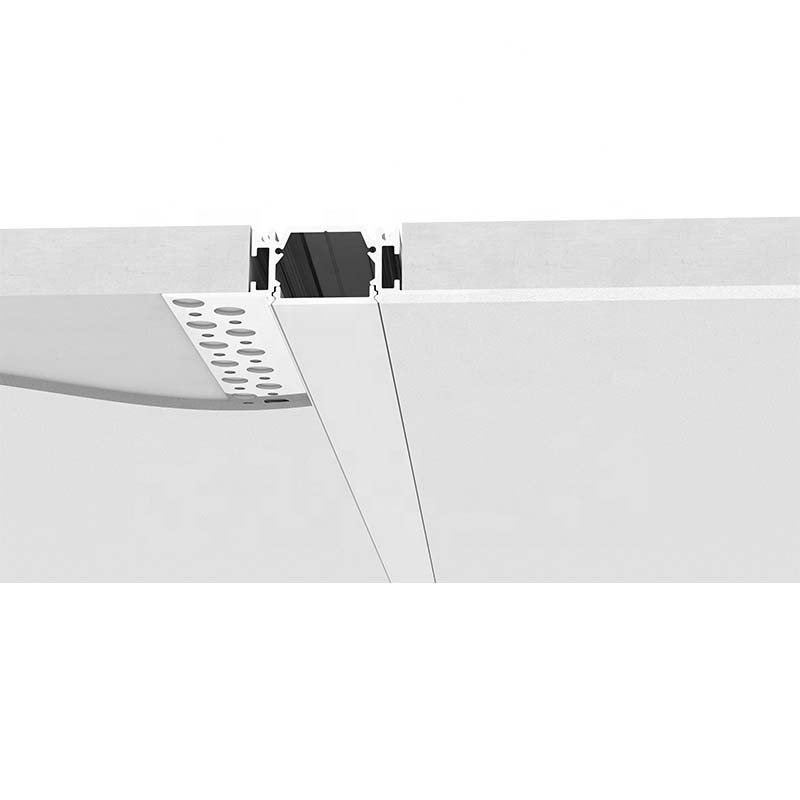

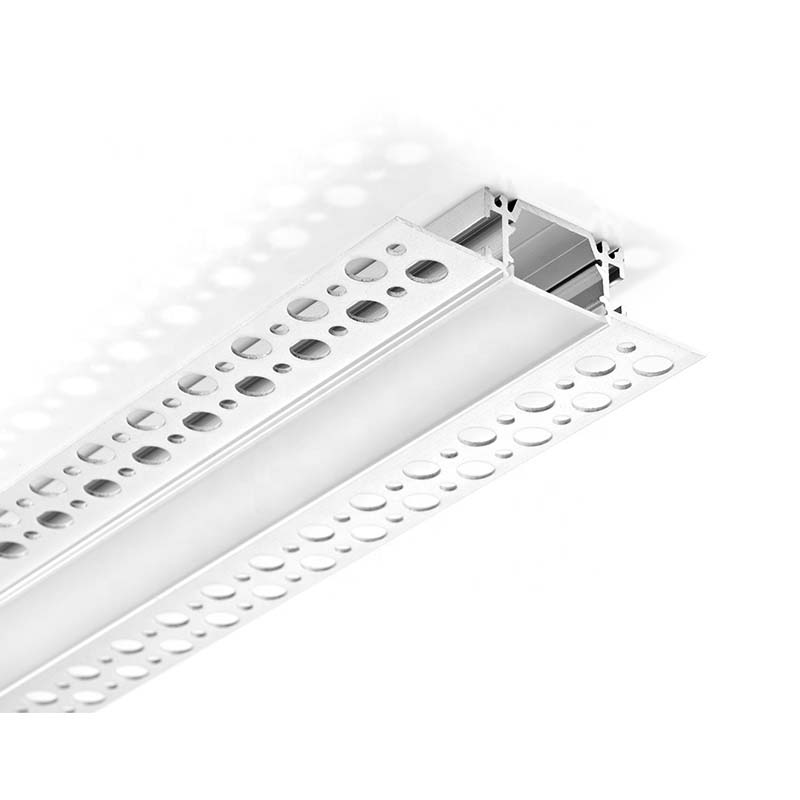

The plasterboard recessed LED strip profiles can be seamlessly integrated into 5/8" drywall in walls or ceilings for a clean and minimalist finish. They can house and conceal strip lights up to 15 mm wide, and the diffuser will evenly diffuse the lighting to create uniform, modern lighting. Making is ideal for creating a flush mount installation on the drywall in ceilings or walls, designed to fit the gap between drywall sheets. It can be used to create an aesthetically pleasing installation for architectural lighting. The LED strip channels are made of extruded aluminum with a silver anodized surface treatment for anti-oxidation resistance and a longer lifespan. They can also work as heat sinks for better heat dissipation to extend the lifespan of LED lights. The stock lengths are 2 m, 2.5 m, and 3 m, and can be cut to any length easily. Only one type of diffuser is available: the PC diffused cover, which is made of stable material, anti-yellowing, and with perfect light distribution. Three types of LED channel couplers are sold separately: 90-degree, 90-degree vertical, and 180-degree. Each connection needs two couplers. You can use them for angled or straight connections. The diffuser and end caps are included; no need to order them separately.
Specifications:

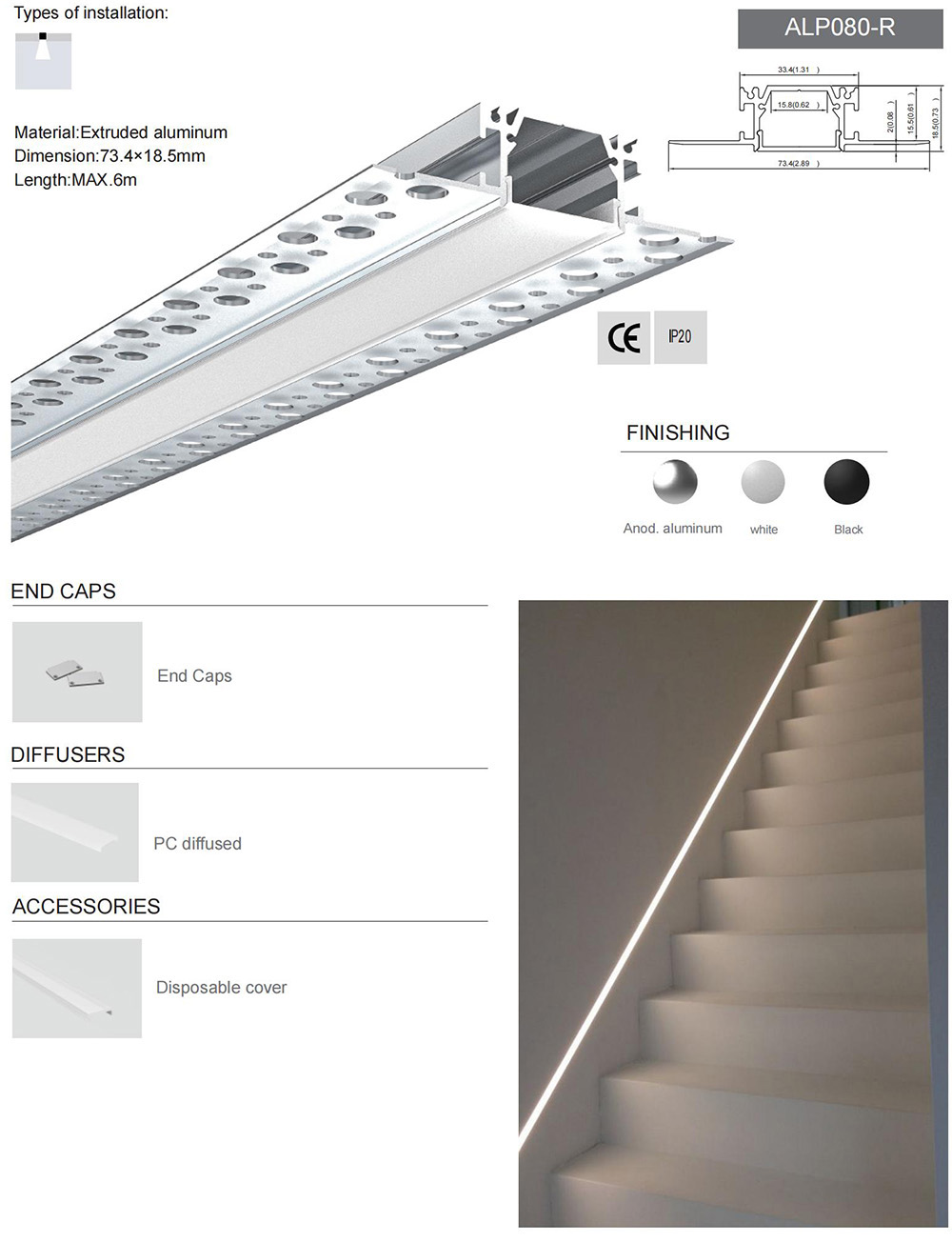

- Model: ALP080-R
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Silver

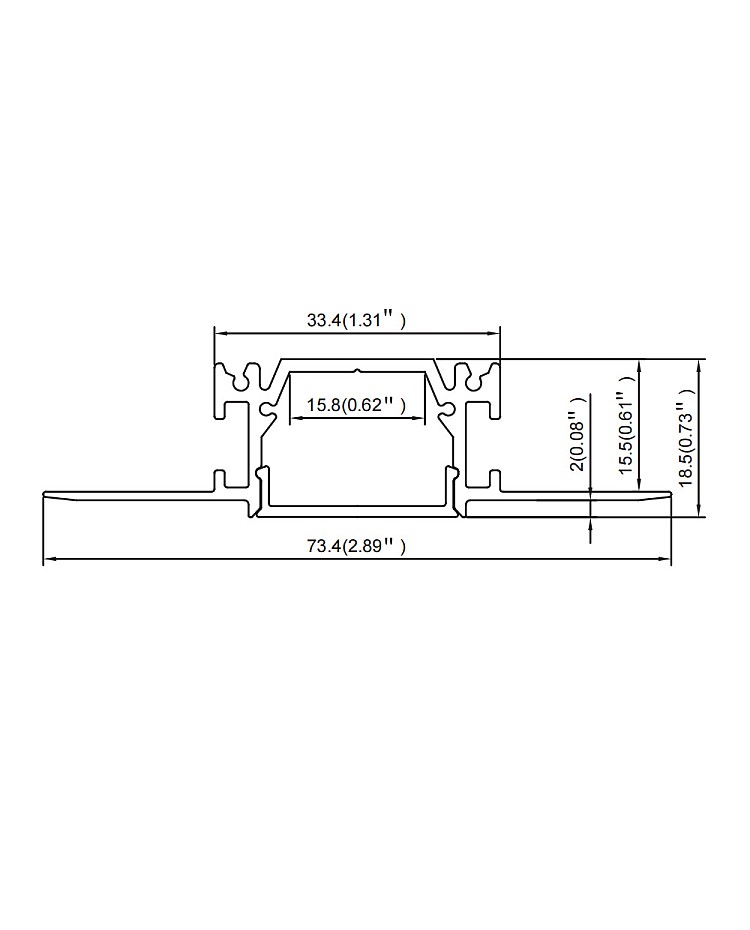

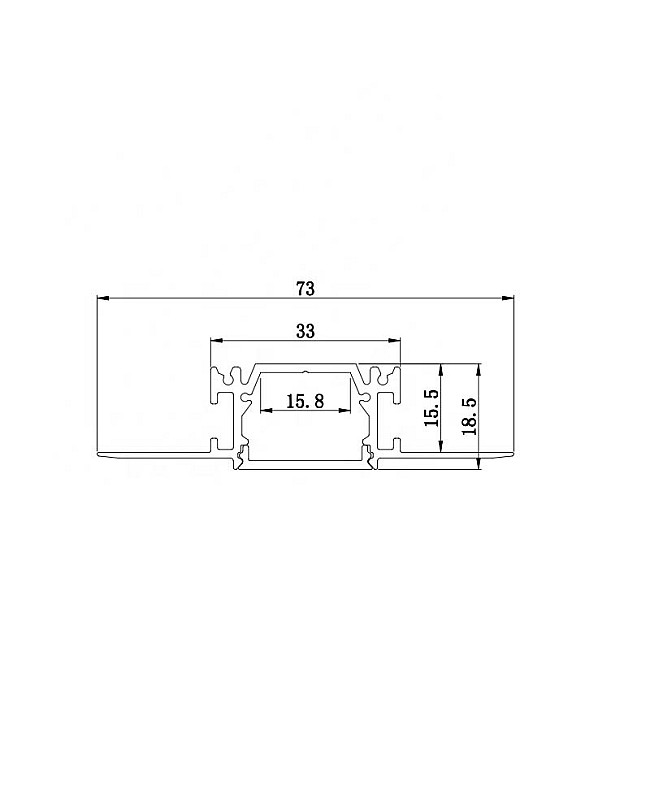

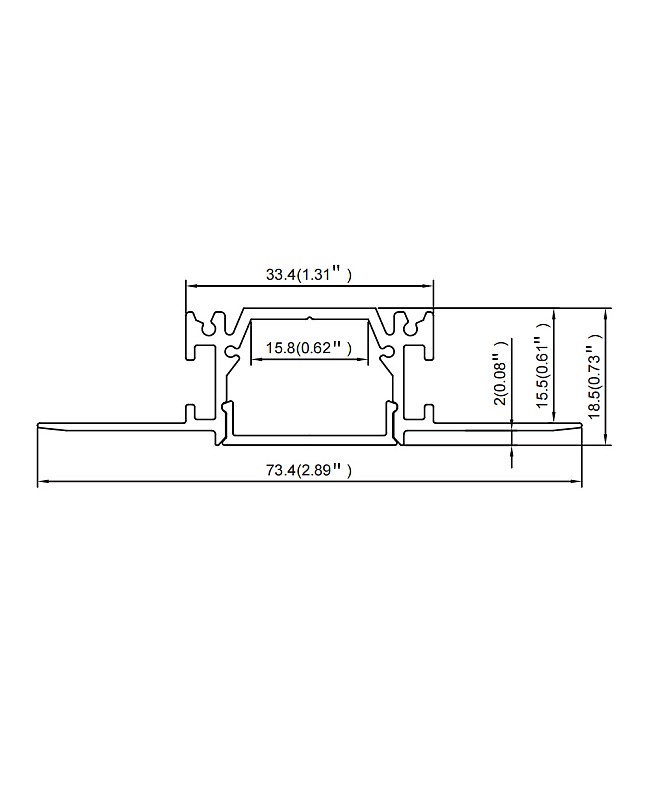

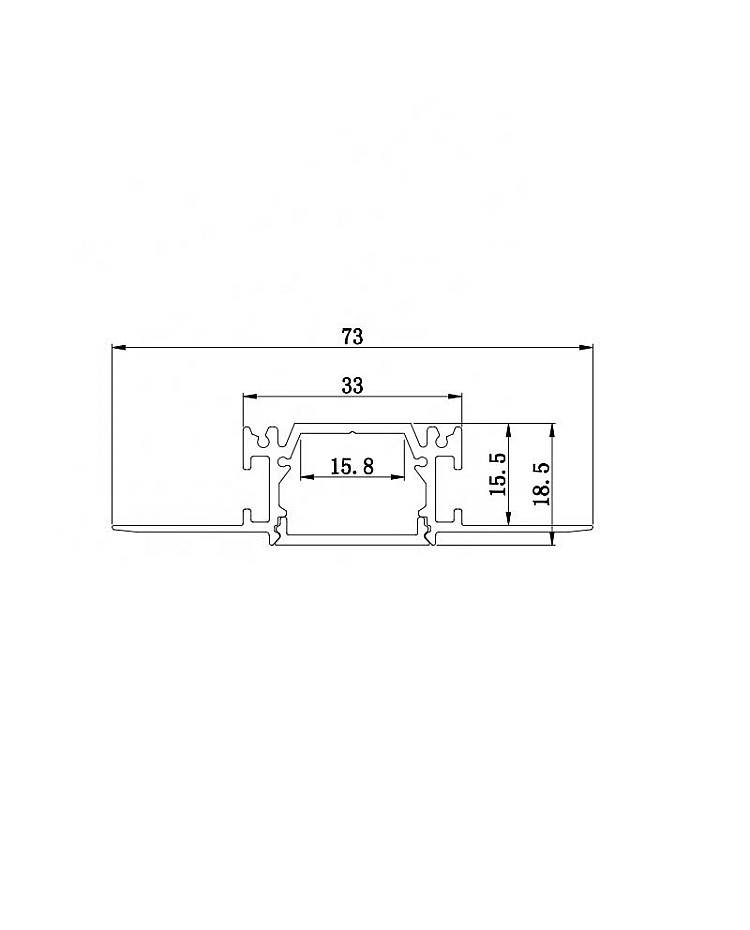

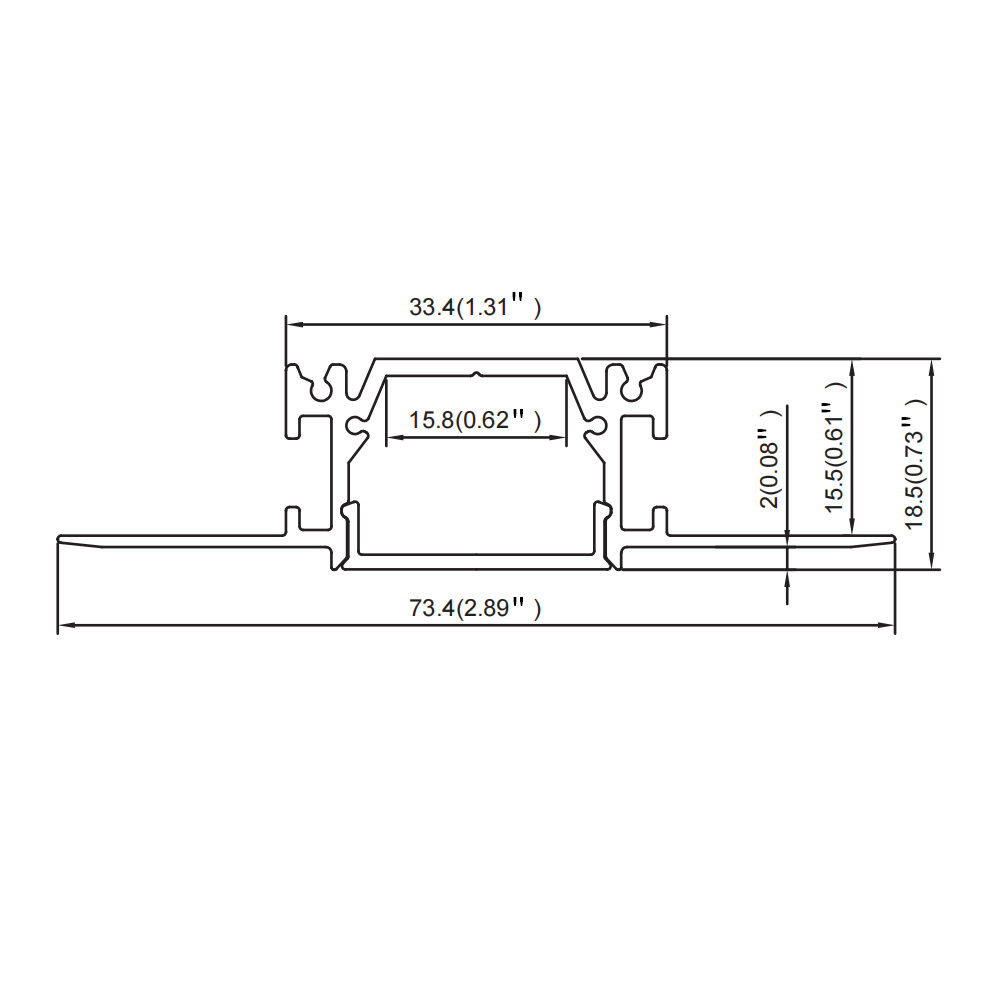

- Size ( W x H ): 73.4 mm x 18.5 mm ( 2.89" x 0.73" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" ), 2.5 m ( 98" ), 3 m ( 118" )
- Custom length available: YES
- Inner width: 15.8 mm ( 0.62" )
- Maximum width of strip lights: 15 mm ( 0.59" )
- Maximum power: 15W/m
- Diffusers: PC diffused cover
- Beam angle: 100°

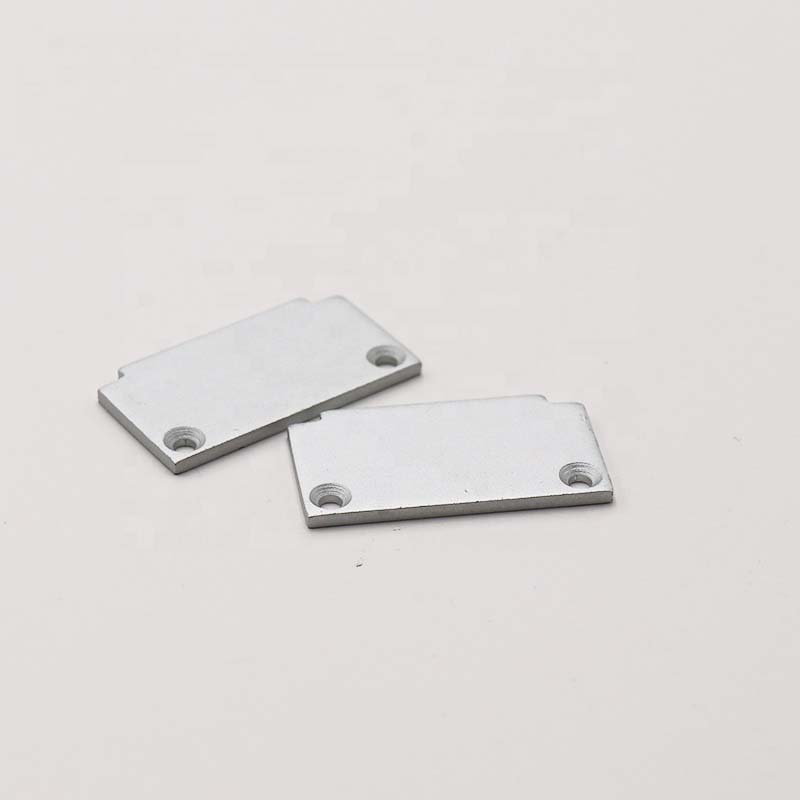

- End caps are included

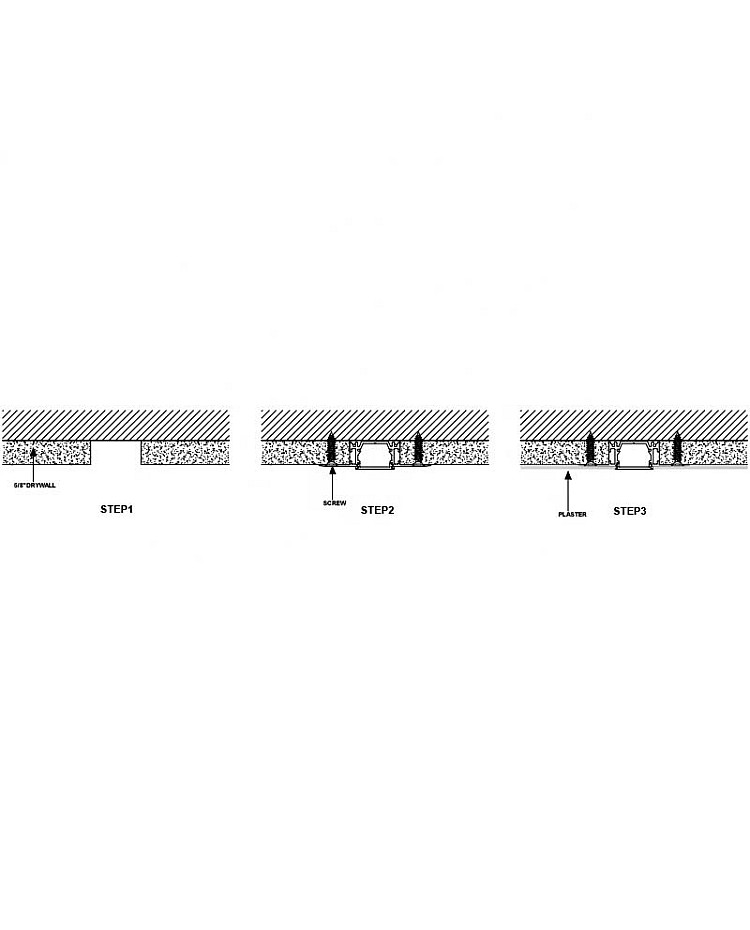

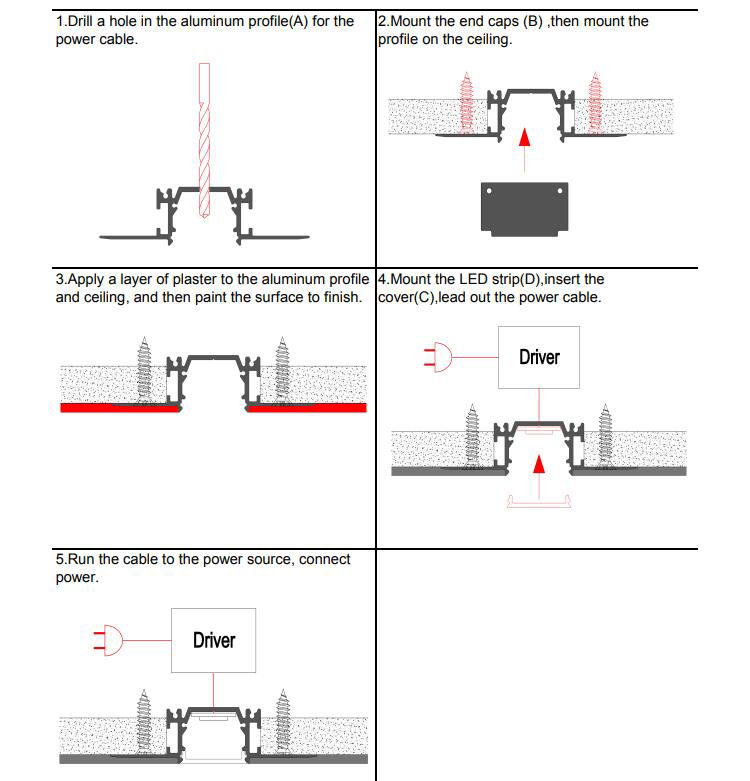

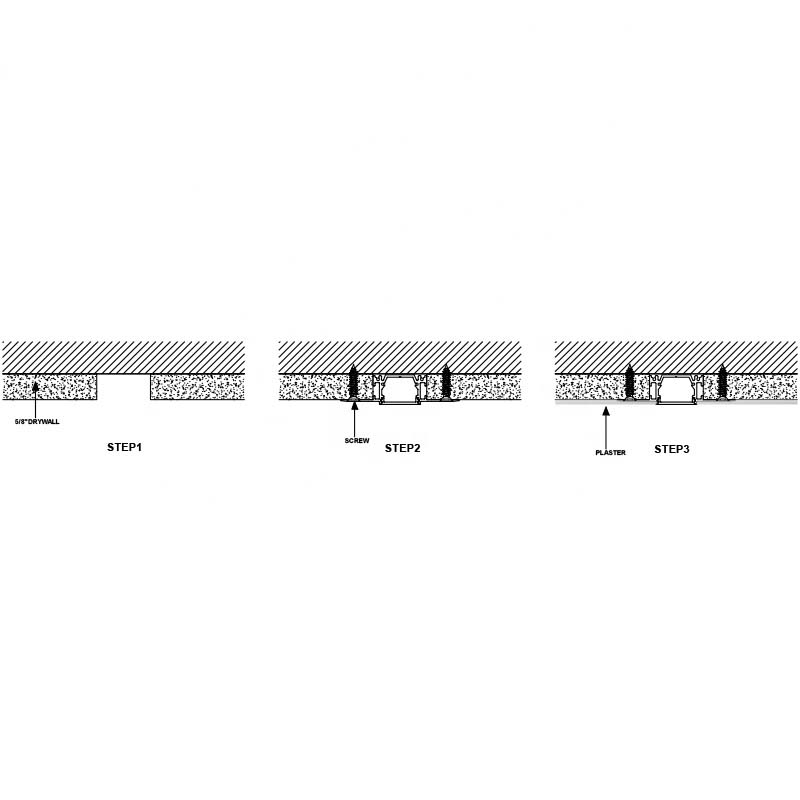

- Installation: Recessed into 5/8" drywall
- Warranty: 5 years

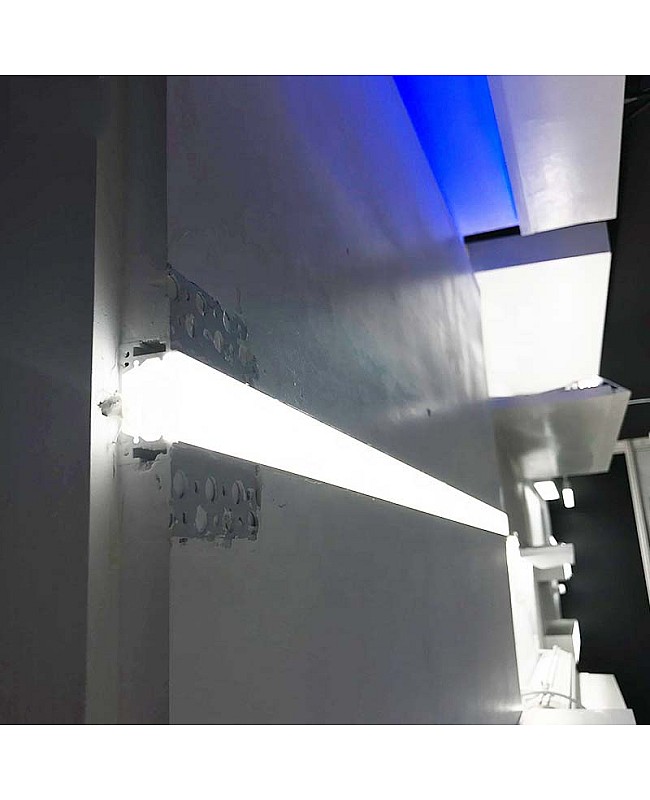

Applications:

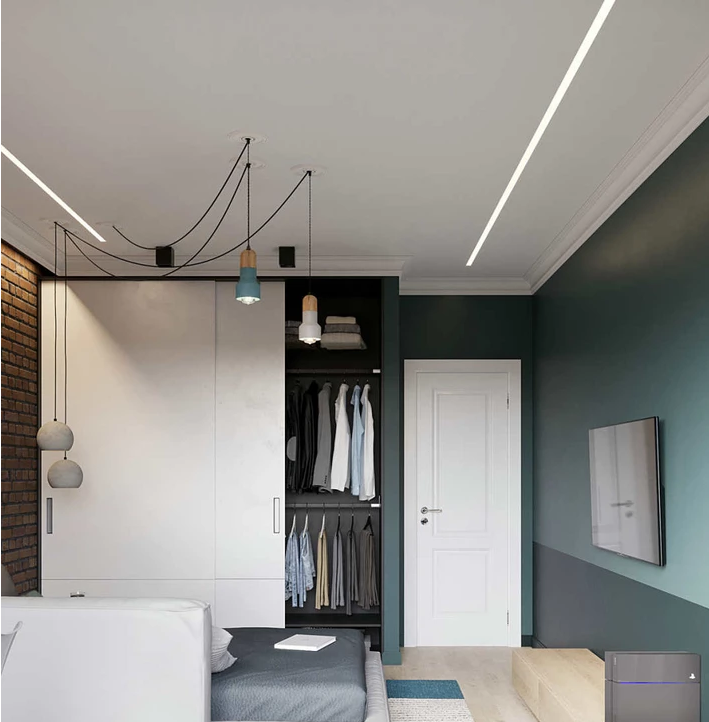

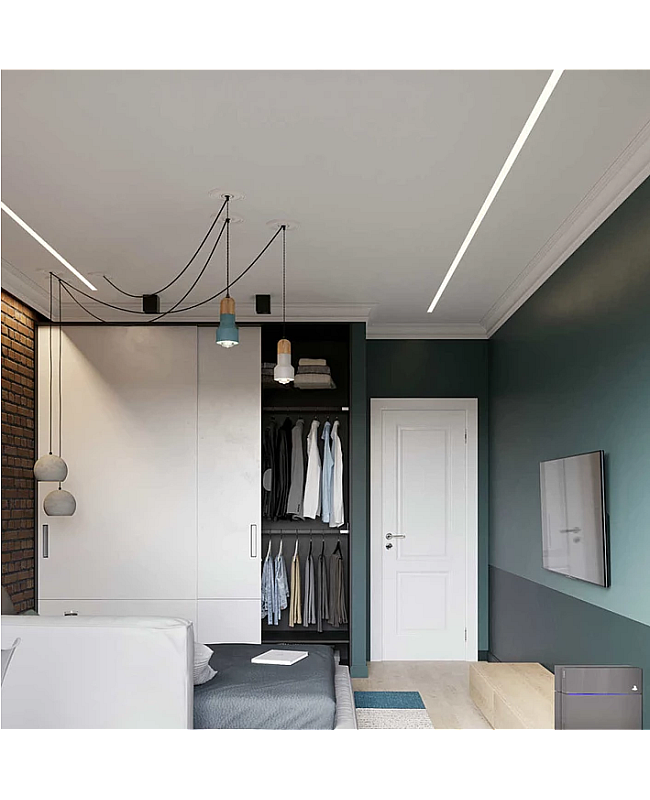

- Wall and ceiling recessed linear lighting
- Accent lighting in hallways and corridors
- Staircase lighting
- Retail, hospitality, office, and residential interior design

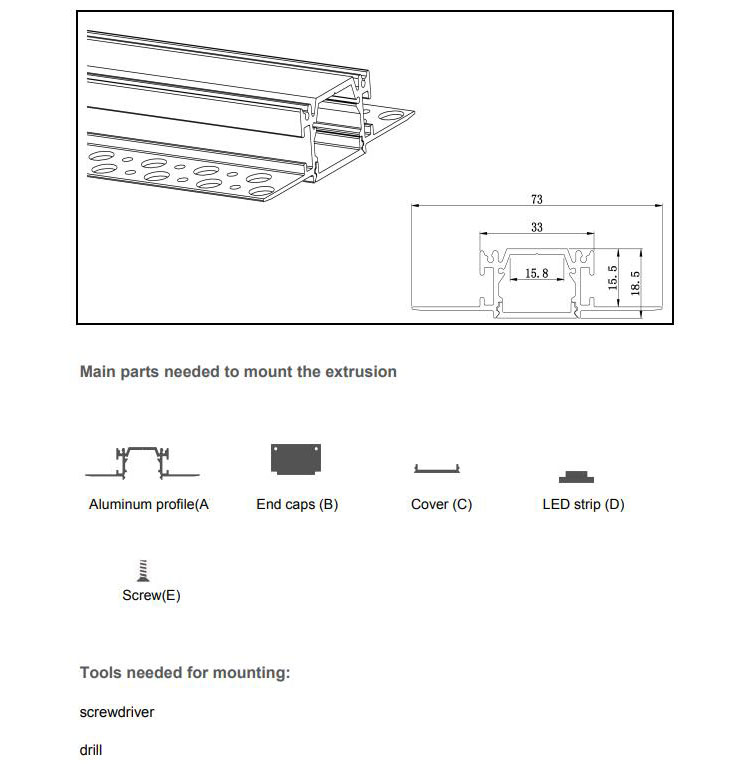

Includes:
1 * LED strip plasterboard profile and diffuser

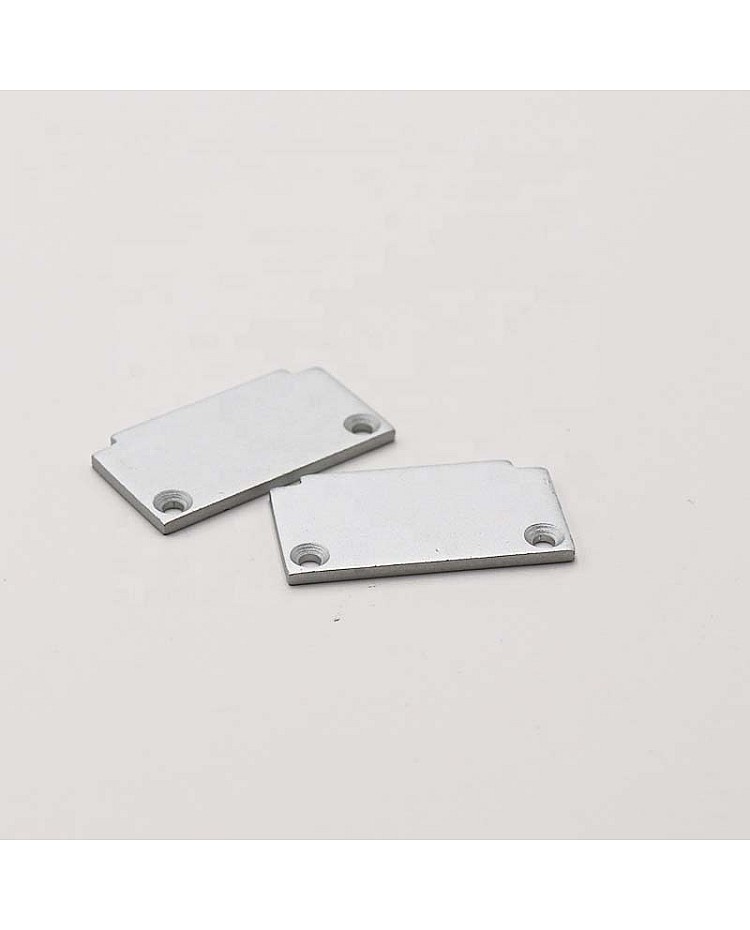

End caps
