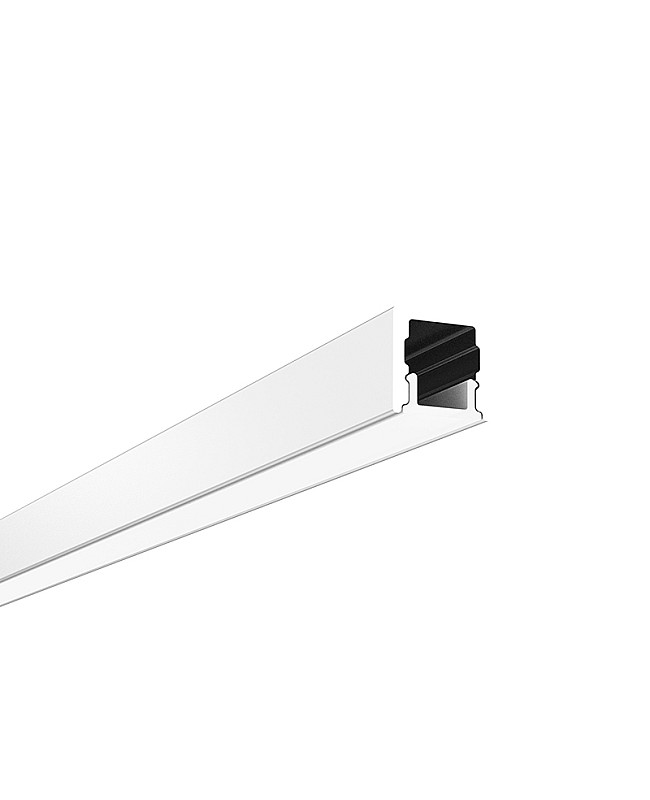

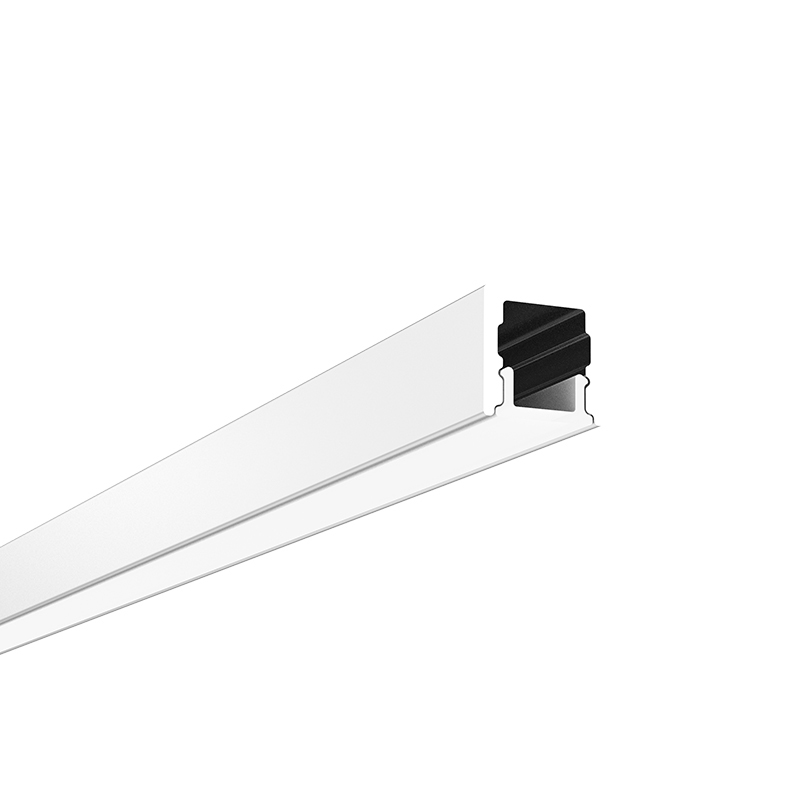

The super-slim light profiles are ideal for discreet, low-profile lighting solutions in kitchens, cabinets, shelves, wardrobes, and other tight spaces. They are designed for surface mounting and provide a clean, modern lighting finish without visible parts. The slim LED channels are crafted from high-quality anodized aluminum to ensure efficient heat dissipation and protect the LED strip lights while delivering a smooth, diffused glow. Their minimalist design blends seamlessly into modern interior designs, making it a perfect fit for both residential and commercial projects. The inner width is 5.5 mm, allowing a maximum width of 5 mm for strip lights. We recommend installing high-density COB LED strips as the light source, which results in uniform illumination with no visible light spots or dark areas. The standard lengths are 1 m and 2 m, and they can be cut to any size for your project. End caps and metal clips are included to allow the surface-mounted installation. Only PC frosted diffusers are available, made of brand-stable material, anti-yellowing, with perfect light distribution, and for soft, dot-free light output.
Specifications:

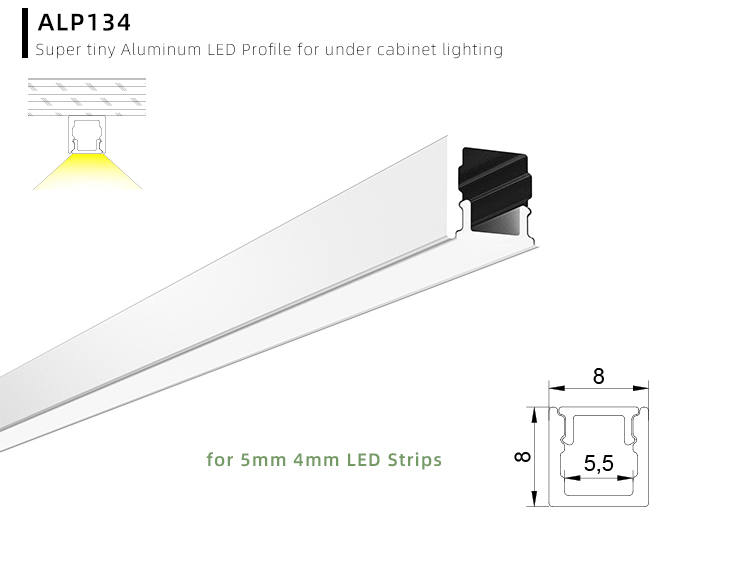

- Mode: ALP134
- Material: 6063-T5 extruded aluminium
- Surface treatment: Anodized or powder-coated
- Colors: Silver, White, Black

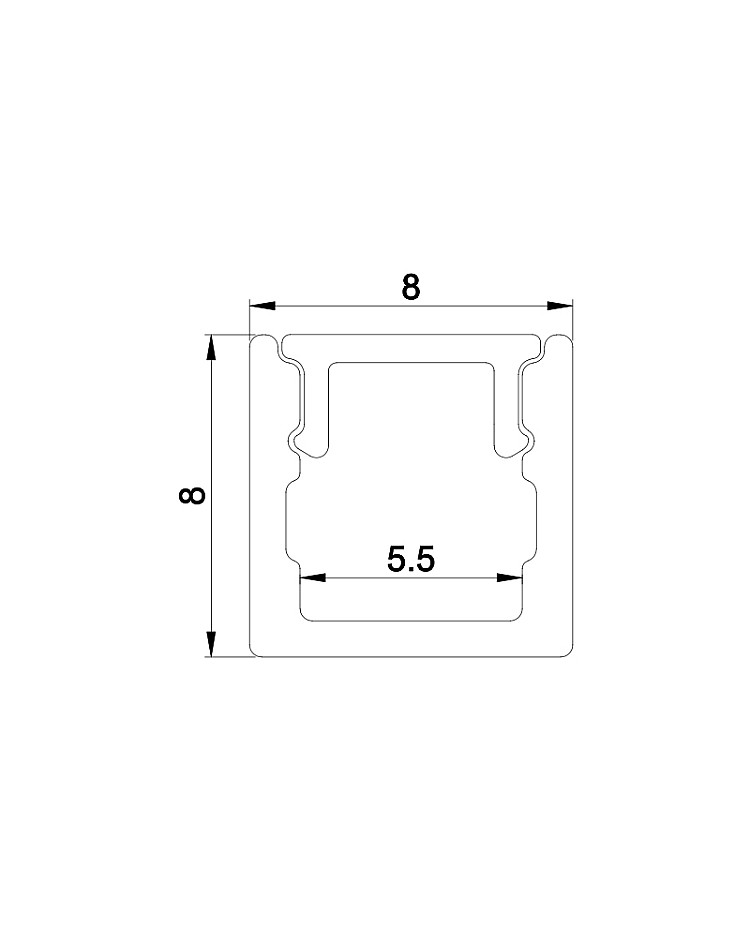

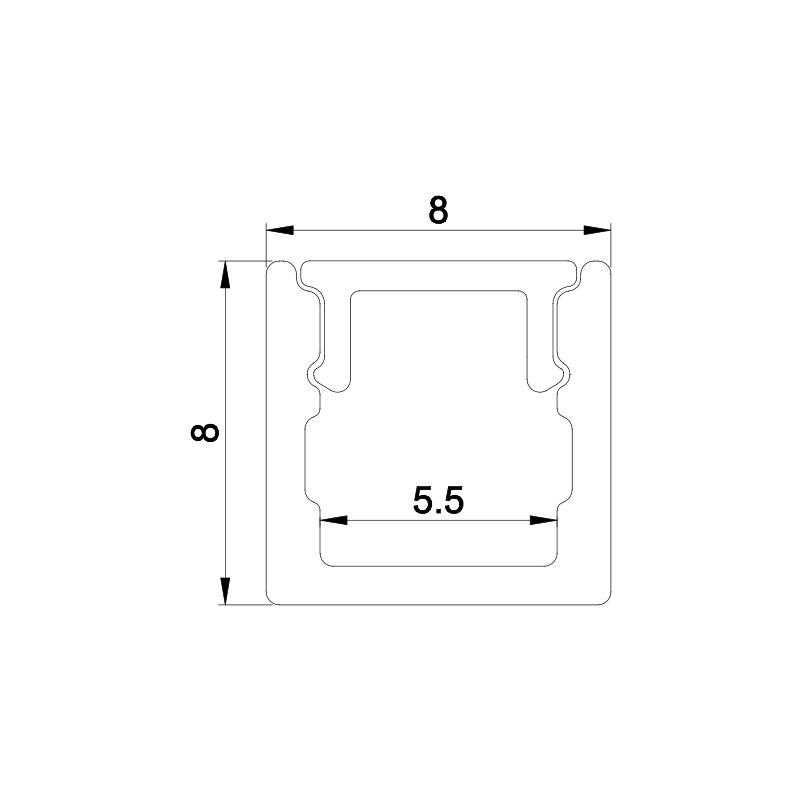

- Size ( W x H ): 8 mm x 8 mm ( 0.31" x 0.31" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 5.5 mm ( 0.22" )
- Allows the max width of strip lights to be 5 mm ( 0.20" )
- Max power: <10W/m

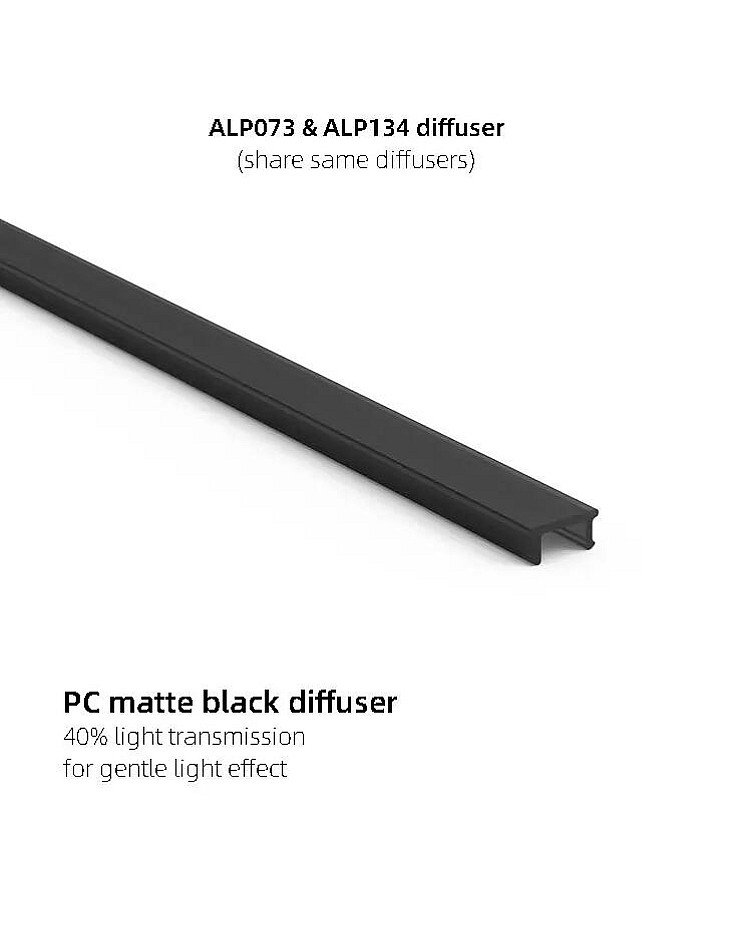

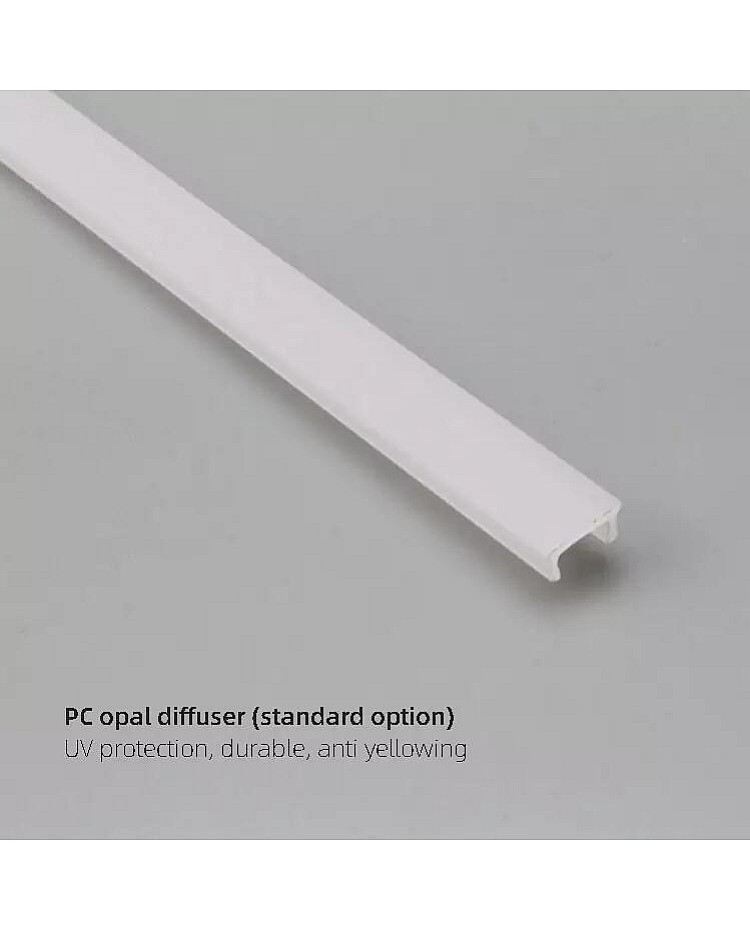

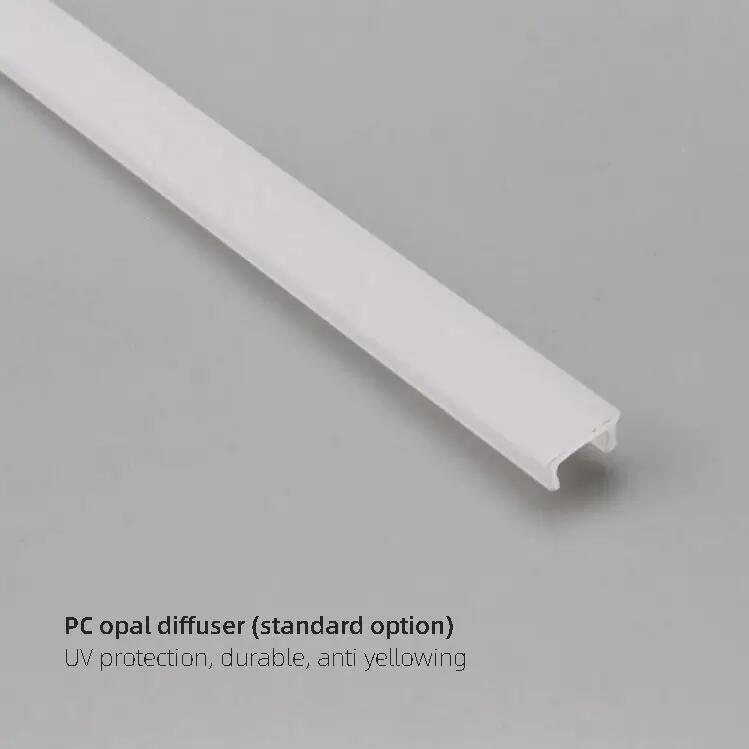

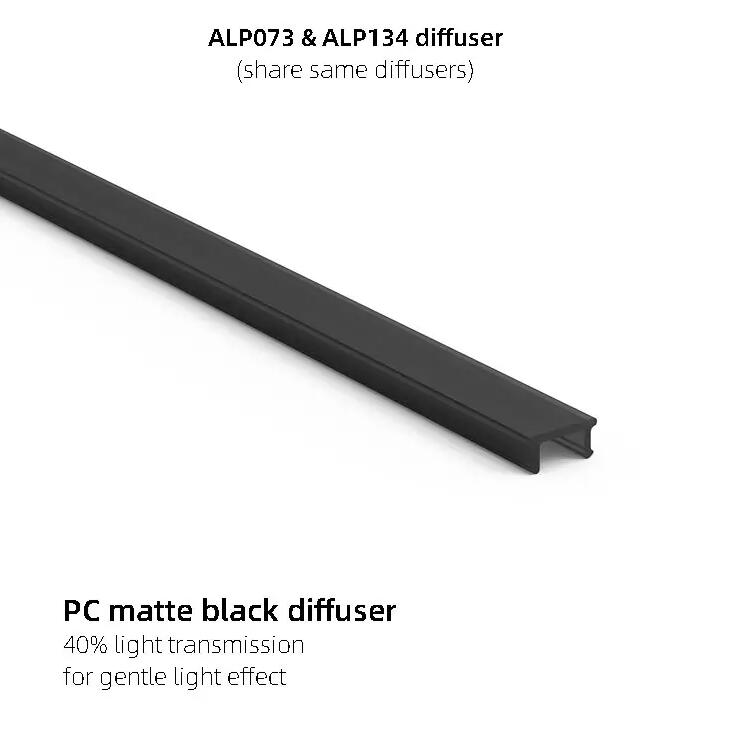

- Diffuser: PC frosted cover
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

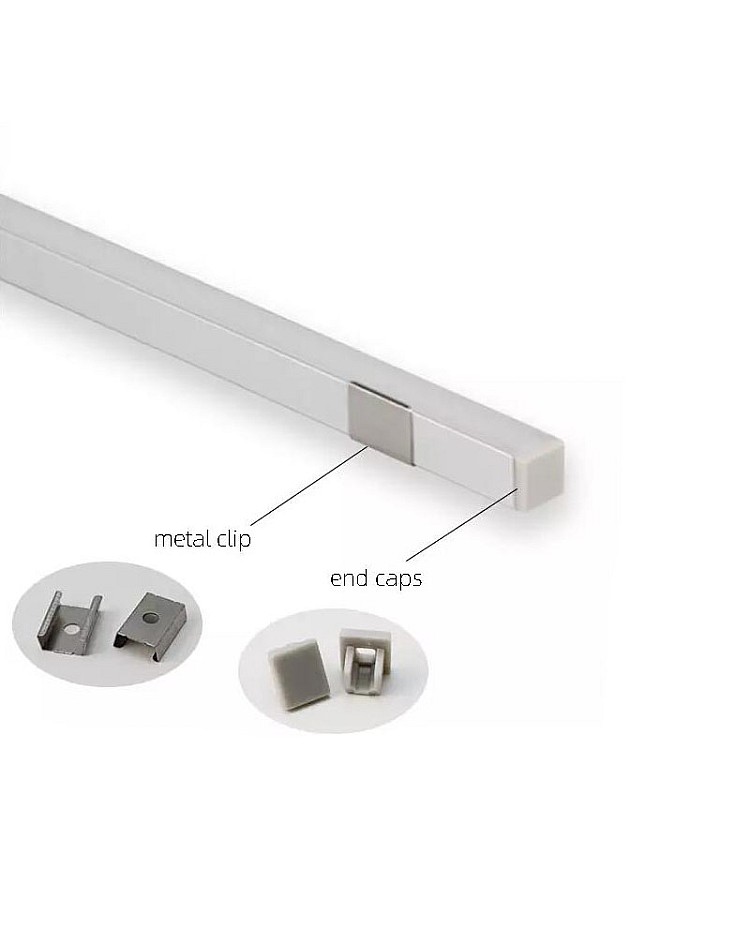

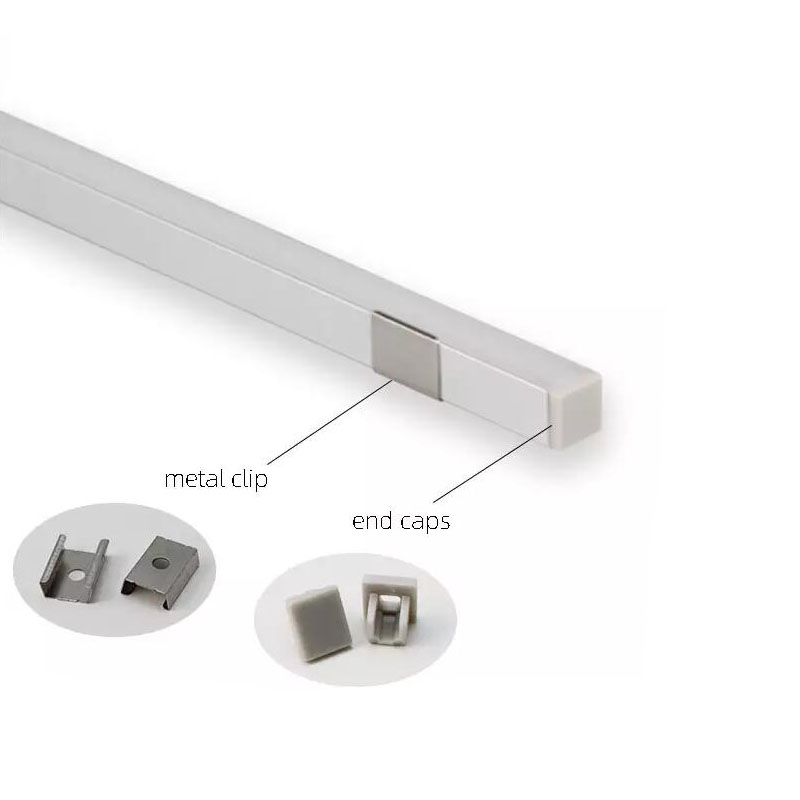

- End caps with and without wire holes and metal clips are included

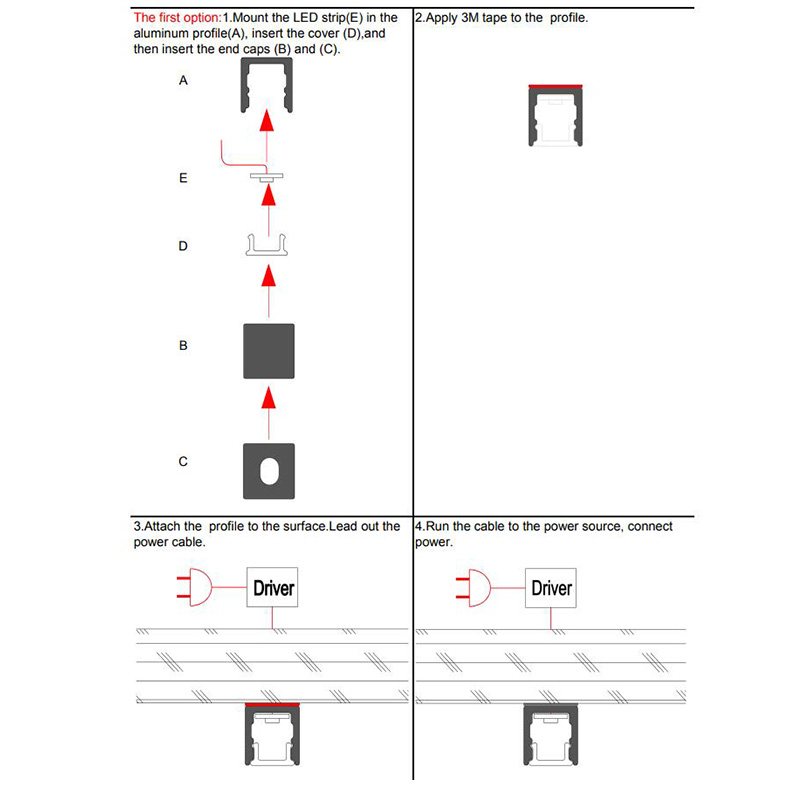

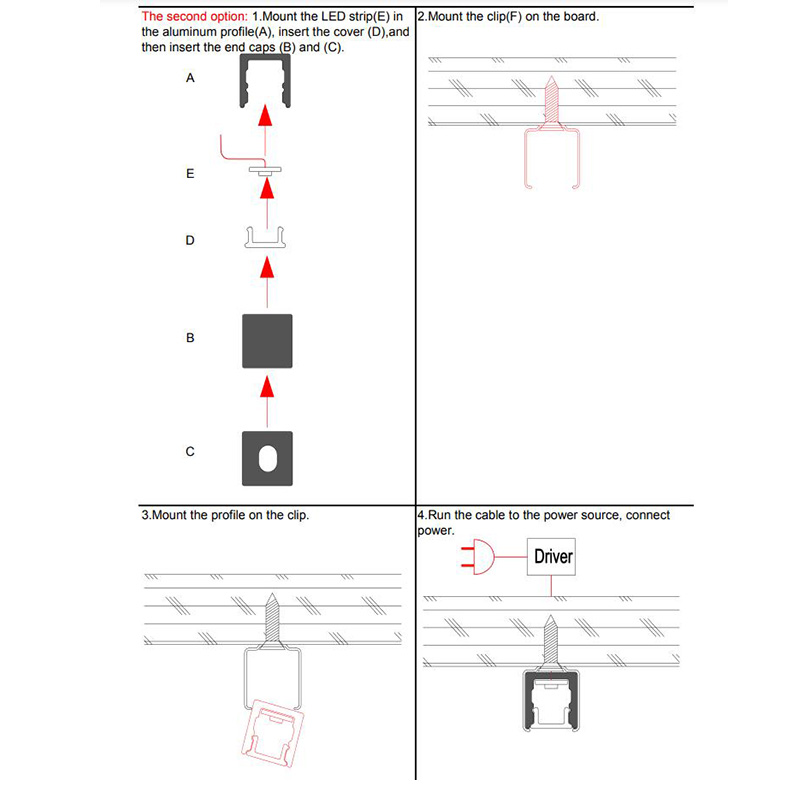

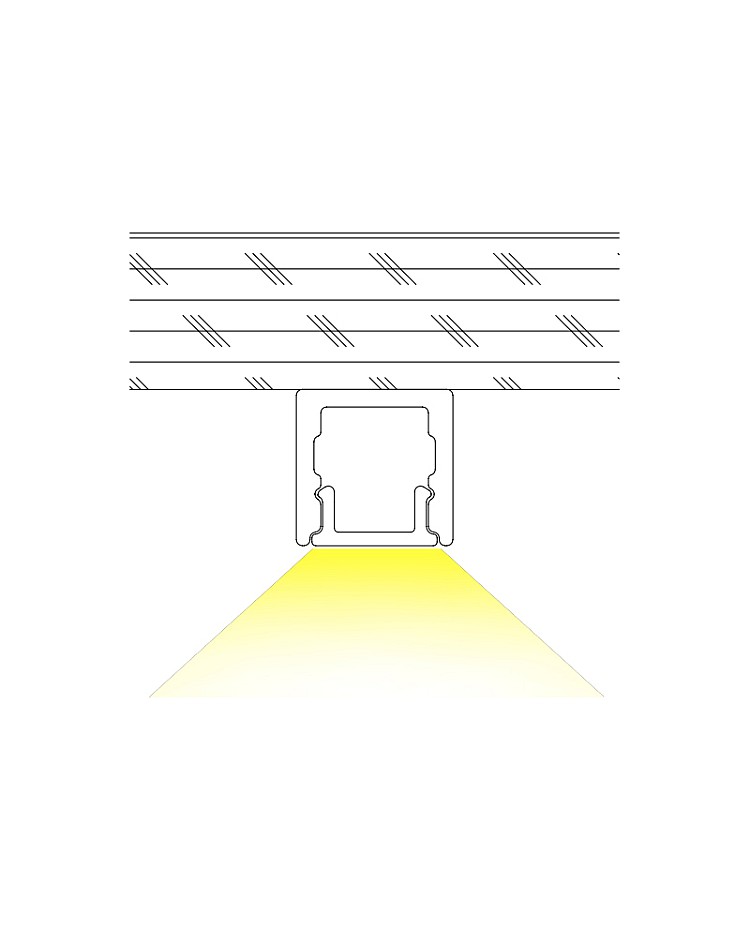

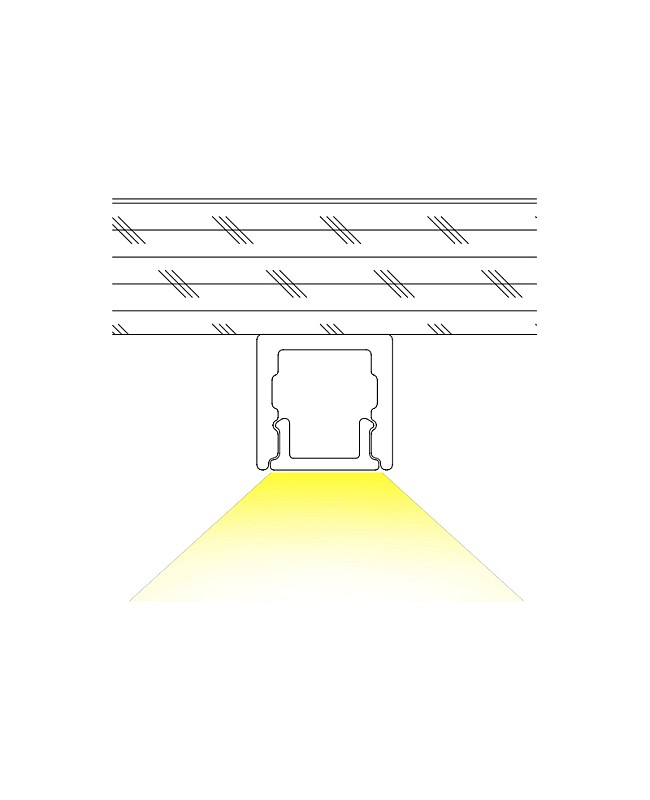

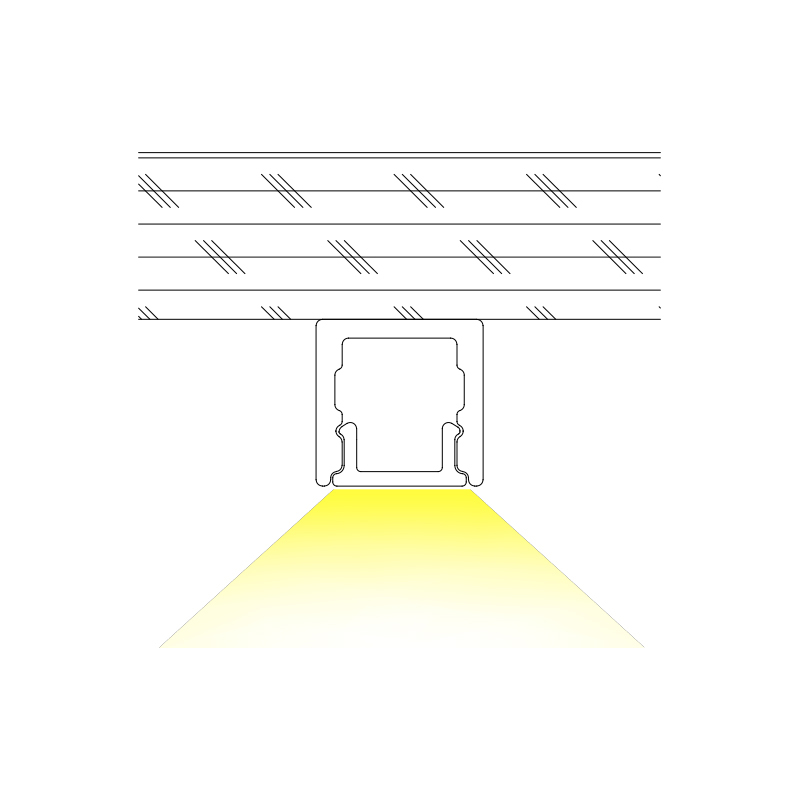

- Installation: Surface-mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

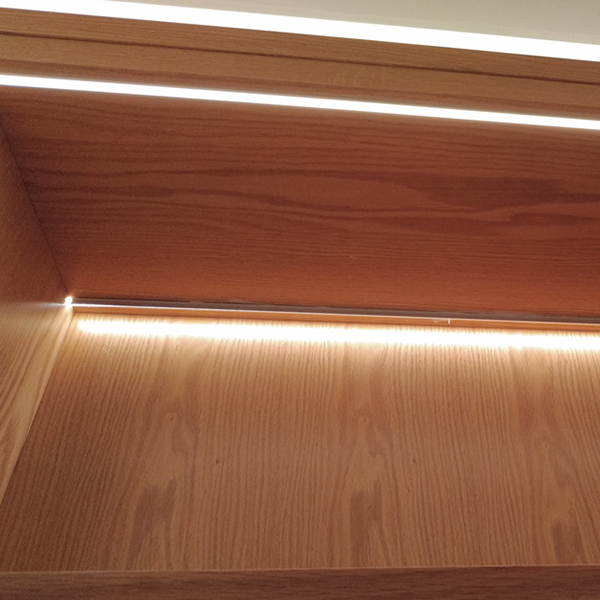

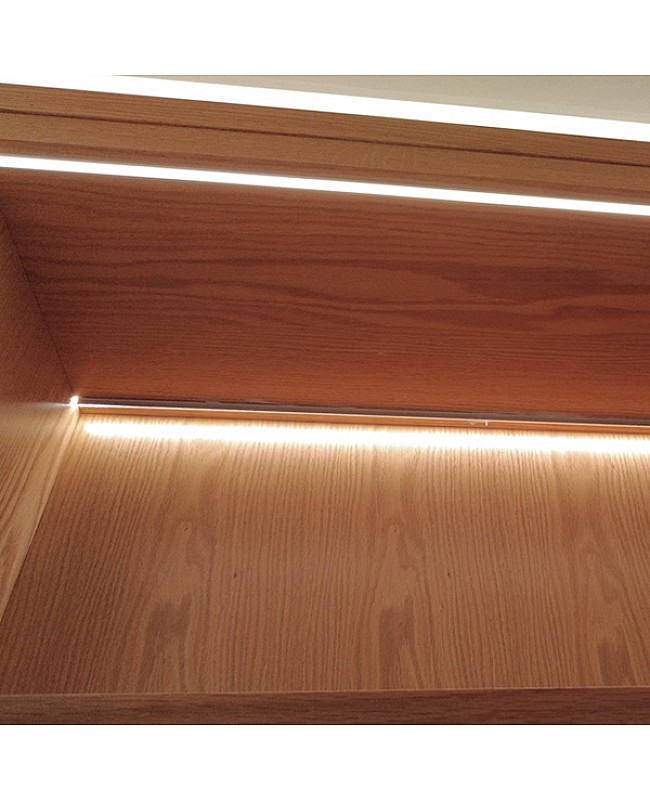

- Under-cabinet task lighting
- Bookshelf or display lighting
- Closet and wardrobe LED lighting
- Shelf edge or drawer interior illumination
- Retail product displays or showcases

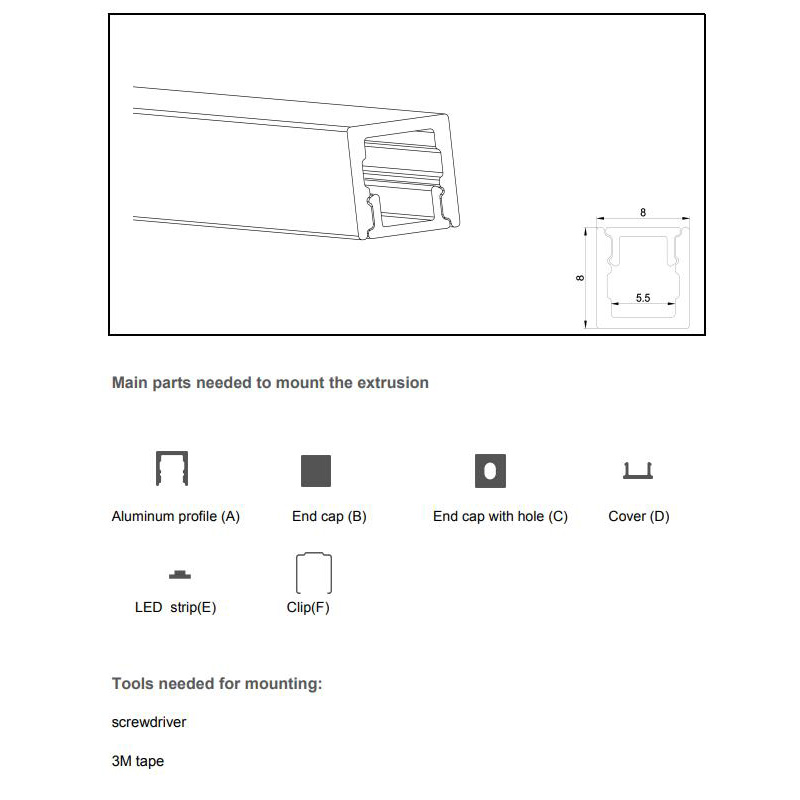

Includes:
1 * Super slim light profile with diffuser
End caps(With and without wire holes)
Metal clips
