In Stock
$10.75 $6.99 Sale -35% OFF
Reward Points: 7
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP145

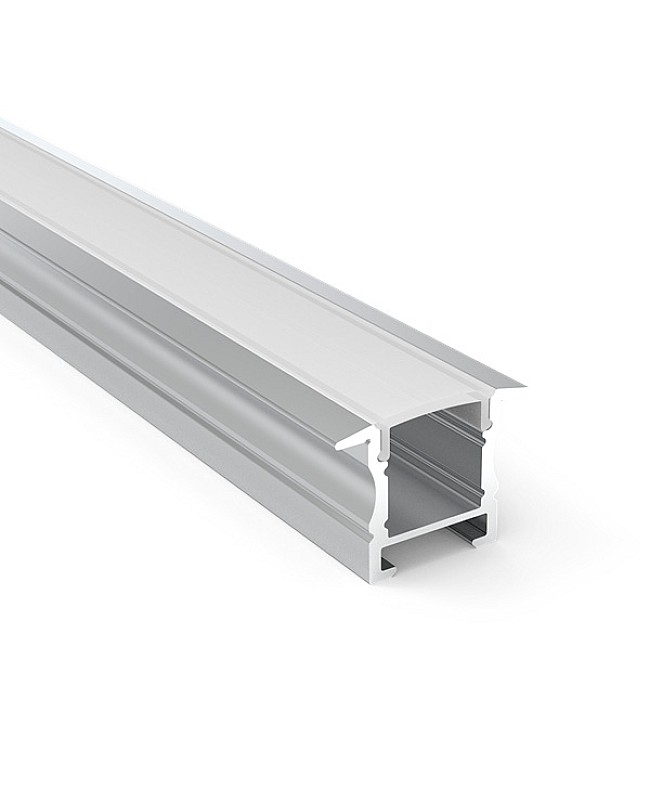

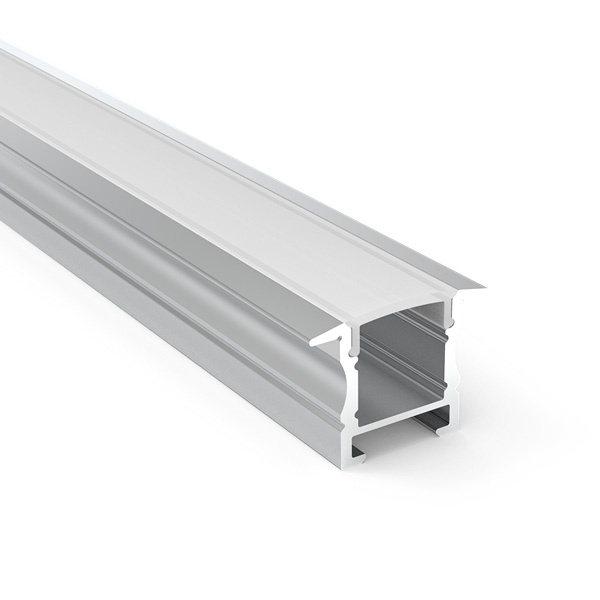

Check the Aluminum Track For LED Strip Lighting, which with flange for recessed mounting installation. made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation and has a longer lifespan than other similar products. there are 3 colors available, the default color is silver, you can choose white or black. the standard length is 1meter, other lengths are available like 1.5M, 2M, 2.5M, 3M and max length can do 6M, custom length available. there are 6 types of diffusers available, the PMMA series and PC series, both of them are made of imported brand material, anti-yellowing, perfect lighting distribution. the inner with is 12.3mm and can work with Flexible SMD LED Strips or COB LED Light Strips, the max width of PCB board not over 12mm. the end caps with holes and without holes included, easy to connect the LED Lights to a power supply to light up, the bottom of the LED Aluminum Tracks have a slot that allows inserting a magnet tube, you can stick on the metal part of door or window for indoor lighting applications.


  • Model: ALP145
  • Material: 6063-T5 Extruded Aluminum

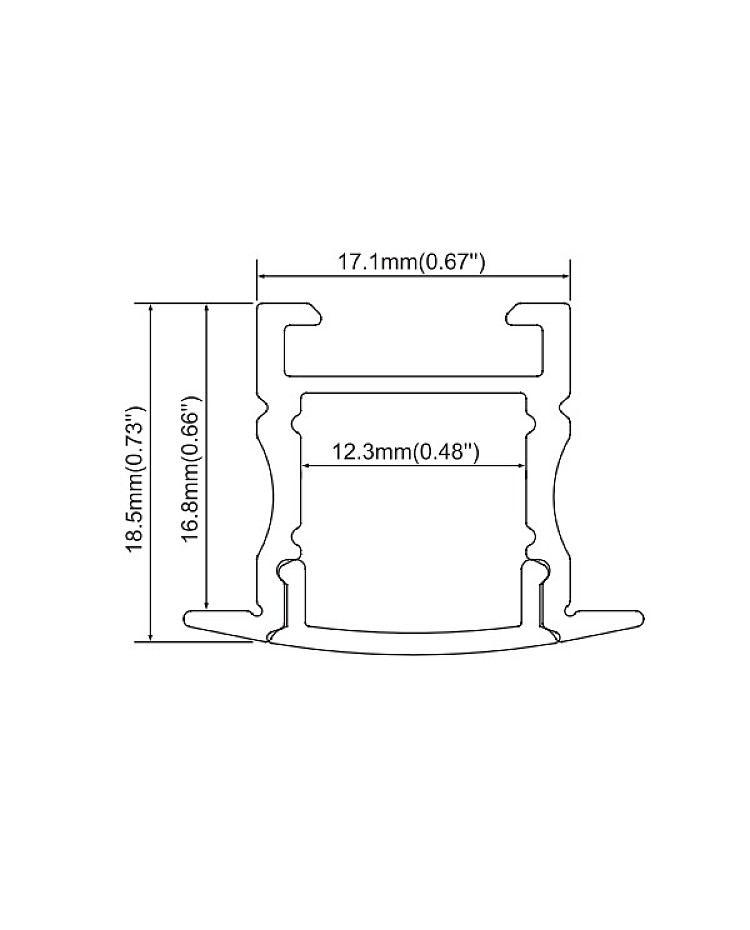

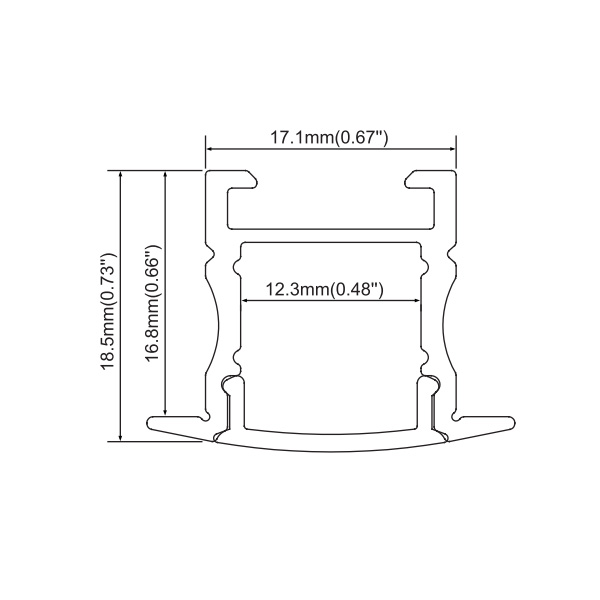

  • Size: 17.1*18.5mm(W*H)
  • Surface Treatment: Anodized
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES
  • Inner Width: 12.3mm
  • Max Width Of LED Strips: 12mm
  • Max Power: 18W/M

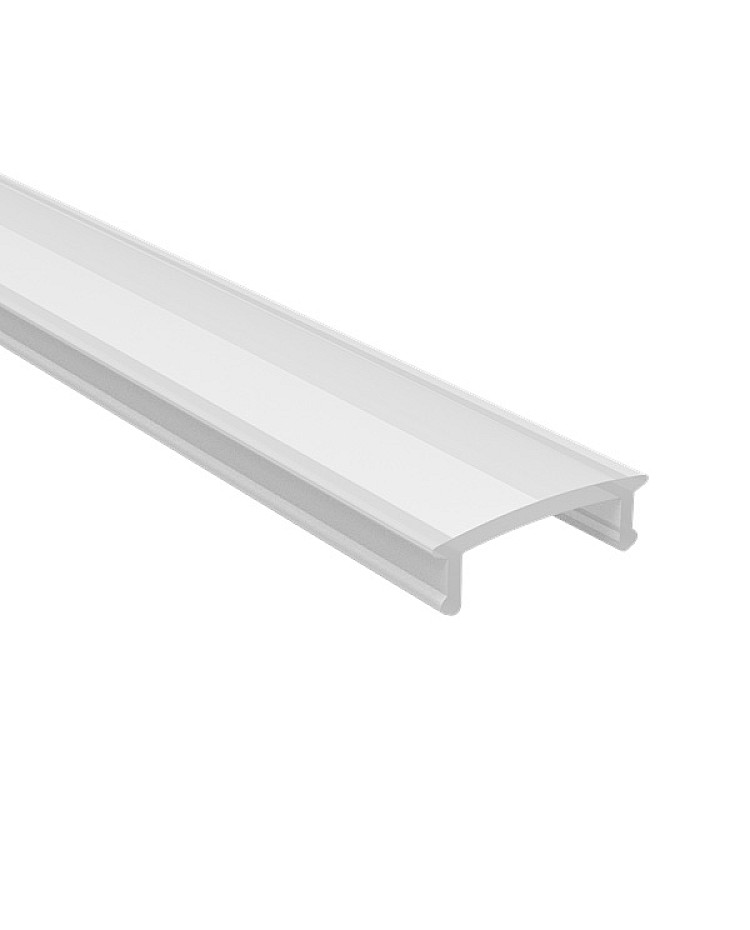

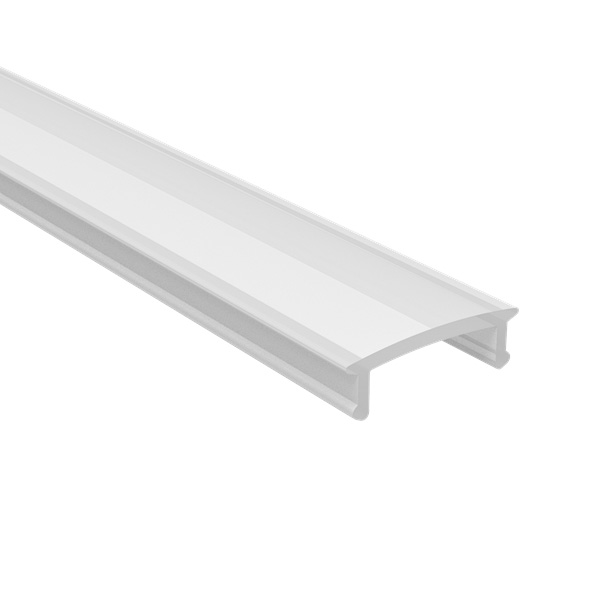

  • Diffusers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-Clear Cover, PC Clear Cover
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof
  • End Caps With Holes/Without Holes Included
  • Spring Clips Included
  • 90°, 90° Vertical, 135°, 135° Vertical And 180° Connectors Sold Separately

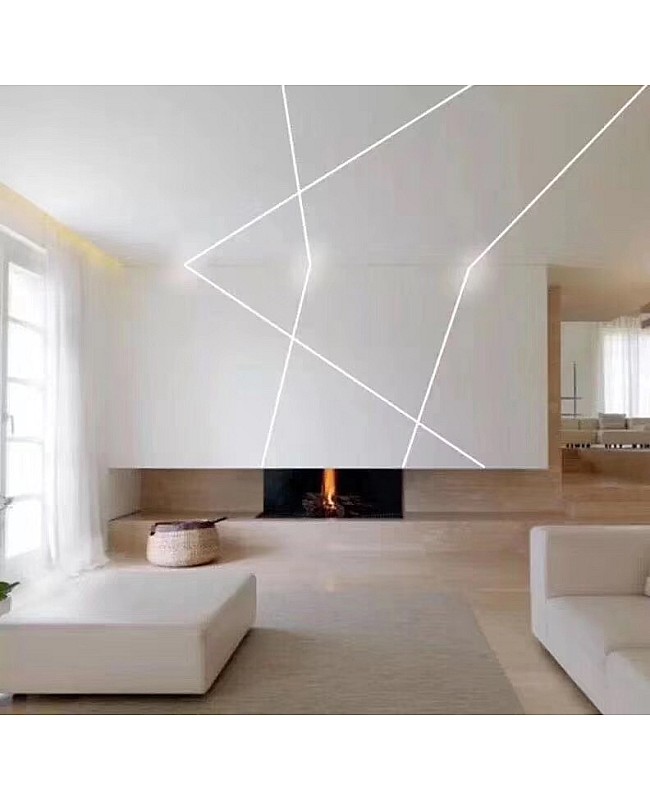

  • Installation: Recessed Mounting
  • 5 Years Warranty


1*Aluminum Track

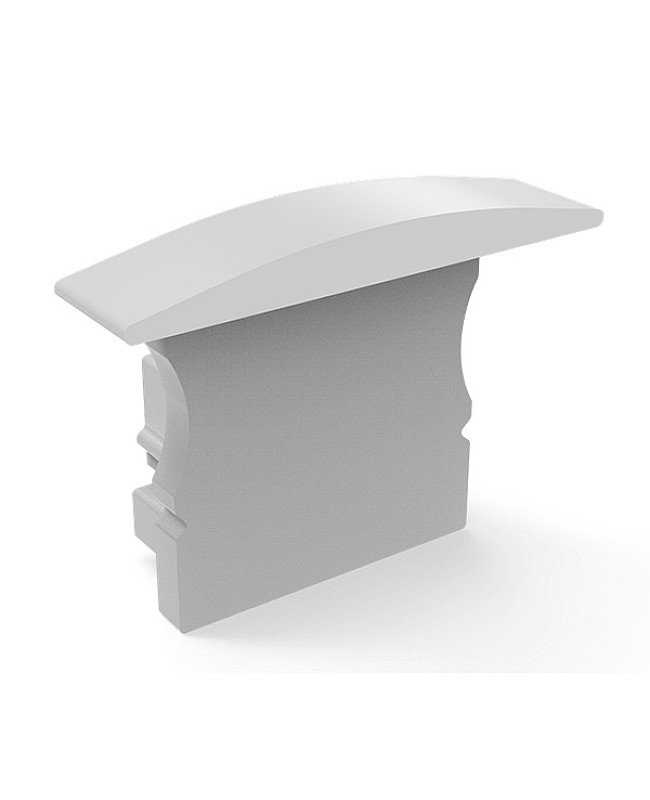

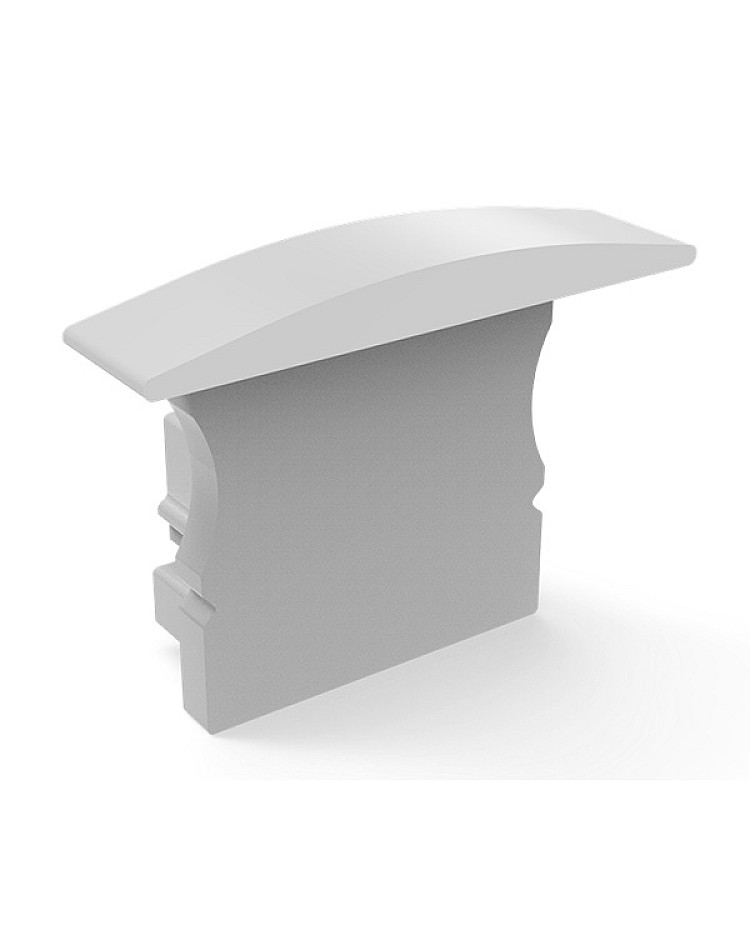

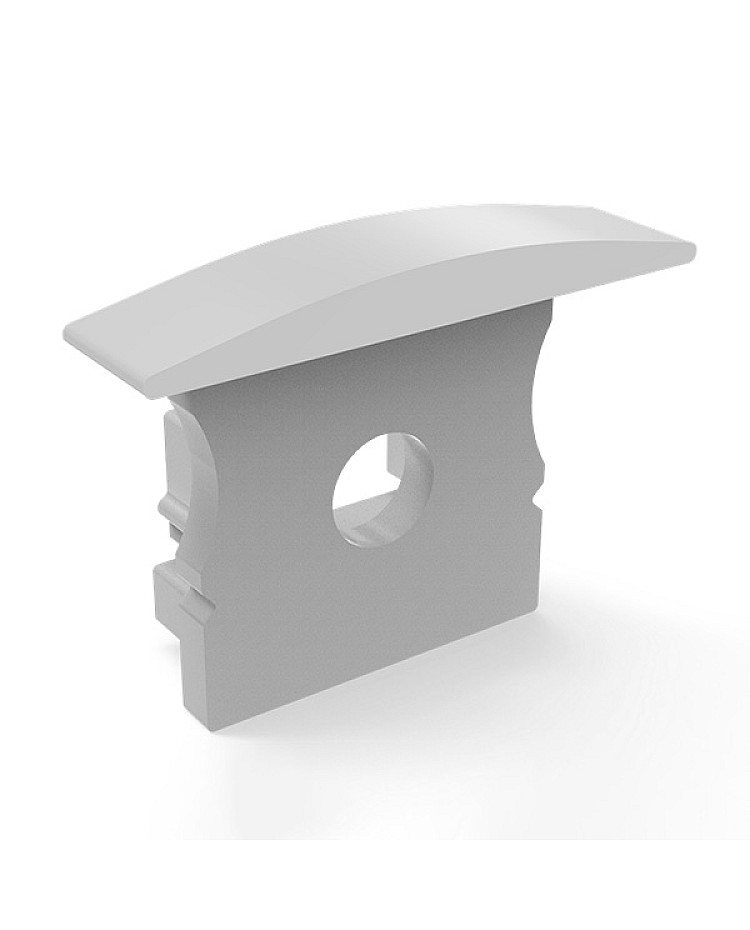

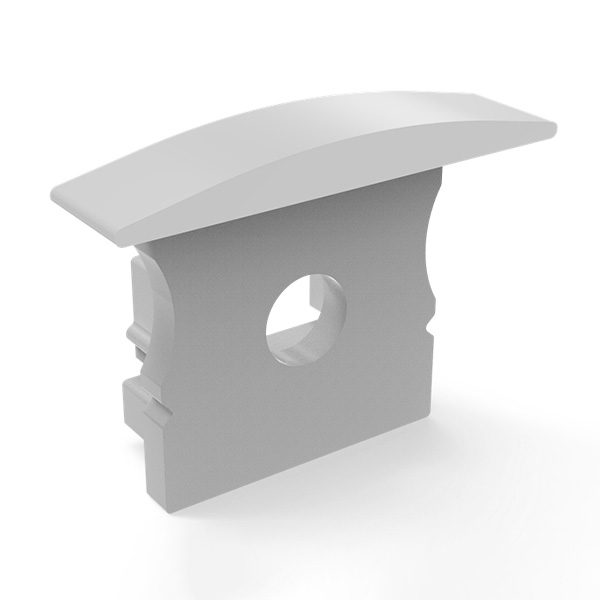

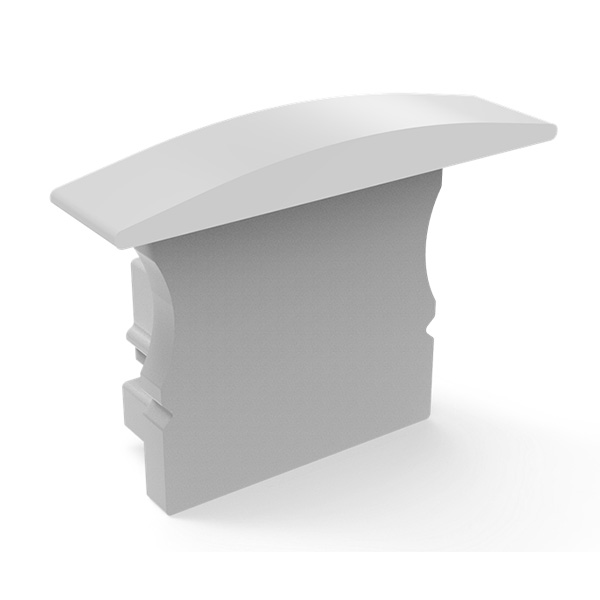

End Caps With Hole/Without Hole

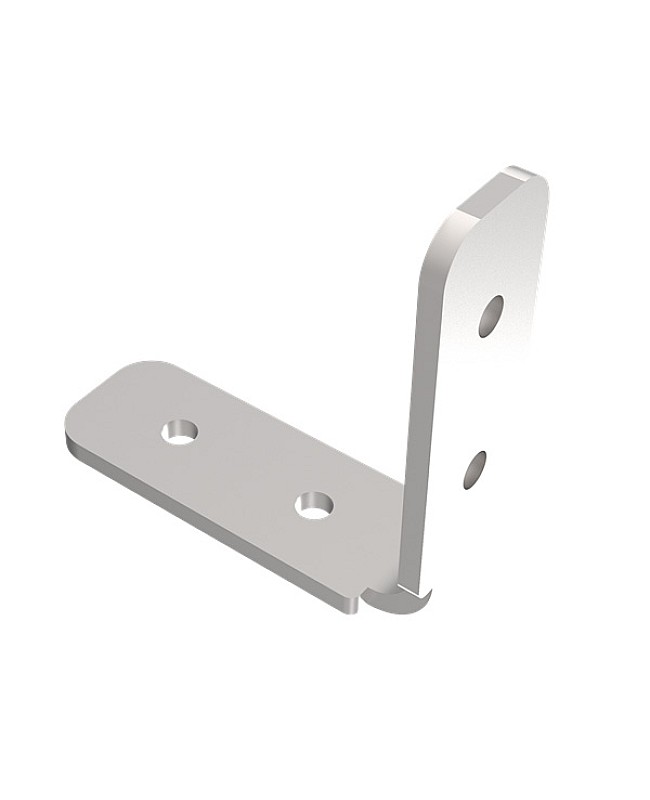

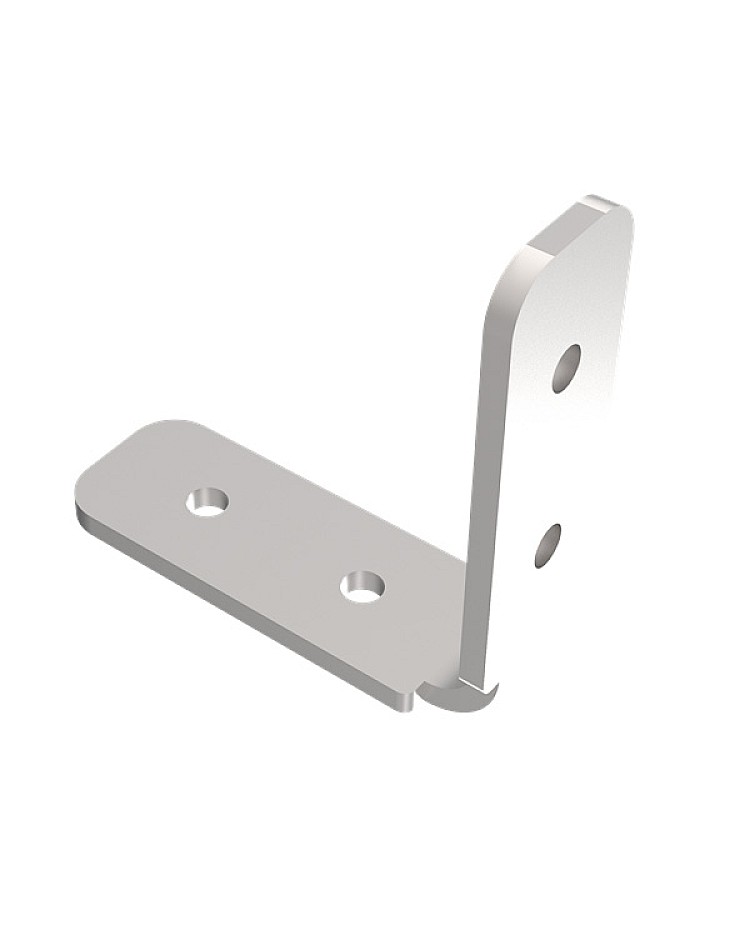

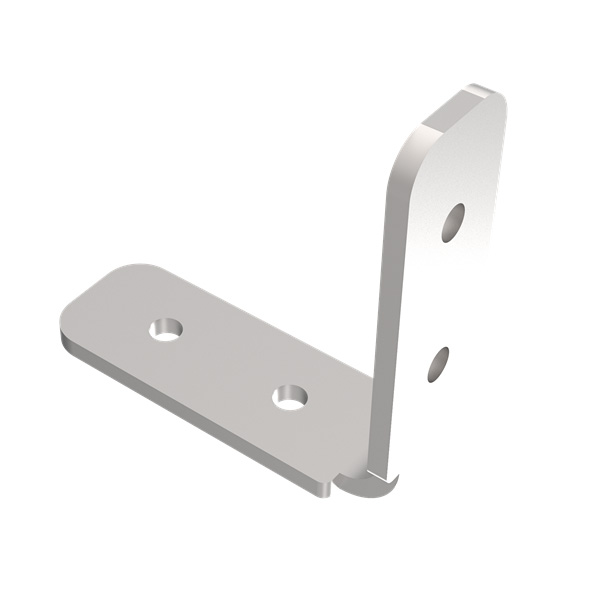

Spring Clips

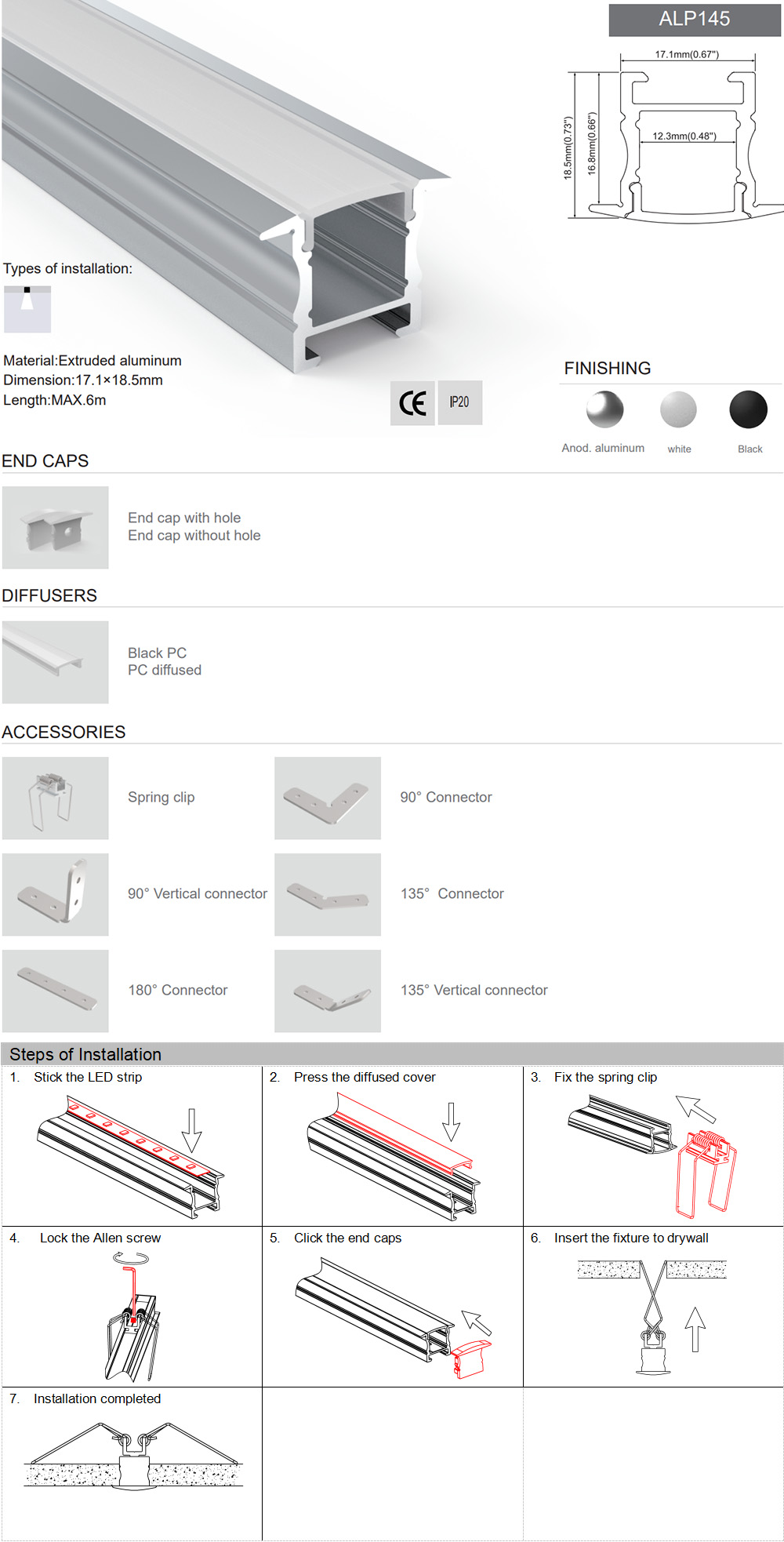

Aluminum Track Channels
