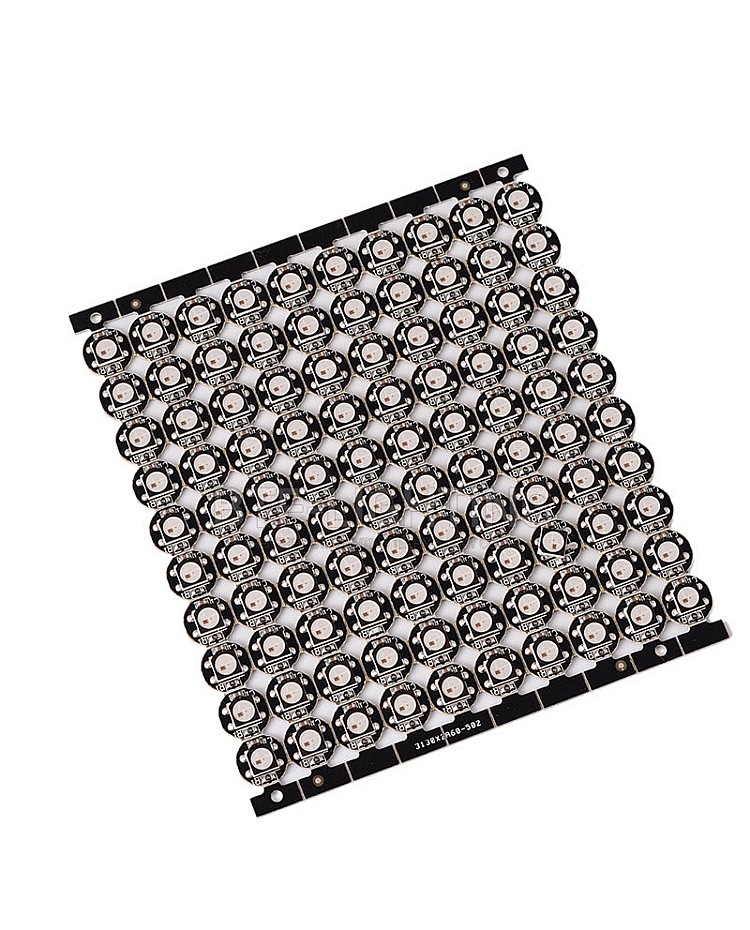

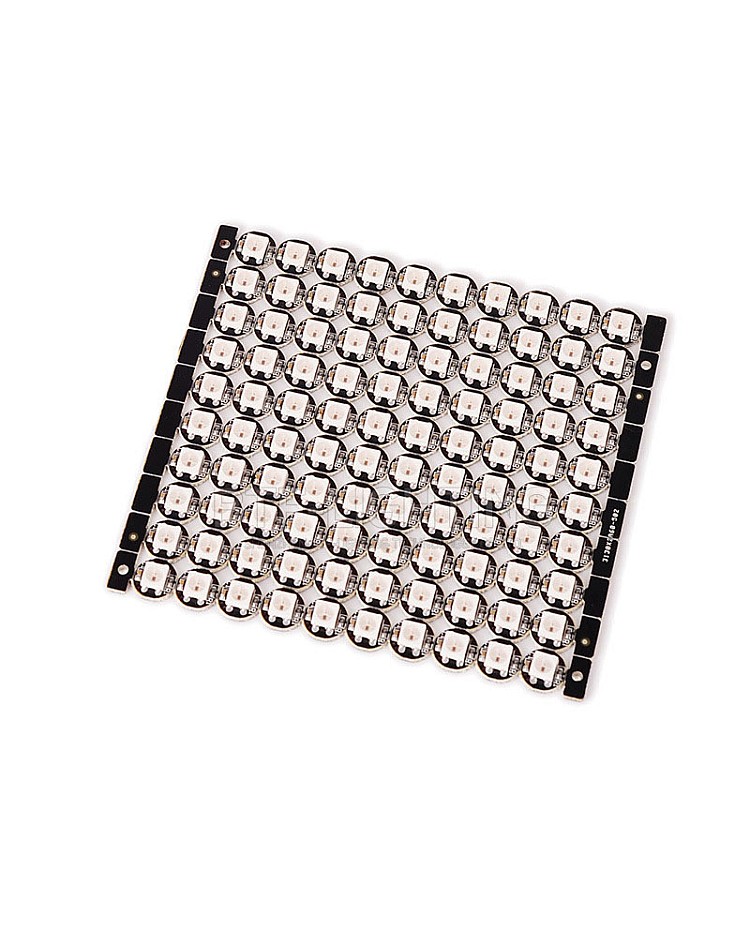

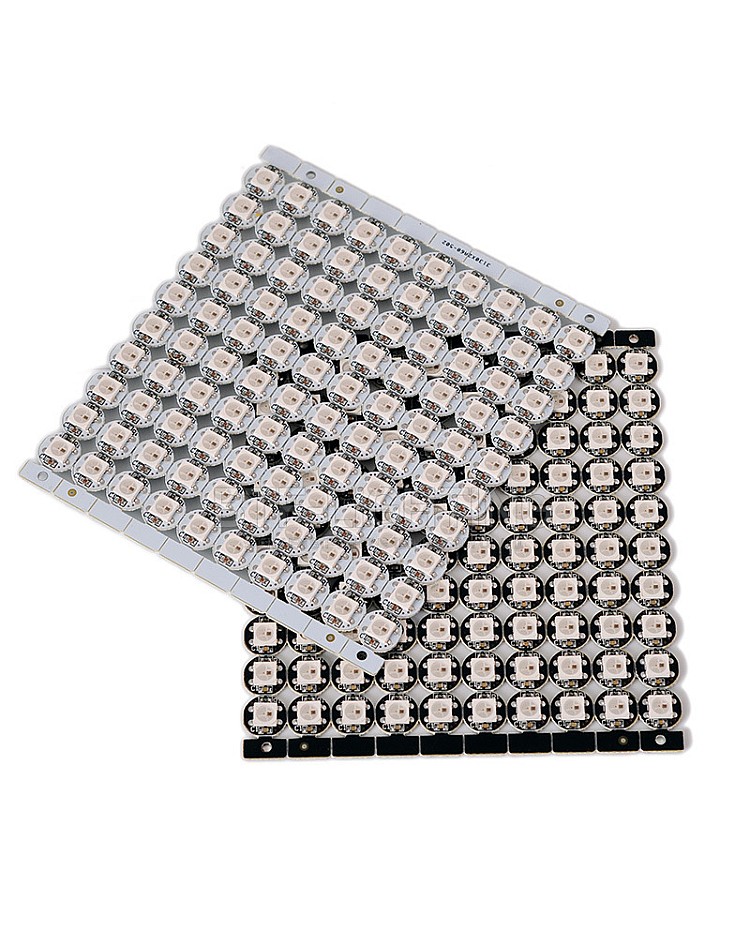

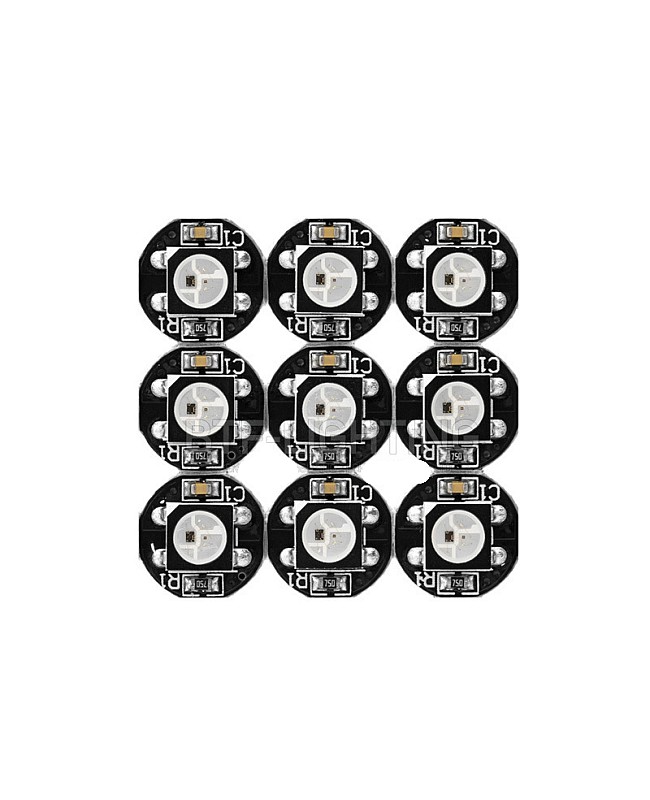

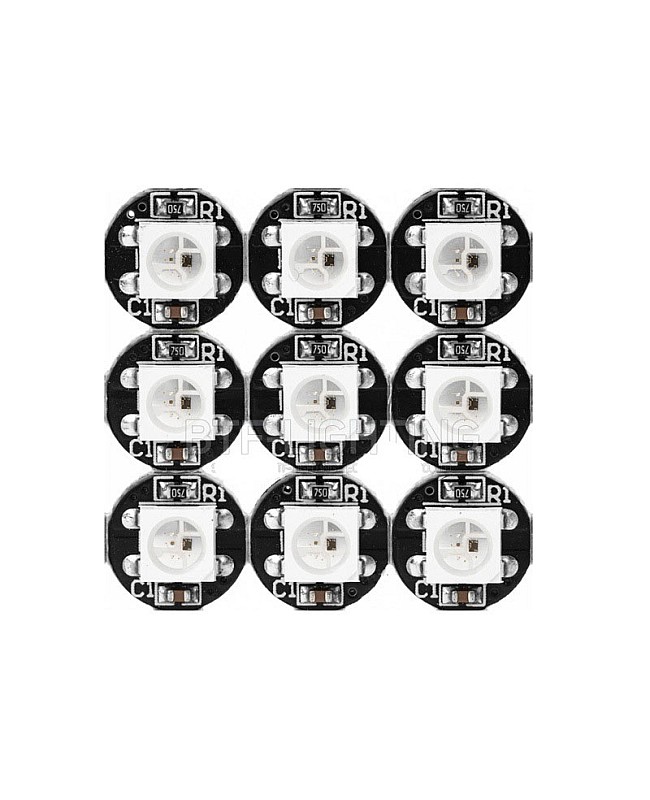

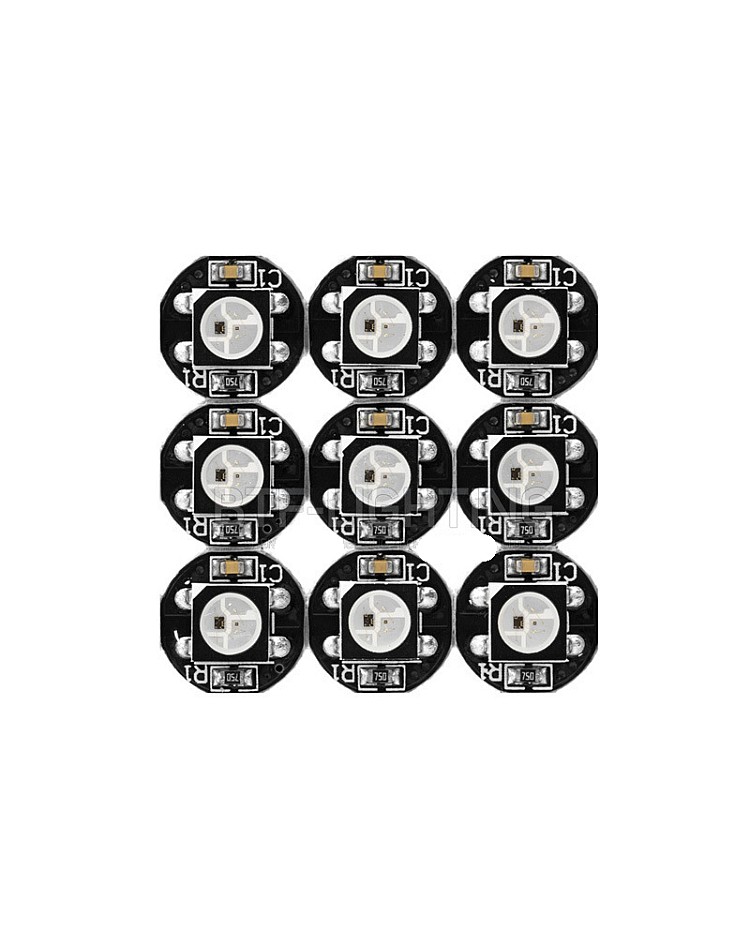

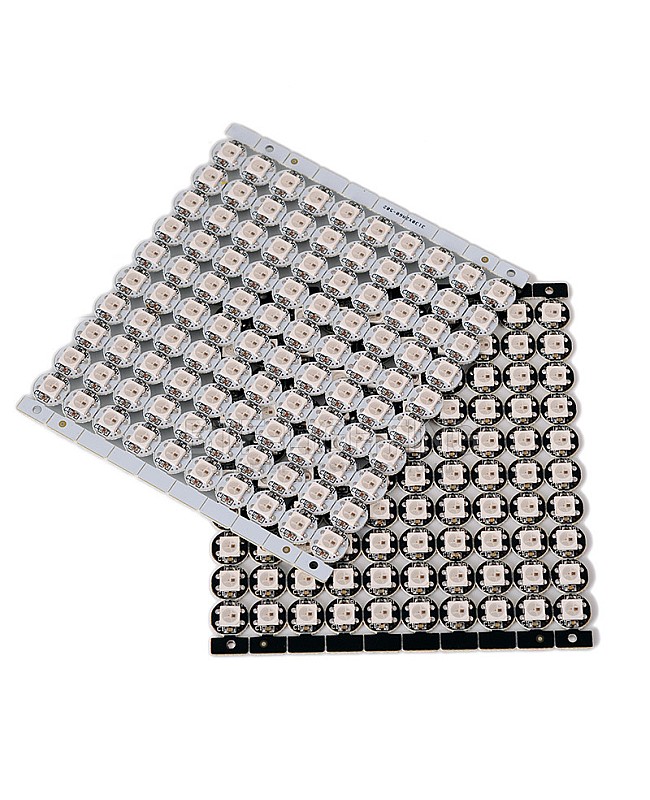

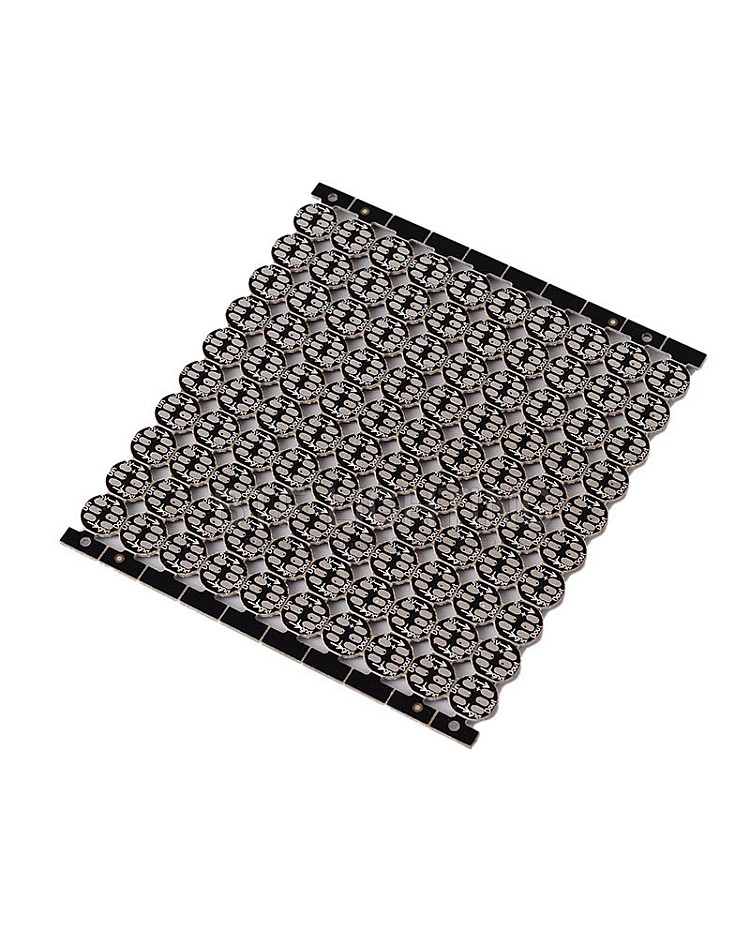

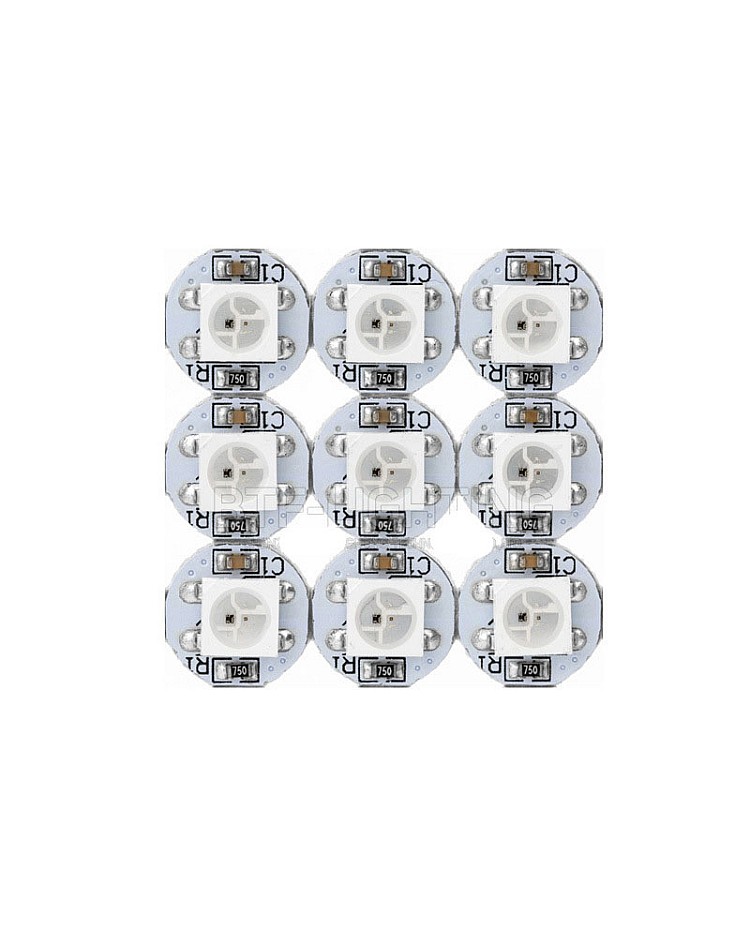

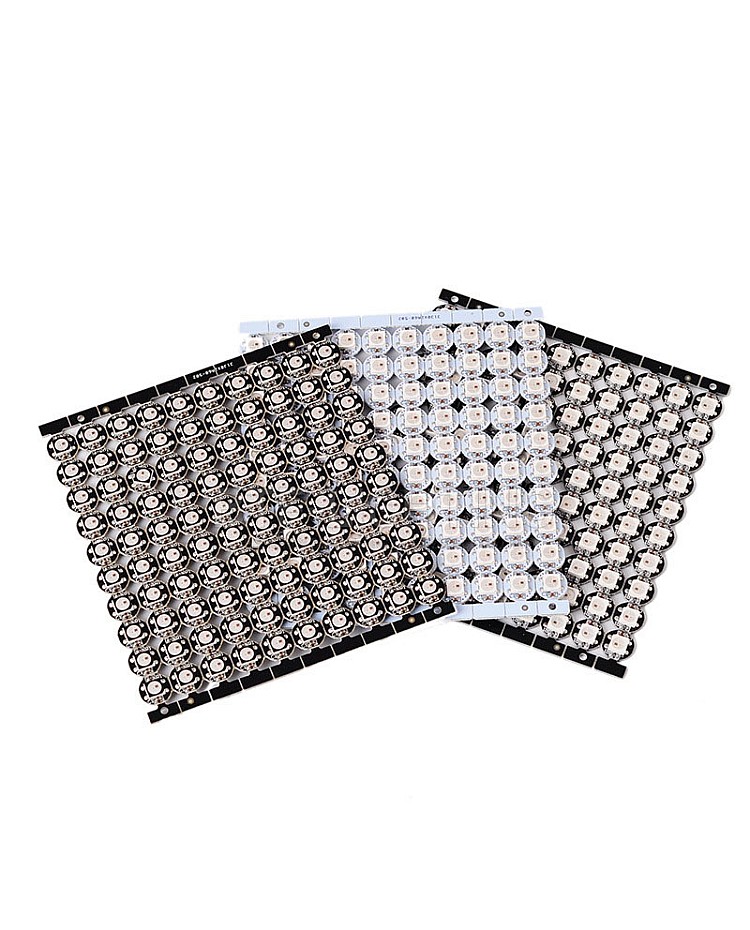

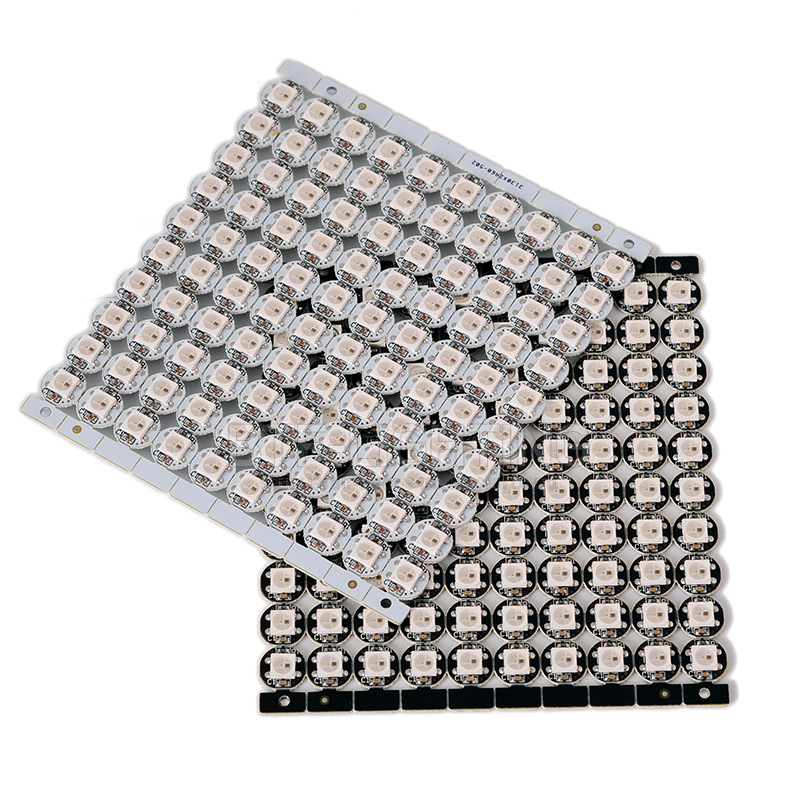

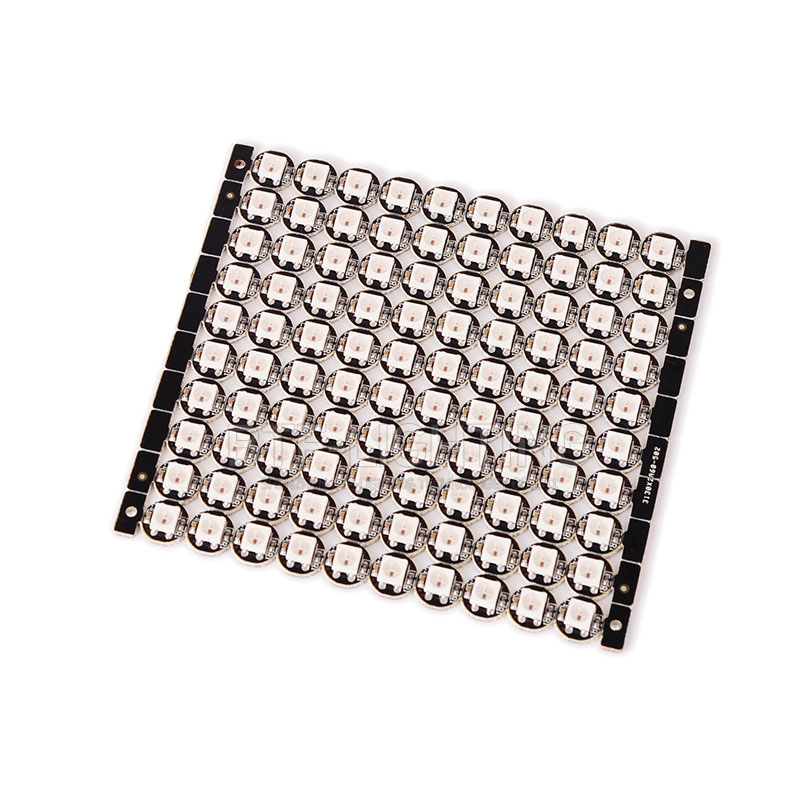

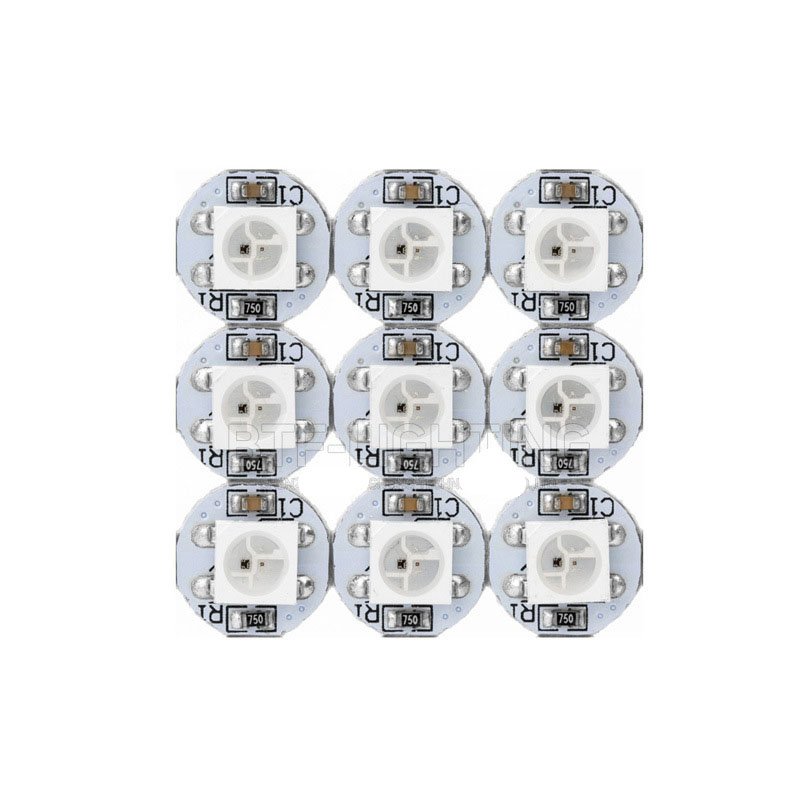

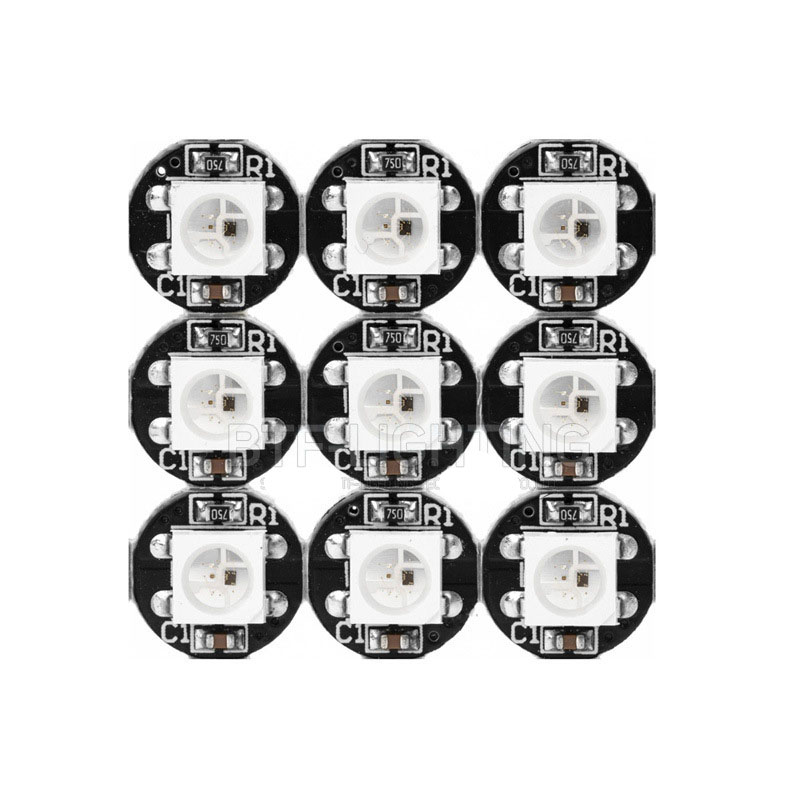

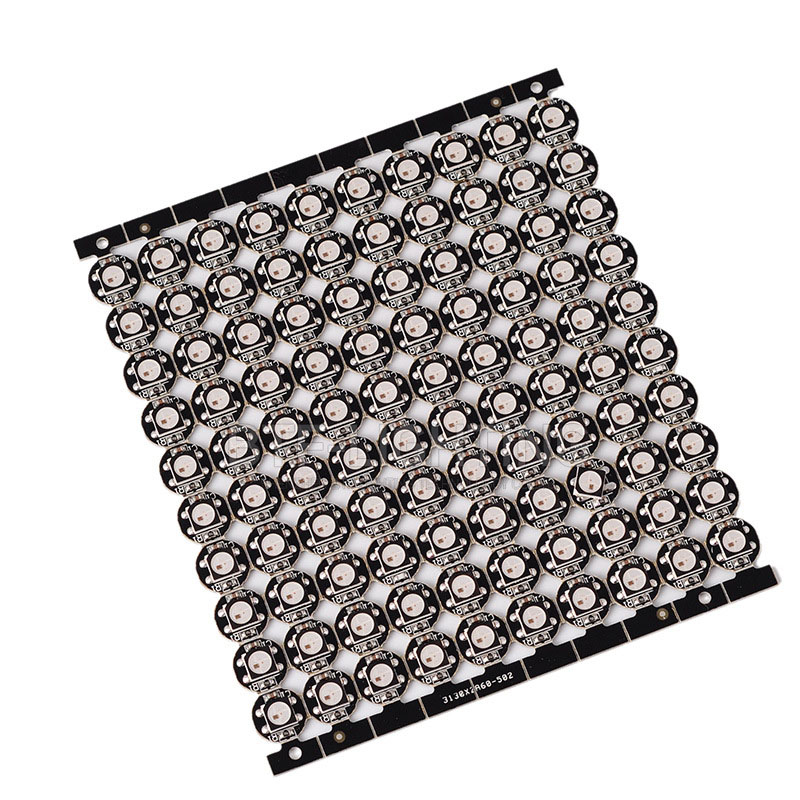

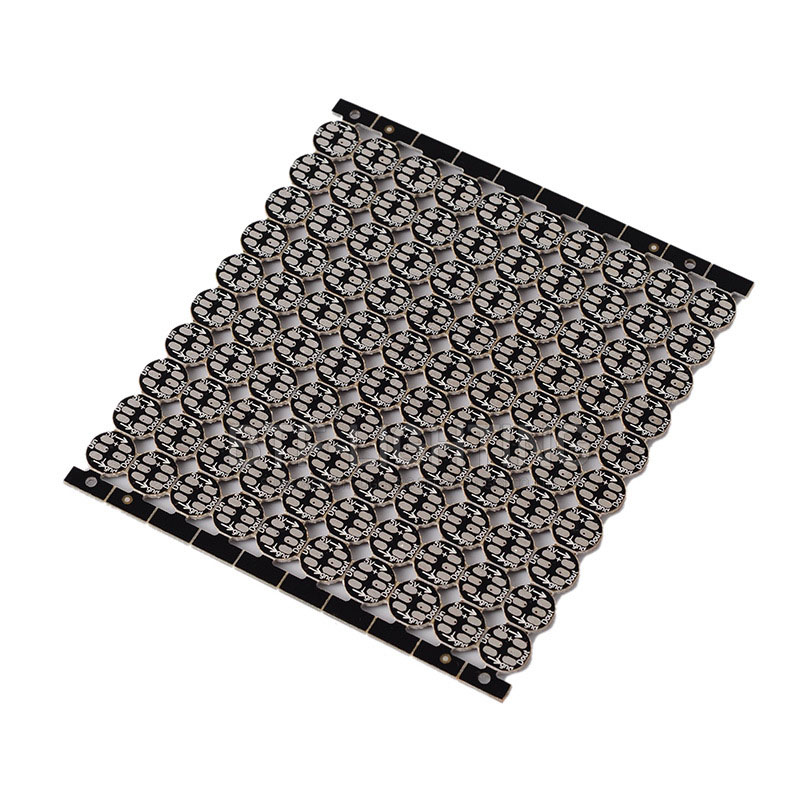

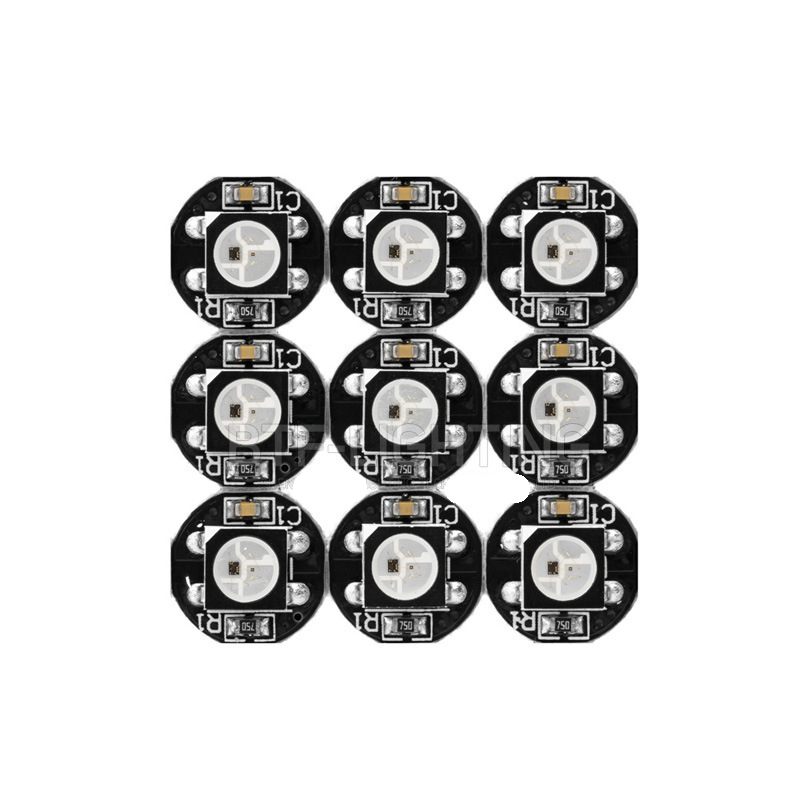

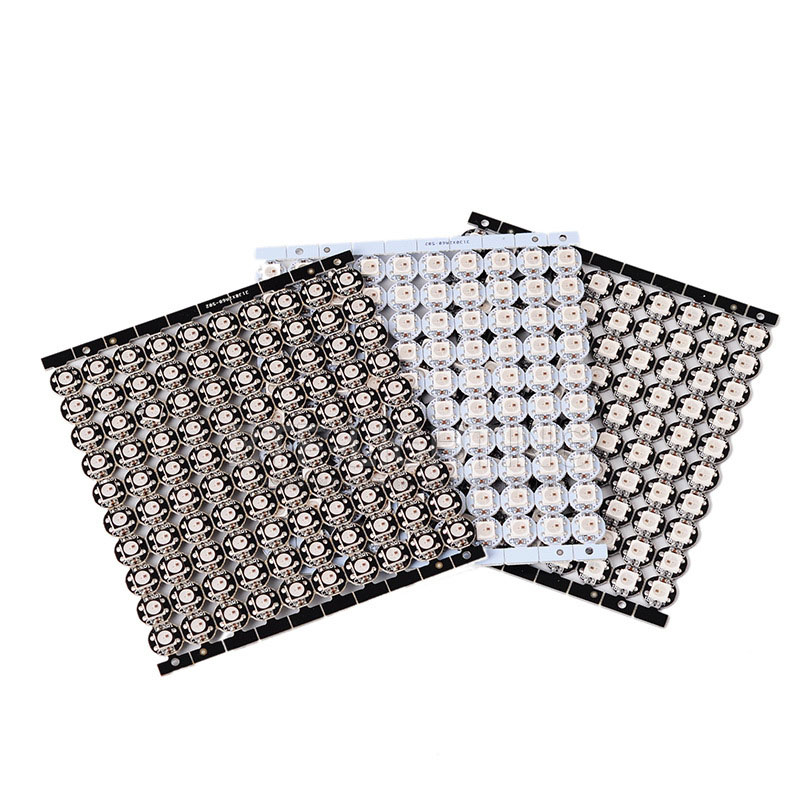

Check the WS2812B/SK6812 5050 RGB SMD LEDs with heat sink, which built-in IC for individually addressable, has 256 brightness display and full 24-bit color display, the LEDs was mounted on the small round PCB board that allows to solder on the place you want, the Digital SMD LEDs compatible with Arduino, Raspberry Pi, Teensy, T1000S, K1000C Programmable LED Controllers to achieve many amazing lighting effects. none of the LEDs are connected through the PCB, user need to solder them based on your requirement. there are 6 solder points on the backside.


Features:

  • Working Voltage: DC5V
  • Power: 0.3W±0.01%
  • LED Type: 5050 SMD LEDs
  • LED Chip: Epistar
  • IC Type: Built-in WS2812B / SK6812
  • Material: Aluminum Base
  • Color: Full Color
  • Grayscale Levels: 256
  • Beam Angle: 120°
  • Emitting Color: RGB
  • IP Rating: IP20 Non-waterproof
  • FPCB Size: Width: 10mm, Thickness: 3mm
  • Red Wavelength: 620-630nm; Luminous Intensity: 550-700MCD
  • Green Wavelength: 515-530nm; Luminous Intensity: 1100-1400MCD
  • Blue Wavelength: 465-475nm; Luminous Intensity: 200-400MCD
  • Pins:
  • NO1, Symbol: VSS Function Description: Ground
  • NO2, Symbol: DIN Function Description: Control Data Signal Input
  • NO3, Symbol: VDD Function Description: Power Supply LED
  • NO4, Symbol: DOUT Function Description: Control Data Signal Output
  • Absolute Maximum Rating: Ta=25℃, VSS=0V
  • Power Supply Voltage Symbol: V(DD) Range: +3.5V-+5.3V
  • Input Voltage Symbol: V(I) Range: -0.5-VDD+0.5V
  • Working Temperature Symbol: Top Range: -25℃-+80℃
  • Storage Temperature Symbol: Tstg Range: -40℃-+105℃


Includes:

1*WS2812B 5050 RGB SMD LEDs

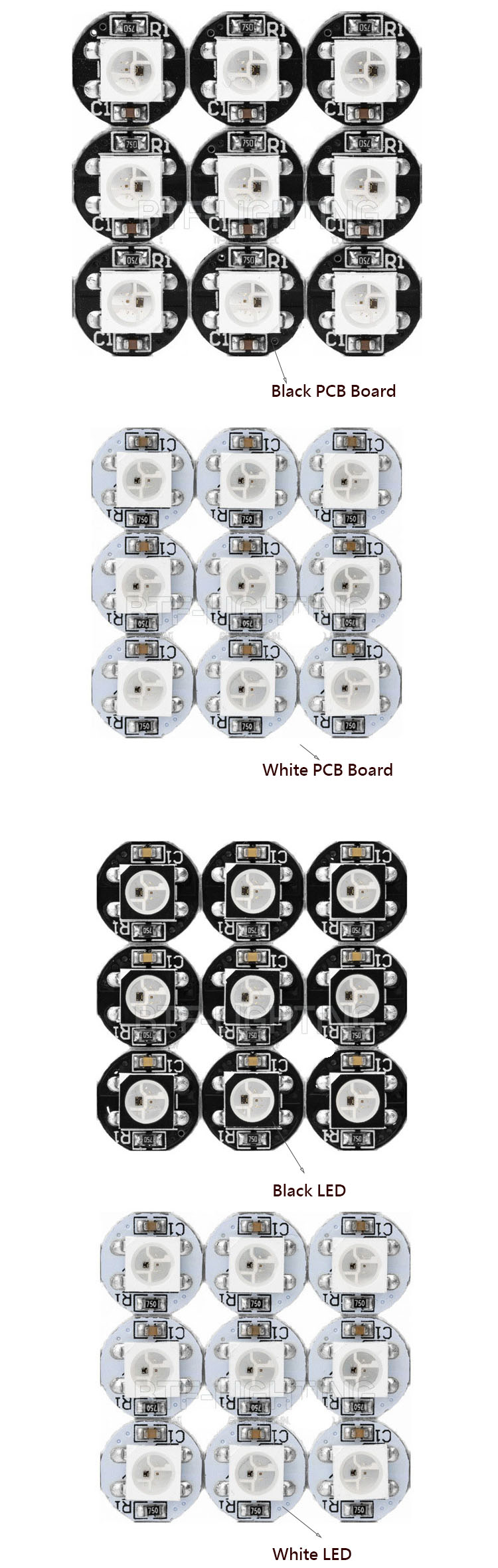

Programmable Digital SK6812 WS2812B SMD LEDs
