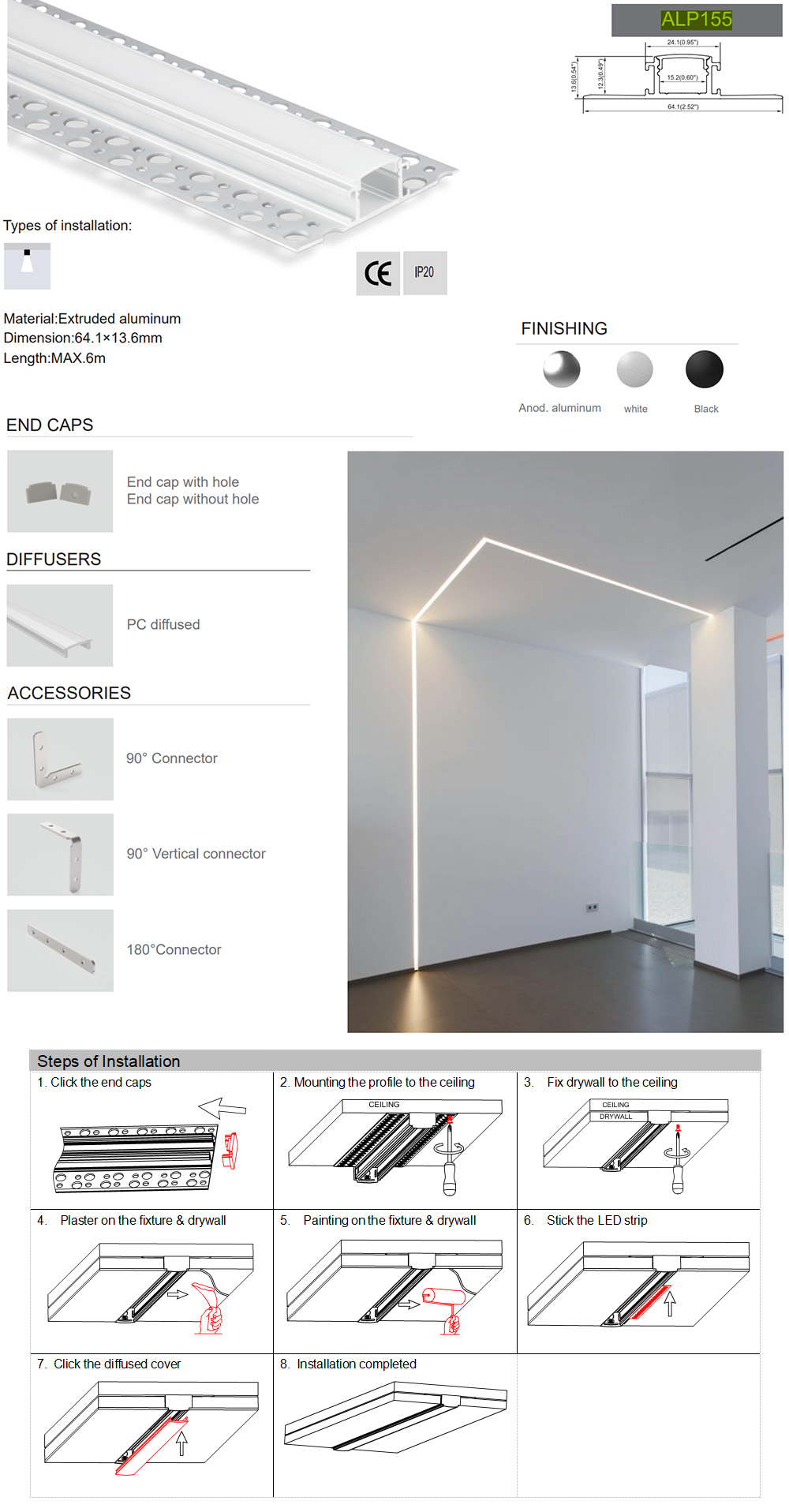

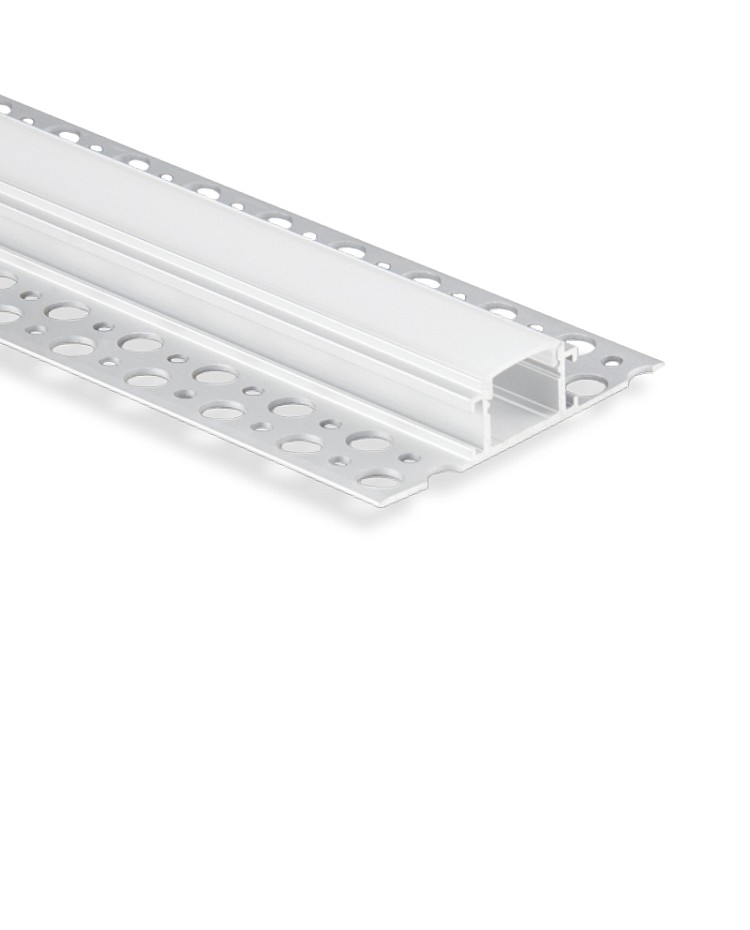

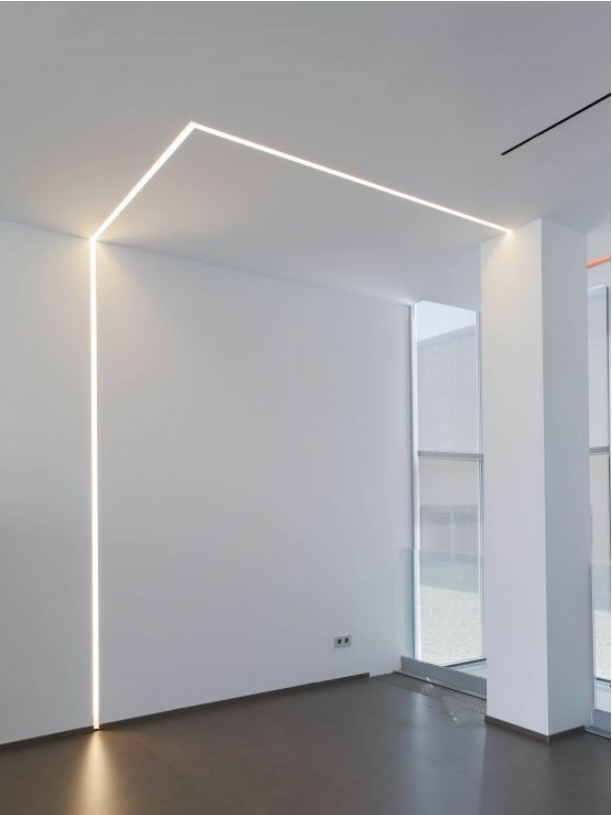

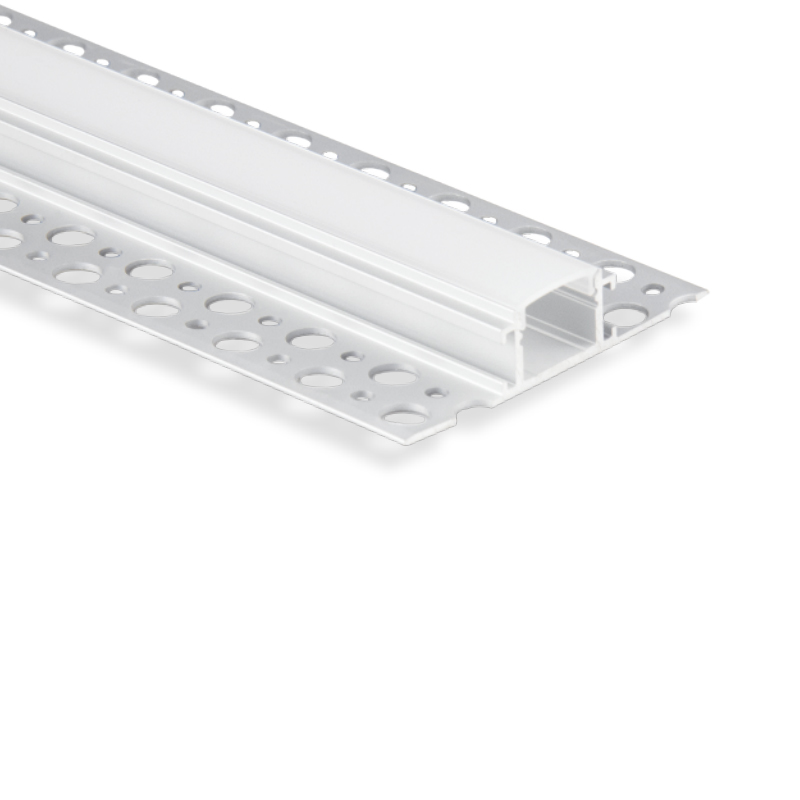

The LED Diffuser Profile with flanges is designed to be used in drywall applications. Can be recessed into the 12.5mm thick dry wall to fit flush with surrounding drywall surfaces and provide a seamless, elegant look. The LED Profiles are made of 6063-t5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. There are three colors available: silver, white and black. The standard length is 1M and 2M, custom lengths are available. There is only one type of diffuser available: the PC diffused cover, which is made of imported brand material, anti-yellowing, perfect lighting distribution, and seamless light output. The inner width is 15.2mm and allows the max-width of LED Strips up to 15mm, recommend installing high-density COB LED Strips as the light source. End caps with wire holes included, easy to connect the LED Strips to a Power Supply to light up or a LED Dimmer to adjust the brightness. 180° and 90° LED Connectors are sold separately, you can purchase them to reconnect the LED Profiles for your lighting projects.


  • Model: ALP155
  • Material: 6063-T5 Extruded Aluminum
  • Colors: Silver(Default), White, Black

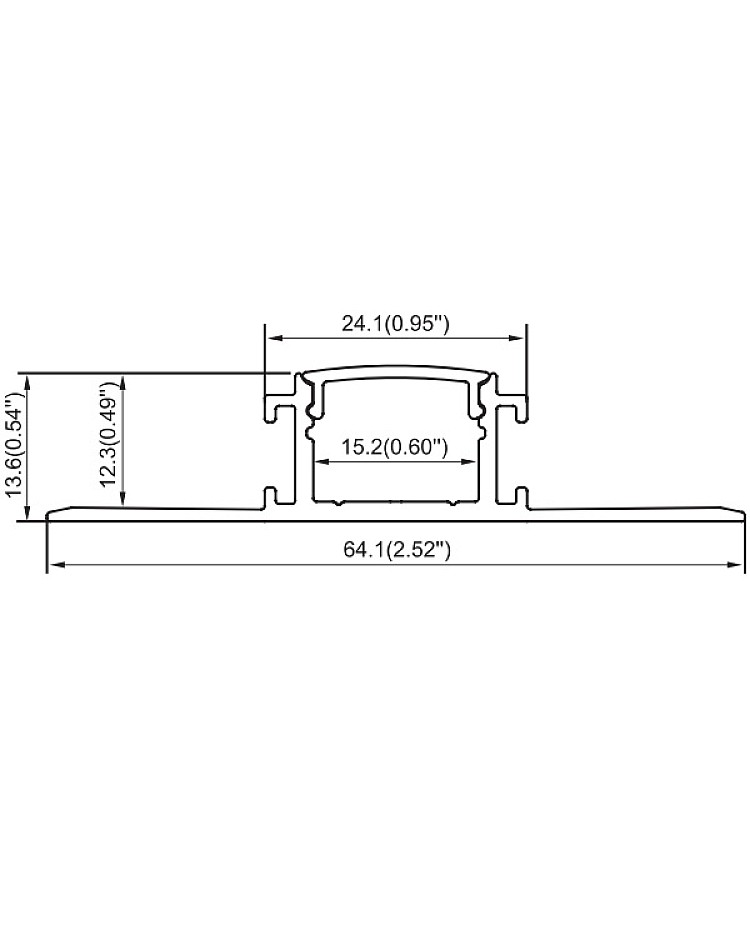

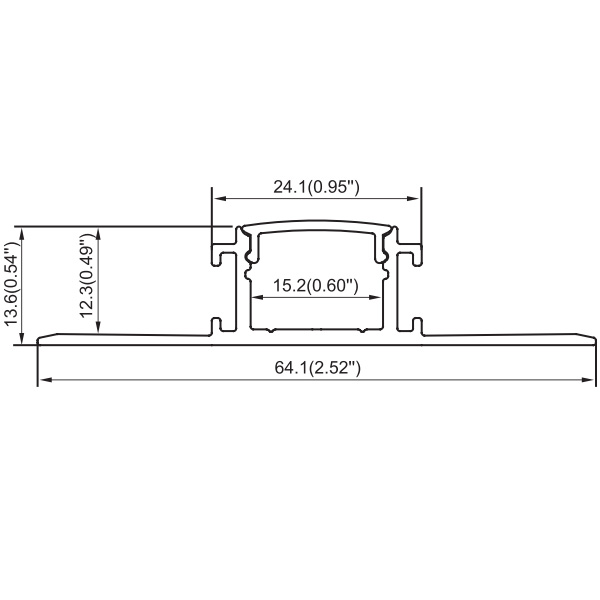

  • Size: 64.1*13.6mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover
  • Inner Width: 15.2mm
  • Max Width Of LED Strips: 15mm
  • Max Power: 15W/M
  • Can Work With SMD LED Strips And COB LED Tapes
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20 Non-waterproof

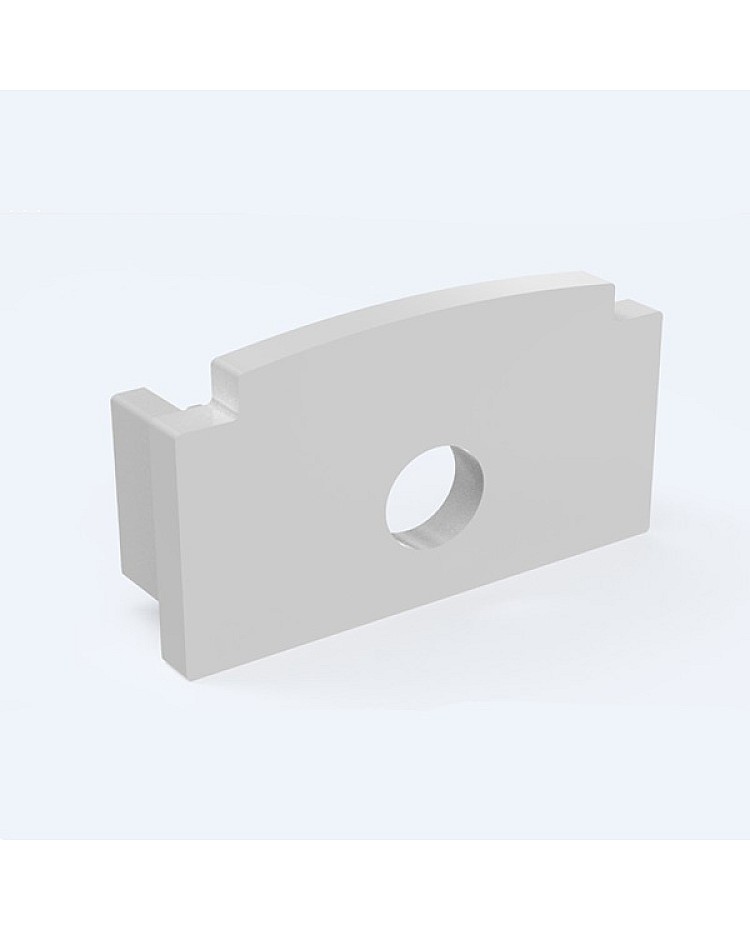

  • End Caps With Holes/Without Holes Included

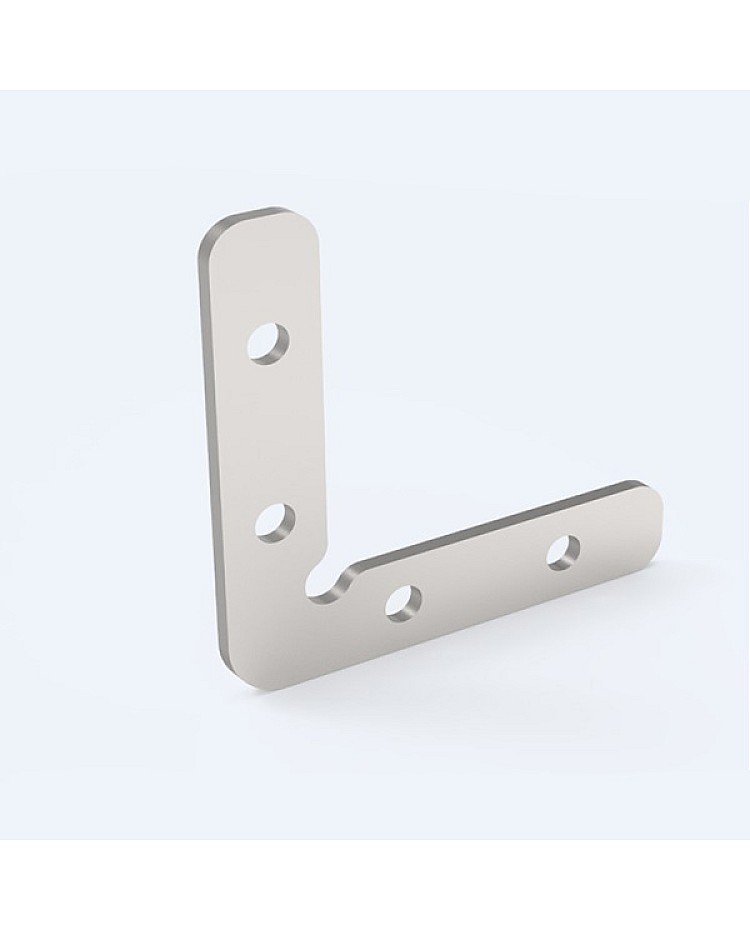

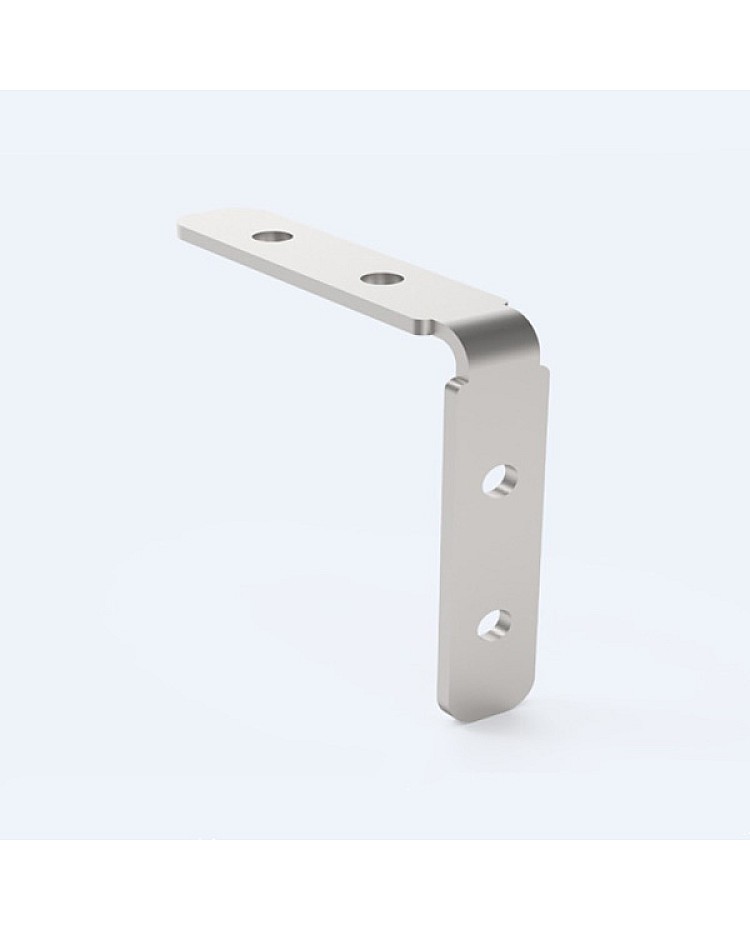

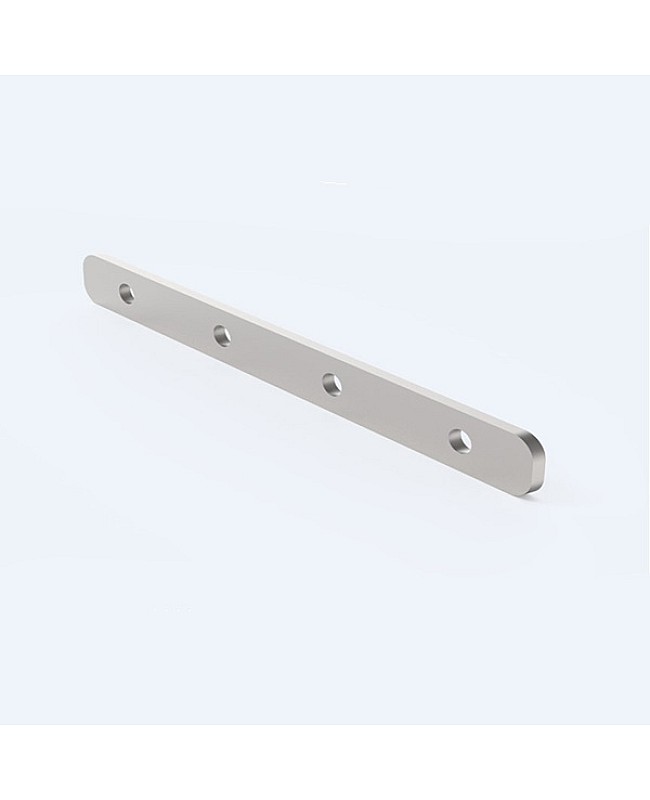

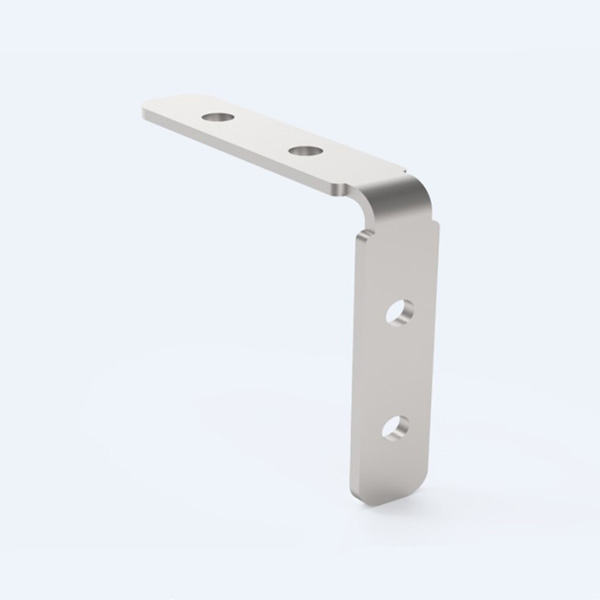

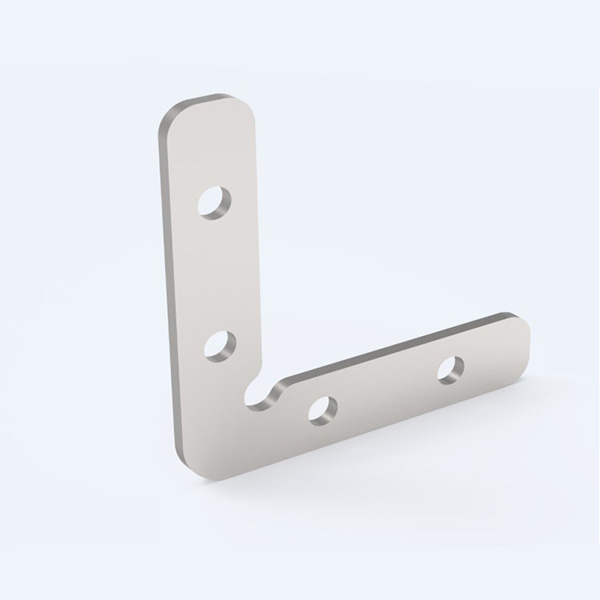

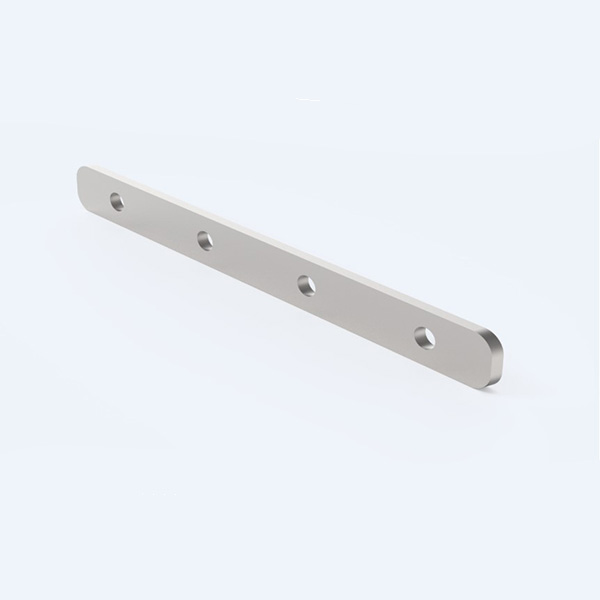

  • 180°, 90° And 90° Vertical Connectors Sold Separately
  • Installation: Recessed Mounting
  • 5 Years Warranty


1*LED Diffuser Profile

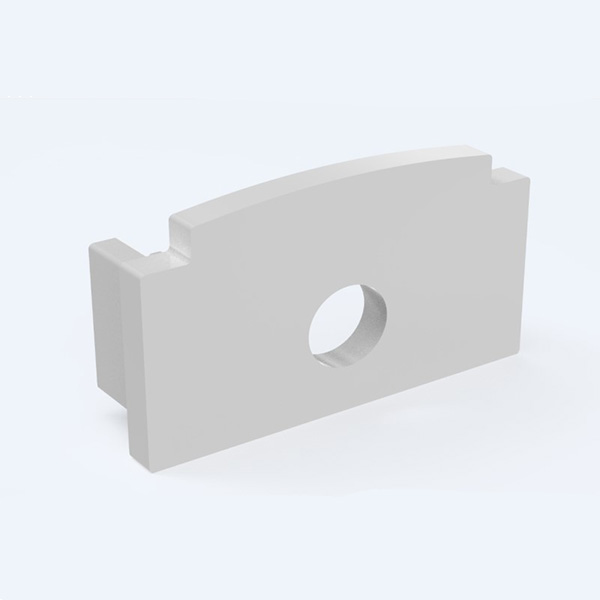

End Caps With Hole/Without Hole
