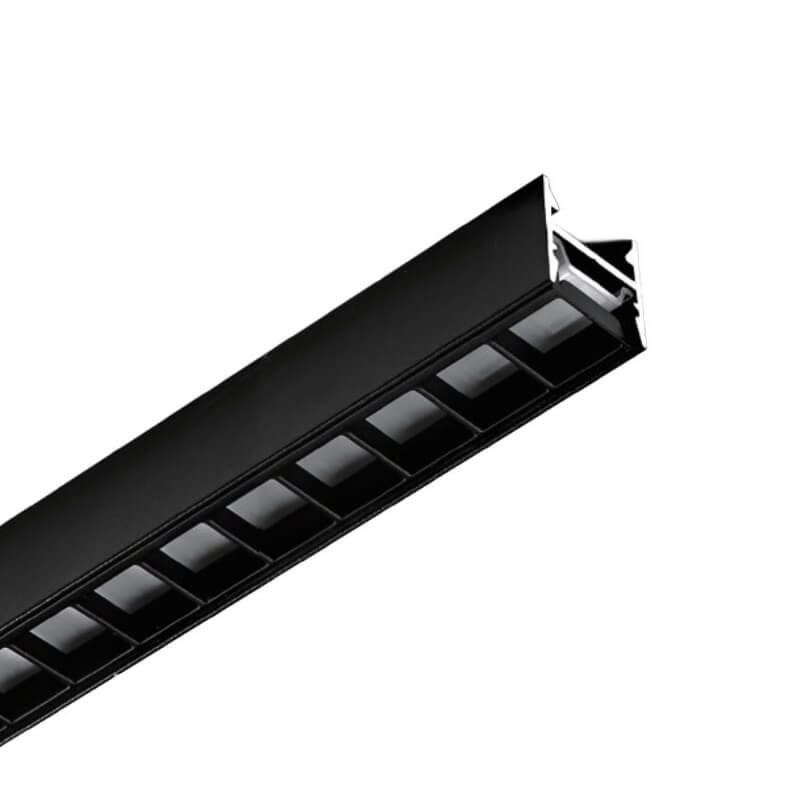

The linear light channel is engineered for modern anti-glare lighting. Offers accessories for both surface-mounted and suspended installations. Comes with PC-diffused covers and provides grille and honeycomb louvers, with optional soft, even, eye-friendly illumination. Ideal for residential, commercial, office, hotel, showroom, cabinet, and architectural accent lighting, providing a professional solution for seamless, integrated strip lighting.
The slim LED profile is crafted from premium 6063-T5 extruded aluminum and features a powder-coated finish for corrosion resistance and extended lifespan. The stock lengths are 1m and 2m, and custom lengths are supported. The inner width is 13.2mm, allowing strip lights up to 13mm in width. Recommend adding our high-density COB LED strips to create uniform lighting without dark areas and hotspots.

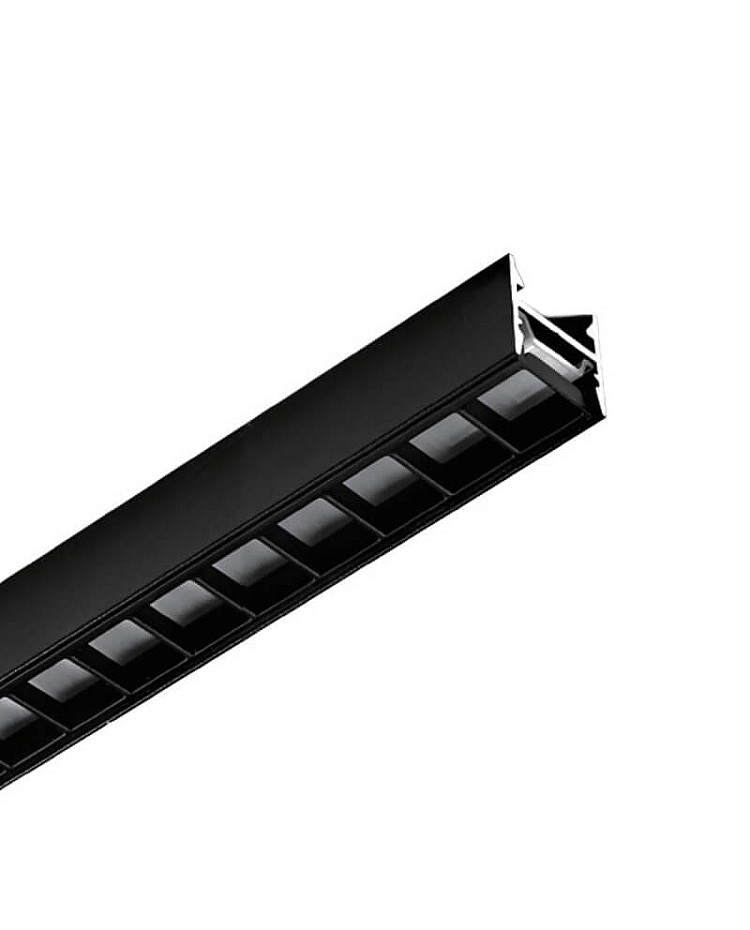

The LED linear profiles have an anti-glare design, and the PC diffused covers are installed slightly deeper toward the edge, allowing you to add grille or honeycomb louvers to transform harsh, glaring LED light into visually comfortable, controlled, and aesthetically pleasing illumination.

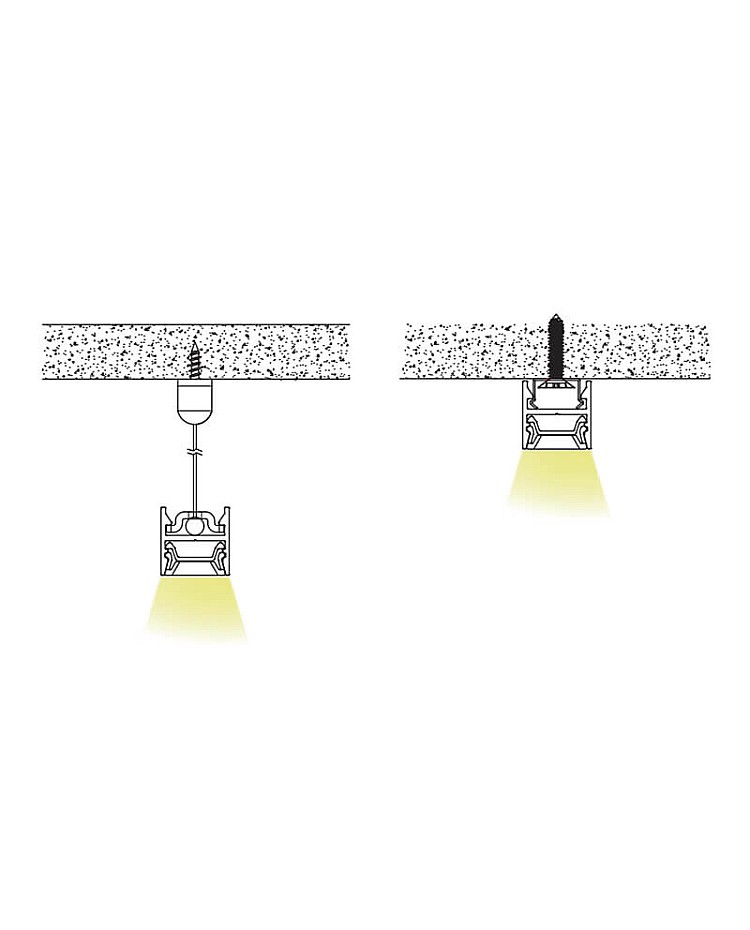

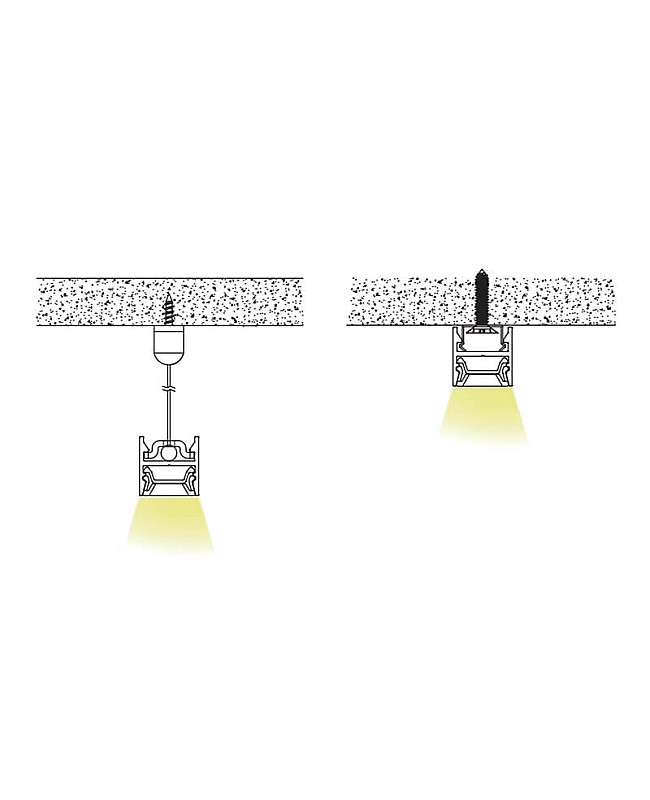

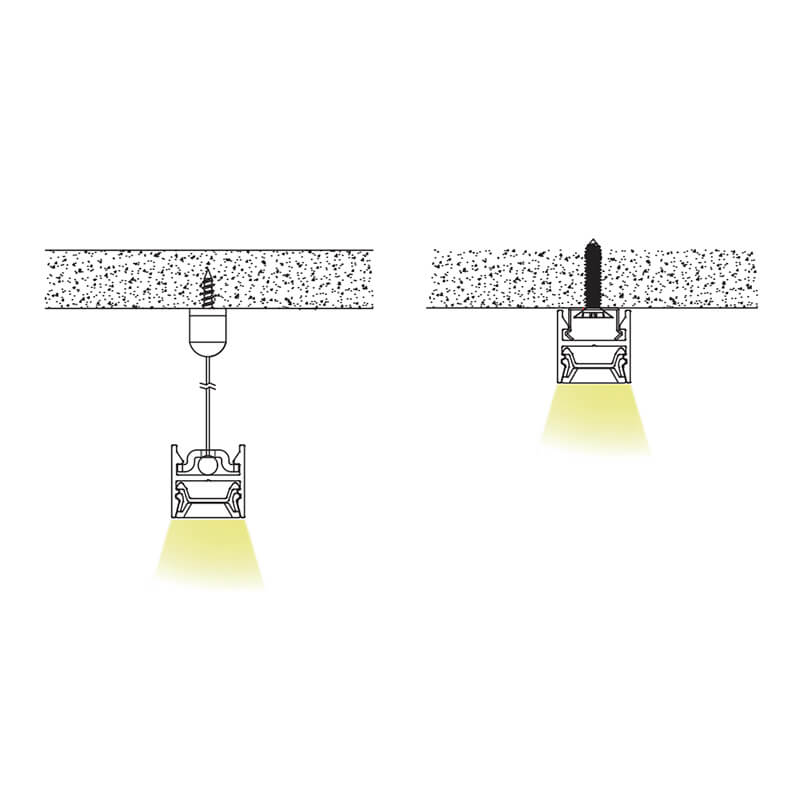

There are mounting clips and steel wire kits available for surface-mounted or suspended installations.
Specifications:
- Material: Extruded aluminum
- Surface treatment: Powder-coated
- Colors: Black

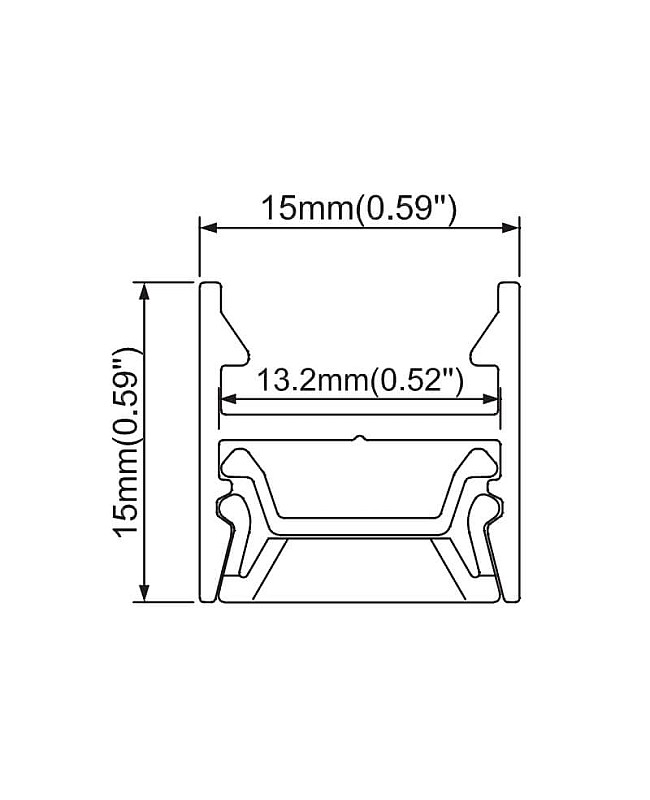

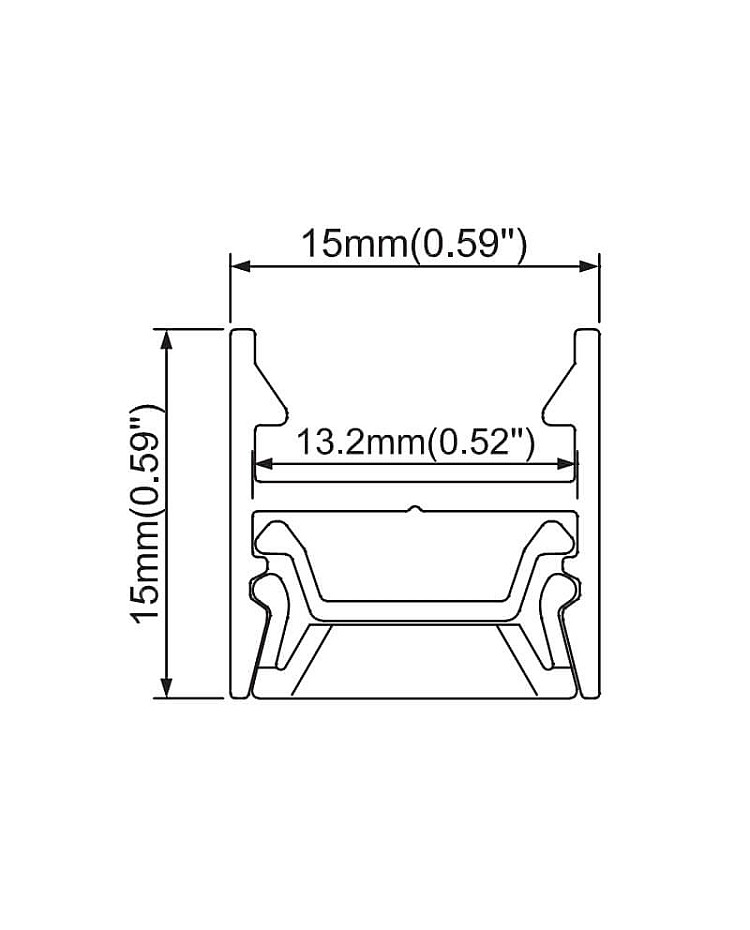

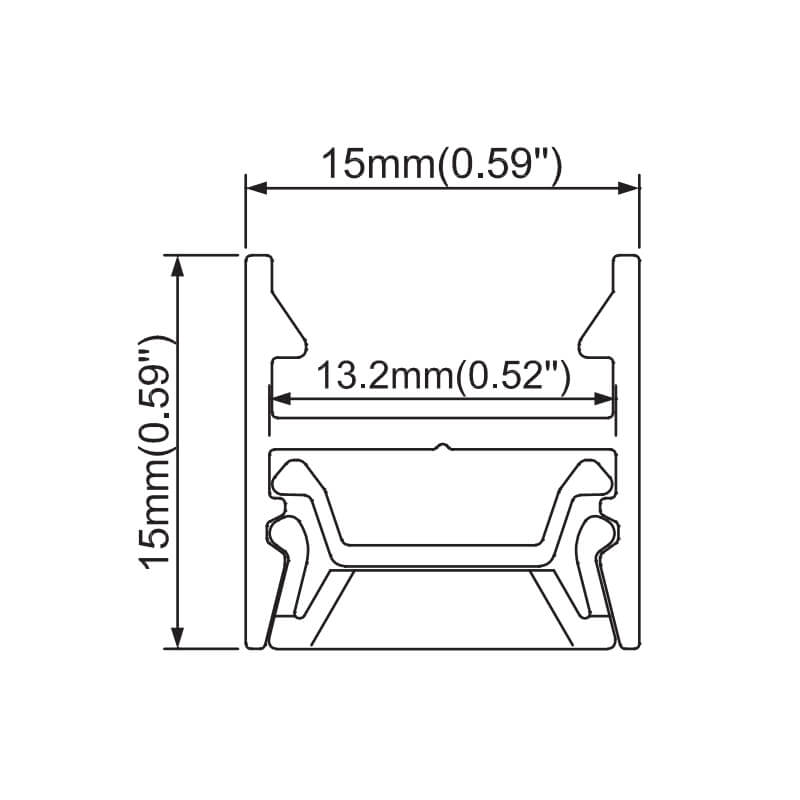

- Size ( Width x Height ): 15 mm x 15 mm ( 0.59" x 0.59" )
- Lengths available: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length available: YES
- Inner width: 13.2mm ( 0.52" )
- Diffuser options: PC diffused cover only
- Louver options: Plastic grille louver ( 305mm (12.01") /piece) & plastic honeycomb louver (305mm (12.01") /piece)
- End caps ( with and without a wire hole ) are included

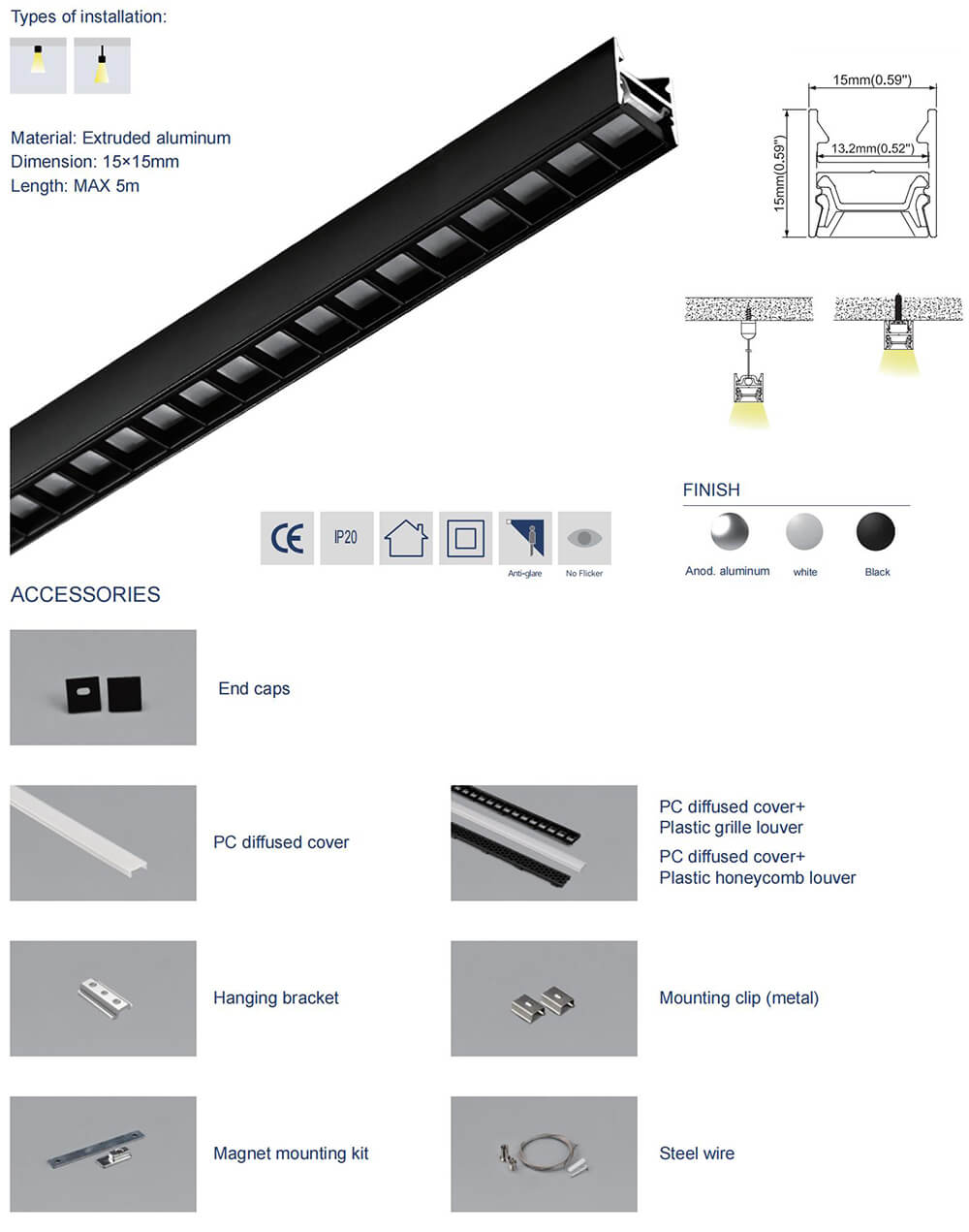

- Accessories available: Metal mounting clips, hanging brackets, steel wires, and magnet mounting kits
- Installation methods: Surface-mount / suspended ( pendant)
- Warranty: 5 years
Includes:
1 x Slim anti-glare linear LED channel
1 x PC diffused cover
End caps ( With and without wire hole)
Metal mounting clips
Plastic grille louver ( optional)
Plastic honeycomb louver ( optional)
Hanging bracket & steel wires ( optional )
