In Stock
$6.00
Reward Points: 6
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP109

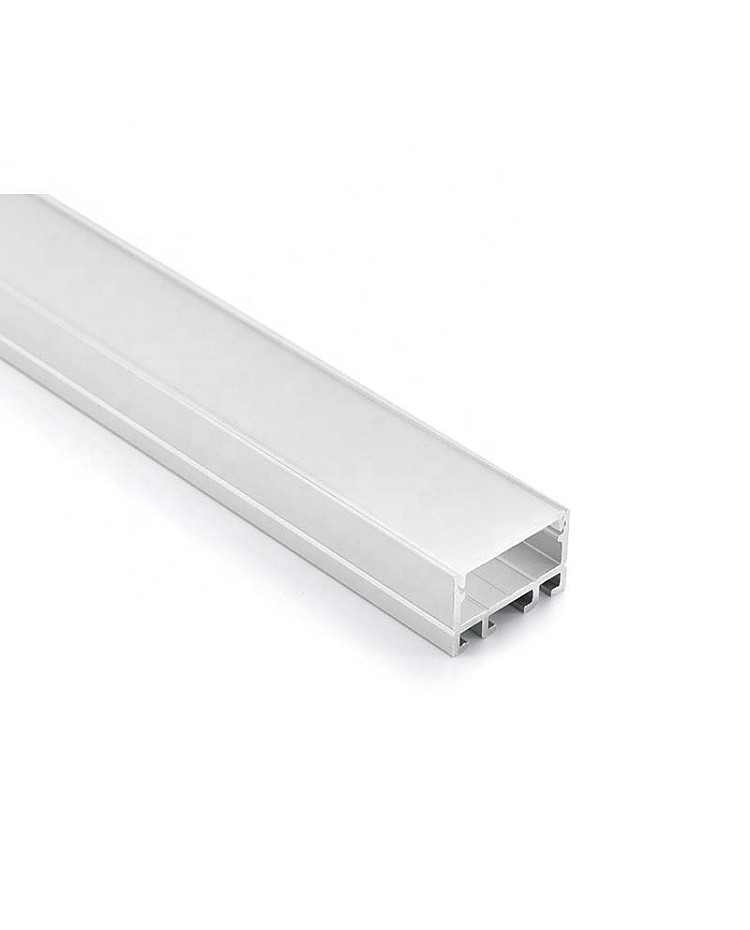

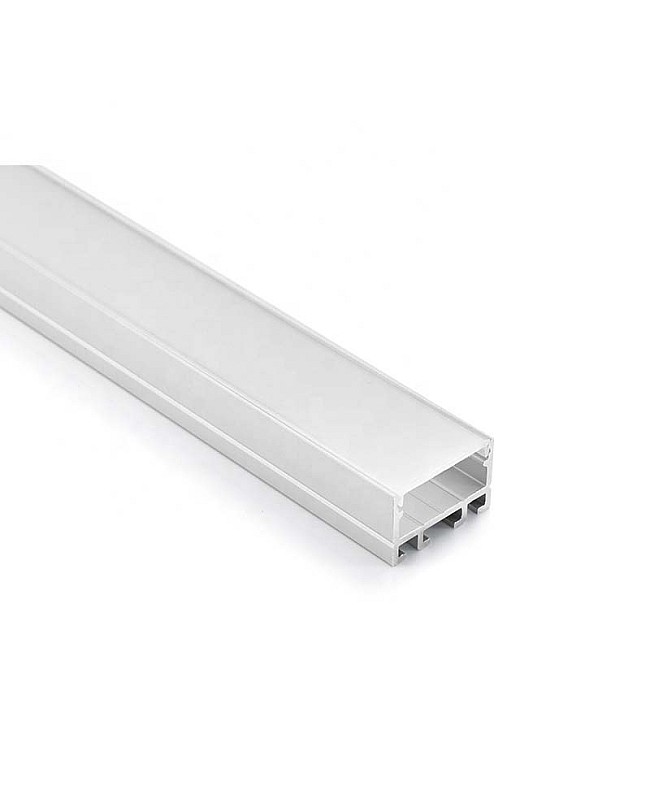

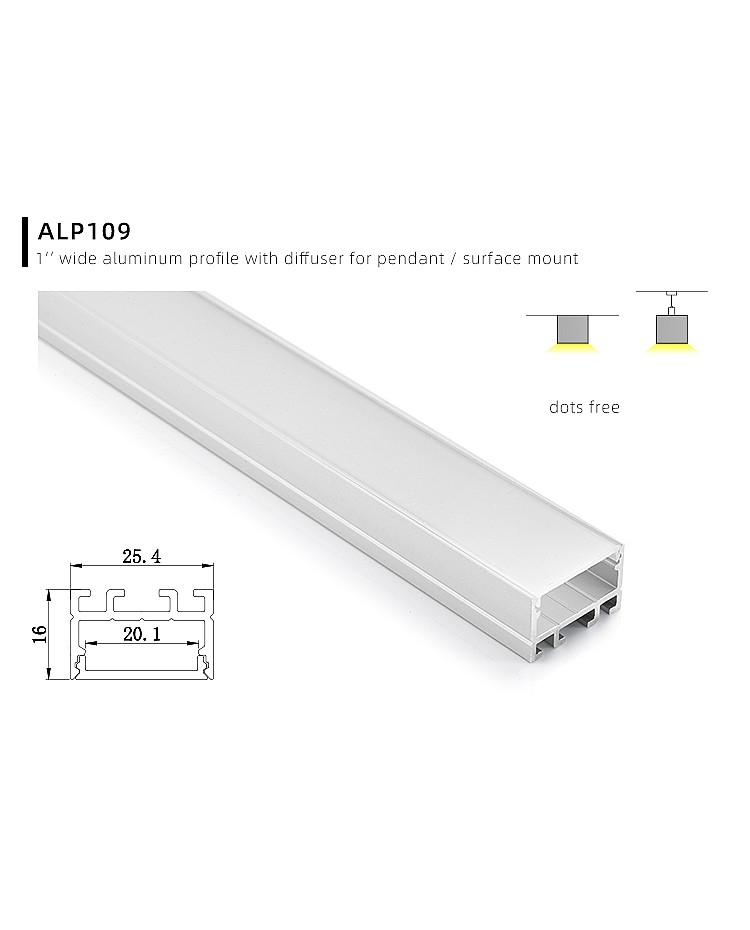

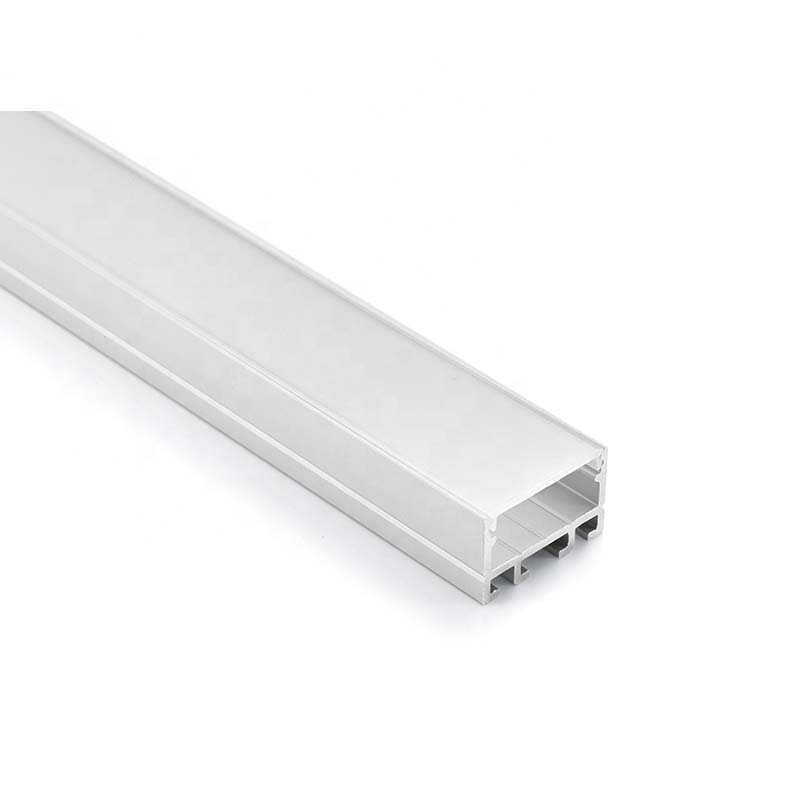

The Slim LED Strip Extrusion with a slim profile makes it perfect for any space, designed for surface mount or pendant installation, is ideal for adding a decorative touch to any room. There are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan. The standard length is 1M and 2M and can be cut to any length fit for your project. There is only one type of diffuser available: the PC diffused cover, which is made of stable-brand material, allowing for even light distribution. The inner width is 20.1mm, which allows the max width of Strip Lights to be 20mm, recommend adding single or dual rows of high-density COB Strip Lights as the light source, with no visible light dots and dark areas. End caps with wire holes and without wire holes are included, and easily connect the LED Light to a LED Power Supply directly to light up. The aluminum base can be worked as a heat sinker for better heat dissipation. The metal clips are included and the suspension wires are sold separately, support surface mount and pendant installation. You can mount them on the ceilings or walls. There are three types of couplers available: 180°, 90°, and 90° vertical. you can use them to reconnect the LED Extrusion for lighting design.


Features:

  • Model: ALP109
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Anodized Silver
  • Colors: Silver, White, Black

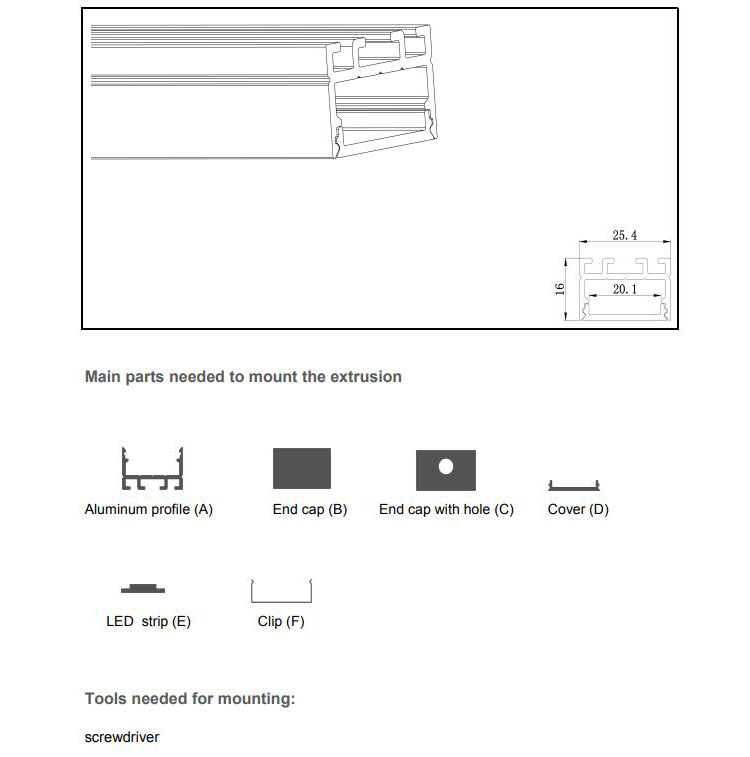

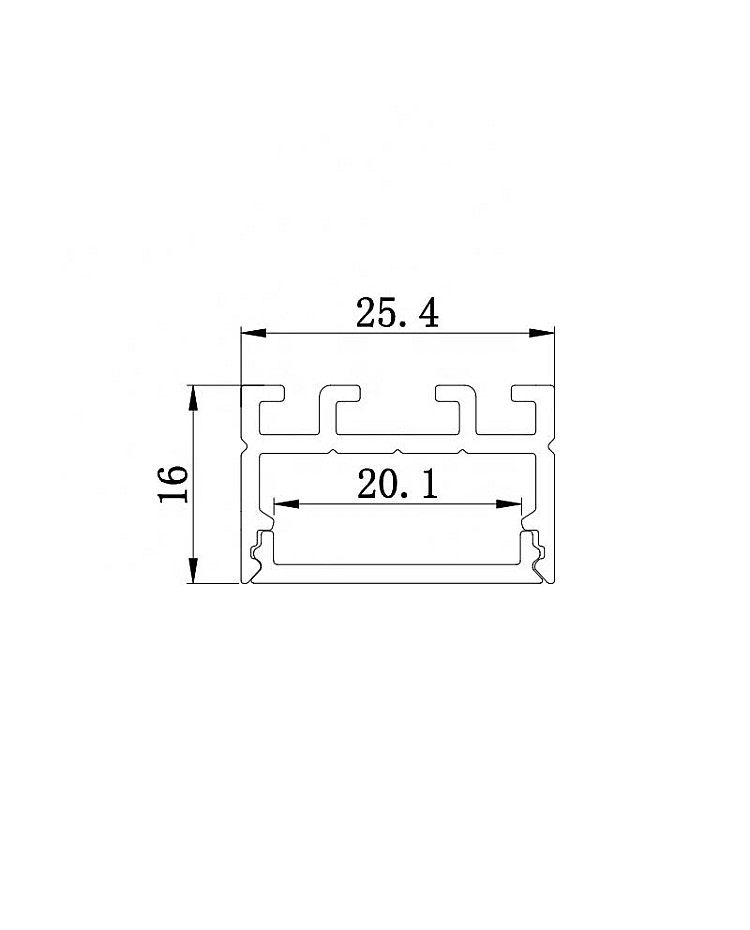

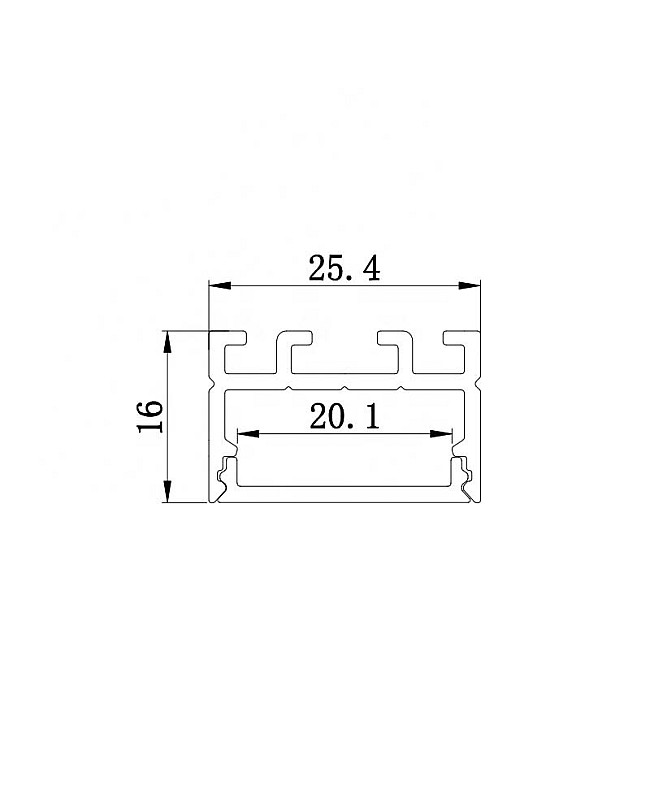

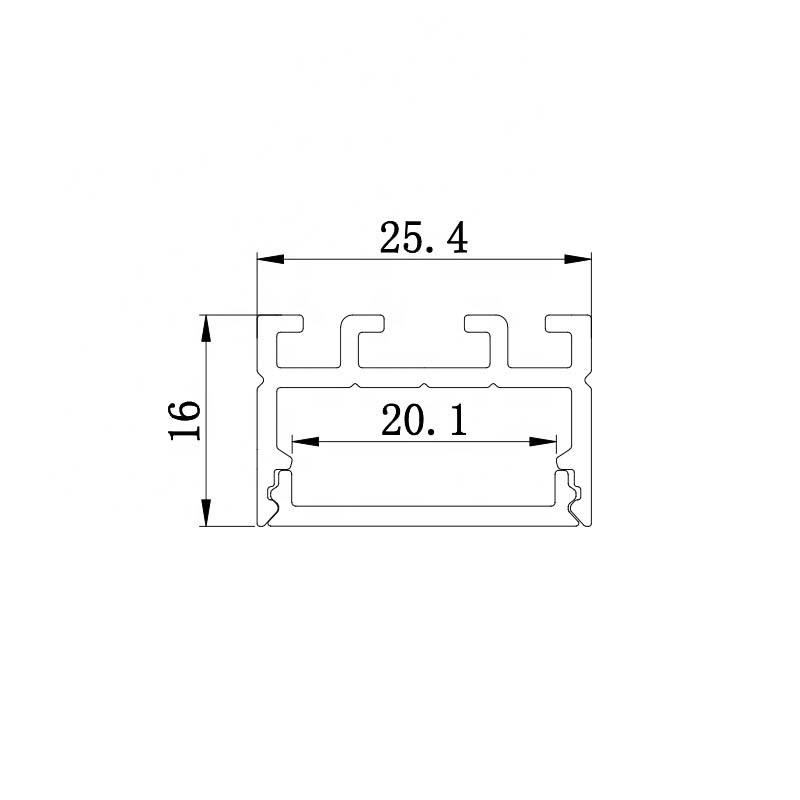

  • Size: 25.4*16mm
  • Diffuser: PC Diffused Cover
  • Inner Width: 20.1mm
  • Allows The Max Width Of Strip Lights To Be 20mm
  • Max Power: 20W/Meter
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter
  • Custom Length Available: YES
  • End Caps And Metal Clips Included
  • Suspension Wires Optional
  • "L" And "-" Connectors Sold Separately
  • Installation: Pendant/Surface Mounted
  • Application: Office, Kitchen, Hotel, Store
  • Warranty: 5 Years
  • Shipping Method: By Express/By Sea(Send Inquiry)


Includes:

1*LED Strip Extrusion

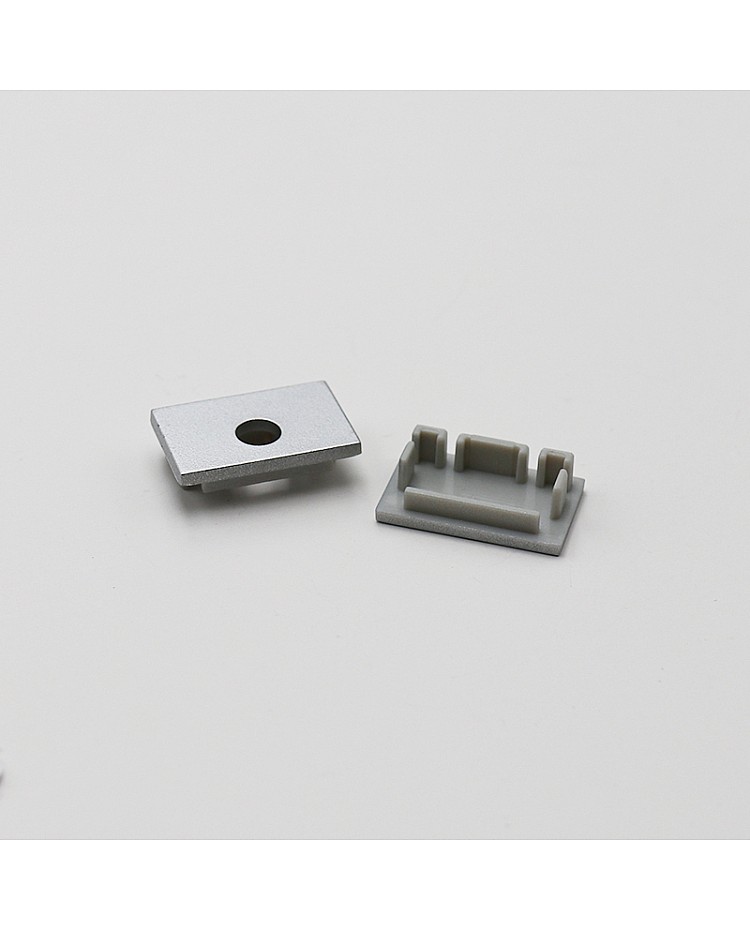

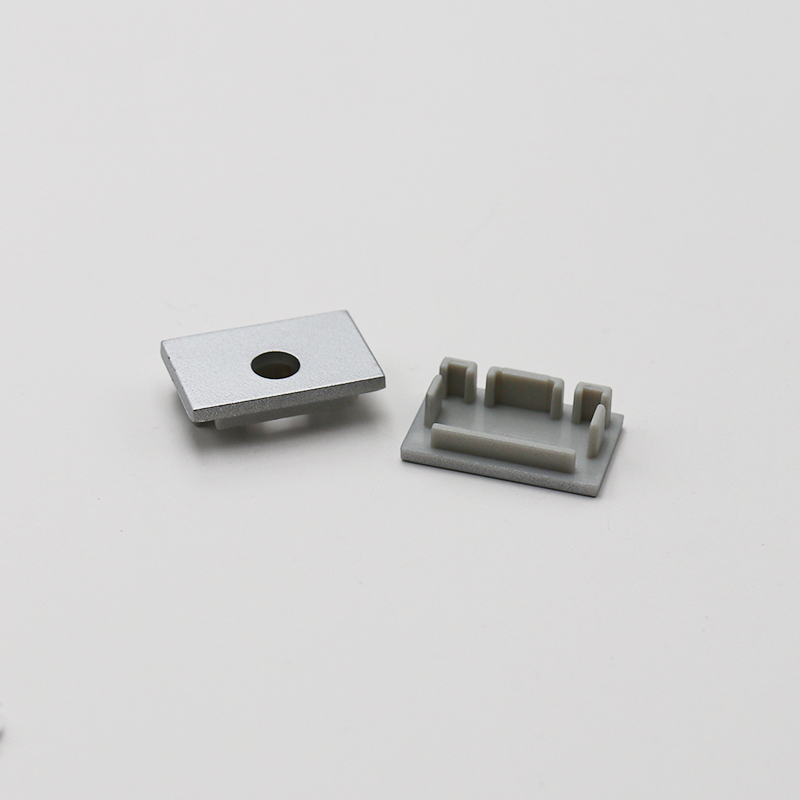

End Caps(With Wire Hole/Without WIre Hole)

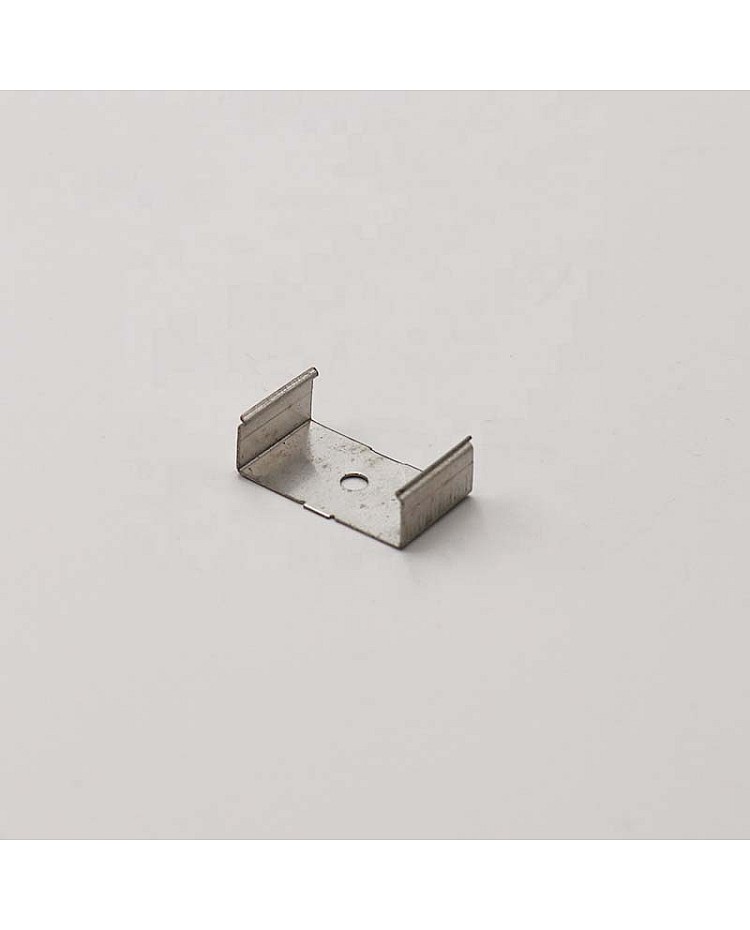

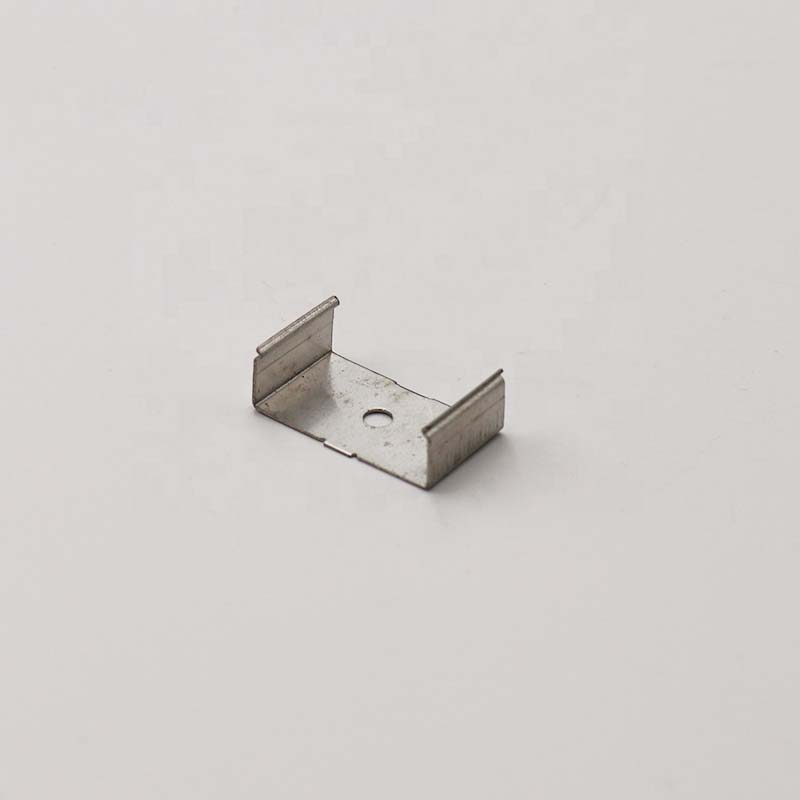

Metal Clips

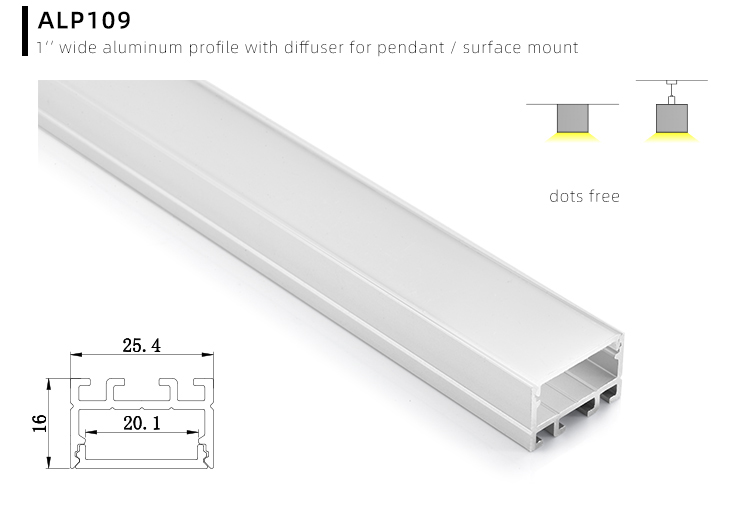

Slim LED Strip Extrusion Review

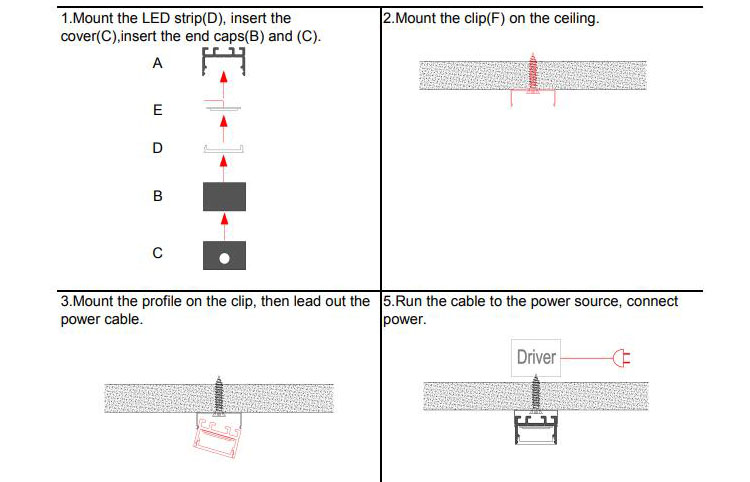

LED Strip Extrusion How To Install LED Strip Extrusion
