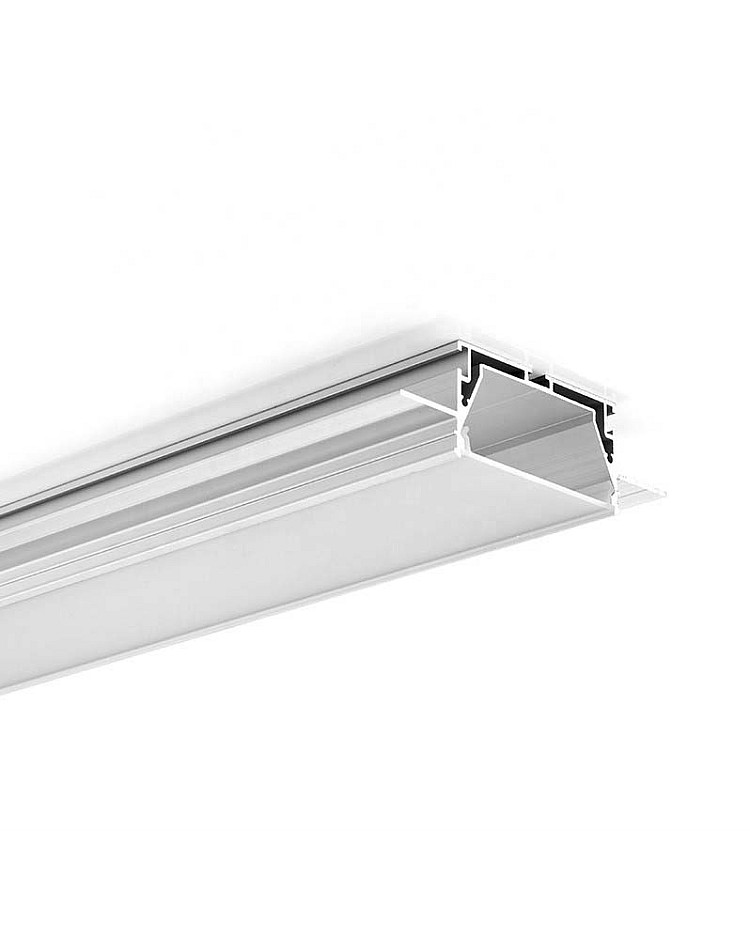

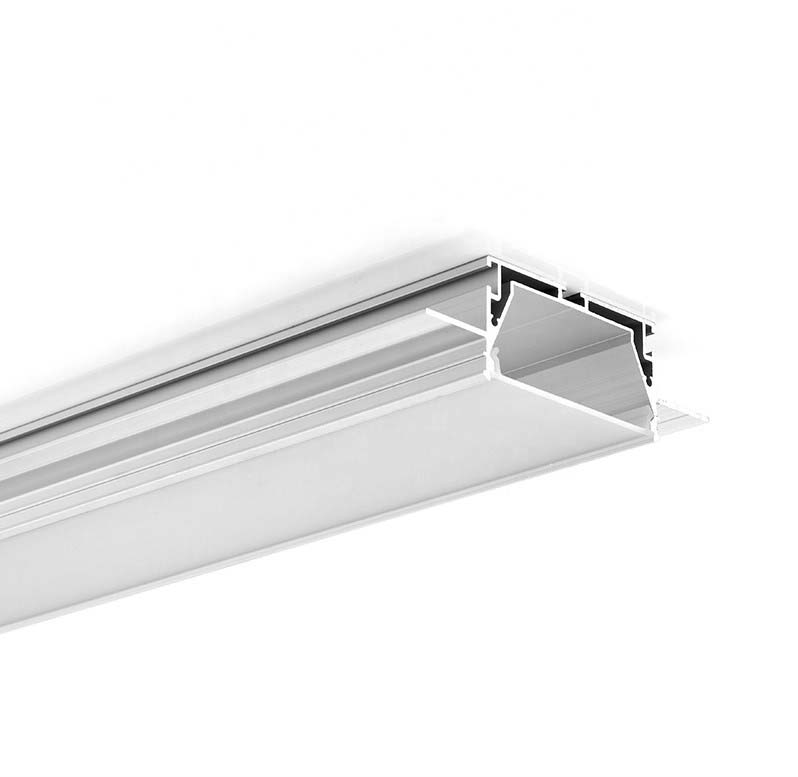

The Aluminum Recessed Profile can be recessed into a 12.5mm drywall or plasterboard on ceilings or walls for interior accent lighting, main lighting, and task lighting in offices, shops, hotels, schools, factories, and more places, designed to seamlessly integrate into any wall systems, to create a sleek, modern look. The standard length is 1M and 2M, cuttable and you can cut to any size for your project. The inner width is 24.5mm and allows the max-width of LED Strip Lights to be 24mm, and compatible with double rows 8mm, 10mm, or 12mm COB or SMD 12V RGB LED Strips. The Aluminum Profiles can be used as heat sinkers for better heat dissipation, which will extend the lifespan of LED Lights. Recessed LED Profiles made of 6063-T5 aluminum alloy material and with silver anodized surface treatment, anti-oxidation resistance, and has a longer lifespan than other similar products. There are only PC Diffused Opal diffusers included, which are made of brand-stable material, anti-yellowing, perfect light distribution, and evenly light output. End caps are included, easy to connect the LED Strips to a PWM Dimmable Driver to light up or adjust the brightness.

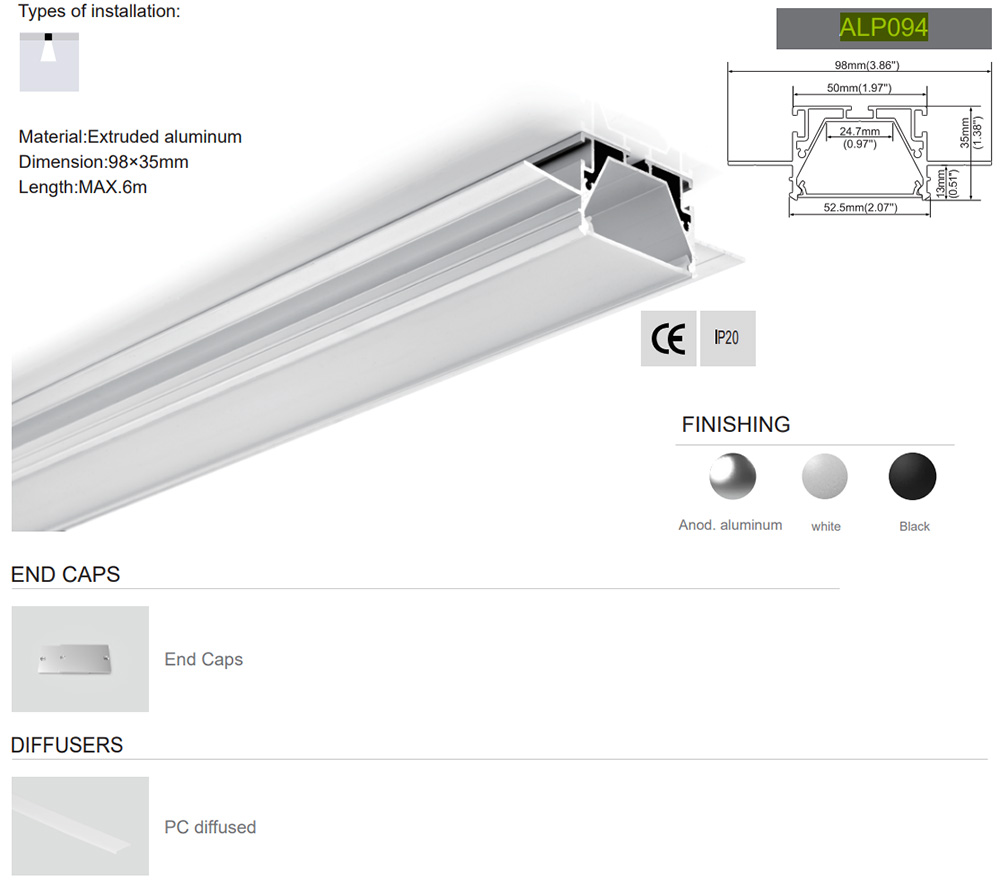

  • Model: ALP094
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

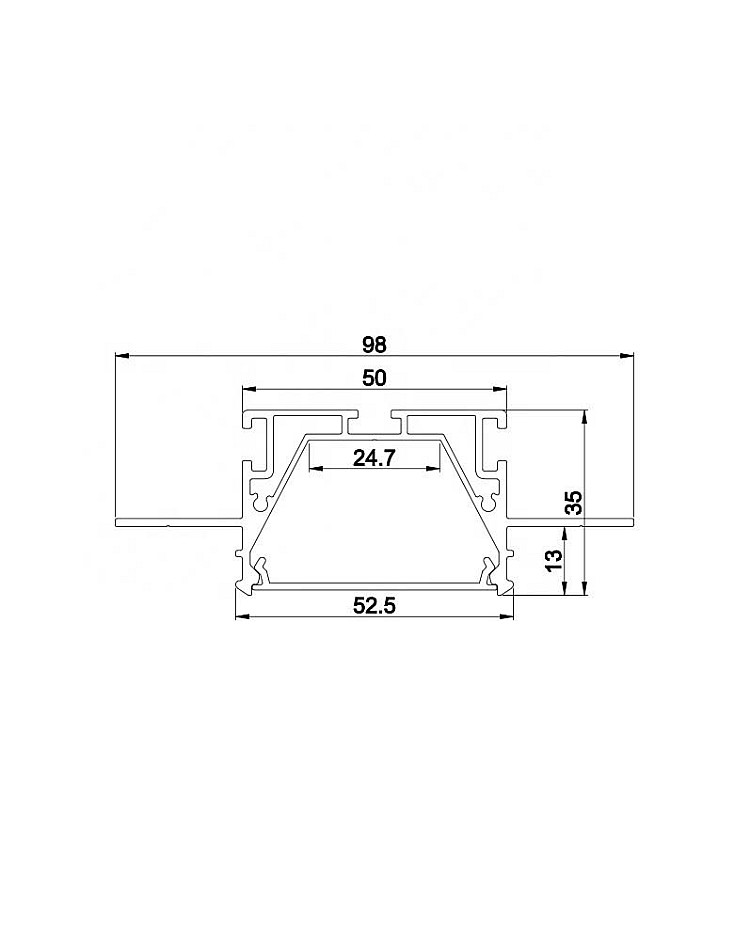

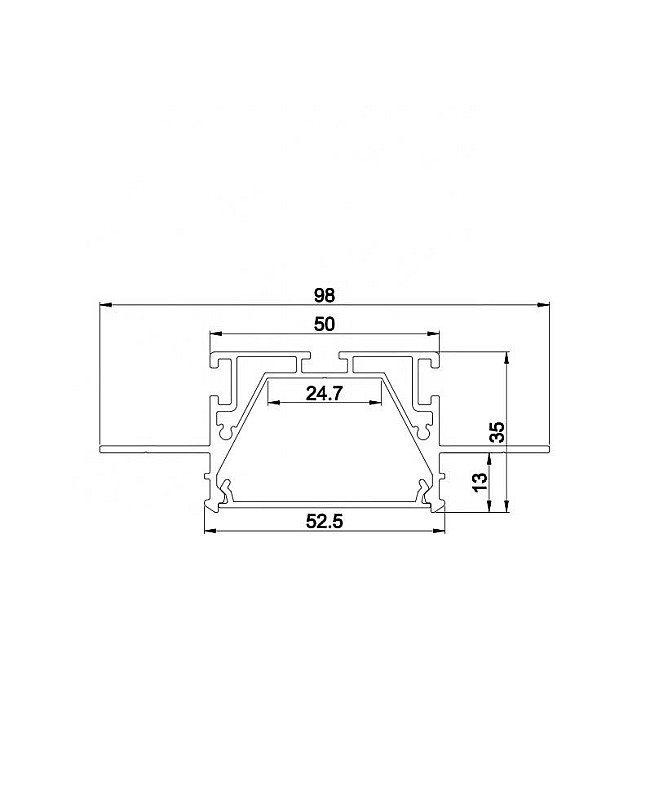

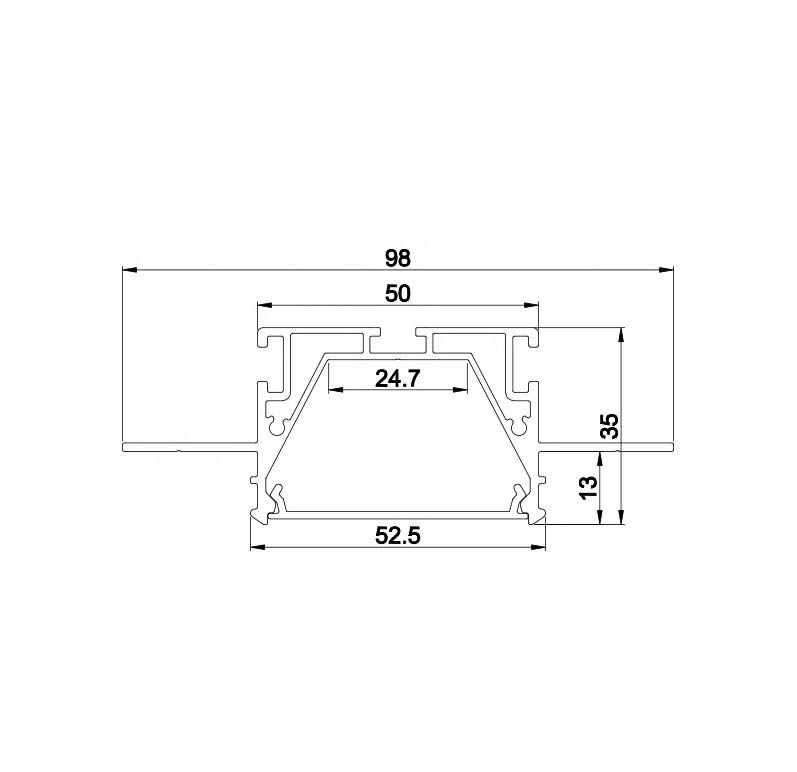

  • Size: 98*35mm(W*H)
  • Inner Width: 24.7mm
  • Max-Width Of LED Lights: 24mm
  • Compatible With Double Rows 8mm, 10mm, 12mm 12V RGB LED Strips
  • Max Power: <25W/Meter
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Diffuser: PC Opal Diffused Cover

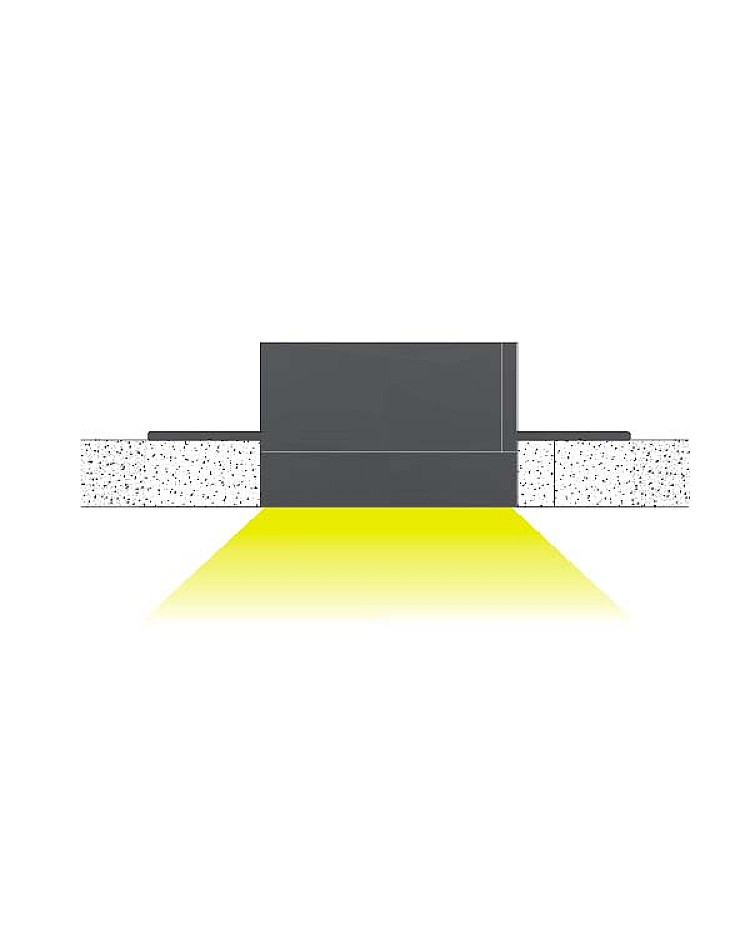

  • Installation: Recessed
  • Applications: Decoration of Linear Light In Offices, Shops, Hotels, Schools, Factories, etc
  • End Caps Included
  • 5 Years Warranty


1*Recessed Profile With Cover

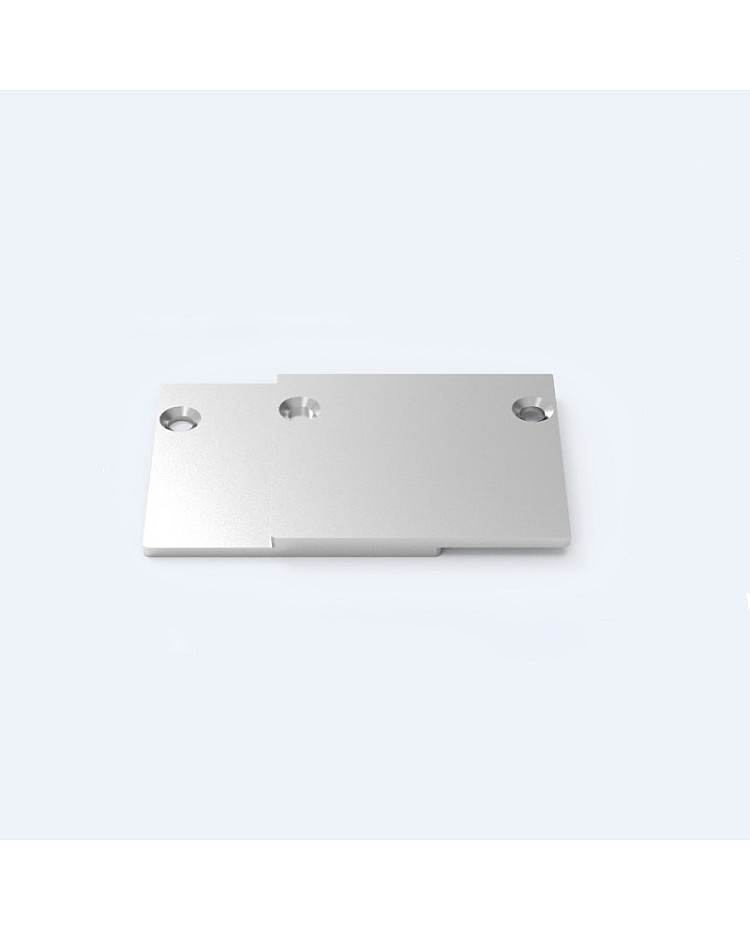

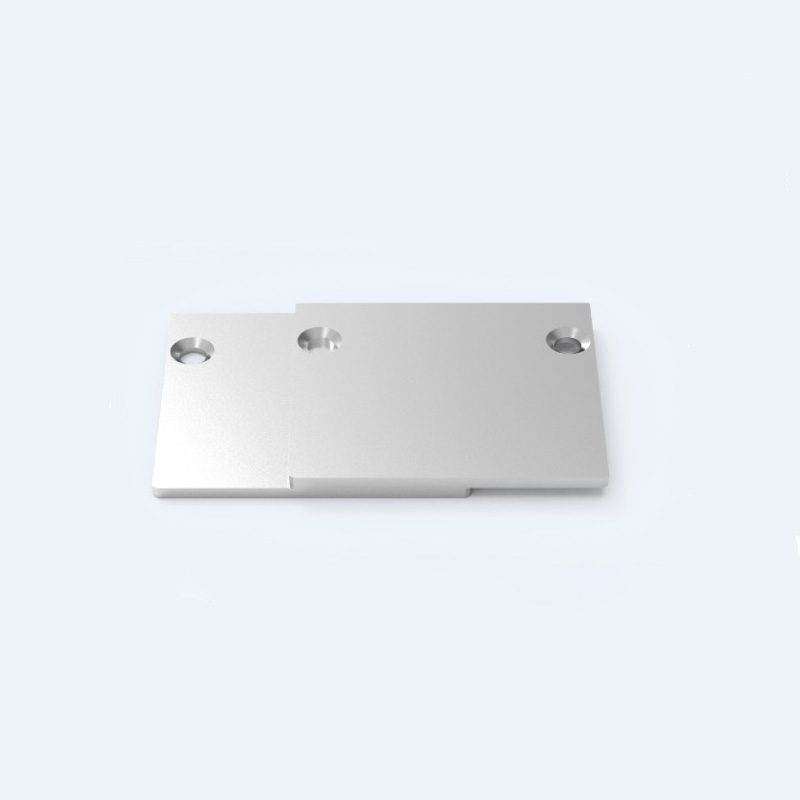

End Caps

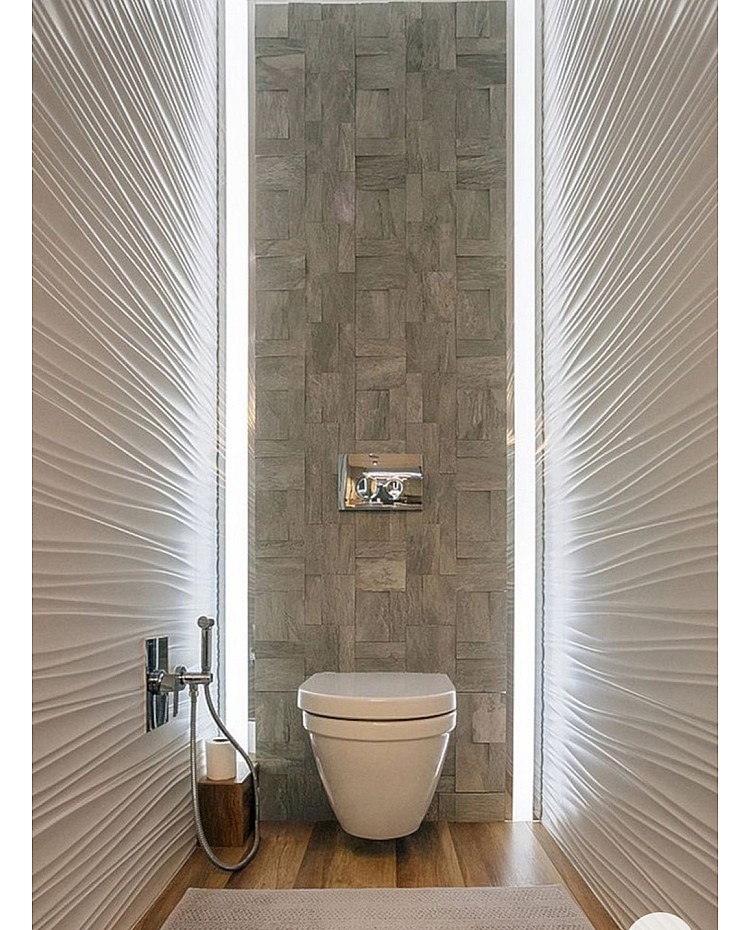

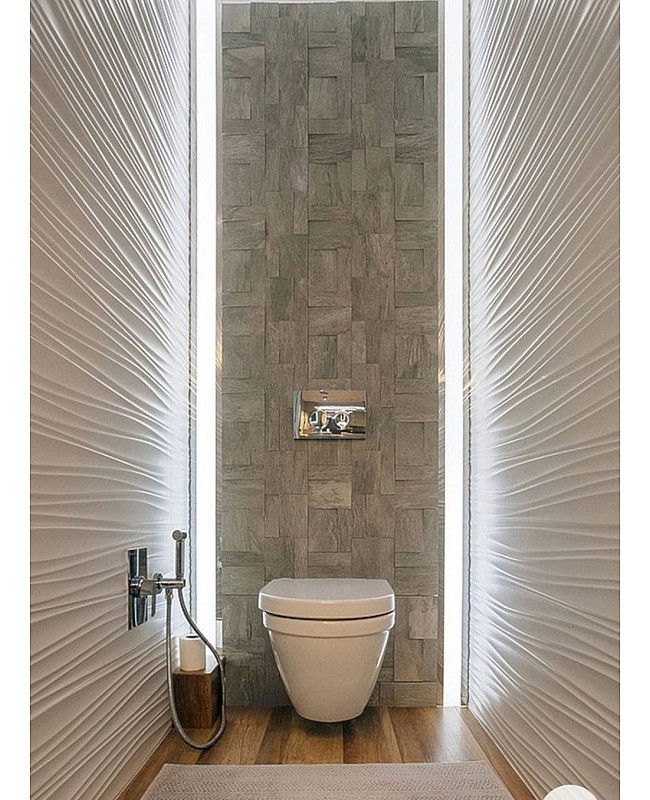

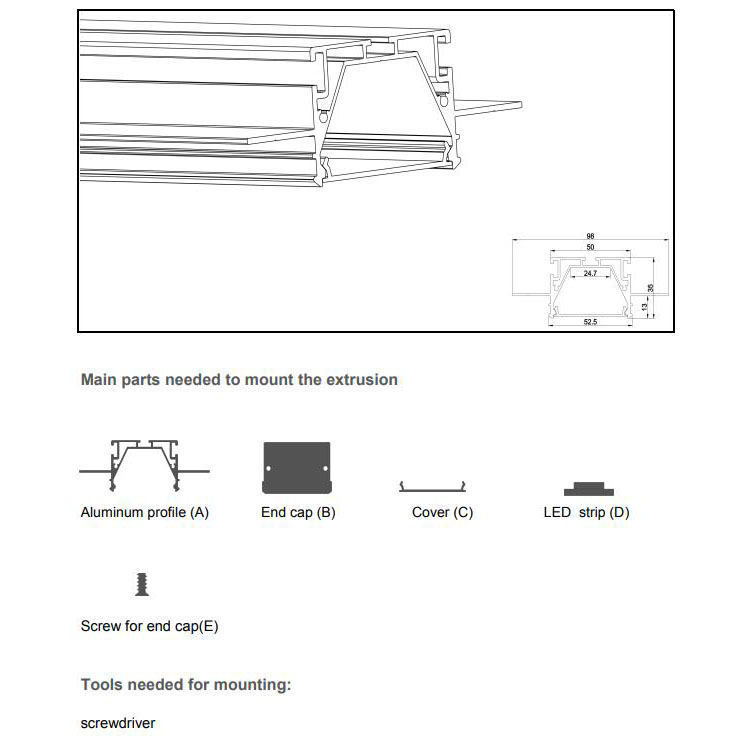

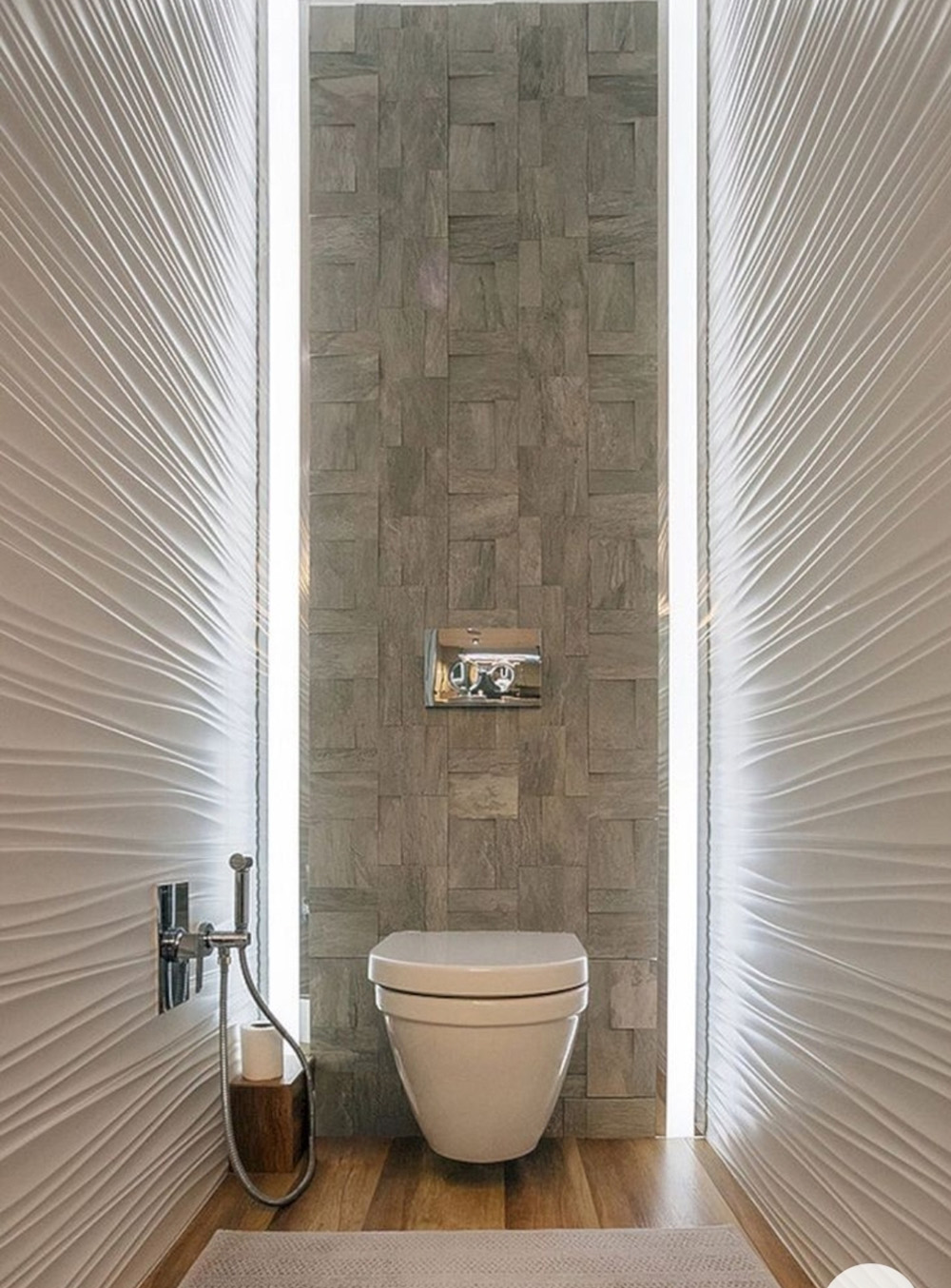

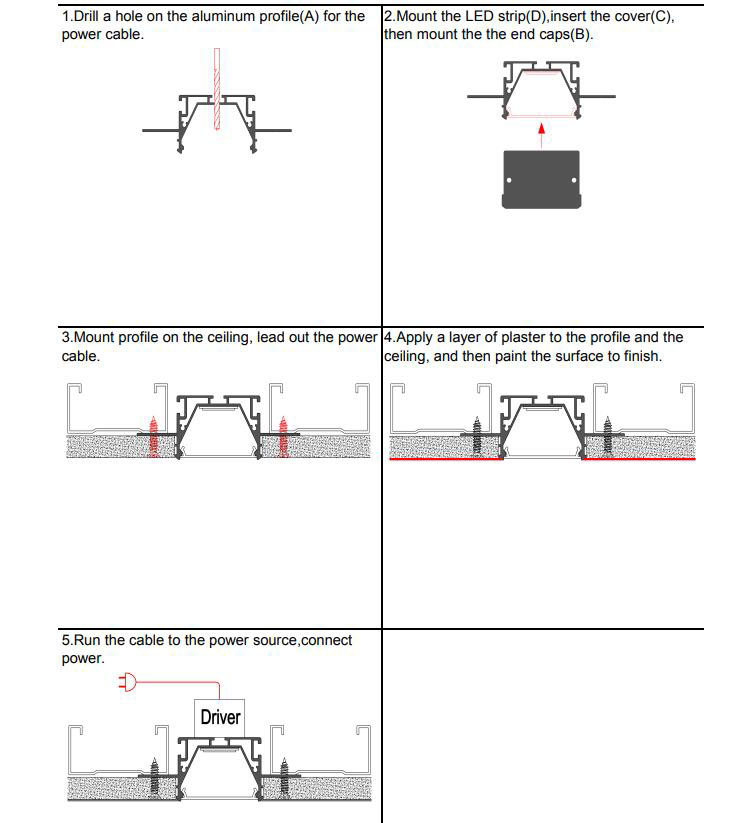

Recessed Channels Recessed LED Profiles For 12.5mm Thick Drywall How To Install Recessed Drywall LED Profiles 12.5mm Recessed Drywall Profiles
