In Stock
$13.50
Reward Points: 13
-
+
  • Brand: Hoion
  • Product Code: HX-SZ200-DECODER

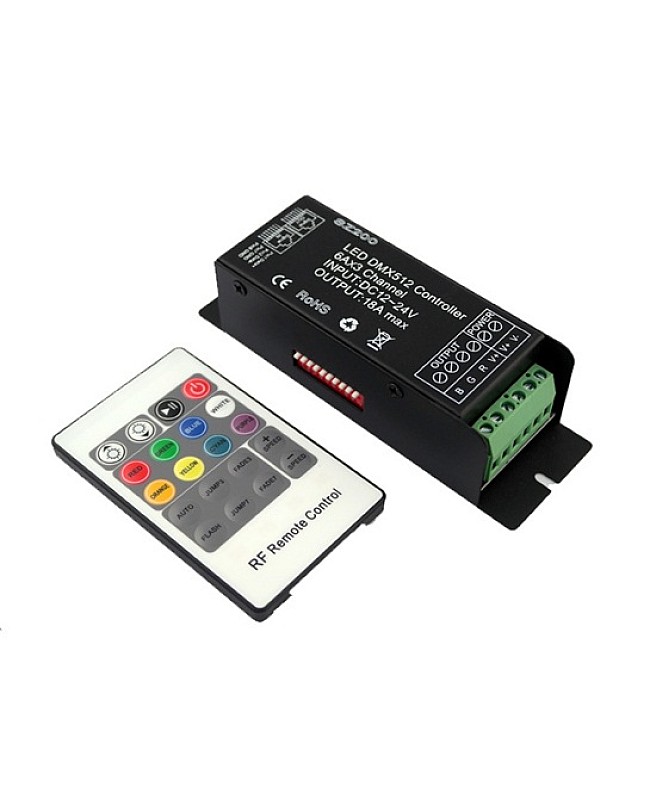

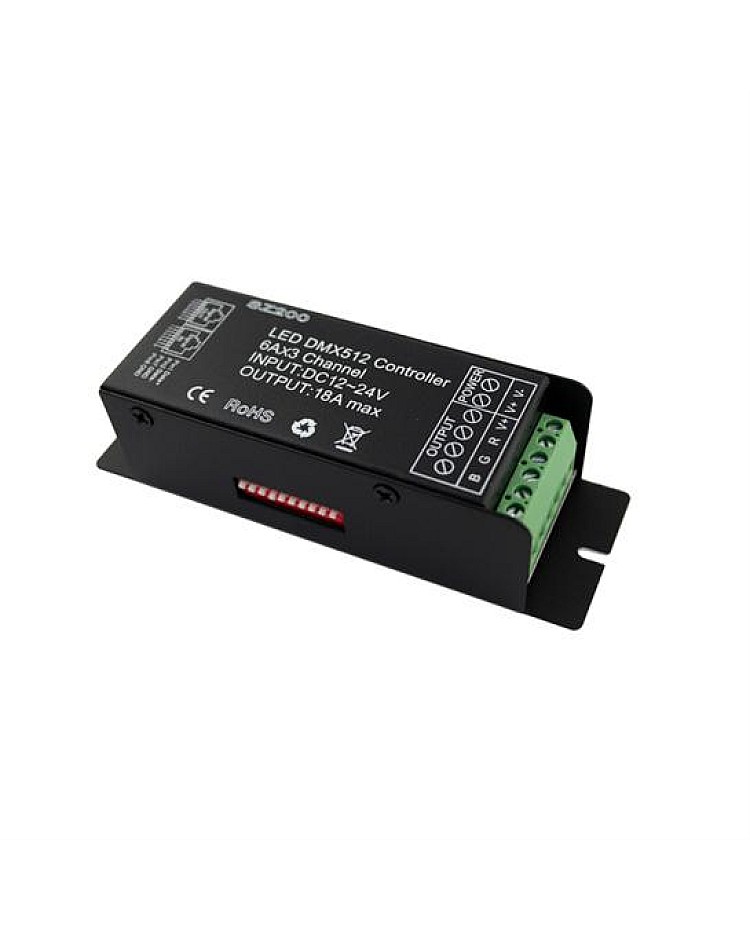

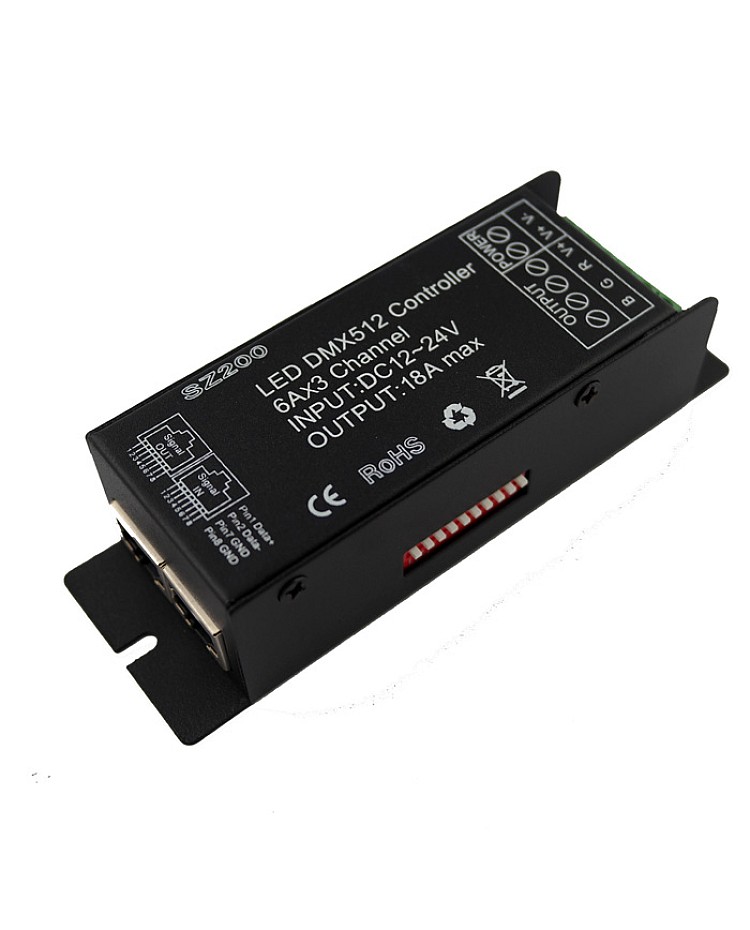

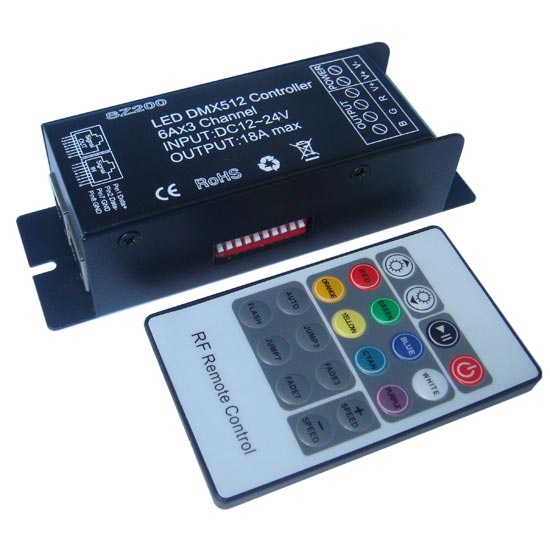

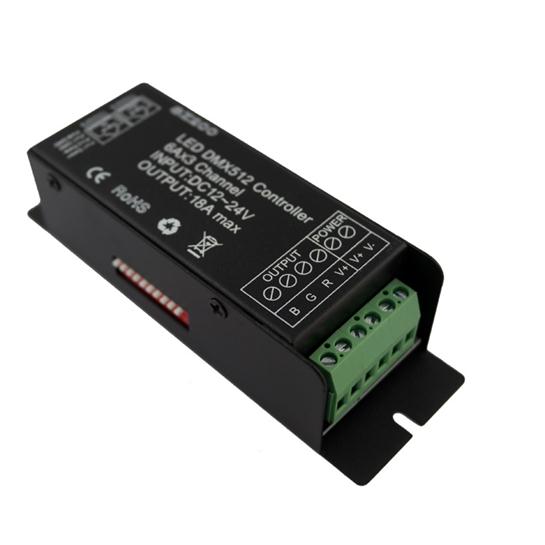

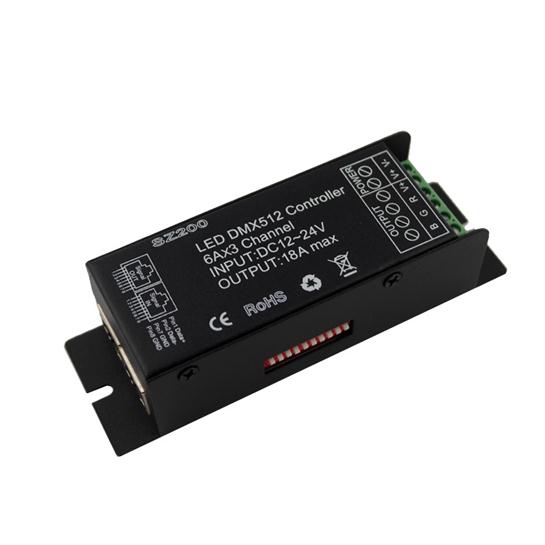

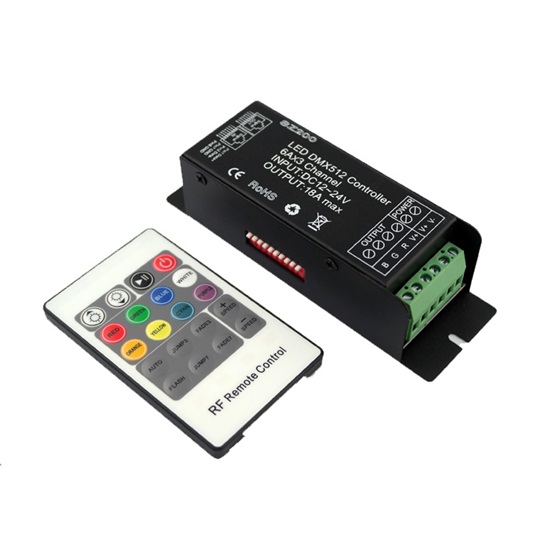

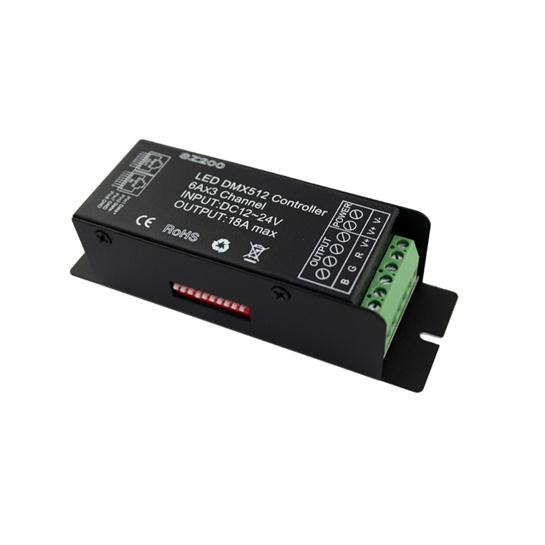

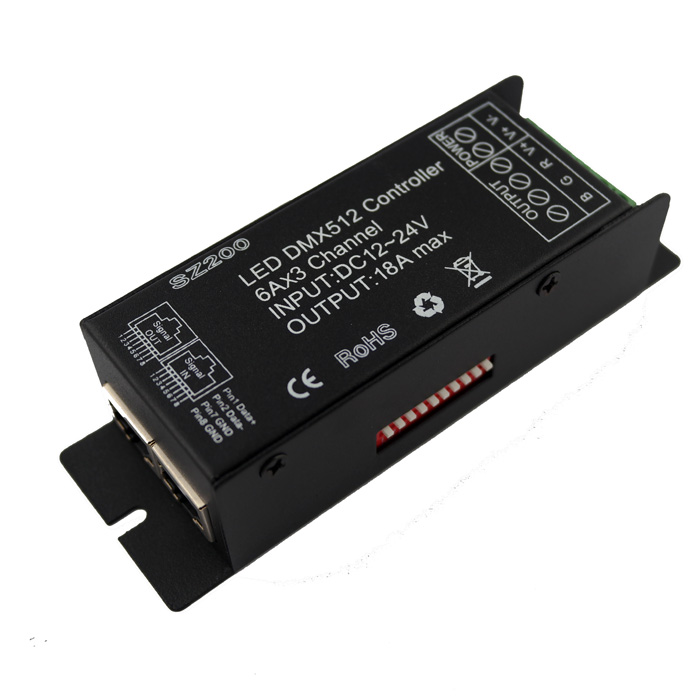

The DMX 512 light decoder with 20 keys RF remote, which adopts the advanced micro control unit, can receive the DMX-512 standard digital control signal, which is widely used internationally, and changes the signal into a PWM control signal to actuate the LED lights. It can also connect the DMX digital console to change the light or each dynamic effect. The DMX512 decoder works in DC12V or DC24V, with a 3-output channel design. The max output current of each channel is 6A. It has 20 20-key RF remote with 8 static colors and 4 dynamic modes. You can also adjust the brightness of the LED light and turn it on or off.


LED Decoder Specifications:

  • Item NO: HX-SZ200-DECODER
  • Size: 127mm*42mm*33mm(L*W*H)
  • Working temperature: -20-60℃
  • Static power consumption: <1W
  • Working Voltage: DC12V-DC24V
  • Output Gray: 256 Levels (RGB Each)
  • Power: DC12V: ≤216W   24V: ≤432W
  • Output Channels: 3
  • Current: ≤3*6A
  • Frequency Of RF Remote Control: 433.9MHz
  • Frequency Of PWM Signal Output: 5.2 KHz
  • Adopts Standard RJ45 Network Cable Port
  • Adopts 10-Bit Side Of Dial-Type DIP Switch
  • 20 Keys RF Remote Control Included
  • 10 Modes In Total, 8 Static Colors And 6 Dynamic Modes
  • Weight: 200g
  • 2 Years Warranty


Remote Specifications:

  • Working Temperature: -20℃-60℃
  • Size: 85*51*6mm(L*W*H)
  • Working Voltage: DC3V(CR2025)
  • Standby Current: <3.3uA
  • Working Current: <12mA
  • Standby Power: 9.9uW
  • Working Power: 36mW
  • RF Frequency: 433.92MHz
  • RF Distance: ≤20m
  • Weight: 30g


Includes:

1 * DMX 512 Light Decoder

1 * 20 Keys RF Remote

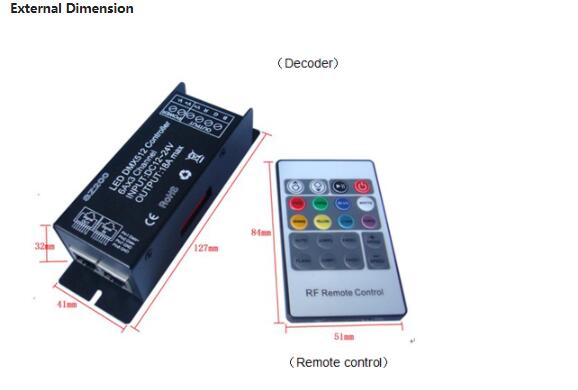

RF DMX 512 Light Decoder And Remote Size

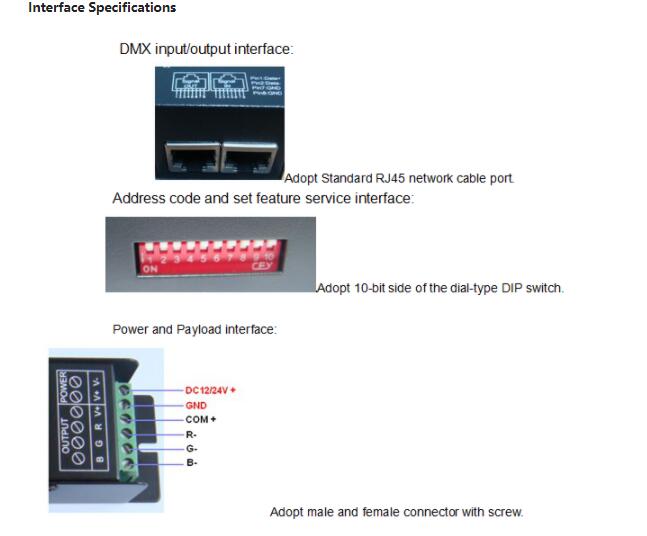

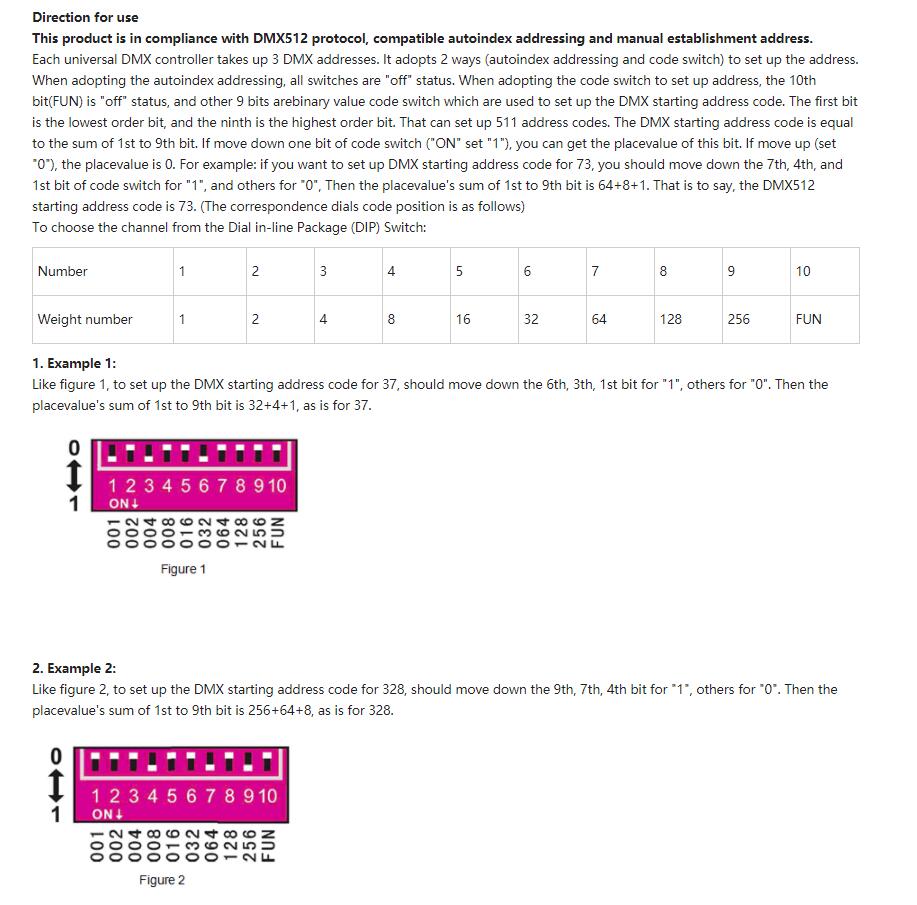

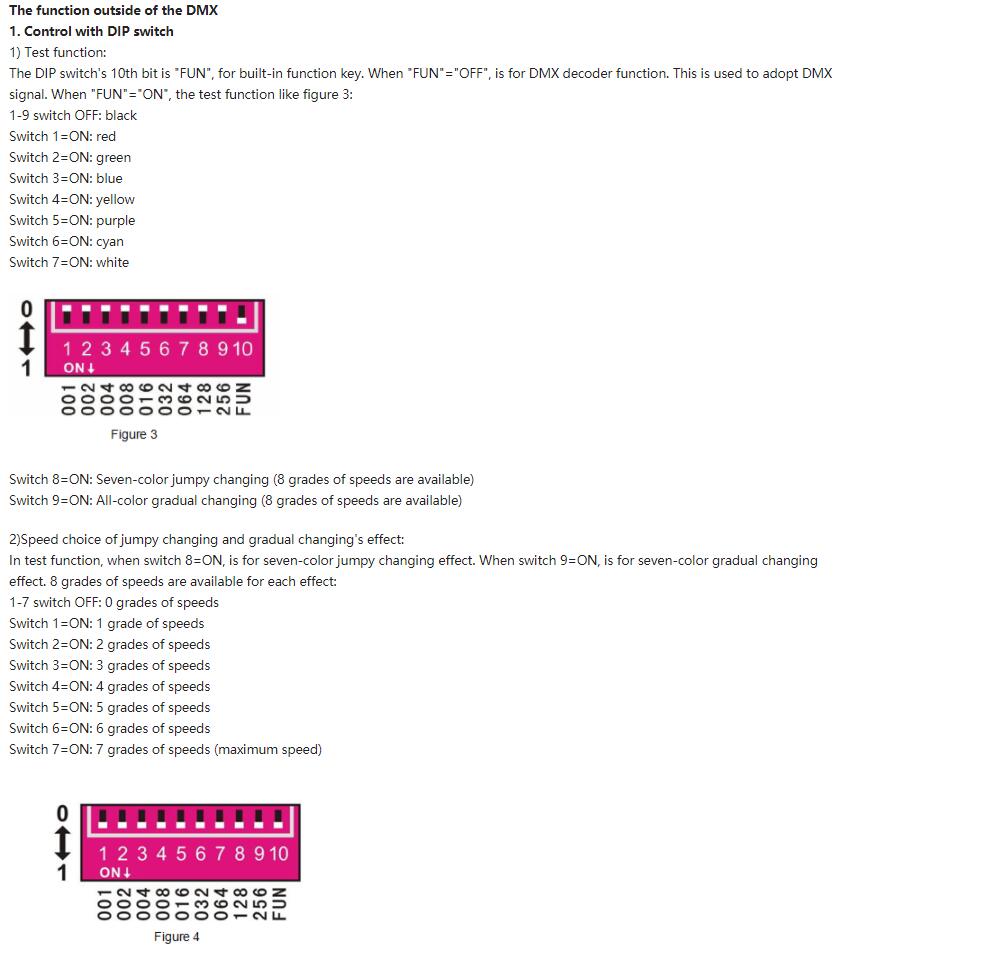

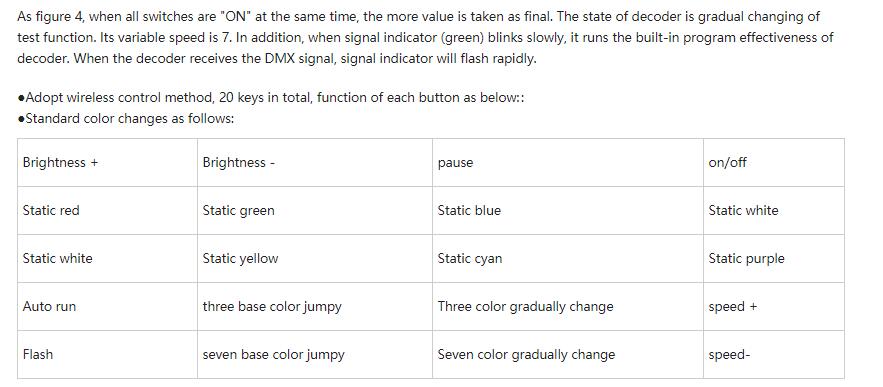

RF DMX 512 Light Decoder Interface DMX 512 Application DMX 512 Decoder Application DMX Decoder Remote Function DMX 512 Light Decoder

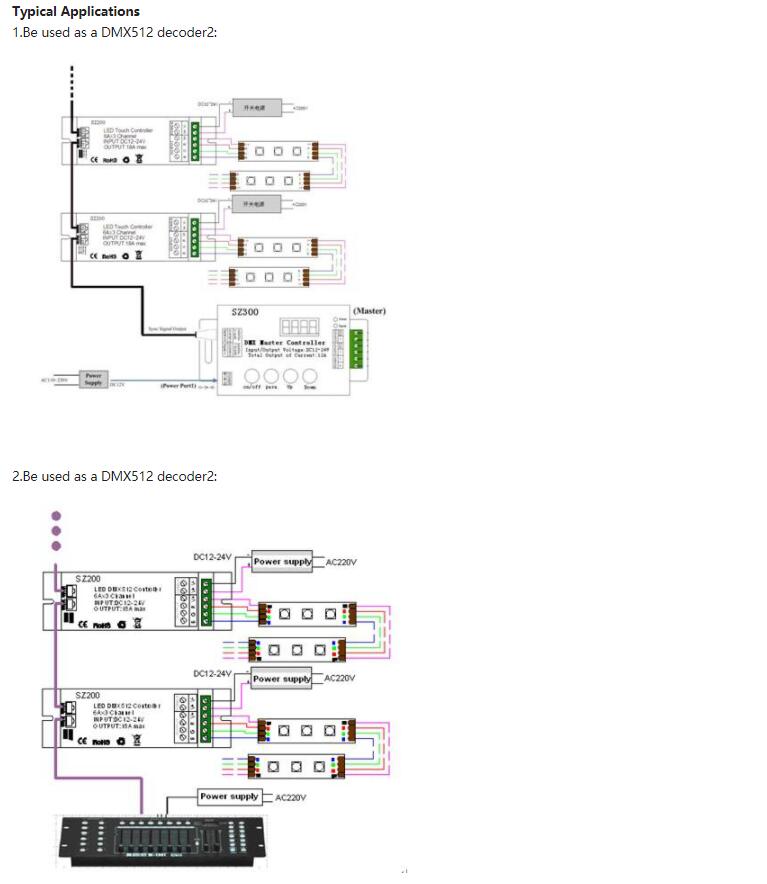

RF DMX512 Decoder Installation
