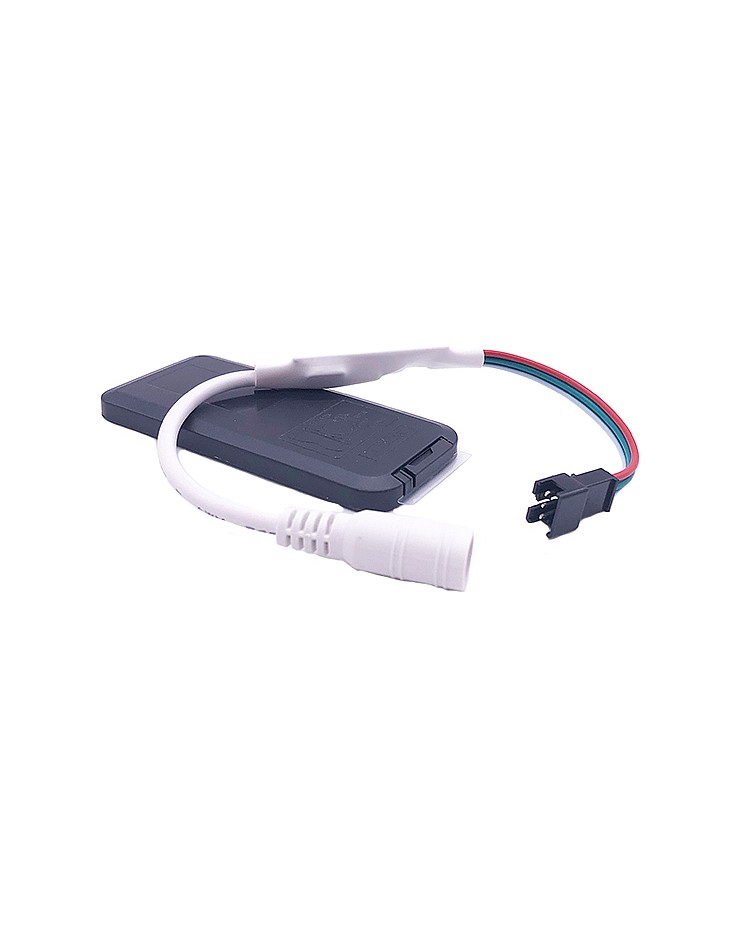

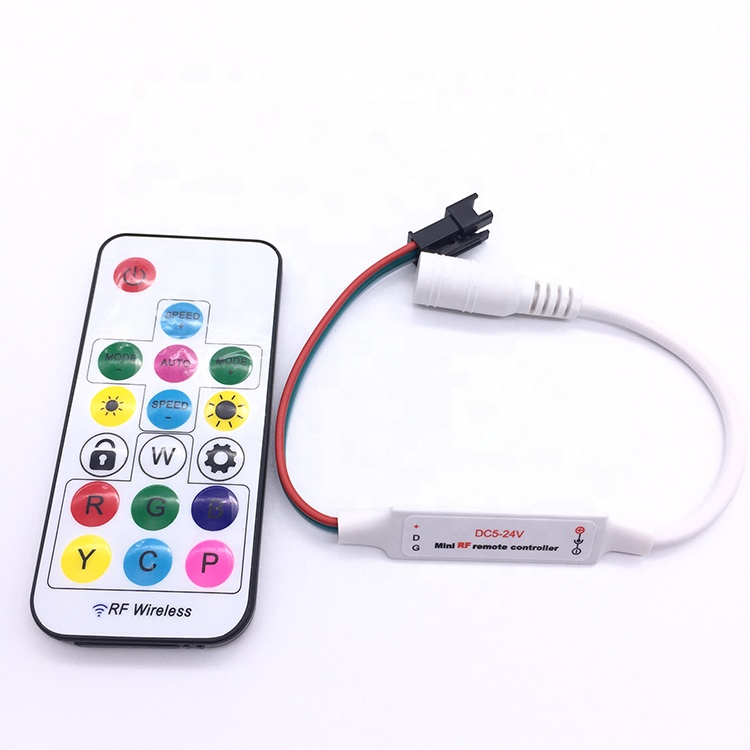

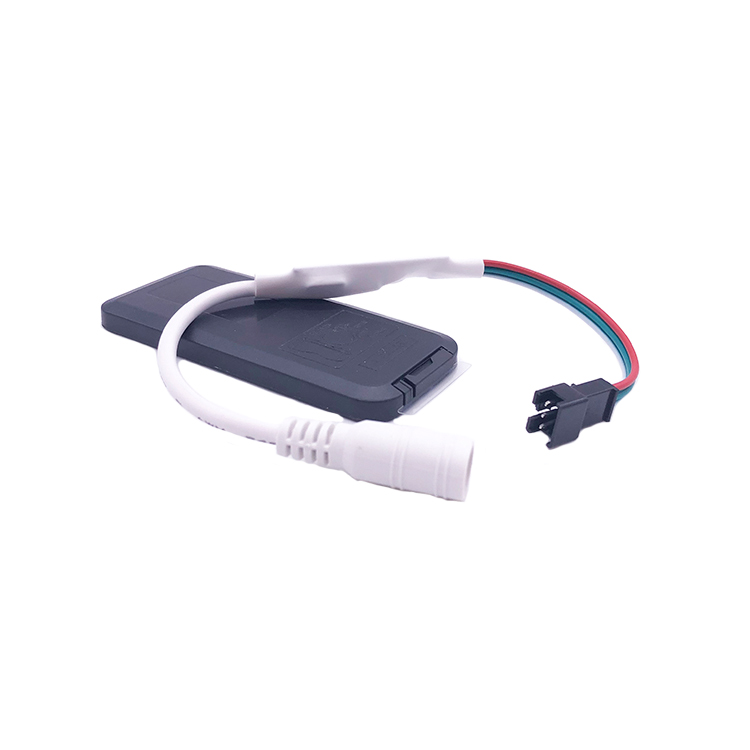

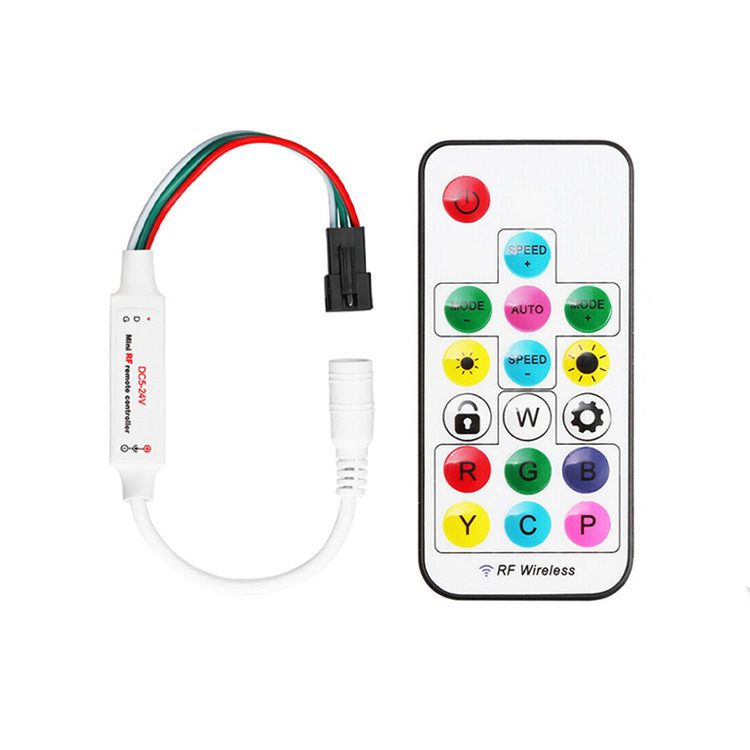

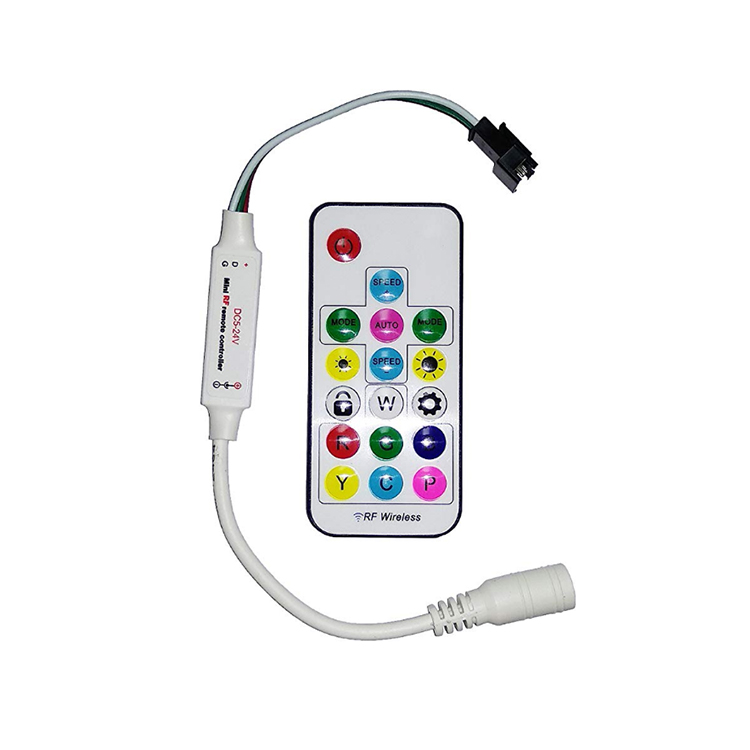

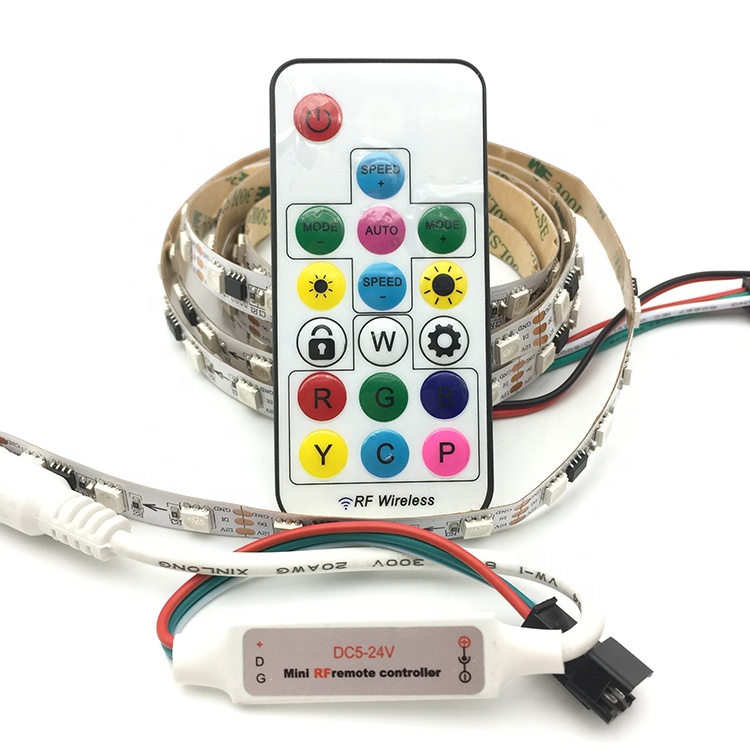

Check the SP104E SPI LED Controller, which with inline design and comes with a female DC Connector and 3Pin JST Connector, easy to connect to the Power Supply and Digital LED Strips. working in DC5V to DC24V, the max loading number of pixels up to 2048PCS, the SP104E Controller with small size and lightweight, you can install them in a narrow place easily, it built-in 300 kinds of lighting patterns, you can choose your favorite pattern for various scenes. the 17 keys RF Remote Control included, you can use it to turn ON/OFF the LED Light, choose the lighting pattern, adjust the brightness and speed. the SPI Controller with memory function will reserve the setting when turn OFF accidentally and recover when turn On again.

Quick Links:

SP104E User Manual


Features:

  • Working Voltage: DC5-24V
  • Working Current: 22mA-28mA
  • Max Loading Number Of Pixels: 2048PCS
  • Output Signal: SPI

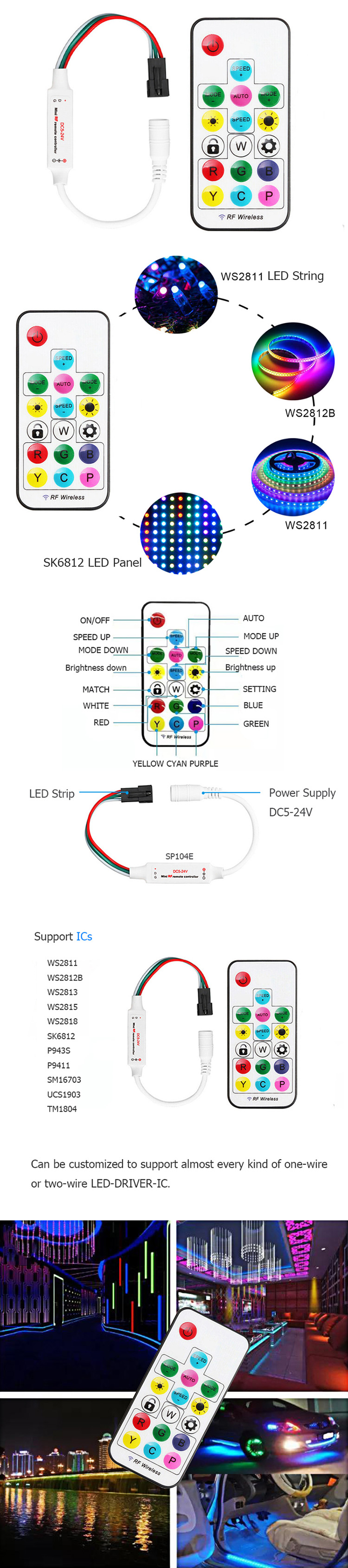

  • Support ICs: WS2811, WS2812B, WS2813, WS2815, WS2818, SK6812, P743S, P9411, SM16703, UCS1903, TM1804
  • Built-in Lighting Patterns: 300
  • Speed And Brightness Adjustable

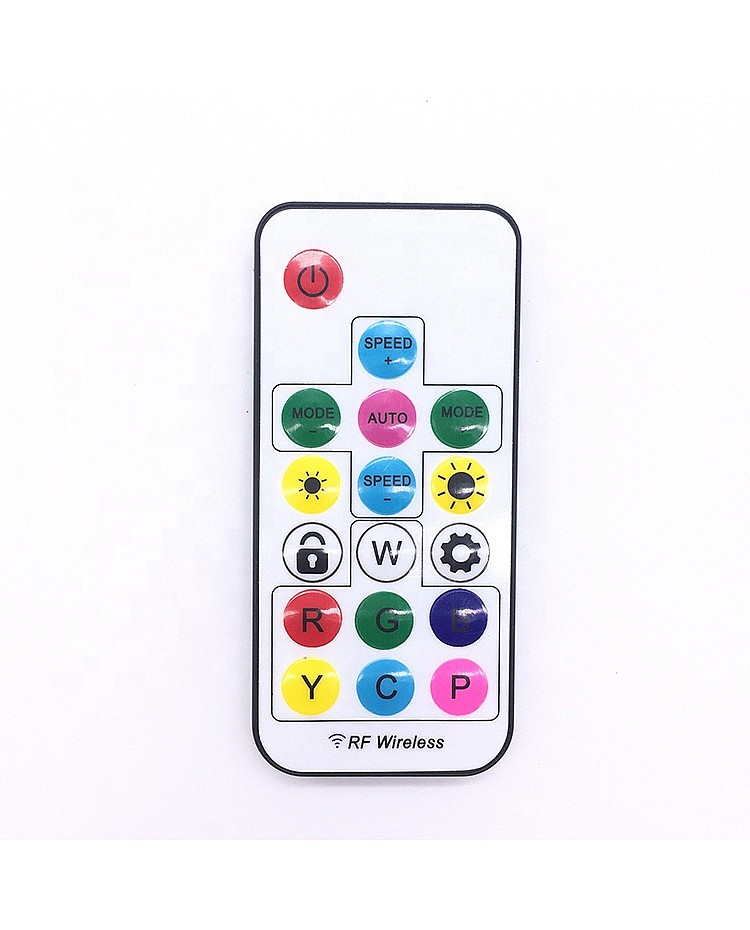

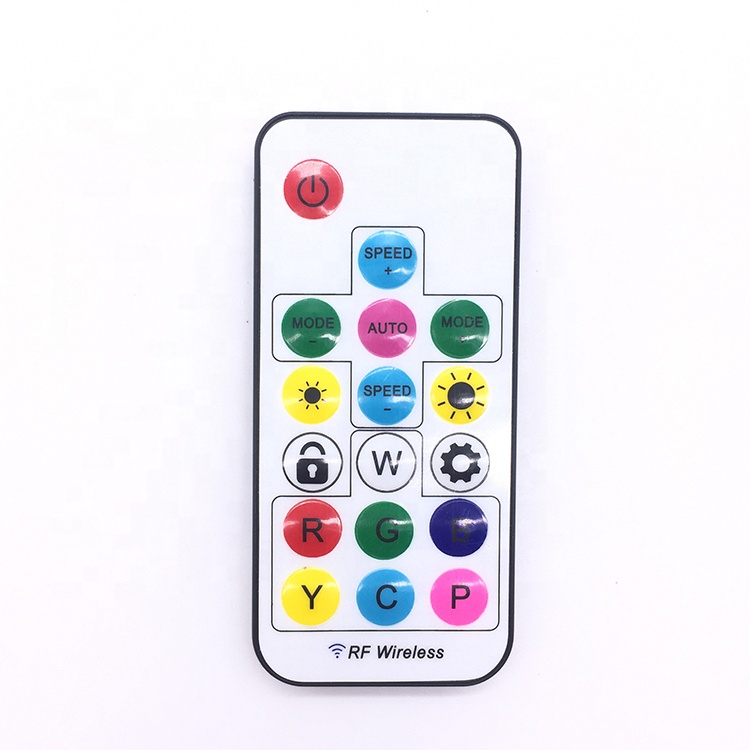

  • 17 Keys RF Remote Control Included
  • RGB Sequence: RGB(Adjustable)
  • Remote Control Distance: ≤15meters
  • Female DC Connector And Male JST 3Pin Connector Included
  • Memory Function: YES
  • IP Rating: IP20 Non-Waterproof
  • Working Temperature: -20℃-+60℃
  • 2 Years Warranty

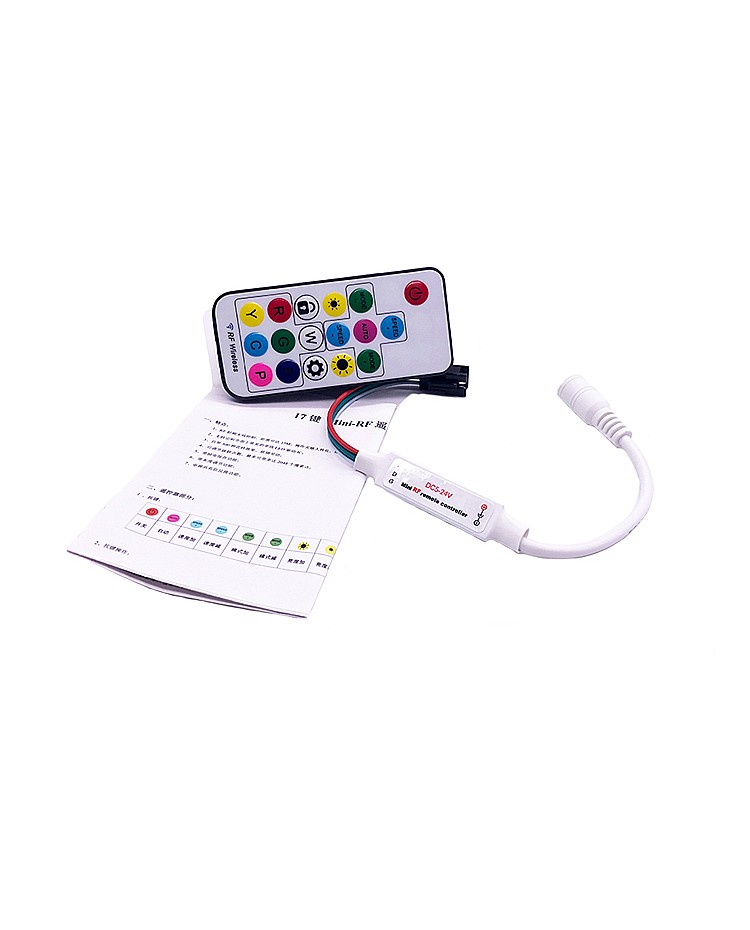

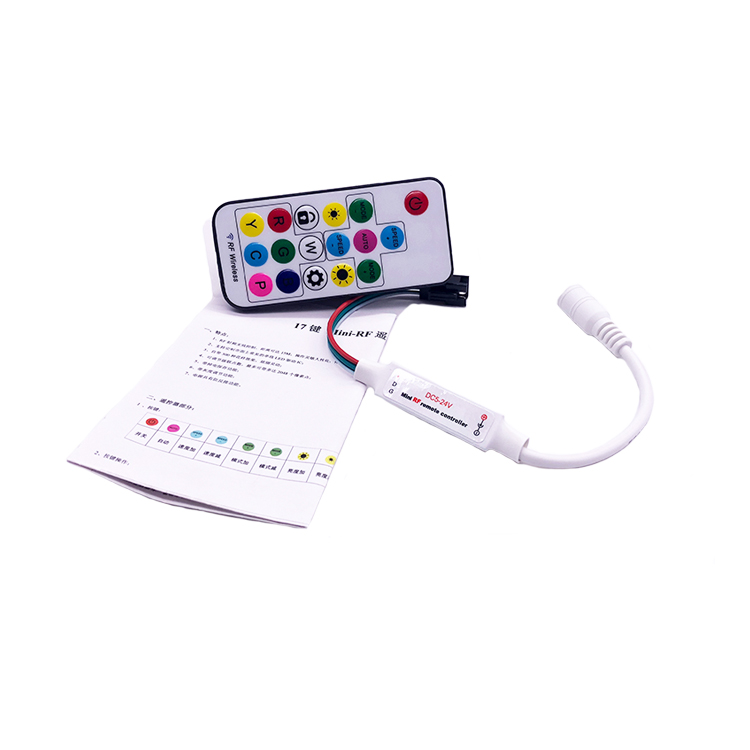

Includes:

1*SPI LED Controller

1*17 Keys Remote

1*User Manual
