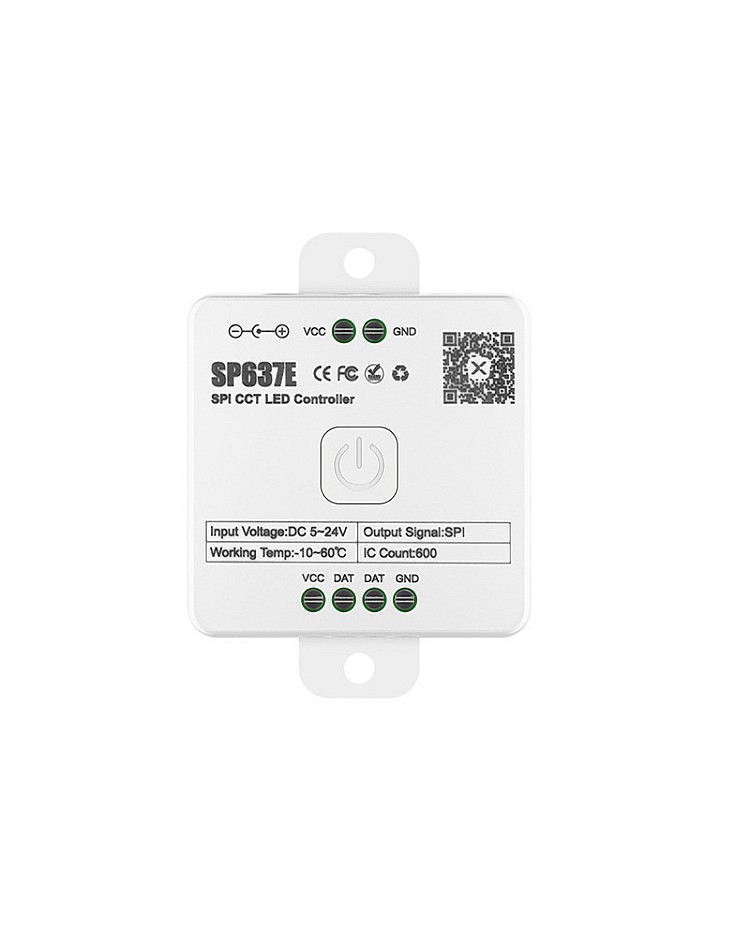

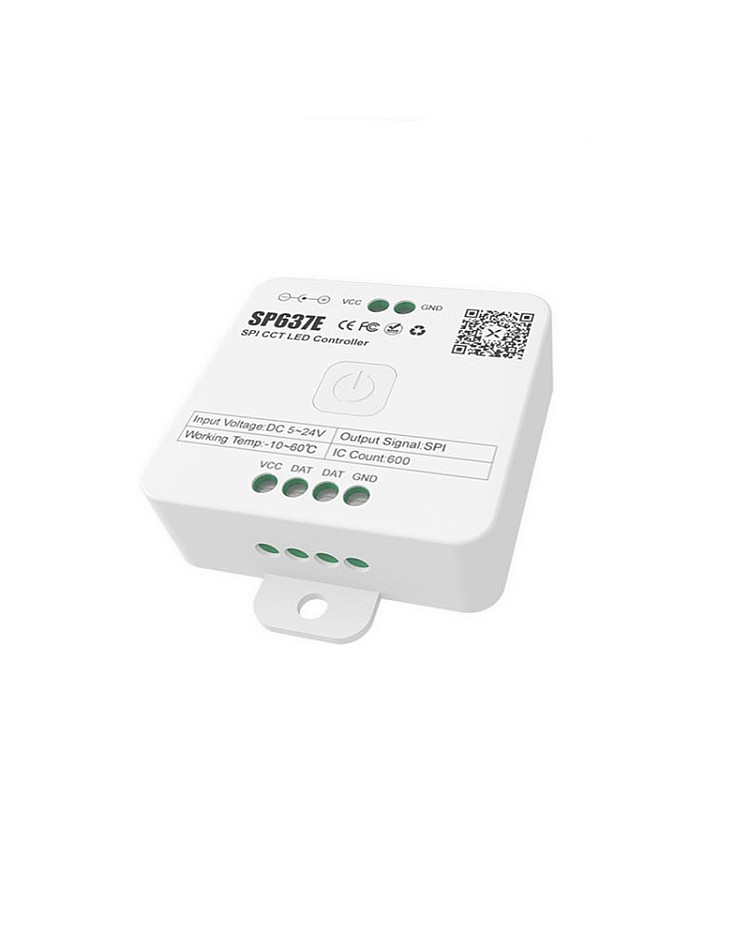

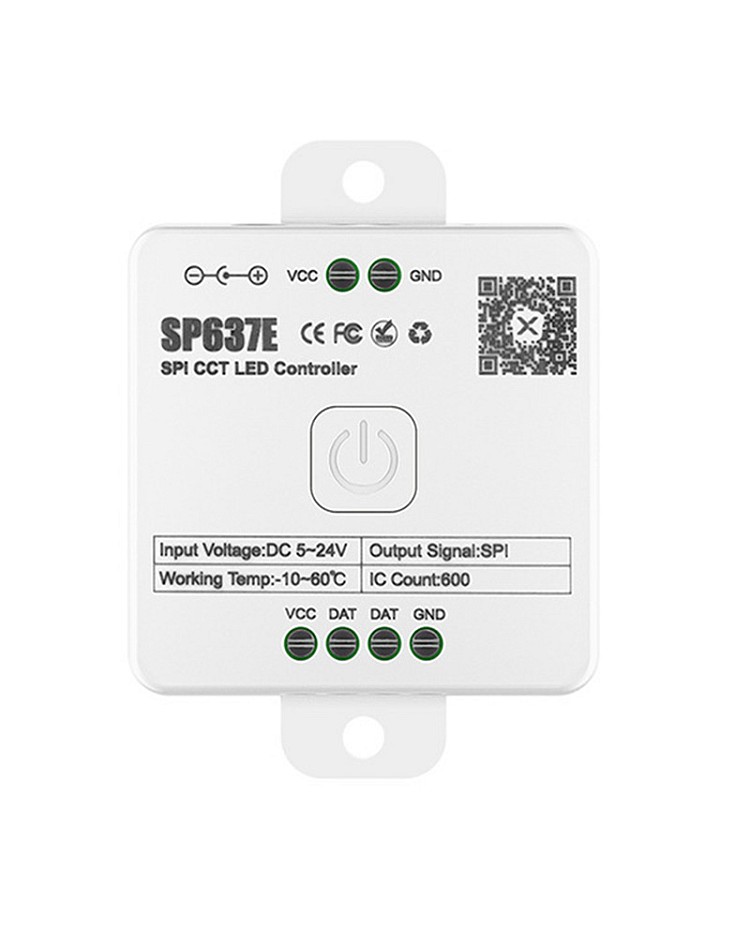

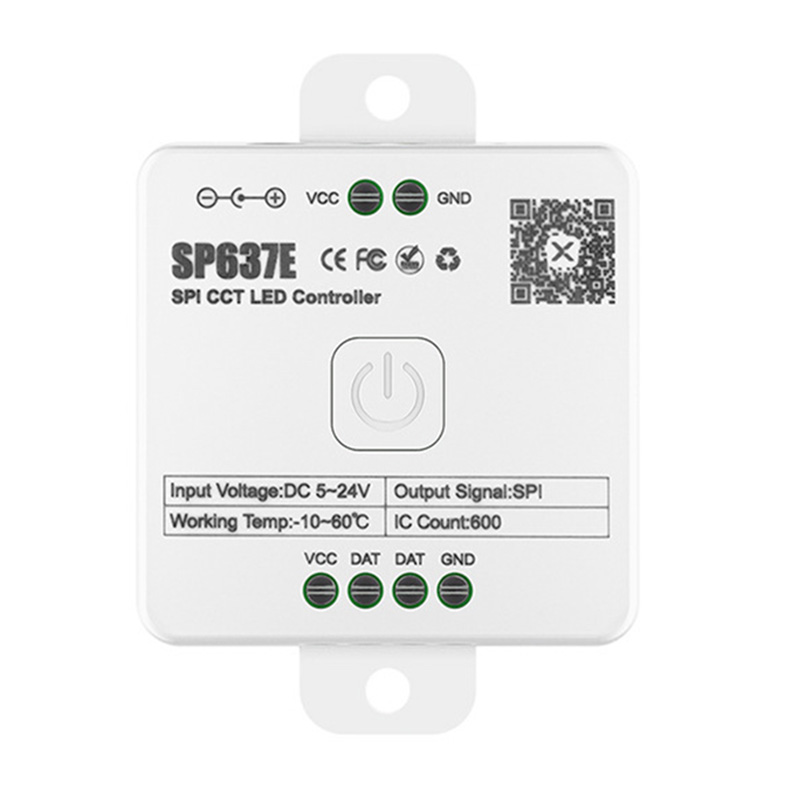

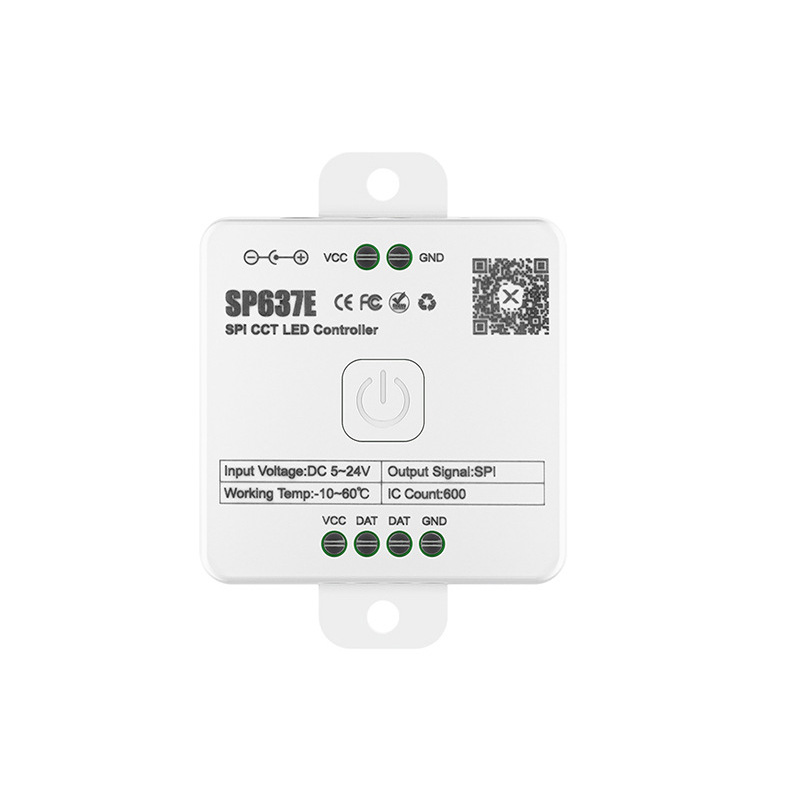

Check the SP637E SPI LED Controller for Tunable White LED Strips with ICs, allowing to control 2 channels of single-wire RZ LED Driver IC to achieve static dimming, dynamic effects, and music effects for various scenes. The SP637E supports APP control and RF Remote Control through Bluetooth connection, and you can use the APP and Remote to adjust the color temperature, brightness and select the dynamic modes. There are 10 kinds of dynamic effects, chasing lighting effects of pure white. 5 kinds of music sync effects, which follow the rhythm of the music. The Sperll Controller built-in microphone, supports cell phone microphone, player streaming, and on-board microphone for music capture. Under the music modes, the lighting will change automatically following the music beats. Compatible with the most popular SPI LED ICs, including WS2812, WS2812B, SK9822, APA102, APA102C, and UCS1093.
Features:

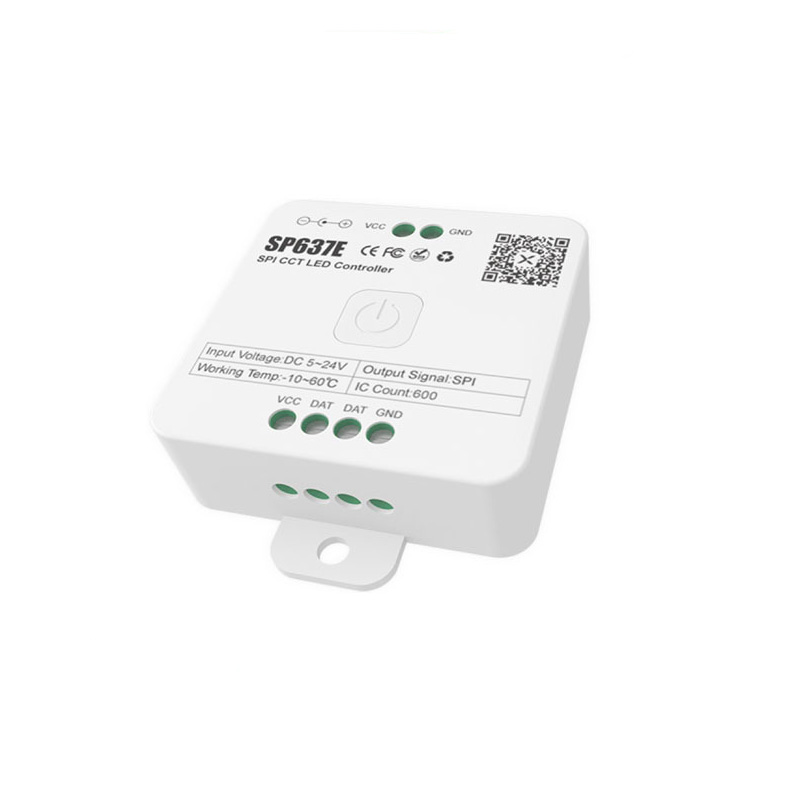

- Model: SP637E

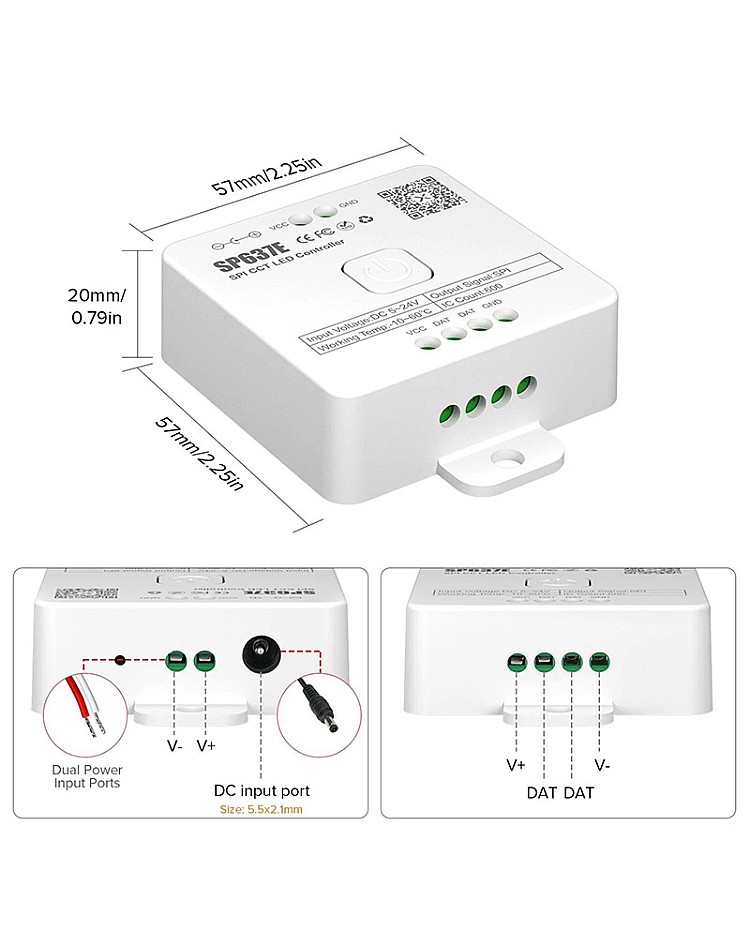

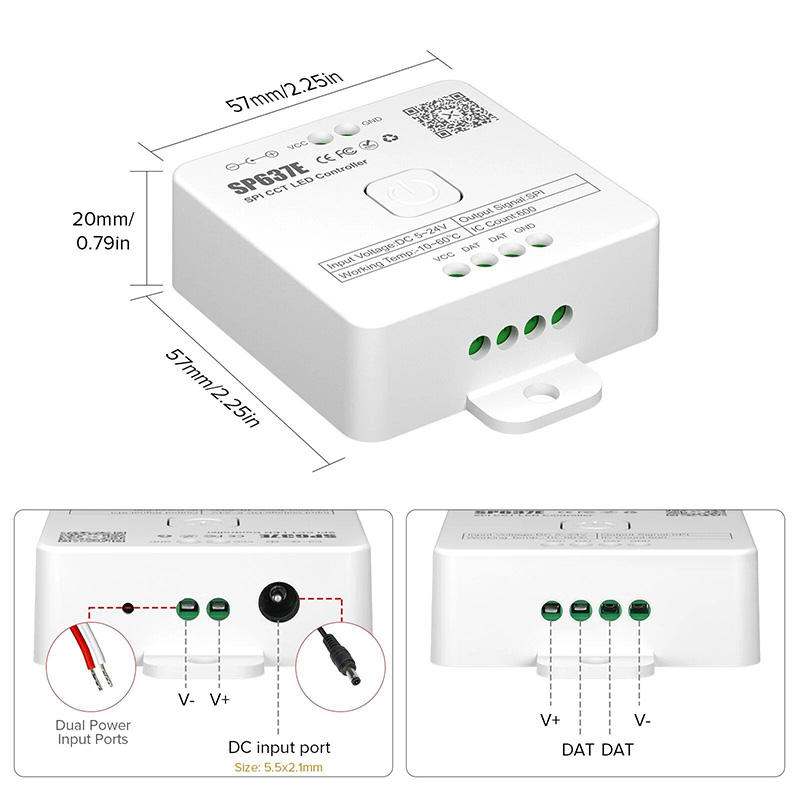

- Size: 57*57*20mm(L*W*H)
- Input Voltage: DC5-24V
- Working Current: 1mA-10mA
- Output Signal: SPI
- The Max Number Of IC Support: 600PCS Of 2 Channels Of Single-Wire RZ LED Driver ICs
- Input Ports: 5.5*2.1mm DC Input Port / V+ & V- Ports
- Ports: VCC, DAT, GND
- Color Temperature Adjustable From 2700K To 6500K
- Brightness Adjustable
- 10 Kinds Of Dynamic Effects And 5 Kinds Of Music Sync Effects
- Capture Music Through The Phone Microphone, Player Streamer And On-board Microphone
- Support Effect Collection
- With A Variety Of ON/OFF Animation Effects
- With ON/OFF Timer Function
- APP Control And RF Remote Control
- App Name: BalanX
- Mobile Operating Systems: Android 4.4 Or Above And IOS 10.0 Or Above
- Firmware OTA Upgradeable: YES
- Working Temperature: -10-60℃
- 2 Years Warranty
Includes:
1*SP637E SPI Controller
