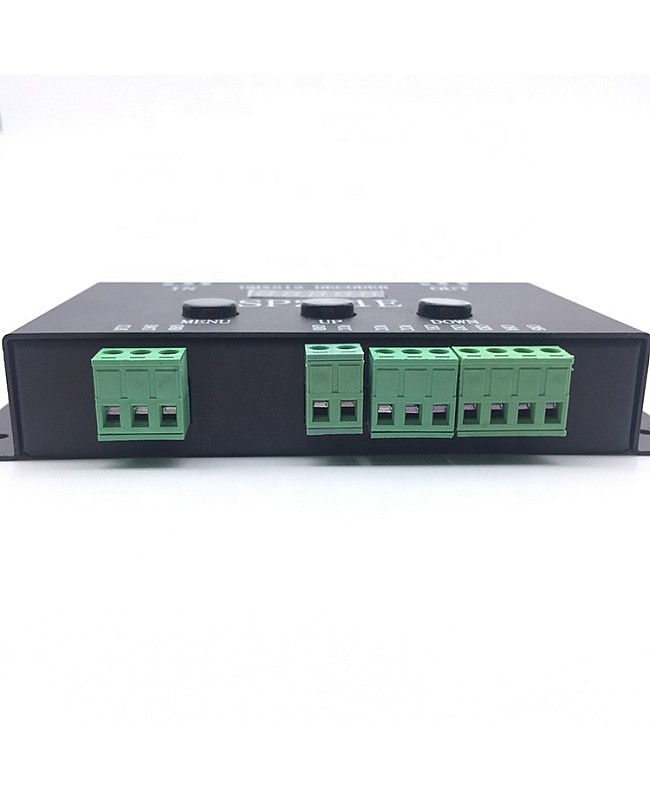

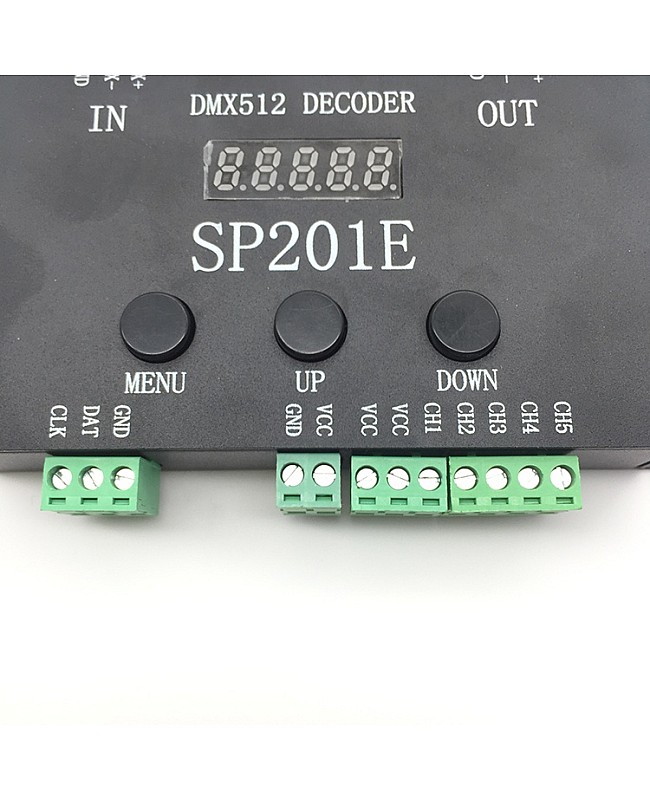

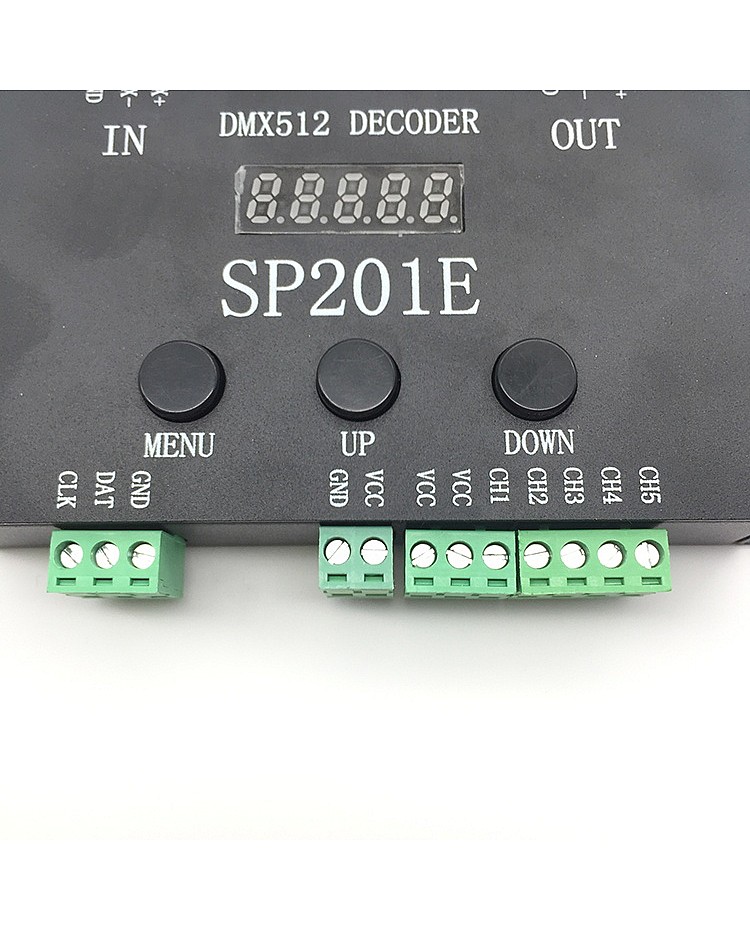

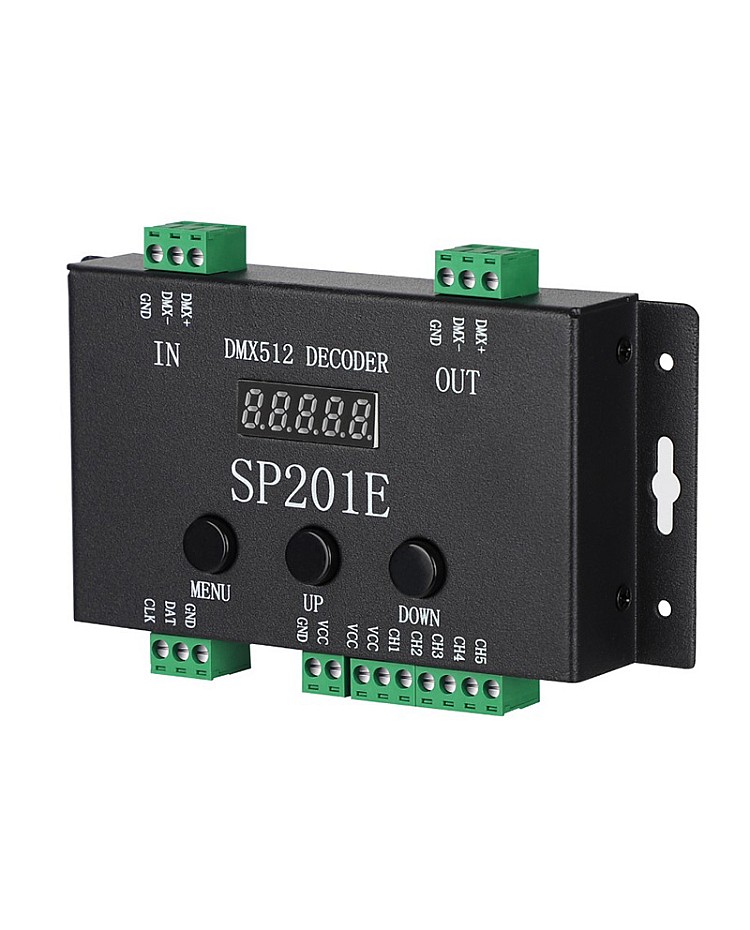

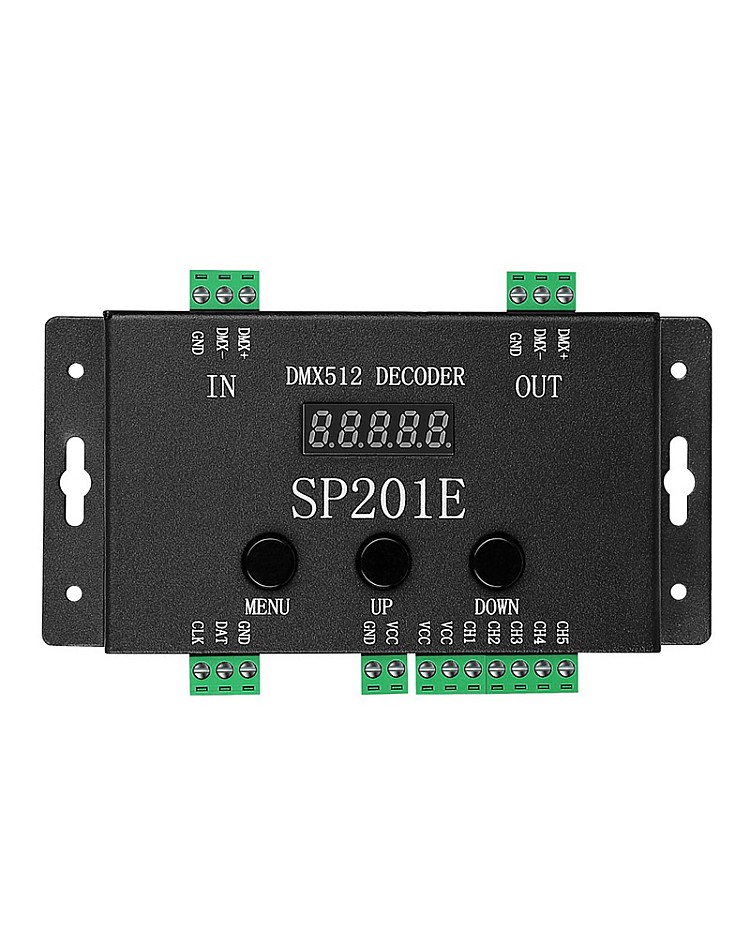

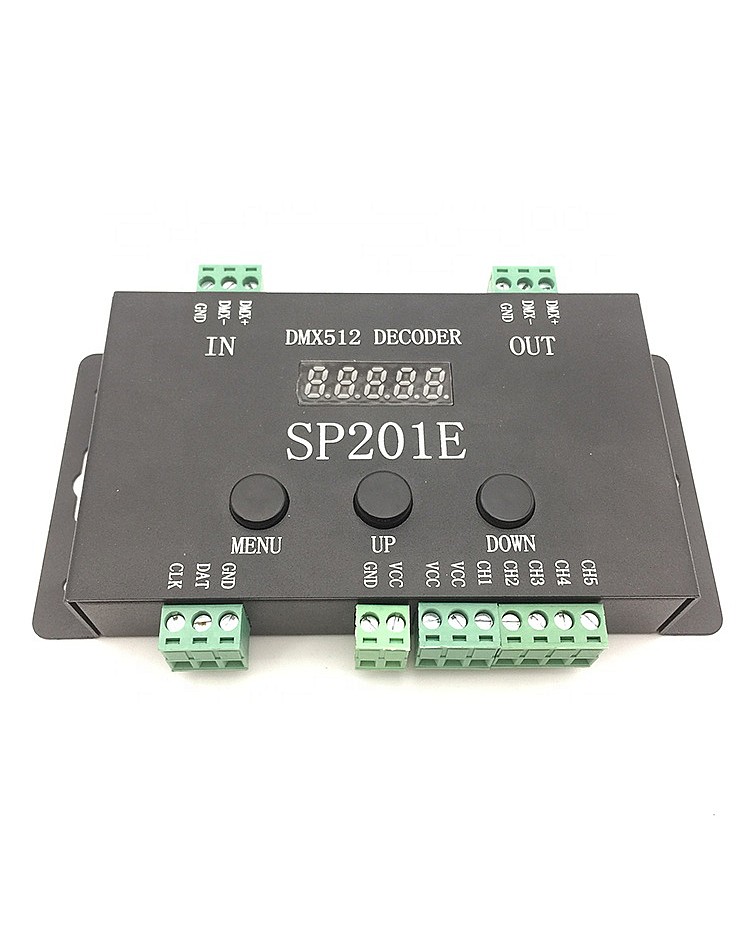

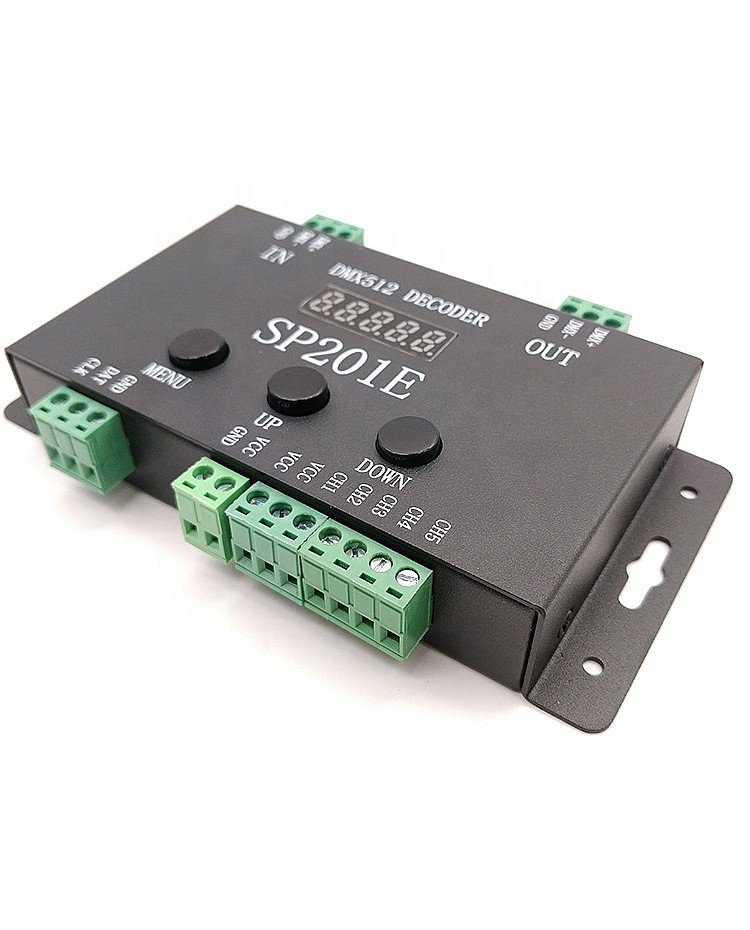

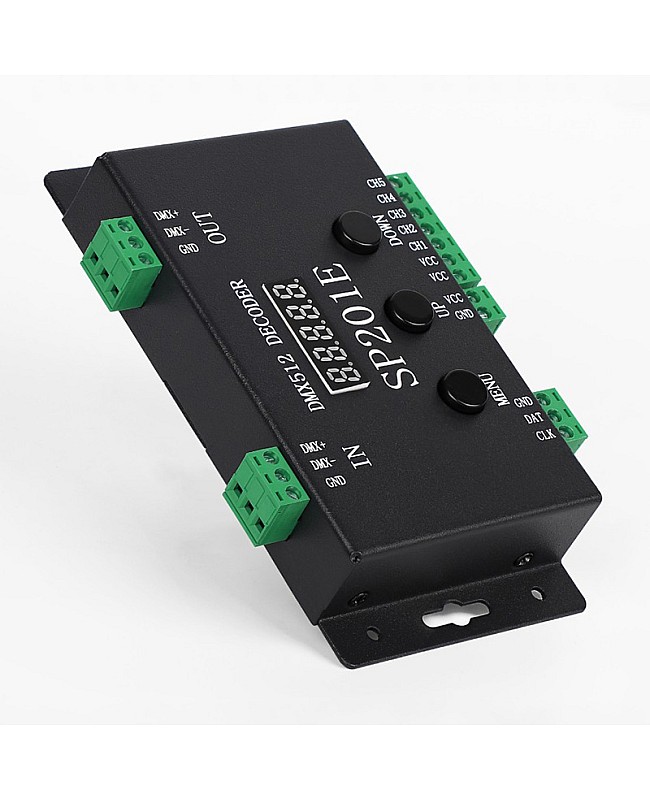

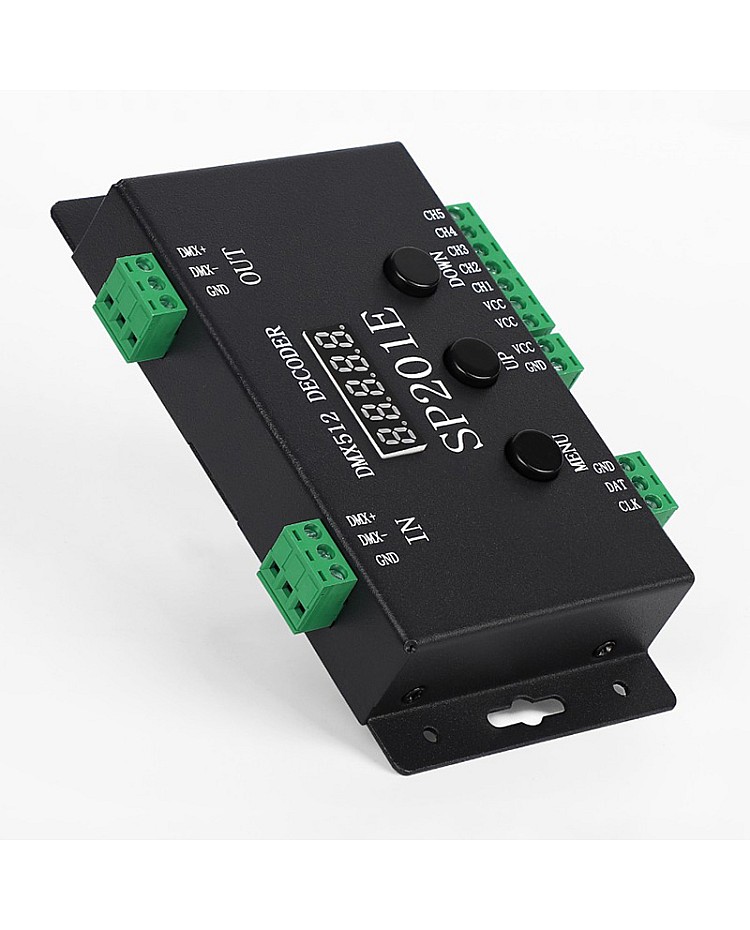

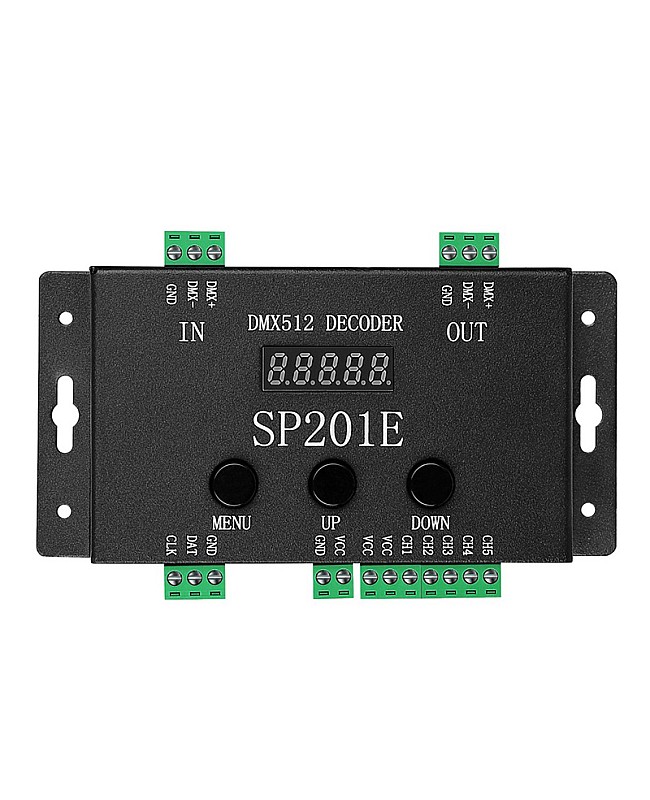

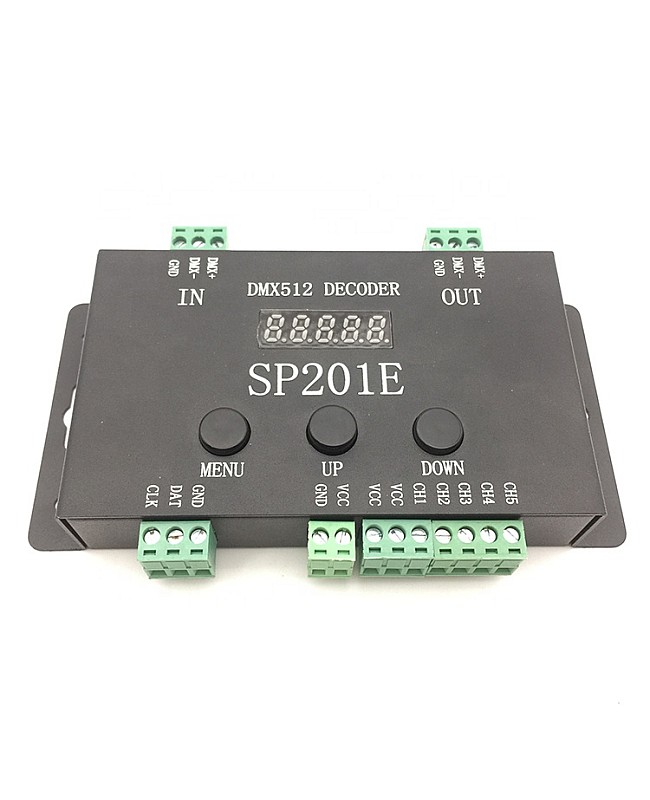

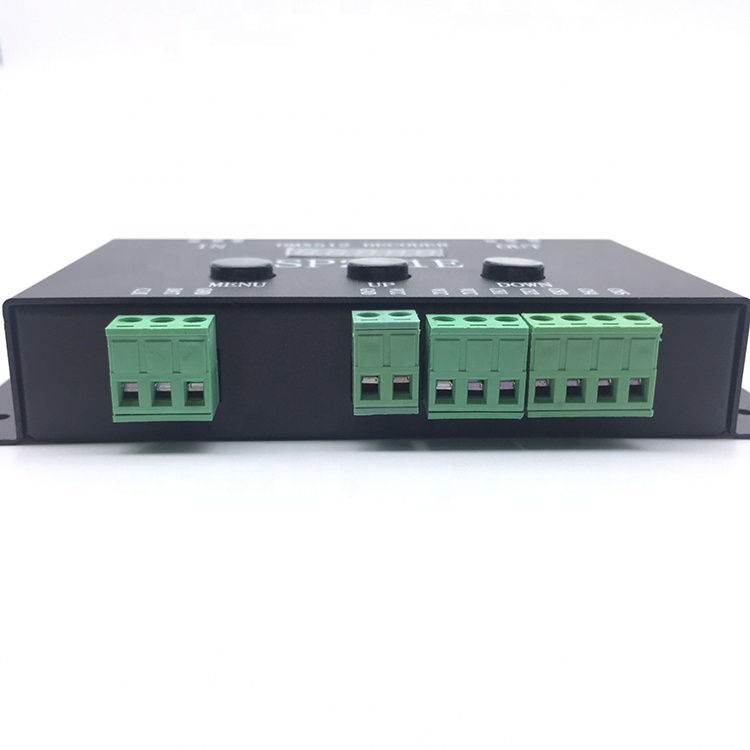

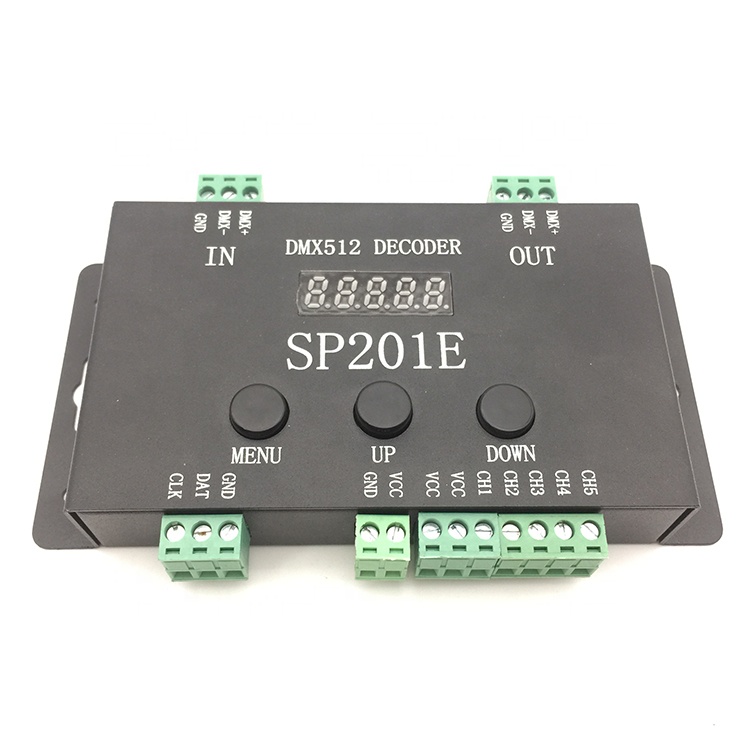

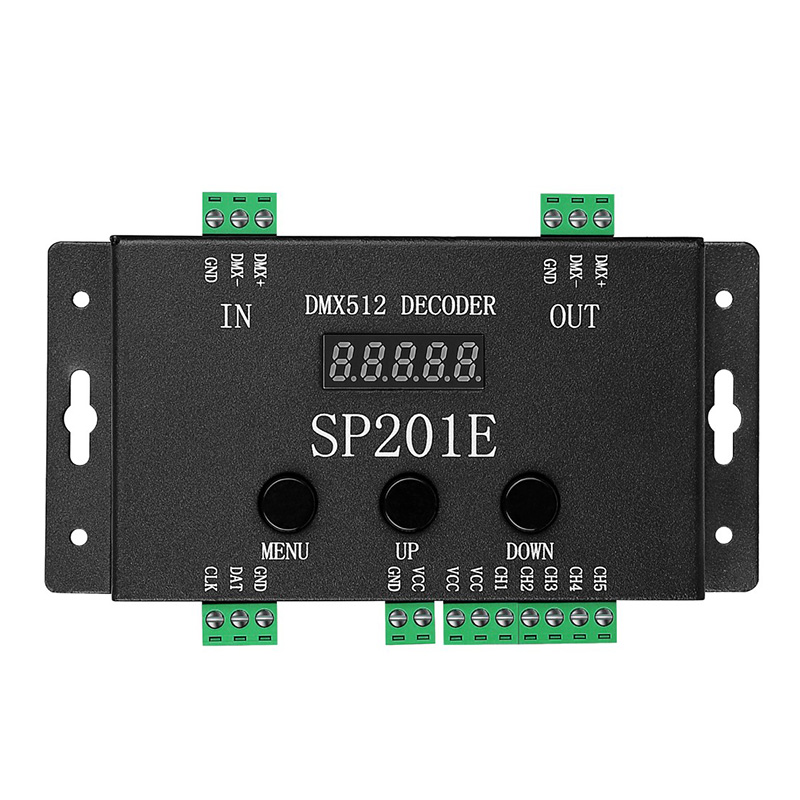

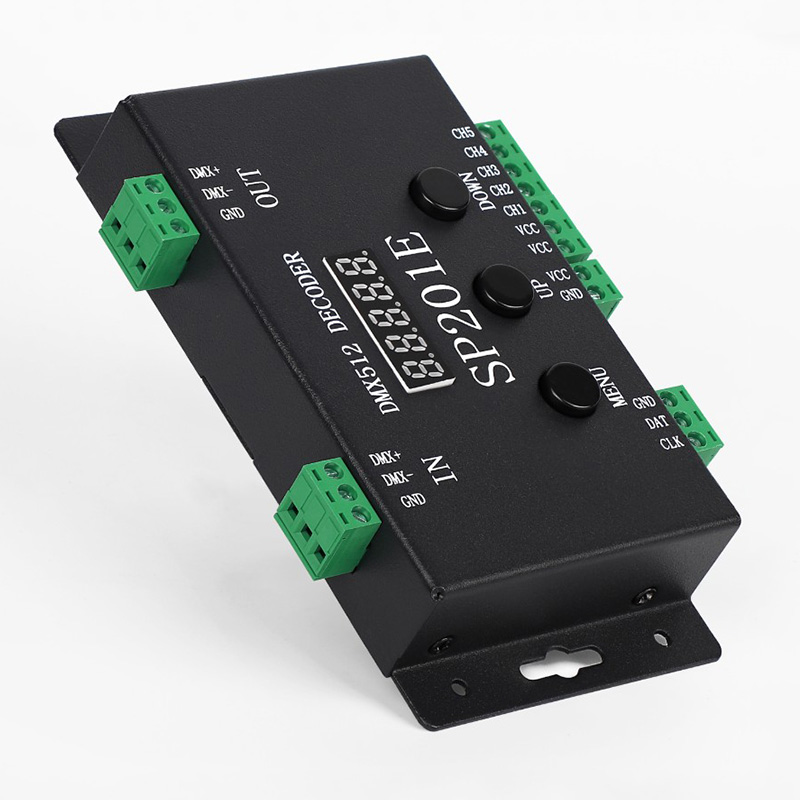

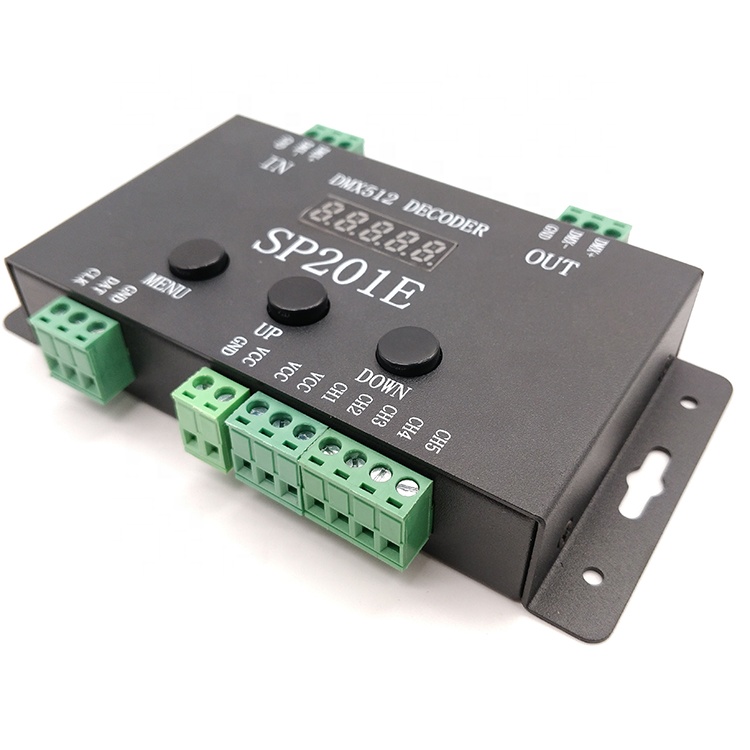

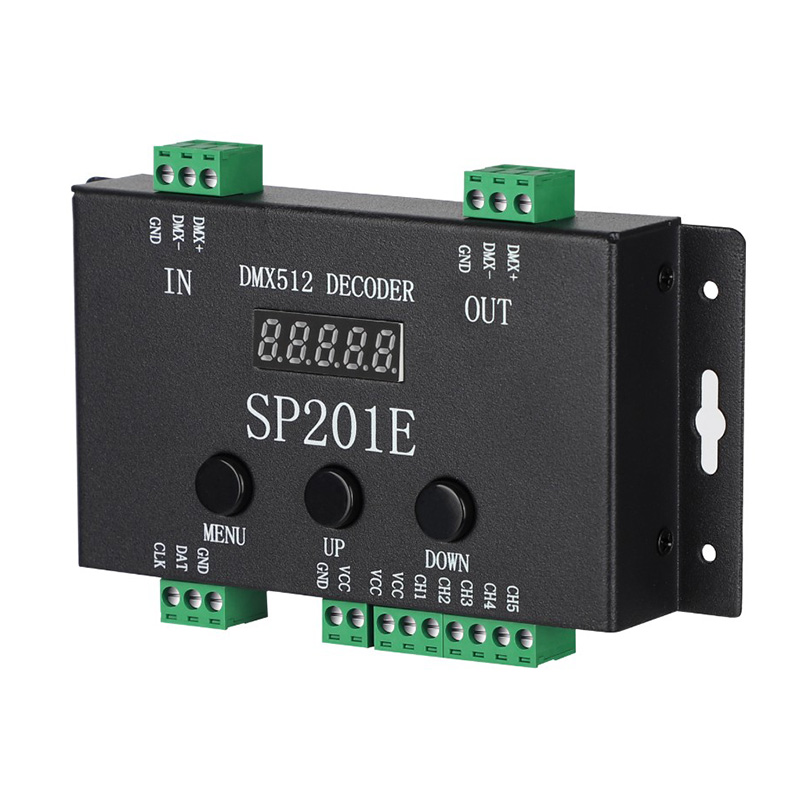

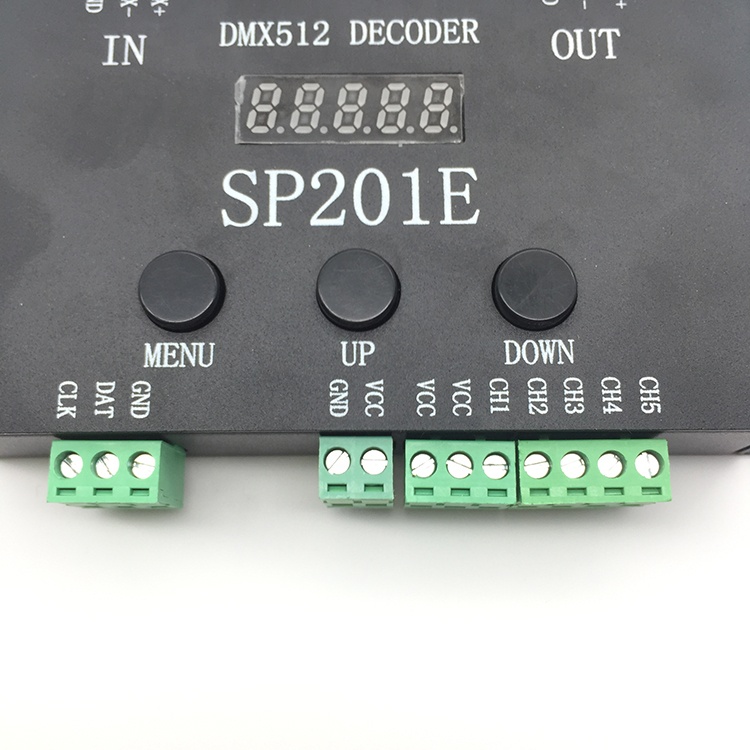

The Sperll SP201E is an excellent option for those who need a reliable and robust decoder that supports almost all one-wire and two-wire LED driver ICs, as well as DMX512. They can also be used as an SPI controller. It will convert the DMX512 signal into a standard addressable LED signal. When there is no DMX signal input, it can be used as an SPI LED controller and control up to 1024 Pixels. It features 99 built-in dynamic color modes, including flash, fading, smooth, chasing, stream, spreading, strobe, and more. It is also compatible with addressable Pixel LEDs and RGBWW 5-channel LED strips. The decoder can be cascaded with other DMX decoders and work synchronously. The DMX signal input can automatically identify DMX512 and function as a DMX decoder with a standard DMX-compliant interface. Decoding channels are adjustable, and the digital tube display shows them directly.
Link: SP201E DMX512 Decoder User Manual
Specifications:
- Size(L*W*H): 150 mm x 95 mm x 23 mm ( 5.91" x 3.74" x 0.91" )
- Working Voltage: DC5-24V
- Working Current: 24 mA-110 mA
- Built-in Patterns: 99
- Output Signals: SPI
- Control Pixels: Maximum 1024 pieces
- Control Mode: Key control/512 console control
- RGB Sequence: RGB
- Each unit supports up to 2000 channels of decoding
- IC chipset / built-in mode / speed / decoding channel adjustable
- Automatic identification of DMX512 signal
- Supporting addressable pixel LEDs and RGBWW 5-channel LEDs

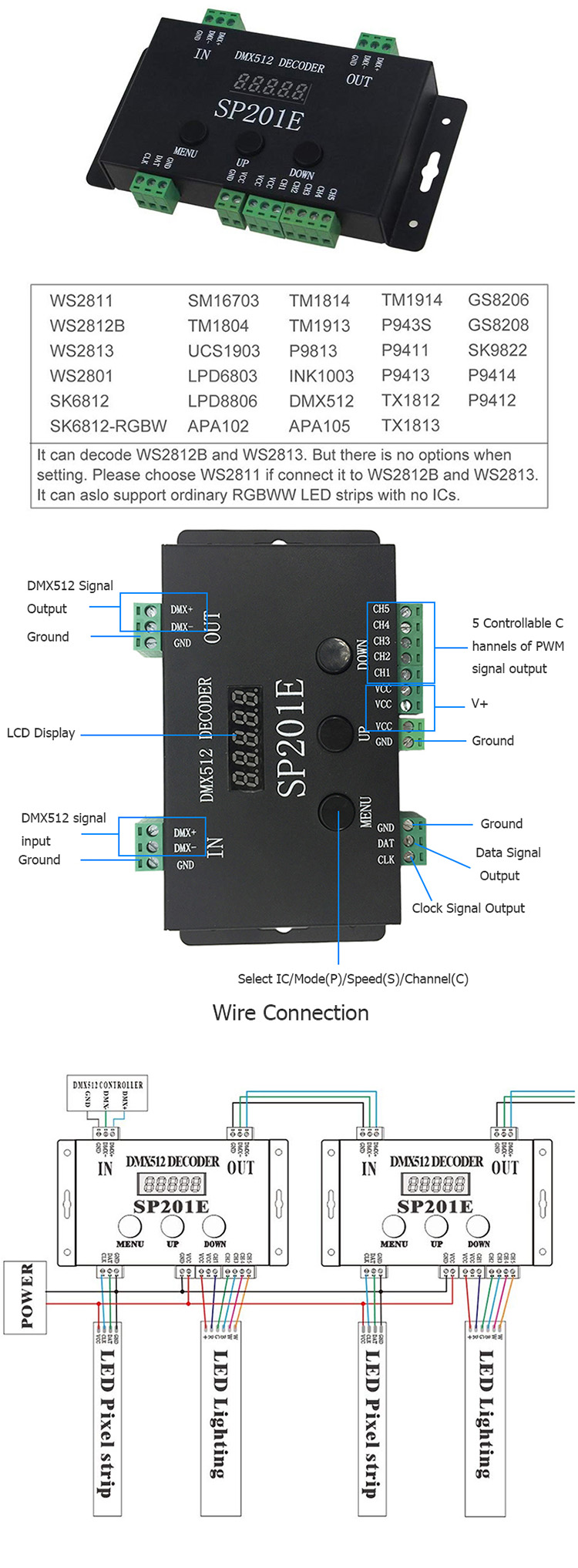

- Supports common smart ICs on the market: WS2811, WS2812B, WS2813, WS2801, SK6812, SK6812 RGBW, etc
- Works in single or multiple synchronous cascade mode
- User setting saving
- Working Temperature: -25℃-+85℃
- Certifications: CE, ROHS
- Warranty: 2 years
Includes:
1 * SPERLL SP201E controller
1 * Mini screwdriver
1 * User manual
