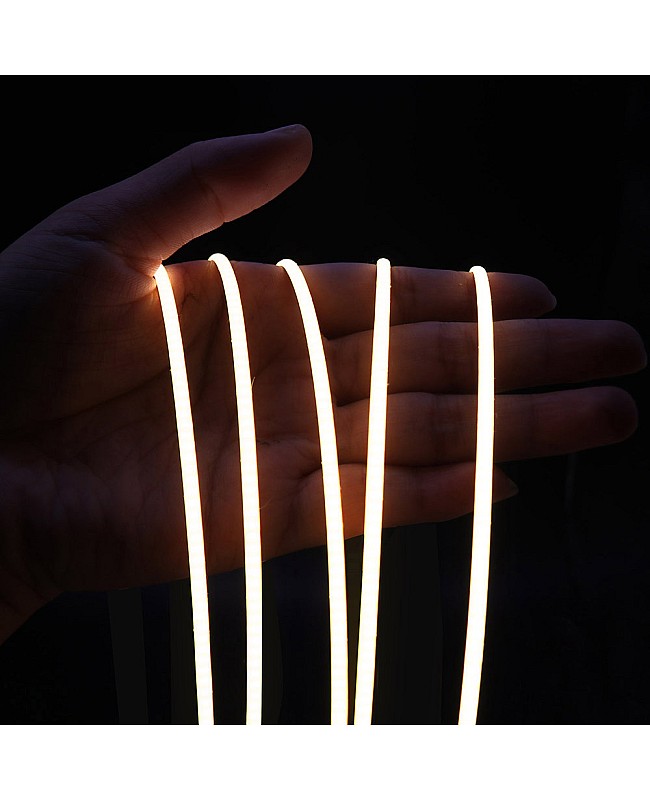

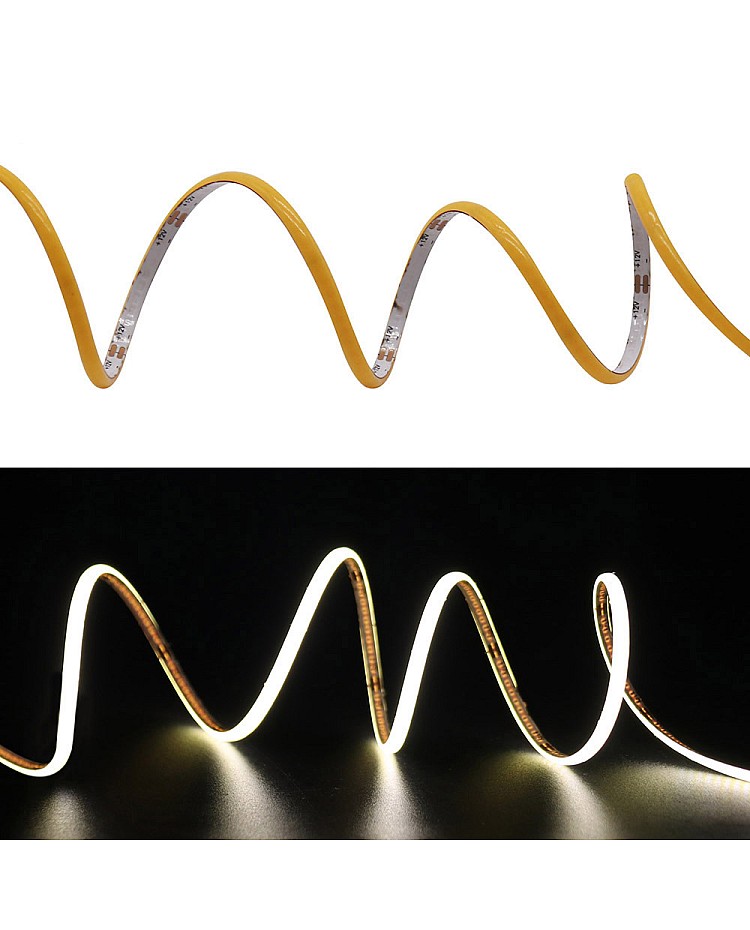

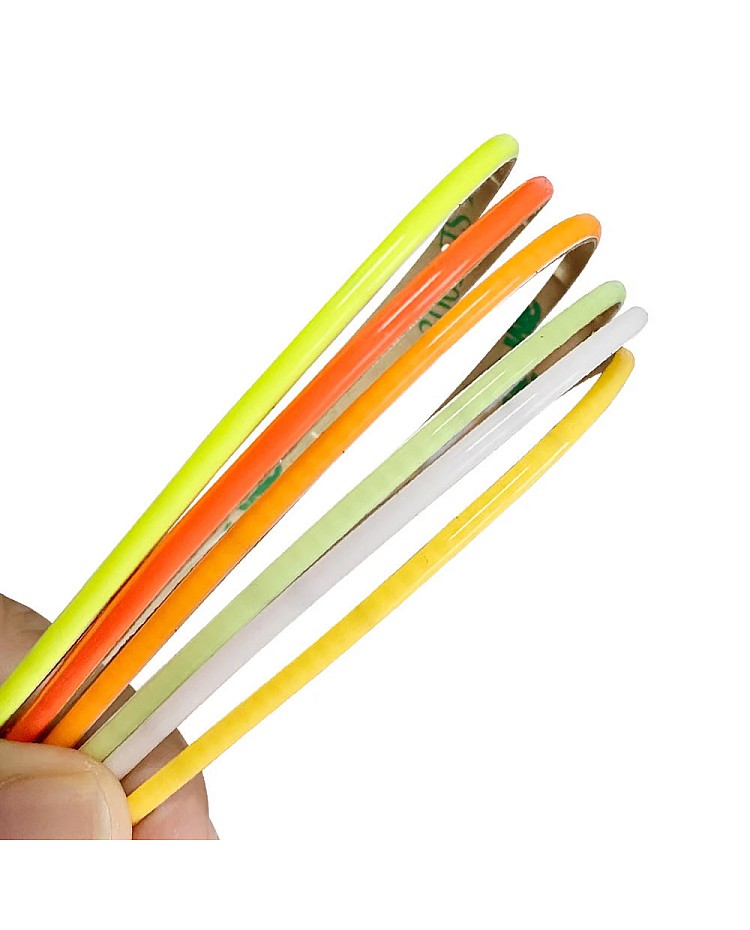

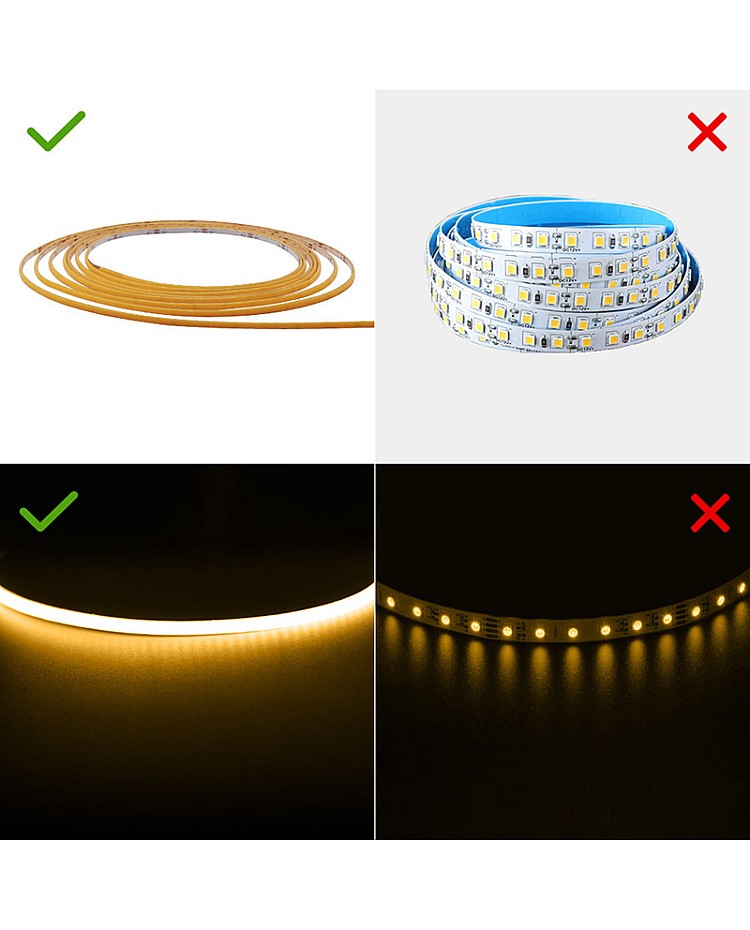

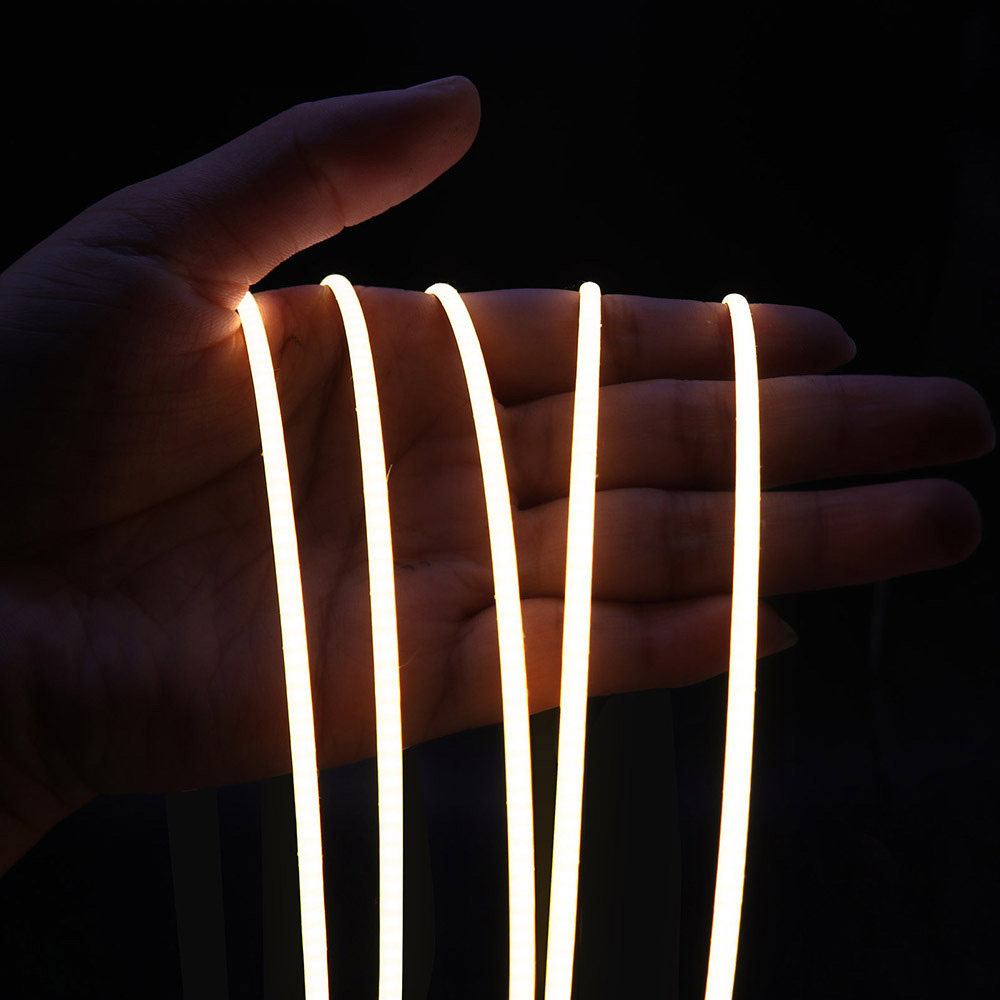

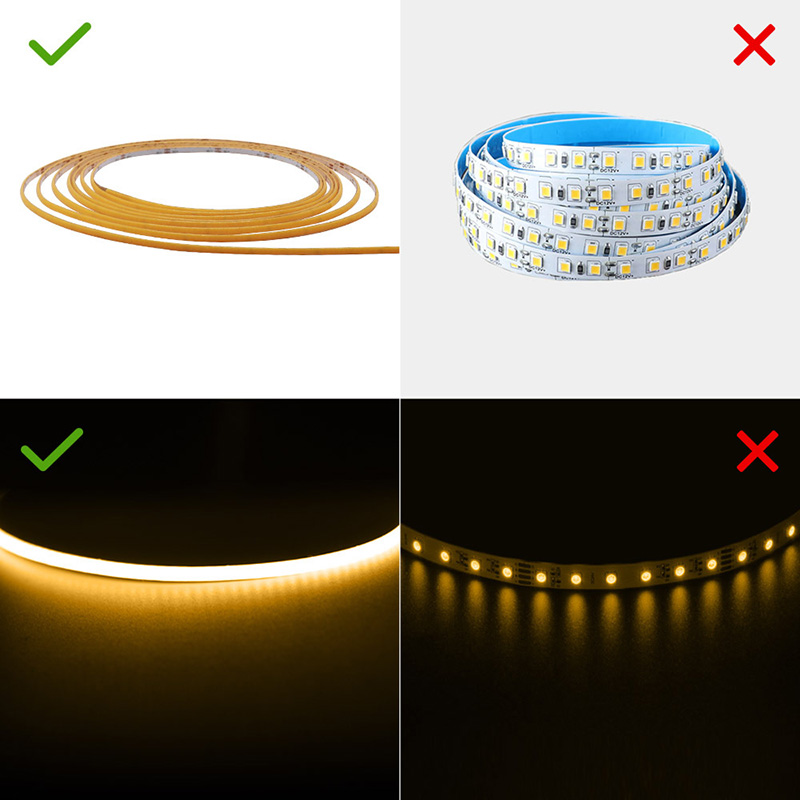

The super-narrow LED stripe utilizes advanced chip-on-board (COB) technology for seamless, uniform illumination. The ultra-thin 2.7mm width makes them an excellent choice for indoor applications where space is limited, particularly in tight and confined areas. The high-density LED design and high CRI of 90Ra, combined with high brightness, uniform light emission, and no visible light dots, ensure excellent efficiency and color consistency.
The minimum cuttable length is 25mm, making it easy to cut to the desired length for your projects. It is perfect for adding lighting under cabinets, in coves, on walls and ceilings, on furniture, and even in cars. The dimmable feature allows them to be connected to light dimmers or dimmable LED drivers to adjust the brightness as needed.

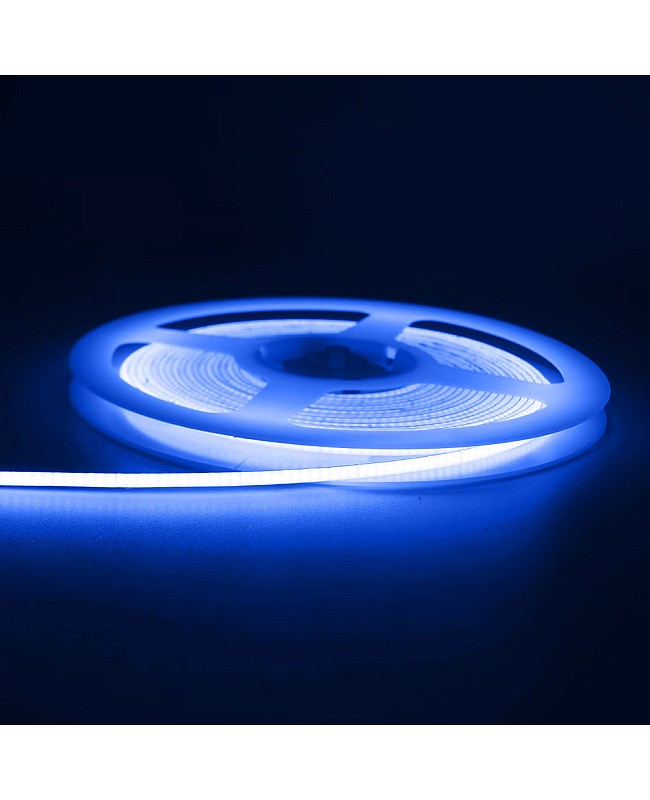

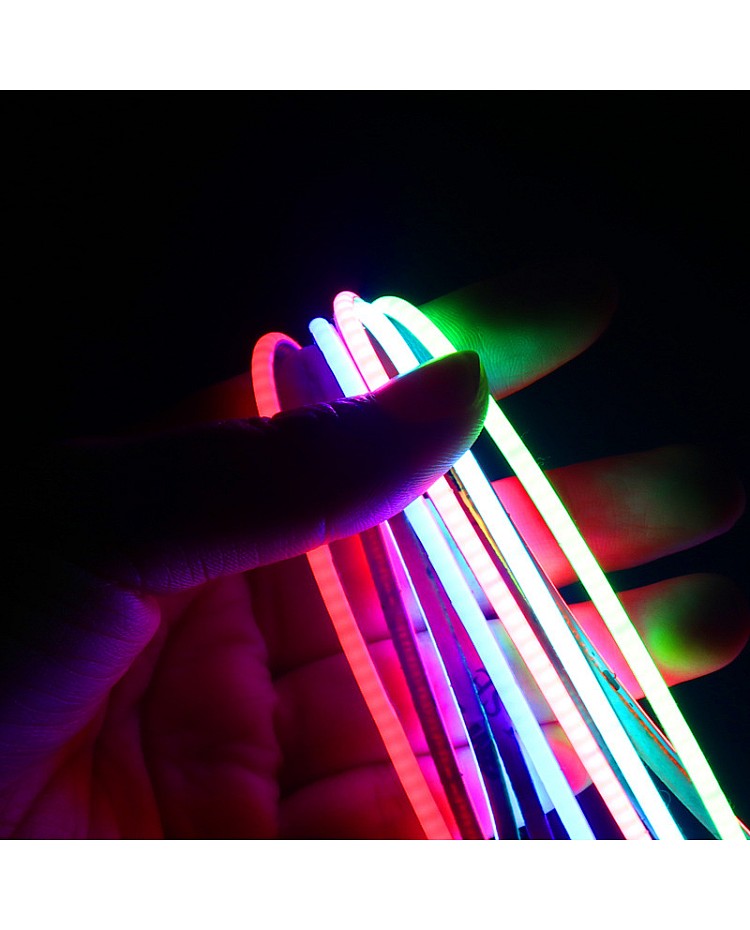

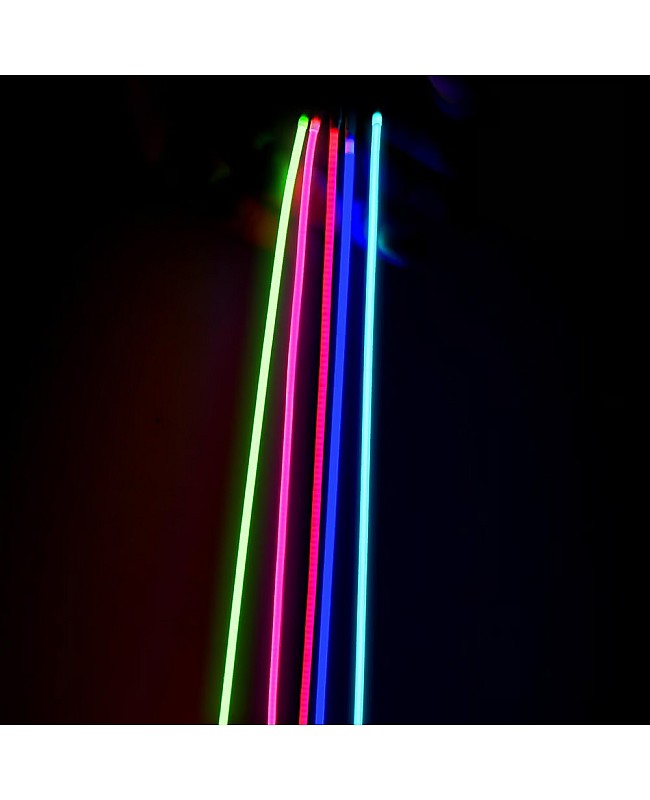

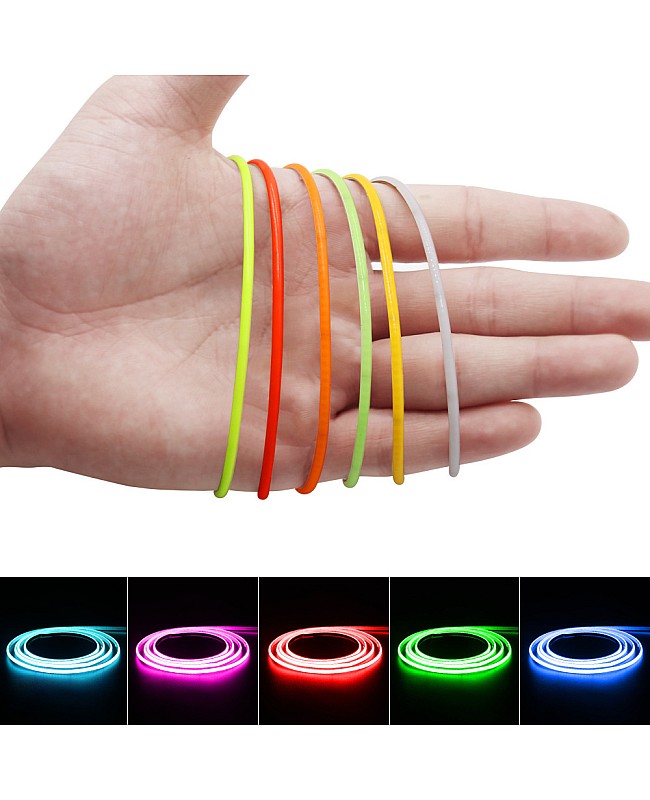

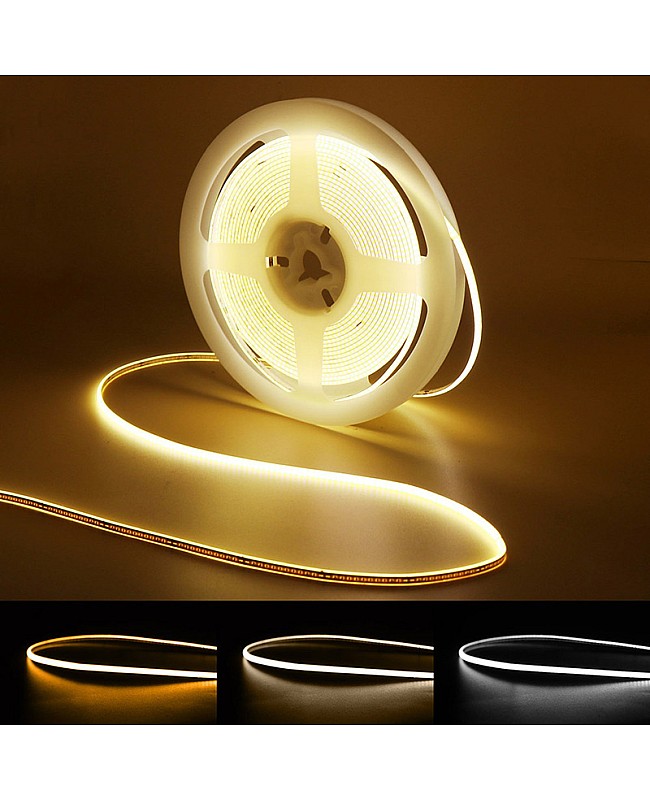

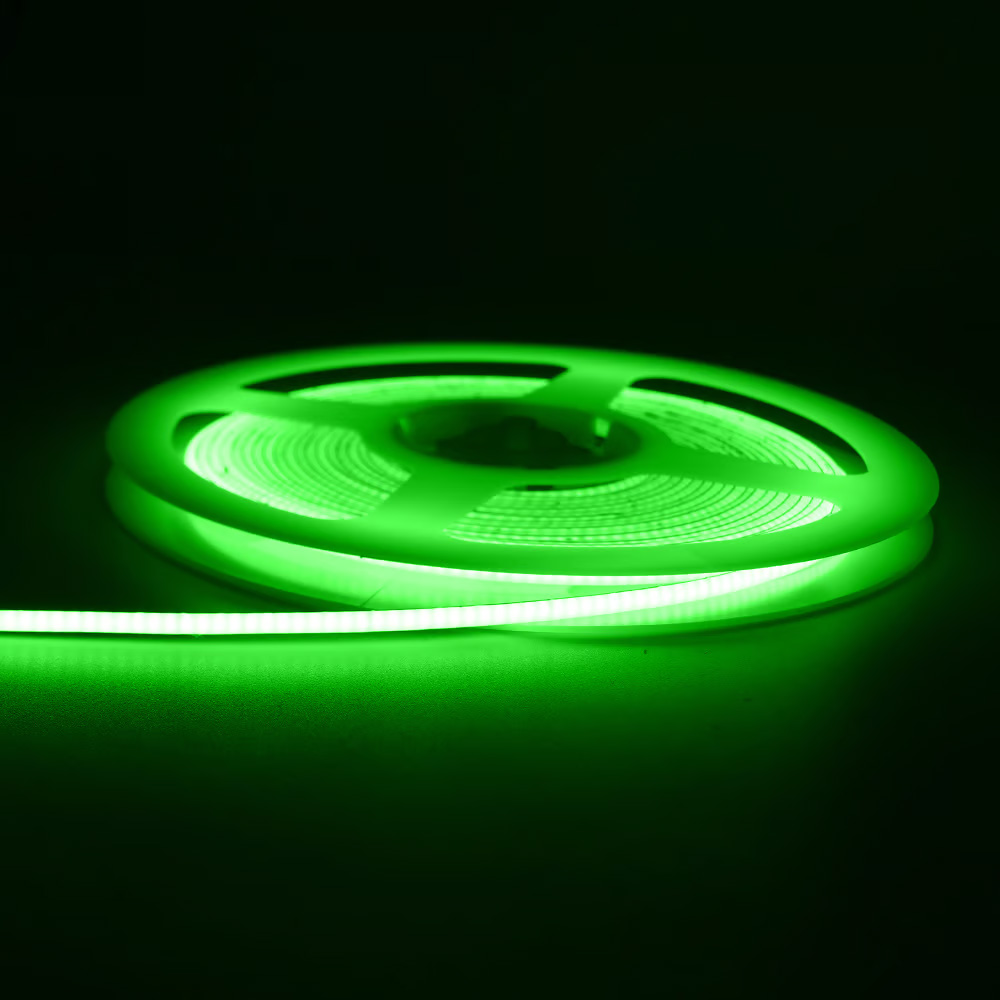

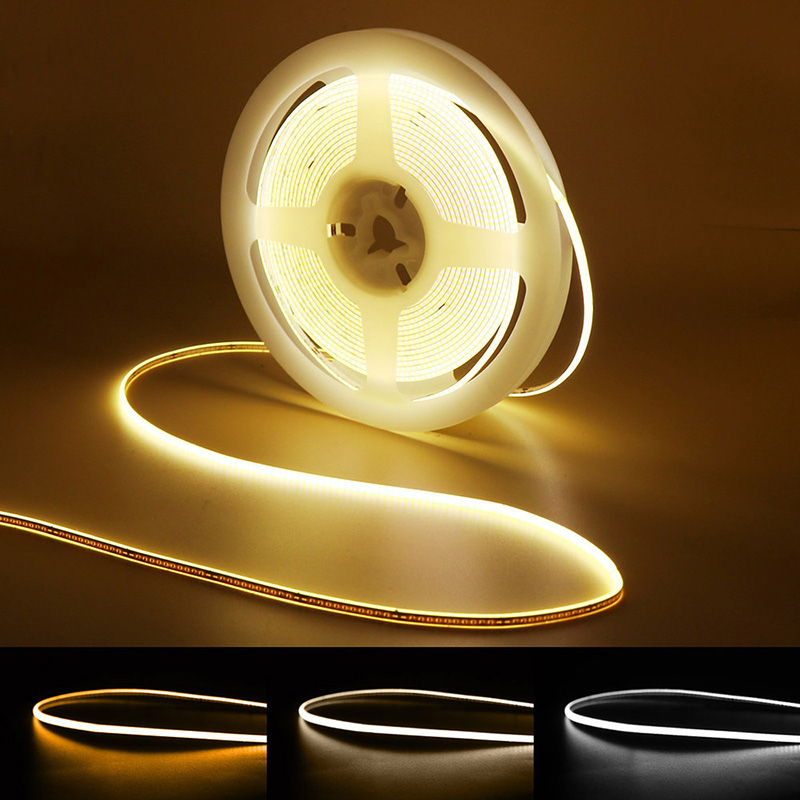

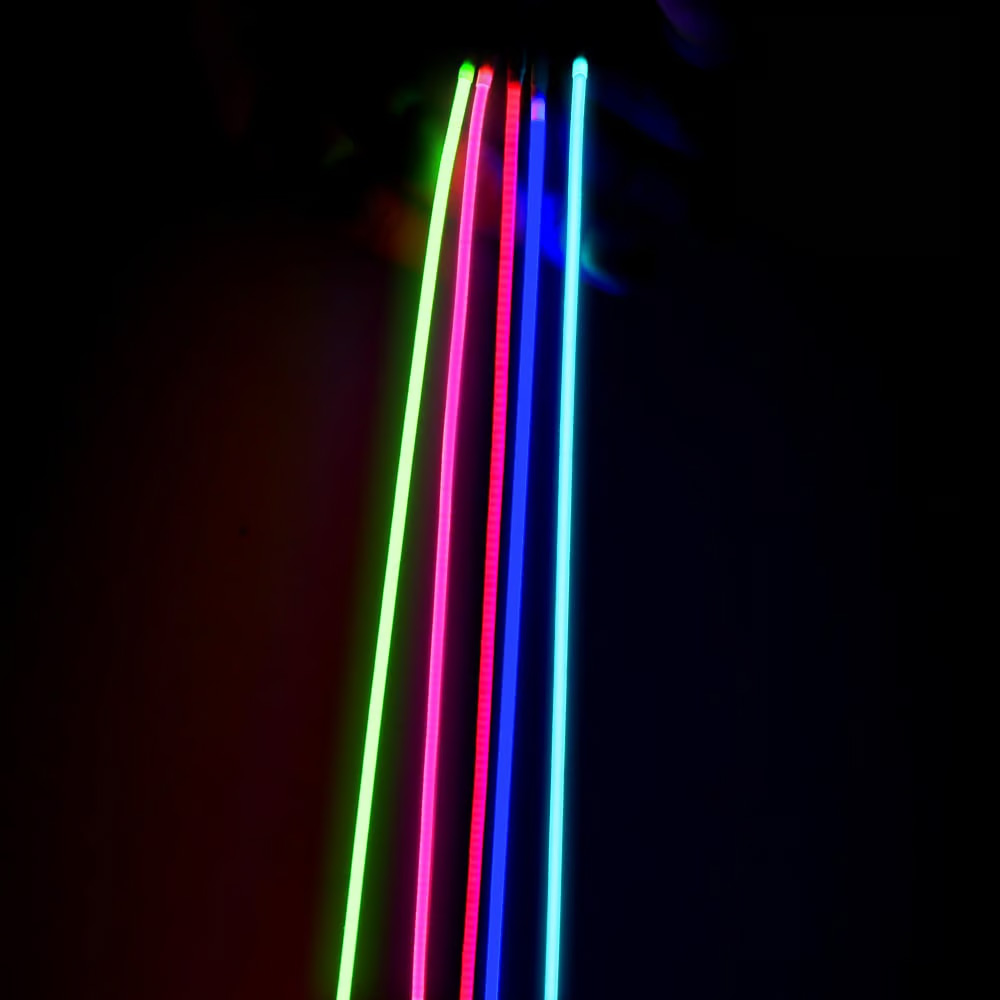

We stock many color options, including 3000K warm white, 4000K natural white, 6500K cool white, as well as blue, red, green, and pink. There are three voltage options available. You can choose DC12V, DC5V, and DC3.7V.
Specifications:
- Working voltage: DC3.7V / DC5V / DC12V
- LED type: 1022
- LED quantity: 480PCS per meter
- Length: 5 Meters ( 16.4ft ) per roll

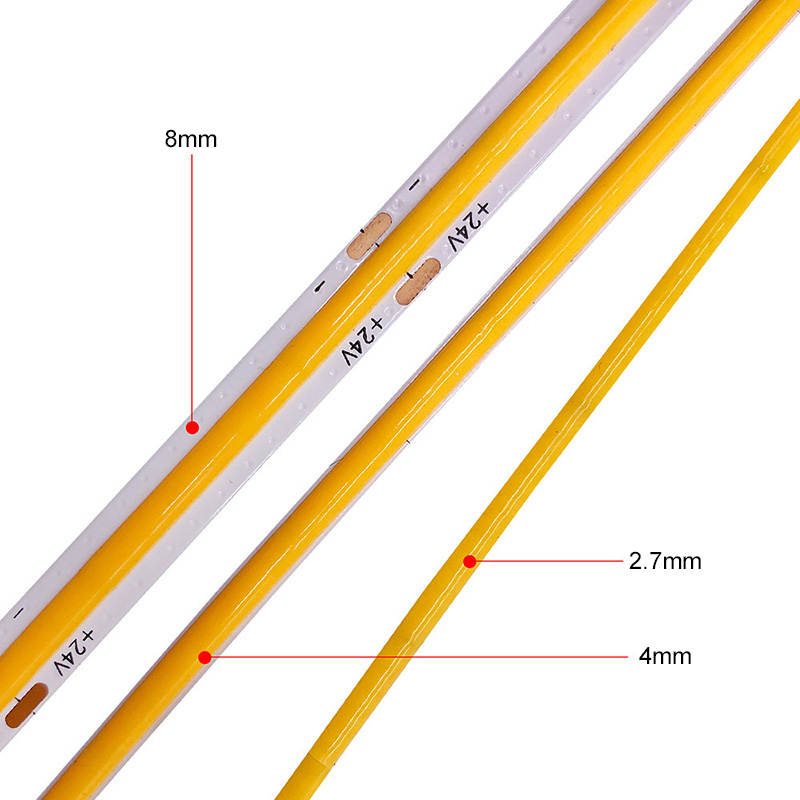

- Width: 2.7 mm / 0.11"
- Power: 5W/Meter

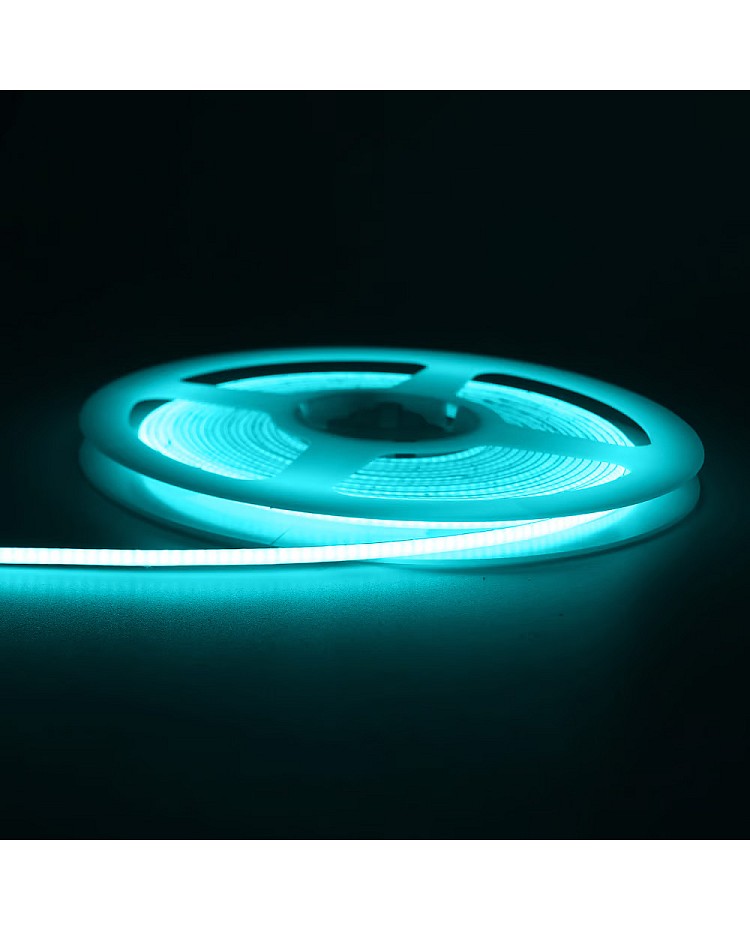

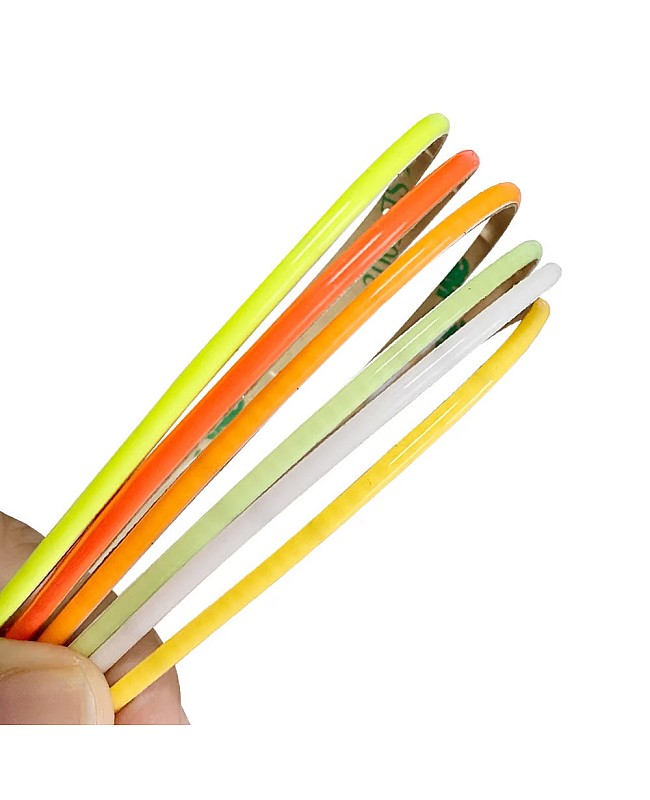

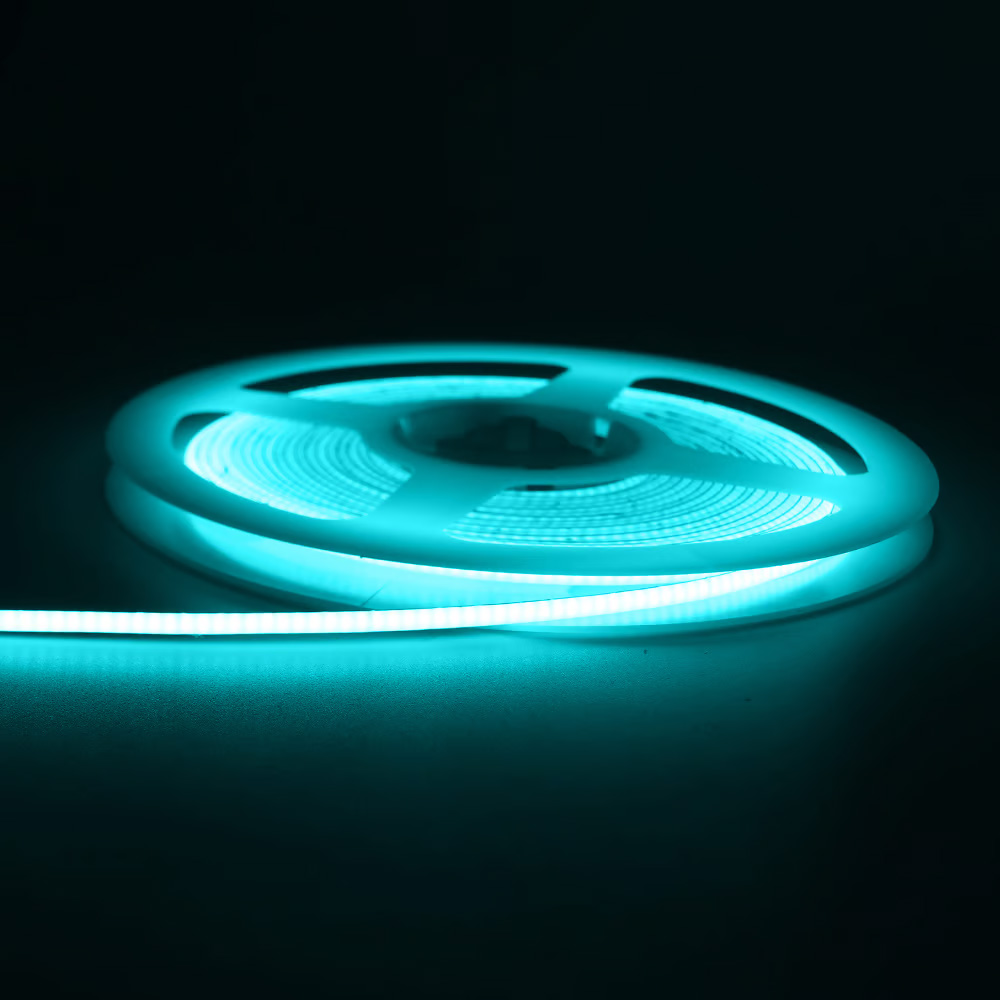

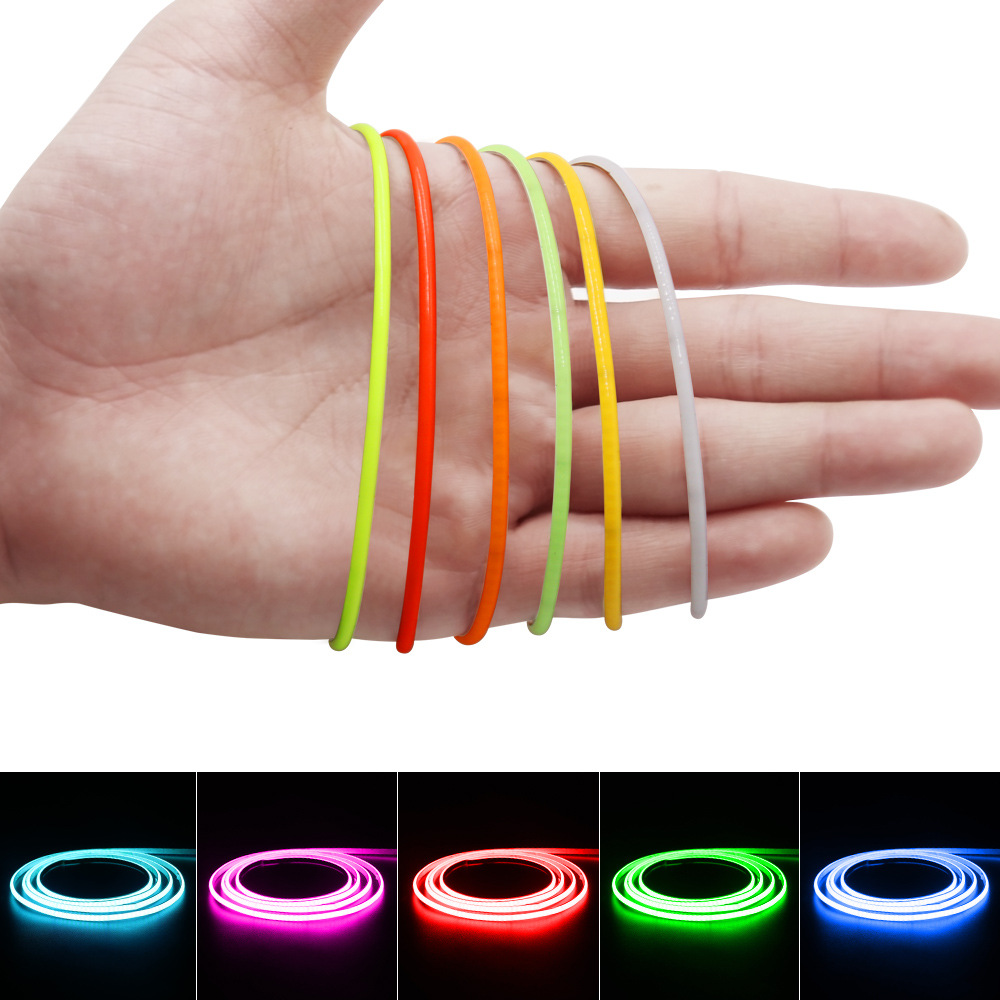

- Colors: Warm white ( 3000K ), natural white ( 4000K ), cool white ( 6500K ), blue, ice blue, red, green, pink, orange, yellow
- Light efficiency: 100-140LM/W
- Beam angle: 180°
- Color rendering index: >90Ra

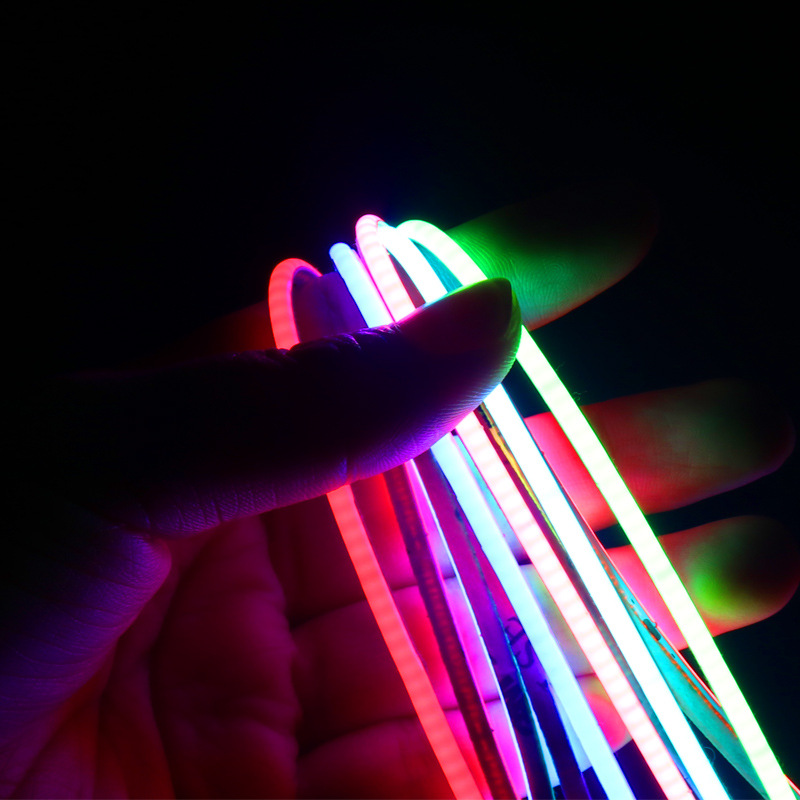

- Dimmable: YES
- IP rating: IP20 non-waterproof
- Cuttable: YES

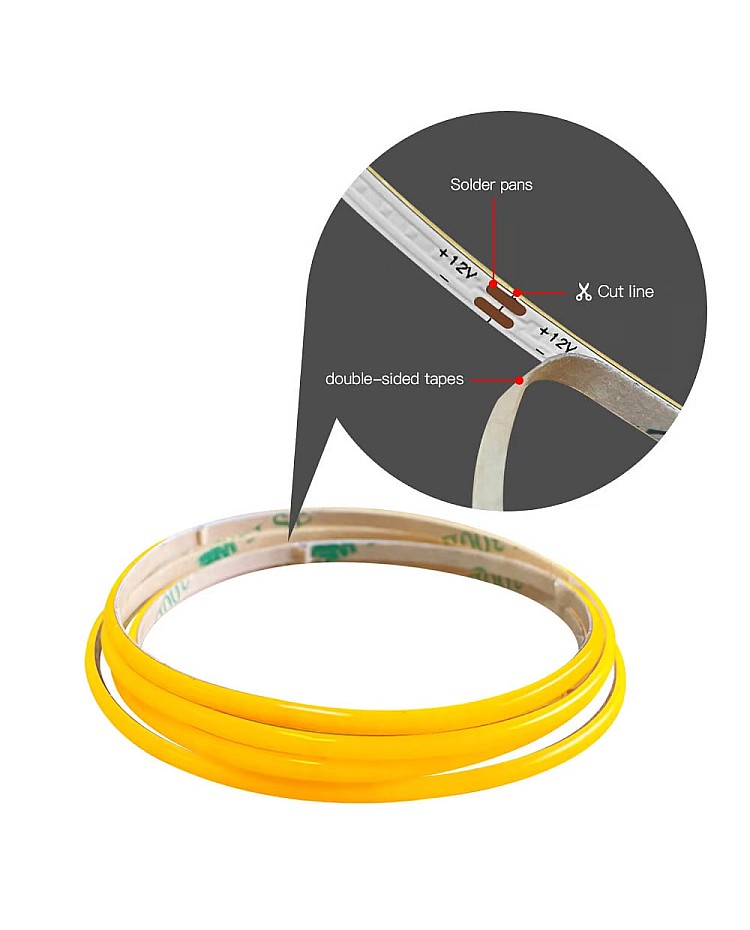

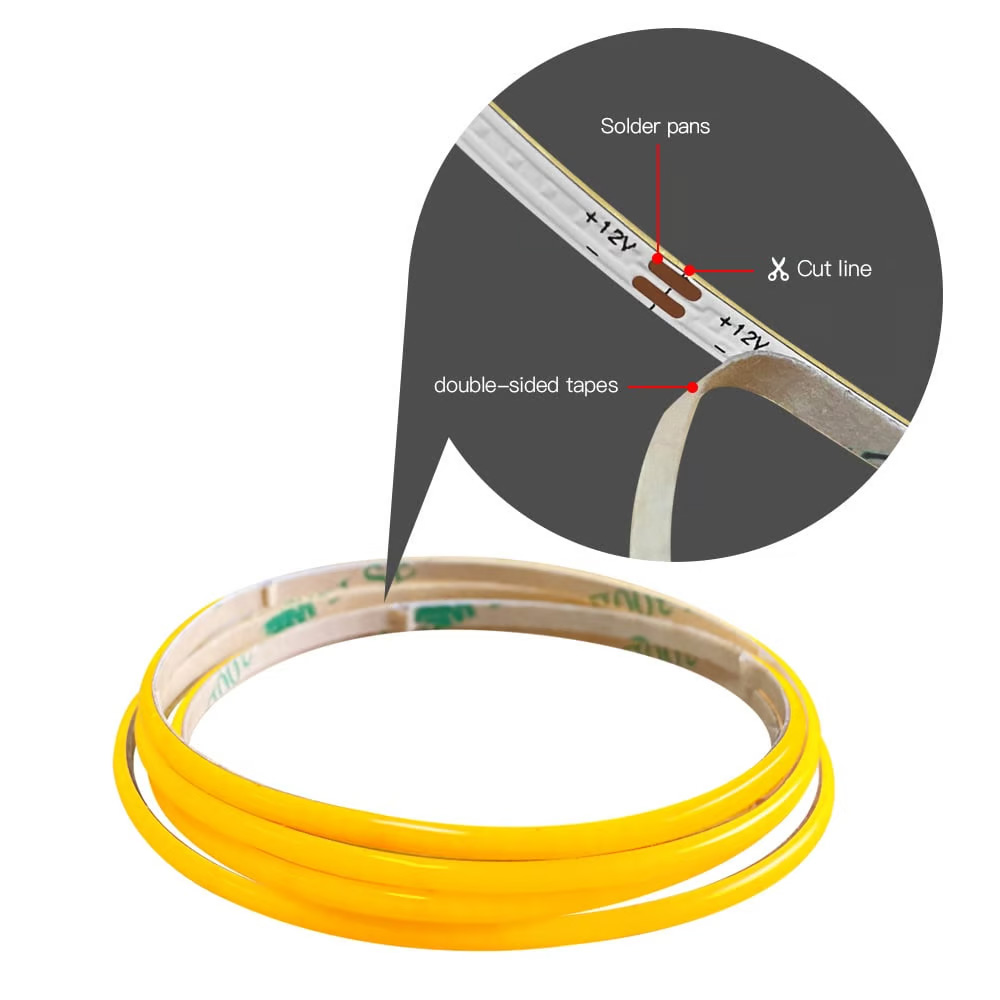

- Minimum cutting length: 25mm

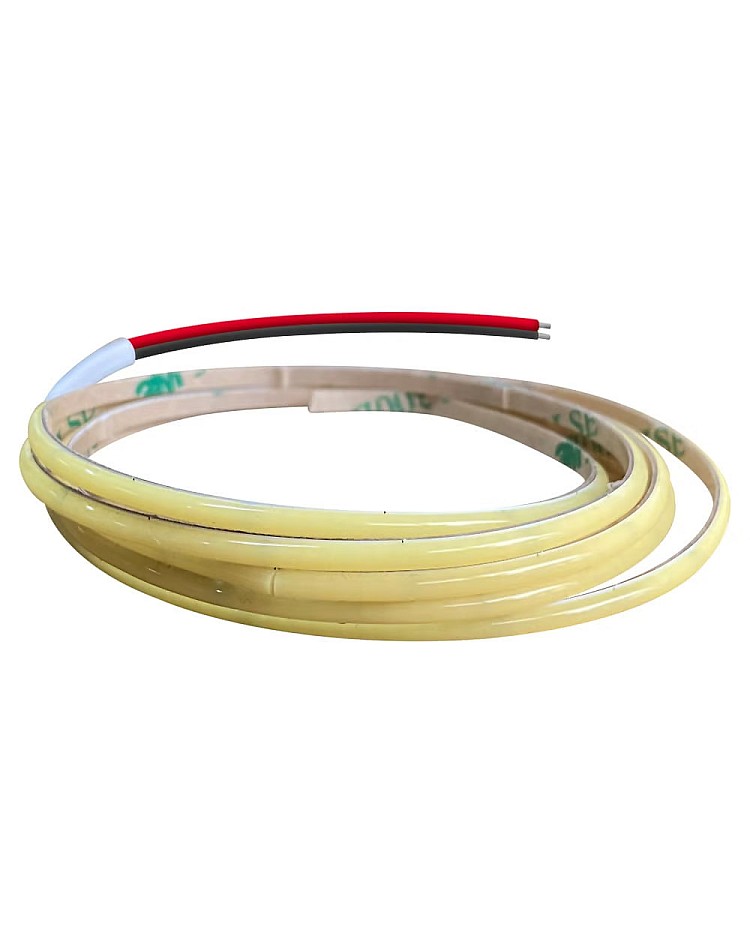

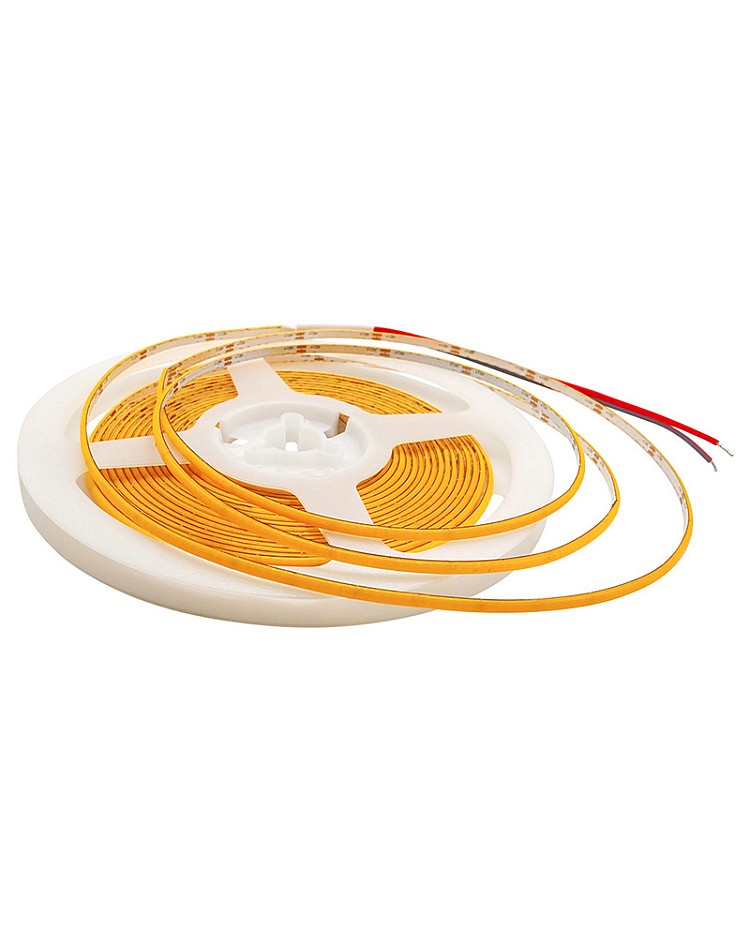

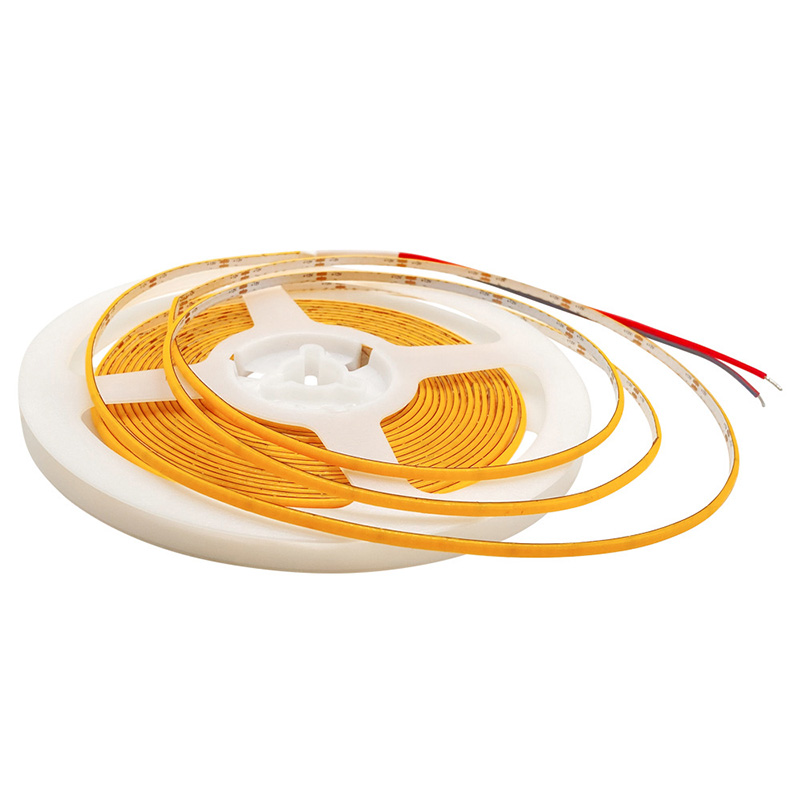

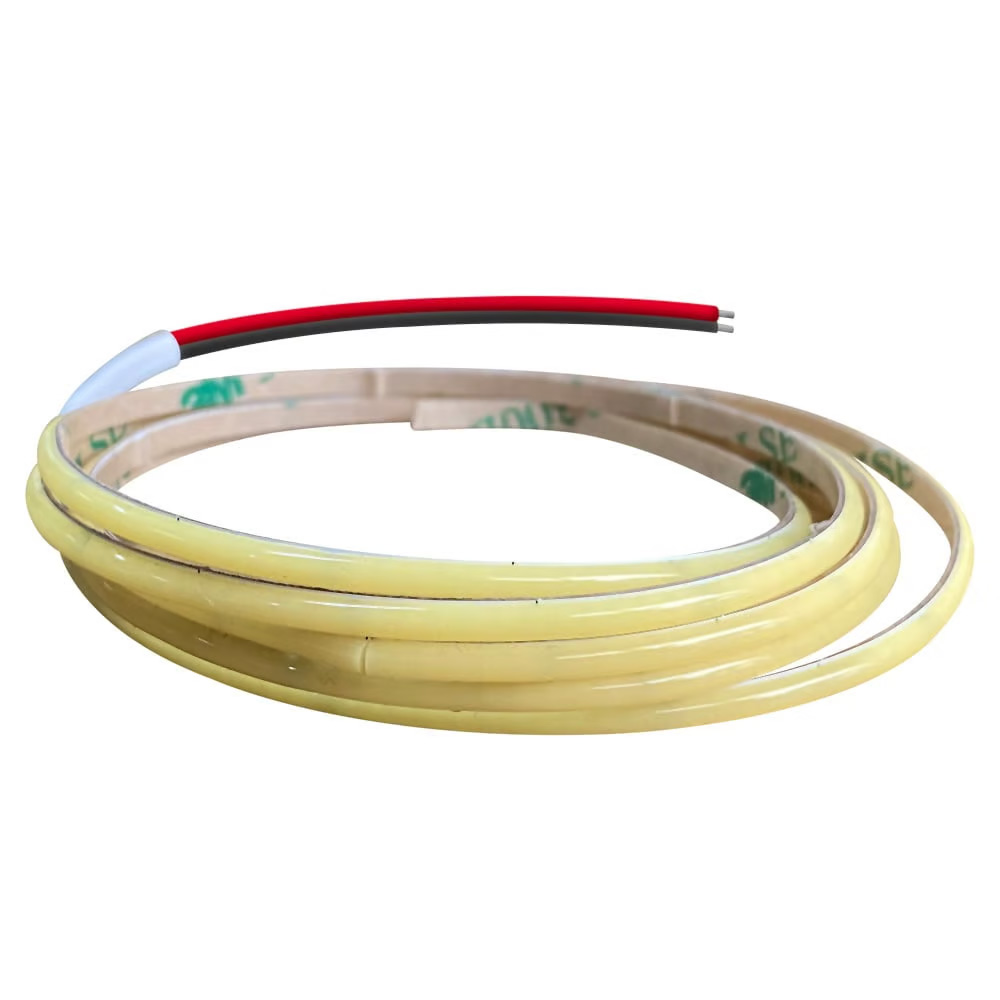

- Both ends have wires: The red wire connects to the positive terminal, and the black wire connects to the negative terminal.

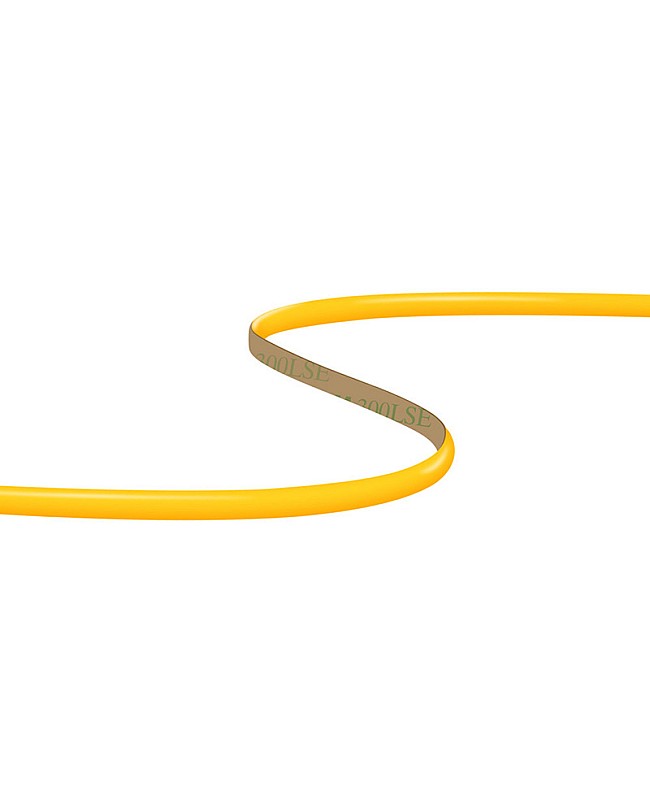

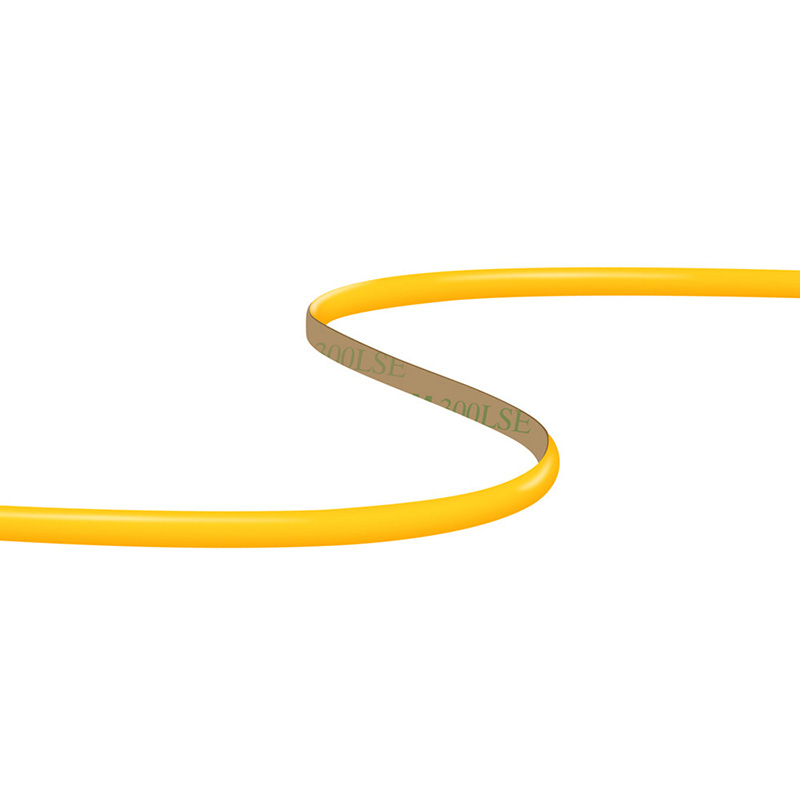

- The back has double-sided adhesive tape
- UL listed
- Working temperature: -20℃-+45℃
- Storage temperature: -40℃-+85℃
- Lifespan: 50,000 hours
- Applications: Cars, trucks, bars, wine cabinets, wardrobes, TVs, irregular design bodies in hotels/nightclubs, KTVs, signs, holiday decorations, buildings, etc
- Warranty: 3 years
Includes:
1 x Ultra-thin LED COB stripe light
