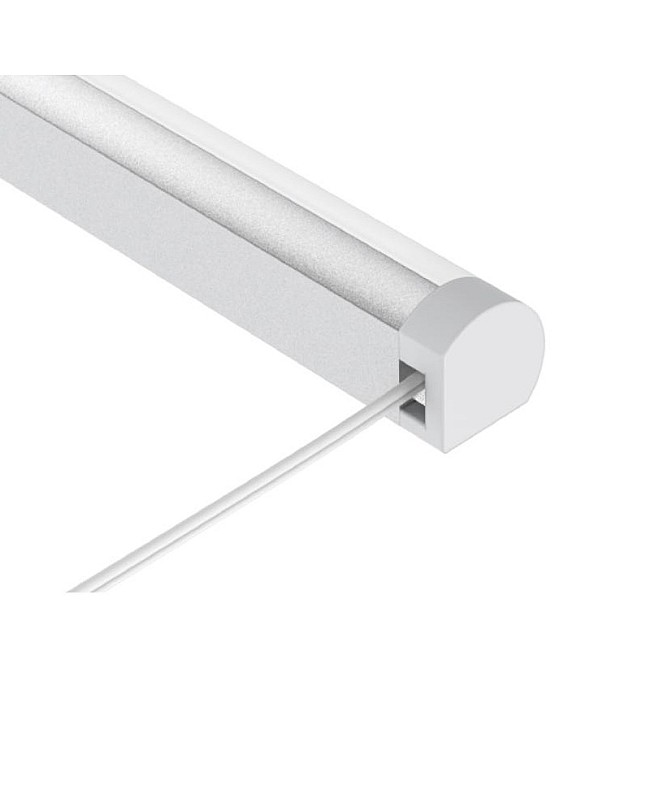

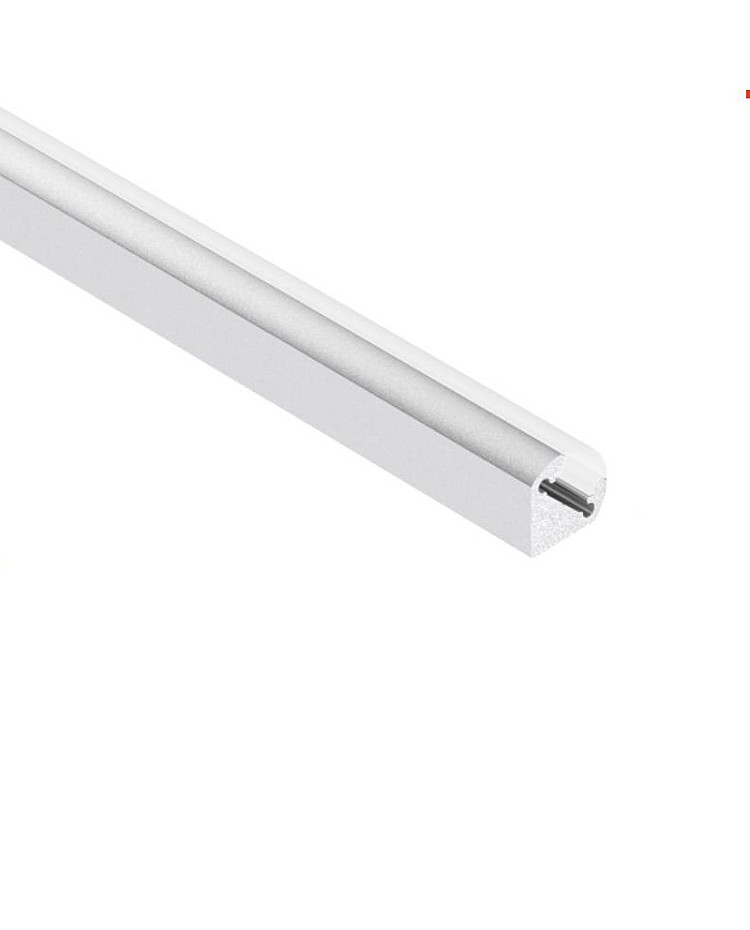

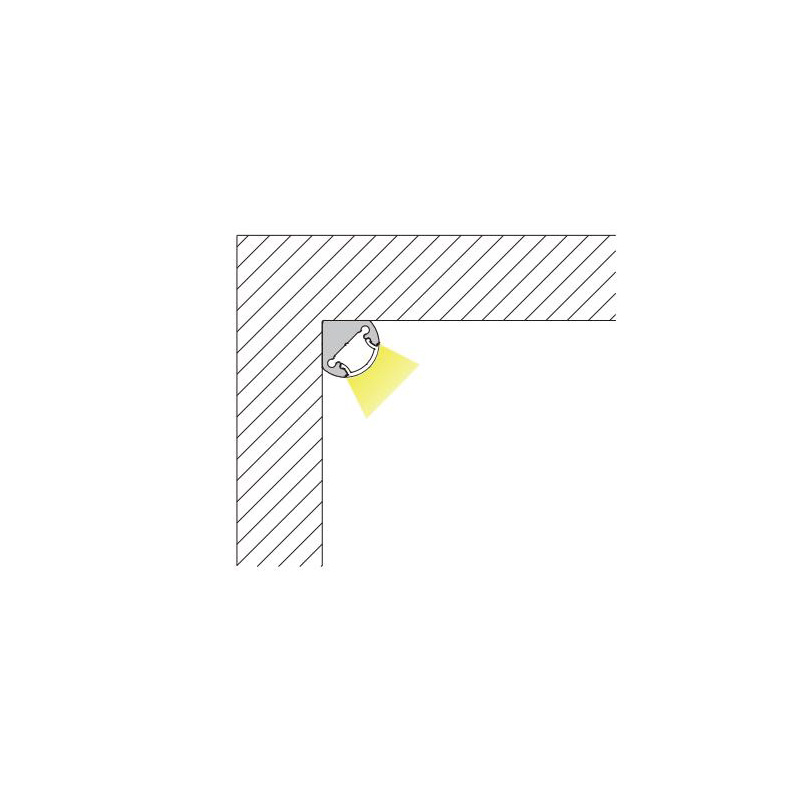

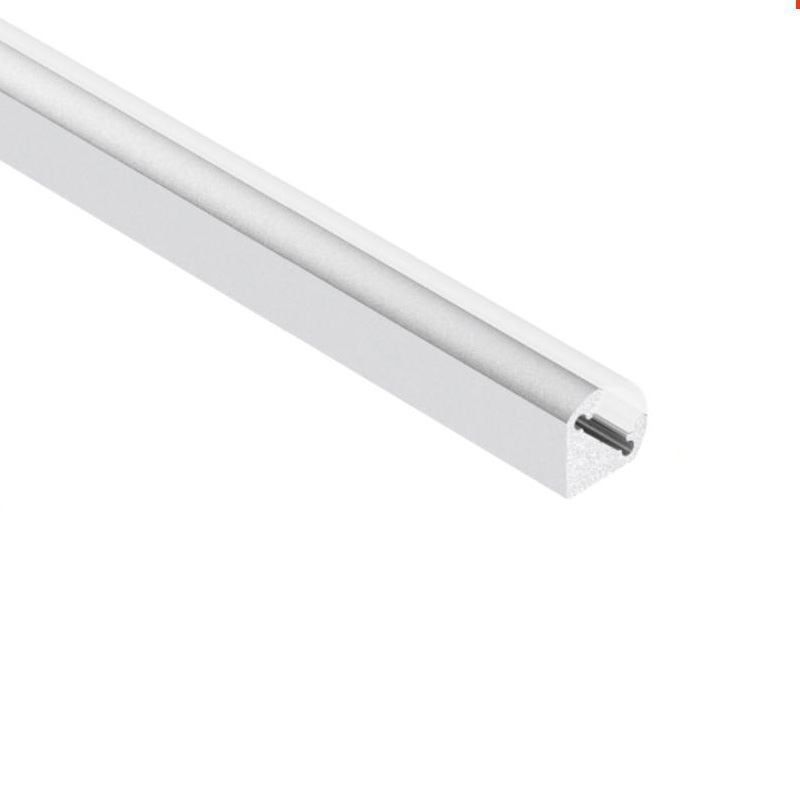

The mini corner-mounted light channels are compact and versatile lighting solutions, providing a great way to add smooth, glare-free illumination under cabinets, counters, shelves, and other tight spaces. Featuring a 45-degree lighting design will provide an even and consistent light, enhancing visibility and aesthetics. The LED light channels are made of 6063-T5 extruded aluminum with an anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. Only PC diffused covers are available, made of brand-stable material, anti-yellowing, and with perfect light distribution. The inner width is 7.2 mm, allowing for a maximum width of 7 mm for strip lights. Recommend adding 4mm LED COB tape lights as the light source, which will provide uniform illumination without visible light dots or dark areas. The standard lengths are 1 m and 2 m, and they can be cut to any size to meet your needs. With its lightweight and mini-size design, you can use double-sided adhesive tape or metal clips to attach it to the desired location. With their sleek design, these LED lights are also energy efficient, making them an excellent choice for lighting under counters or cabinets.

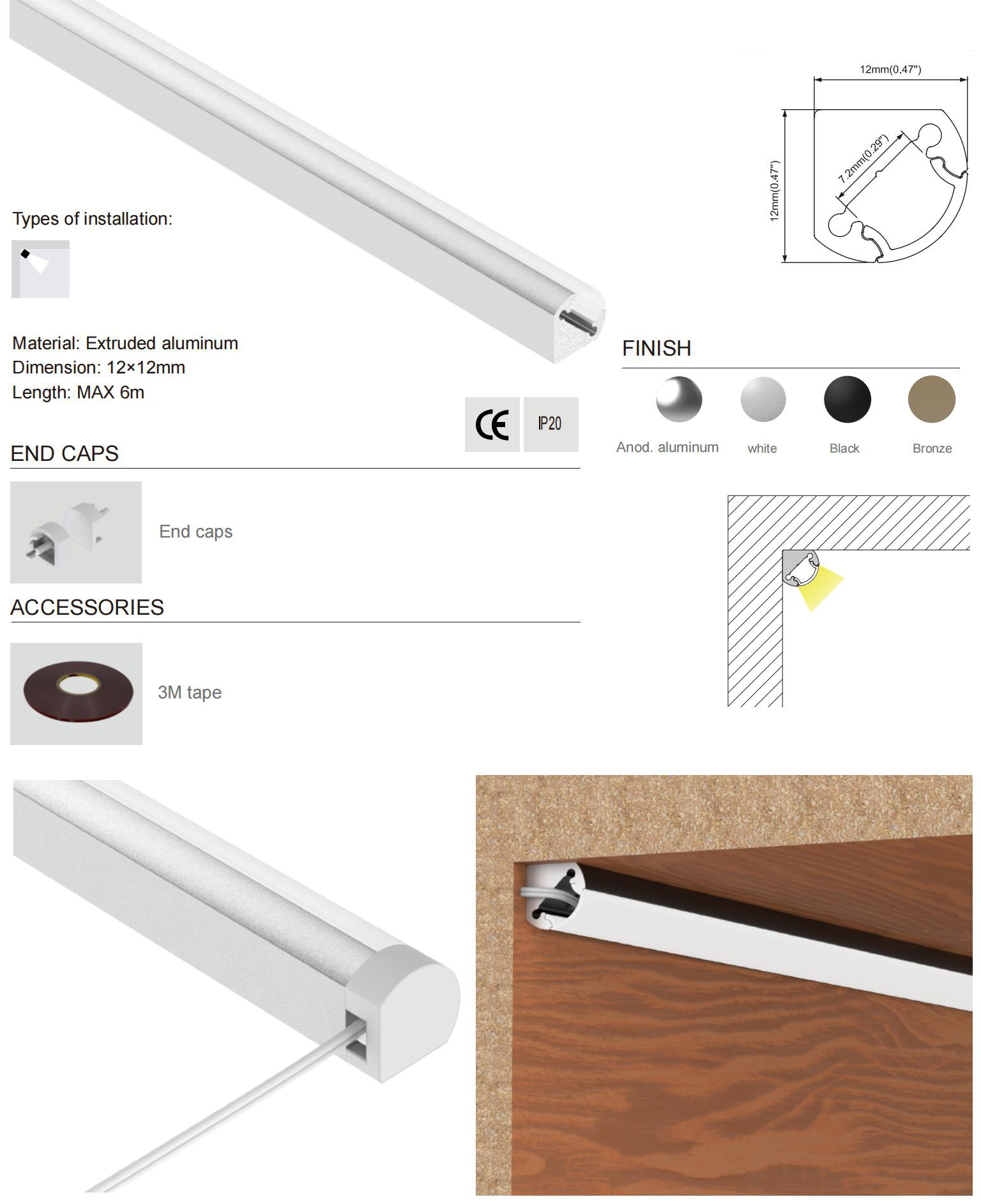

Specifications:
- Model: ALP203
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Black, Silver

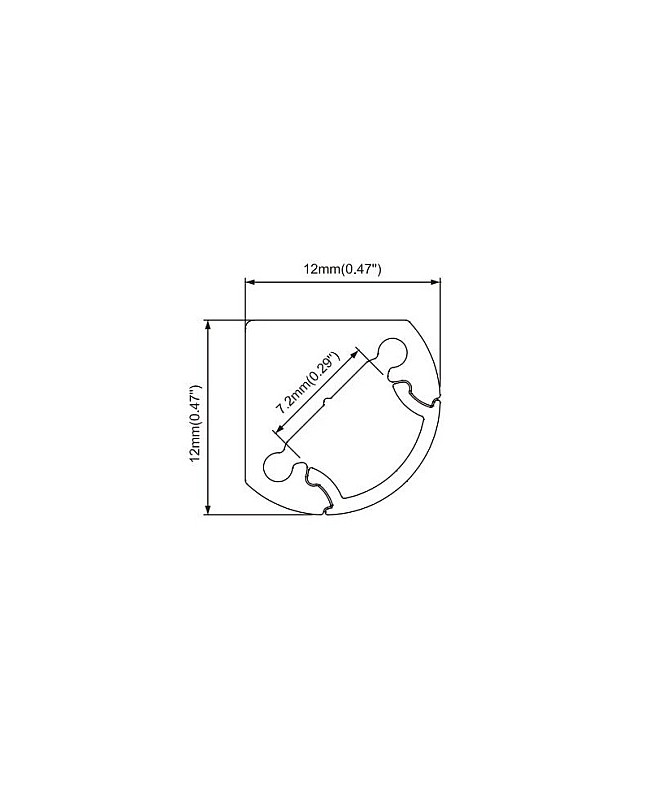

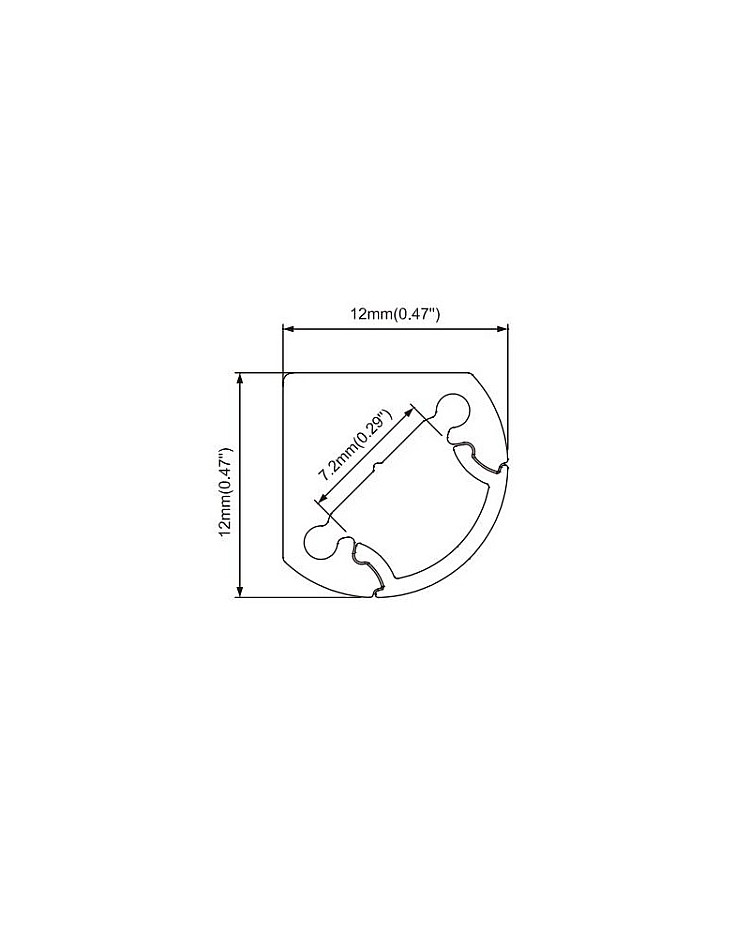

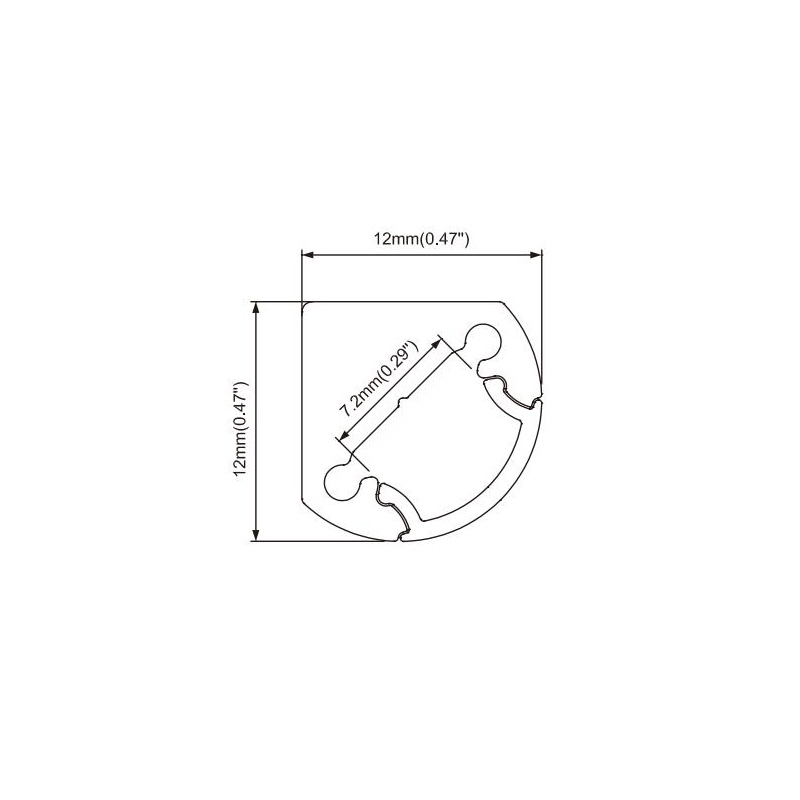

- Size ( W x H): 12 mm x 12 mm ( 0.47" x 0.47" )
- Lengths: 1 m ( 39" ), 2 m ( 78" ), 2.5 m ( 98" )
- Custom length: YES
- Inner width: 7.2 mm ( 0.29" )
- Maximum width of strip lights: 7 mm ( 0.28" )
- Max power: 10W/m
- Diffusers: PC diffused covers

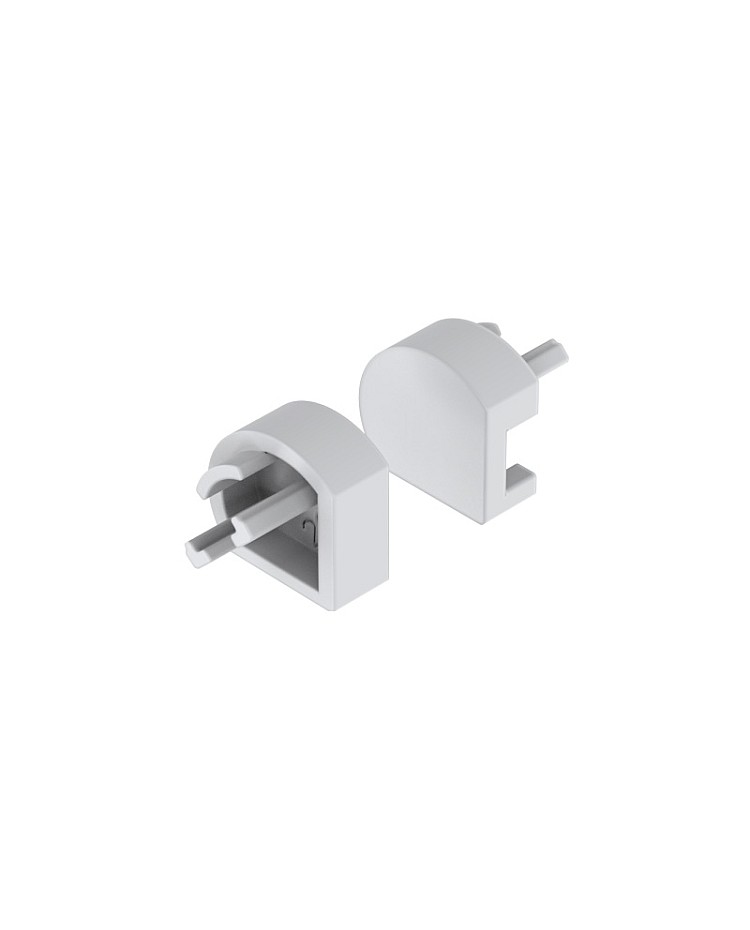

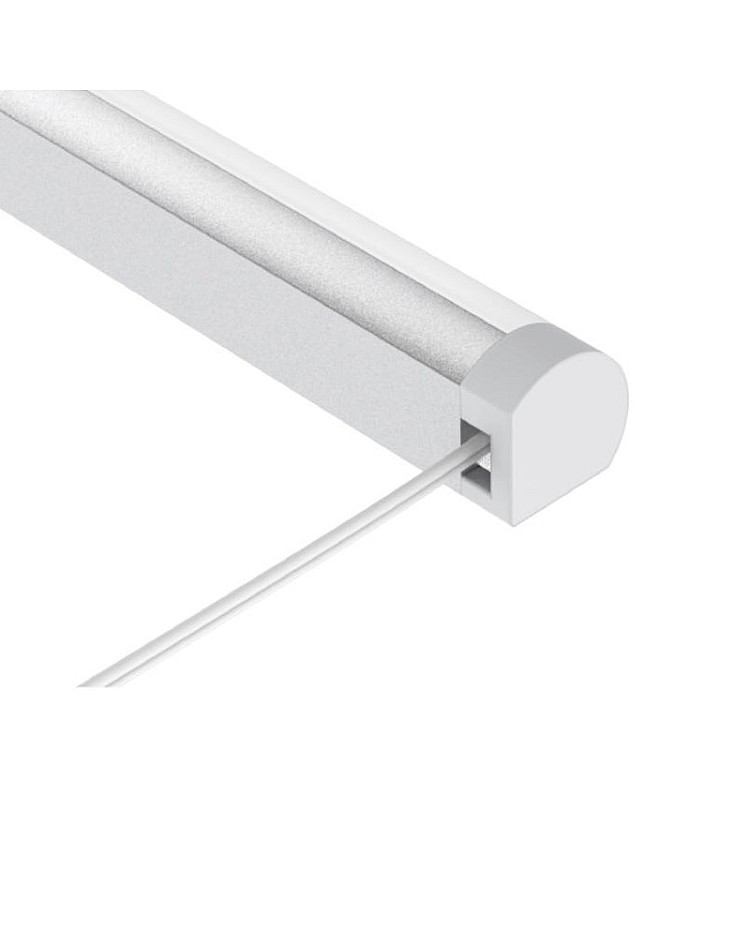

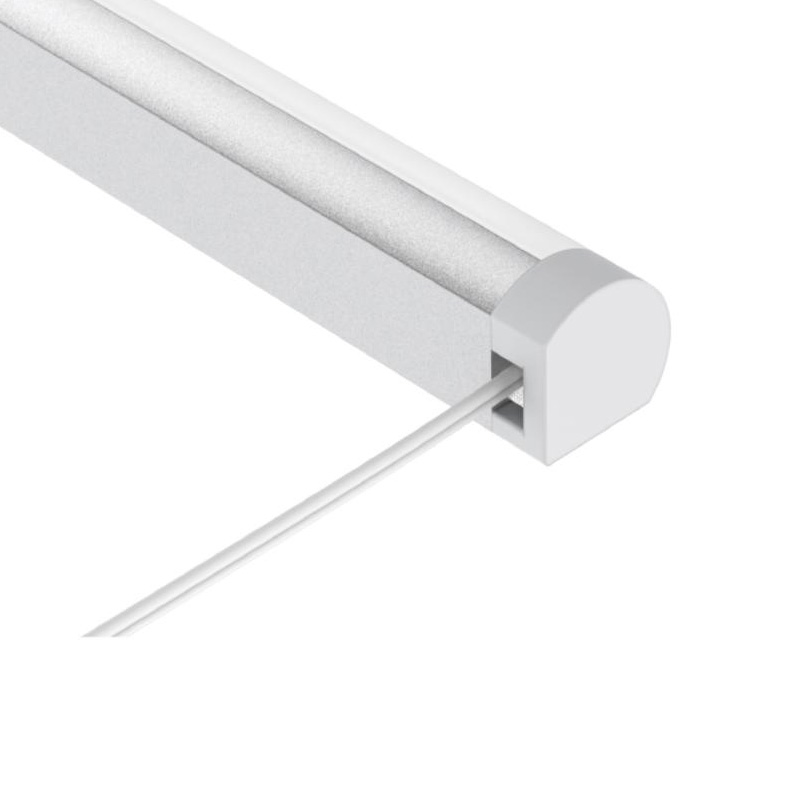

- End caps are included

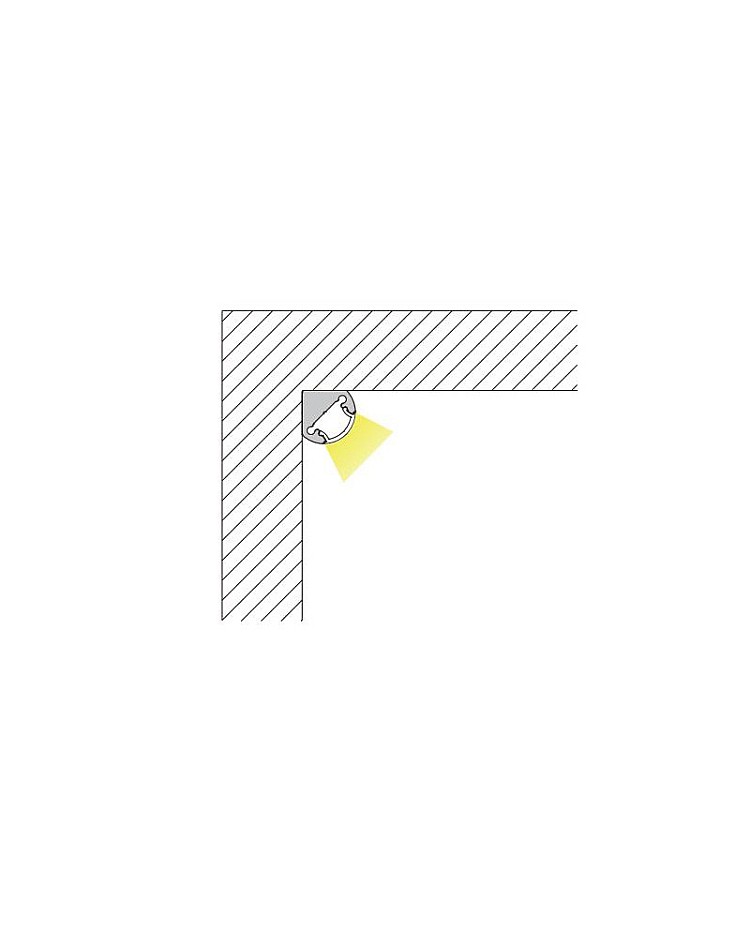

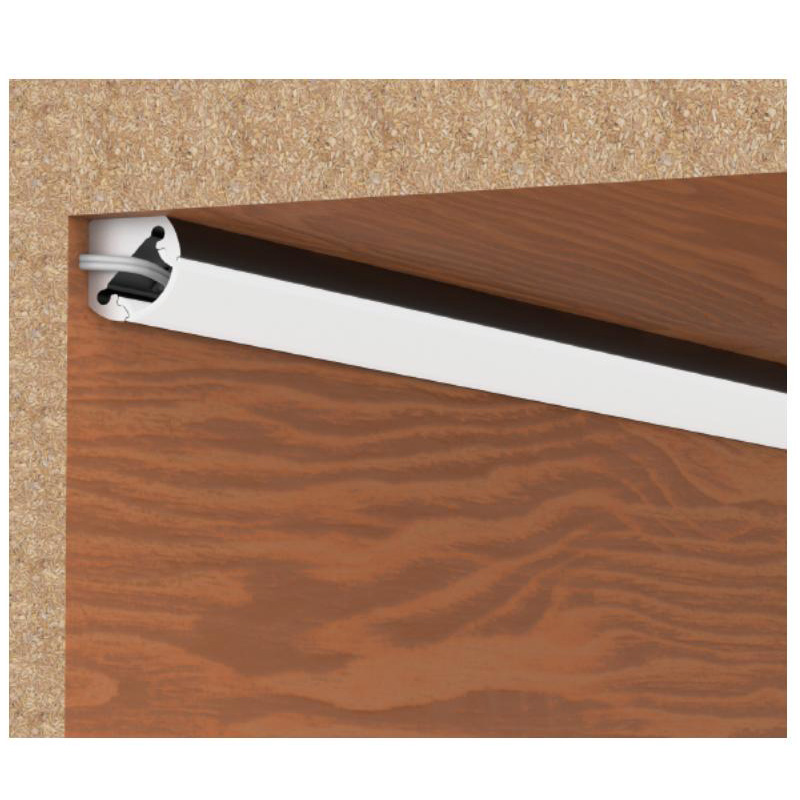

- Installation: Corner-mounted ( metal clips or adhesive tape )
- Warranty: 5 years
Applications:

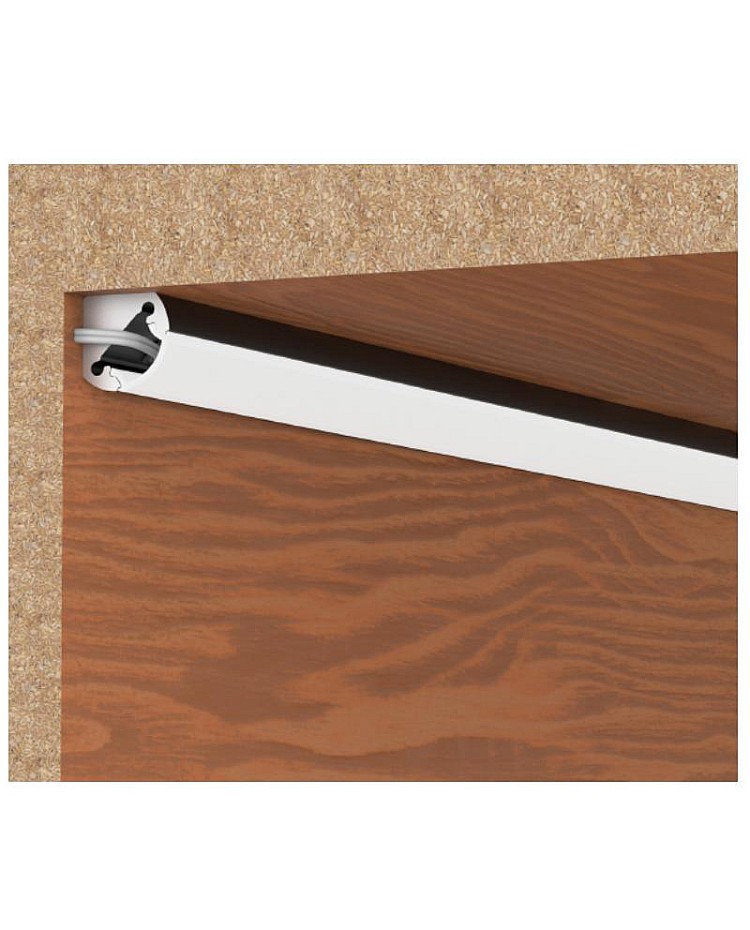

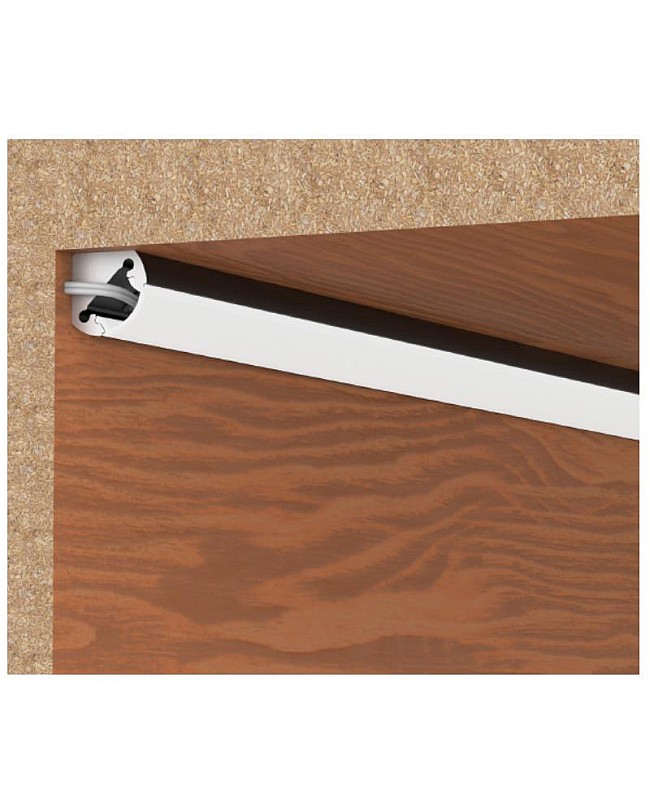

- Under cabinet lighting
- Display and shelf lighting
- Closet or wardrobe lighting
- Furniture integration
- Reception or counter lighting
Includes:
1 * Under-counter lighting channel

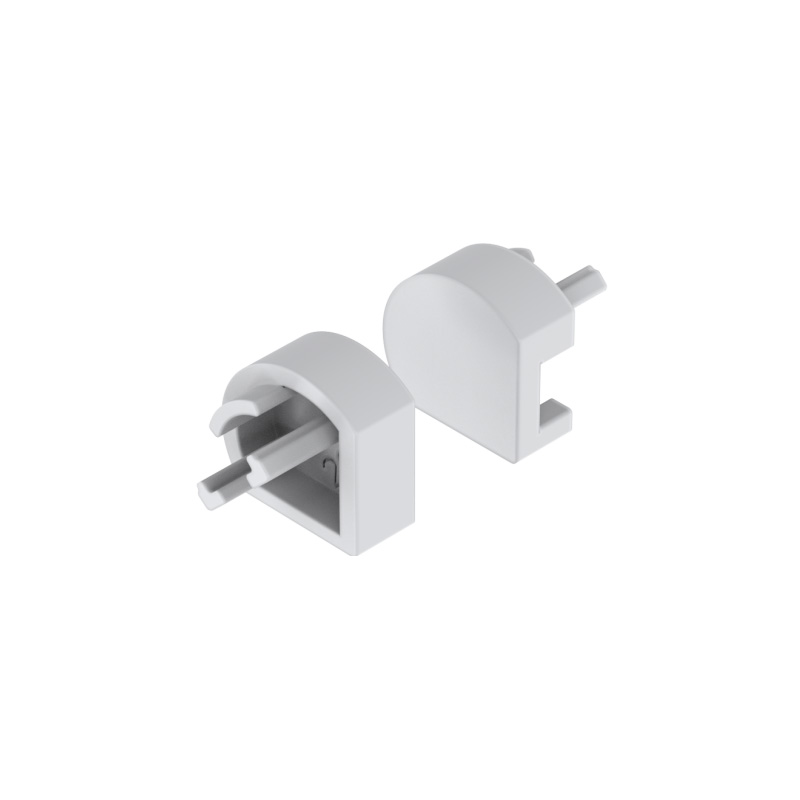

End caps
Metal mounting clips


+
+
+
+
+
+
