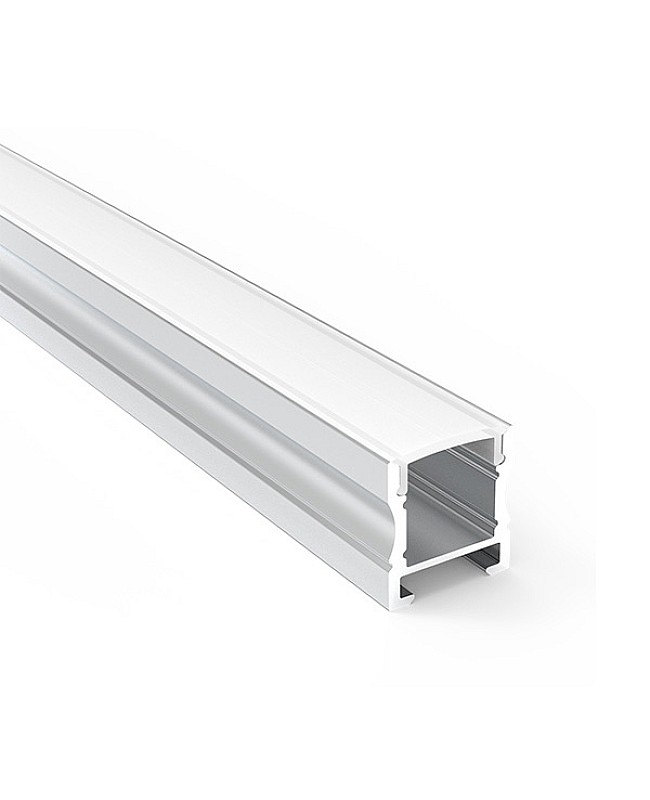

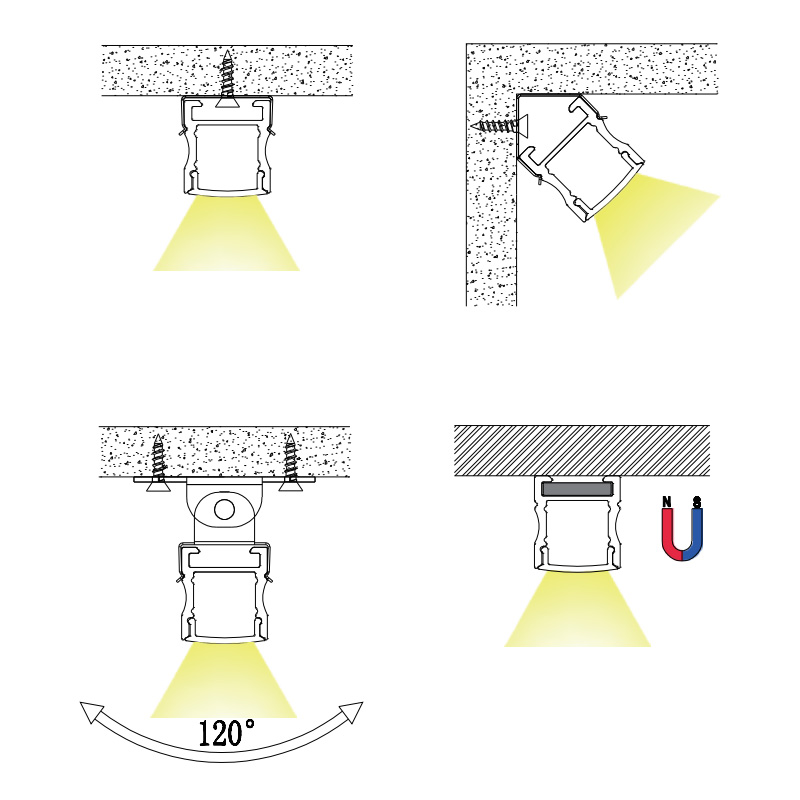

The surface-mounted LED profiles are designed to deliver versatile and targeted lighting for modern interiors. They come with adjustable brackets that let you precisely tilt and adjust the direct lighting to highlight displays, artwork, or architectural details.

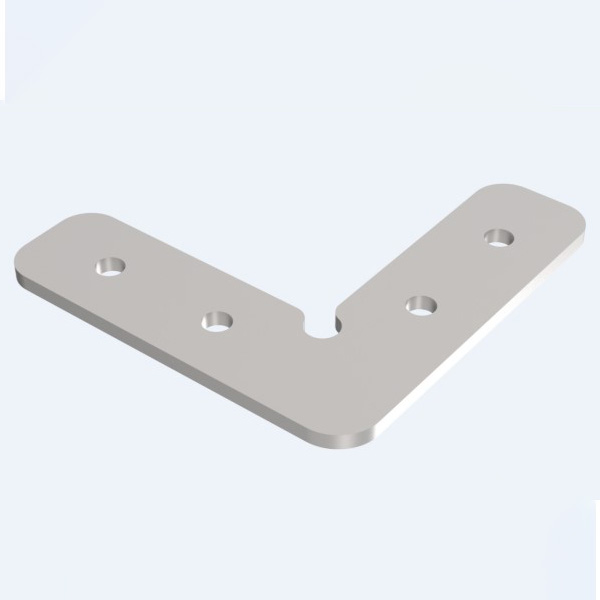

There are five types of joiners available, each suitable for both angled and straight connections. You can use them to connect LED channels at different angles for custom shapes. The inner width is 12.3 mm, allowing a maximum LED strip width of 12 mm. You can add single-color, tunable-white, or color-changing LED strip lights for task, accent, or ambient lighting.

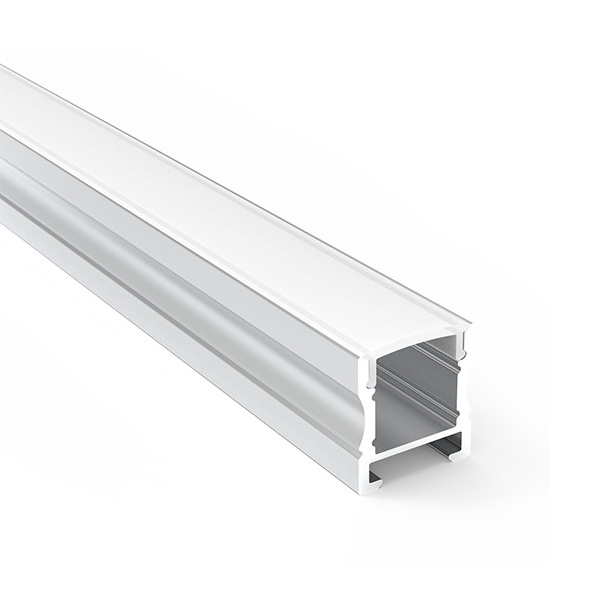

The aluminum channels are crafted from extruded aluminum and feature an anodized surface treatment for enhanced oxidation resistance, serving as effective heat sinks to improve the heat dissipation of LED lights. The stock length is 2 meters per piece, and can be cut to any length to meet your needs.
There are 7 types of diffusers available, including the black PC cover, which is made of imported brand material, anti-yellowing, and features perfect lighting distribution. The diffusers will softly and evenly distribute light to create uniform illumination without hotspots. End caps with and without holes are included. The magnets are sold separately and can be inserted into the bottom slot to attach the aluminum profiles to metal walls without clips.

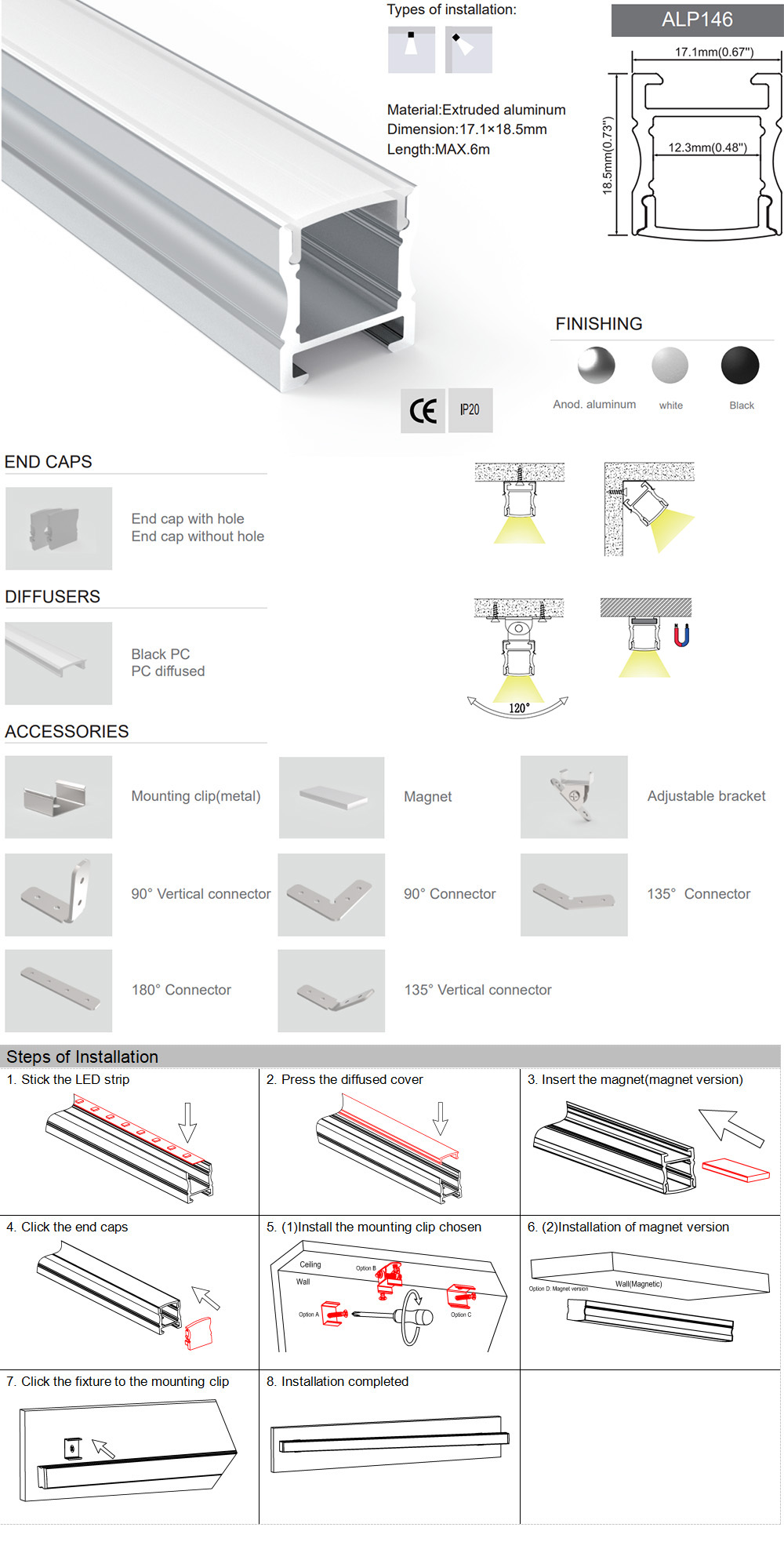

Specifications:
- Model: ALP146
- Material: Extruded aluminum

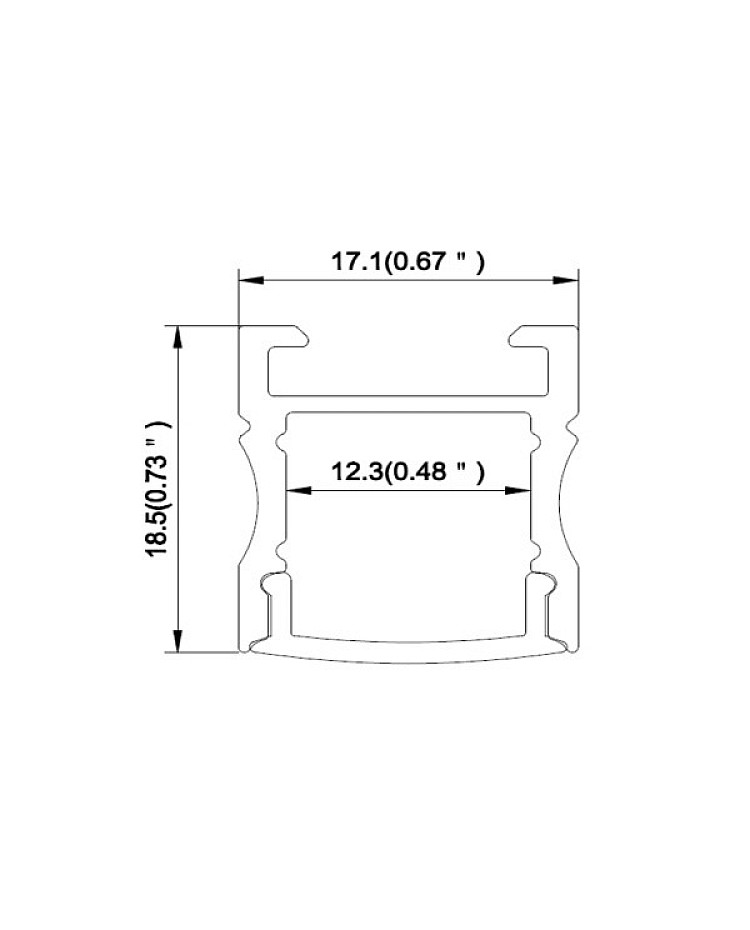

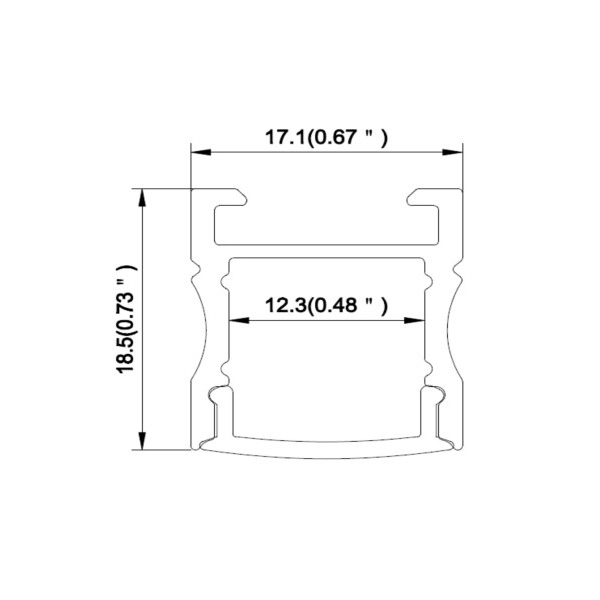

- Size ( width x height ): 17.1 mm x 18.5 mm ( 0.67" x 0.73" )
- Surface treatment: Anodized
- Colors: Silver
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 12.3 mm ( 0.48" )
- Max LED strip width: 12 mm ( 0.47" )
- Max power: 18W/m
- Diffusers: PMMA opal matte Cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover, PC semi-clear cover, PC clear cover, Black PC cover
- Beam angle: 100°
- Tolerance: ±1%
- IP rating: IP20 non-waterproof

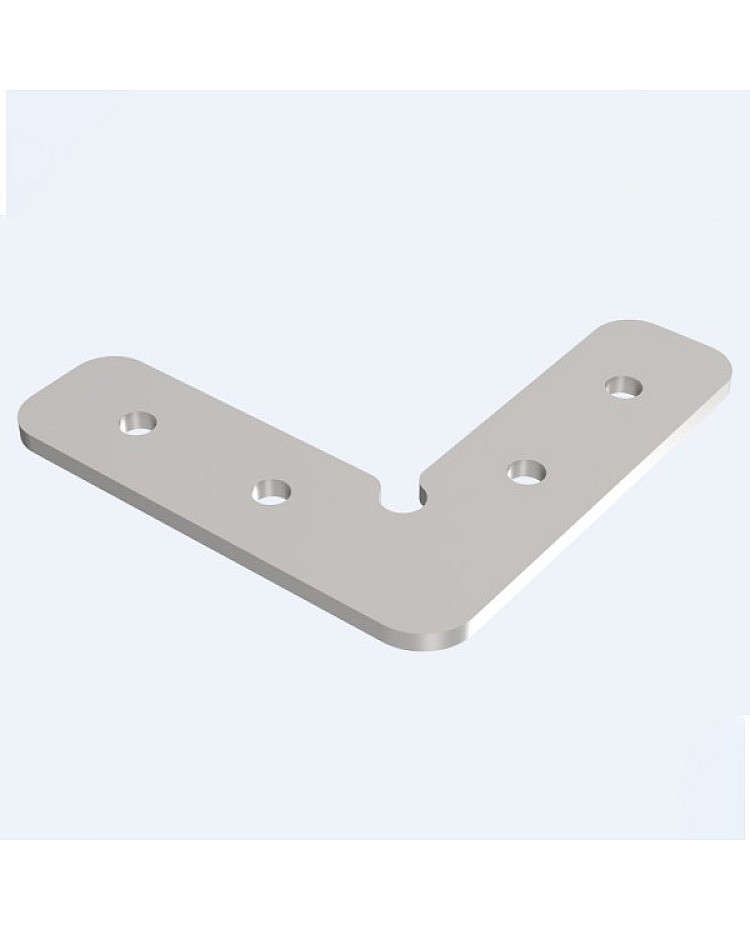

- 90° vertical, 90°, 135°, 135° vertical, and 180° joiners are sold separately

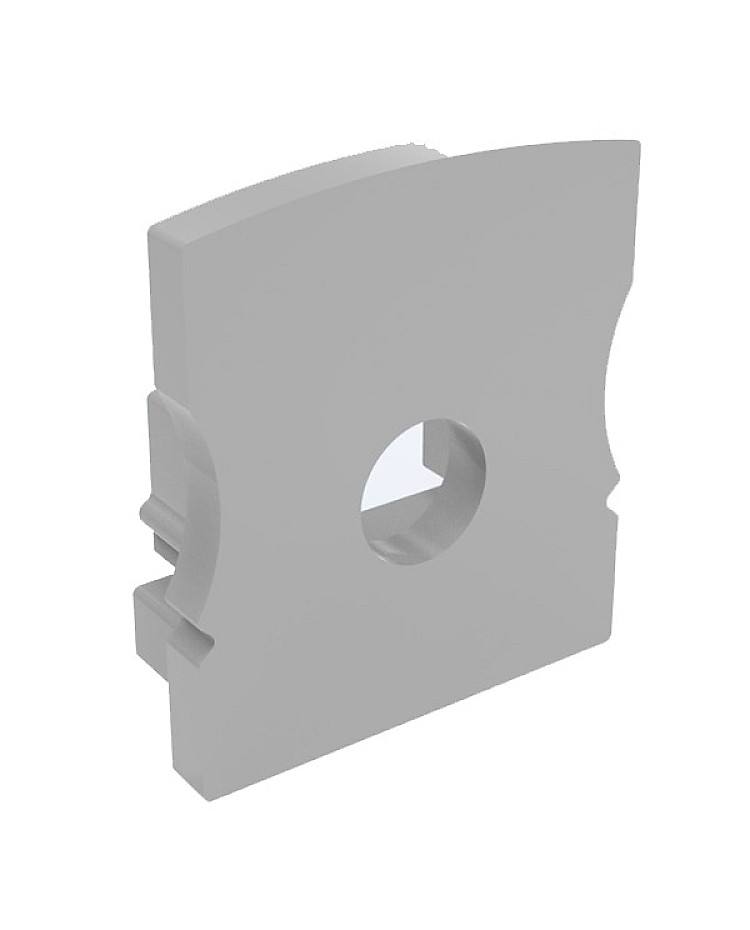

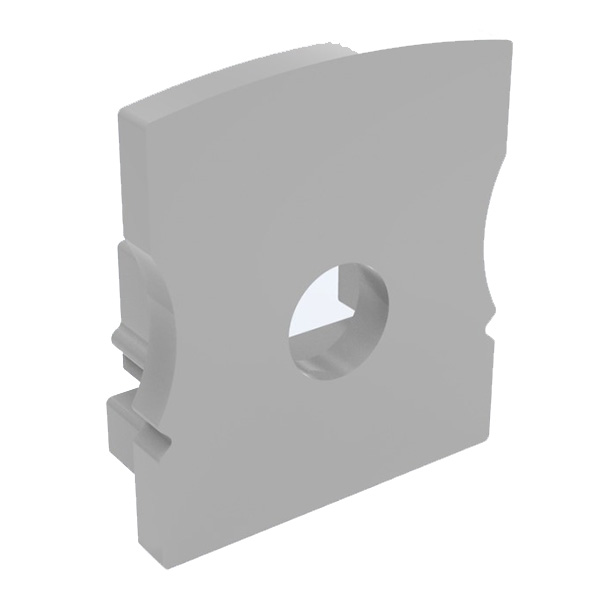

- End caps with and without wire holes are included

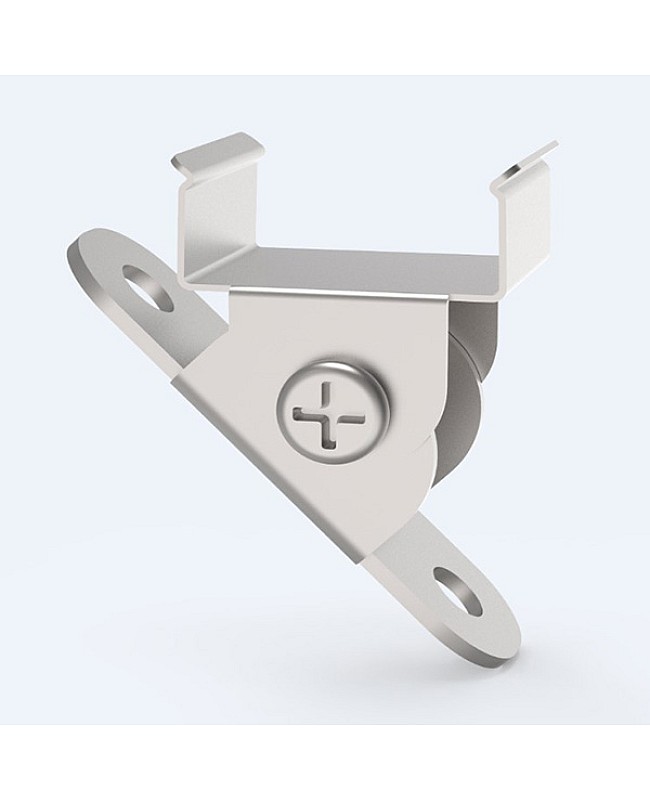

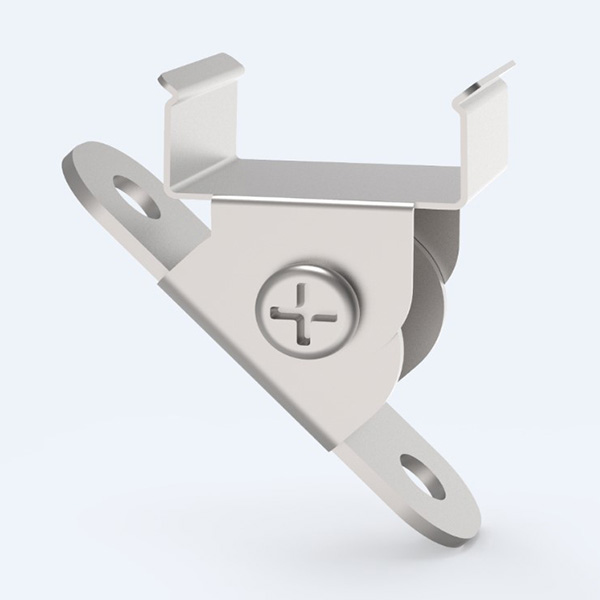

- Adjustable brackets are included
- Magnets are sold separately

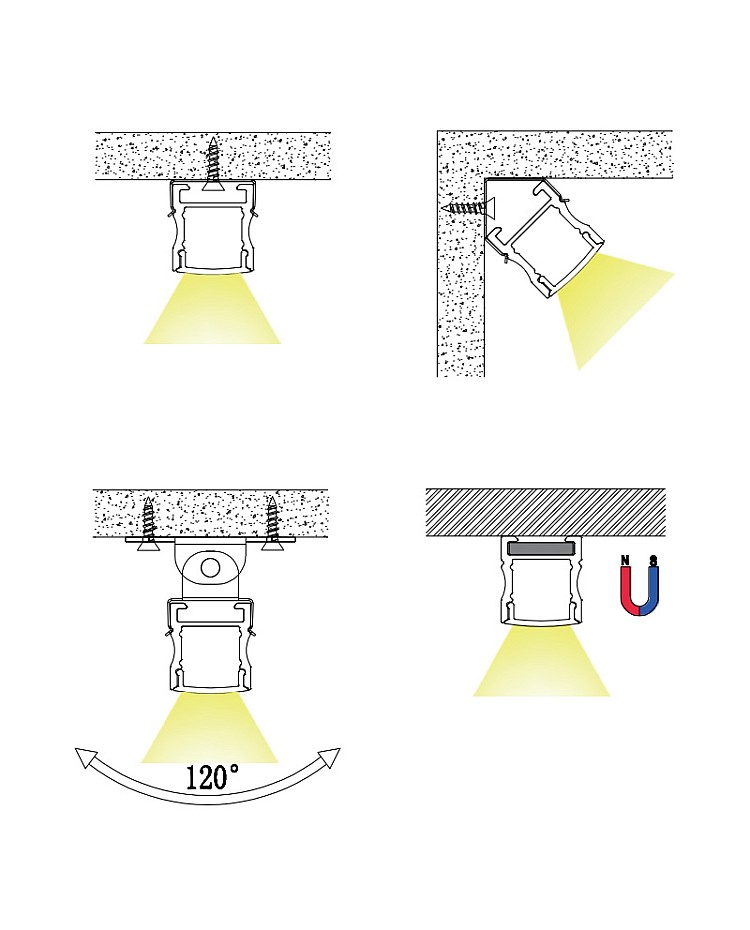

- Installation: Surface mounted
- Applications: Accent lighting, display illumination, and ambient effects
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1 * Surface mounting LED profile with diffuser
End caps
Adjustable brackets
