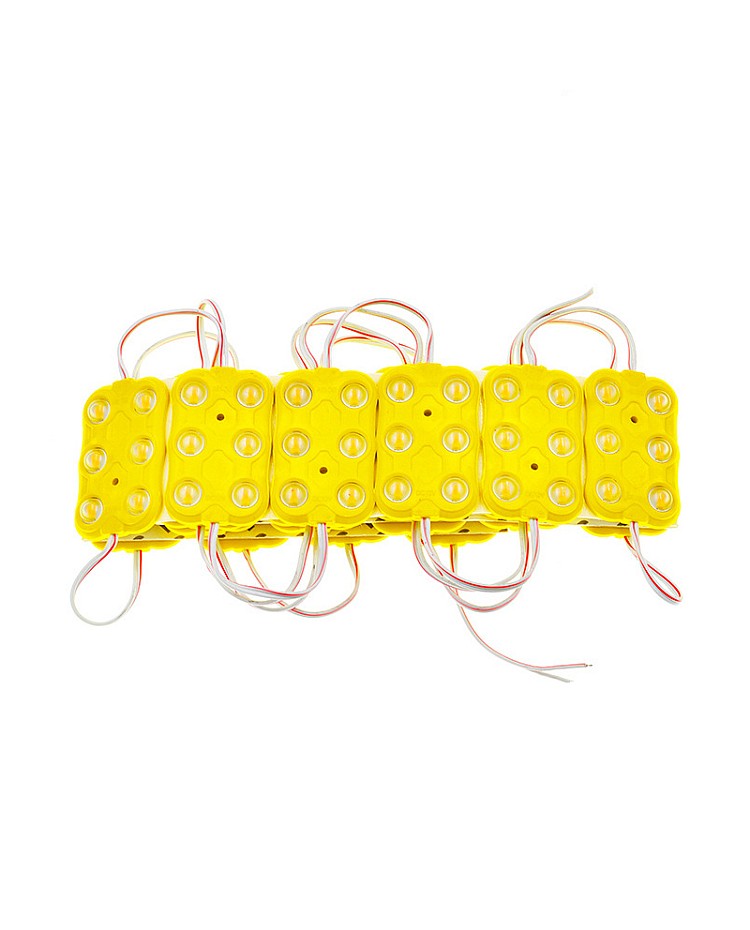

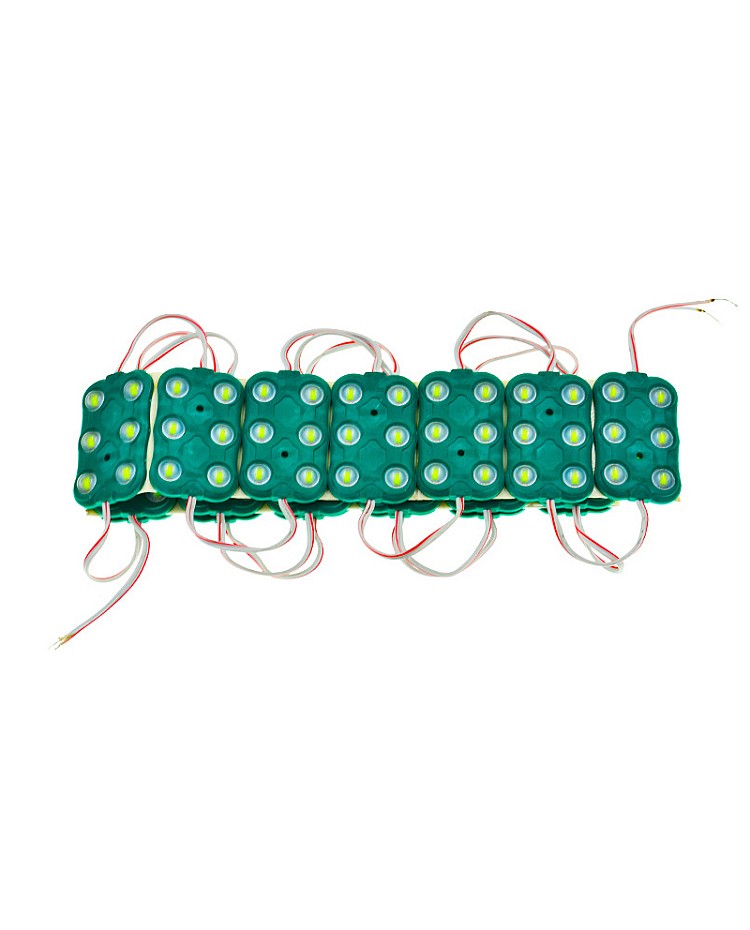

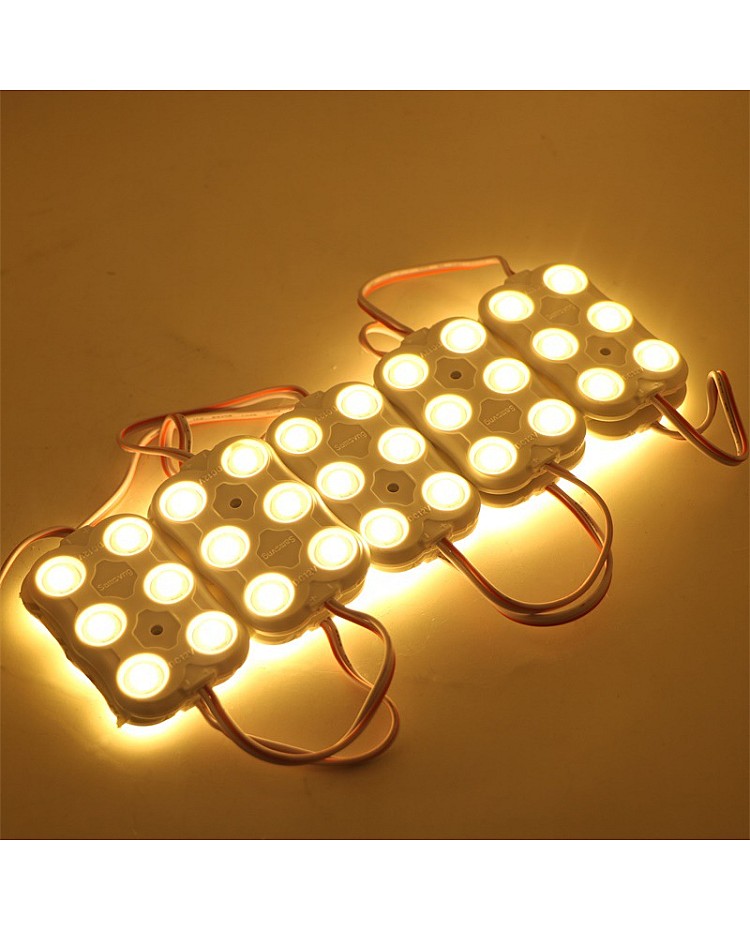

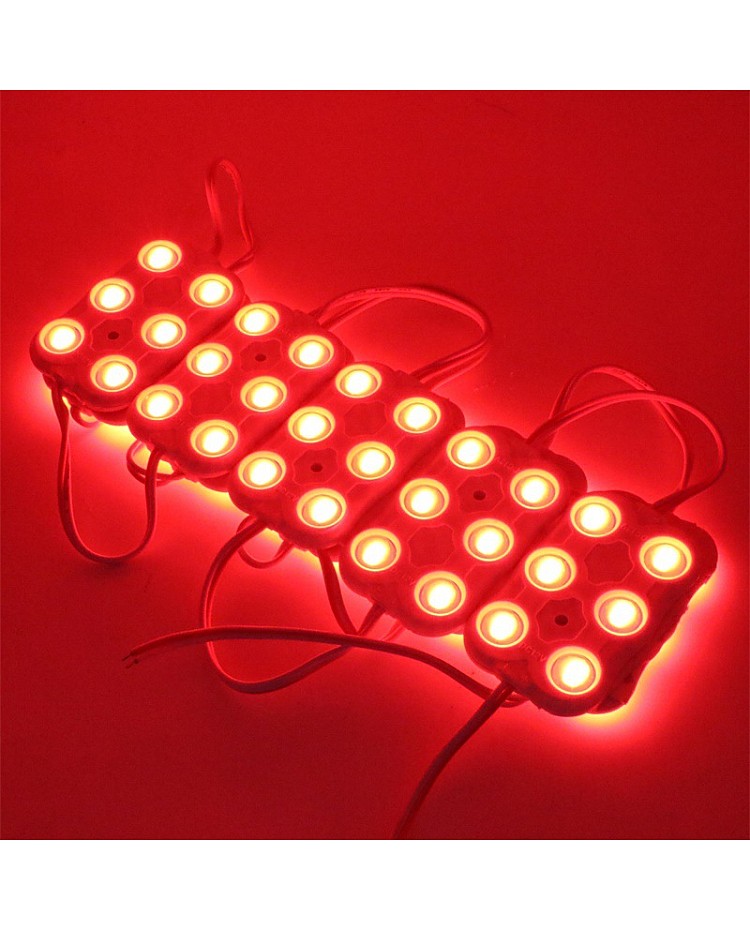

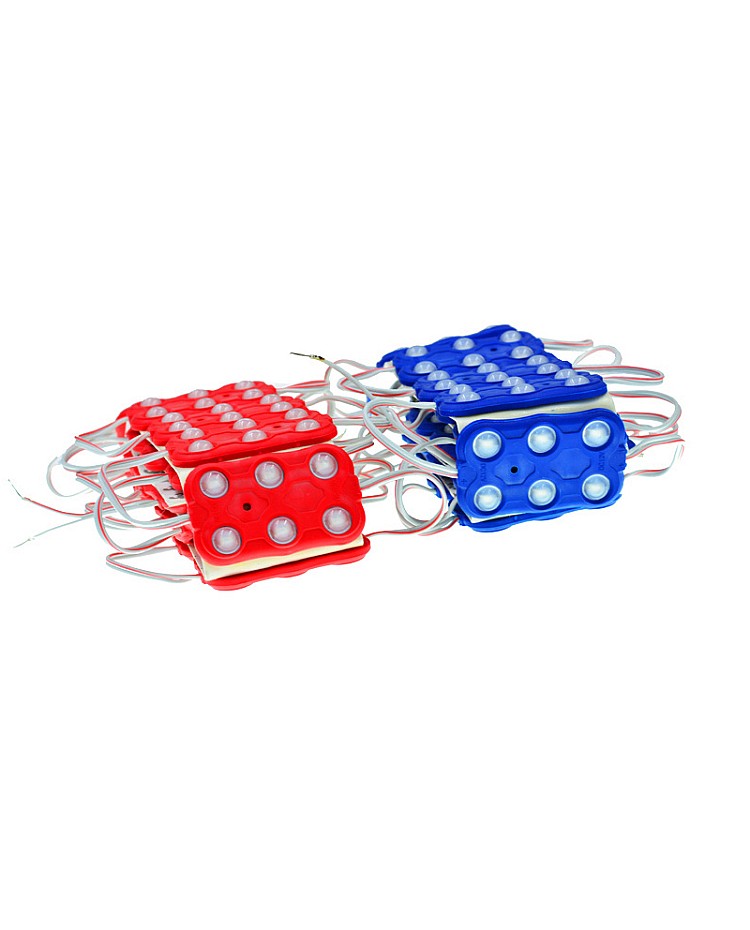

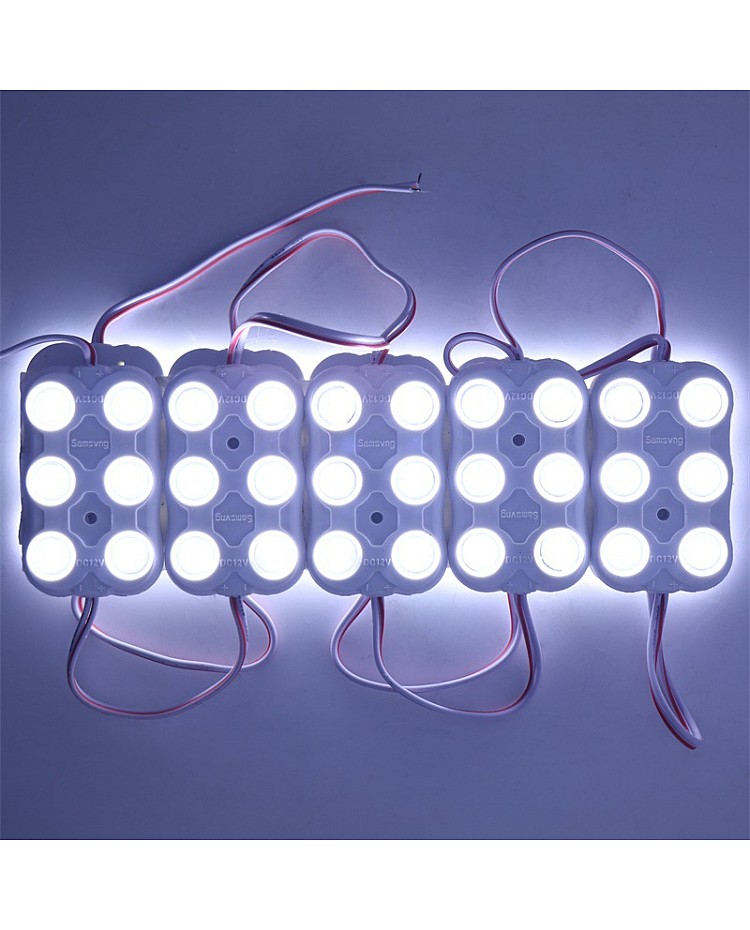

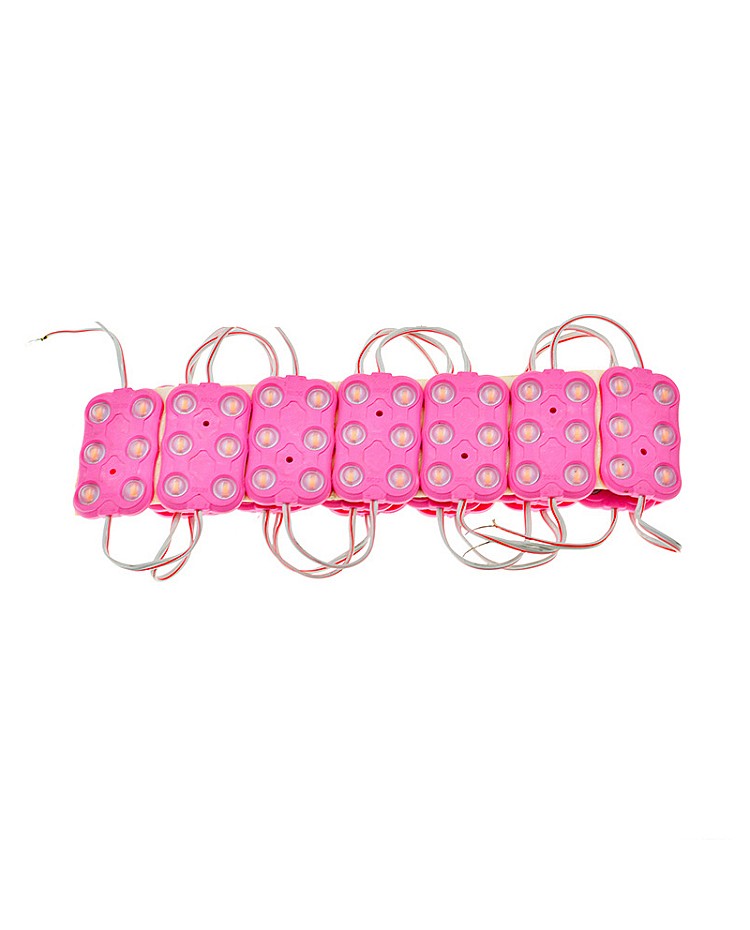

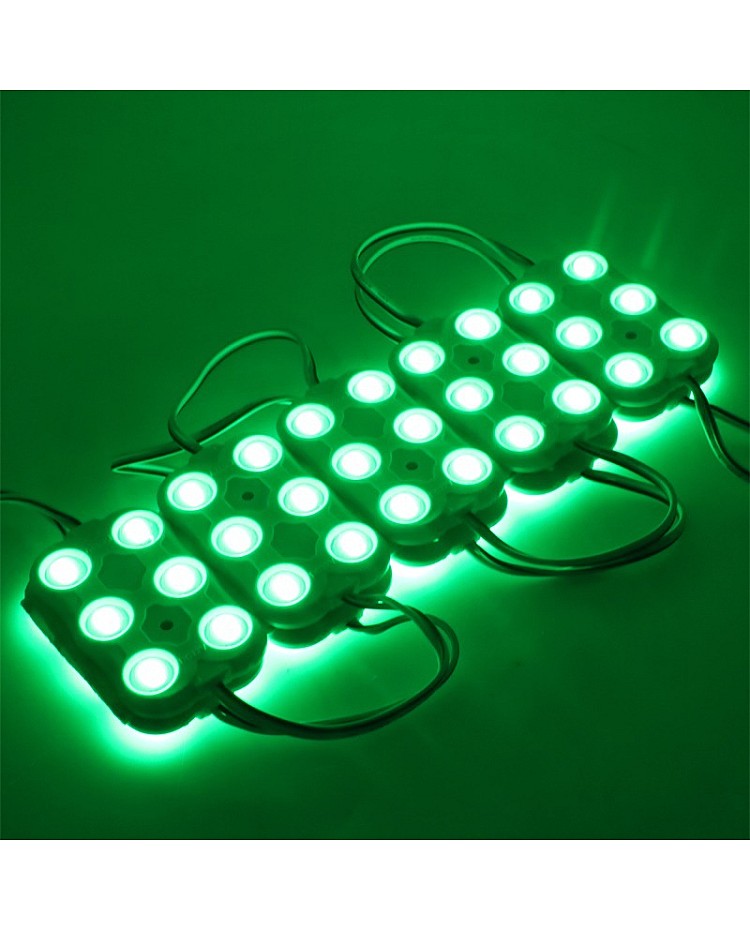

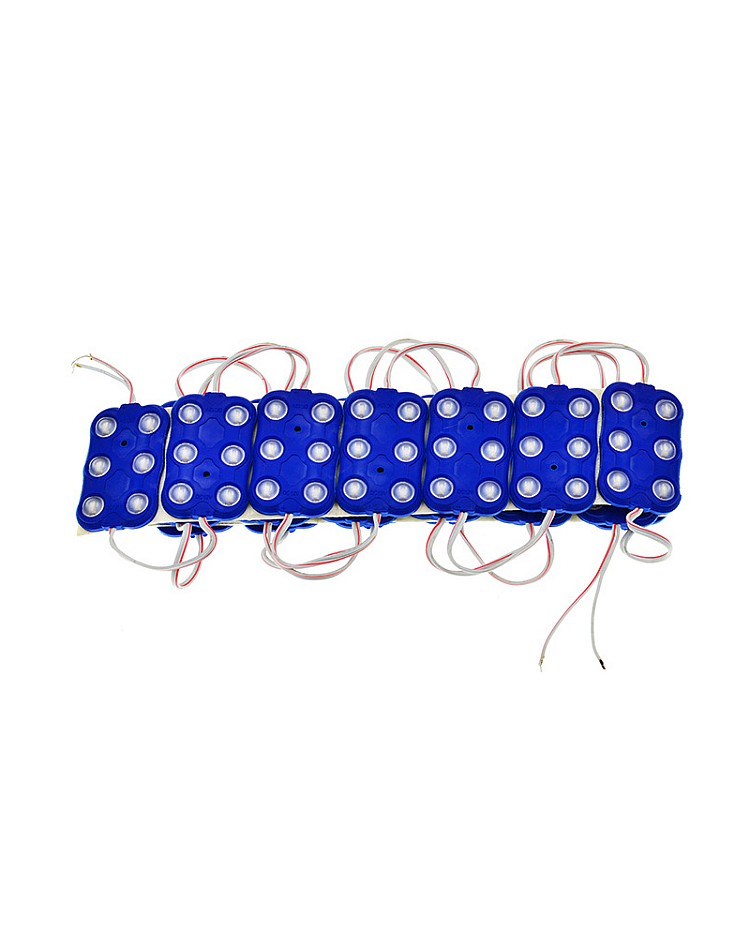

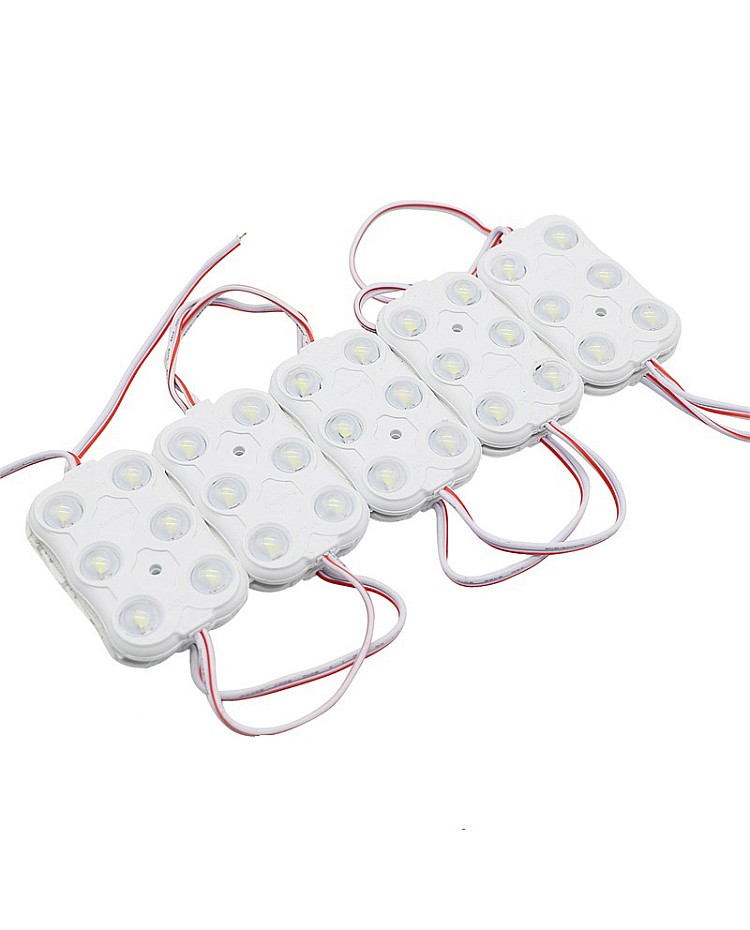

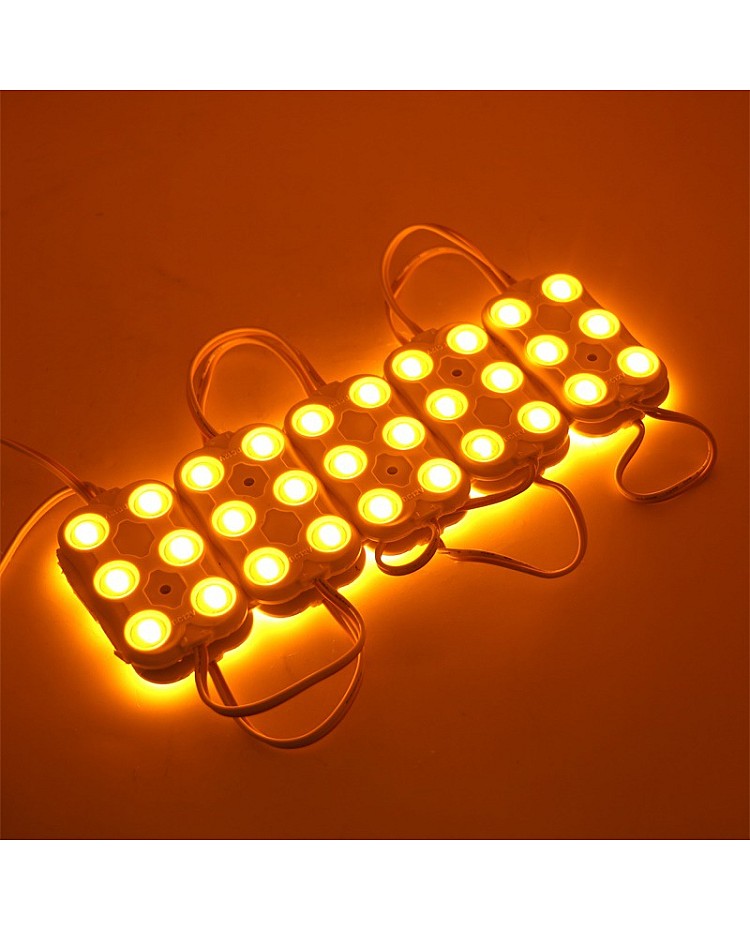

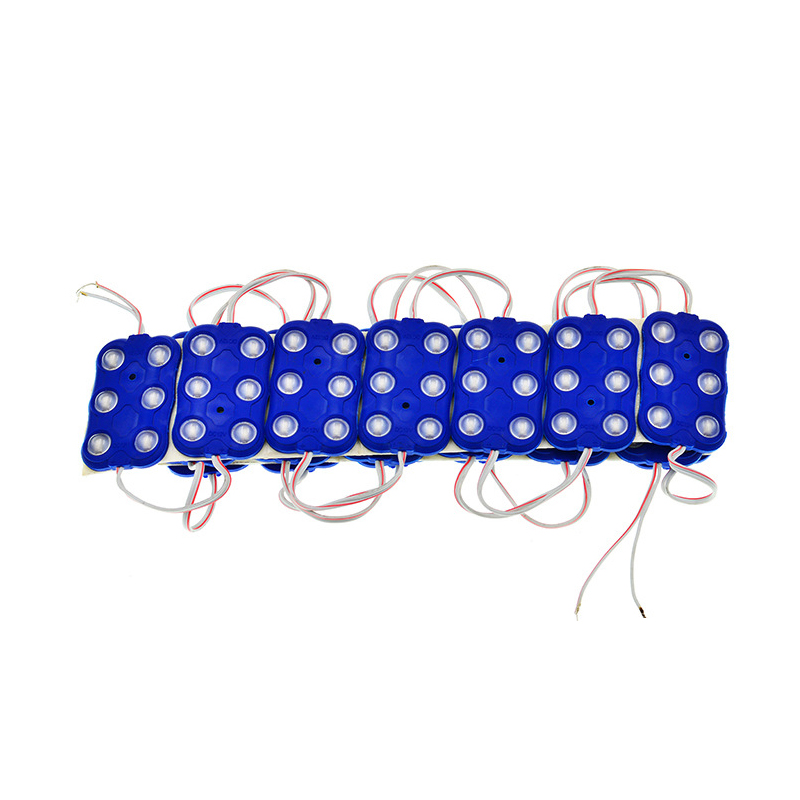

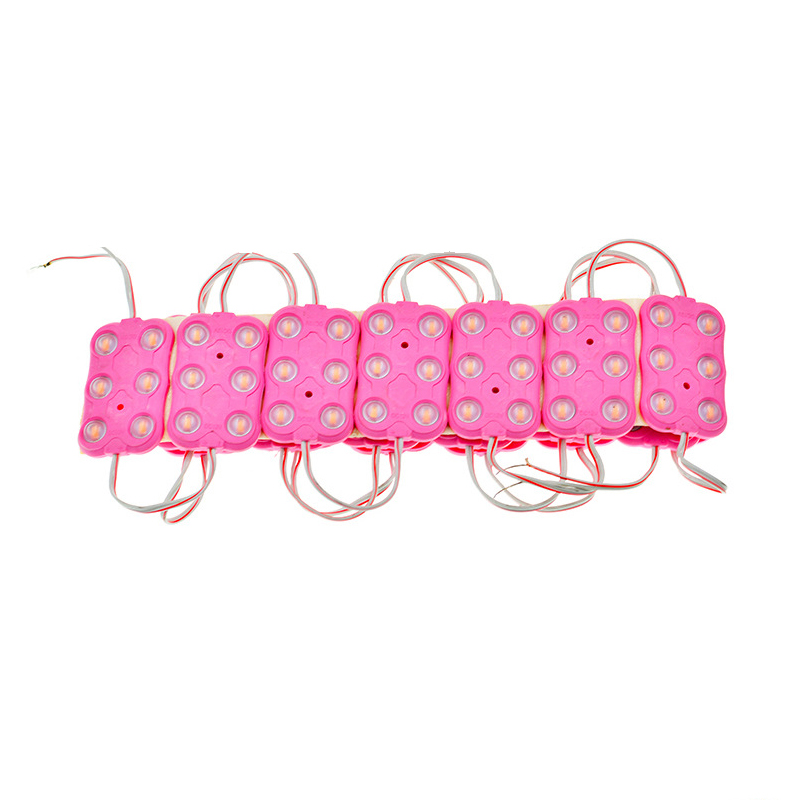

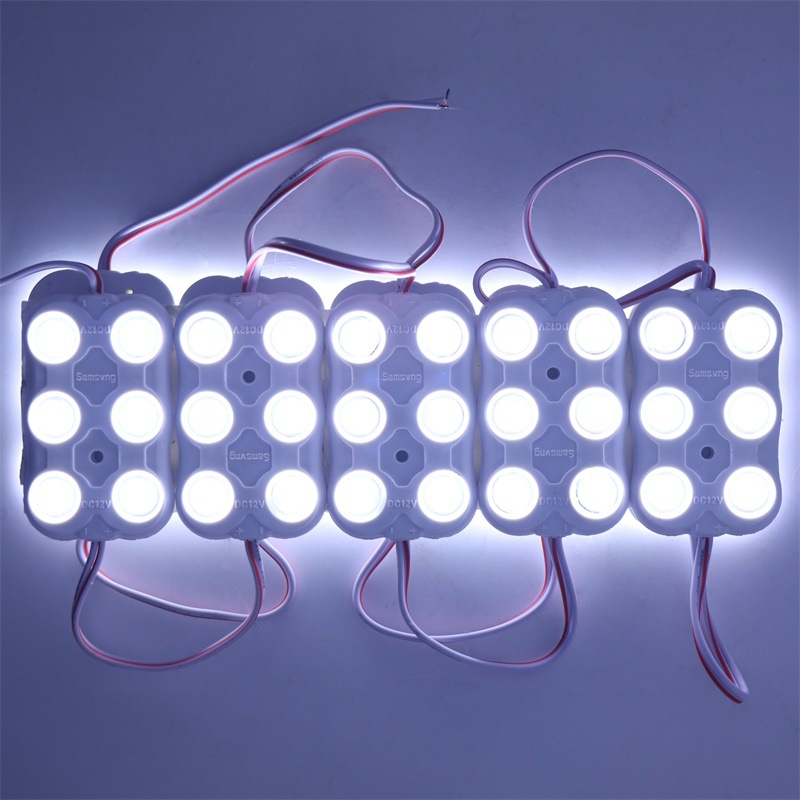

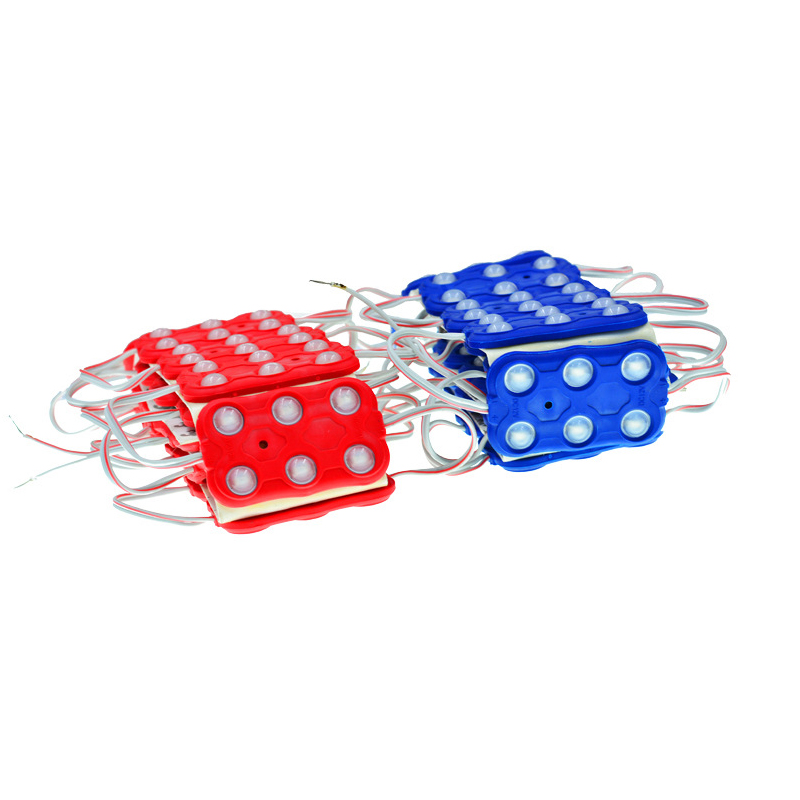

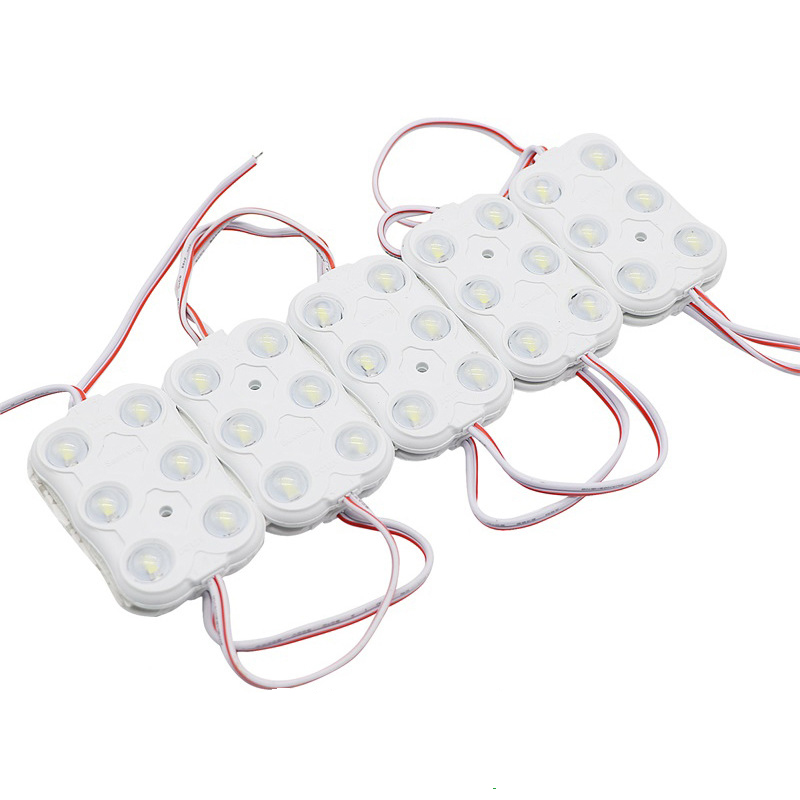

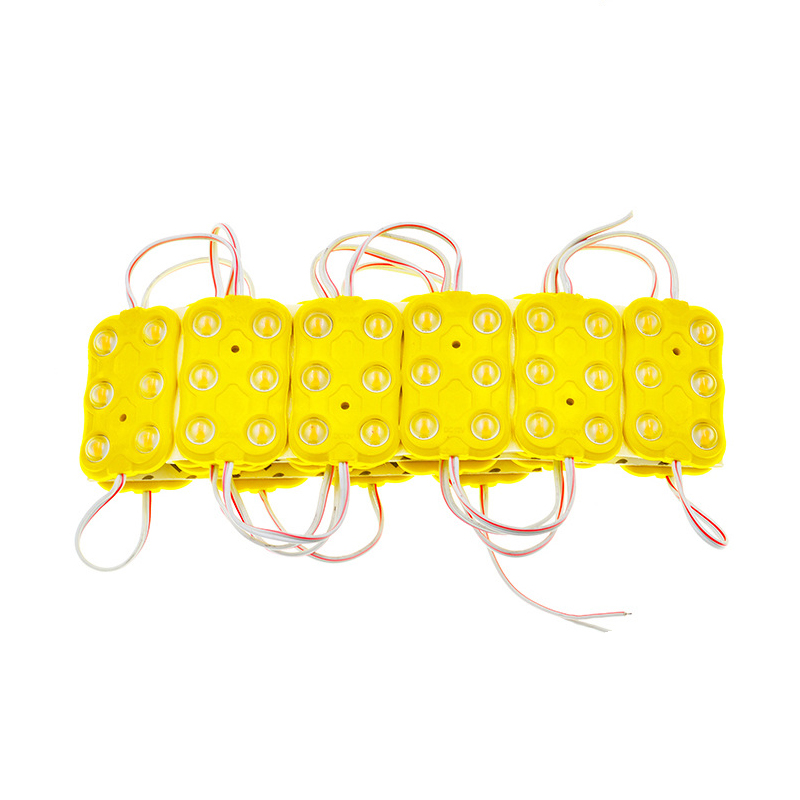

Check the SMD Modules with optical lens, which uses 6PCS high-quality and super bright 5730 SMD LEDs as the light source, the LEDs mounted on the aluminum board and sealed in the PVC shell, the PVC shell made of the molding injection process, looks fashionable and high-temperature resistance and corrosion resistance, the IP rating is IP65 waterproof, can be used for the indoor and outdoor projects, the surface on the LEDs with optical lens, which for the wide beam angle. 20PCS per string, cuttable and reconnectable, you can cut to any quantity and reconnect for your lighting project, the back with double-sided adhesive tape, easy to take off the protector paper on the tape and stick on the place you want to install. the center with a screw hole, you can use the screws to fix them on the surface of the lighting projects. there are various emitting colors available, cool white, warm white, red, blue, green, yellow and pink, working in DC12V, easy to connect to the 12VDC LED Power Supply to light up or connect to the LED Lighting Dimmer to adjust the brightness freely. you can use them as the backlight for the signs, billboards, channel letters, decorations for the holidays, reading lights for the cars, trucks, vans, etc.


  • Model: 5730-6LEDs
  • Size: 67*42*7mm(L*W*H)
  • Material: PVC + ABS
  • LED: 5730 SMD LEDs
  • Working Voltage: DC12V
  • Power: 3W

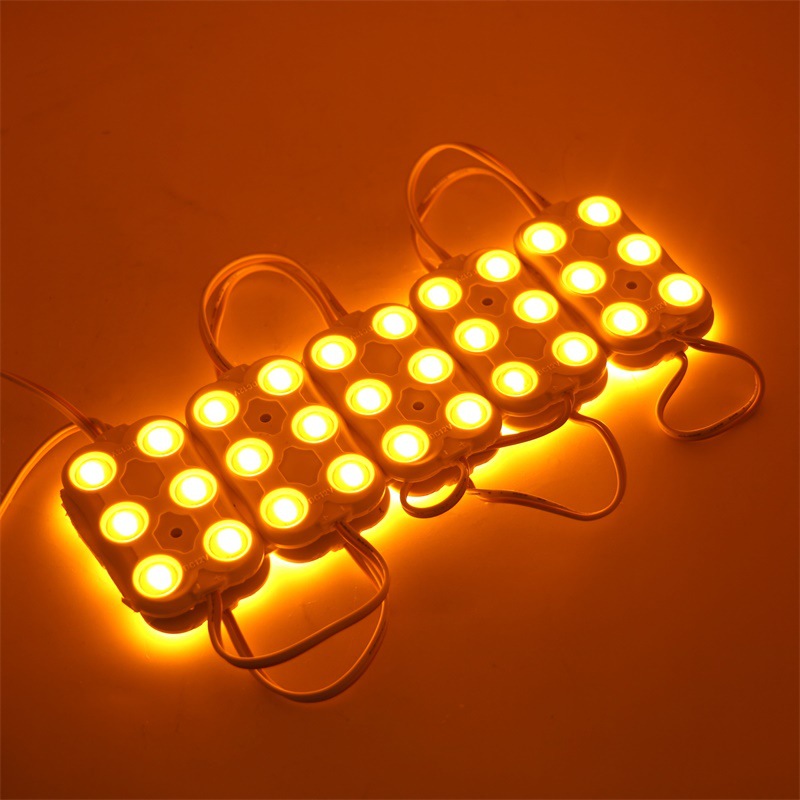

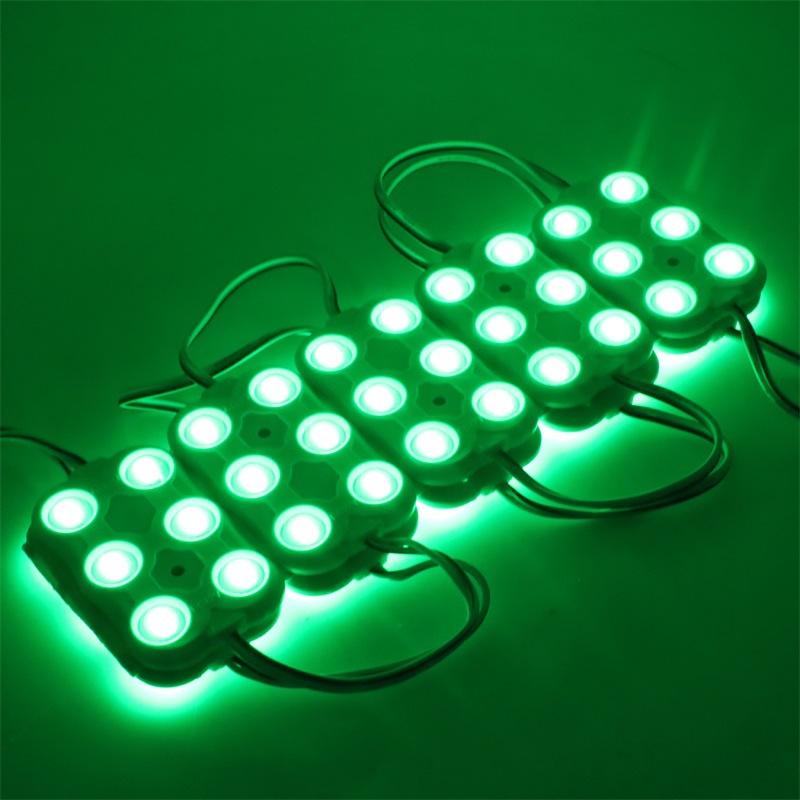

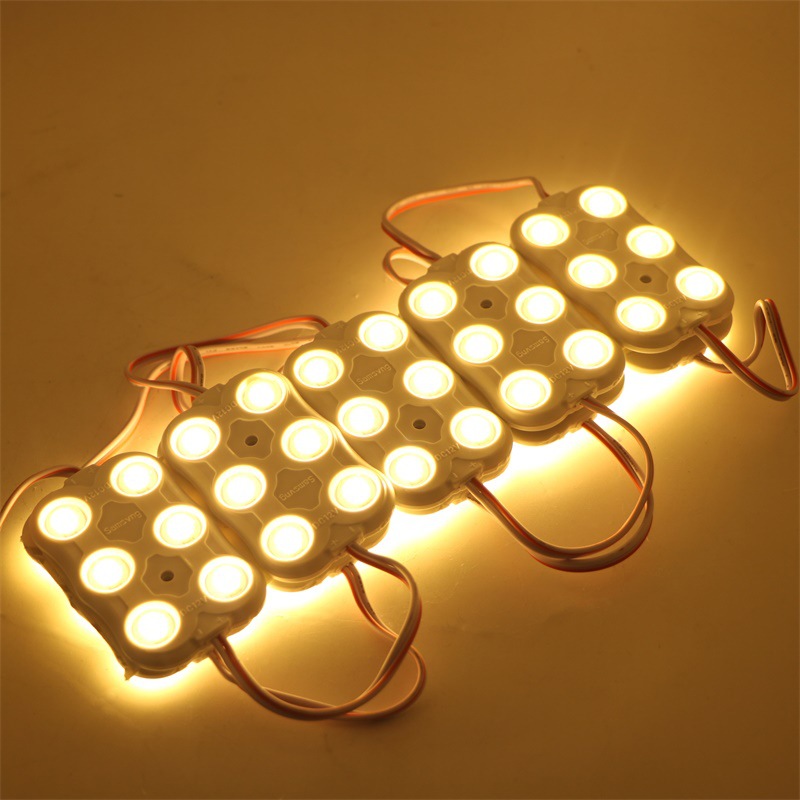

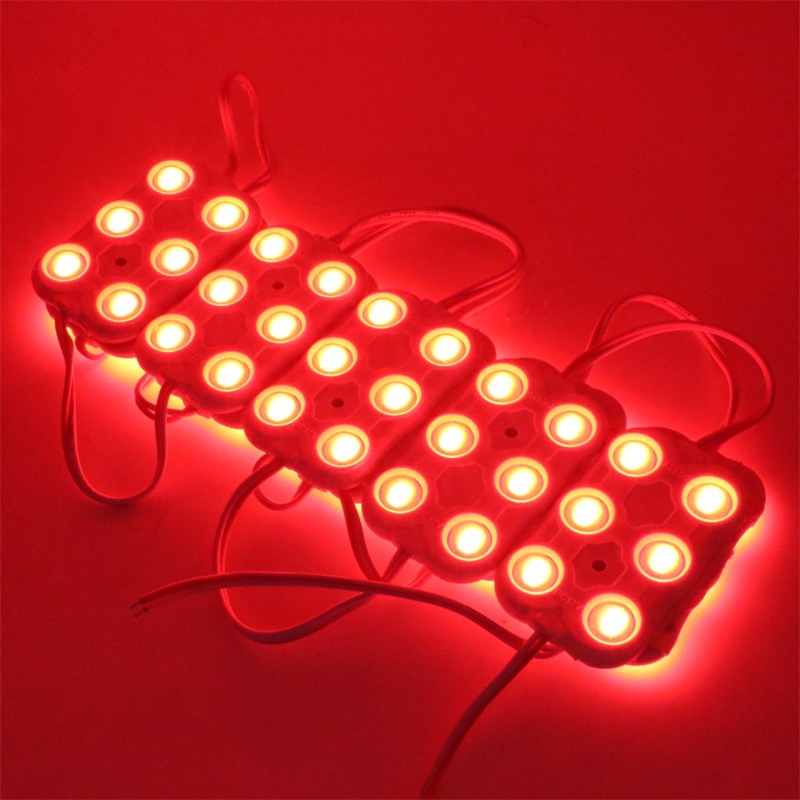

  • Colors: Yellow, Pink, Green, Red, Blue, Cool White(7000-13000K), Warm White(2700-3200K)
  • Luminous Flux: 40-70lm/PC
  • IP Rating: IP65 Waterproof
  • Beam Angle: 120°
  • With Optical Lens For Wide Angle View
  • Back With Double Sided Adhesive Tape
  • Cuttable And Reconnectable
  • With Screw Hole
  • Working Temperature: -20°-+60°
  • Lifespan: >35,000 Hours
  • 2 Years Warranty


1*SMD Module(20PCS/String)

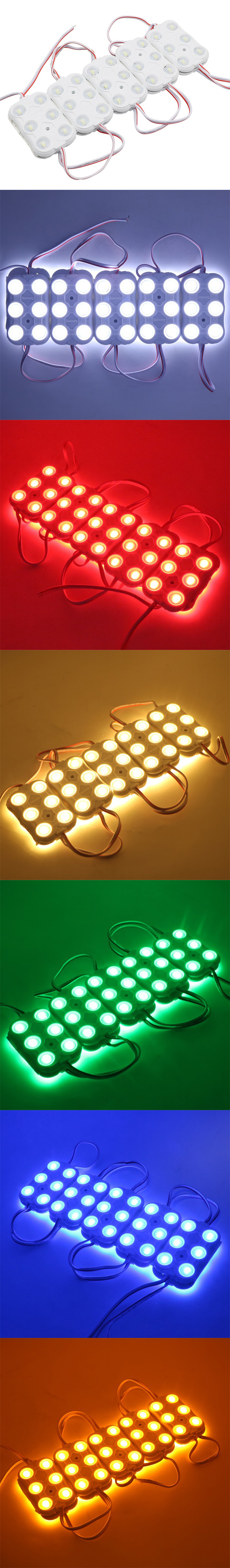

LED SMD Module
