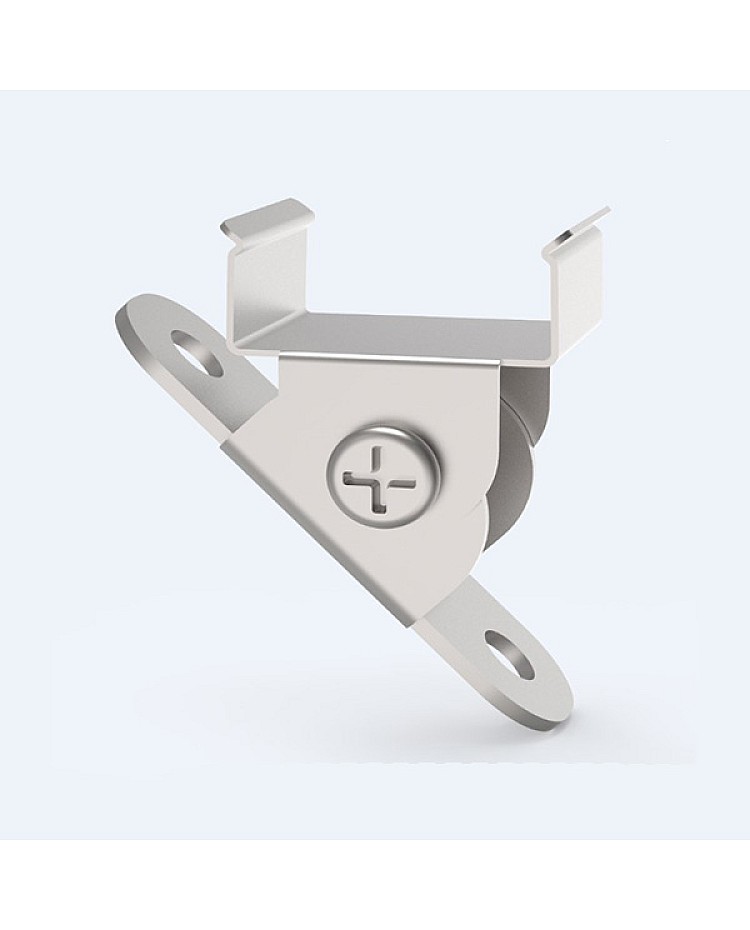

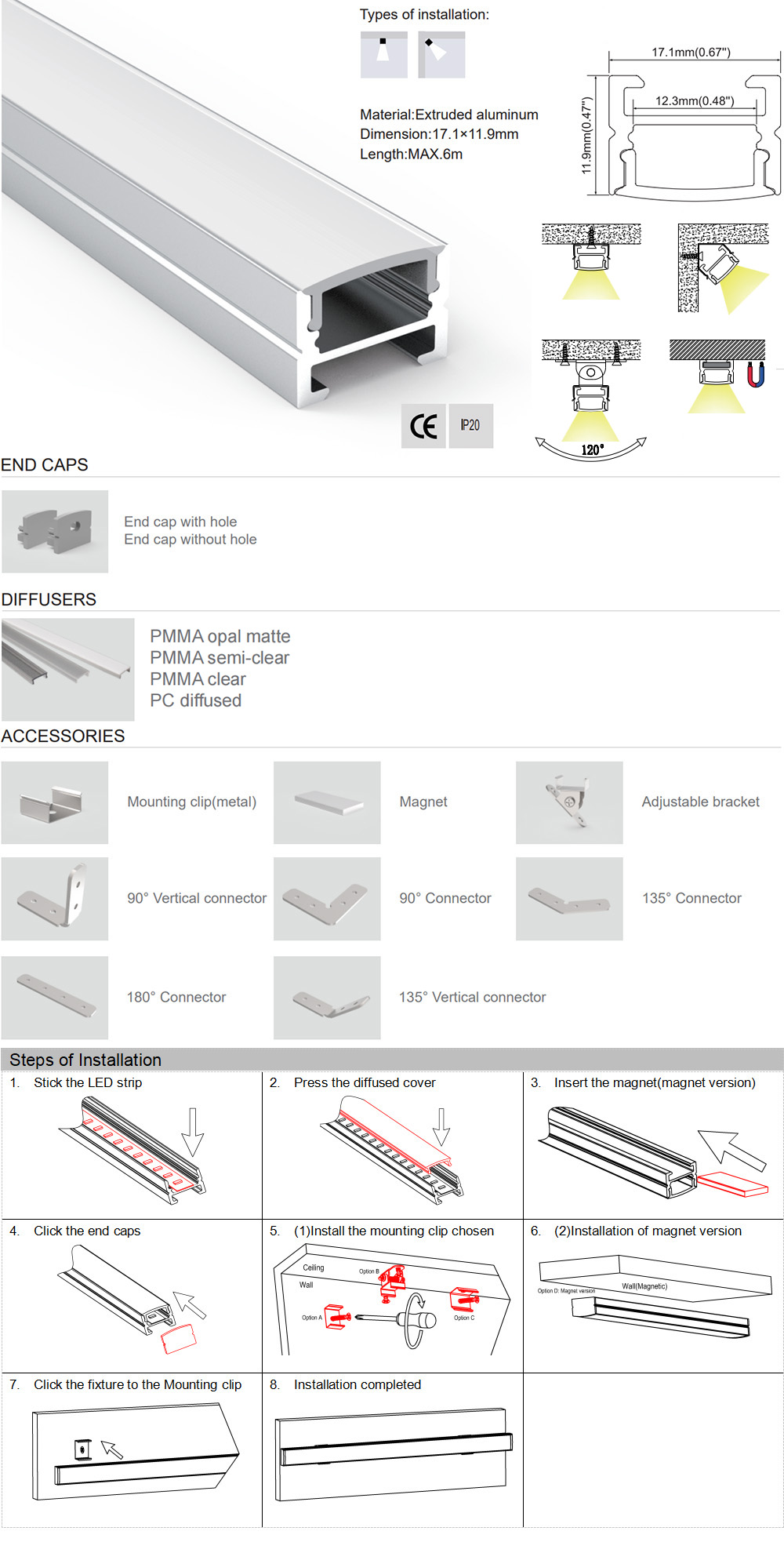

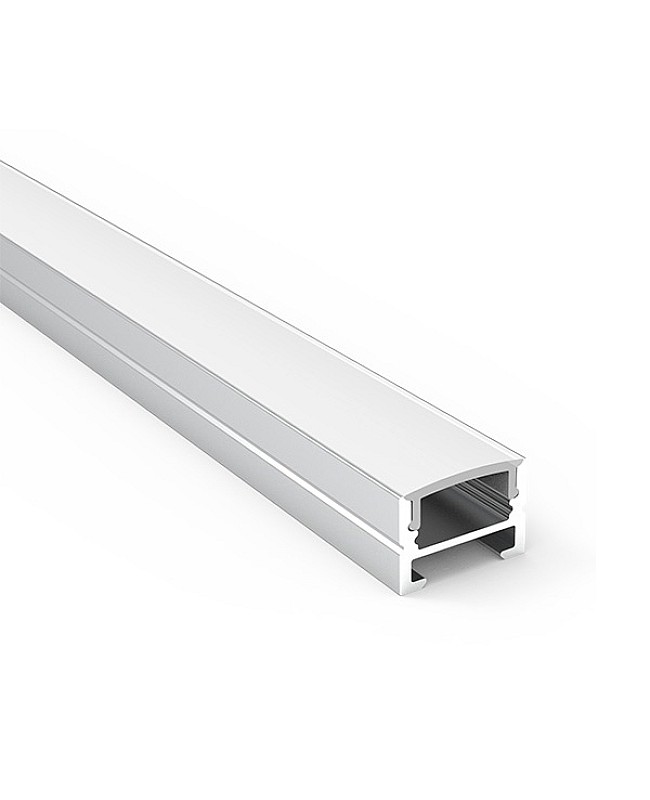

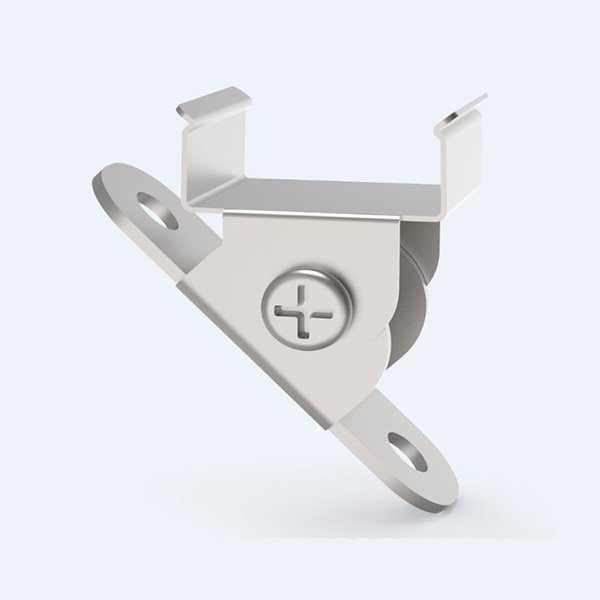

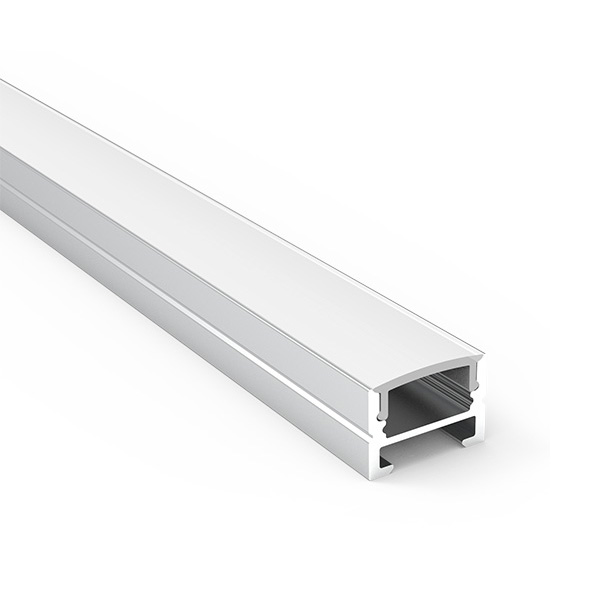

The surface-mounted aluminum LED channels offer a slim, versatile solution for providing professional LED installations with a clean, finished look. It offers flexible mounting options and is compatible with mounting clips, 45° metal clips, magnets, and adjustable brackets, allowing easy integration into ceilings, walls, cabinets, and furniture. There are five types of joiners available, making them ideal for continuous linear runs or customized lighting designs. There is a slot on the bottom that allows the insertion of magnets, which enable the aluminum LED channels to adhere easily to metal ceilings, walls, and other metal surfaces. Perfect for under-cabinet lighting, retail shelves, office workspaces, and architectural accent lighting, this combination of functionality and aesthetics is ideal. They are made of 6063-T5 extruded aluminum material and feature an anodized finish for enhanced oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and can be cut to any size; custom lengths are available. Six types of diffusers are available: the PMMA series and the PC series. They are made of brand-imported material, anti-yellowing, and perfect light distribution. The inner width is 12.3 mm and is compatible with the max-width of LED strips up to 12 mm. The aluminum profiles can be used as a heat sink to enhance heat dissipation, thereby extending the lifespan of the LED strips. The bottom of the LED aluminum channels features a slot that allows for the insertion of magnets, enabling you to attach them to metal parts without drilling holes in ceilings, walls, or other metal surfaces. End caps with and without holes are included.
Specifications:
- Model: ALP144
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

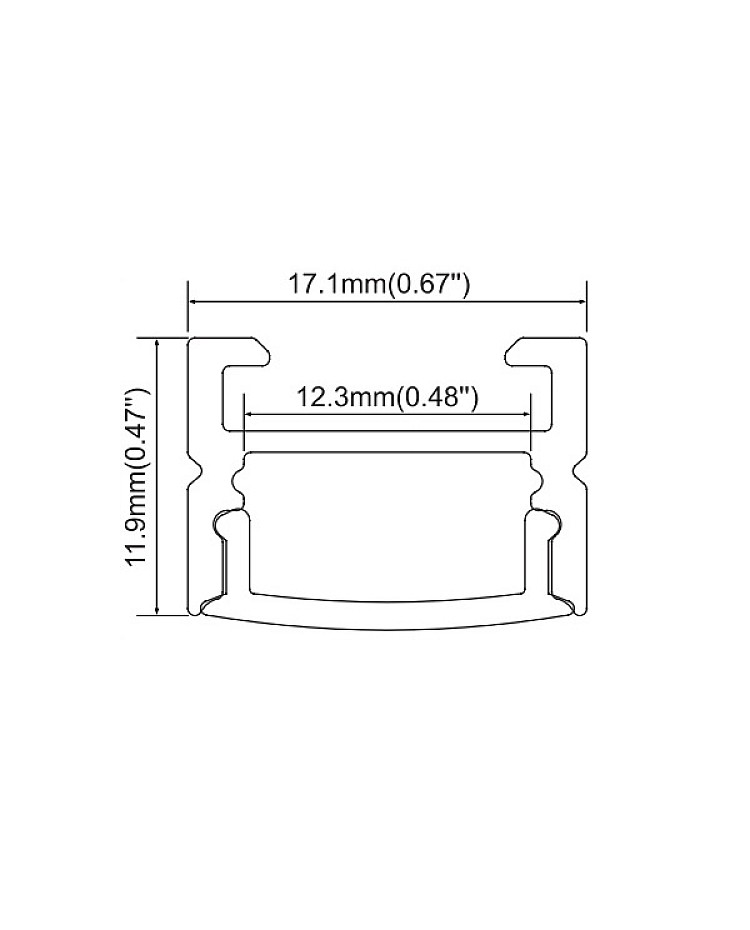

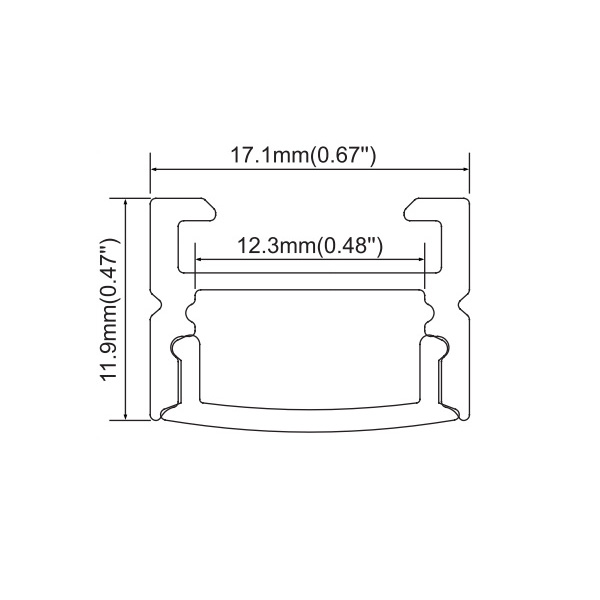

- Size ( W x H ): 17.1 mm x 11.9 mm ( 0.67" x 0.47" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 12.3 mm ( 0.48" )
- Max width of LED strips: 12 mm ( 0.47" )
- Max power: 24W/m
- Diffusers available: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover
- Beam angle: 100°
- IP rating: IP20 non-waterproof

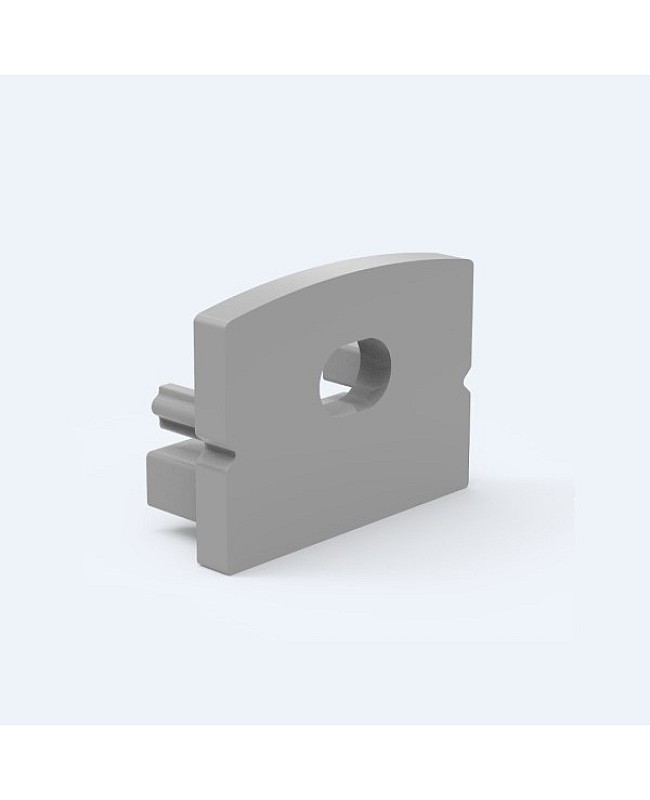

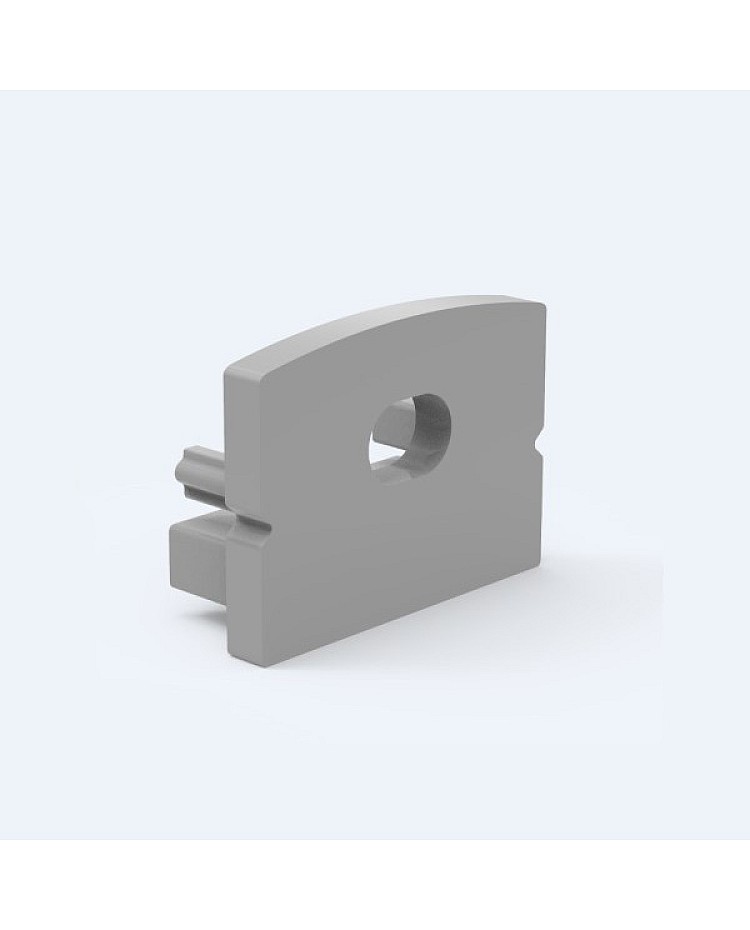

- End caps with and without wire holes are included
- Magnets are sold separately
- 90°, 90° vertical, 135° vertical, 135°, and 180° joiners are sold separately
- Installation: Surface-mounted
- Warranty: 5 years
Applications:
- Cabinet & shelf lighting: Provide discreet, uniform illumination while protecting the strip lights.
- Accent & decorative lighting: Suitable for tight spaces or decorative trims, for cove lighting, stair lighting, and wall accents.
- Furniture & retail displays: Integrates seamlessly into furniture pieces, showcases, and store displays for glare-free, professional lighting.
Includes:
1 * Aluminum LED channel and diffuser

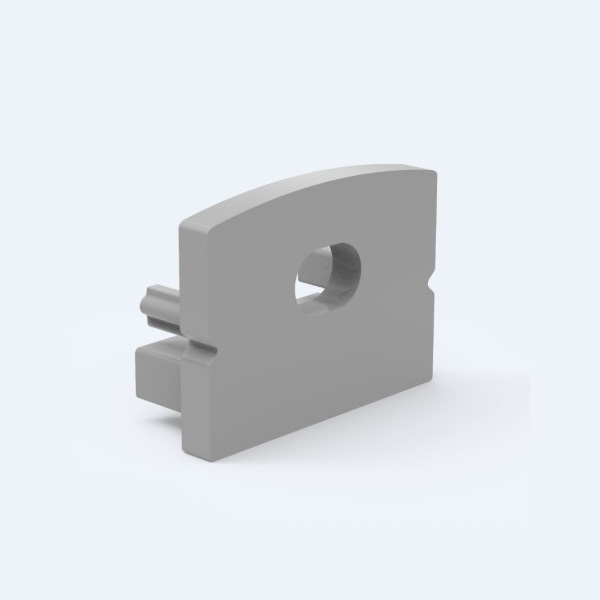

End caps ( With and without wire holes)

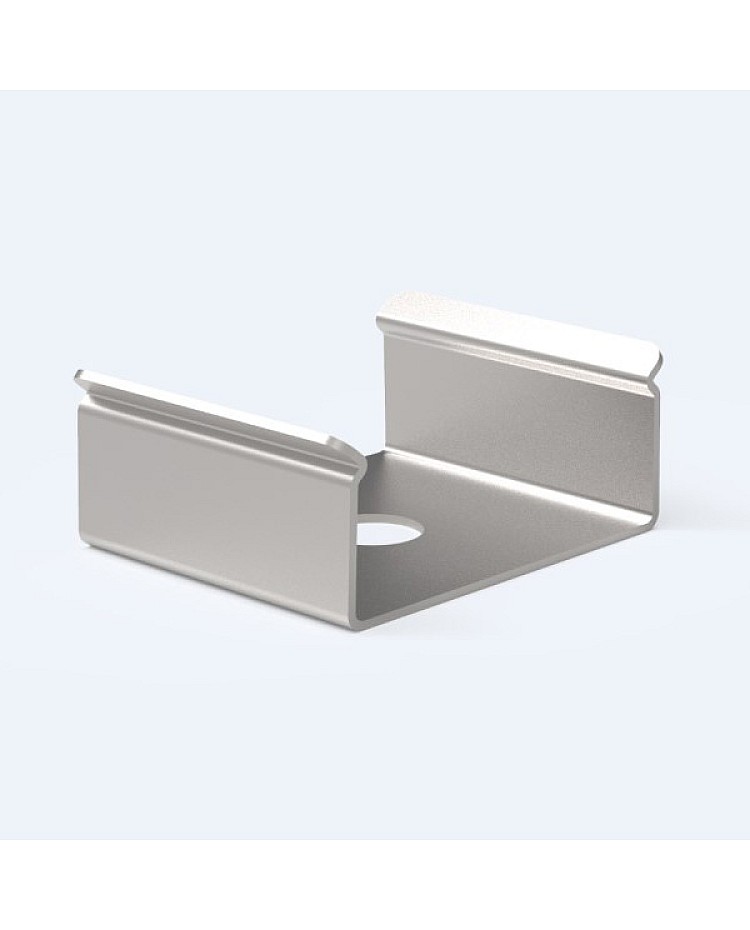

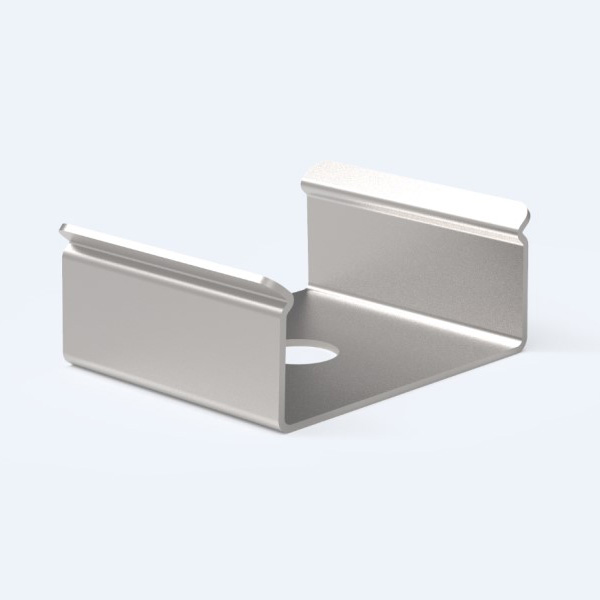

Metal clips
