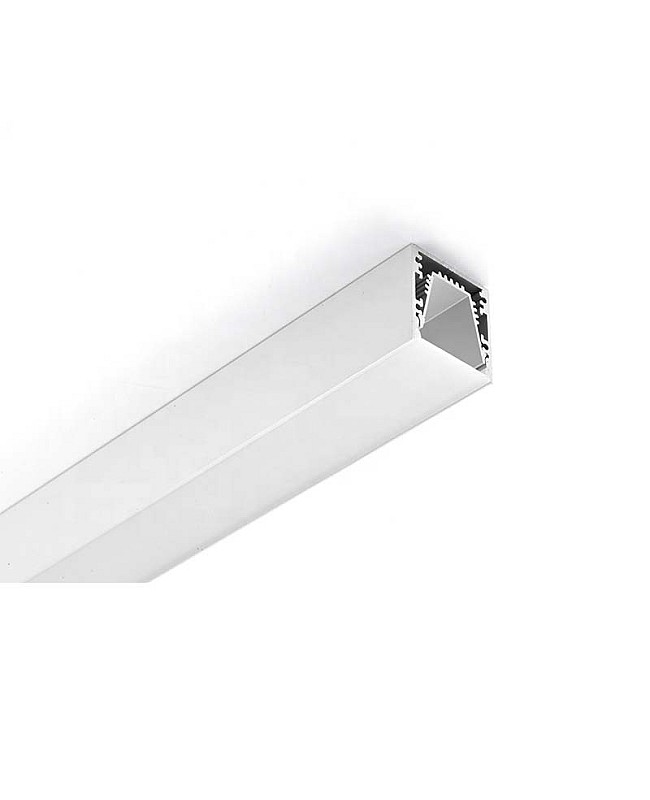

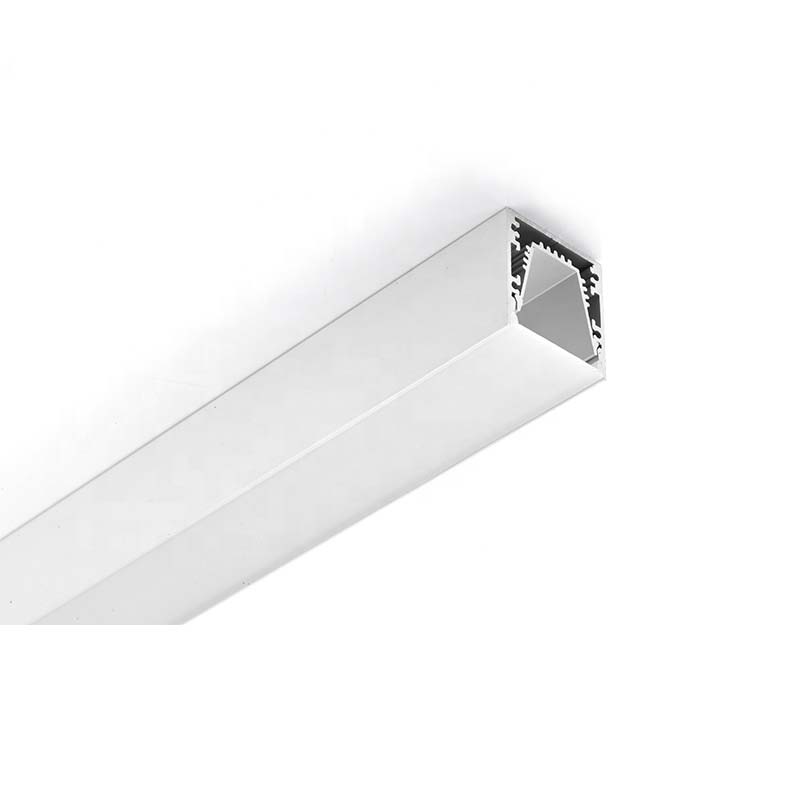

The linear LED light channel is a modern ceiling lighting option with a sleek and stylish look. Comes with a PC frosted opal diffuser for a bright and uniform light source, perfect for any contemporary home or office space. The standard lengths are 1M and 2M; the max length is 2.5M, and it can be cut to any length to fit your needs.
They are made of high-quality aluminum with an anodized surface treatment, offering oxidation resistance, durability, and long-lasting performance. Only one type of diffuser is available: the PC frosted opal diffuser, made from high-quality material with stable quality, anti-yellowing properties, perfect light distribution, and soft light output.

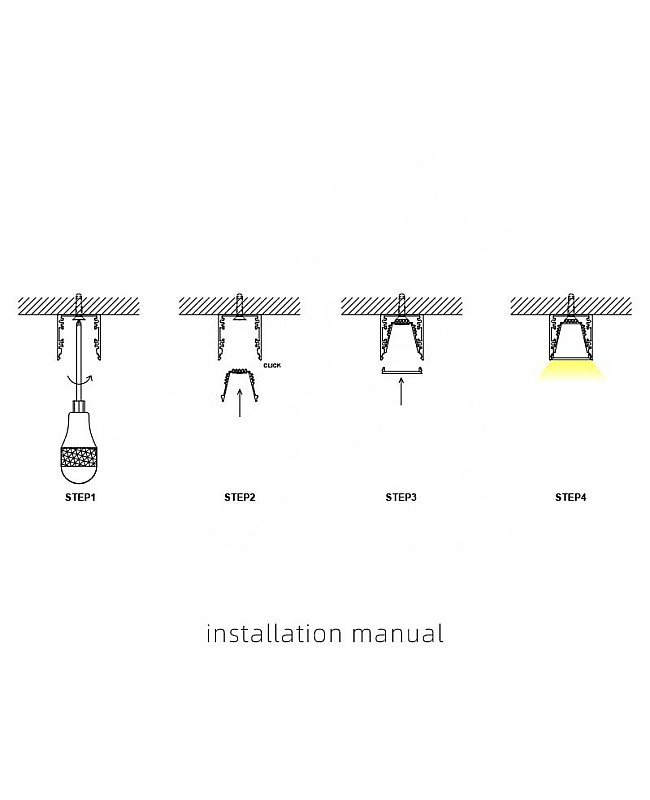

The inner width is 13mm, allowing the maximum width of flexible strip lights to be 13mm. We recommend adding high-density dual white COB strip lights as a light source, which can be easily connected to the CCT dimmer to adjust brightness and color temperature, creating a bright atmosphere. The COB LED strips are easy to install on the inserted heat sink for better heat dissipation, and elevating the LED strips closer to the diffusers increases illumination.

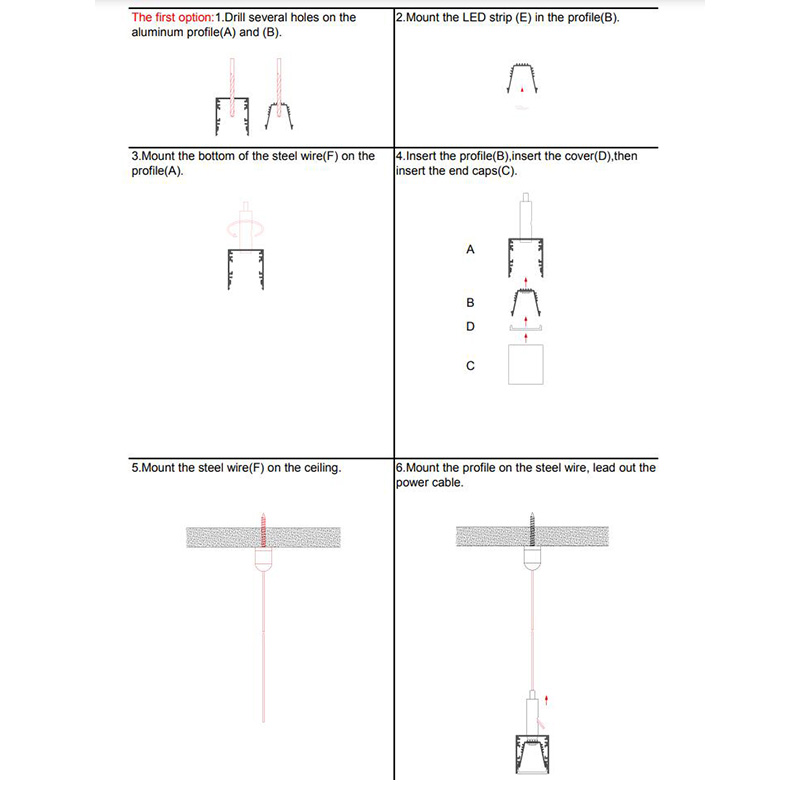

Three couplers are sold separately, allowing the channels to be easily linked 90° or 180°. The suspension wire kits are included and are easy to hang on the ceiling. You can use them as the main lighting or auxiliary light in offices, retail stores, supermarkets, shops, and gyms.

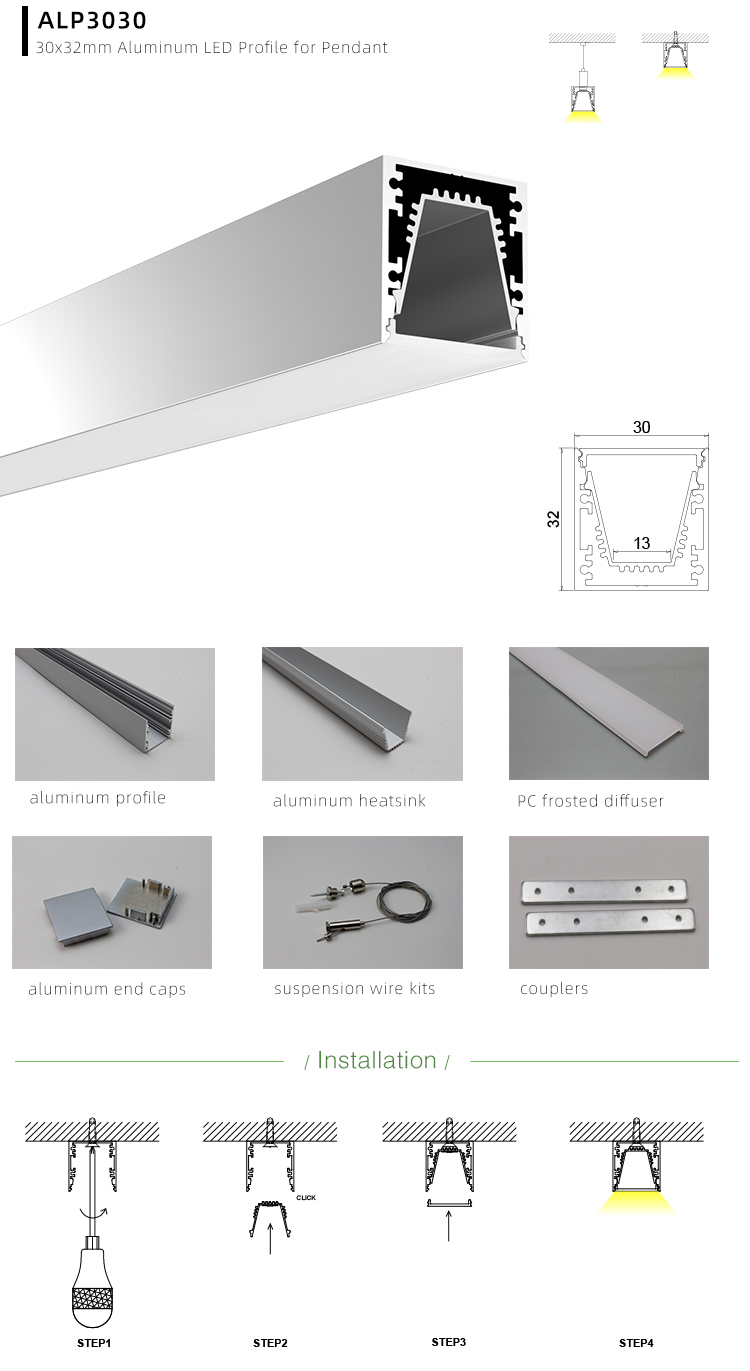

Specifications:
- Material: AL6063-T5 Aluminium Alloy
- Color: Silver, White, Black
- Surface Treatment: Silver Anodized
- Model: ALP3030
- Diffuser: PC Frosted Opal Diffuser
- Standard Length: 1Meter
- Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
- Custom Length Available: YES
- Max Power: 15W/Meter

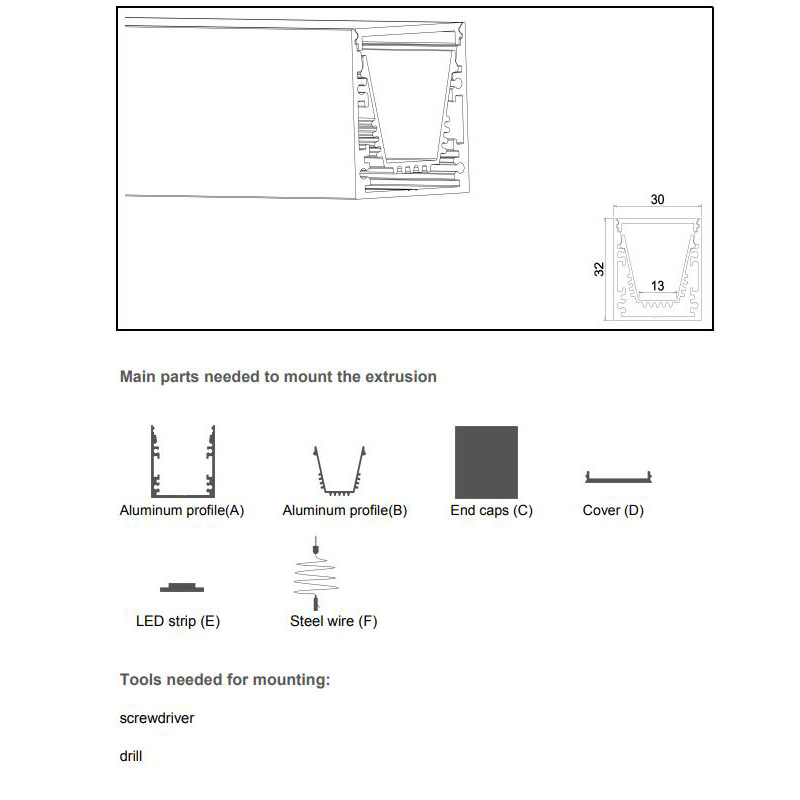

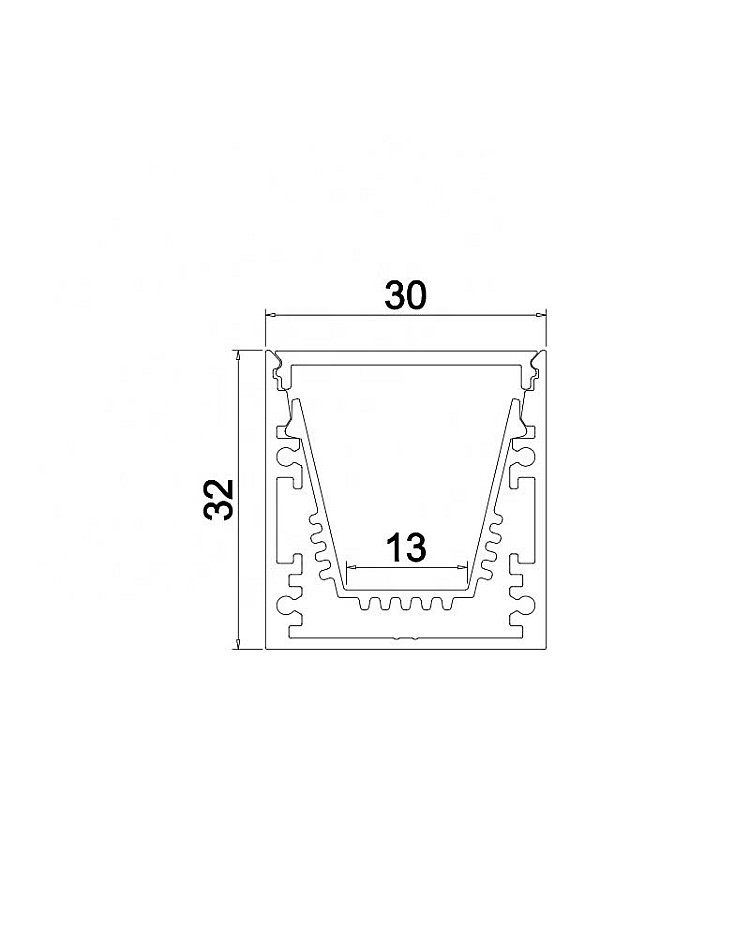

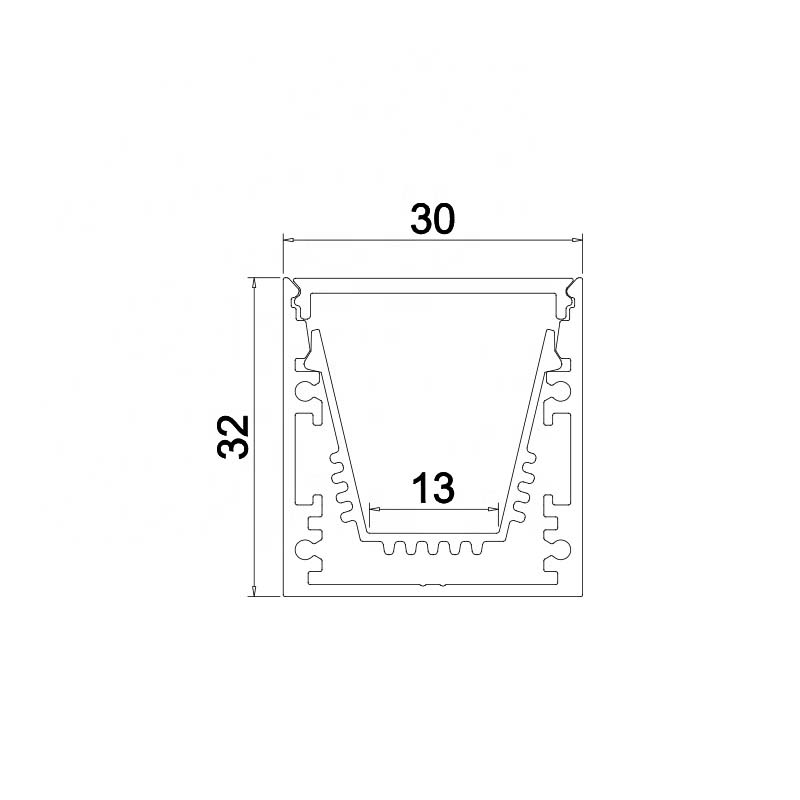

- Inner Width: 13mm
- Allows The Max Width Of Strip Lights To Be 13mm

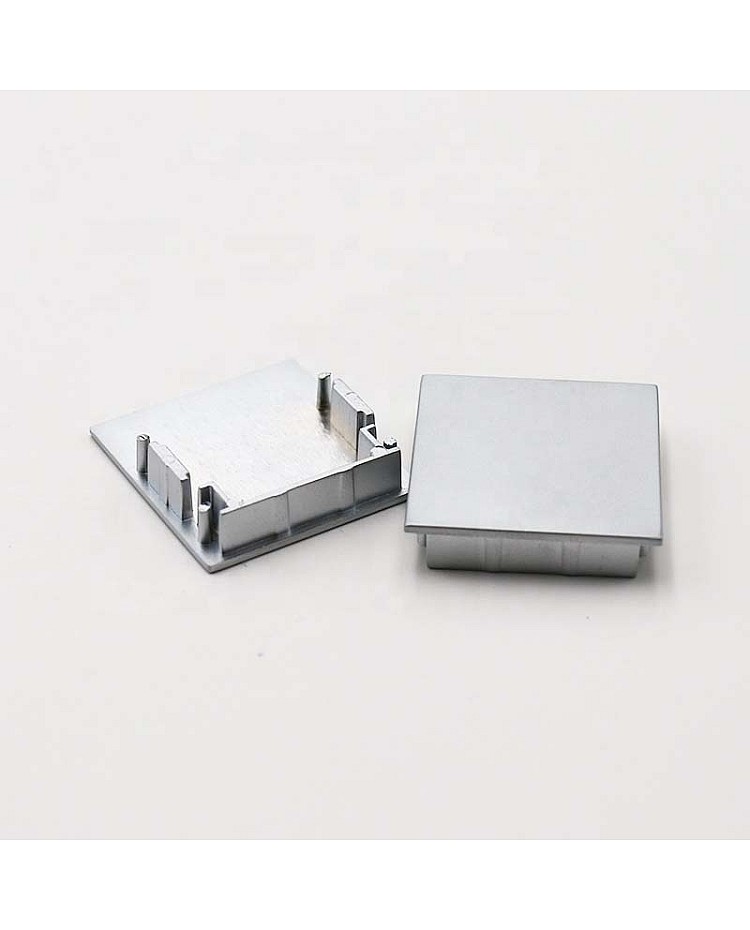

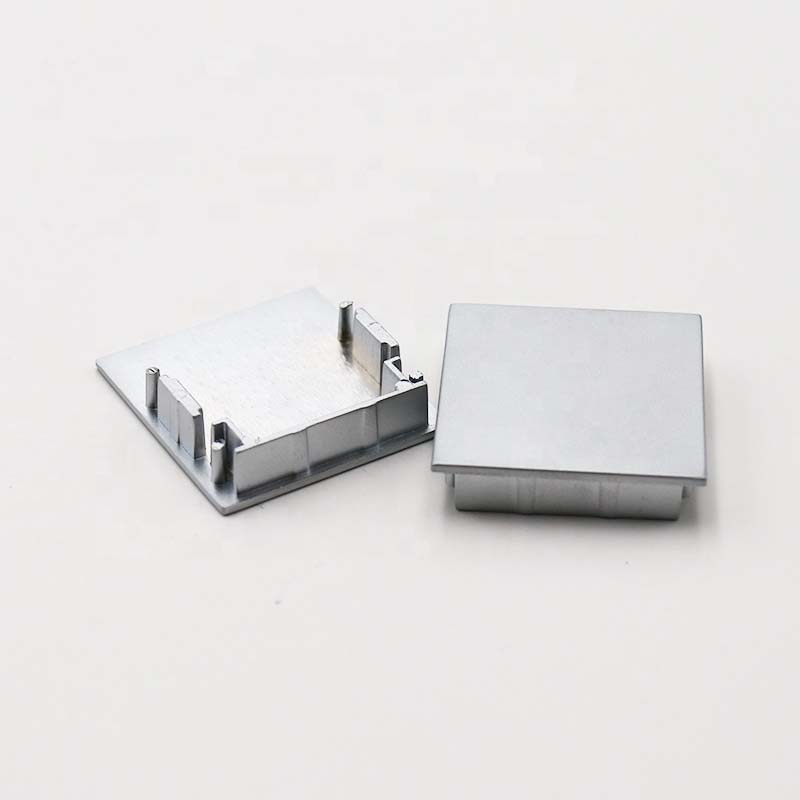

- Aluminum End Caps And Suspension Wire Kits Included
- 90°, 90° Vertical, And 180° Couplers Sold Separately

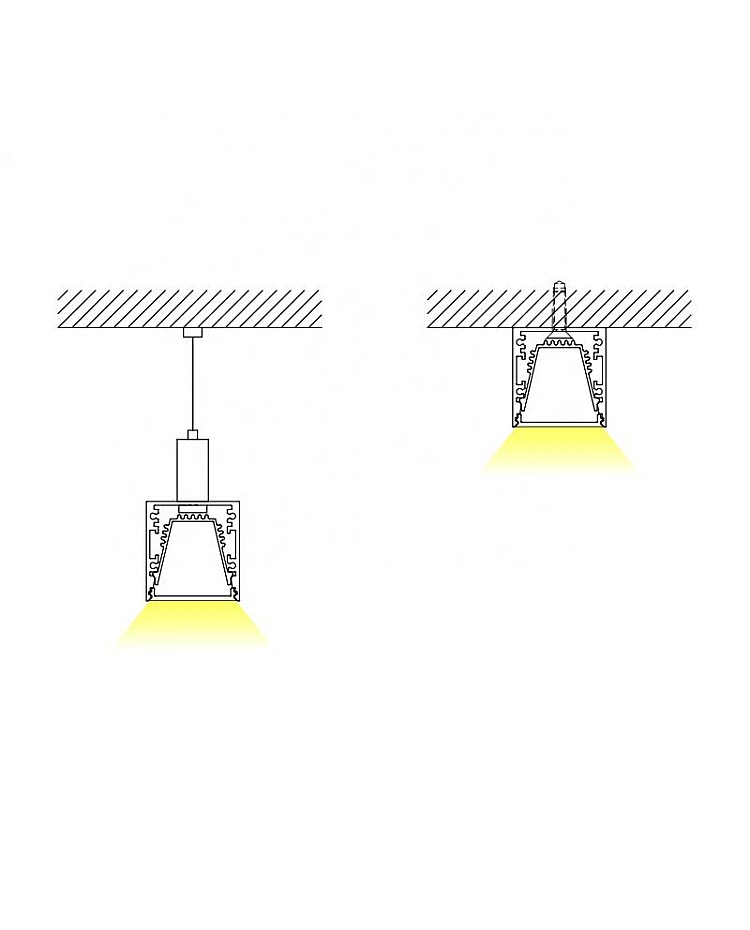

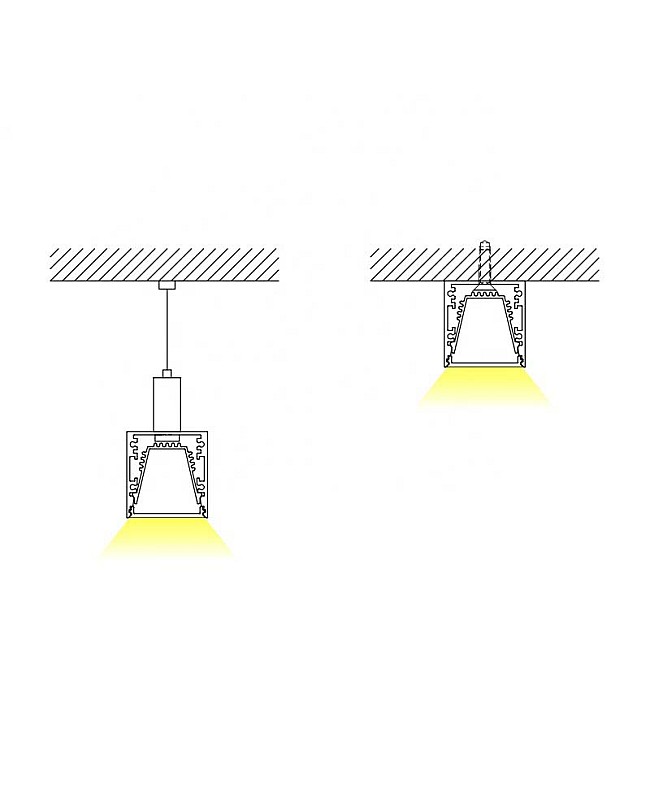

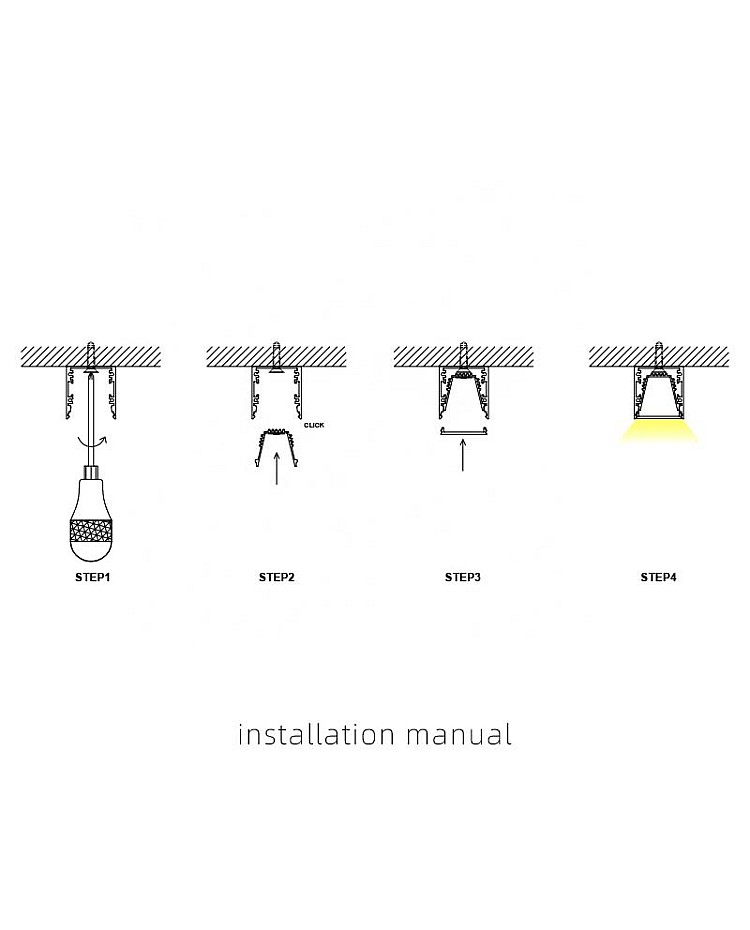

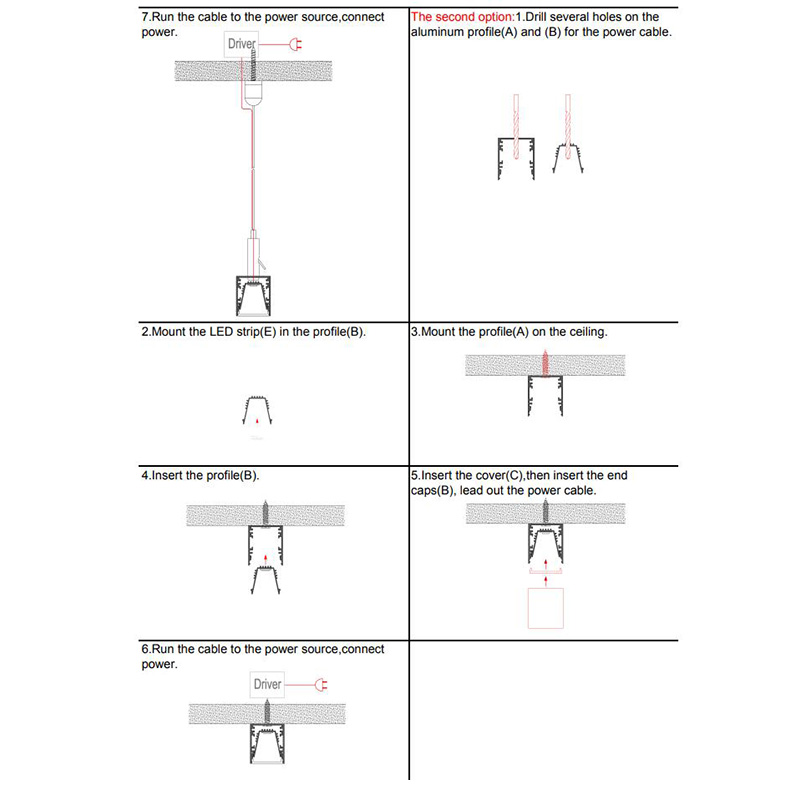

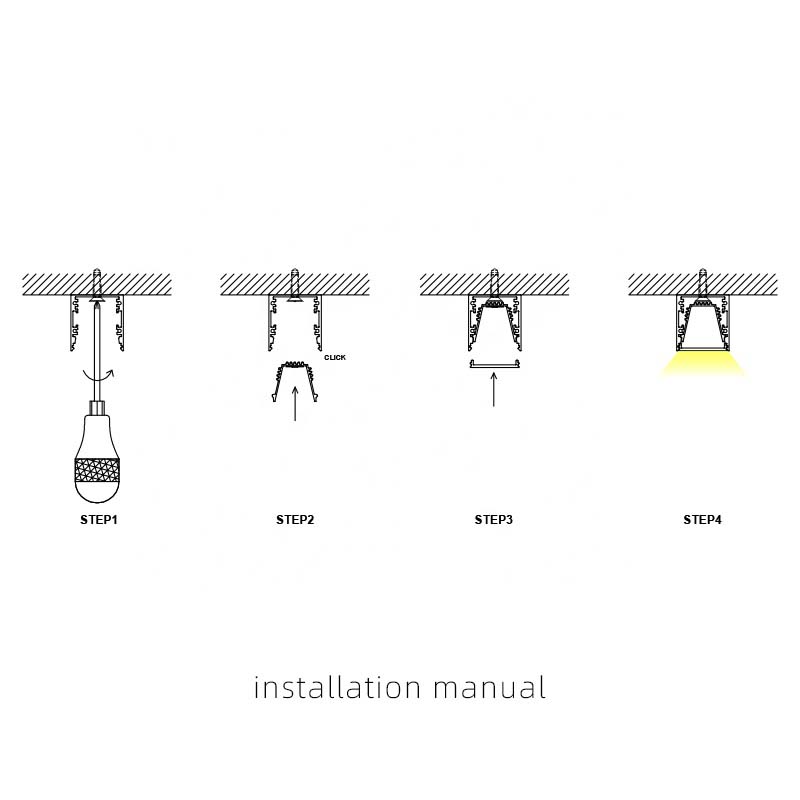

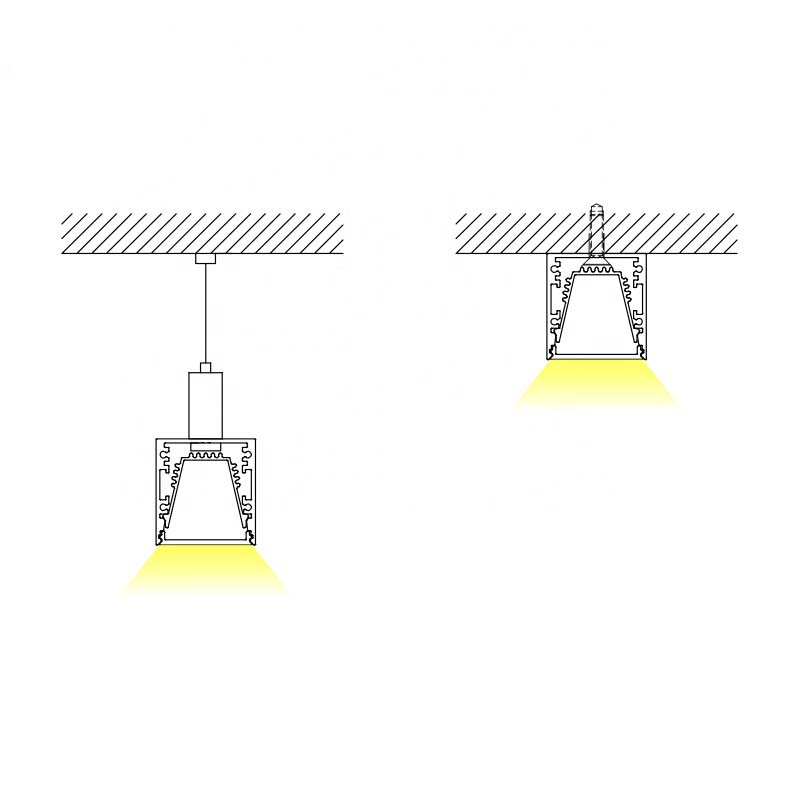

- Installation: Ceiling, Wall Pendant, Surface Mounted
- Applications: Office, Retail Stores, Supermarket, Shop, GYM
- Warranty: 5 Years
Includes:
1 * LED Light Channel With Diffuser
End Caps
Suspension Wire Kits
