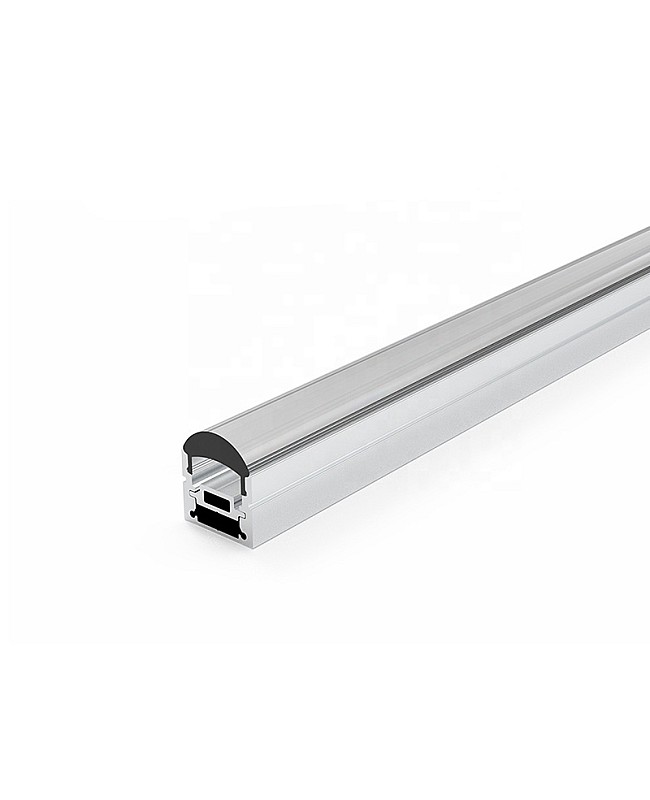

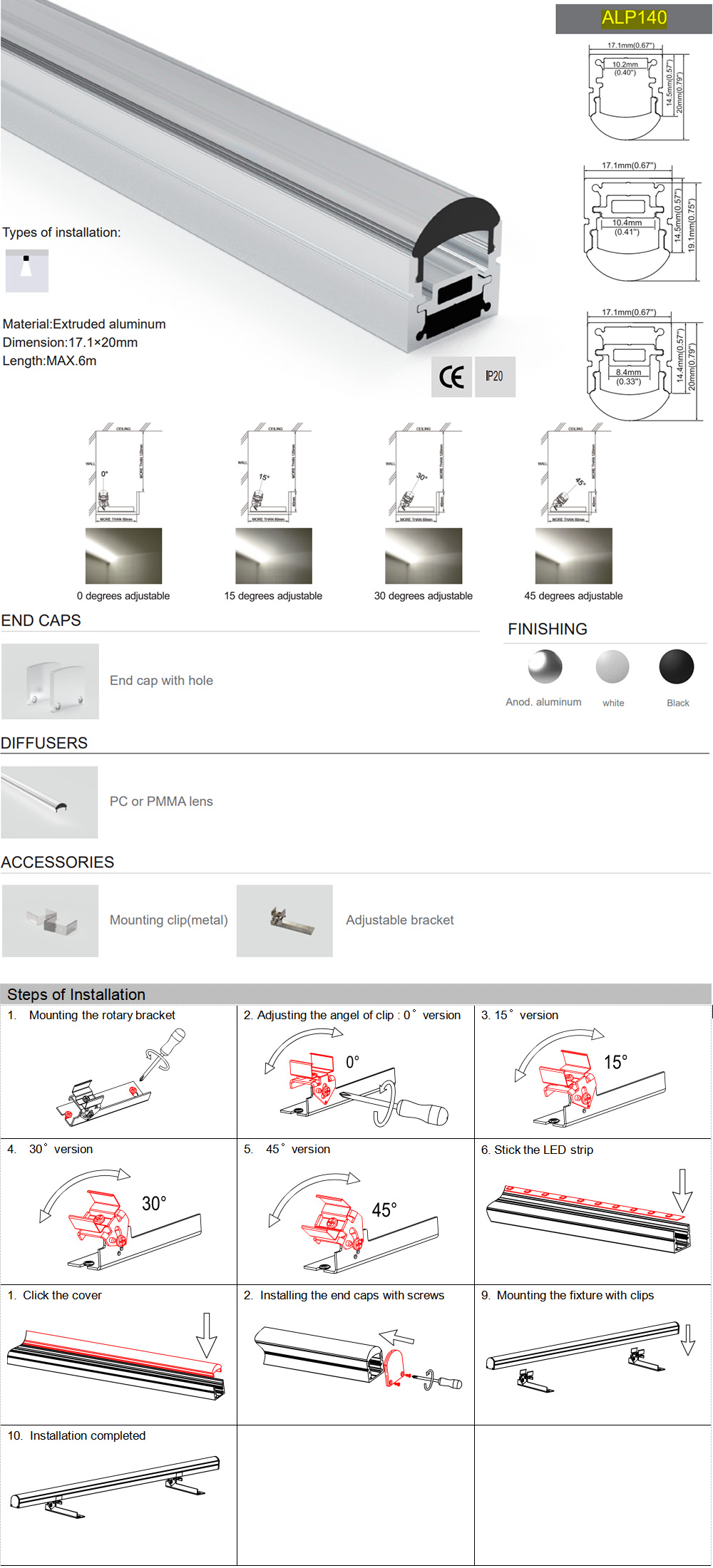

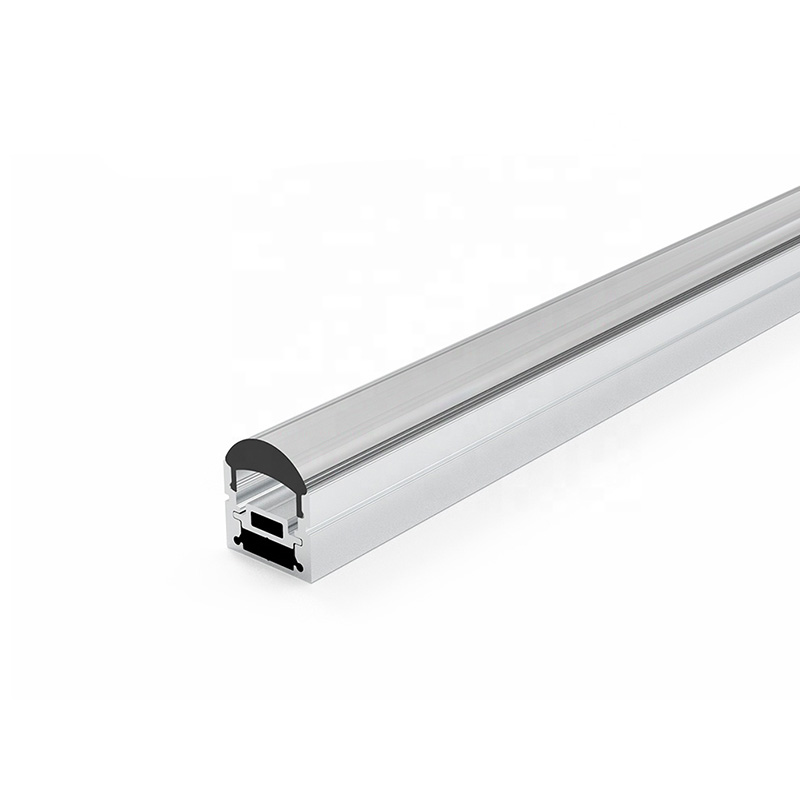

The ALP140 LED strip light housings are designed for versatile lighting applications. They come with adjustable brackets that allow the lighting direction to be set at 0°, 15°, 30°, or 45 ° angles. The middle aluminum panel is movable, allowing it to be detached, or attached in various directions to get different beam angles of lighting: 15°, 30°, or 60°. It will give installers maximum flexibility for directional lighting. Paired with PC diffused covers, PC lenses, or PMMA lenses, it delivers smooth, uniform light output without visible LED hotspots. Ideal for both residential and commercial projects, it can be surface-mounted on walls, ceilings, furniture, and display units, making it an excellent choice for accent, task, and decorative lighting. The LED housing is made of 6063-T5 extruded aluminum material, and its surface features anodized silver treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and custom lengths are also available. The inner width is 10.4mm and allows for a maximum strip light width of 10mm. Recommend adding our high-density COB LED strips to create uniform lighting without hotspots. The end caps with and without wire holes are included.
Specifications:
- Model: ALP140
- Material: Extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

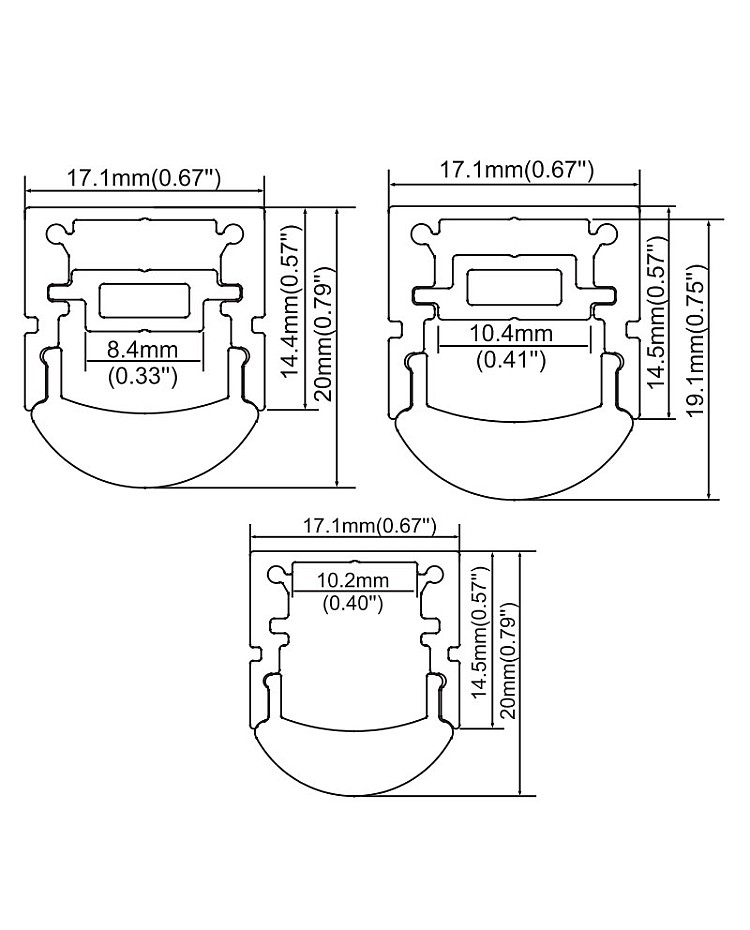

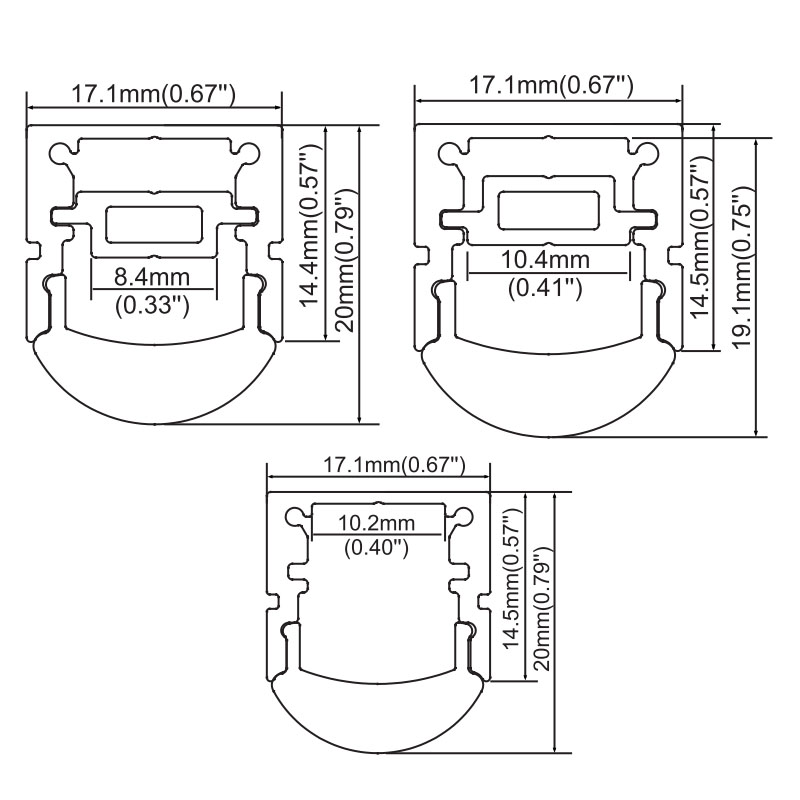

- Size ( W x H ): 17.1 mm x 20 mm ( 0.67" x 0.79" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES

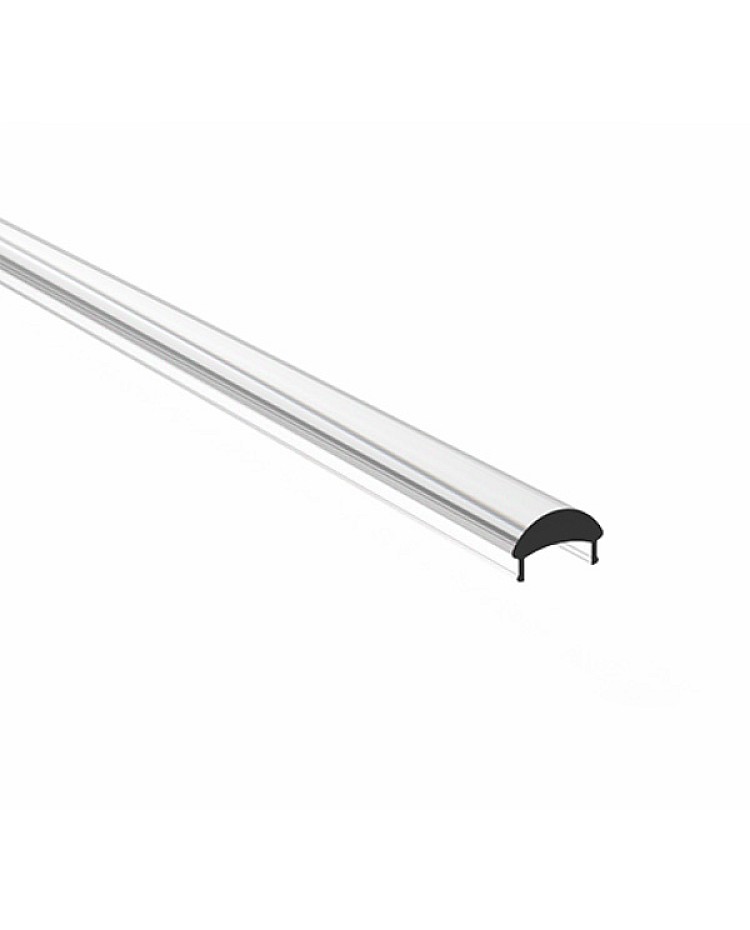

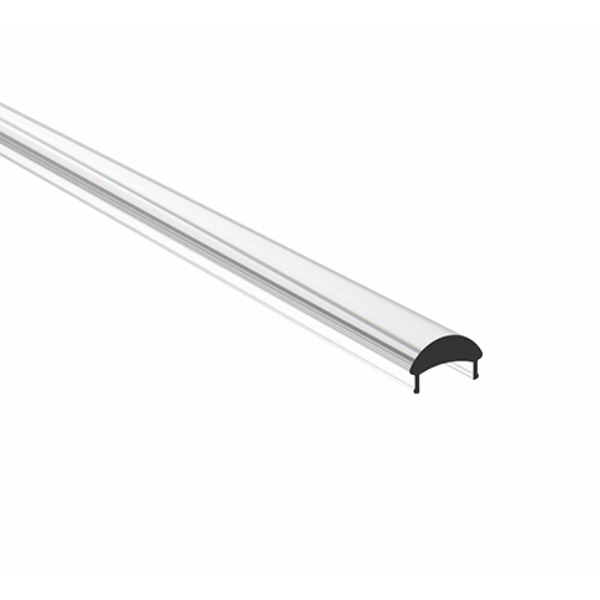

- Diffusers: PC diffused cover, PC lens, PMMA lens
- Inner width: 10.2 mm ( 0.40" ), 10.4 mm ( 0.41" ), 8.4 mm ( 0.33" )
- Max width of LED strips: 10 mm ( 0.39" ) or 8 mm ( 0.31" )
- Max power: 10W/m or 15W/m
- Beam angle: 15°, 30°, 60°

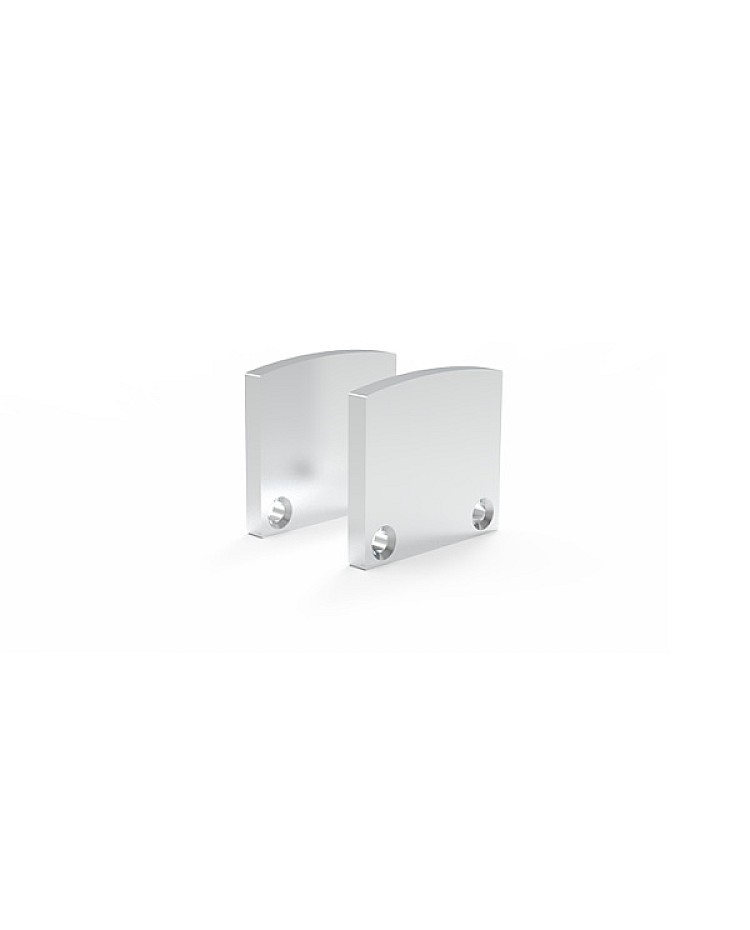

- End caps with and without wire holes are included
- Adjustable Brackets Included
- Tolerance: ±1%
- Waterproof Level: IP20 non-waterproof
- Installation: Surface-mounted
- Warranty: 5 years
Applications:
- Accent lighting: Highlight architectural details, wall edges, ceilings, and display areas with angled illumination.
- Cabinet & shelf lighting: Adjustable beam angle makes it ideal for under-cabinet lighting, shelves, showcases, and retail displays.
- Wall washing & grazing: Create dynamic lighting effects on textured walls, stone surfaces, or decorative panels.
- Cove & indirect lighting: Mount at different angles to create customized ceiling or wall wash effects.
- Indoor signage & display illumination: Adjustable angles allow precise lighting for graphics, signage, and advertisements.
Includes:
1 * LED strip housing with cover
End caps

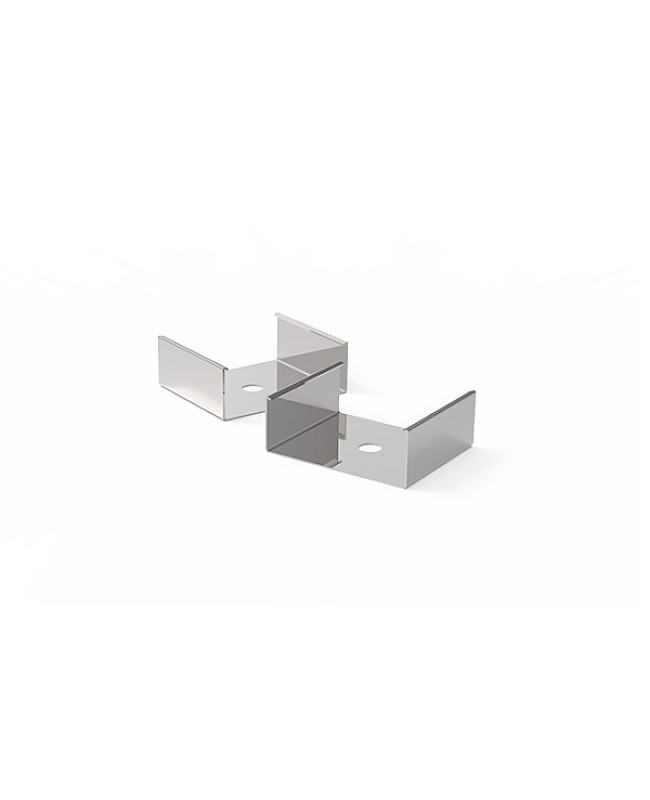

Adjustable brackets
