The T-300K full color online LED pixel controller is designed to be compatible with most smart ICs and compatible with single and double line IC control. When connected with a single line IC, there is no need to connect the CLK clock line. There are two controlling methods: connecting to a computer for online control or using an SD card for online control. You can use the software LedEdit to design or edit the animation and output to the LED controllers, which can control various point, line, and surface light sources, such as rules and special shapes. The computer is online and can support the control of 300,000 Pixels. The T300K with 8 output ports, each port supporting 1024 Pixels, 32 gray levels, and 256 gray levels, can carry 512 lights. The 2GB SD card included, you can store the lighting effect file on it and play it in the LED controller. The T-300K supports playing 16 lighting effects stored on the SD card. If the controller and LED lights are not in the same location, you can choose photoelectric isolated transmission, and as far as up to 200-300 meters.
Specifications:
- Type: Dreamcolor Digital Pixel LED Controller

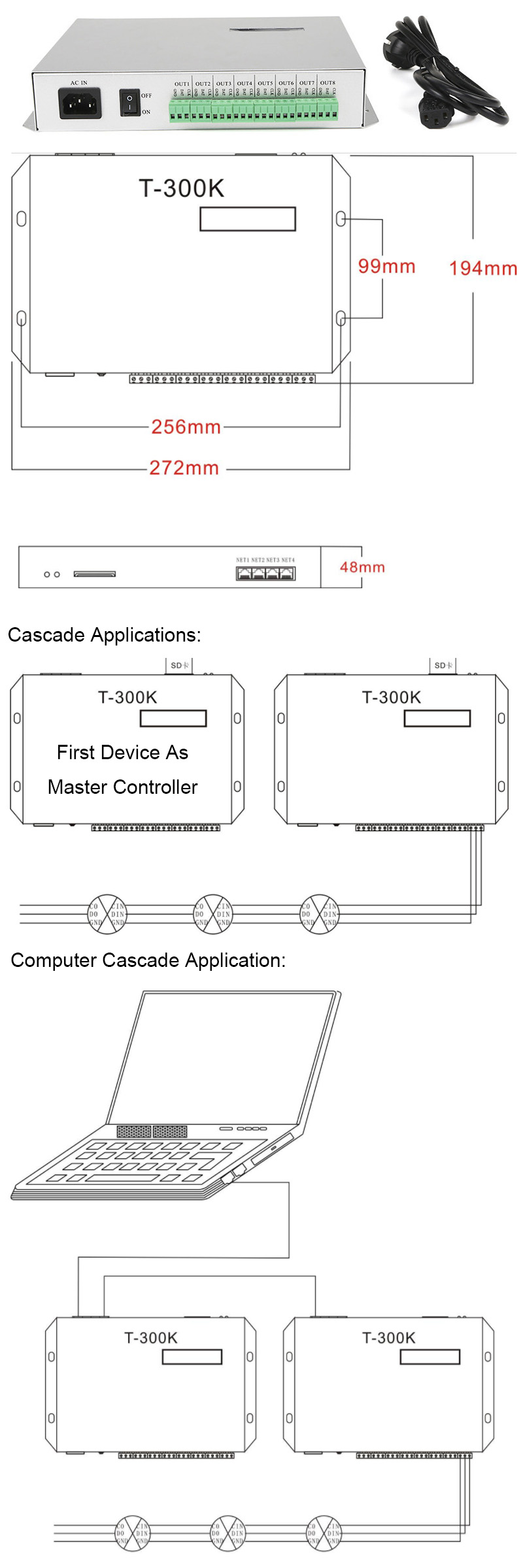

- Size: 165*80*30mm(L*W*H)
- Color: Silver
- Input Voltage: AC86-265V
- Output Voltage: DC5-24V
- Power: 10W
- Control Software: LedEdit
- SD Card Type: High-Speed SD Card
- SD Card Capacity: 128 MB- 16 GB
- SD Card Format: FAT
- SD Card File Format: *.led

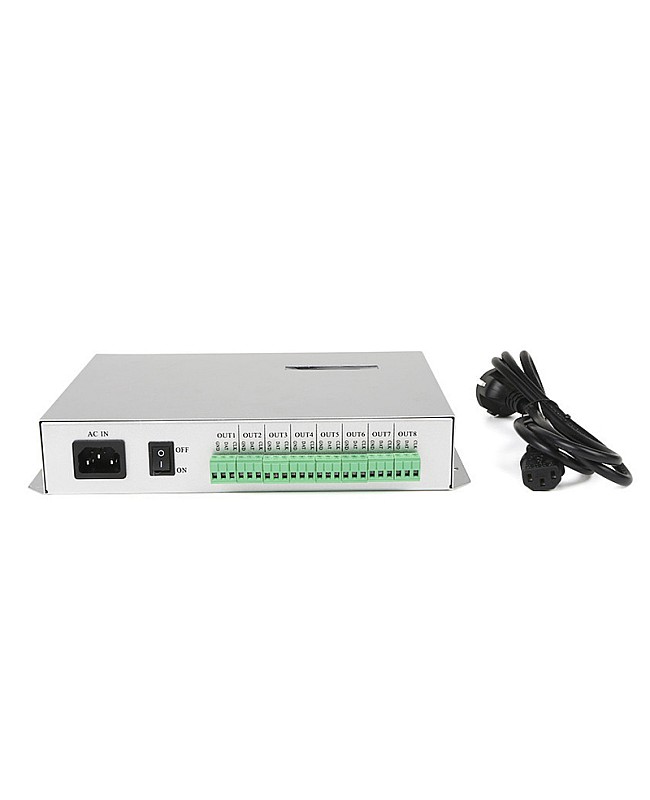

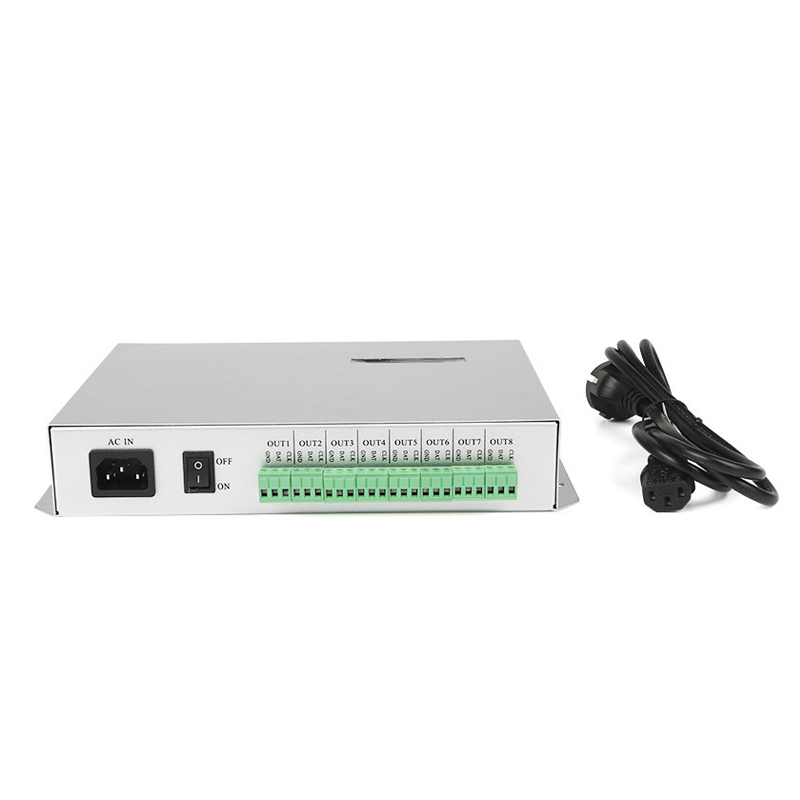

- Signal Port: 8PCS 3Pin Connector Port
- Max Loading Pixels: 8*512-1024PCS, Max 8192PCS
- 32-65536 Grade Gray Level, Support Software Gamma Correction
- Can Edit The Rules To Control The Alien Shape Point, Line, Panel Lights Via LedEdit Software

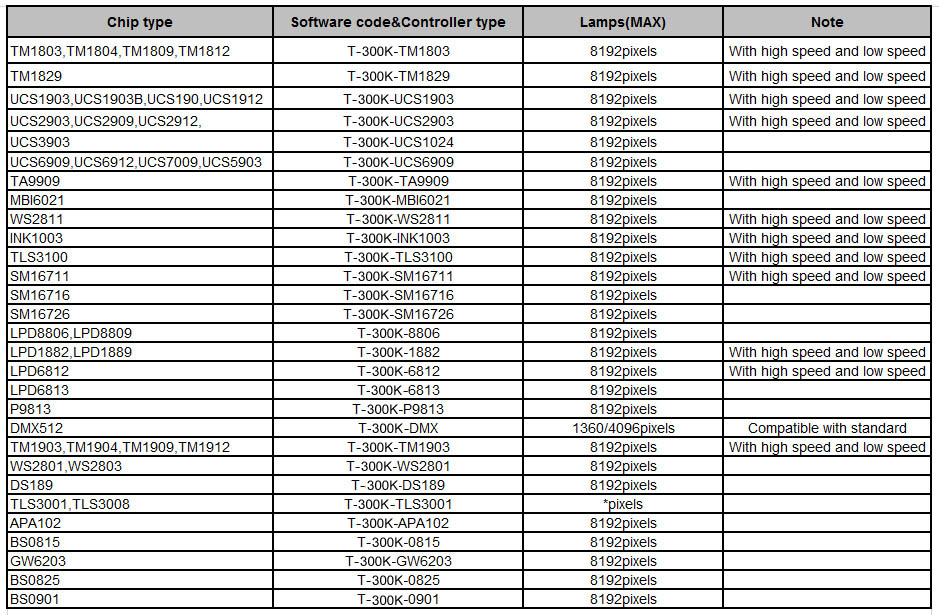

- Compatible With Single Or Double Line Chips
- Online Control And Offline Control With SD Card
- Enhanced TTL Or 485 Differential Signal Output(Default TTL)
- Compatible With Most Of Digital Programmable LED Strips

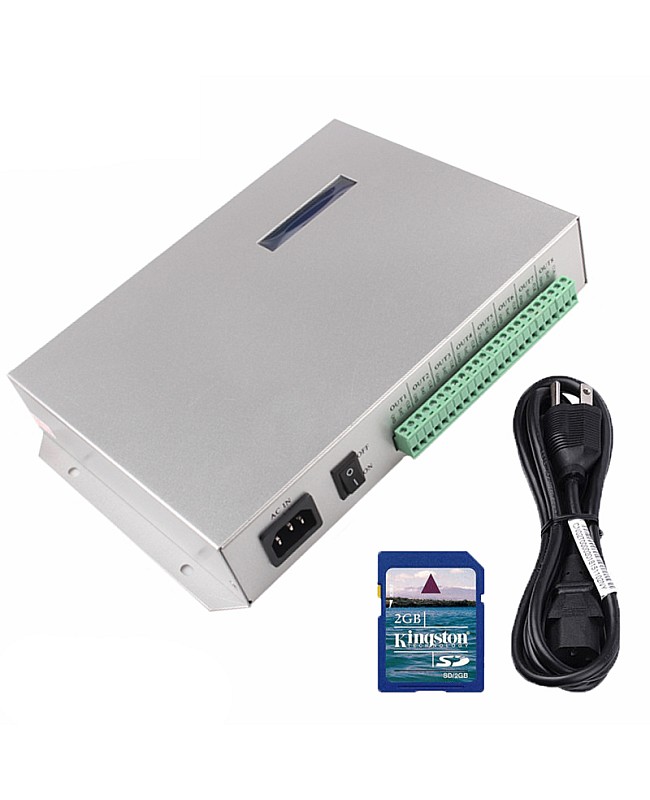

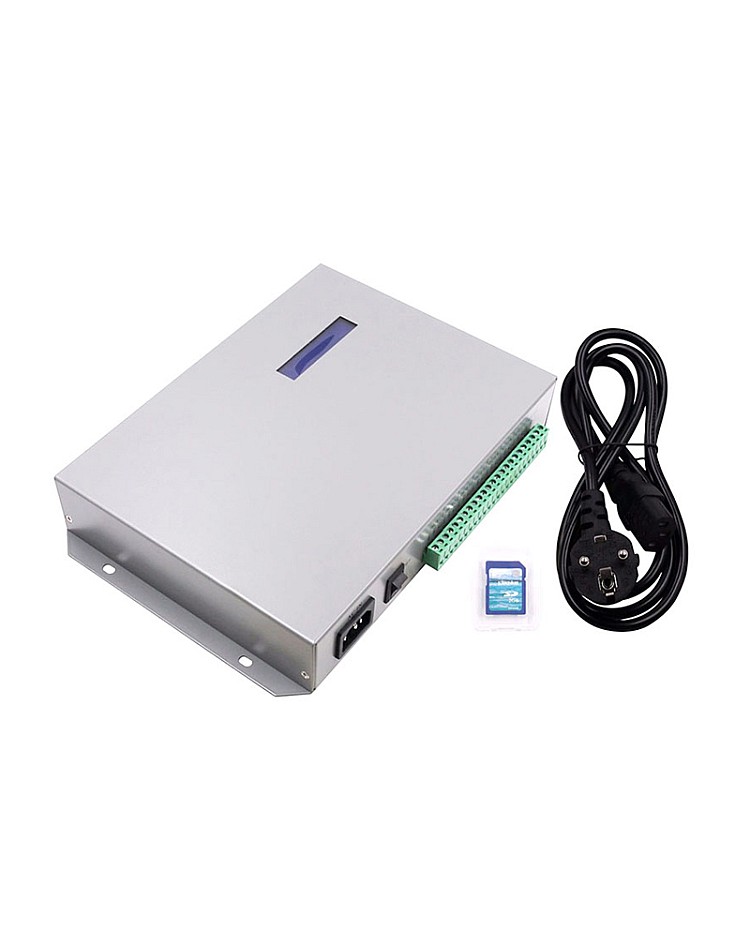

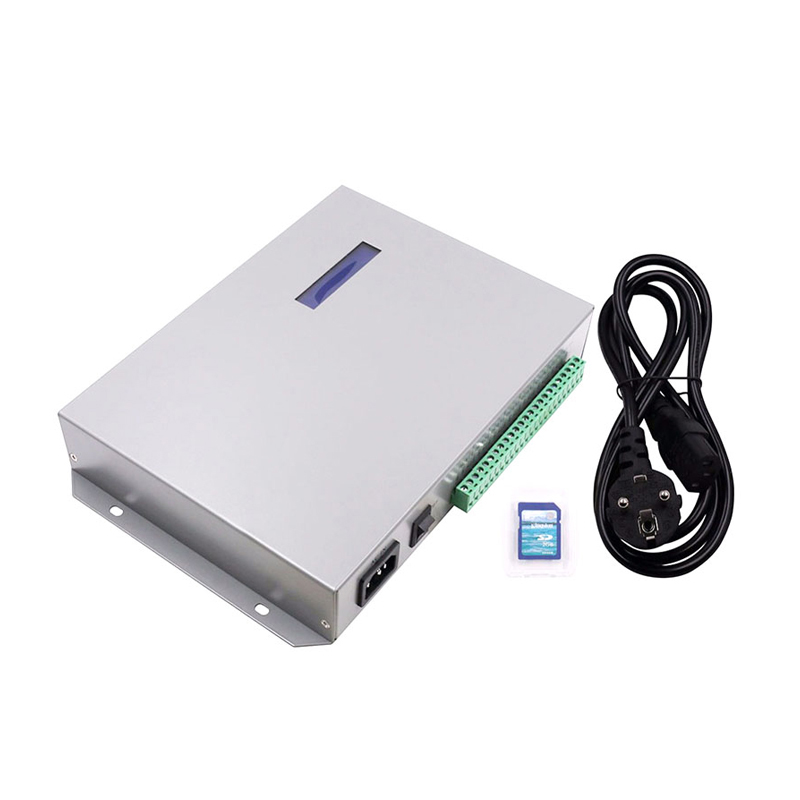

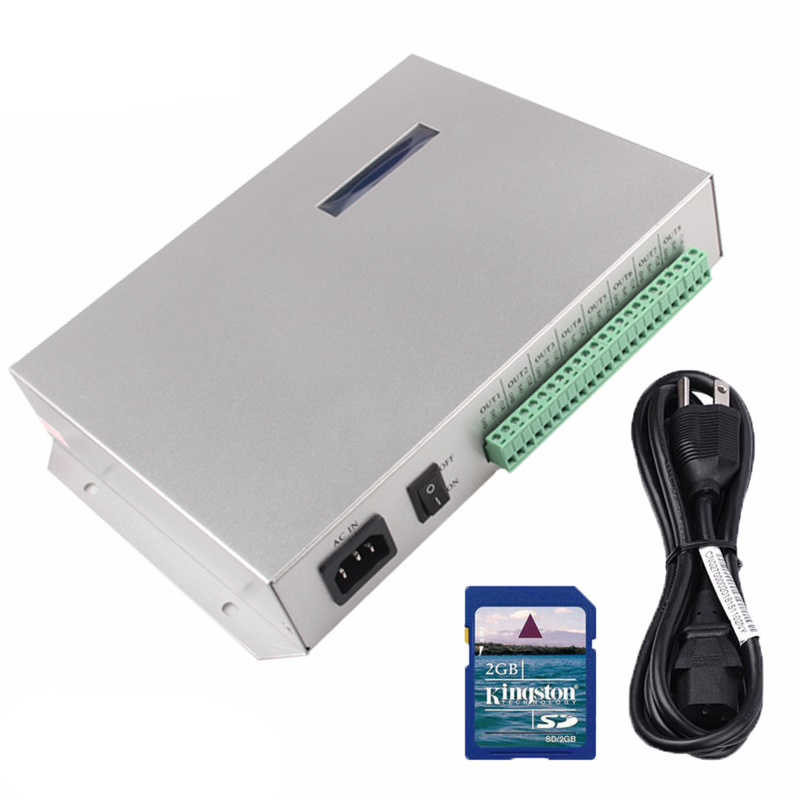

Includes:
1 * T300K Pixel LED Controller
1 * AC Power Cable
1 * 2G SD Card Includes 2013 LedEdit Software
1 * User Manual
