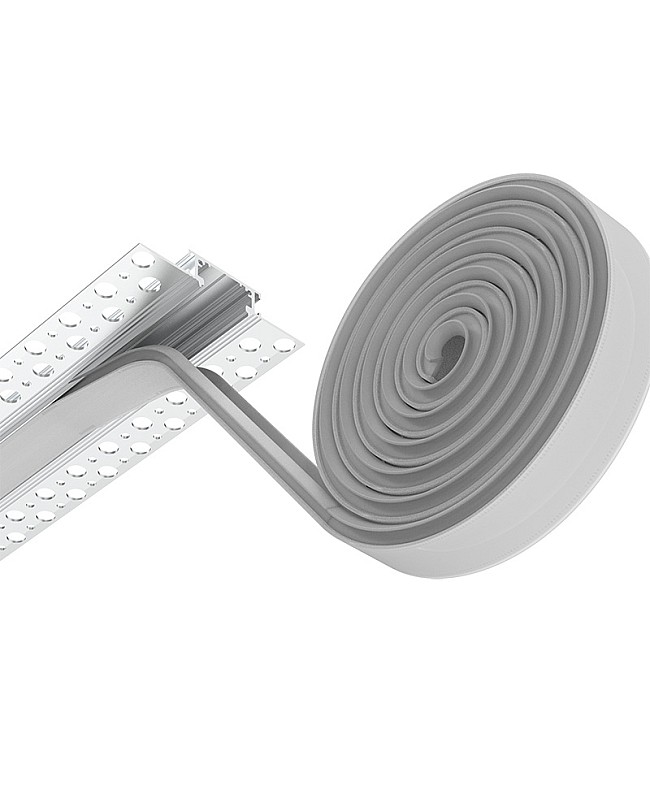

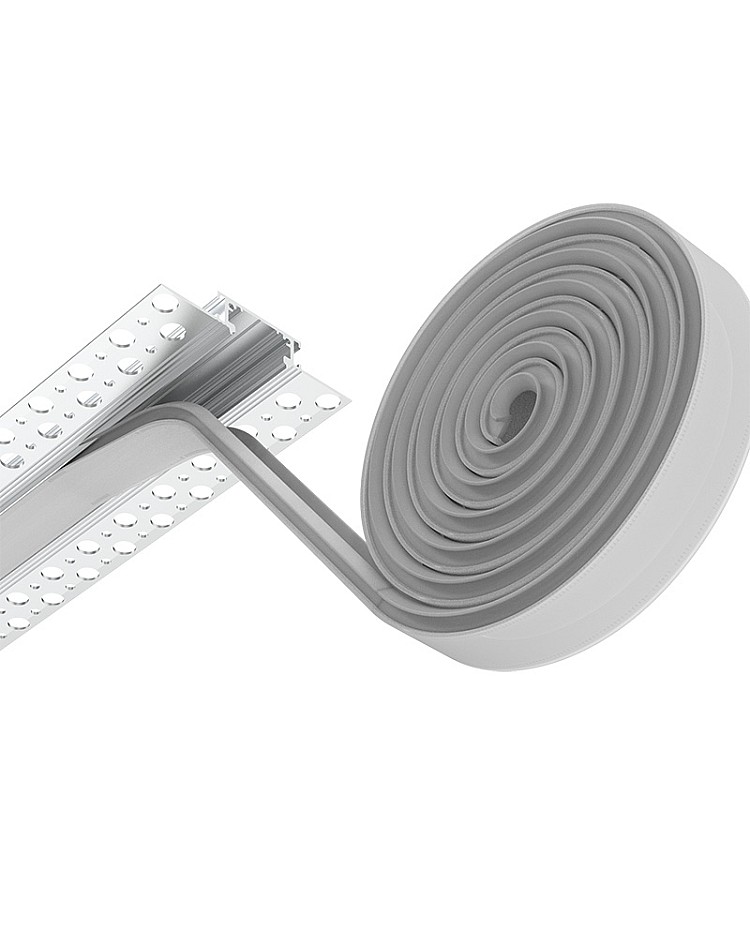

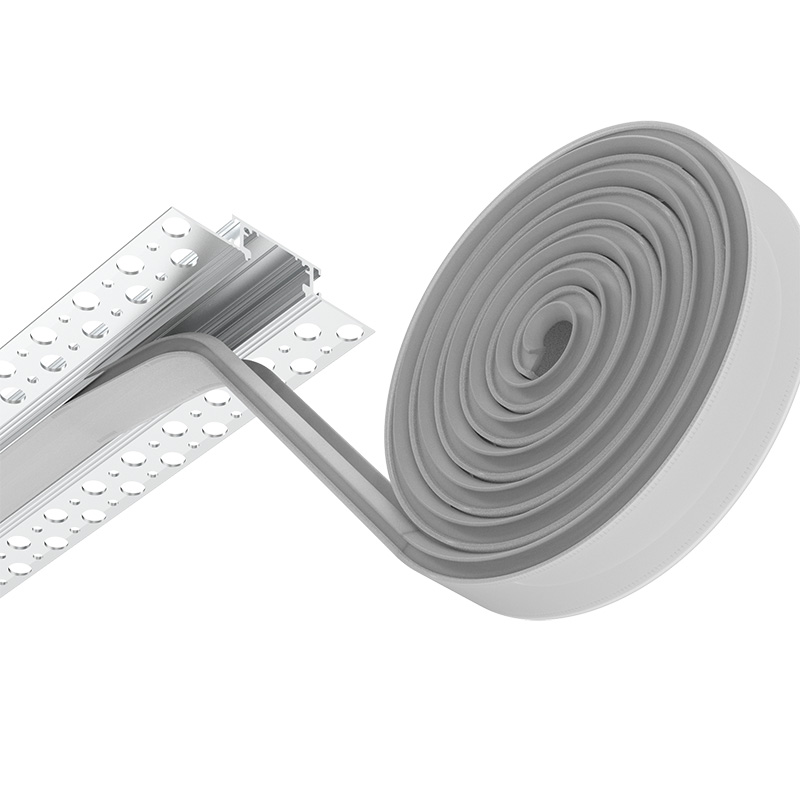

The LED recessed profiles with flanges can be recessed in the drywall or ceiling and come with a long diffuser that is 20 meters per roll, which you can use for long indoor linear lighting without any gap. The recessed aluminum profiles are made of extruded aluminum material with an anodized surface treatment for anti-oxidation resistance and a longer lifespan than similar products. The standard lengths are 1M and 2M, and cuttable and custom lengths are available. There are 2 types of diffusers available: the PC diffused cover and the black diffused cover. Both are flexible and 20 meters per roll; you can cut to any length you need, or you can use them for long-distance linear lighting projects. The inner width is 12.4mm and can work with flexible SMD LED tapes and COB LED strips; the maximum width of the PCB board is 12mm. End caps with holes included make it easy to connect the LED light to a power supply to light up. The 90°，135°, and 180° connectors are sold separately, and you can use them to design the shape for your application.
Specifications:
- Model: ALP156
- Material: Extruded Aluminum
- Size: 69.4*13mm(W*H)
- Anodized Silver Surface Treatment
- Colors: Silver(Default), Black, White
- Standard Length: 1M
- Other Lengths Available: 0.5M, 1.5M, 2M
- Custom Length Available: YES
- Tolerance: ±1%

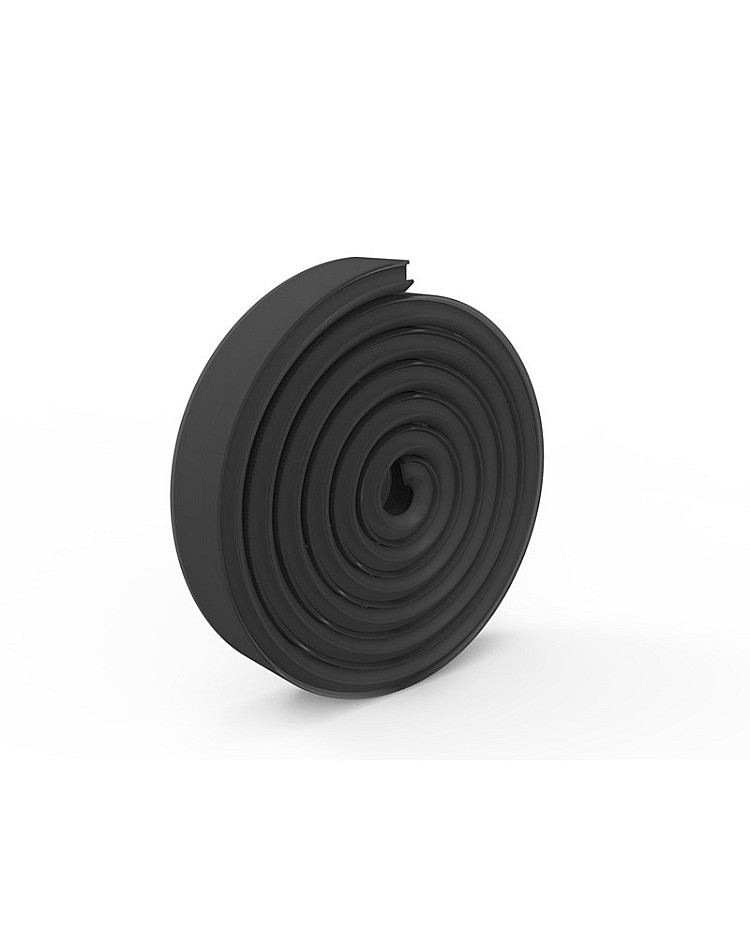

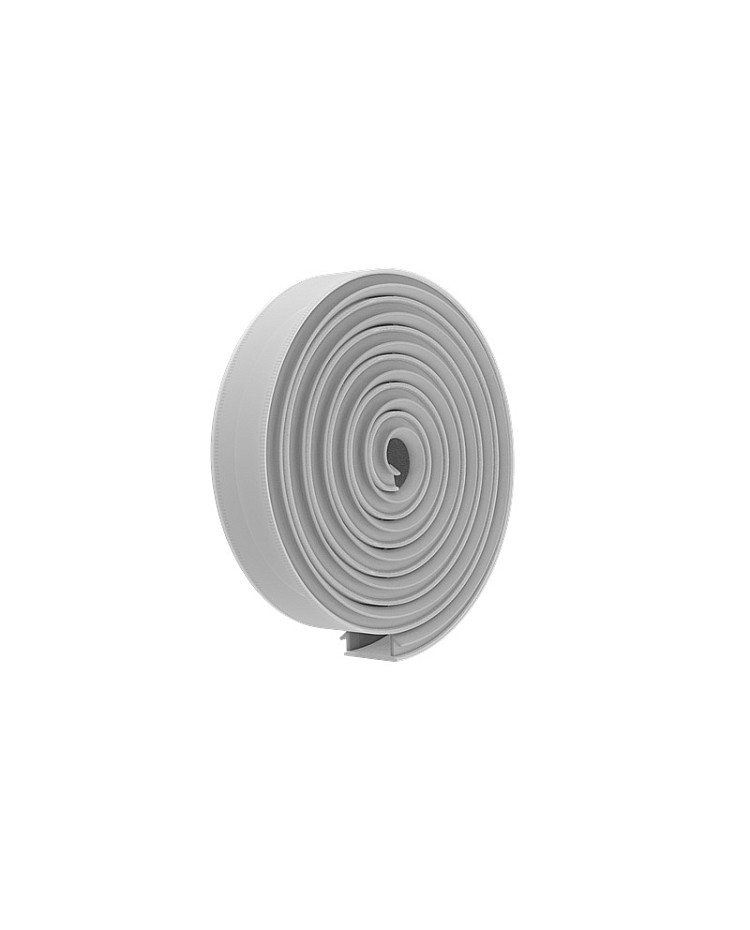

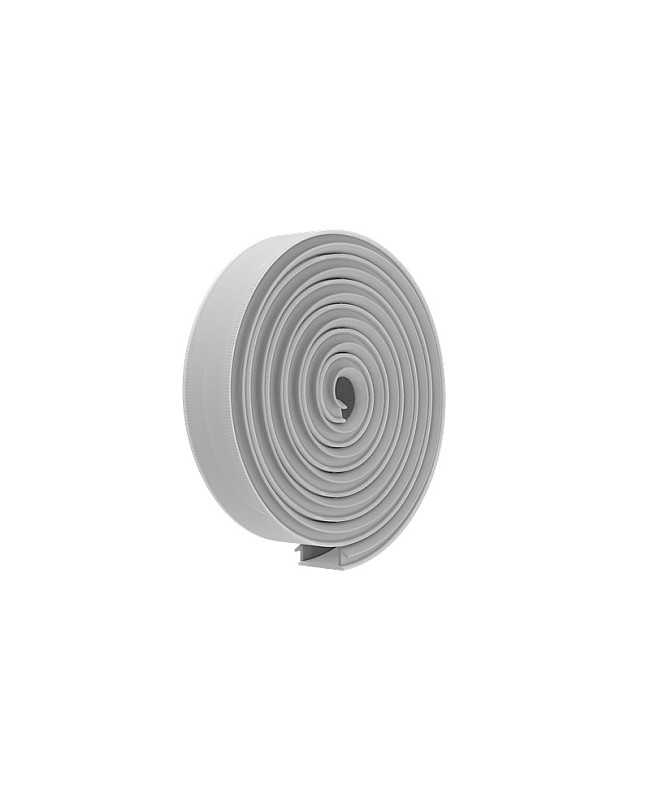

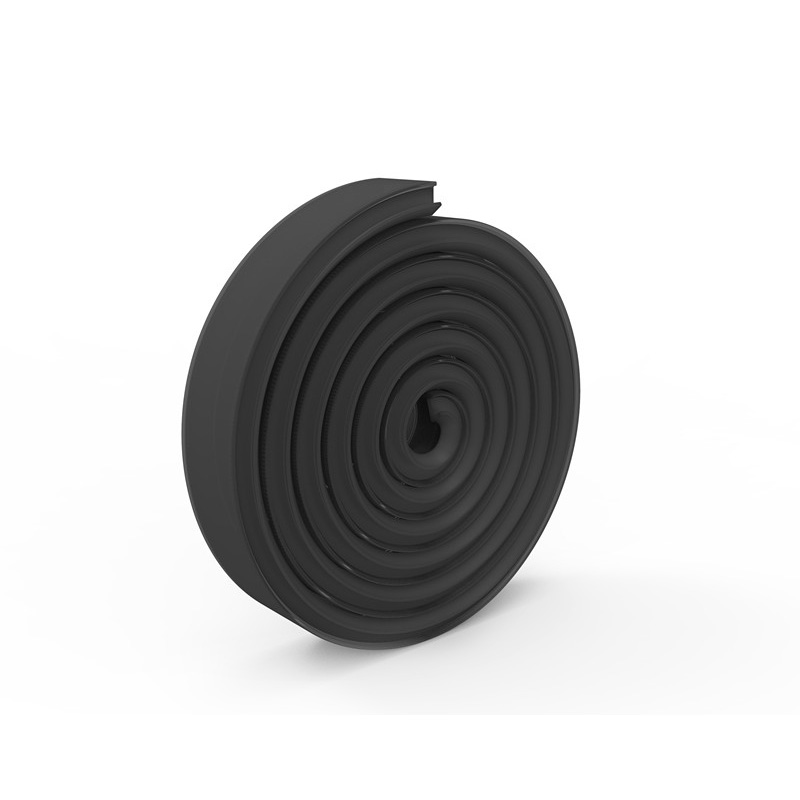

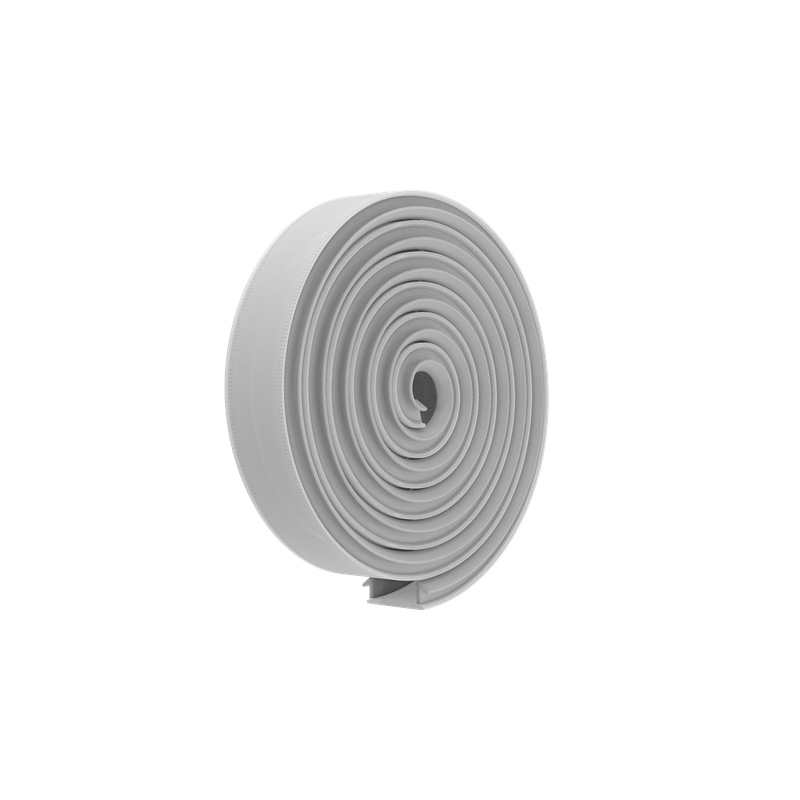

- Diffusers: PC Diffused Covers, Black Diffuser
- Inner Width: 12.4mm
- Max Width Of LED Strips: 12mm
- Can Work With SMD LED Strips And COB LED Strips
- IP Rating: IP20 Non-Waterproof

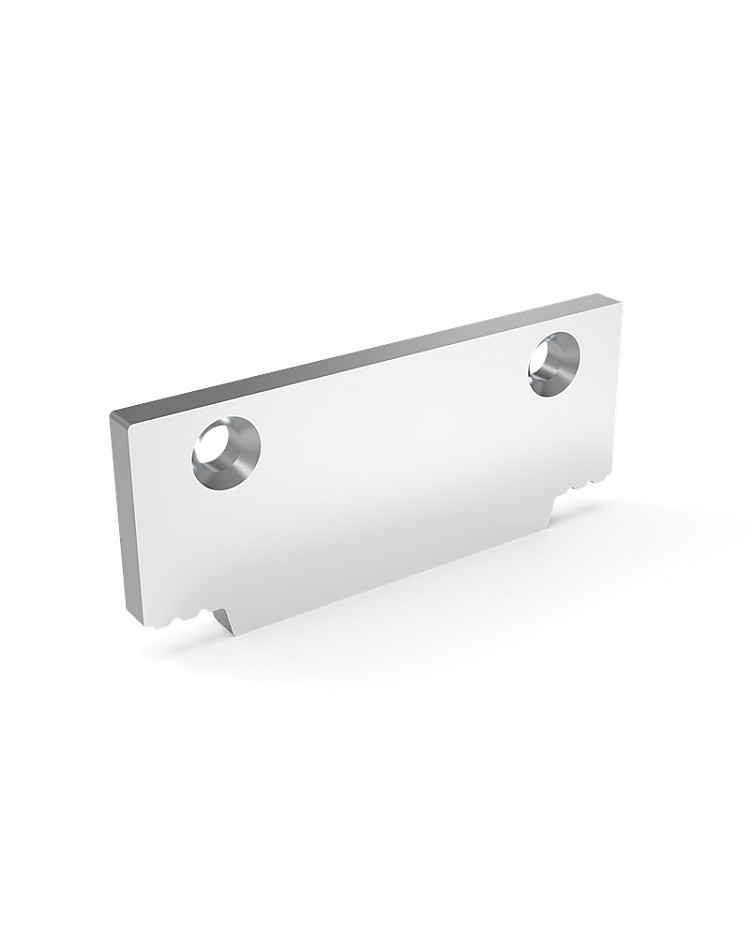

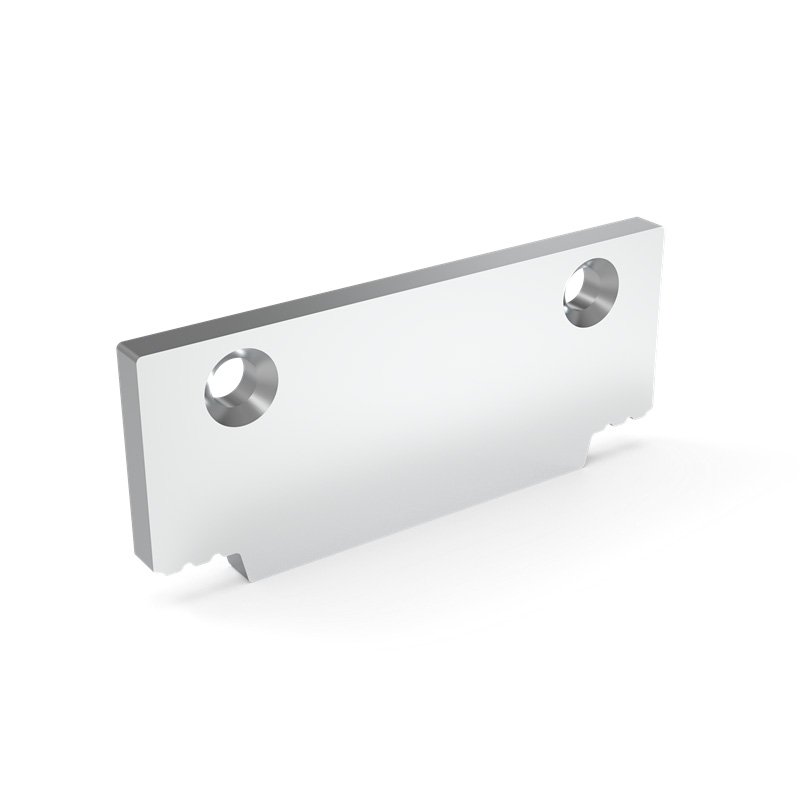

- End Caps With Hole/Without Hole Included

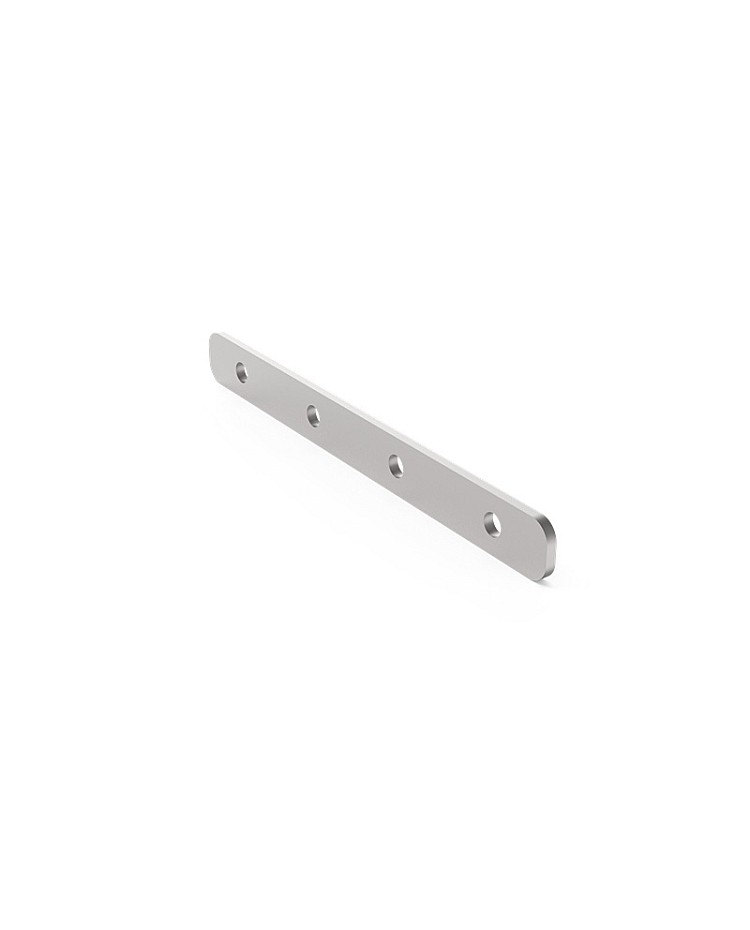

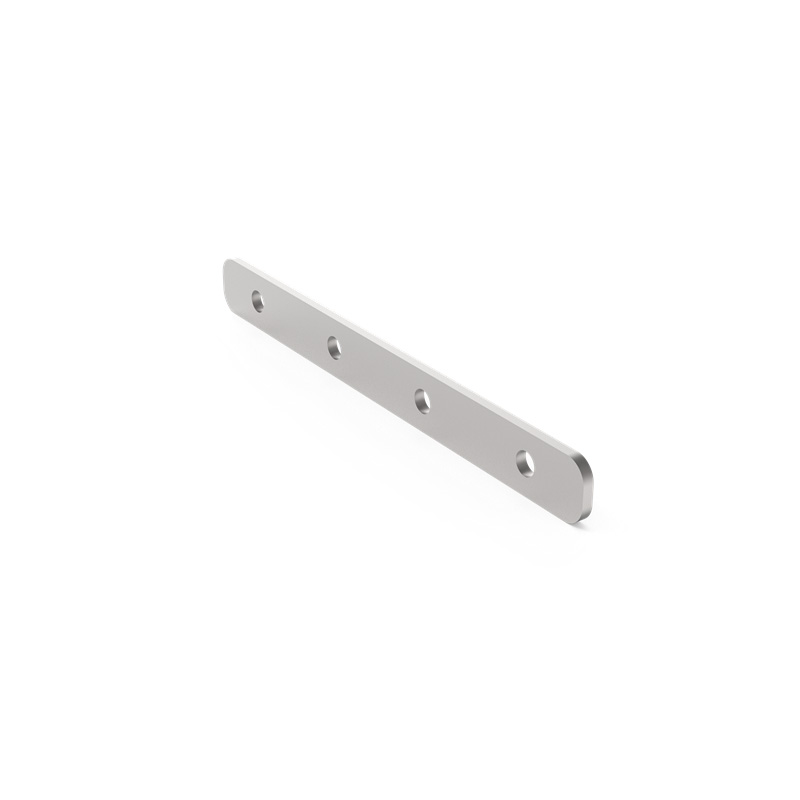

- 180° Connector, 135° Connector, 90° Connector And 90° Vertical Connectors Sold Separately
- Applications: Recessed In The Drywall Or Ceiling
- 5 Years Warranty
Includes:
1 * Recessed LED Profile With Diffuser
End Caps (With / Without Wire Hole)
