- Product Code: LB250

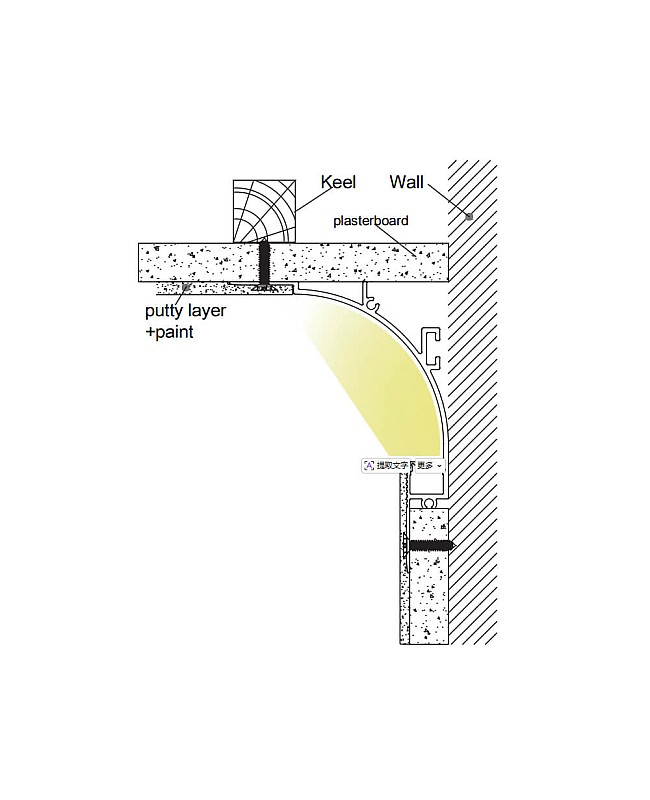

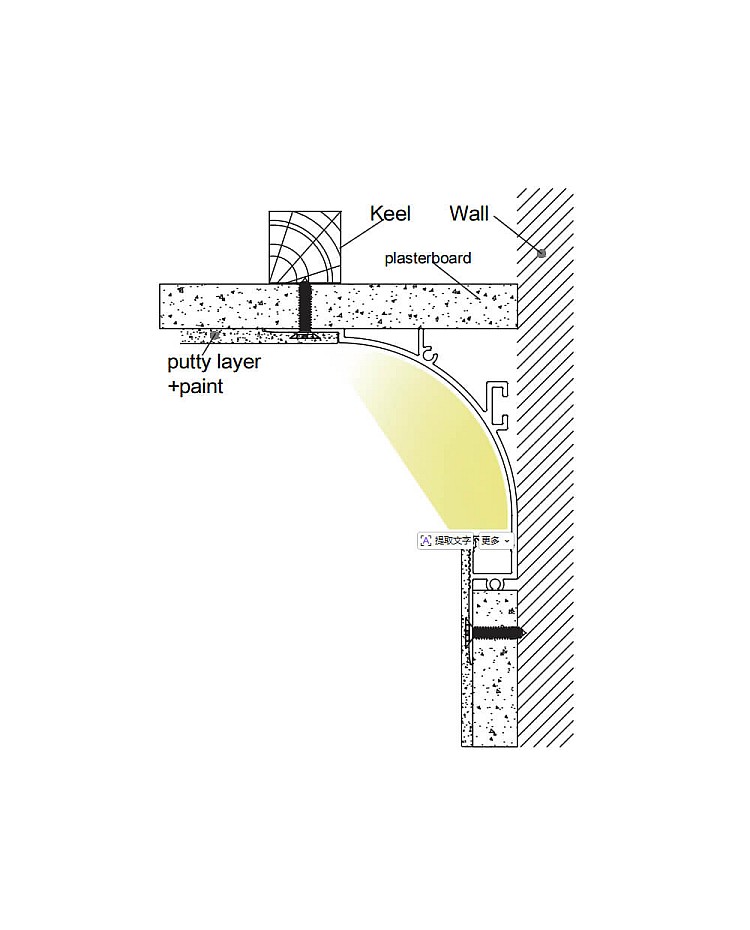

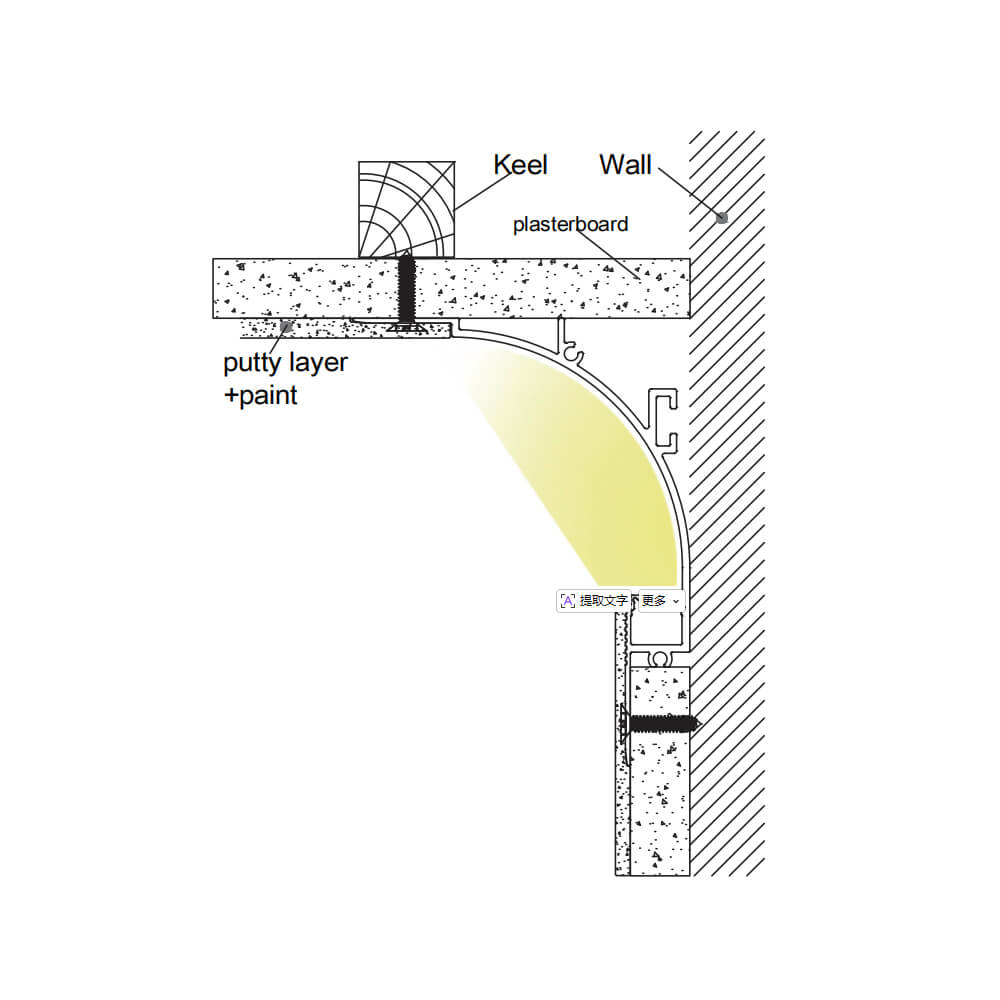

The LB250 LED channel is designed to deliver a frameless, hidden source wall-wash lighting effect on the ceiling, enhancing the aesthetic of your space. can be plastered into 12.5mm plasterboards or drywall at the ceiling-wall transition for a clean, professional appearance. Can be used for indirect lighting in modern minimalist homes, offices, hotels, and commercial spaces.

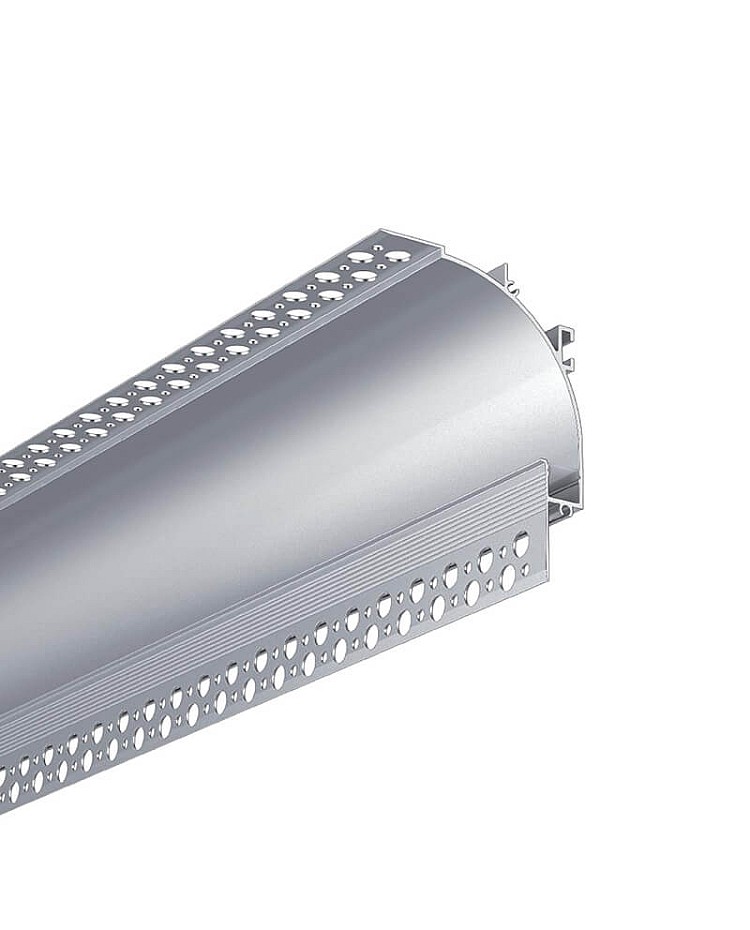

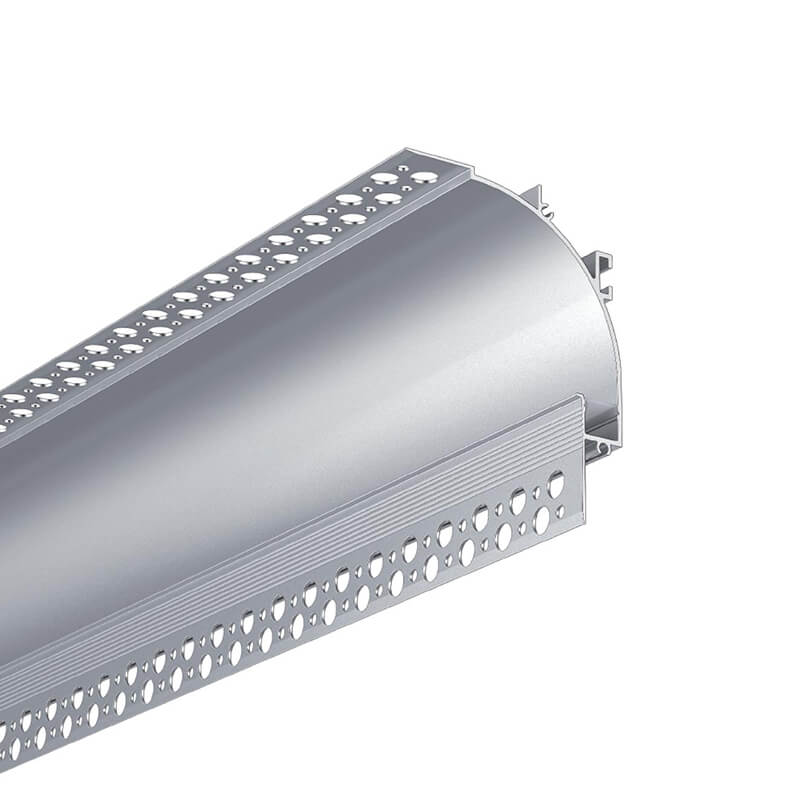

Features indirect lighting design, with light passing through the semi-curved reflector upward onto the ceiling, which bounces back down to create a soft, ambient wash of illumination. The perforated holes along both sides allow the profile to be blended seamlessly into the surface once installed.
Crafted from 6063-T5 extruded aluminum and powder-coated for anti-corrosion and a longer lifespan. The stock lengths are 1m and 2m, and we support custom lengths. The inner width is 10.3 mm, allowing the maximum strip light width to be 10 mm. We recommend adding COB strip lights to create uniform illumination. The aluminum channel can act as a heat sink to improve heat management, which helps keep the strip lights operating stably and extends their lifespan.

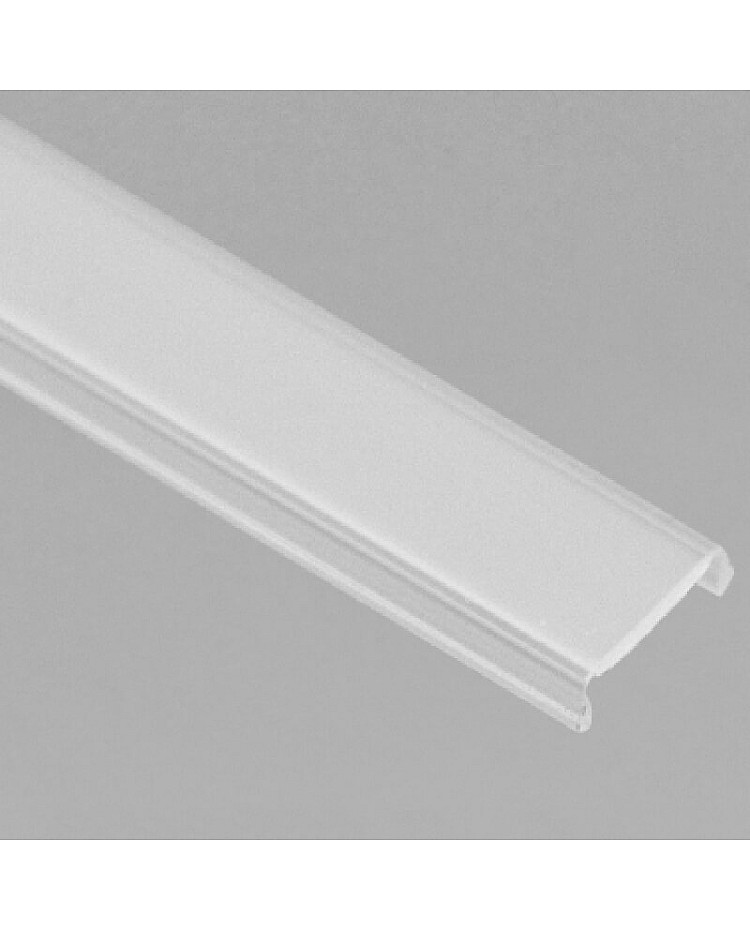

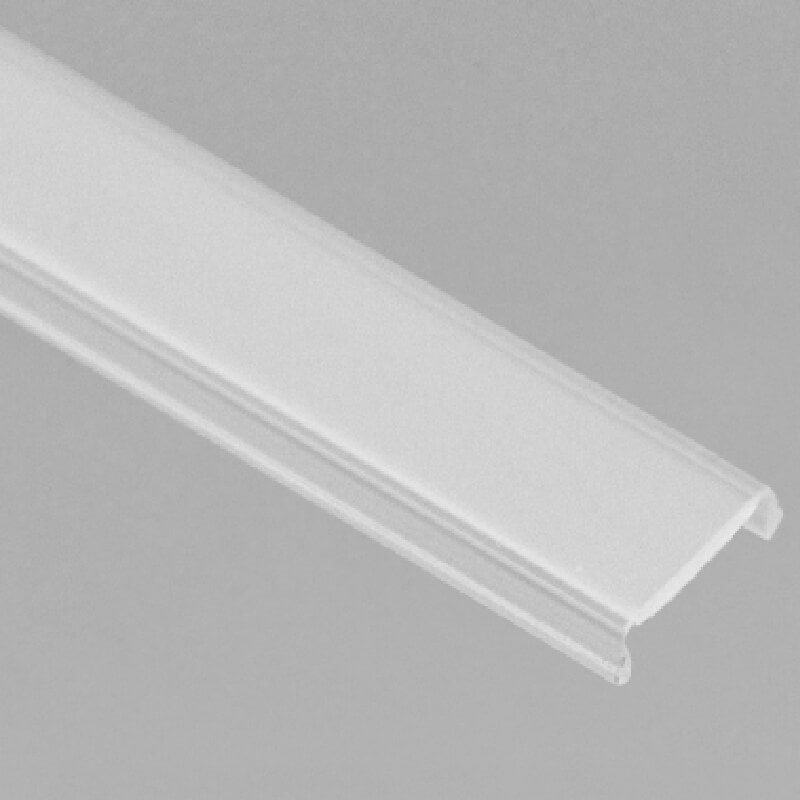

Only PC diffused covers are available, which spread light evenly and prevent dark areas and hotspots. The diffusers have a clip-in design, which allows them to be installed easily and detached. Three types of connectors are sold separately for angled or straight connections. You can purchase them in the accessory catalog.

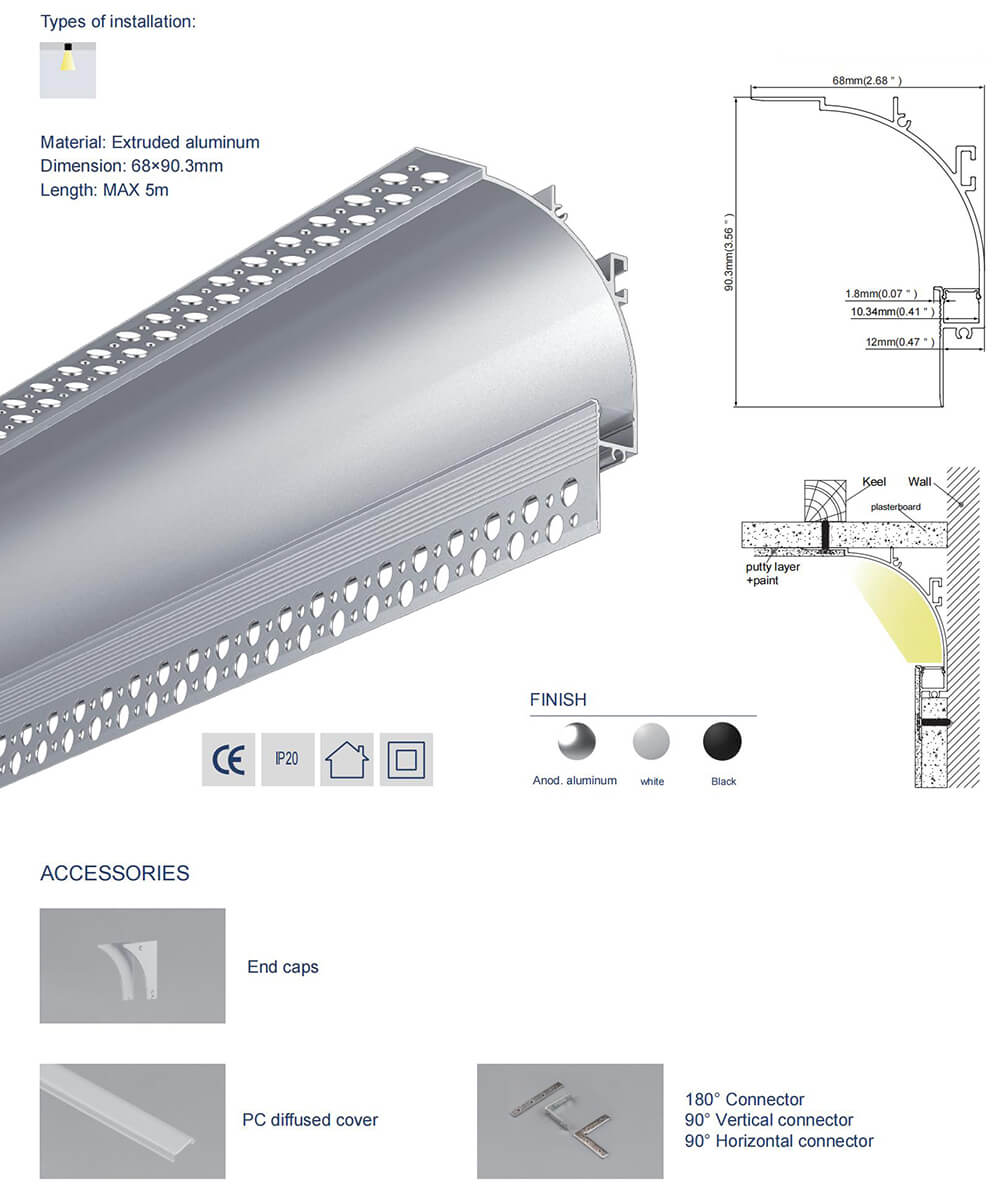

Specifications:
- Material: Extruded aluminum
- Surface treatment: Powder-coated
- Color: White

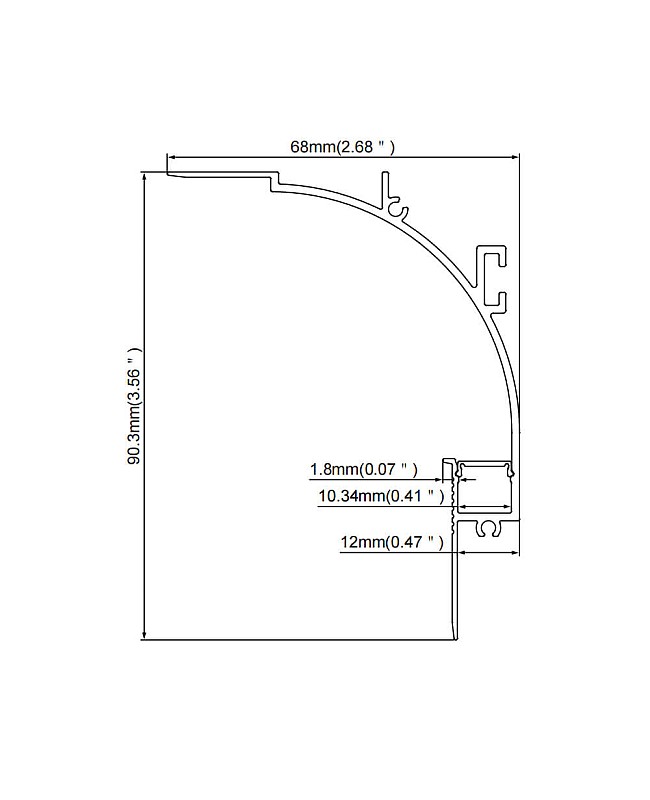

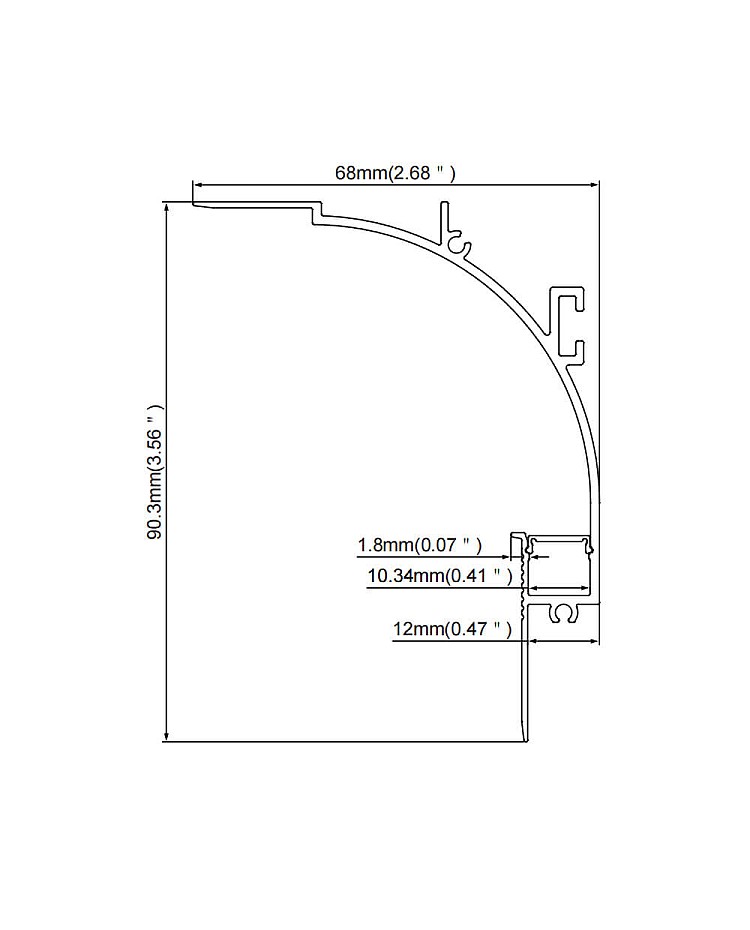

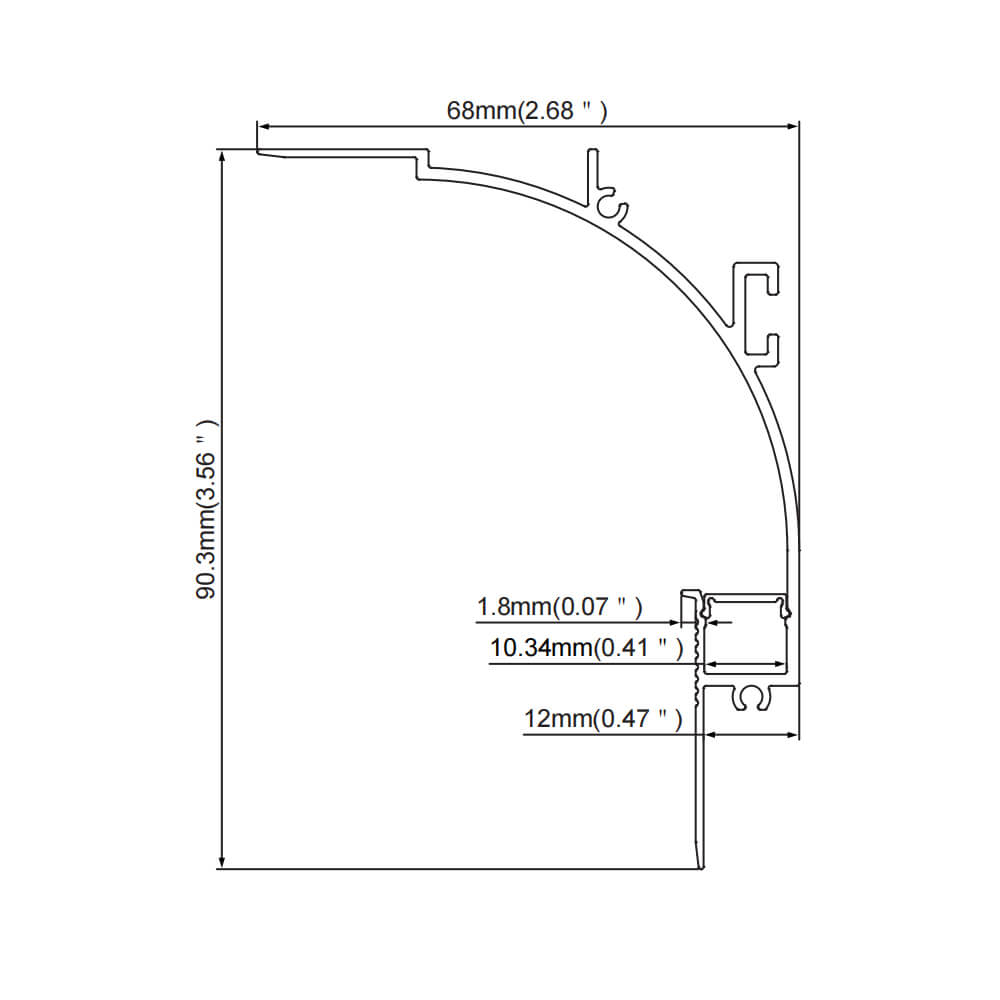

- Size ( Width x Height ): 68 mm x 90.3 mm ( 2.68“ x 3.56" )
- Lengths: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom lengths available: YES
- Inner width: 10.34 mm ( 0.41" )
- Maximum width of strip lights: 10 mm ( 0.39" )
- Maximum power: 15W/m
- Diffusers: PC diffused covers only
- Can only work with 1/2" ( 12.5mm ) drywalls or plasterboards

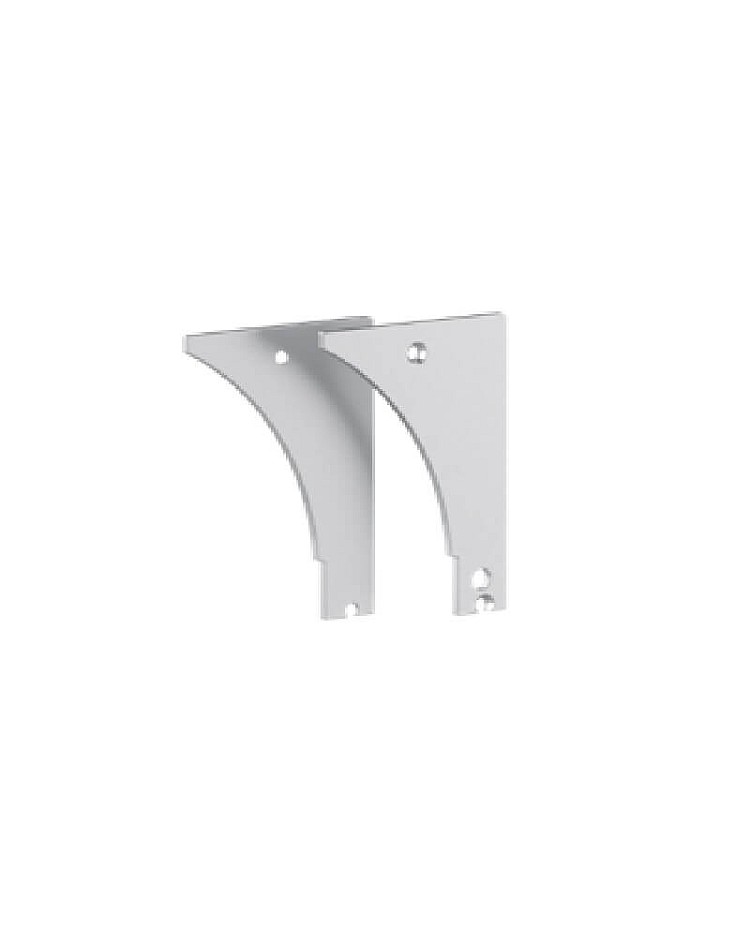

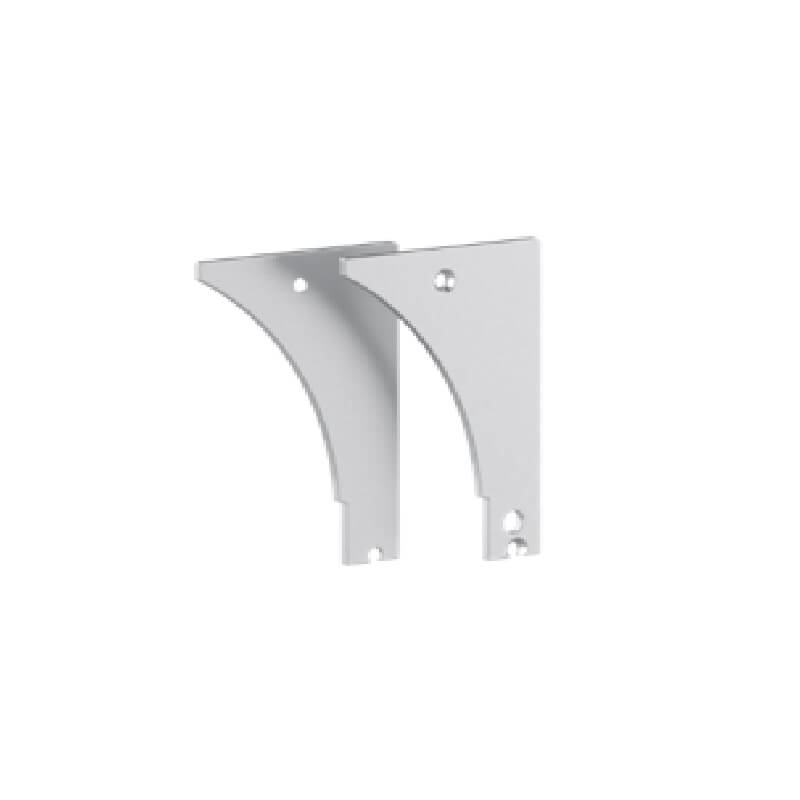

- Aluminum end caps are included
- 180°, 90° vertical, and 90° horizontal connectors are sold separately
- Installation: Plaster-in
- Warranty: 5 years
Includes:
1 x Plasterboard cove light channel
1 x PC diffuser
1 x End caps
