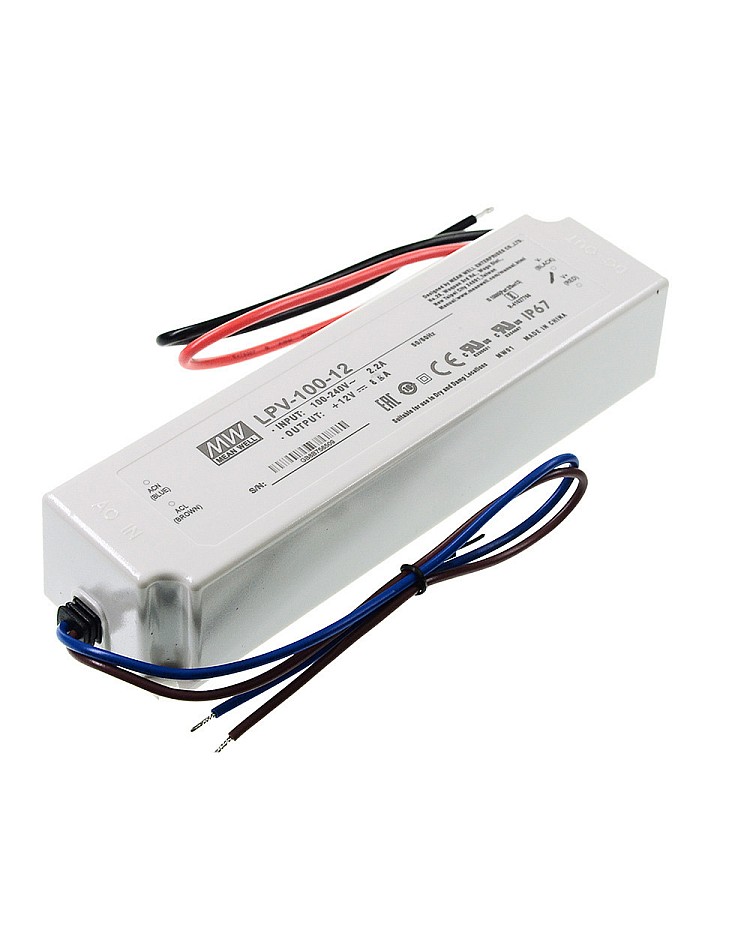

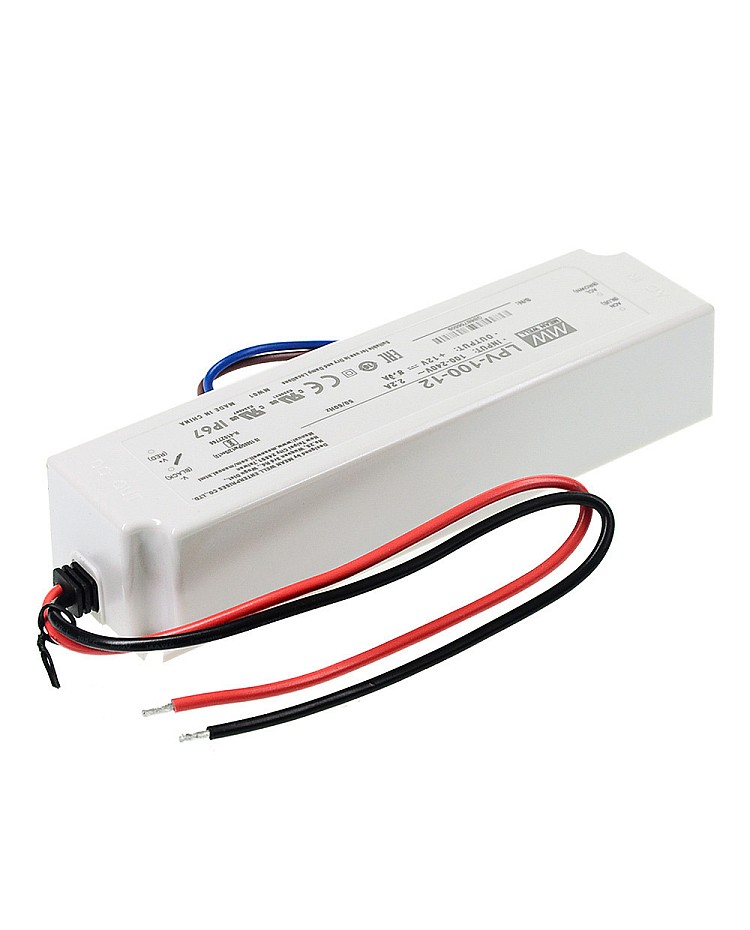

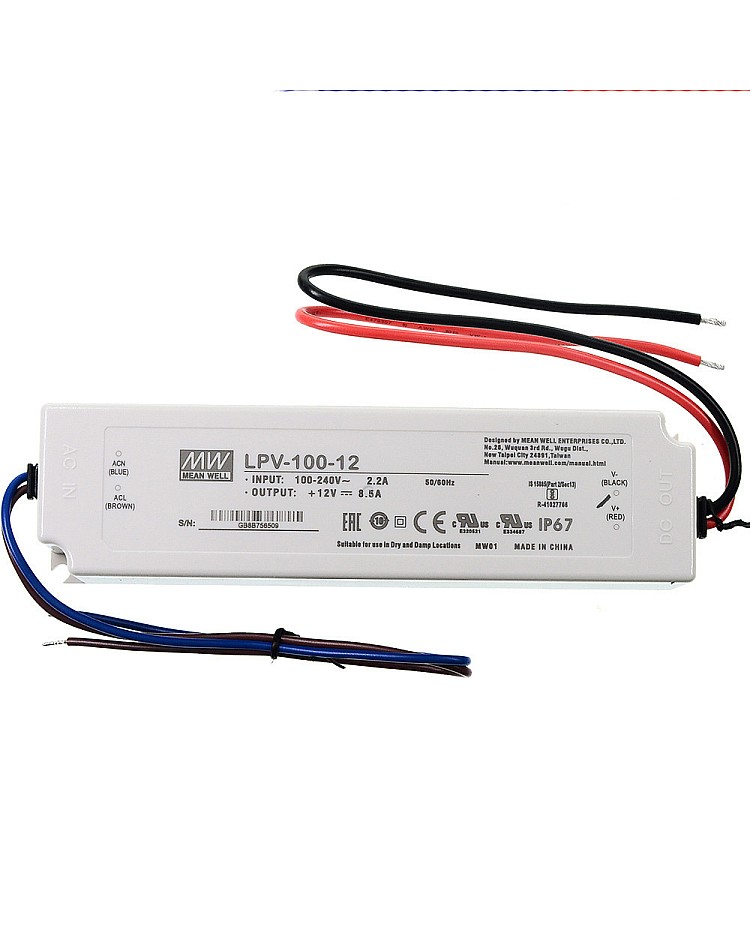

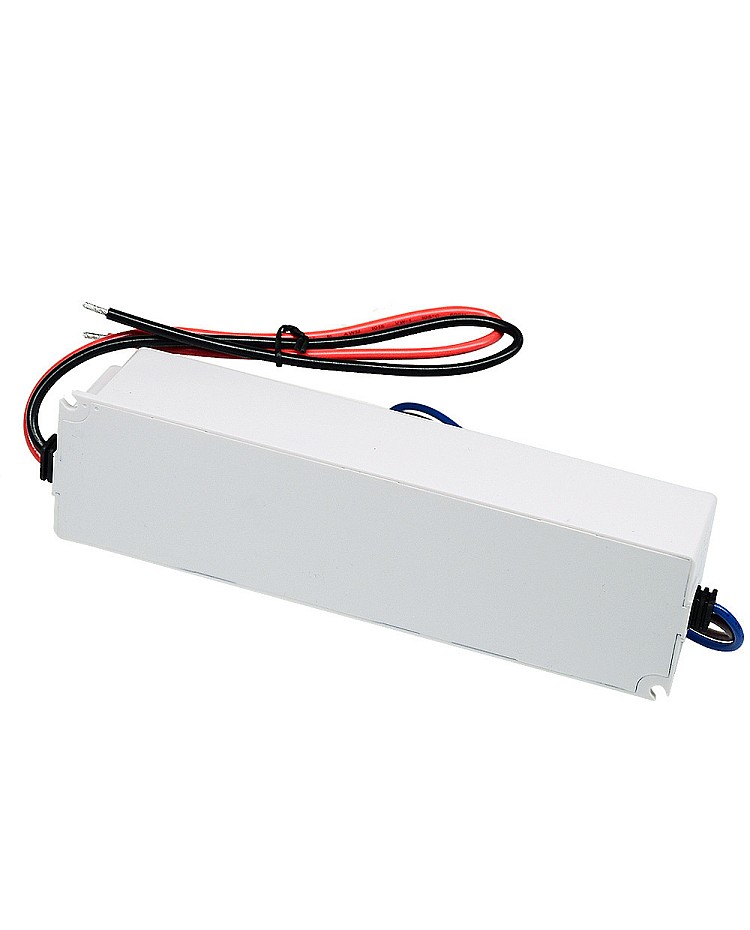

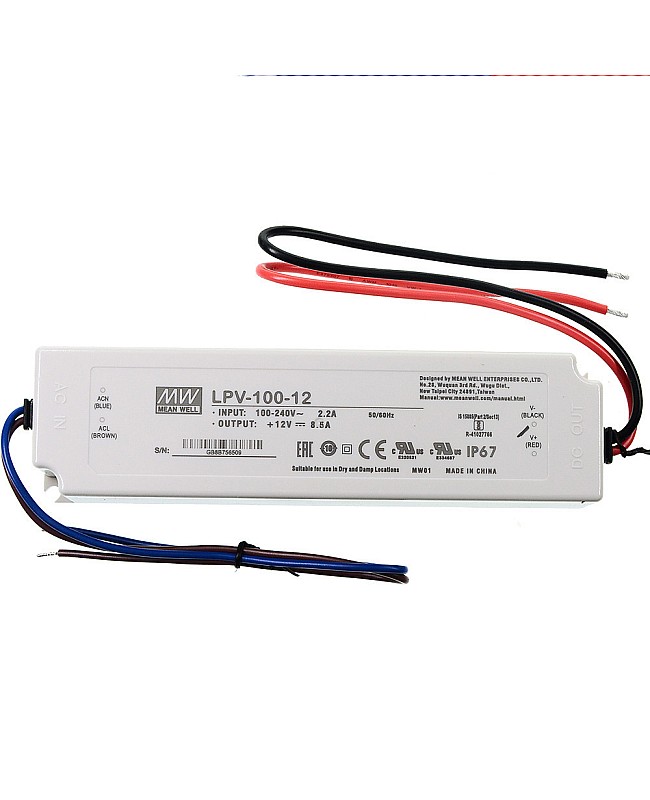

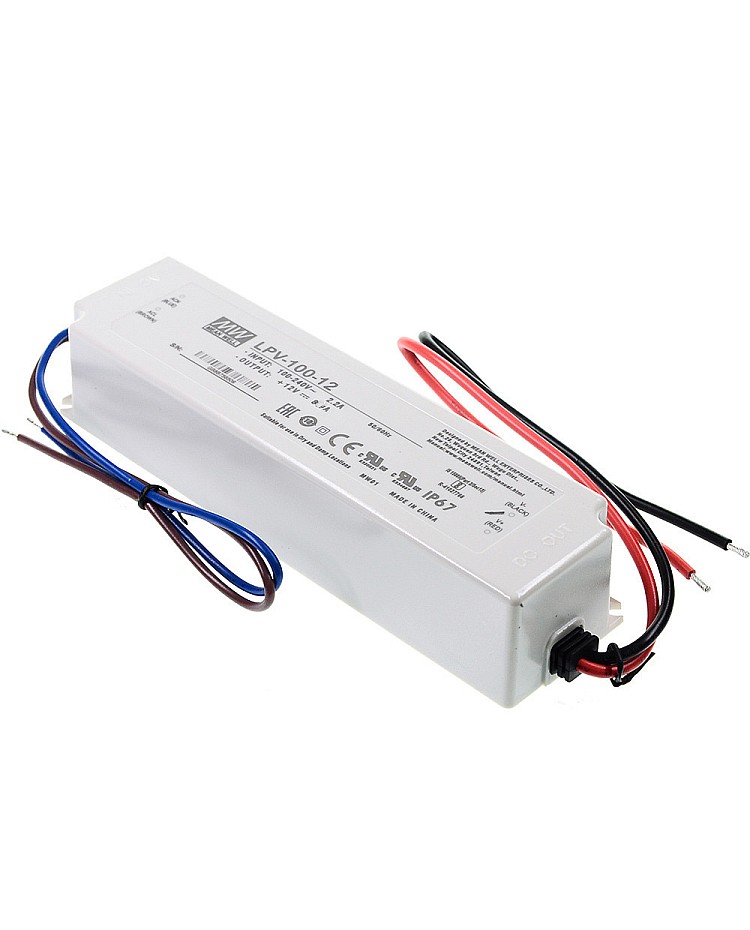

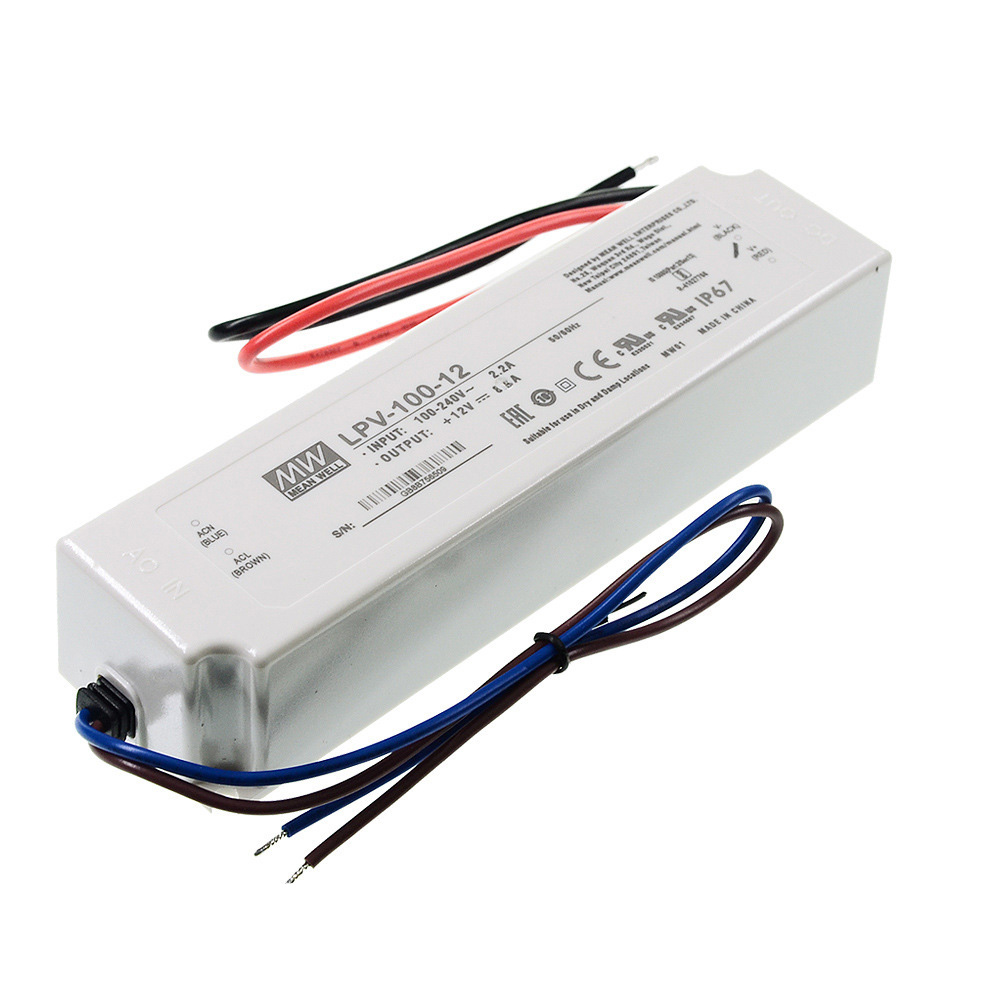

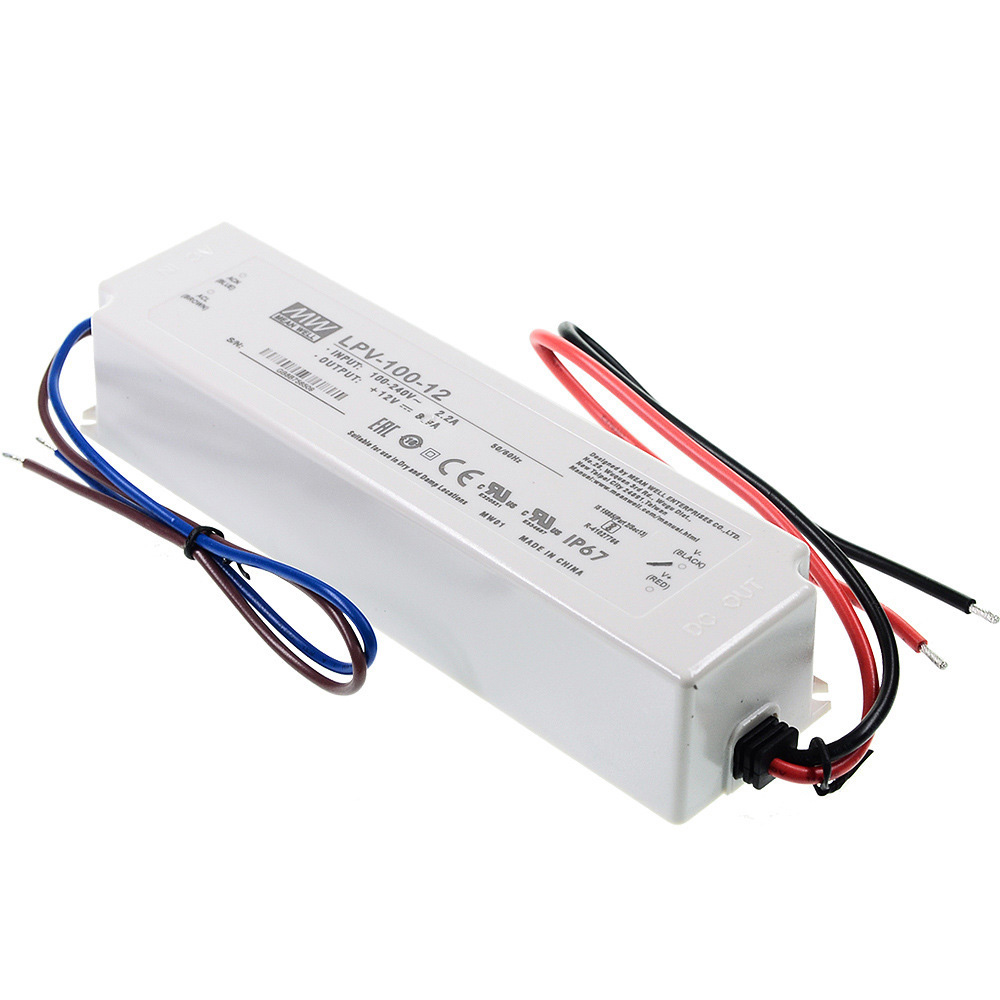

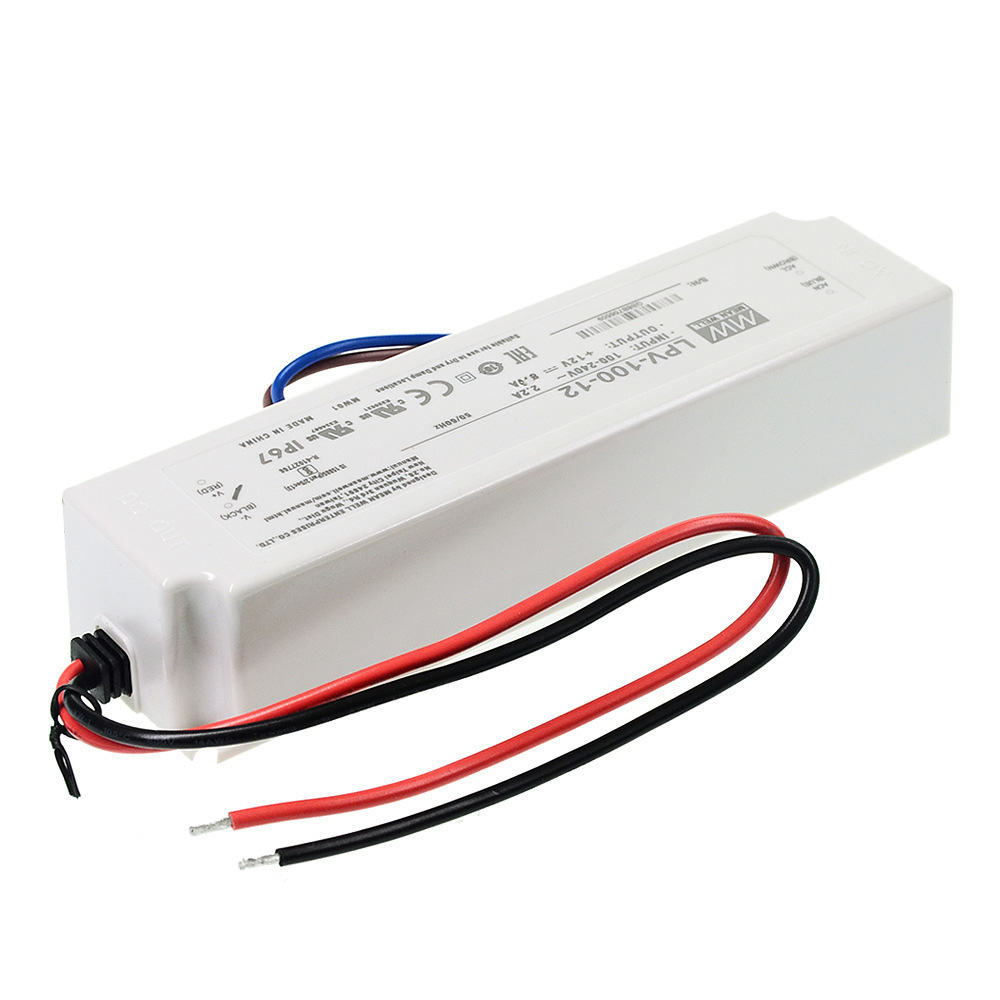

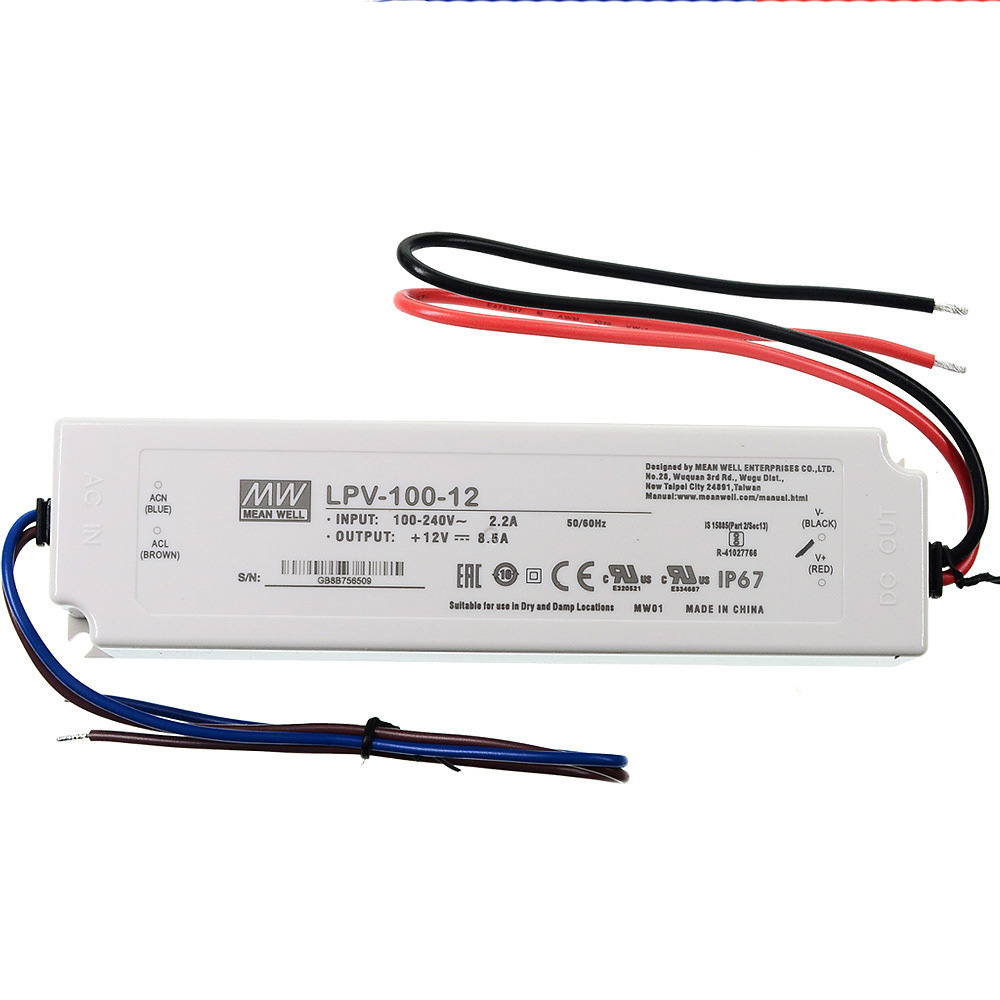

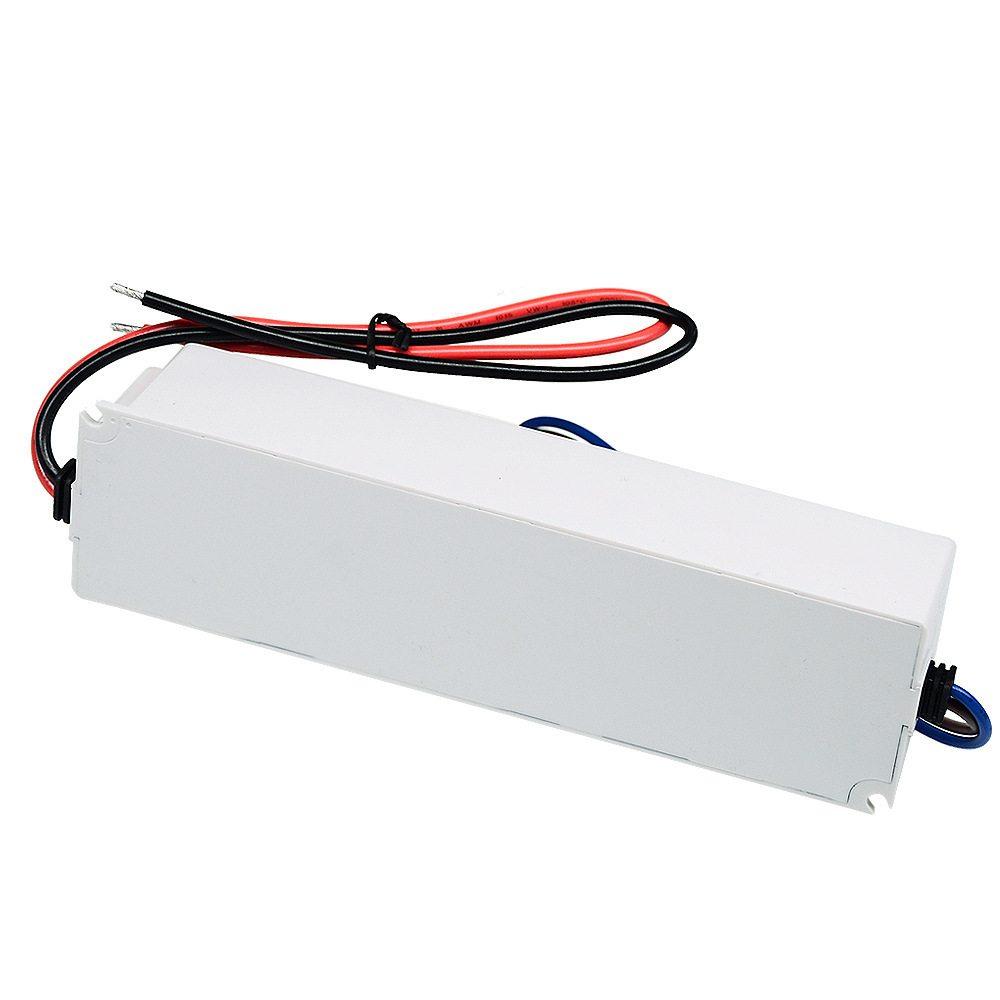

The LPV-100 series Meanwell LED drivers, epoxy encapsulated with IP67 level for harsh conditions, can be used in a rainy or wet location. With constant voltage design and universal AC input, the input range is from 90VAC to 264VAC, making it easy to connect directly to the public power system. Various output voltage and loading power Mean Well waterproof LED drivers are available; you can choose the 5VDC, 12VDC, 15VDC, 24VDC, 36VDC, or 48VDC, with a max loading power of up to 100W. You can use it for LED decoration, LED-related fixtures, or advertisement devices, etc.
- Constant Voltage Design
- Universal AC Input / Full Range
- Fully Encapsulated With IP67 Level Waterproof
- Withstand 300VAC Surge Input For 5 Seconds
- Protections: Short Circuit / Overload / Over Voltage
- Fully Isolated Plastic Case
- Cooling By Free Air Convection
- 100% Full Load Burn-in Test
- Low Cost, High Reliability
Link: Meanwell LPV 100 Manual

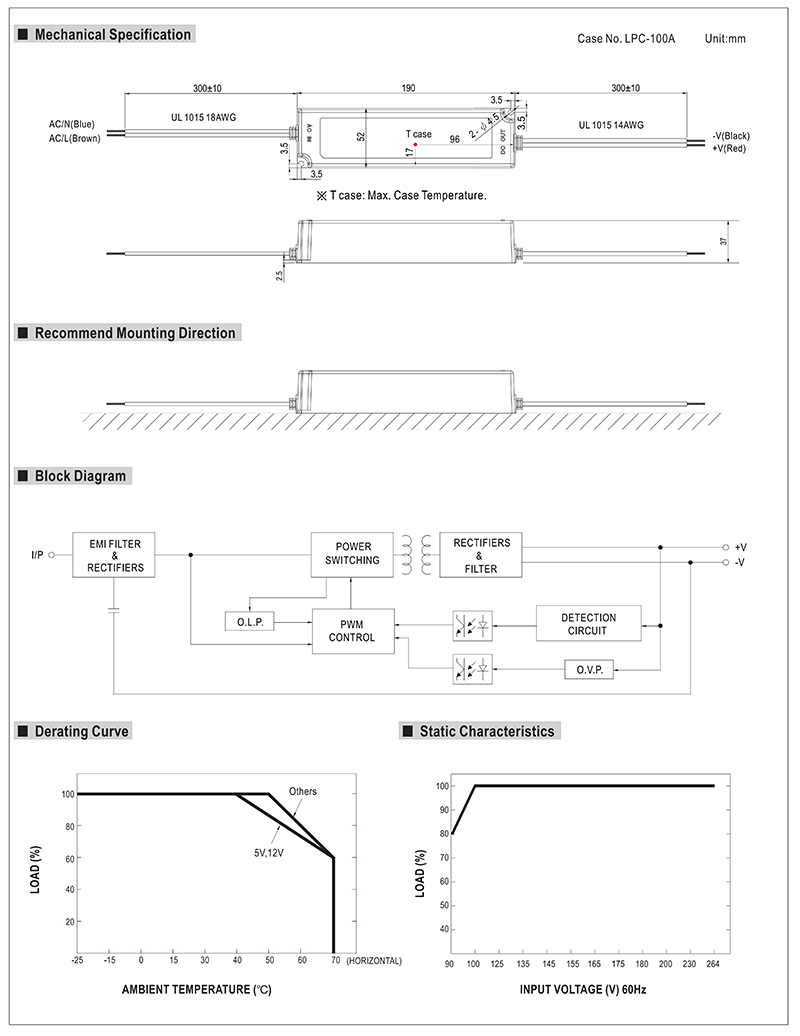

Specifications:
- Model: LPV-100
- Size: 190*52*37mm(L*W*H)
- Input Voltage: 90- 264VAC/127- 370VDC
- Hold Up Time: 50ms/230VAC, 14ms/115VAC At Full Load
- Frequency Range: 47- 63Hz
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 12A(5V), 8.5A(12V), 6.7A(15V), 4.2A(24V), 2.8A(36V), 2.1A(48V)
- Rated Power: 60W(5V), 102W(12V), 100.5W(15V), 100.8W(24V), 100.8W(36V), 100.8W(48V)
- Efficiency: 80%(5V), 85%(12V), 87%(15V), 88%(24V), 88%(36V), 89%(48V)
- AC Current: 2.2A/115VAC, 1.2A/230VAC
- Leakage Current: 0.25mA/240VAC
- Working Temperature: -25℃-+70℃
- Working Humidity: 20-90% RH Non-condensing
- Storage Temperature/Humidity: -40-+80℃, 10-95% RH
- Vibration: 100-500Hz, 2G 10min/1Cycle, Period For 60min, Each Along X,Y,Z axes
- Safety Standards: UL8750.CSA C22.2 No 250.13-12, UL879, CSA C22.2 No.207-M89, BIS IS15885(For LPV-100-12, LPV-100-24 Only), EAC TP TC 004, I67, IEC62368-1, BS EN/EN62368-1 Approved
- Withstand Voltage: I/P-O/P: 3KVAC
- Isolation Resistance: I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
- EMC Emission: Compliance To BS EN/EN55032(CISPR32)Class B, BS EN/EN61000-3-2 Class A(<80% Load), BS EN/EN61000-3-3. EAC TP TC 020
- EMC IMMUNITY: Compliance To BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, Light Industry Level, EAC TP TC 020
- Short Circuit Protection
- Overload Protection
- Over-Voltage Protection
- Cooling By Free Air Convection
- 100% Full Load Burn-in Test
- 2 Years Warranty
Includes:
1 * LPV-100 Meanwell LED Driver
