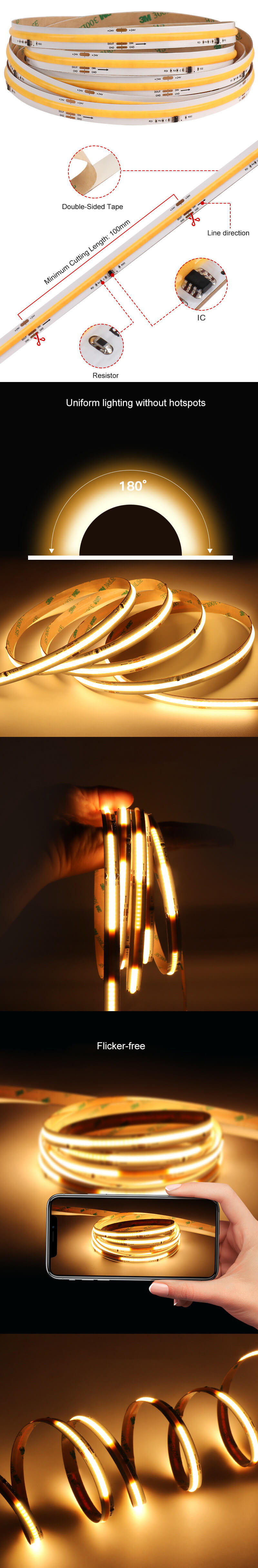

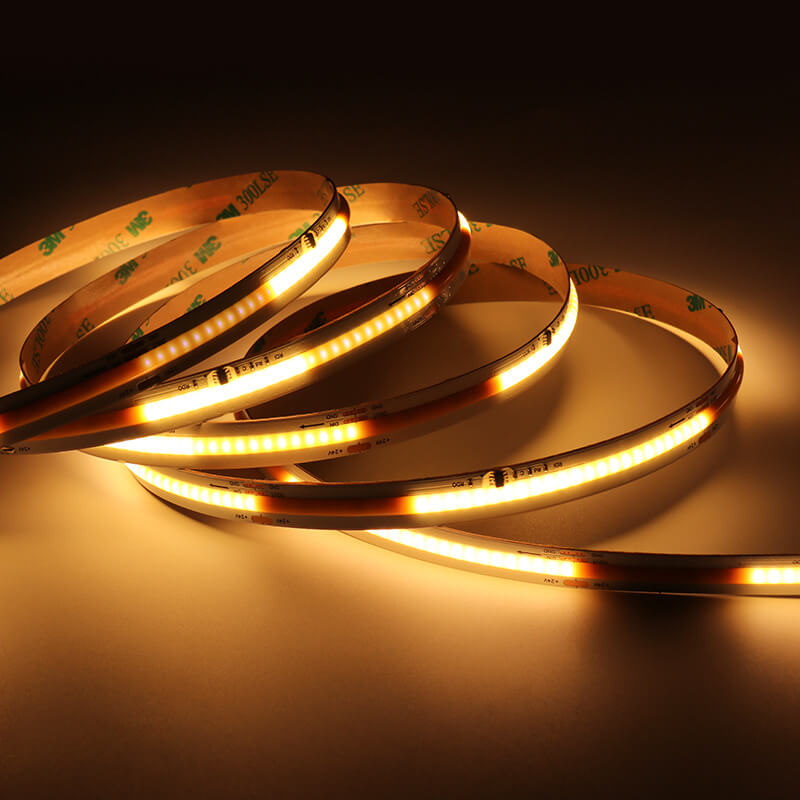

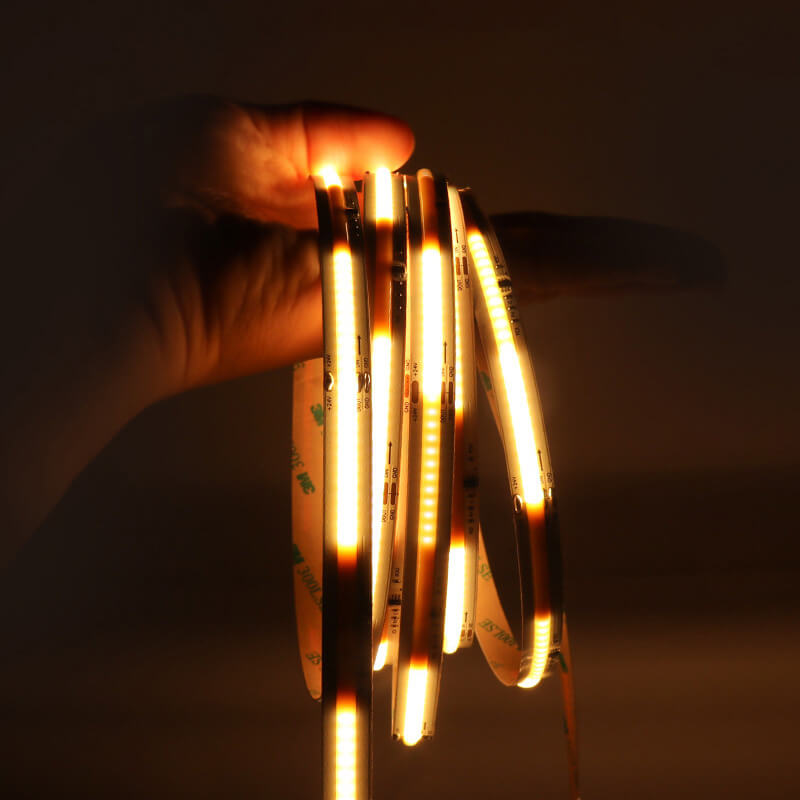

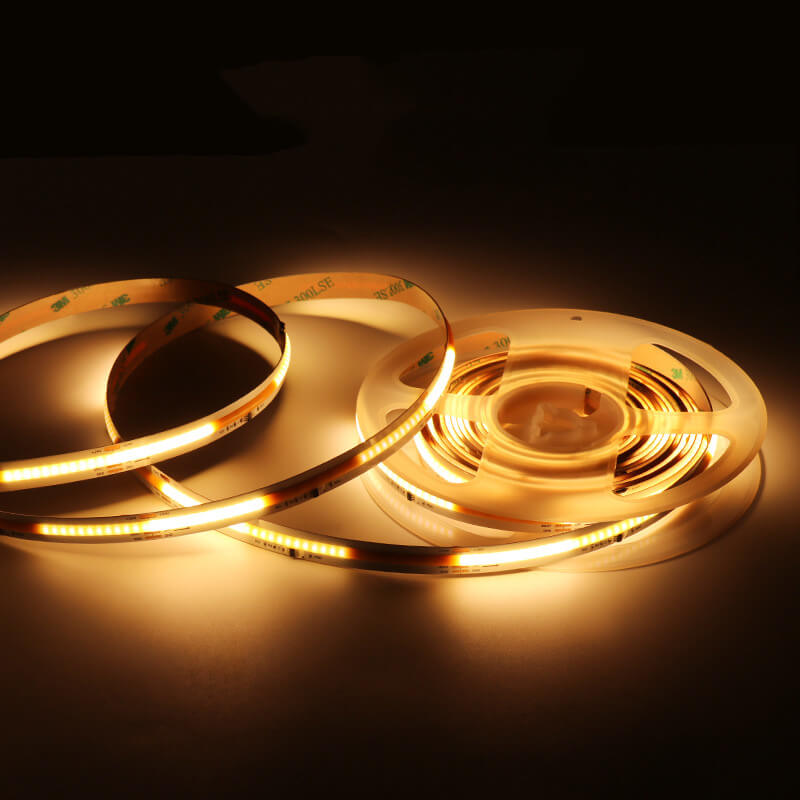

The addressable COB LED strips feature white LED chips only, offering dotless chasing color with a COB design to deliver seamless, uniform white light and pixel control for smooth illumination and dynamic lighting effects. 256-level gray chips are used to achieve more delicate change effects, consistent brightness, and mixing effects. They are designed for professional and DIY applications. The digital white strip lights offer superior brightness, energy efficiency, and flexibility. They are perfect for accent lighting, architectural designs, smart homes, and commercial installations. There are 10 pixels per meter, and it can work with SP530E or SP630E SPI controllers to achieve 10 types of dynamic lighting effects and 5 music patterns. They are 5 meters per roll, and the minimum cutting length is 100mm, which allows you to cut to your desired size. The back has double-sided adhesive tape for easy installation.
Features:
High-density COB Technology: Eliminates visible LED dots for a uniform, glare-free light output.
Addressable: Control each segment for dynamic effects.
24V Operation Voltage: More efficient, reducing voltage drop over long runs.
Dimmable: Under the static color mode, the brightness is adjustable.
High CRI(90+): Excellent color rendering for natural, vibrant lighting.
Flexible & Cuttable: Customizable length with cut points.
Durable & Long-Lasing: 50,000 hours lifespan.
Specifications:

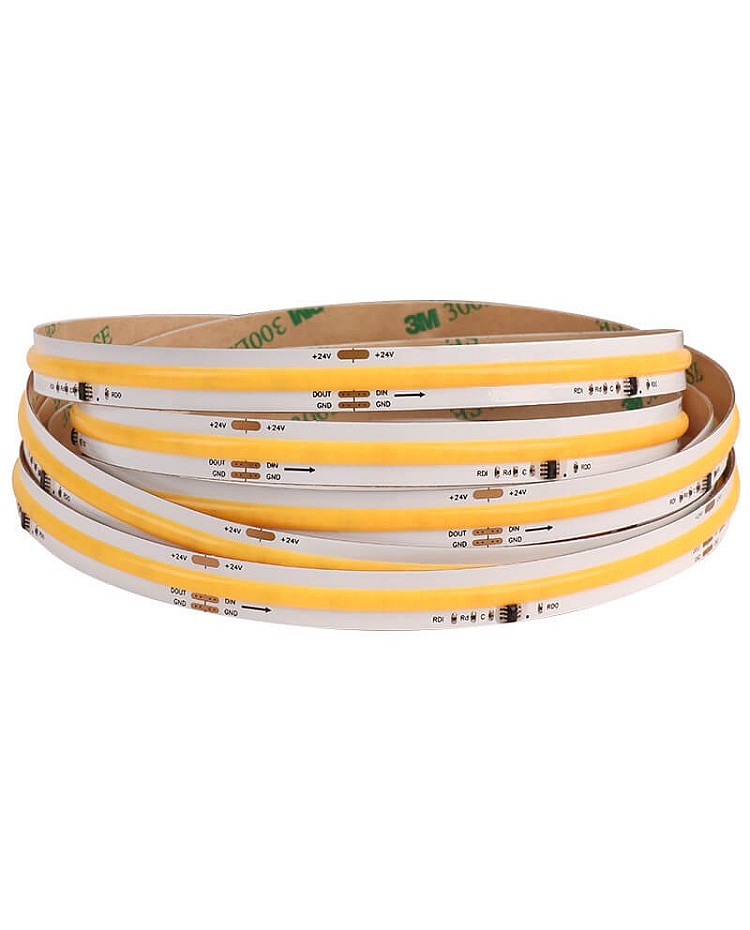

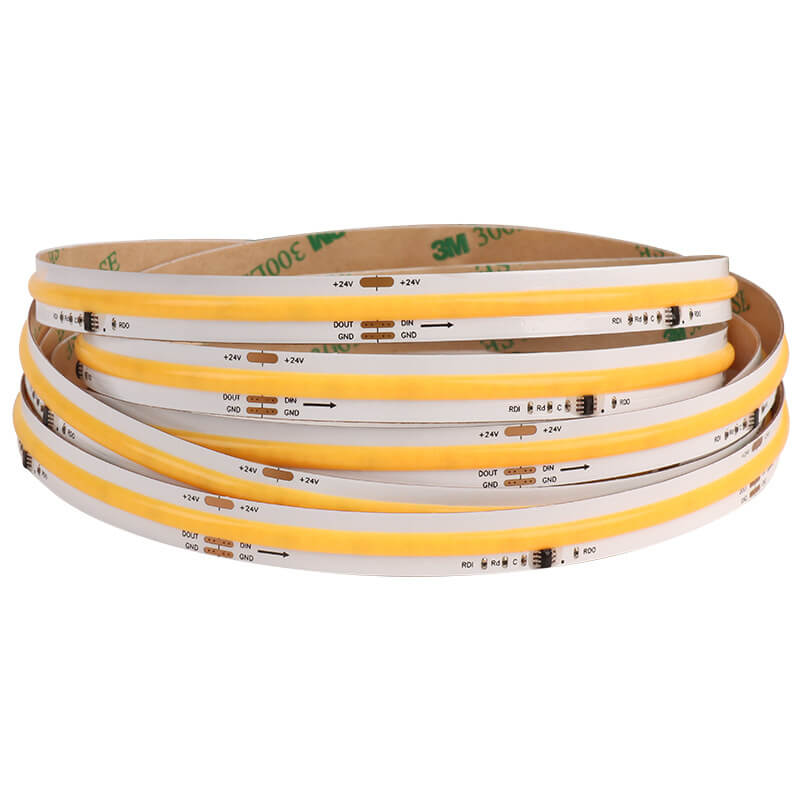

- Type: White digital COB LED strips
- Width: 12mm / 0.47"
- Thickness: 1.6mm / 0.06"
- Length: 5 meters/16.4ft per roll
- IC Type: WS2811F
- IC QTY: 10PCS/M
- LED Chip QTY: 420PCS/M
- Working Voltage: 24VDC
- Power: 13W/M
- Colors: 2700K(warm white), 3000K(warm white), 4000K(natural white), 6500K(cool white)
- Luminous Flux: 910lm(2700K), 1040lm(3000K), 1105(4000K), 1235lm(6500K)
- Luminous Efficiency: 70-95 lm/W
- CRI: 90+ Ra

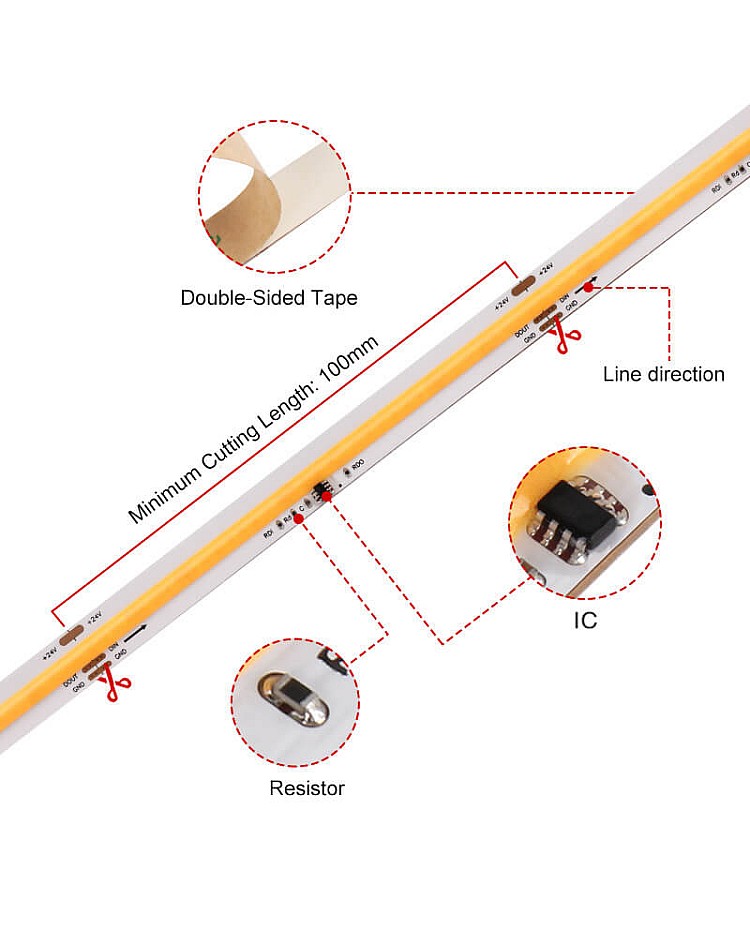

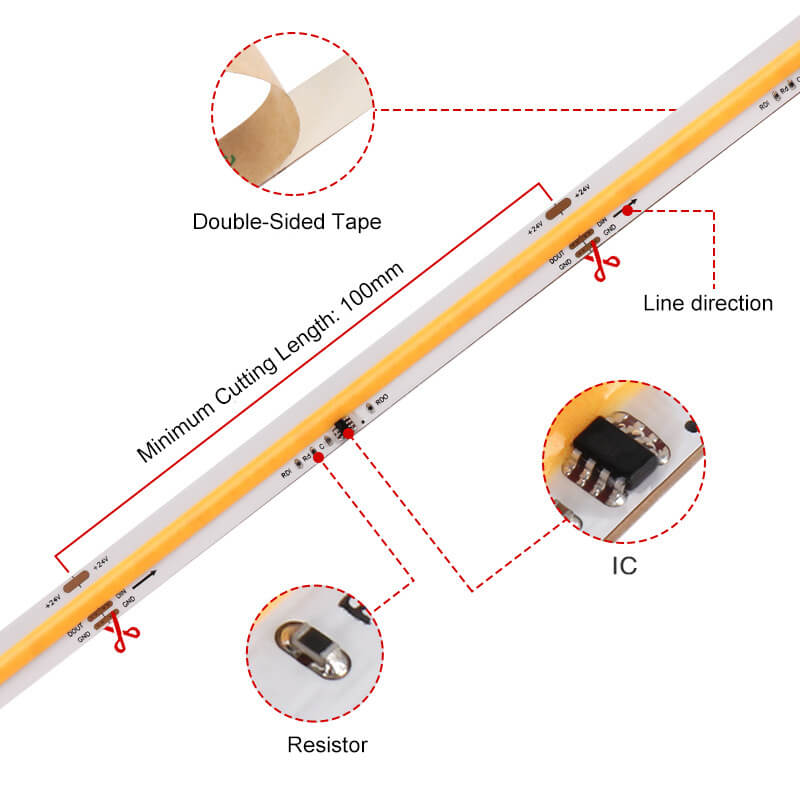

- Minimum Cutting Length: 100m
- IP Rating: IP20 Non-waterproof
- Recommended Controllers: SP630E, SP530E
- Working Temperature: -20℃-40℃
- Storage Temperature: -20℃-45℃
- Lifespan: 50,000 Hours
- Applications: Residential/decorative lighting
- Warranty: 3 years
Applications:
Architectural Lighting (coves, facades, steps)
Home & Office Lighting (under-cabinets, shelves)
Retail & Display Lighting (showcases, museums)
Automotive & Marine Lighting(interior accent lighting)
Smart Home Integration(voice-controlled via Alexa/Google)
Stage & Event Lighting
