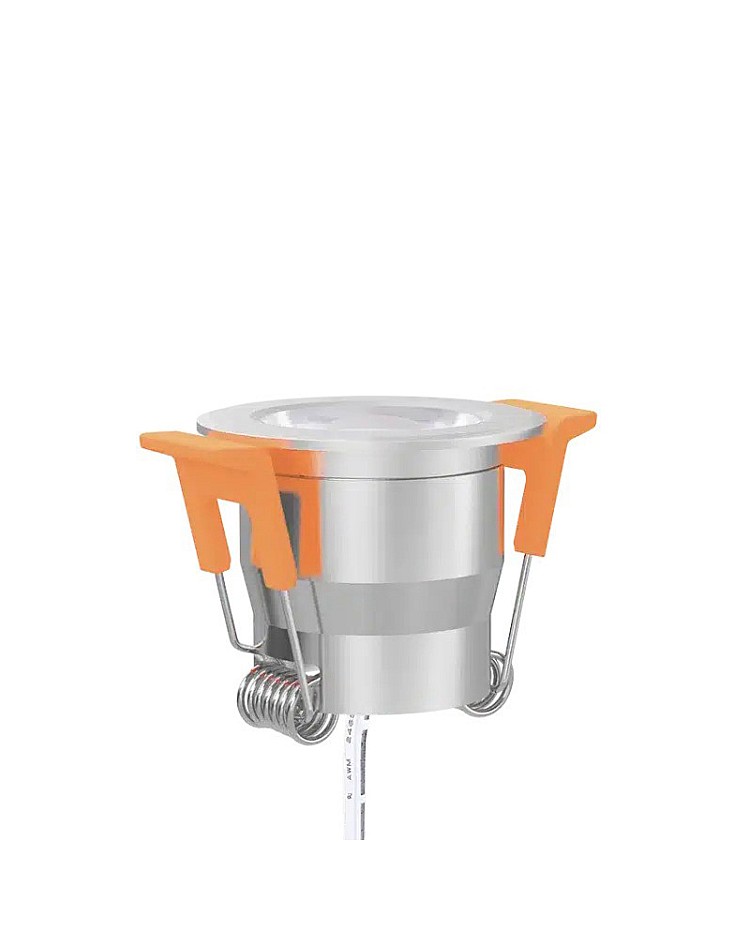

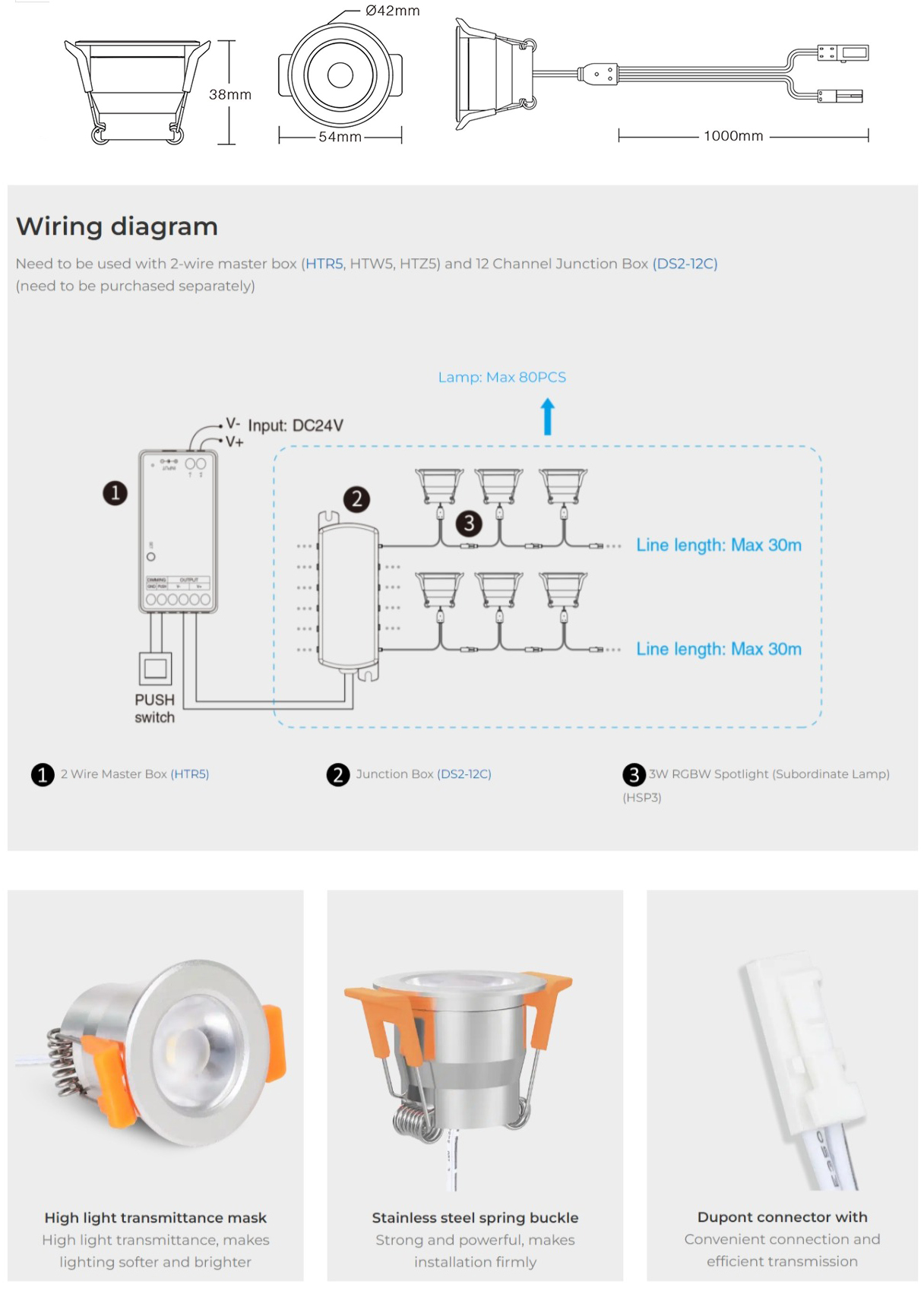

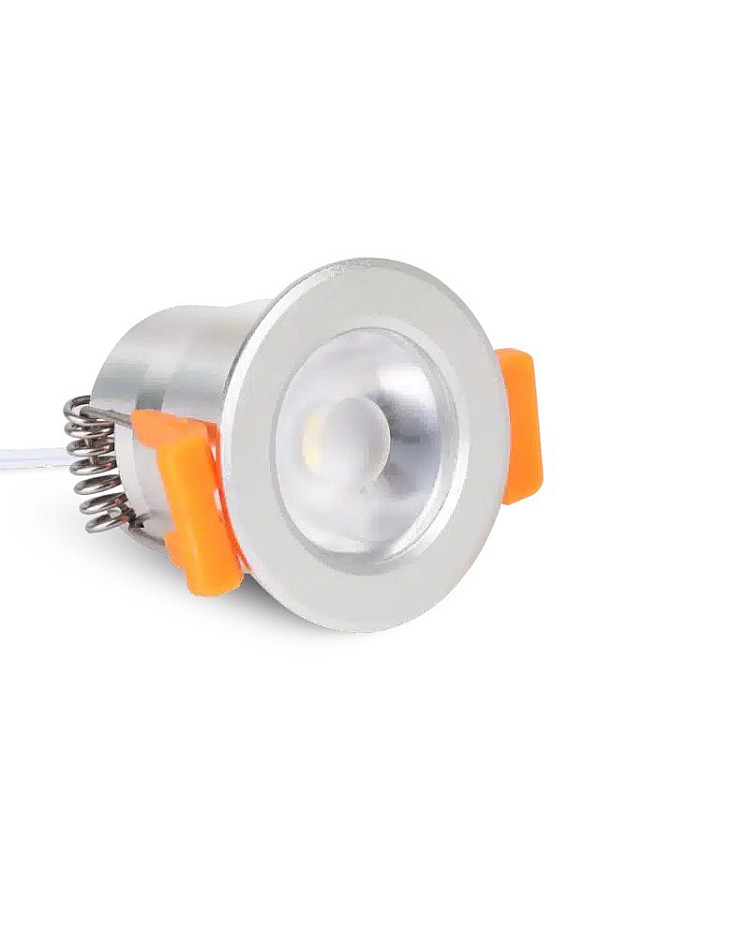

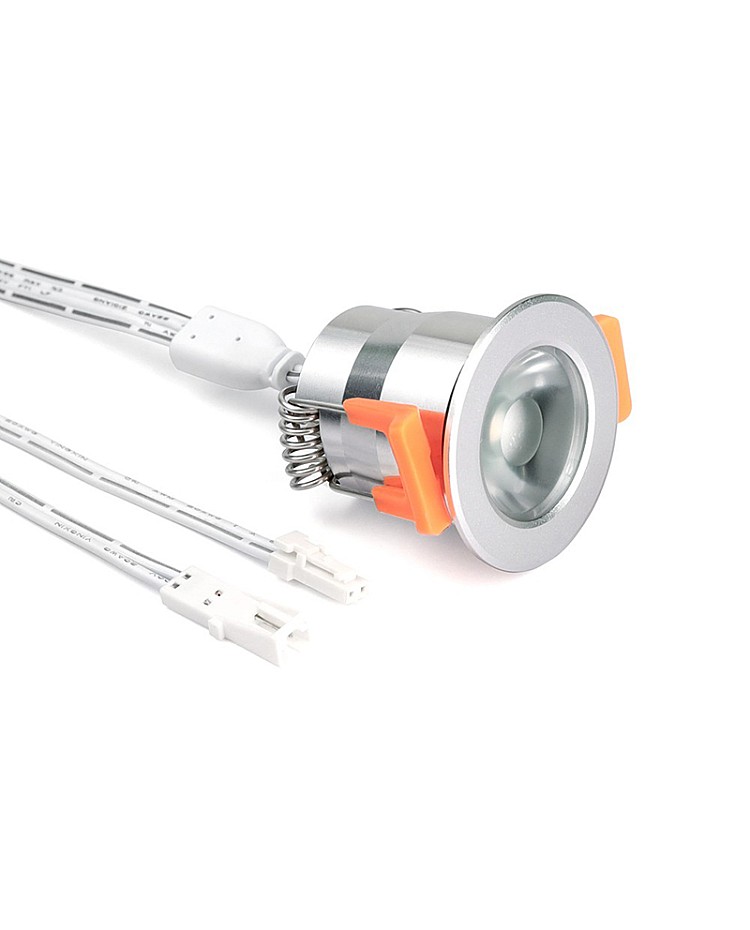

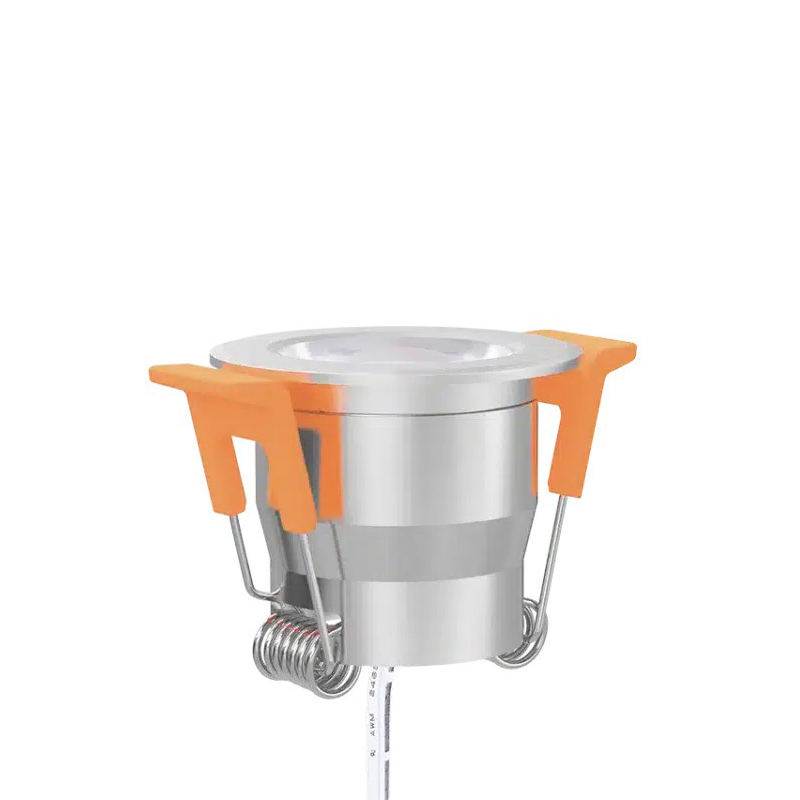

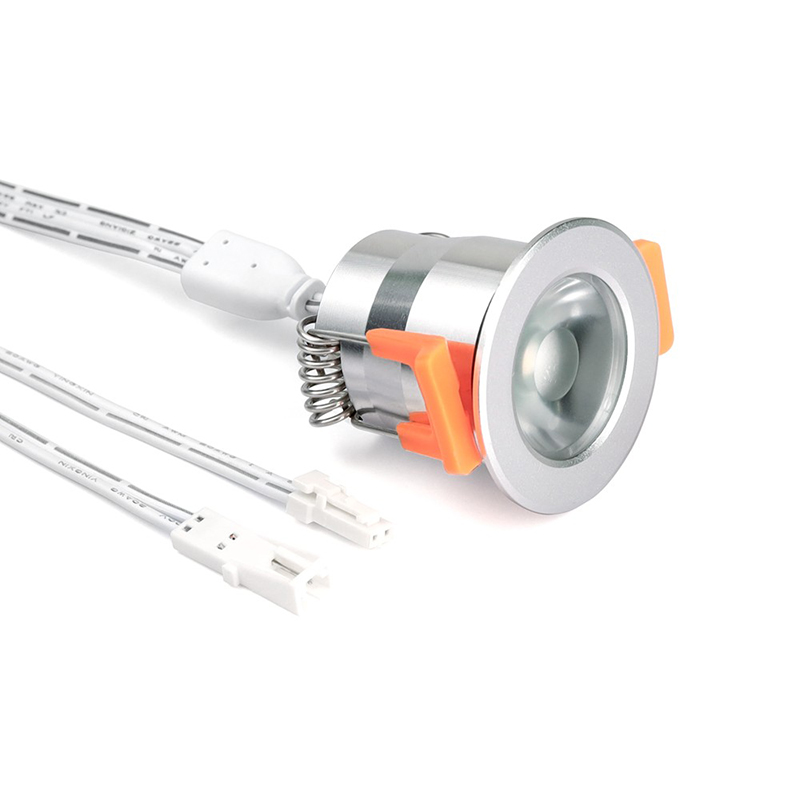

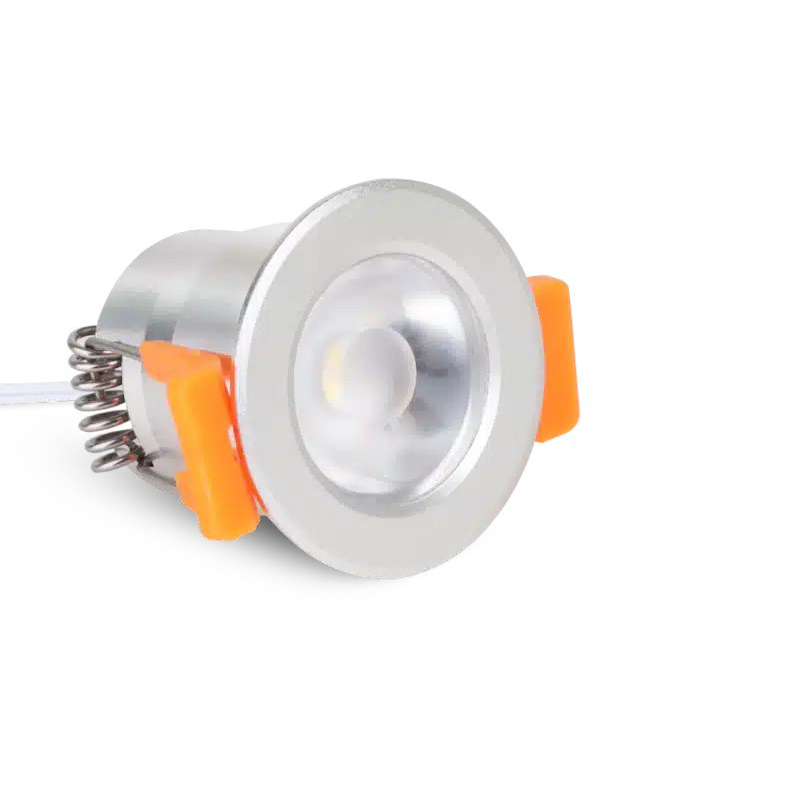

The MiBoxer HSP3 3W RGBW spotlights for the house come with DuPont male and female plugs and need to work with the 2-wire master boxes like HTR5, HTW5, and HTZ5 to change the colors, saturation, and adjust the brightness for various scenes. They can work with 12-Channel Junction Boxes, allowing as many as 80 pieces of RGBW spot lights together. The 24V RGBW spotlights adopt highly transparent masks for soft and bright light output. The color temperature is 3000K, 2000K, 4000K, 5000K, and 6000K, which are customized. There are 4096 smooth dimming levels, and the minimum brightness is as low as 0.1%. The stainless steel spring buckle is included, easily and firmly installed on the ceiling as subordinate lighting.
Specifications:
- Type: Subordinate Lamp-3W RGBW Spotlight
- Model: HSP3

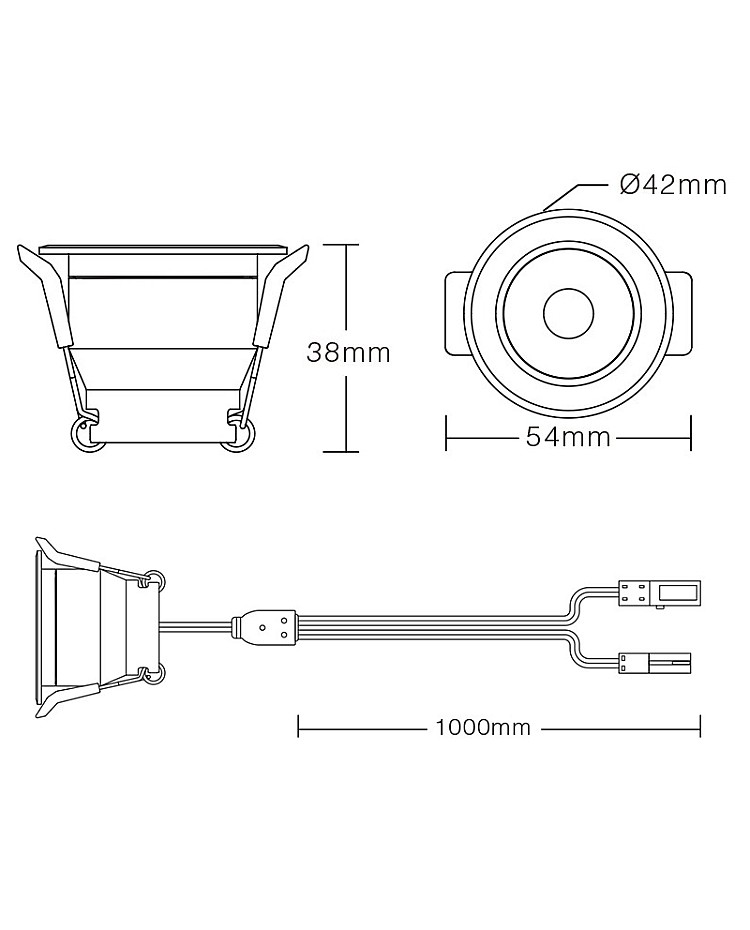

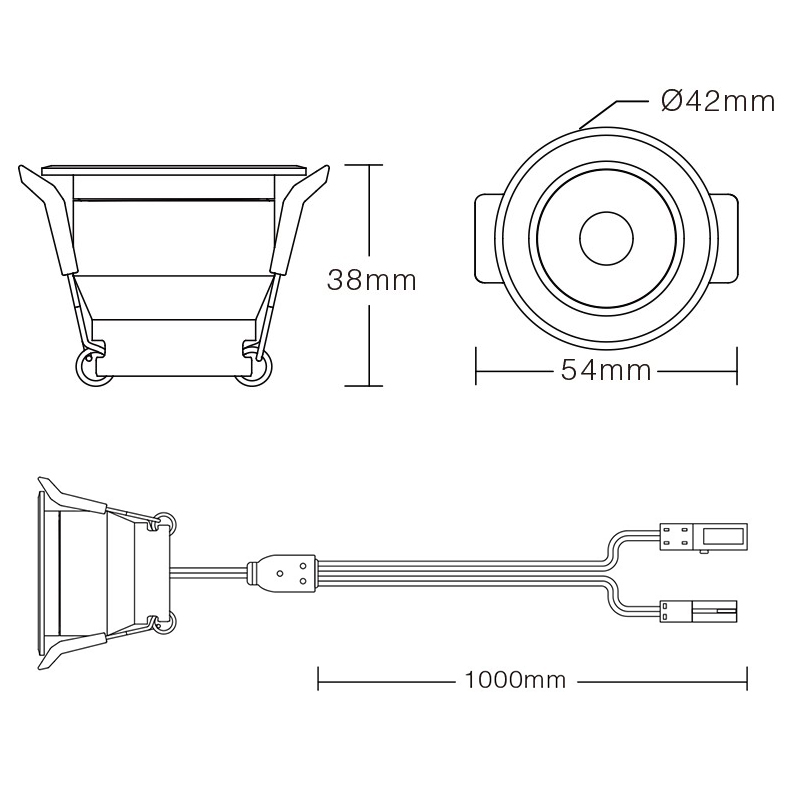

- Size: 54*38mm(Width*Height)
- Diameter: Φ42mm
- Hole Size: Φ33-36mm
- Working Voltage: DC24V
- Power: 3W
- CIR: >80Ra
- Color Temperature: 3000K And Customizable
- Luminous Flux: 61LM
- Beam Angle: 36°
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Cable Length: 1000mm
- EMC Standard(EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.1.1, ETSI EN 301 489-17 V.3.2.4
- Safety Standard(LVD): EN IEC60598-2-1:2021; EN IEC60598-1:2021; EN IEC 62031:2020; EN 62493:2015/A1:2022
- Radio Equipment(RED): ETSI EN 300 440 V2.2.1, ETSI EN 300 328 V2.2.2
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Certification: CE, EMC, LVD, RED
- Lifespan: 35,000 Hours
- Warranty: 2 Years

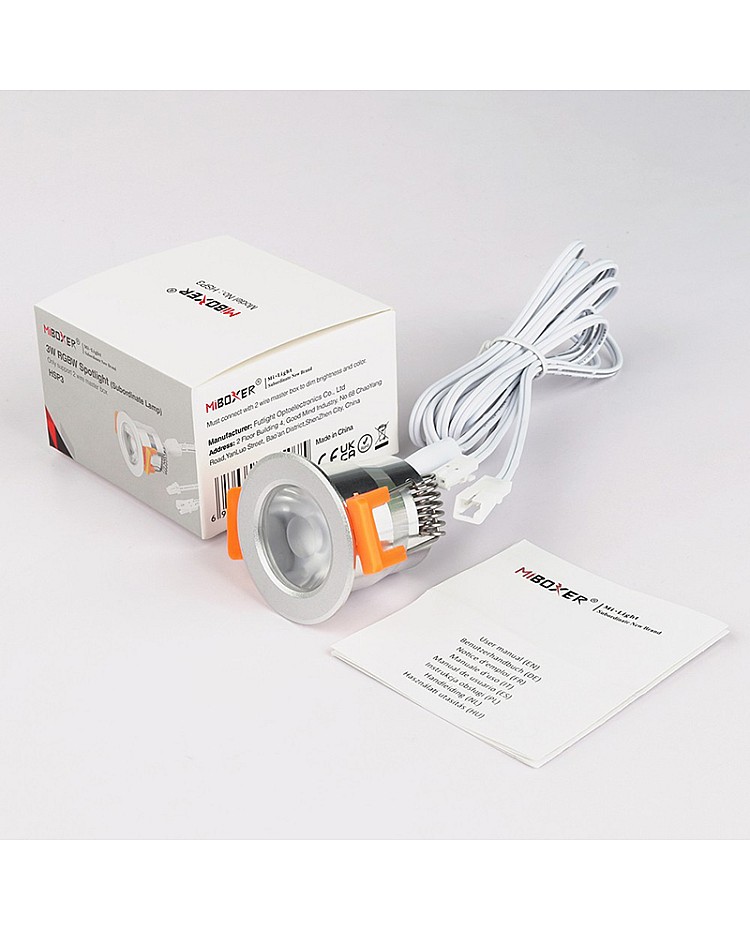

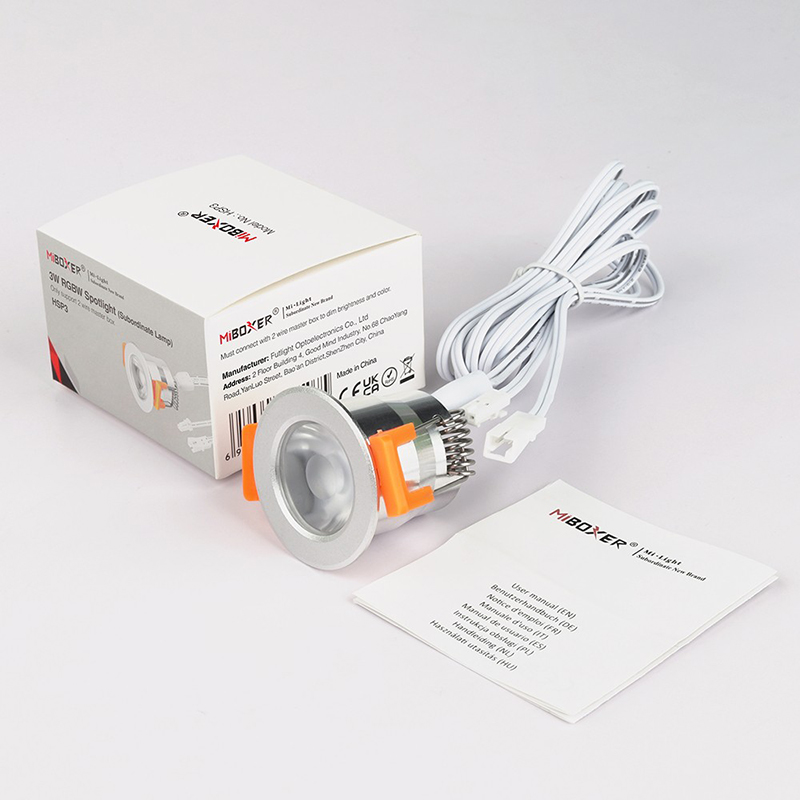

Includes:
1 * HSP3 RGBW Spotlight For House
