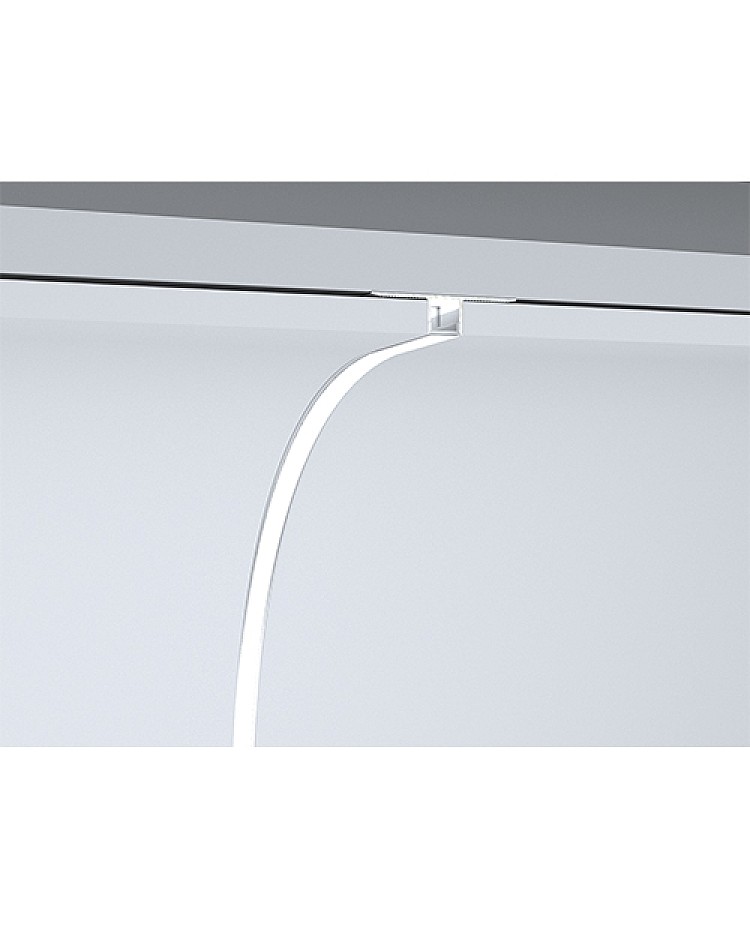

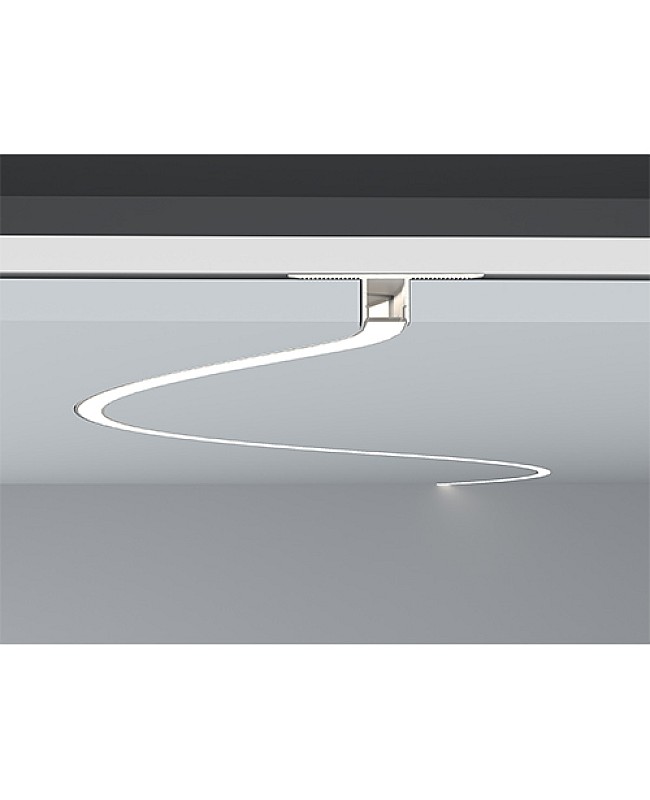

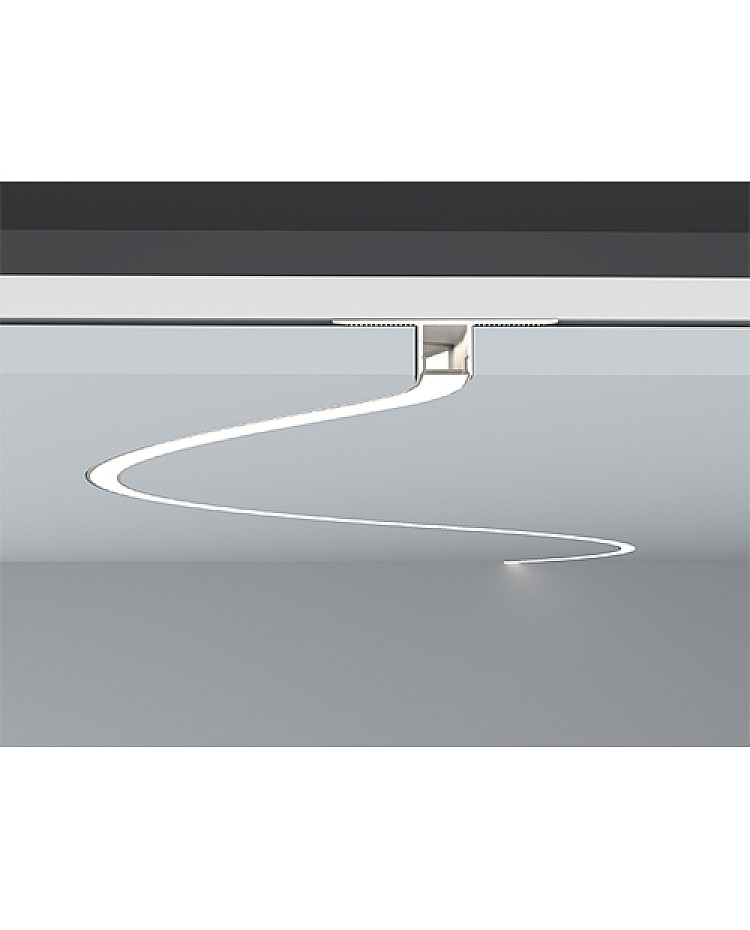

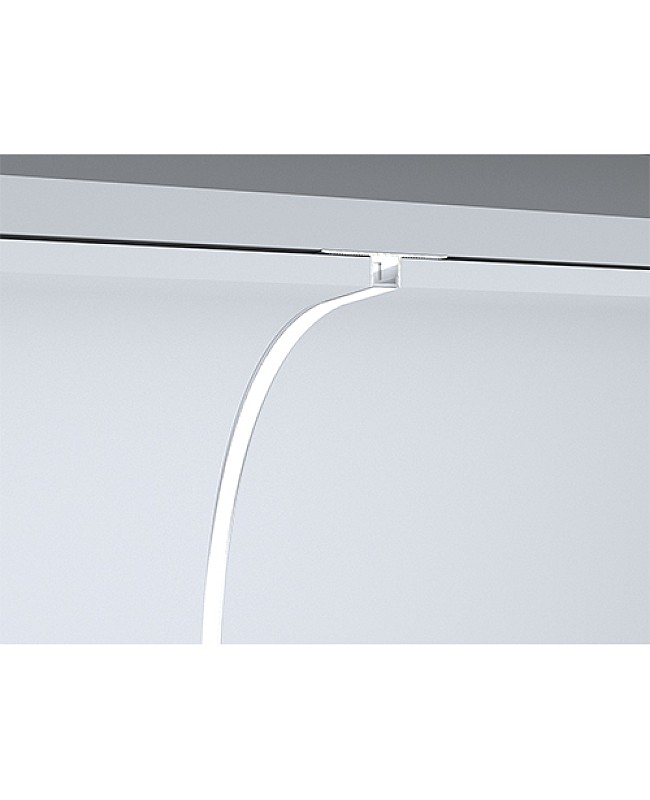

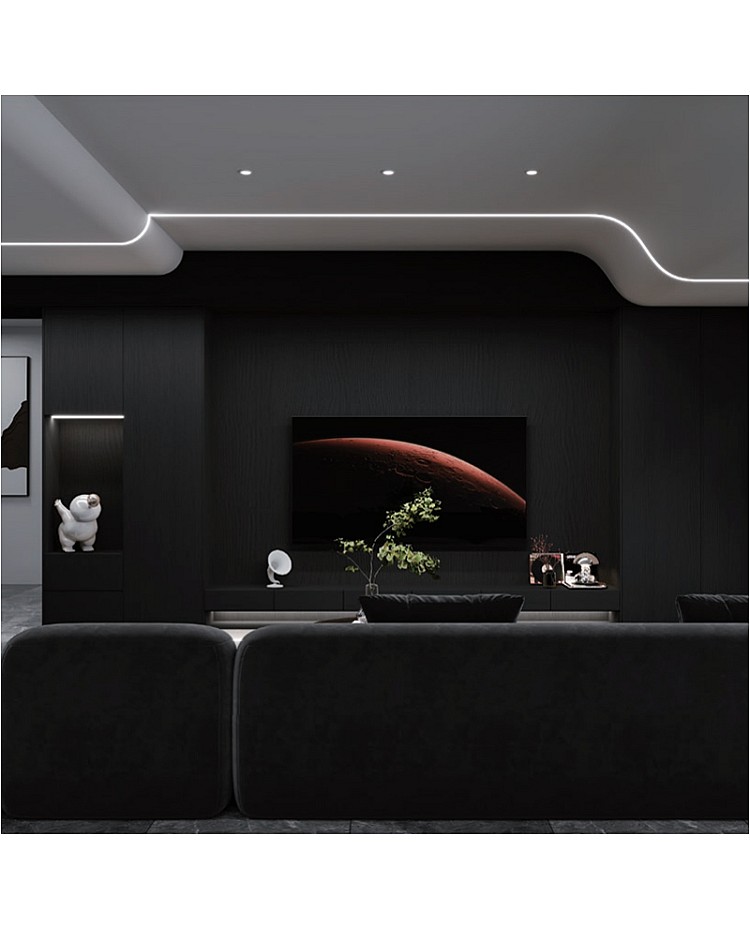

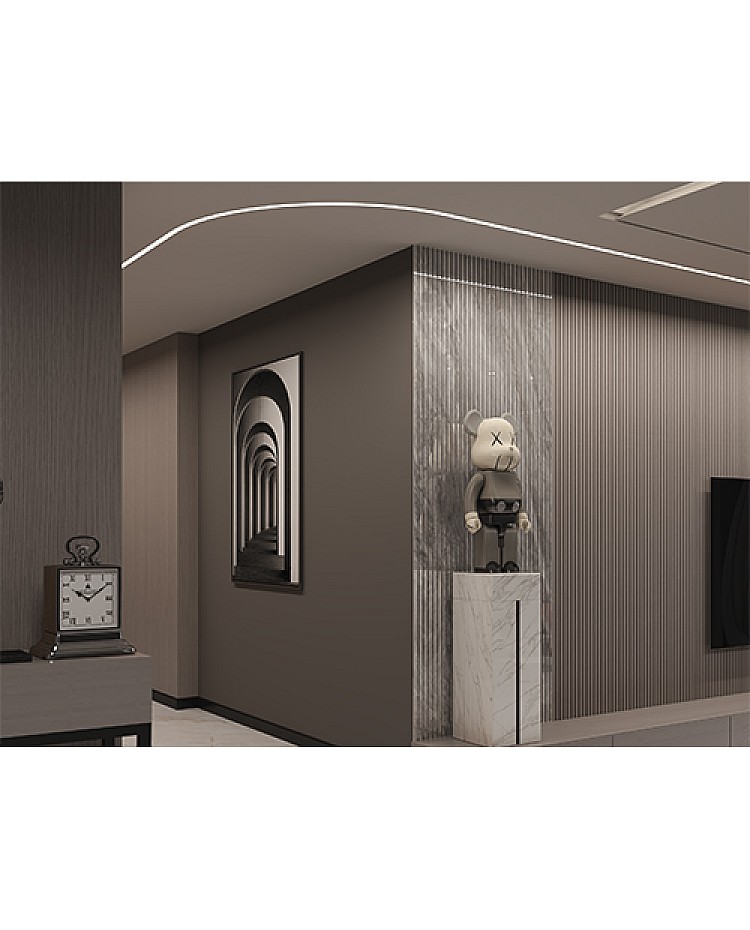

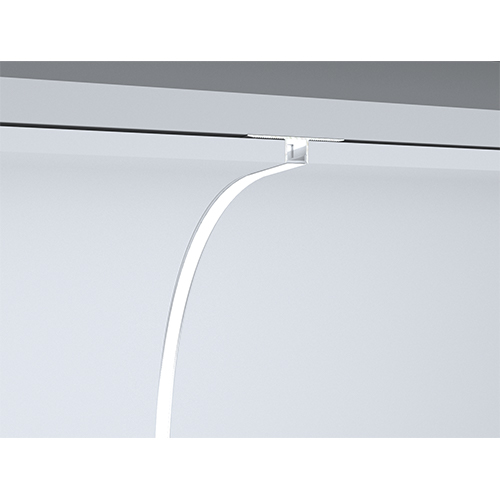

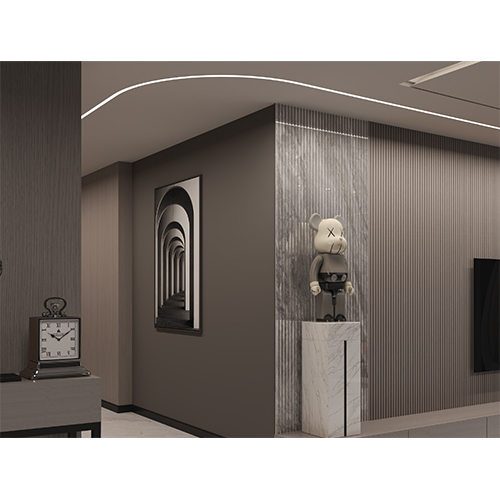

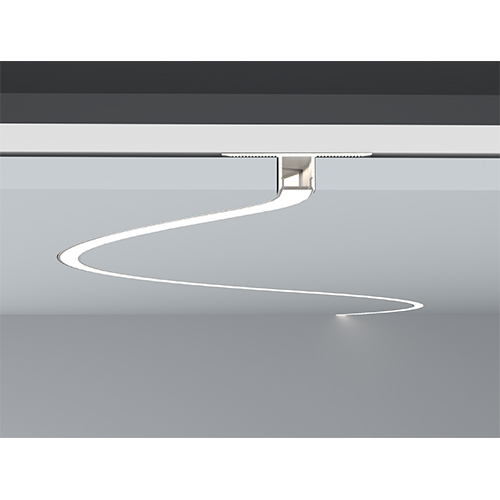

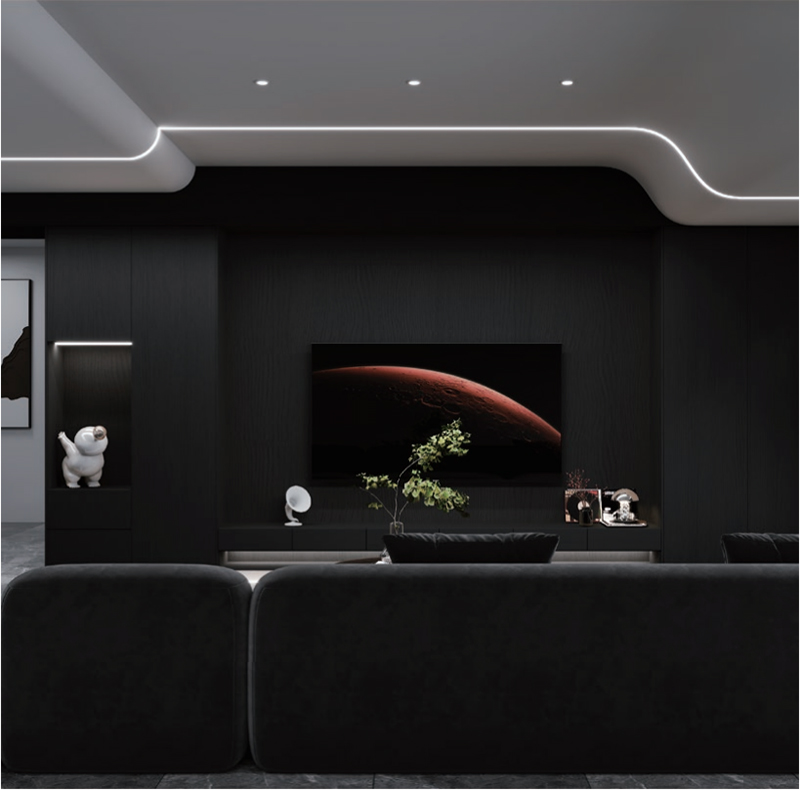

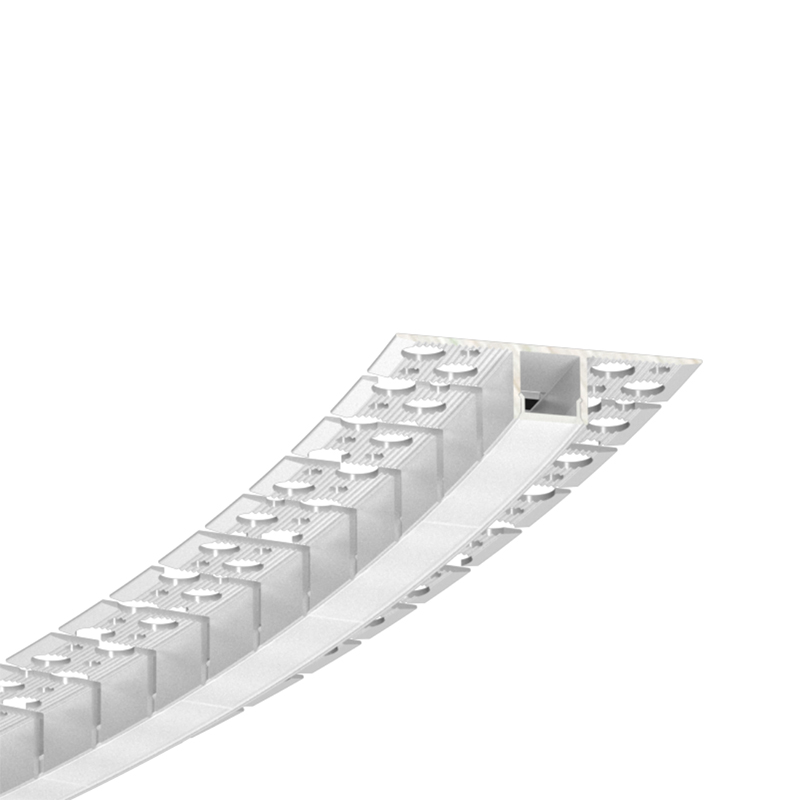

The Trimless Plasterboard Flexible LED Channel Diffuser features side bending and up-down bending products, allowing you to design and create curved line decorative lighting that seamlessly integrates into modern architectural spaces for both residential and commercial use. The Flexible LED Channels are made of 6063-T5 extruded aluminum material and feature a silver anodized finish, providing anti-oxidation resistance and a longer lifespan. The stock lengths are 1 m, 2 m, and 3 m, and you can cut them to any size that suits your needs. The inner width is 10.3mm, allowing the max width of Strip Lights to be 10mm for vertical bending installation and 6mm for horizontal bending installation. Only one type of silicone diffuser is available: a semi-clear diffuser. They are made of high-quality silicone material, which softens the light and creates a gentle, uniform illumination that reduces glare and shadows. We recommend using the high-density SMD or COB Strip Lights as the light source. The Wings of the Flexible LED Profiles have small round holes, which allow mud-in easily, and can work with 12.5 mm-thick plasterboards. The flexibility of the LED channel enables easy installation around curves and irregular surfaces, ensuring a customized lighting design meets the space's specific needs. Its trimless design eliminates any visible borders or edges, resulting in a seamless and minimalist aesthetic that enhances the overall ambiance.
Specifications:
- Type: Trimless Plasterboard Flexible LED Channel

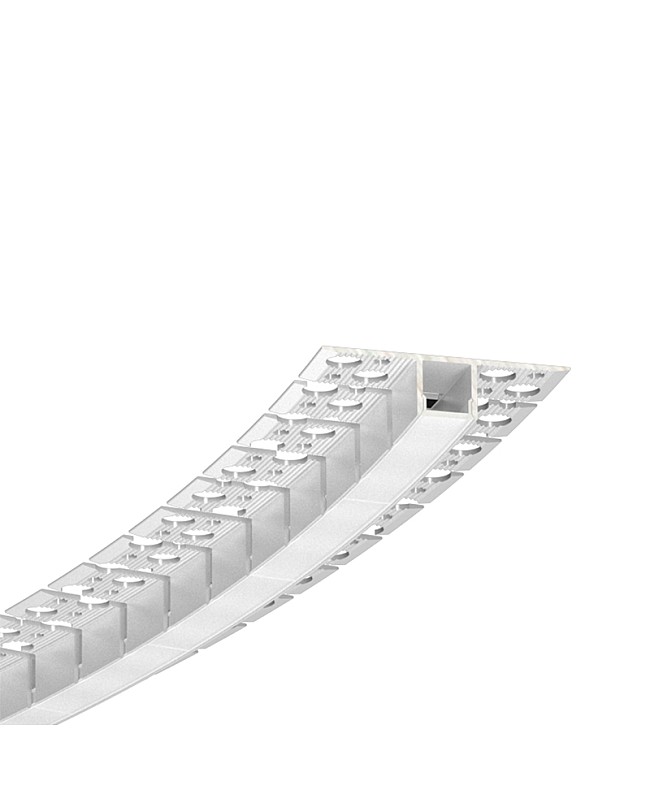

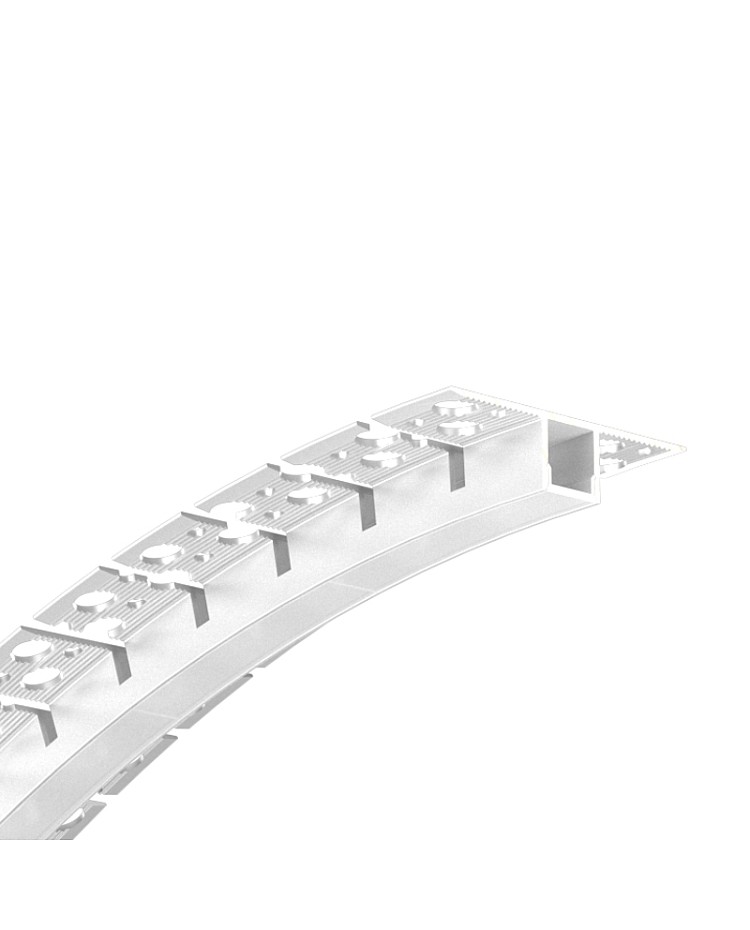

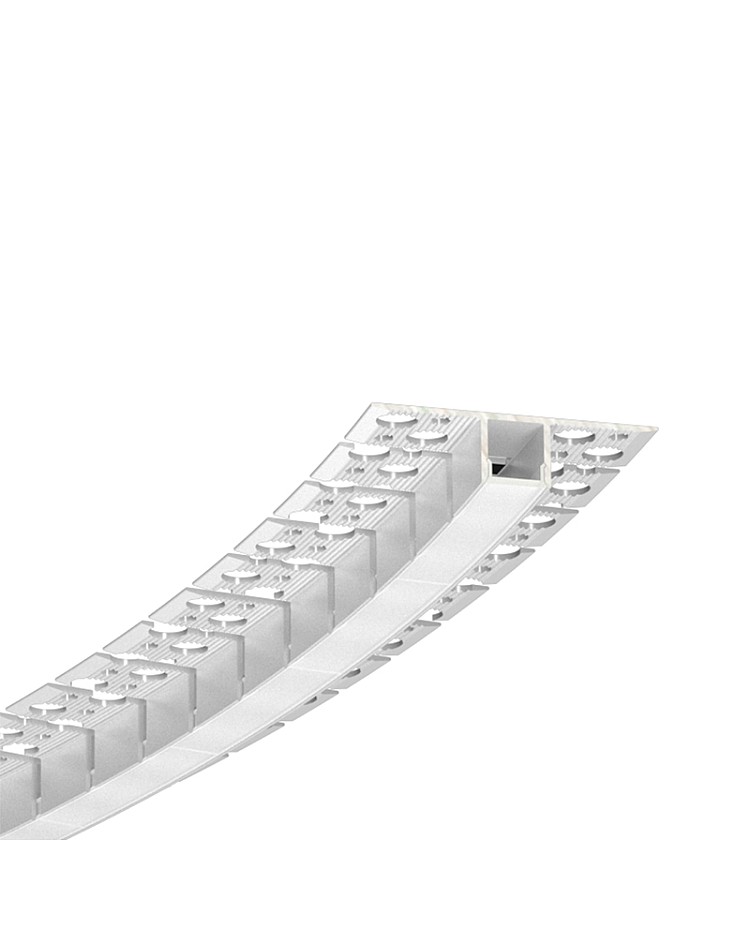

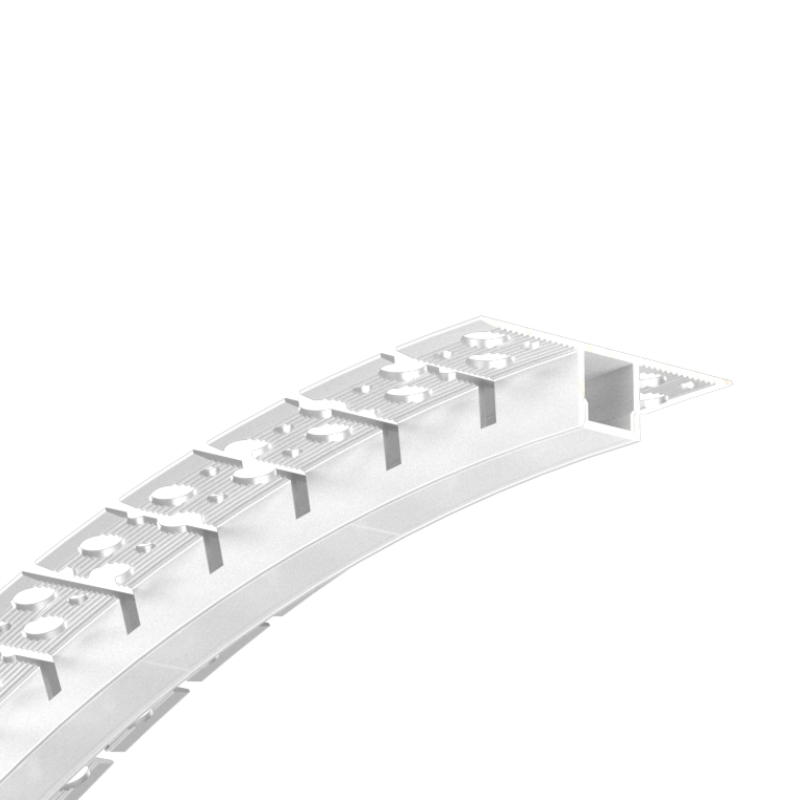

- Model: 5414-LR(Side Bending) / 5414-UD (Up-Down Bending)
- Material: 6063-T5 Extruded Aluminum
- Surface Treatment: Anodized

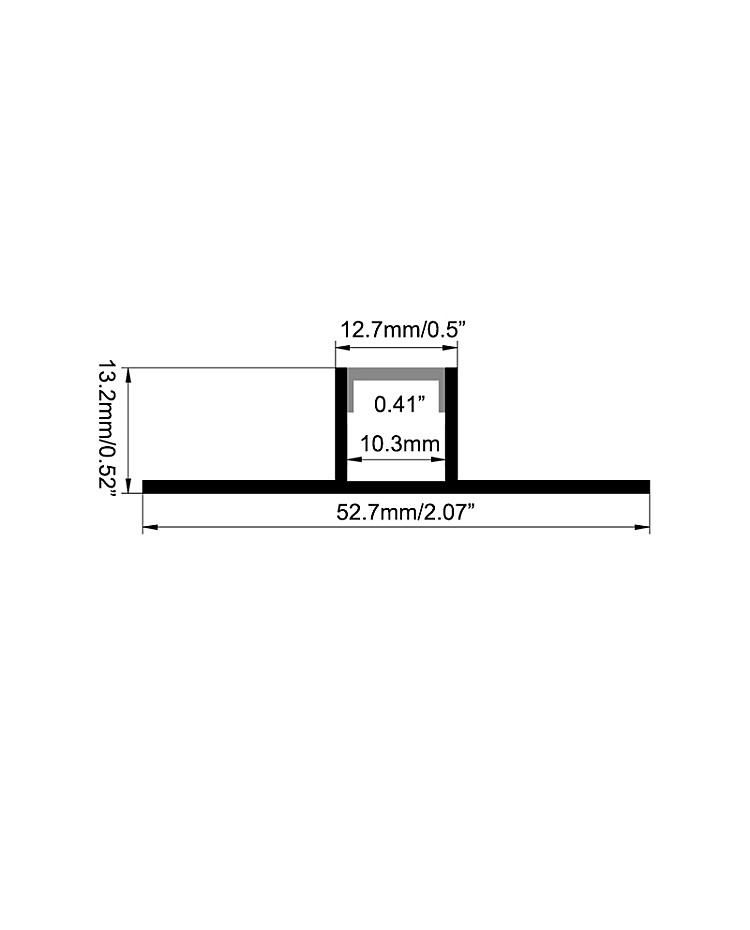

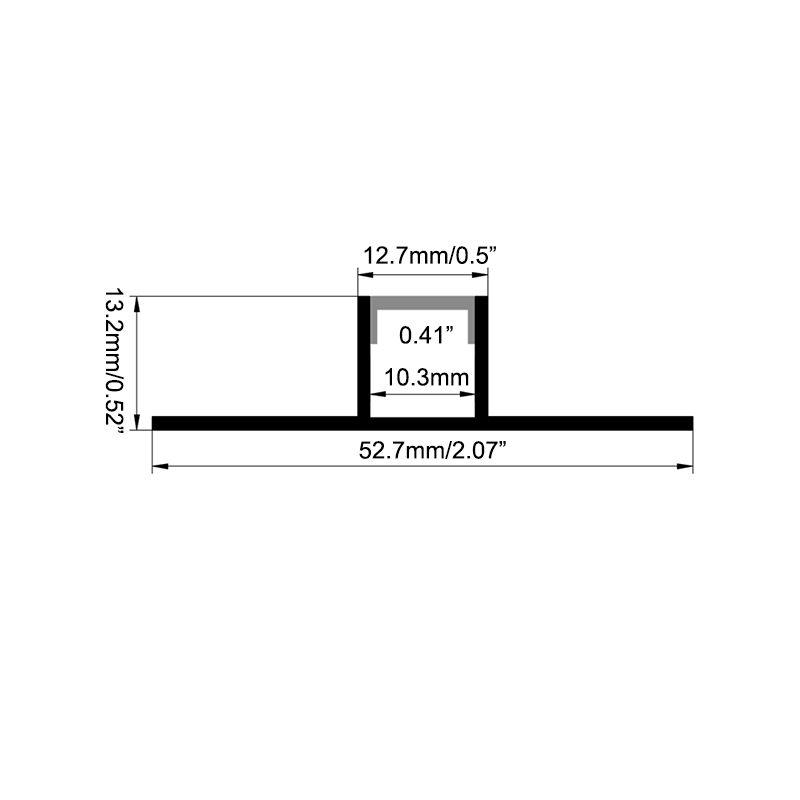

- Size(W*H): 52.7mm/2.07"*13.2mm/0.52"
- Aluminum Profile's Length Available: 1M, 2M, 3M
- Silicone Diffuser's Max Length: 50M/100M Per Roll
- Custom Length: YES
- Colors: Silver(Aluminum Channel) / Milky(Silicone Diffuser)
- Inner Width: 10.3mm
- Max With Of Strip Lights: 8mm/10mm LED Tape Lights (5414-UD) / 5mm/6mm LED Strip Lights On The Side Or 10mm Zig Zag LED Strips On The Bottom(5414-LR)
- Silicone Diffuser: Semi-clear
- Mini Bending Diameter: 450mm(Side Bending) / 300mm(Up-down Bending)
- Installation: Plaster-In
- Applications: 12.5mm/0.49" Thickness Plasterboard
- Certifications: CE, ROHS
- 3 Years Warranty
Includes:
1 * Flexible LED Channel
1 * Silicone Diffuser
End Caps
