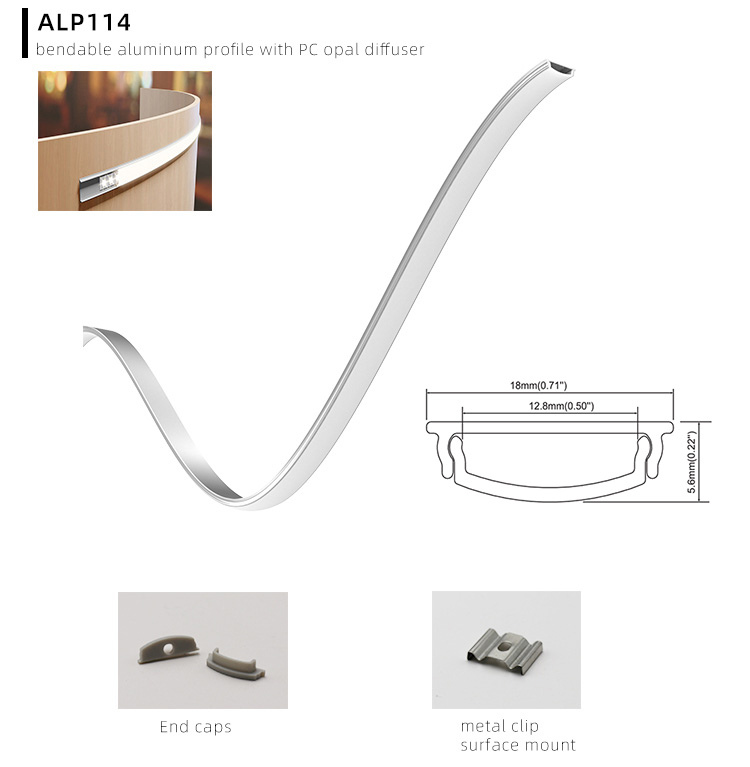

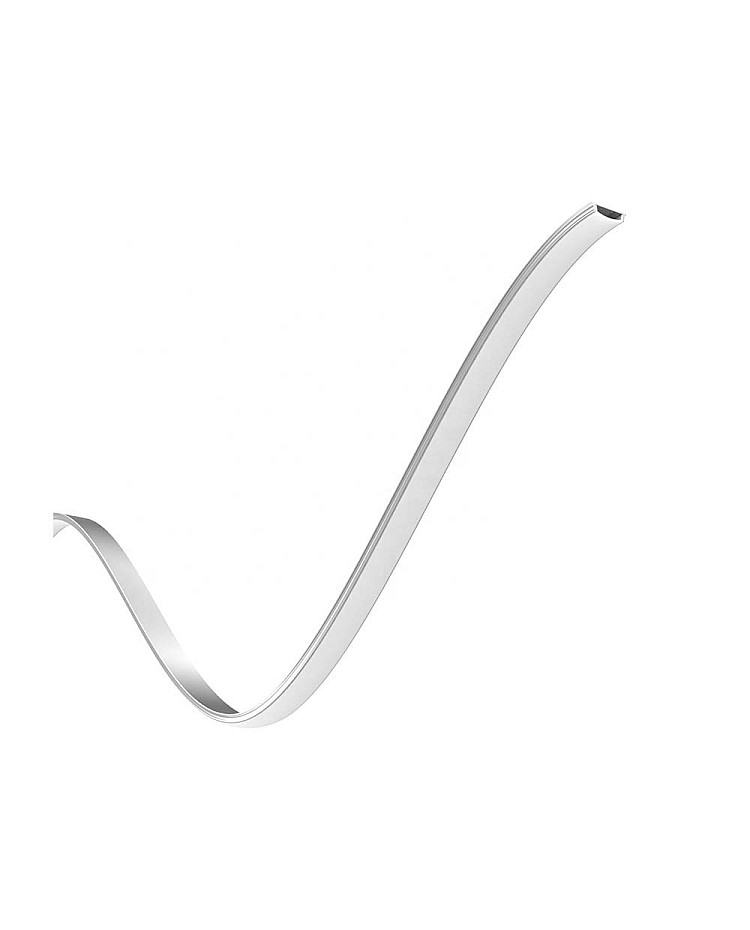

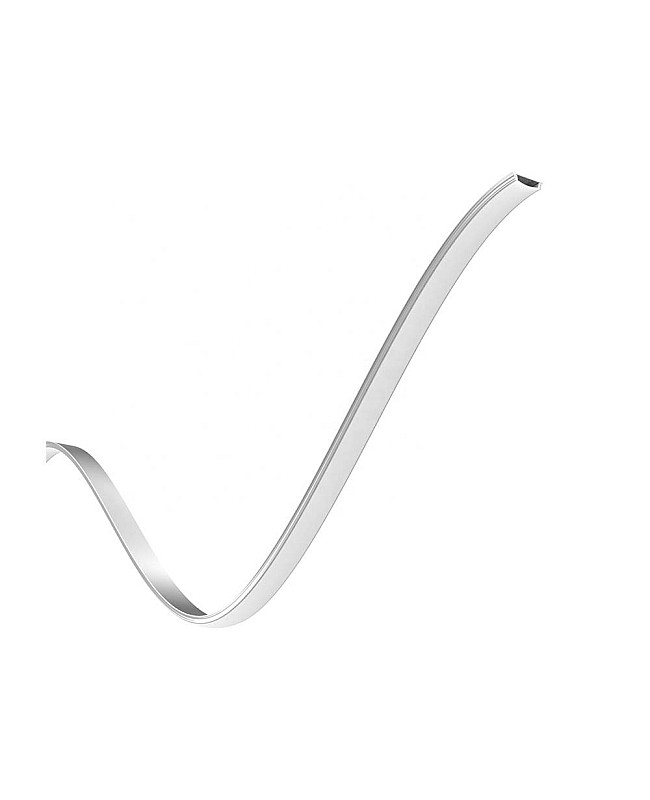

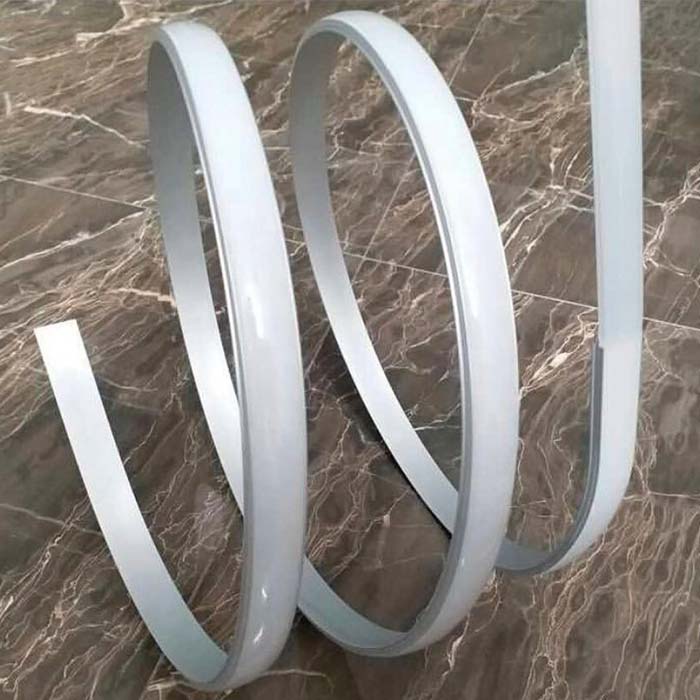

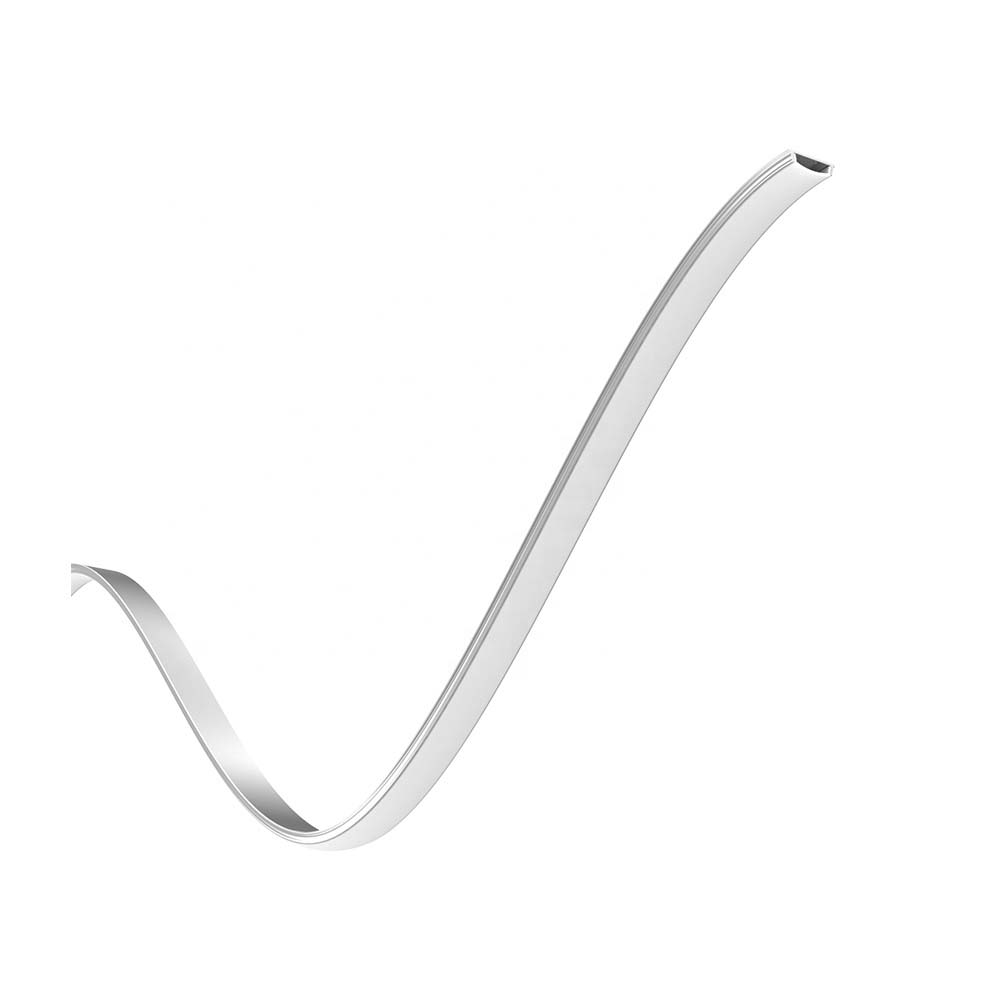

The bendable LED extrusion is slim and can be bent to almost any curvature for surface-mounted installation. It is an excellent option for lighting projects requiring a flexible, versatile solution. The height is only 5.6mm, and the inner width is 12.8mm, allowing a maximum strip light width of 12mm. Recommend adding 8mm COB strip lights as the light source without visible light dots.
The bend LED profile is crafted from high-quality aluminum, ensuring durability and long-lasting performance. The only PC diffused cover available is made of brand-stable, anti-yellowing material to create bright, even illumination. The standard lengths are 1m and 2 m, and they can be cut to any size that fits your needs. The LED extrusion is bendable, making it suitable for use in offices, kitchens, hotels, and stores. It comes with metal clips that you can mount on the surface of your LED project.

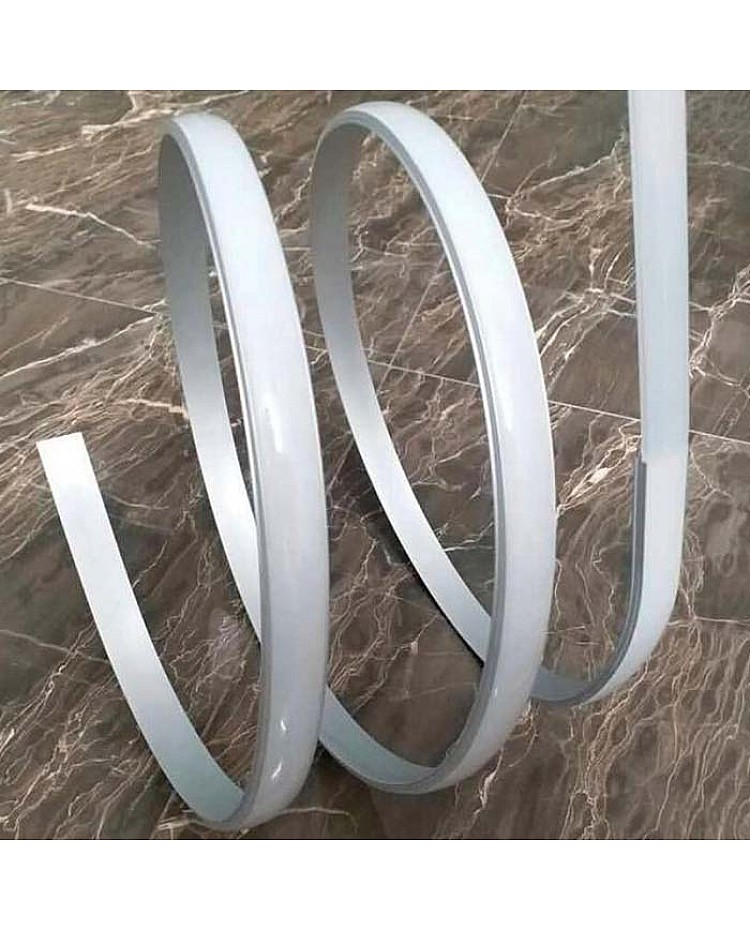

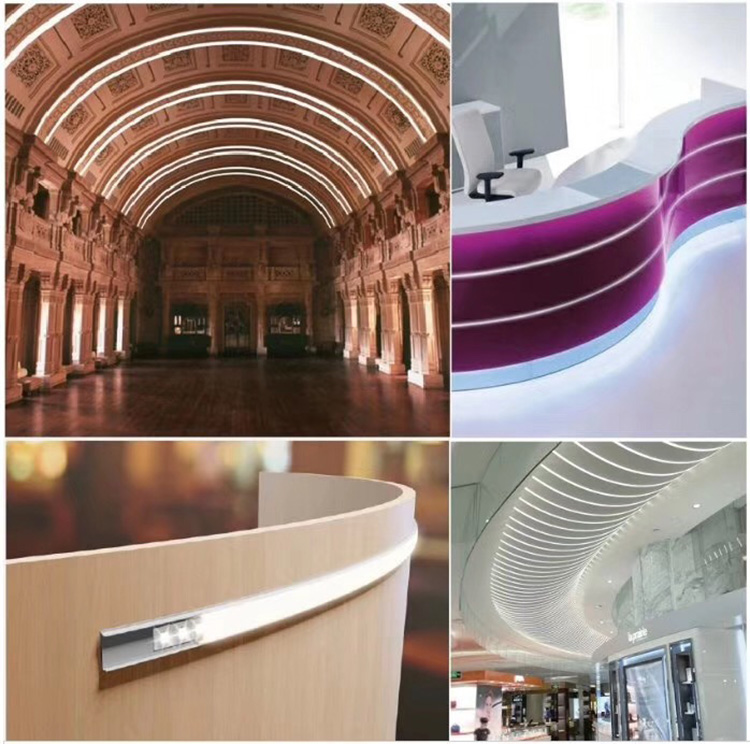

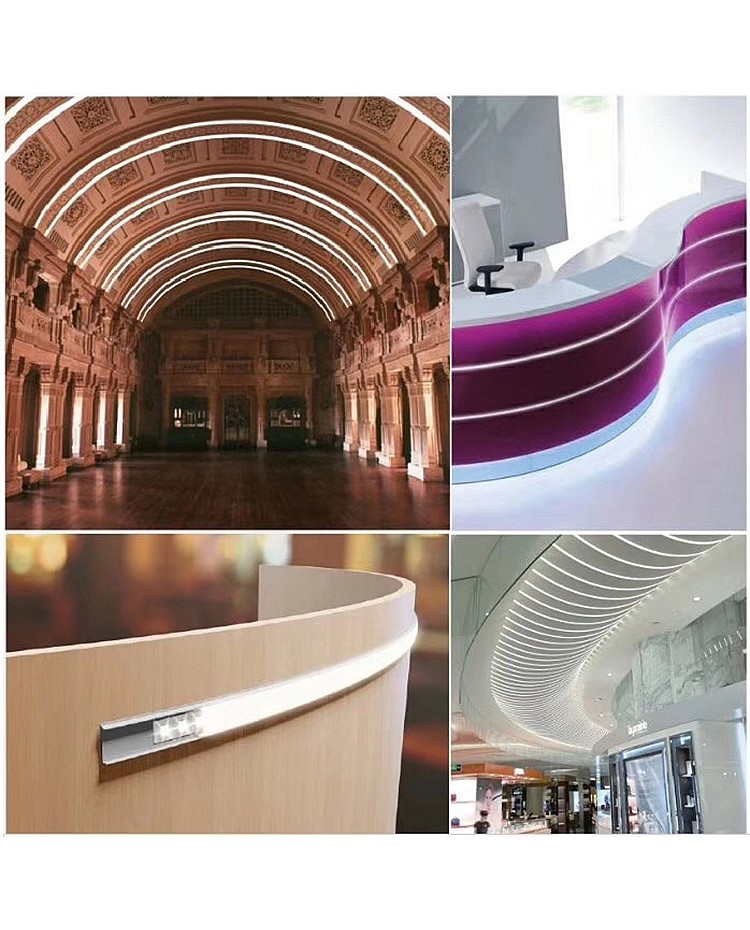

End caps with and without wire holes are included, making it easy to connect the LED strips to the LED light or LED dimmer to light them up or adjust brightness. The LED extrusions can be curved or bent to fit any shape or space, are easy to install, and are suitable for various applications, including architectural, display, and accent lighting.
Specifications:
- Model: ALP114
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized or powder-coated
- Color: Silver, White, Black

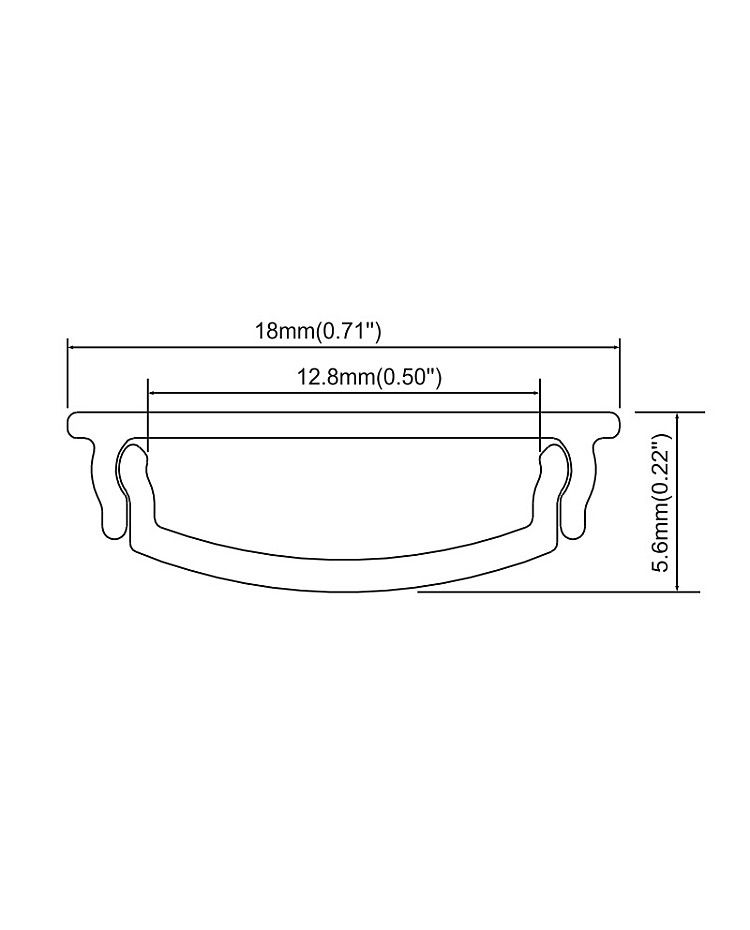

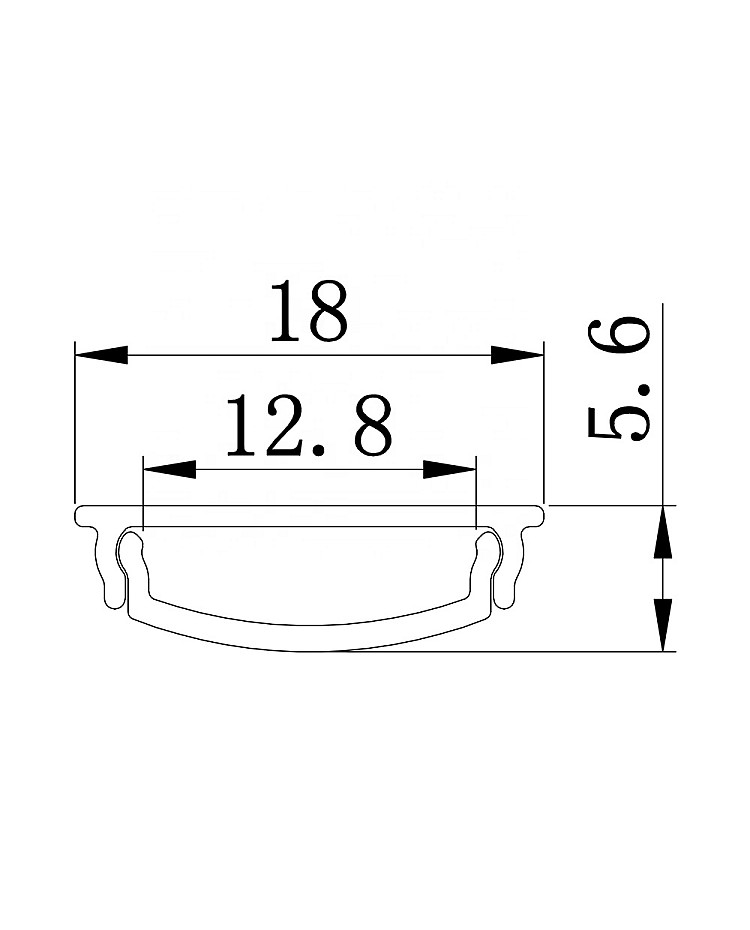

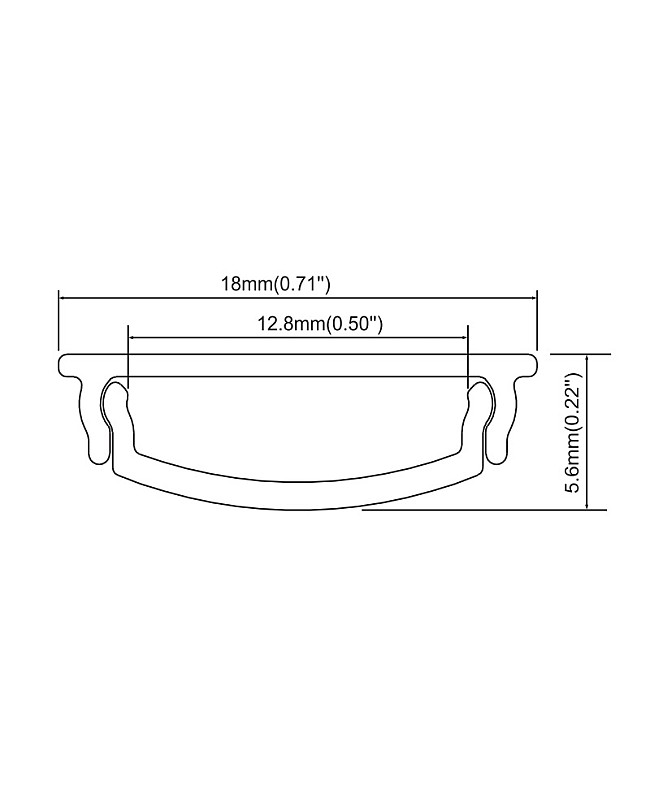

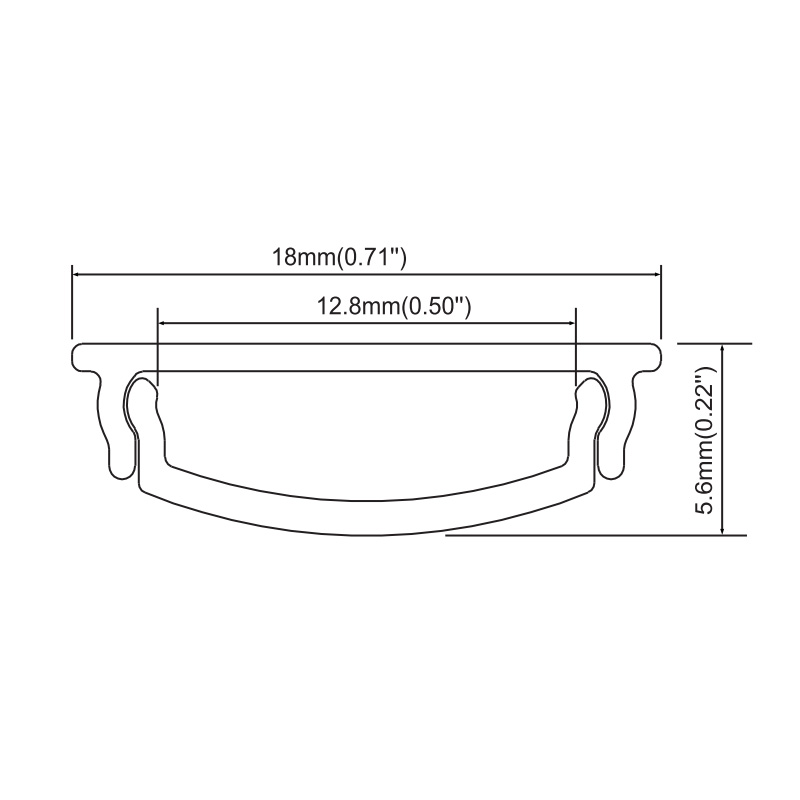

- Size ( W x H): 18 mm x 5.6 mm ( 0.71" x 0.22" )
- Lengths available: 2 m ( 78" ), 2.5 m ( 98" ), 3 m (118" )
- Custom length available: YES
- Inner width: 12.8 mm ( 0.5" )
- Max LED strip width: 12 mm ( 0.47" )
- Max power: 10W/m
- Diffusers: PC diffused covers

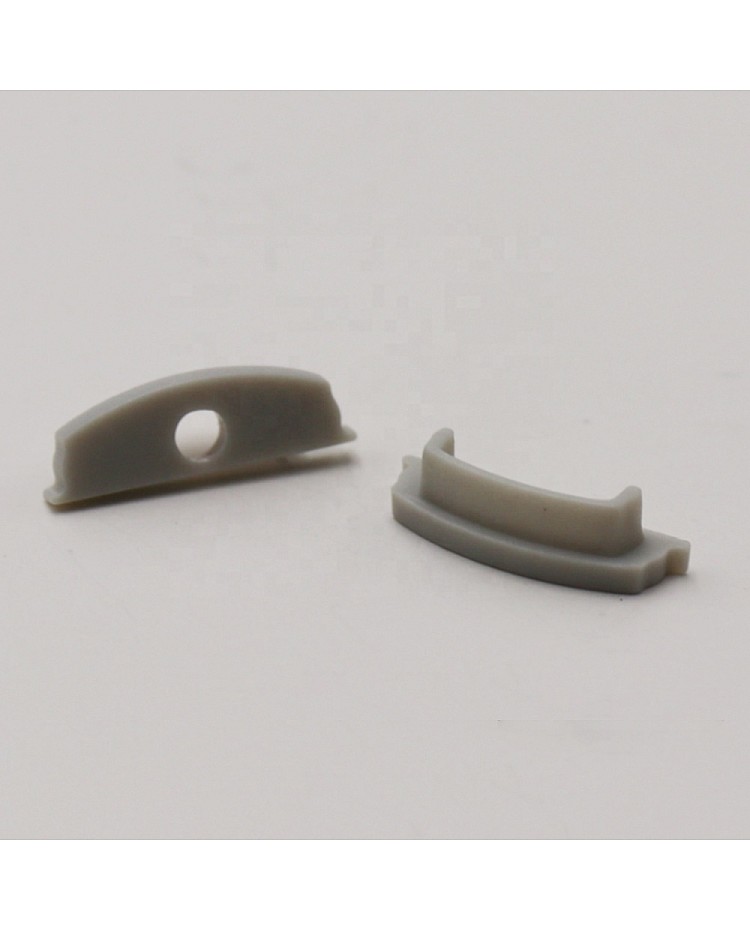

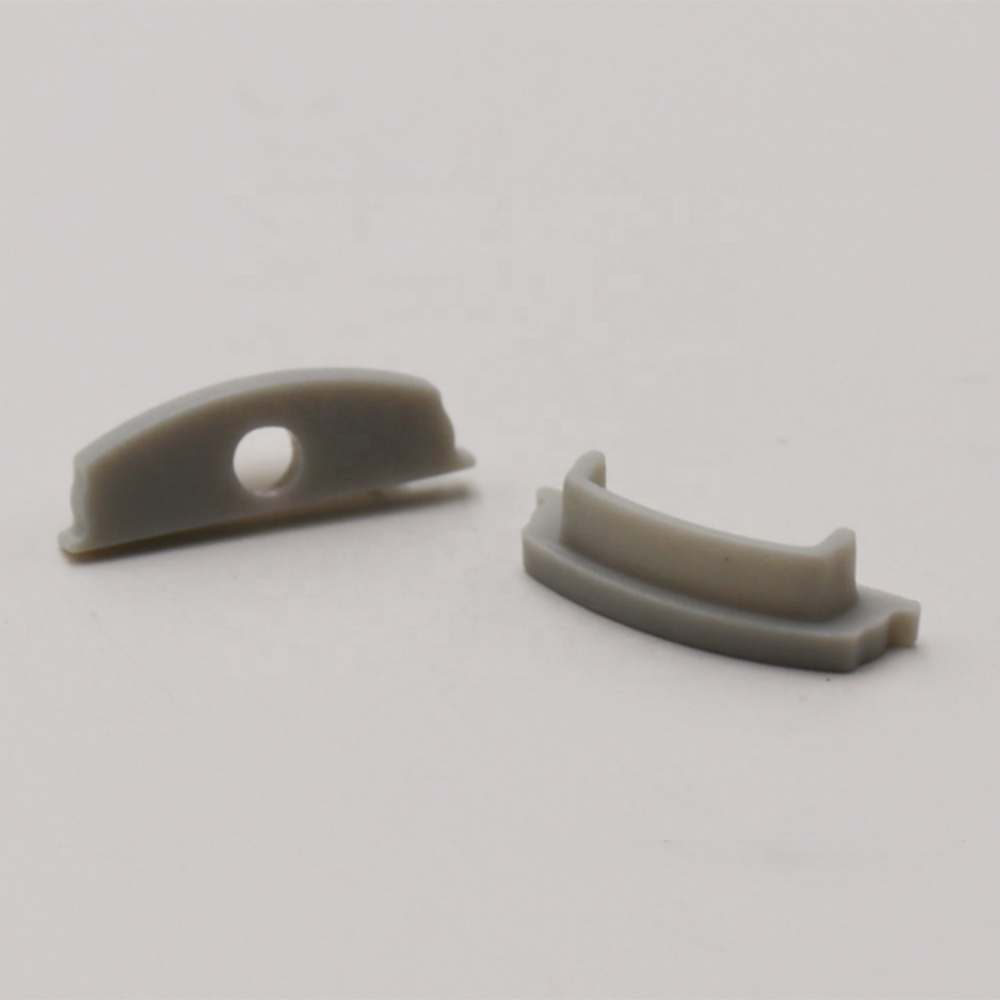

- End caps with and without wire holes are included

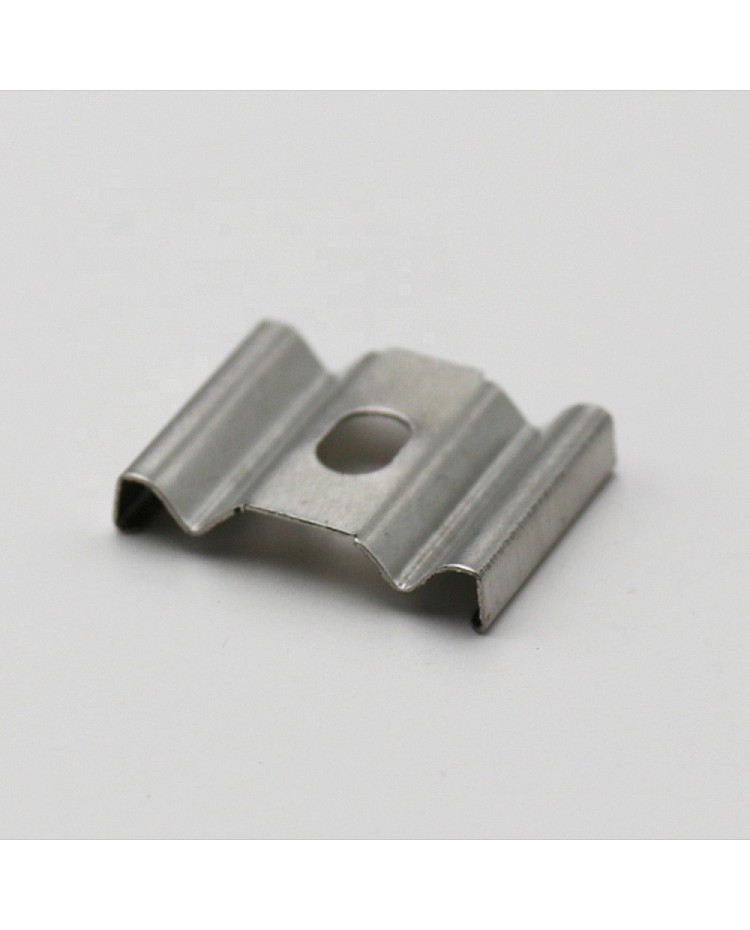

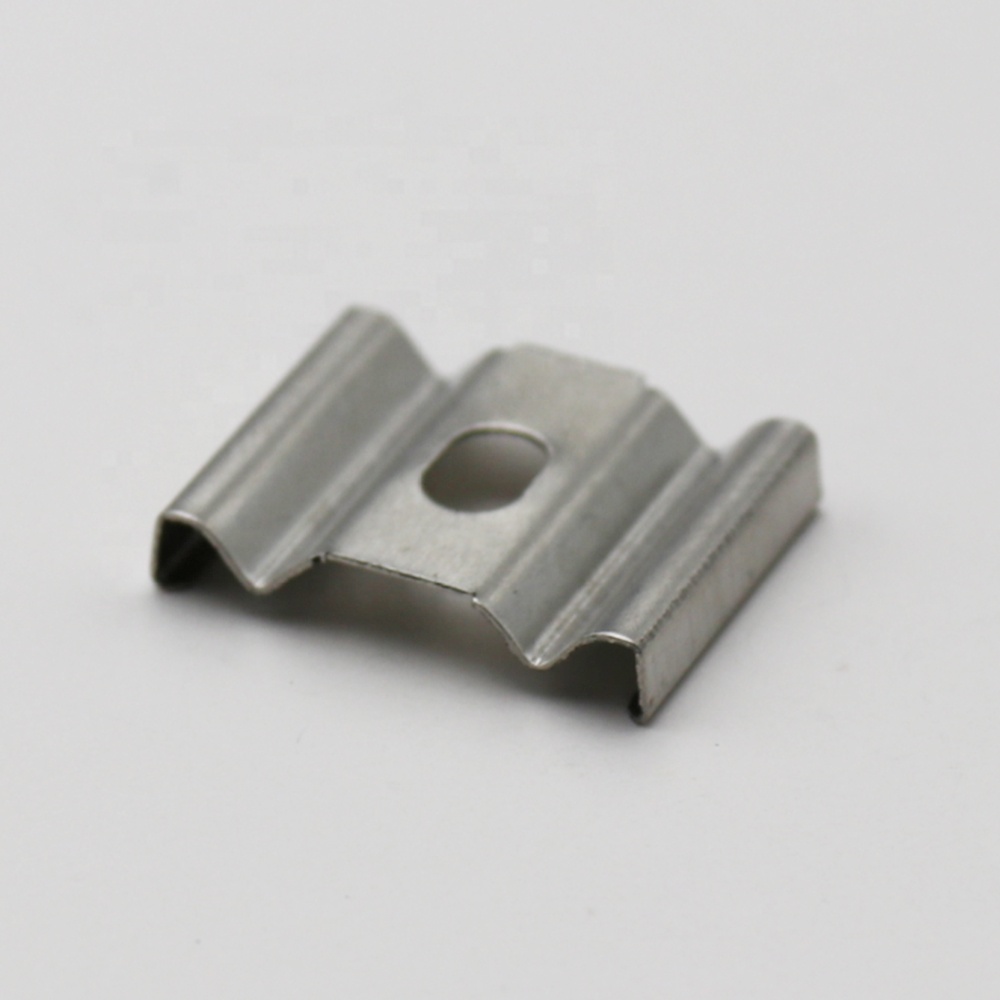

- Metal clips are included
- Installation: Surface-mounted
- Applications: Offices, Kitchens, Hotels, Stores
- Warranty: 5 years

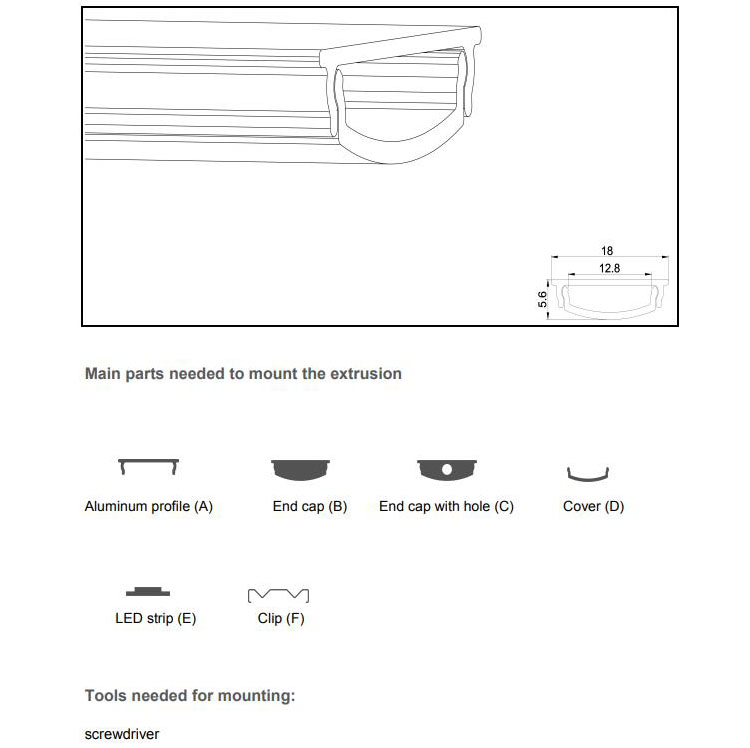

Includes:
1 * Bendable LED extrusion
End caps(With/without wire hole)
Metal clips
