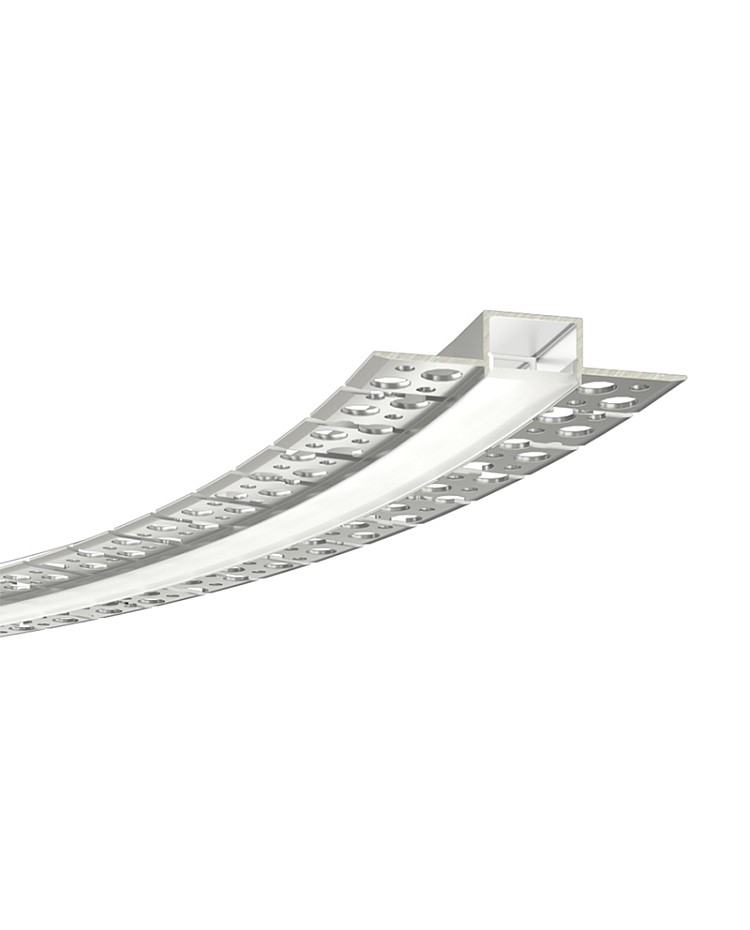

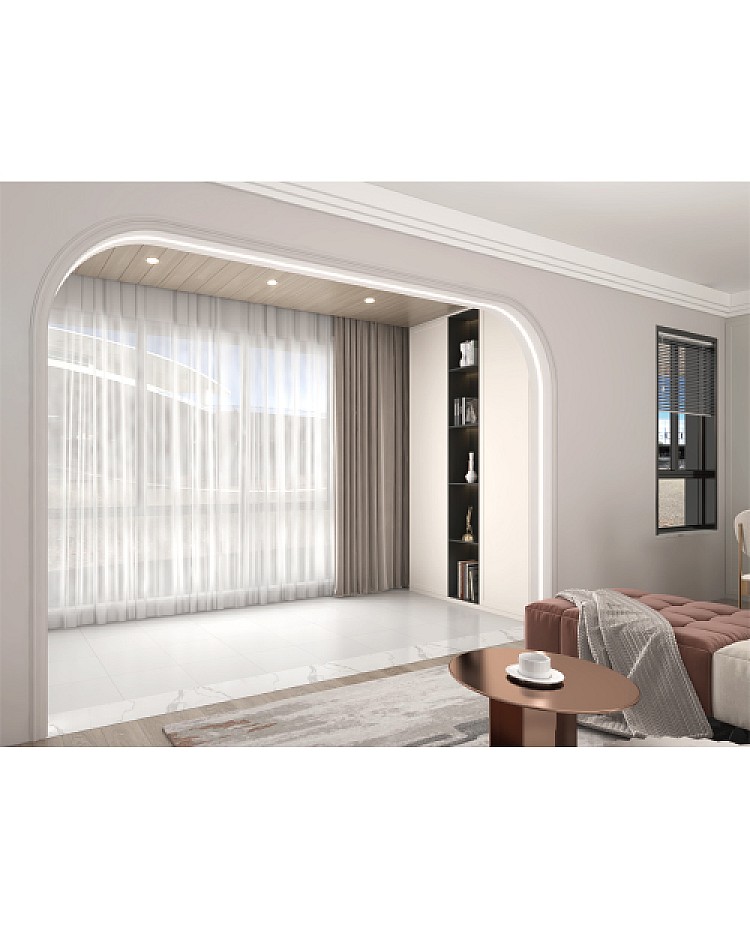

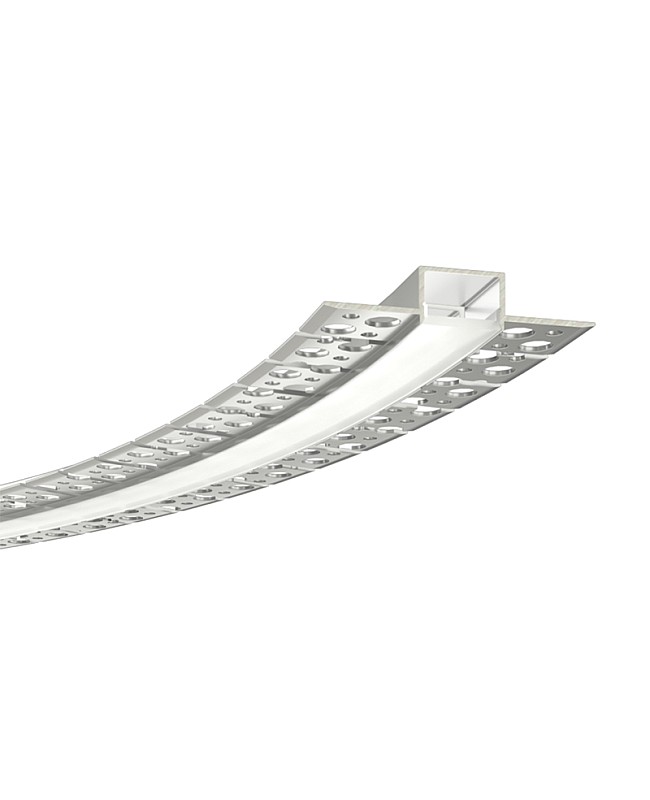

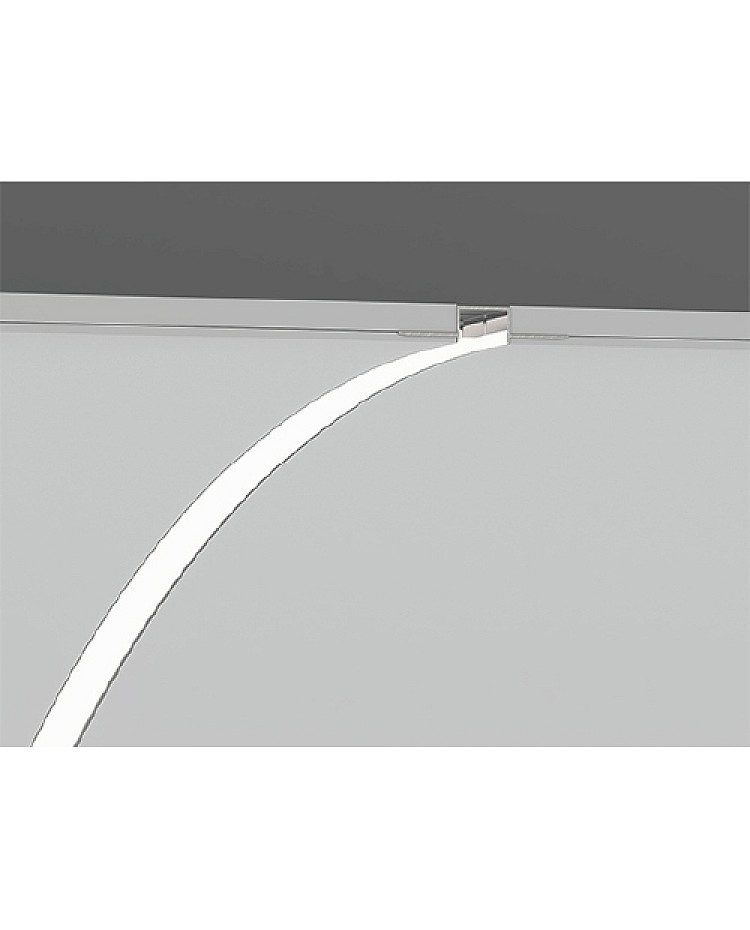

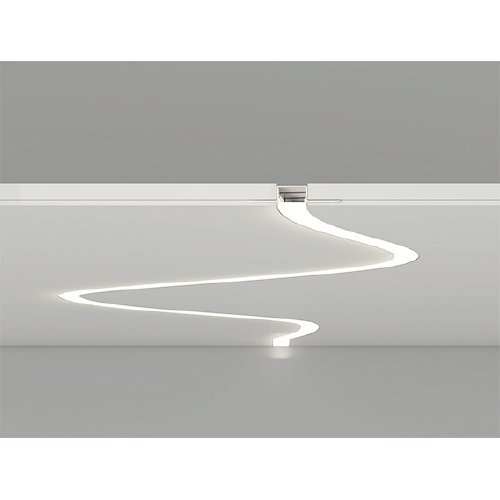

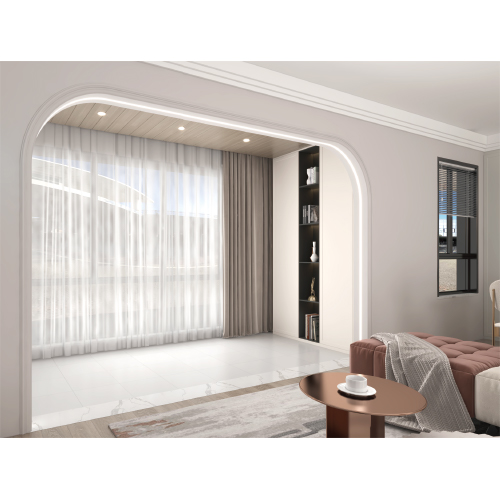

The 59mm aluminum channels are designed to house LED strip lights and to integrate seamlessly into drywall, plasterboard, or other mudded surfaces. They are bendable, allowing for smooth curves and custom shapes, making them ideal for arched ceilings, curved coves, and creative architectural lighting.
The LED strip profiles are made of 6063-T5 extruded aluminum material and feature a silver anodized surface treatment for enhanced longevity. The stock lengths are 1 m, 2 m, and 3 m, and can be cut to any size. The inner width is 16.3mm, allowing you to add high-density SMD or dimmable CCT COB LED strips of various widths for uniform illumination without hotspots.

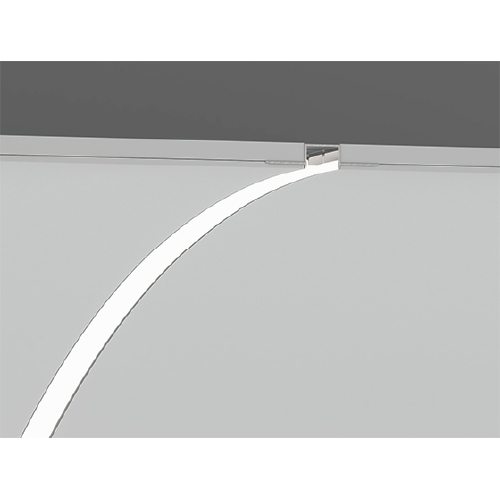

Only one type of diffuser is available: a semi-clear, high-quality silicone diffuser that helps distribute light evenly. The max length of the silicone covers is 50 meters per roll, and they are cuttable; you can use them for long, continuous linear interior lighting.

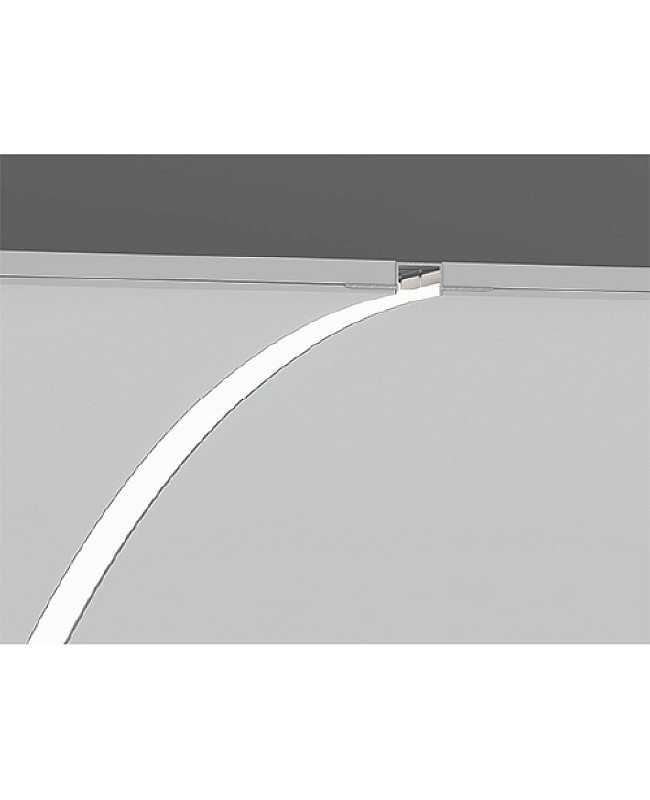

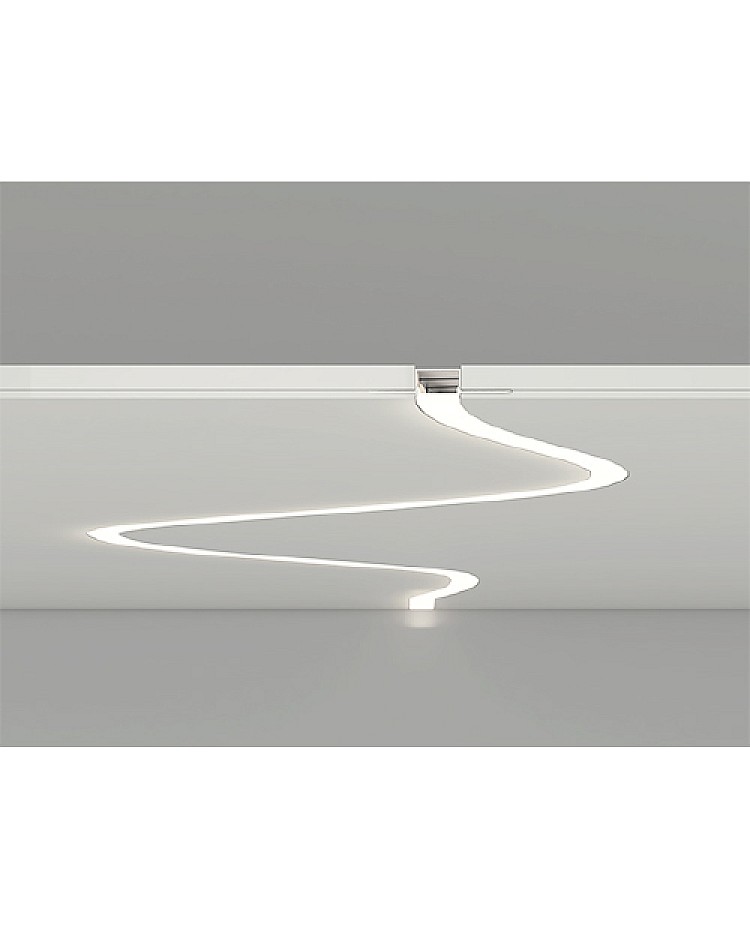

Two types of bending products and straight ones are available; you can combine them for your custom projects. The bendable features allow them to be used in a wide range of applications, such as under-cabinet, cove, and accent lighting in residential or commercial spaces, accentuating architectural features like arches, columns, and unique structural elements.
Specifications:
- Type: 59MM bendable LED strip channels

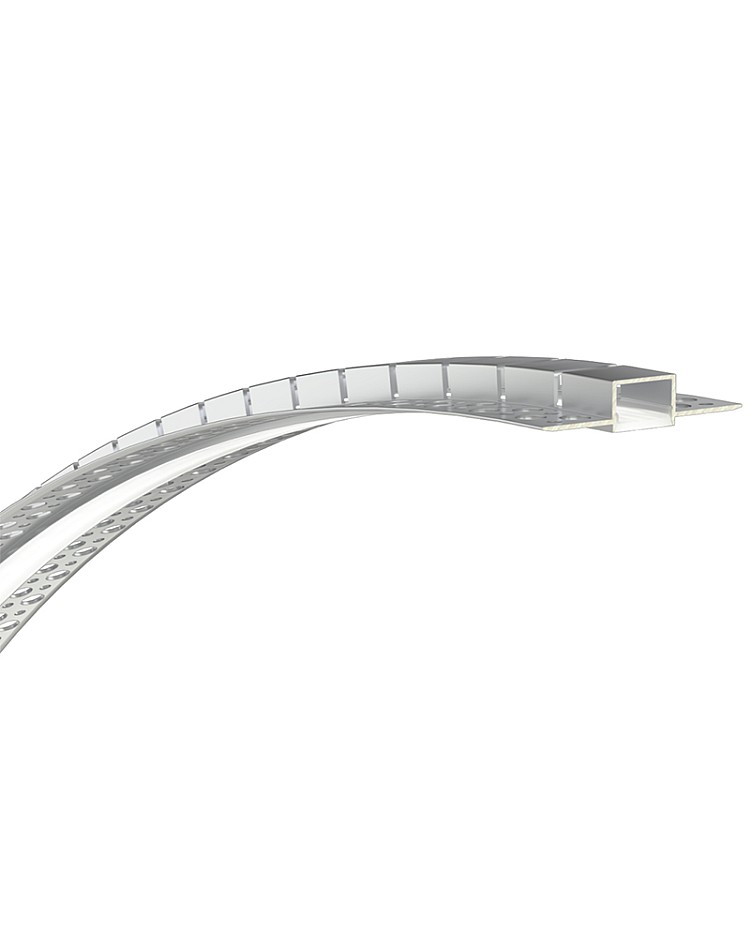

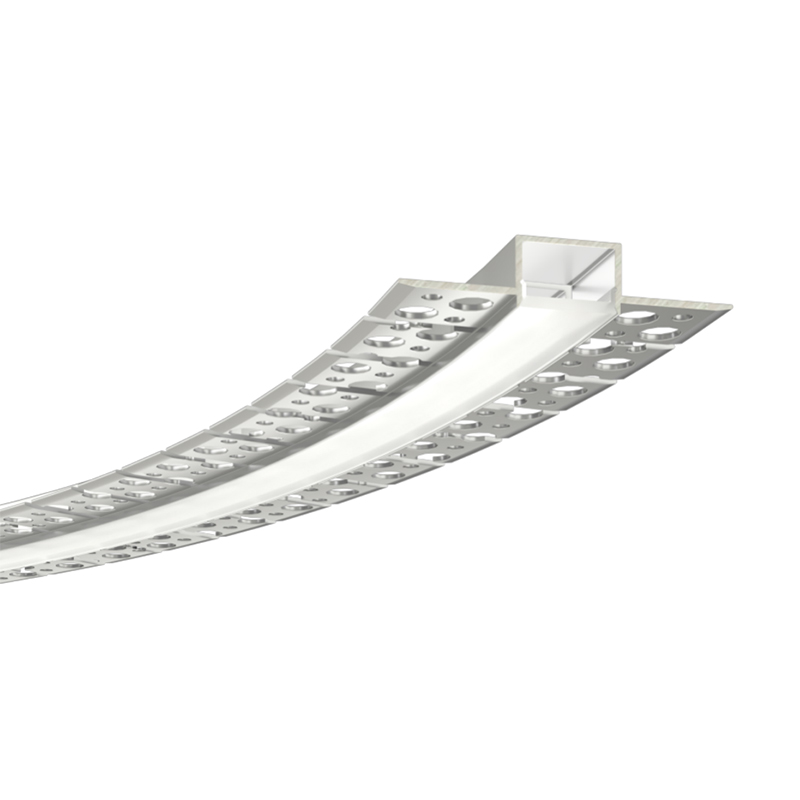

- Model: 5912-LR(side bending) / 5912-UD(up-down bending)
- Material: 6063-T5 extruded aluminum
- Surface Treatment: Anodized

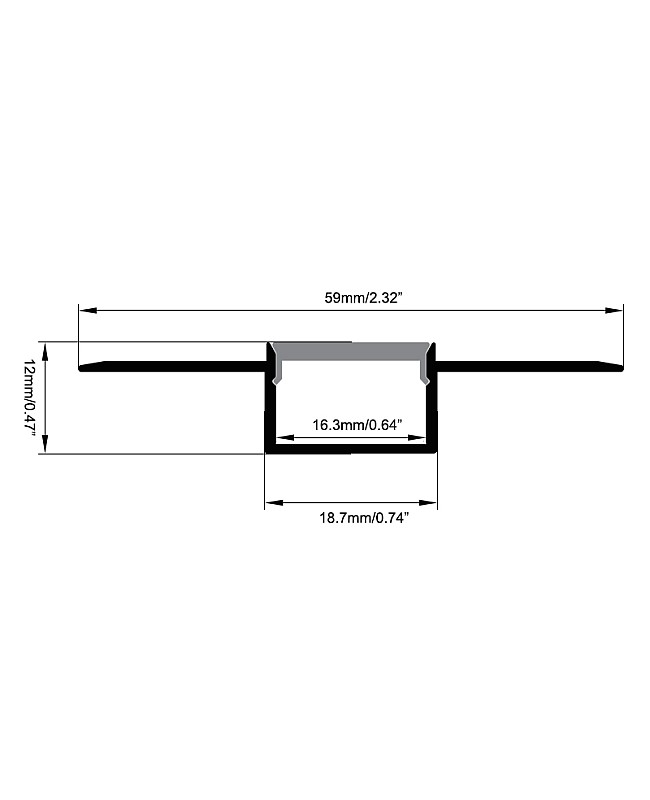

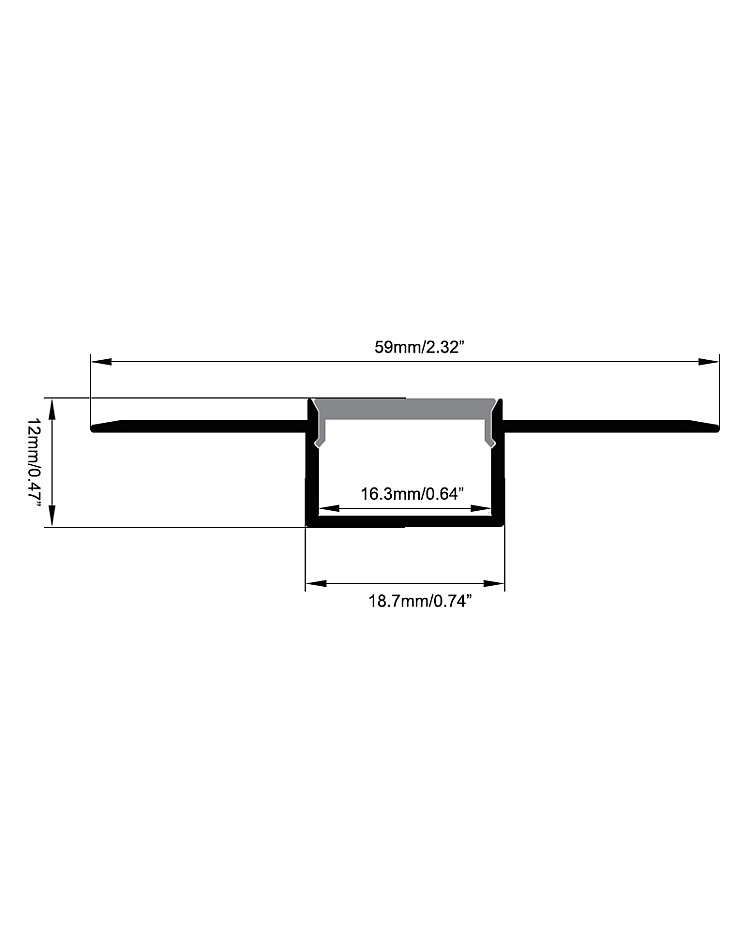

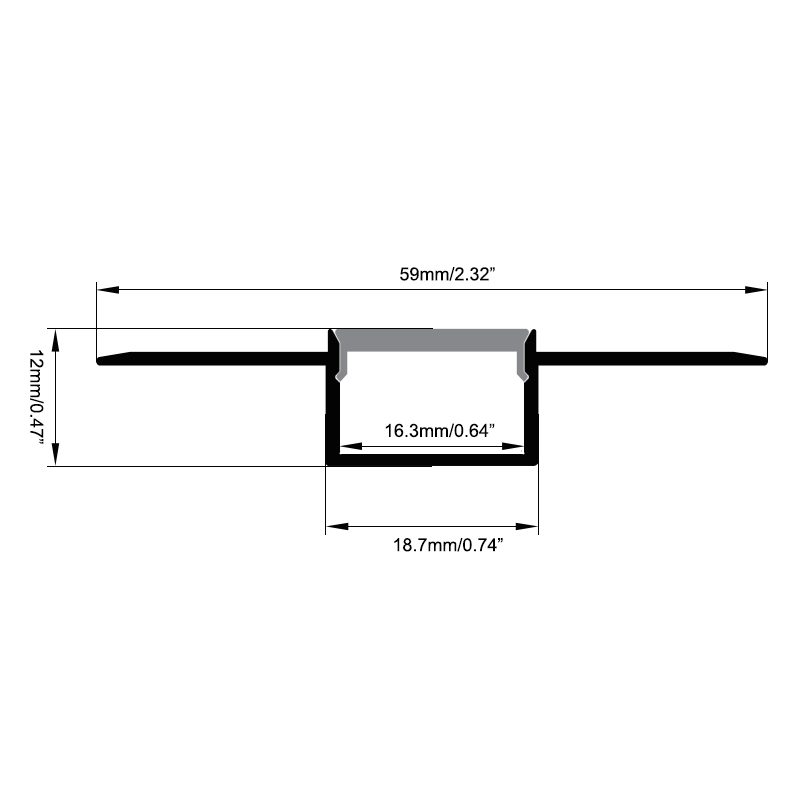

- Size(L*W): 59mm/2.32"*12mm/0.47"
- Colors: Silver(anodized profiles) / milky(silicone diffuser)
- Aluminum Profile Lengths Available: 1M(39"), 2M(78"), 3M(118")
- Silicone Diffuser's Max Length: 50M/100M Per Roll
- Custom Length: YES
- Inner Width: 16.3mm/0.64"
- Max Width Of Tape Lights: 5mm/6mm for side mount / 16MM S shaped LED strips for bottom mounting(5912-LR) / 16MM SMD Or COB tape lights(5912-UD)
- Diffusers: Semi-clear

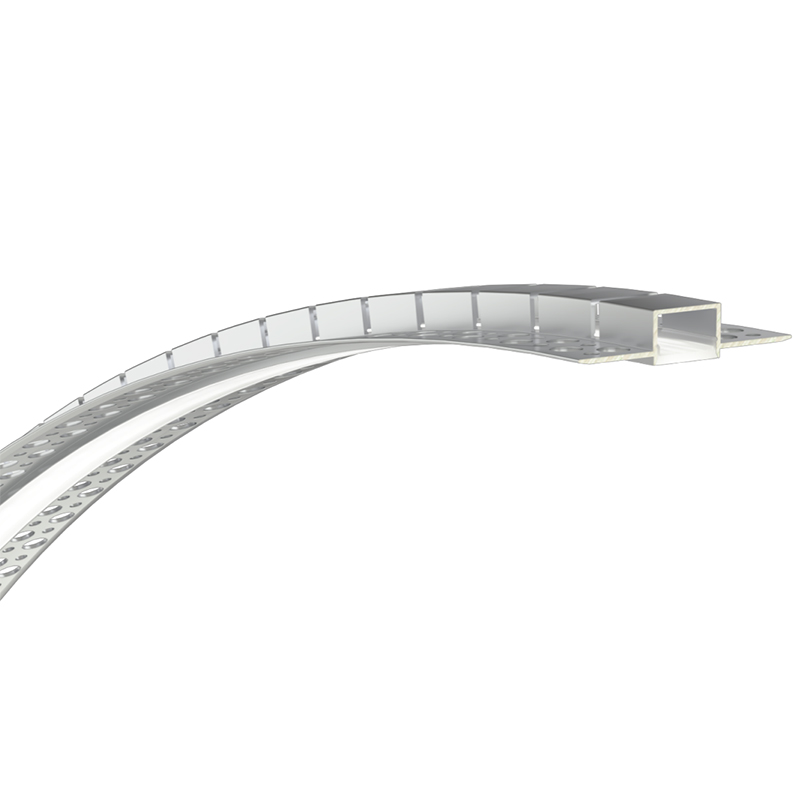

- Mini Bending Diameter: 600mm(5912-LR) / 350mm(5912-UD)
- End caps with/without wire holes included
- Installation: Plaster-In

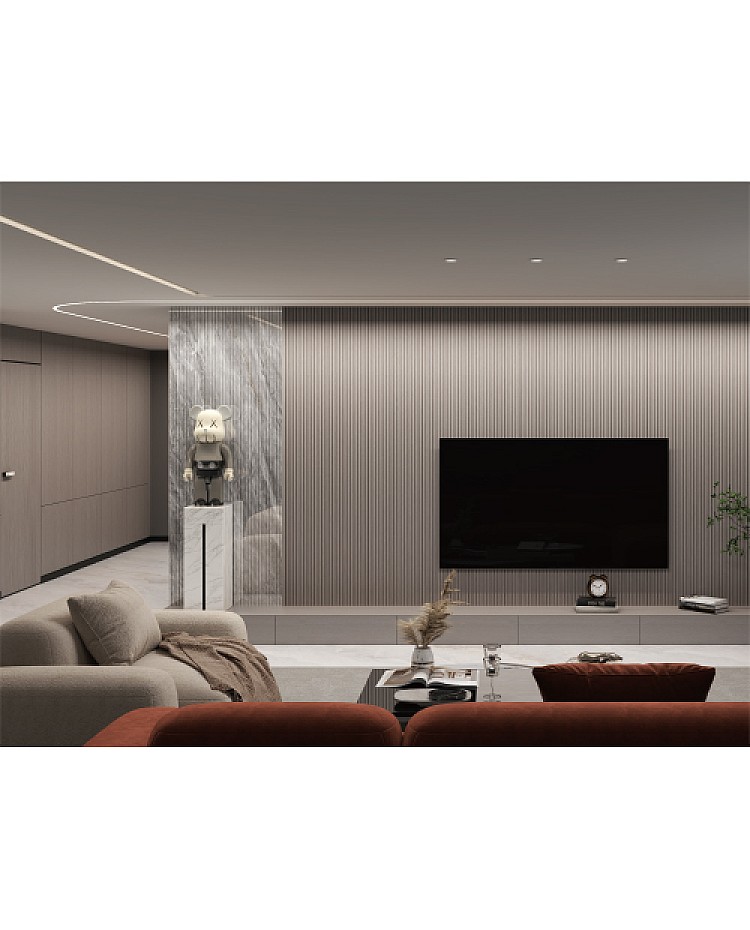

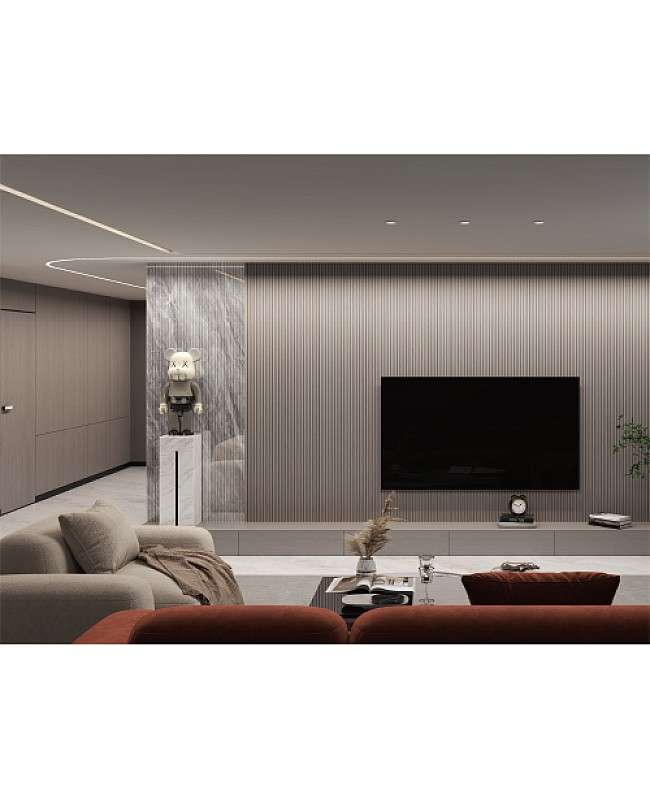

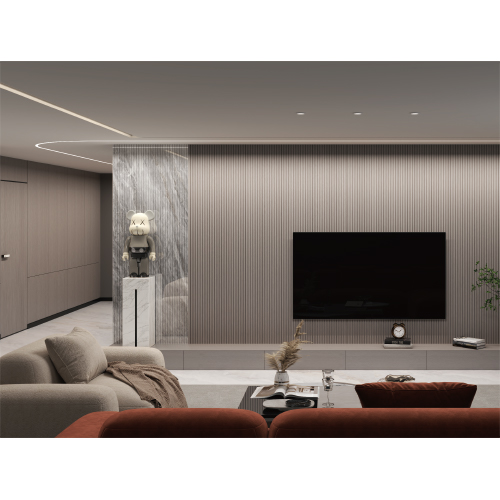

- Applications: Curved line lighting on ceilings, walls, etc
- 3-year warranty
Includes:
1 * Bendable LED strip aluminum channel
1 * Silicone diffuser
End caps(with/without wire holes)
