In Stock
$12.99
Reward Points: 13
-
+
  • Brand: MiBoxer
  • Product Code: SR5-P

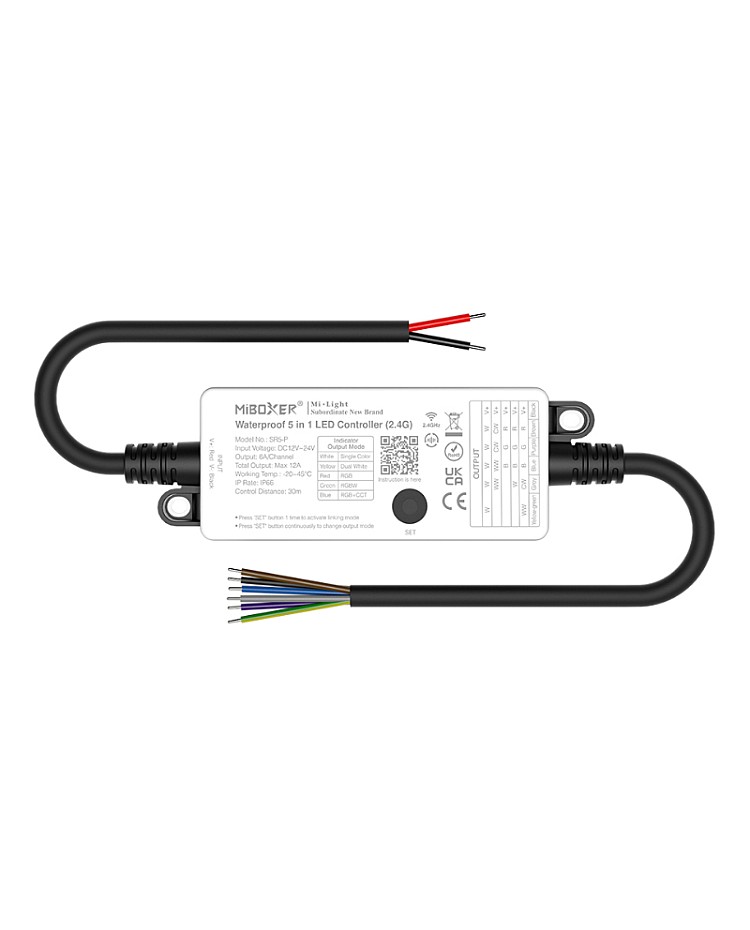

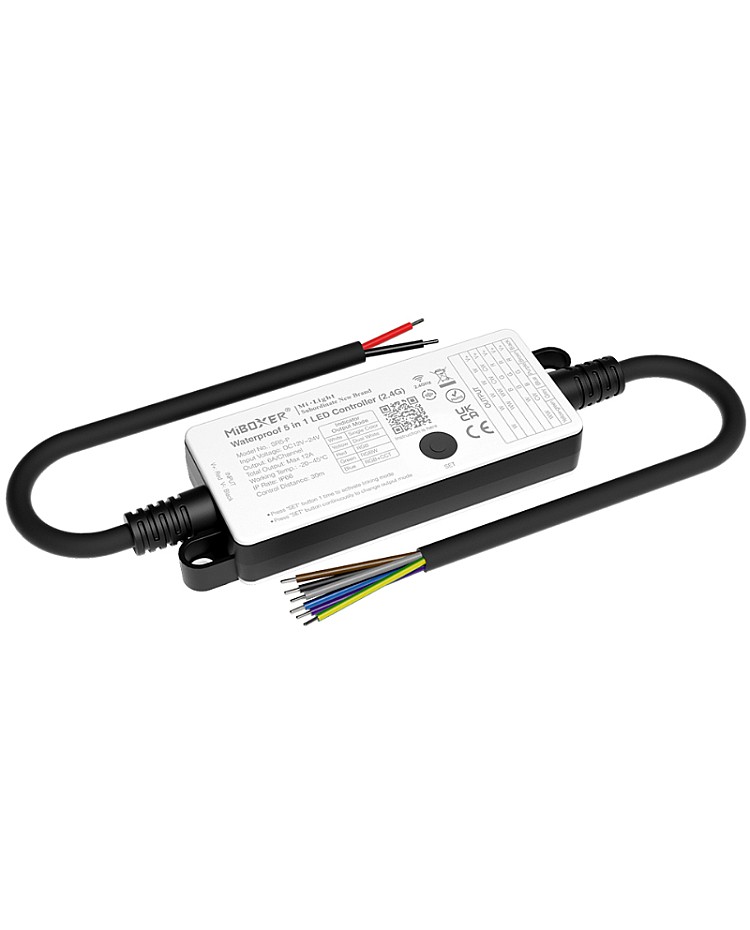

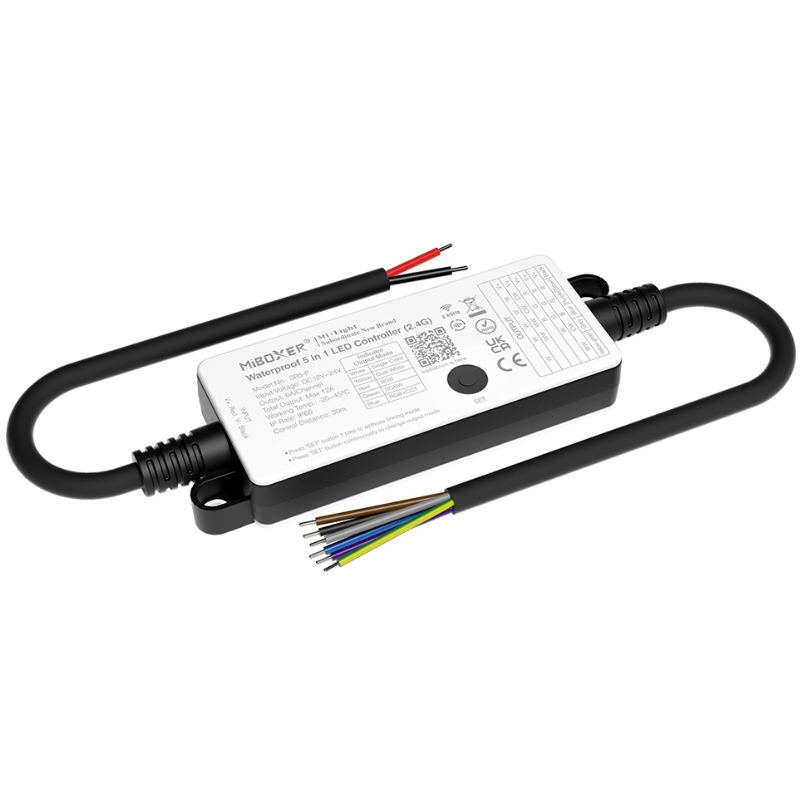

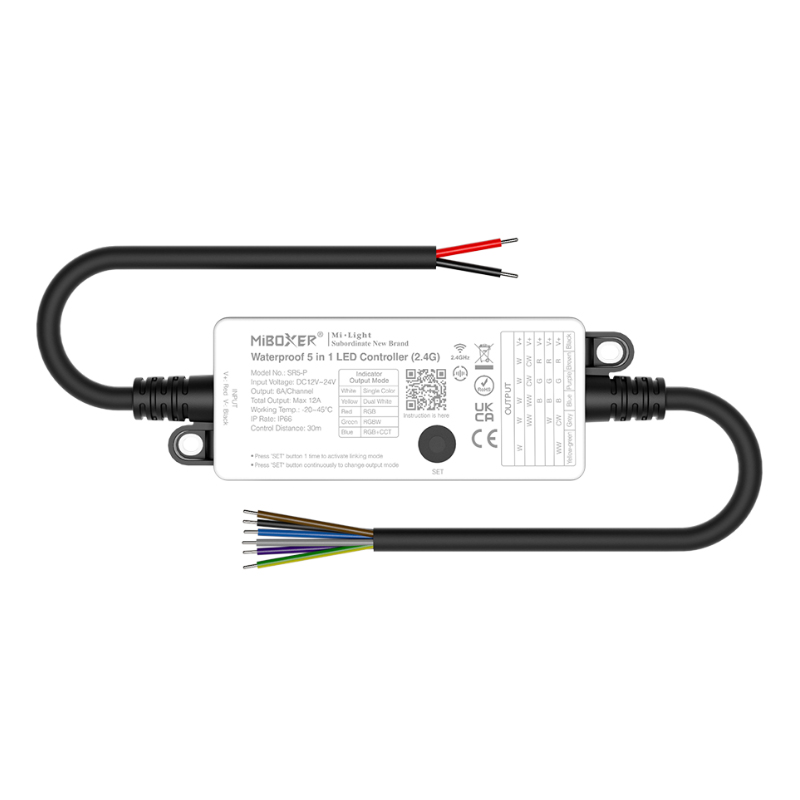

The MiBoxer SR5-P outdoor light controller has a 5-in-1 design and is suitable for all kinds of regular LED lights: single-color, dual-white, RGB, RGBW, and RGB+CCT. It can be controlled by MiBoxer 2.4G RF remote controls to set the static color or dynamic mode and adjust the brightness, color temperature, and saturation for various scenes. For the color-changing LED lights, there are 16 million colors adjustable and 18 dynamic modes. One physical button " SET" on the controller allows one to switch the output mode conveniently. The waterproof LED controller will receive signals from the 2.4G remote control and transmit to the same model of lighting controllers within 30 meters; all controllers will synchronize. The waterproof IP rate is ip66, which allows them to be installed in a wet or rainy location for outdoor applications. After pairing with 2.4G gateways, the MiBoxer controllers can be controlled by Tuya Smartphone APP and third-party voice commands. You can achieve more functions on the APP, like group control, timer, scene customization, etc.


Features:

  • Type: 5 In 1 Wireless Waterproof LED Controller
  • Model: SR5-P

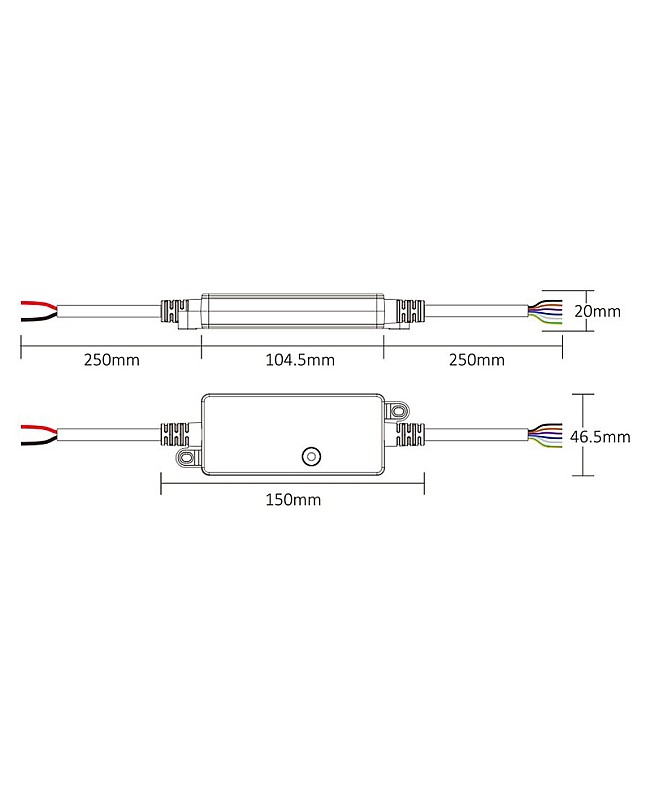

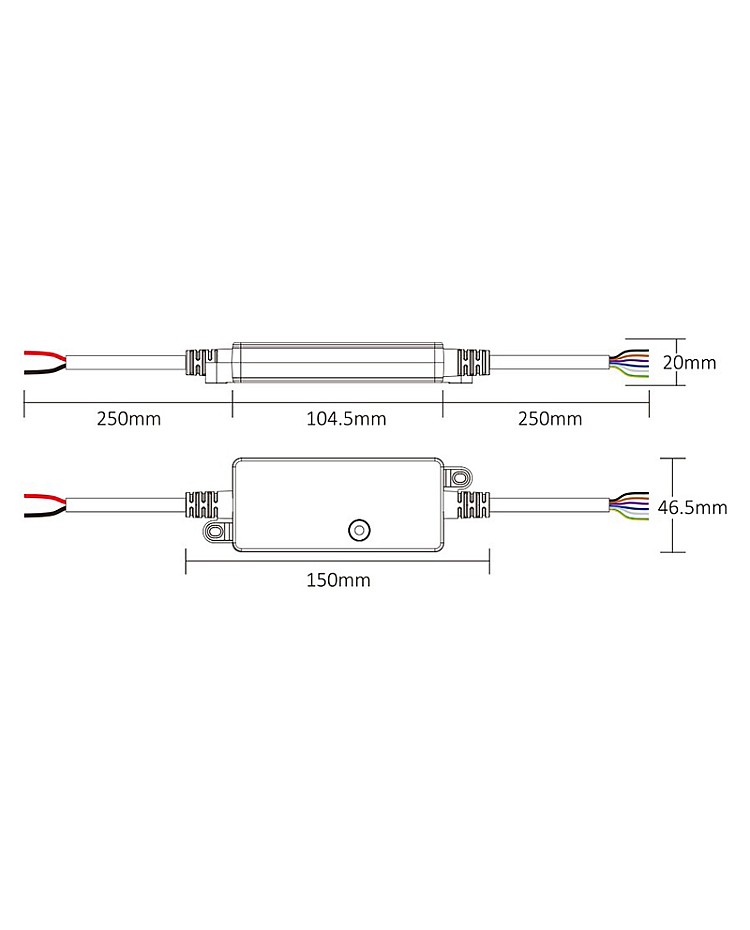

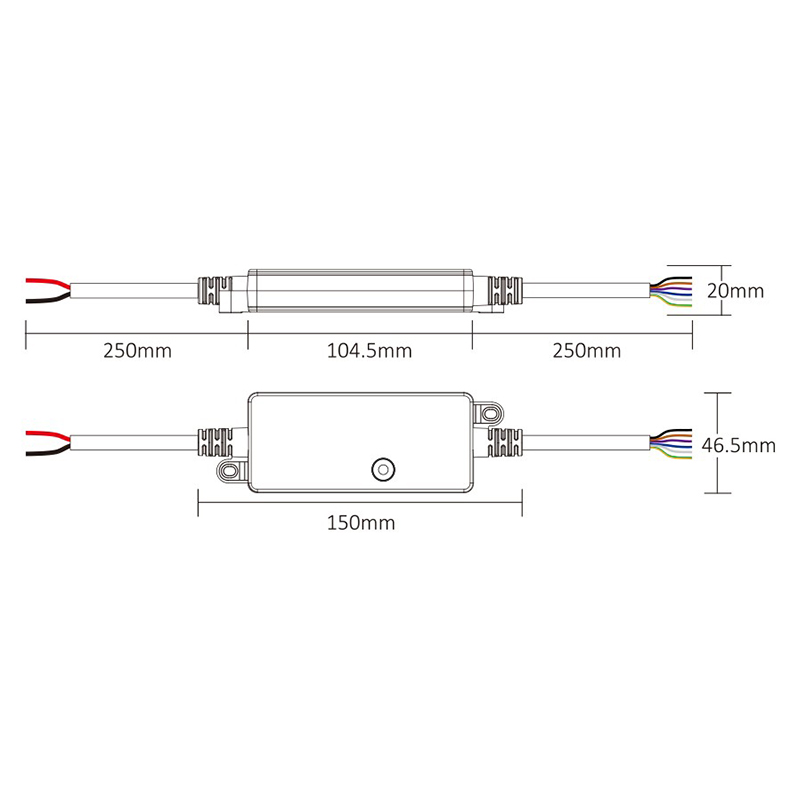

  • Size: 150*46.5*20mm(L*W*H)
  • Input Voltage: DC12-24V
  • Output Current: 6A/Channel
  • Total Output: 12A Max
  • 5 In 1 Design For Single-color, Dual-white, RGB, RGBW, RGB+CCT
  • Control Signal: 2.4GHz RF
  • Compatible With MiBoxer 2.4G RF Remote Controls: B8, B0, B3, T3, B4, T4, S2, S2W+, S1W+, FUT100, FUT089, C5, FUT092, FUT088, FUT096
  • 16 Million Colors Adjustable, Saturation Adjustable, Color Temperature And Brightness Adjustable
  • Support Tuya Smart APP Control(2.4G Gateway Needed)
  • Support Third-party Voice Control(2.4G Gateway Needed): Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu And Xiaomi
  • Support DMX512 Control(DMX512 LED Transmitter Needed)
  • Control Distance: ≤30M
  • Auto Remote Control Signal Forwarding
  • Auto Synchronization
  • IP Rate: IP66
  • Dimming Curve: Logarithmic
  • DND Function: Usually Used In Power Failure Area And Save Power
  • Working Temperature: -20-45℃
  • EMC Standard(EMC): ETSI EN301-489-1 V 2.2.3(2019-11) ETSI EN 301 489-3 V 2.3.2(2023-01)
  • Safety Standard(LVD); en 61347-1: 2015+a1: 2021  EN31647-2-11: 2001+A1:2019
  • Radio Equipment(RED): ETSI EN 300 440 V2.2.1
  • Certification: CE, EMC, RED
  • 3 Years Warranty


Includes:

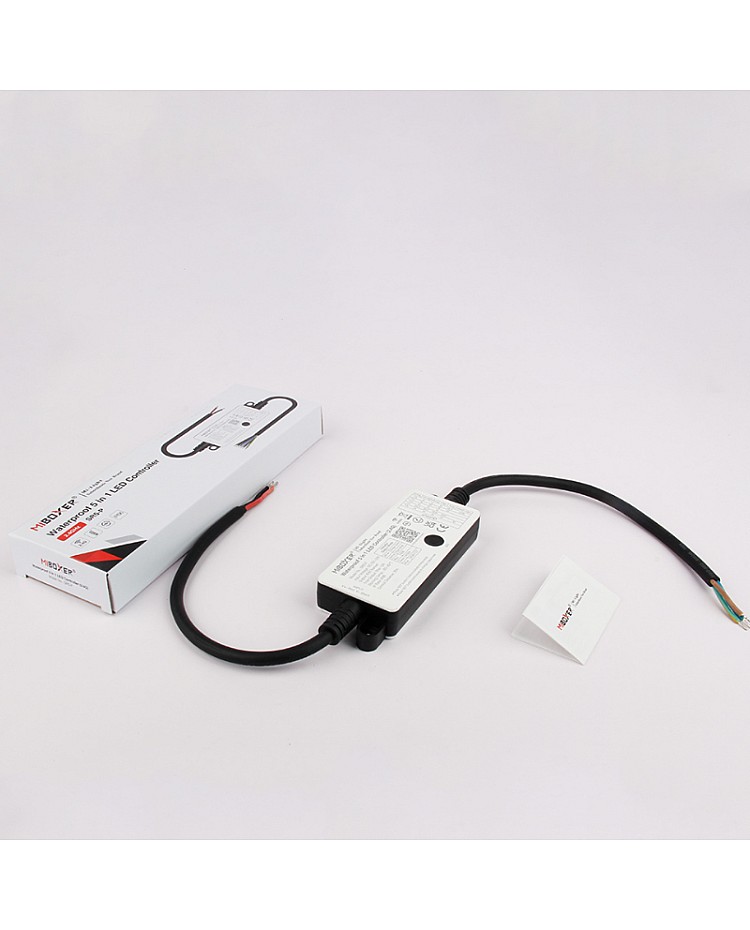

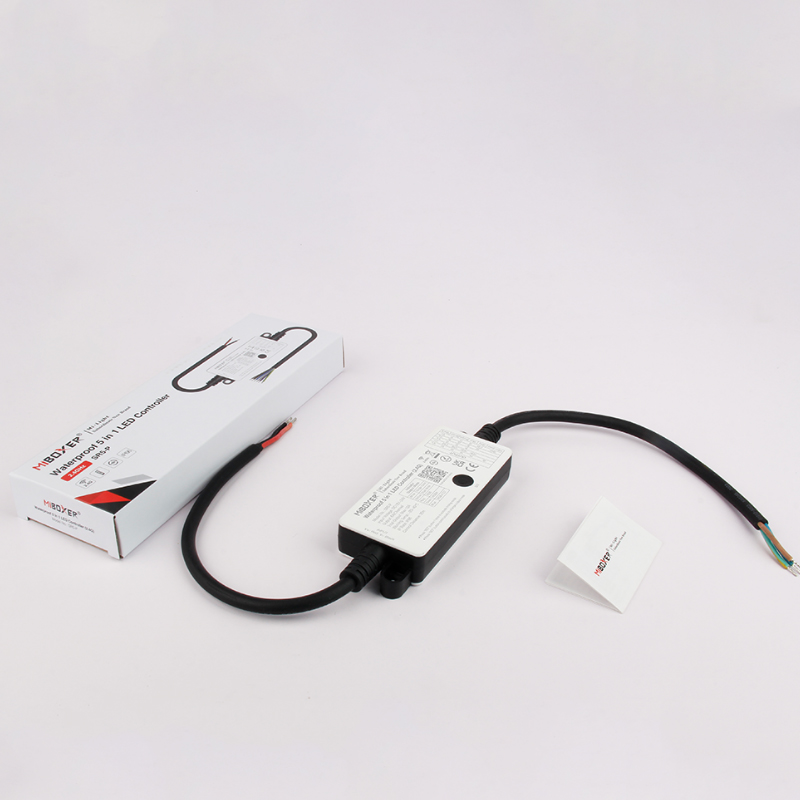

1*SR5 P Waterproof LED Controller

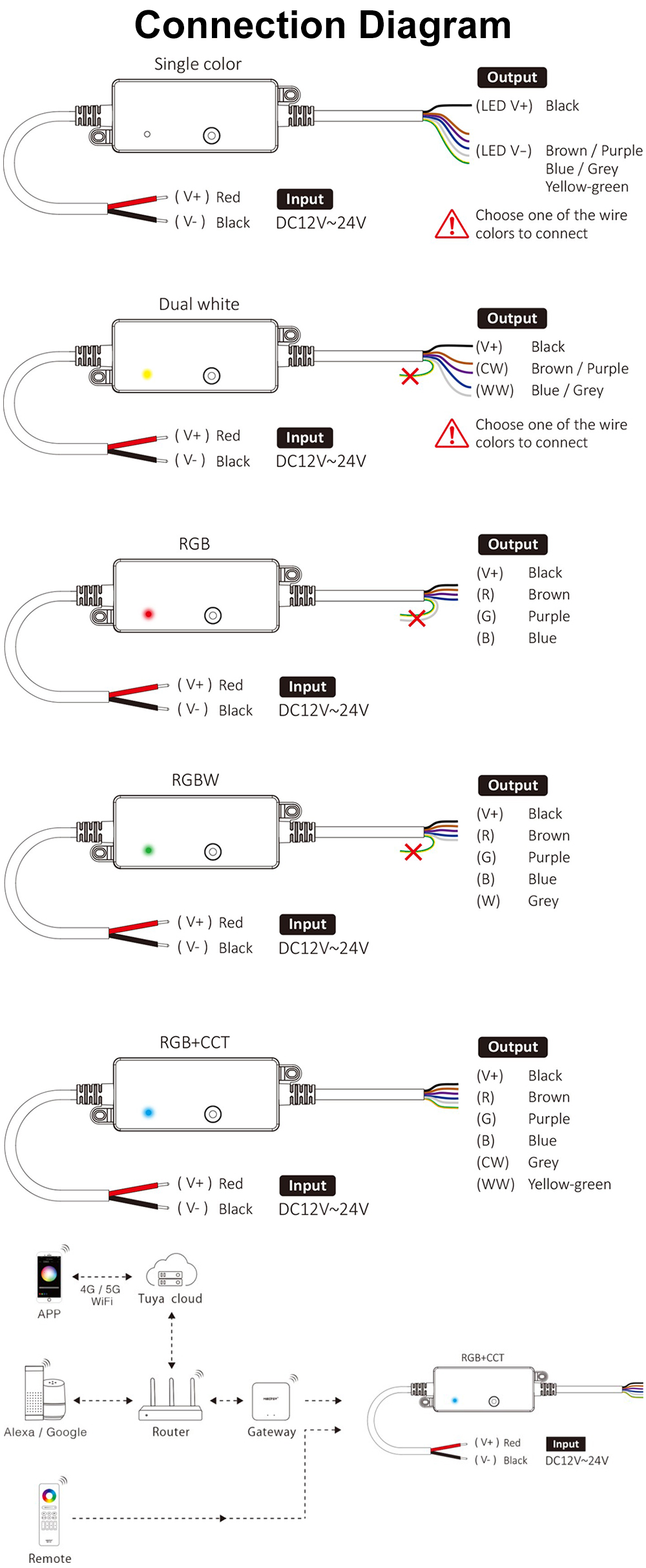

Connection Diagram For MiBoxer Waterproof LED Controller
