The certified Matter over WiFi LED controller supports collaboration with multiple platforms for easy lighting control. It has a simple configuration design for easy pairing with the Matter ecosystem via QR code. You can voice-control the LED strips with Siri, Google Assistant, and Amazon Alexa. The Matter WiFi controllers can also be controlled by MiBoxer 2.4G RF remotes and support up to 12 remotes. The controllers will automatically transmit the remote signal to another controller, extend over countless distances, and all will work in synchronization.

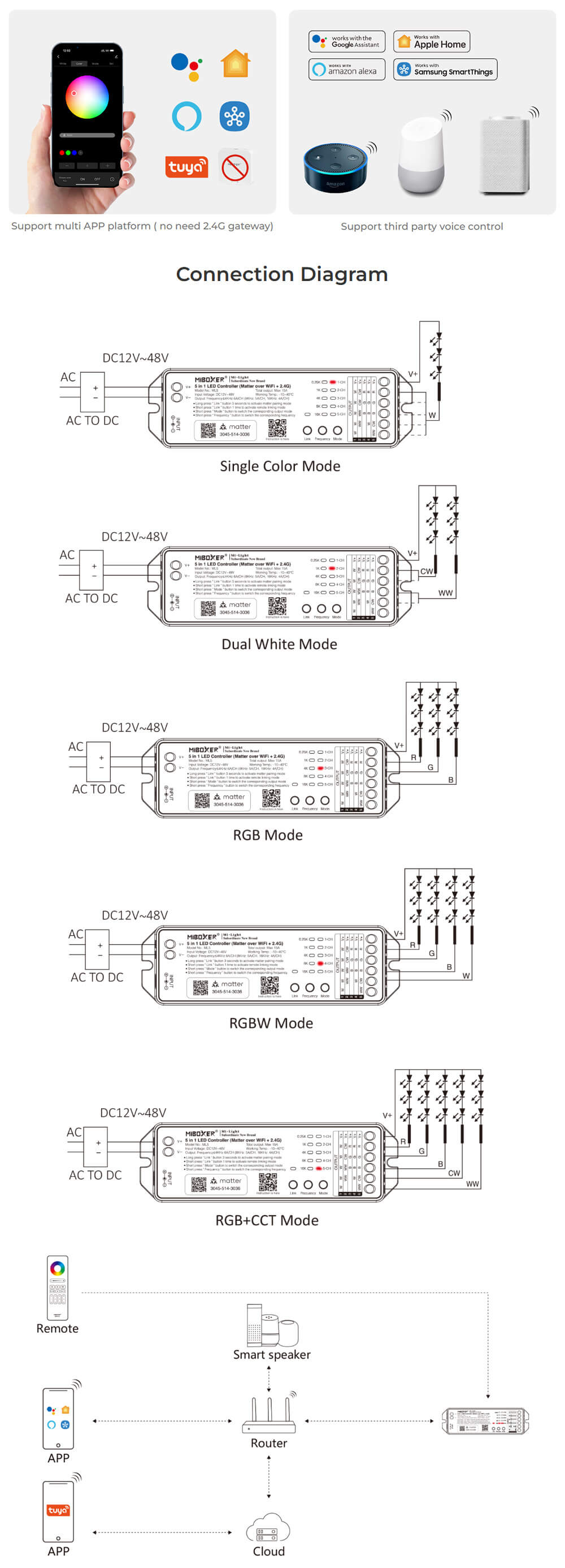

There are 2-in-1 and 5-in-1 products available. You can use them for various types of strip lights. The SM2 supports single-color and CCT LED lights, and ML5 supports single-color, CCT, RGB, RGBW, and RGB+CCT strip lights. There is a mode button on the controller that lets you switch the output mode conveniently.
Specifications:
- Type: Matter Over WiFi + 2.4G RF LED controller

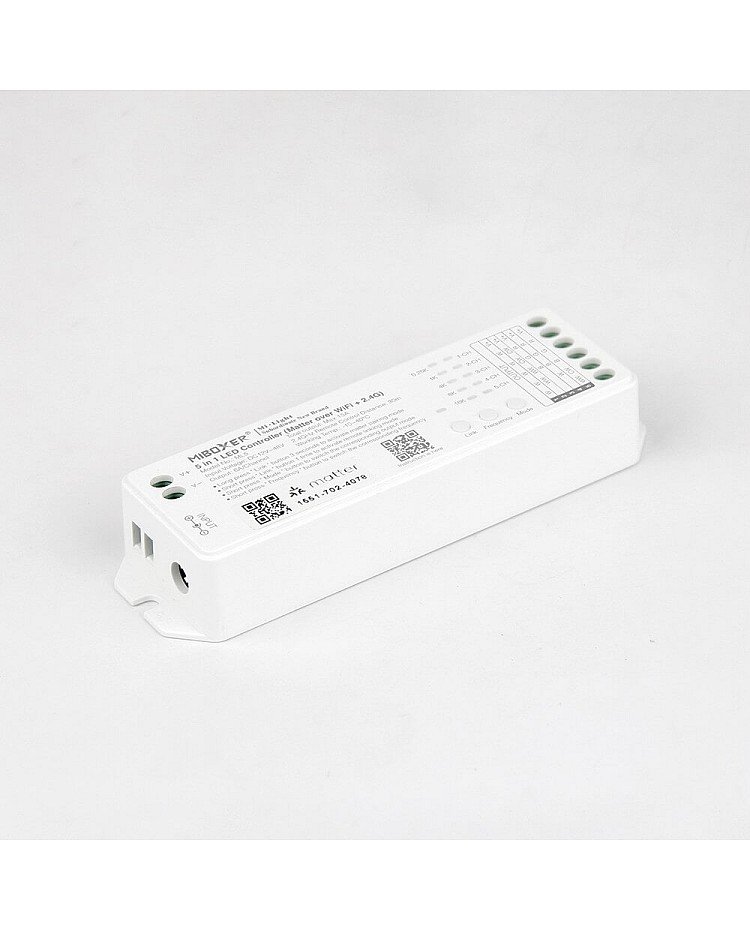

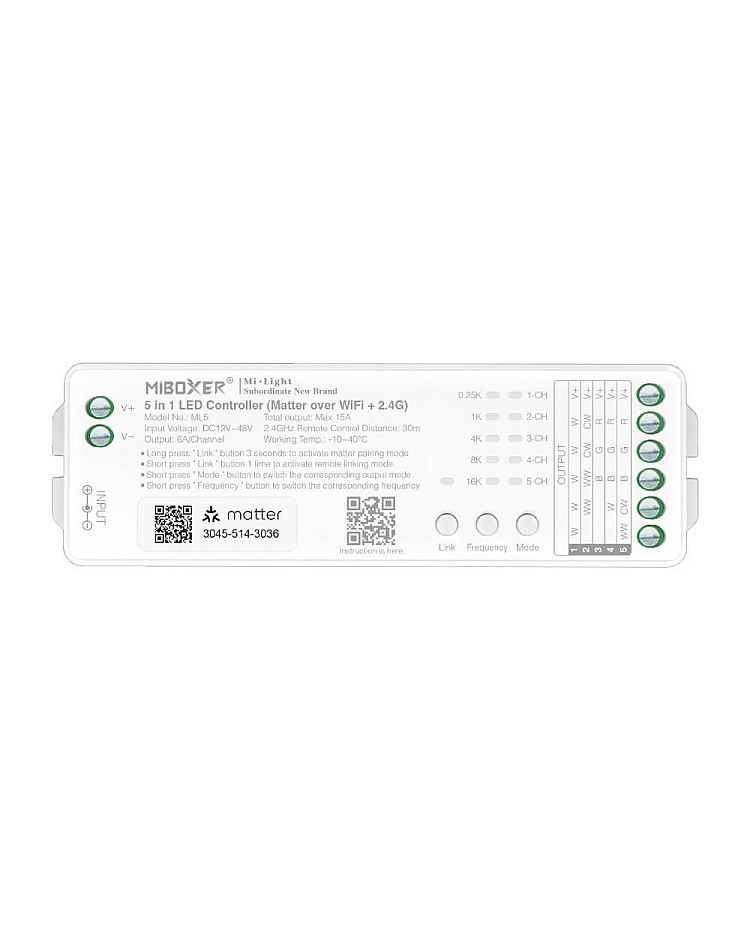

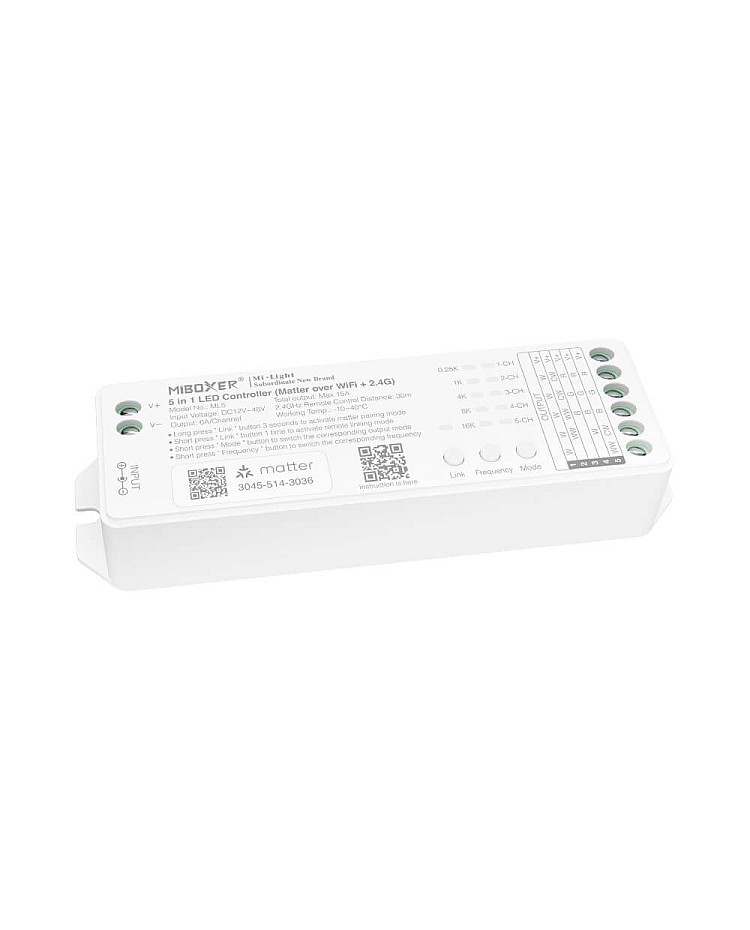

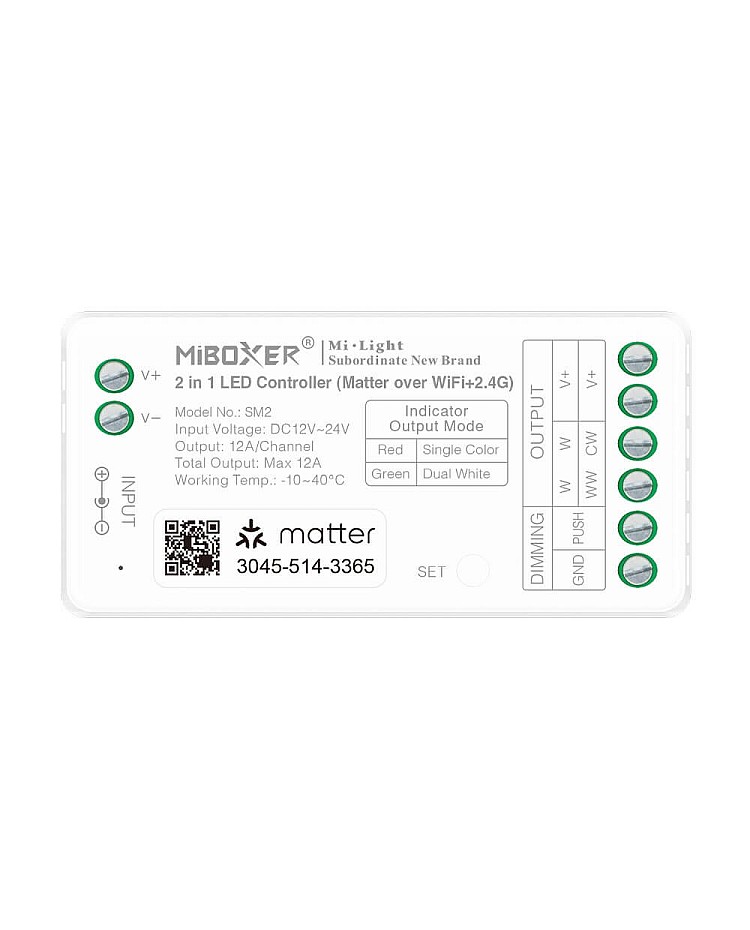

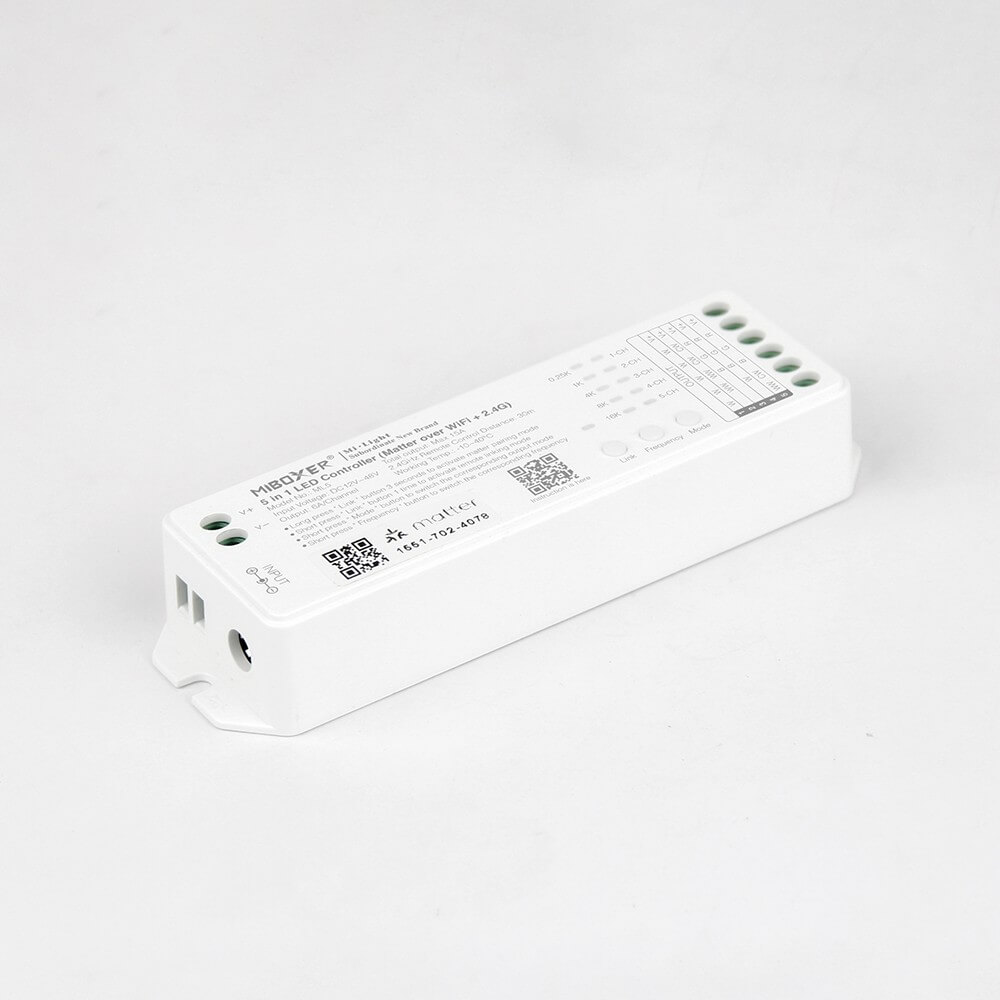

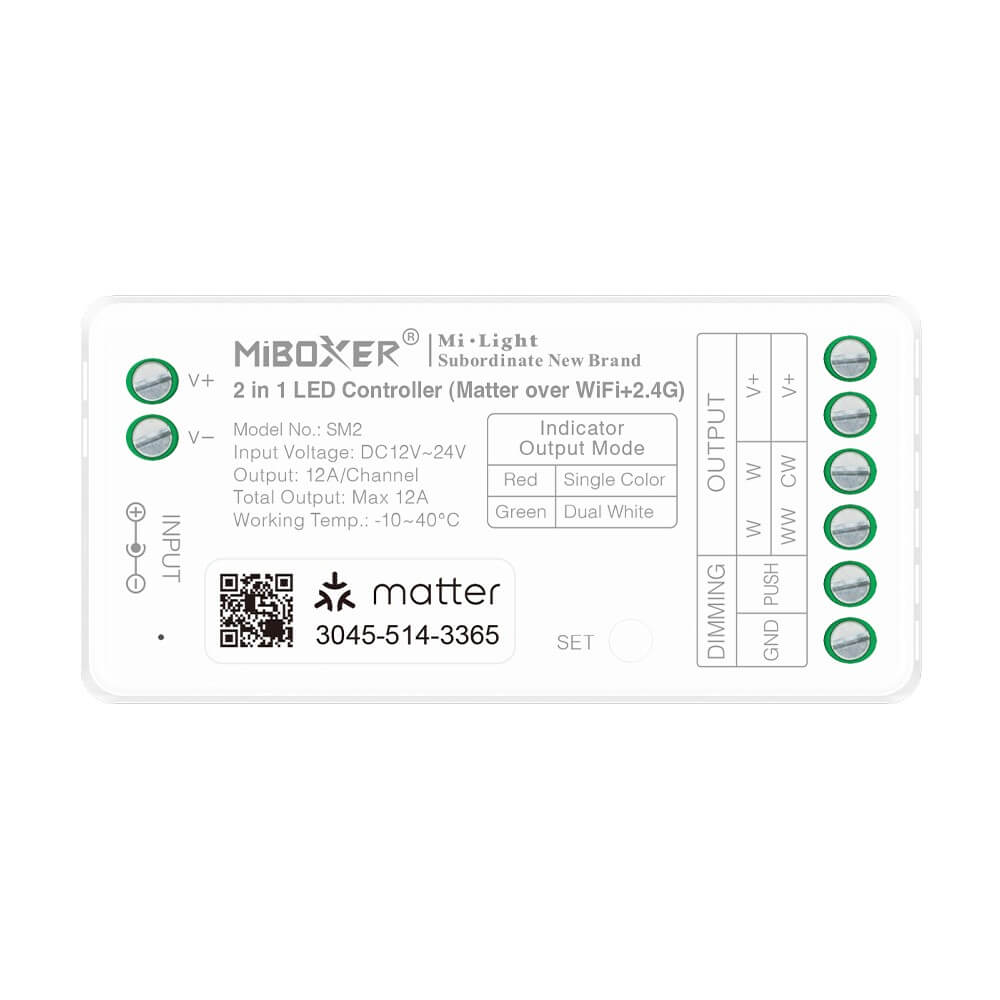

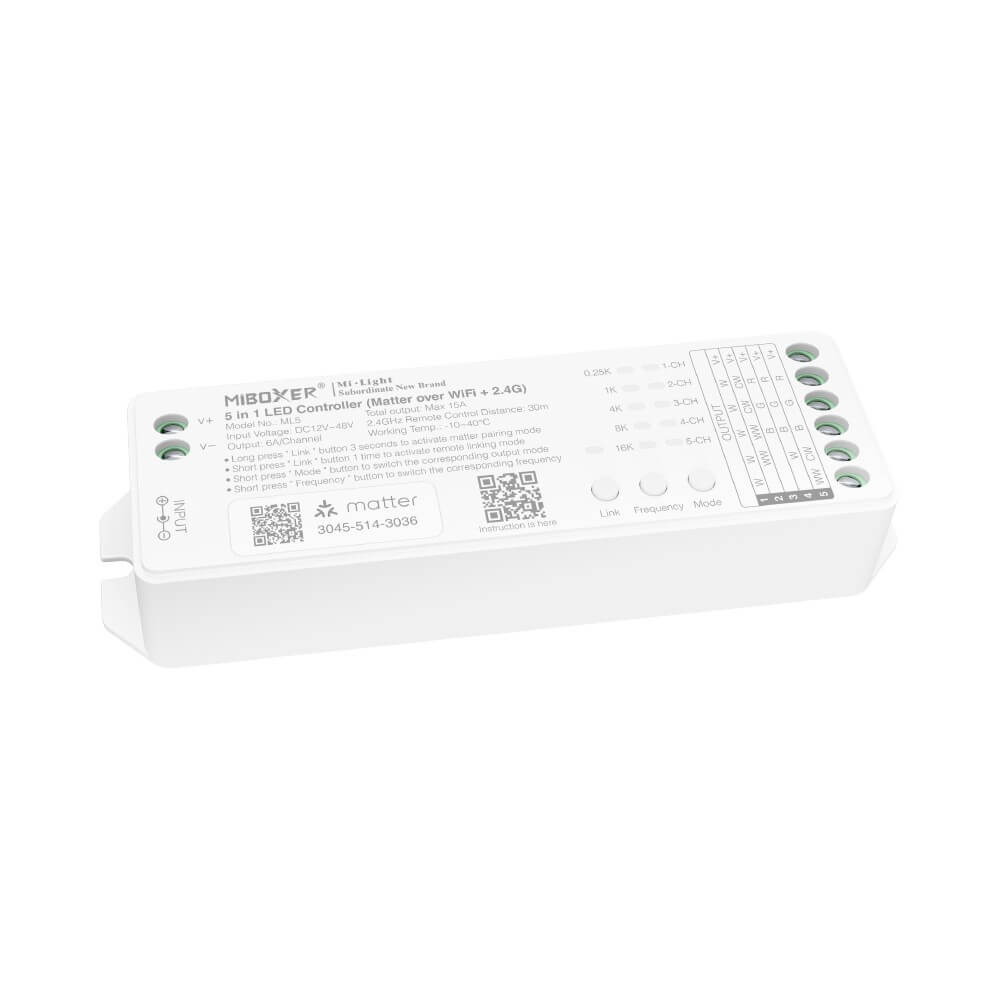

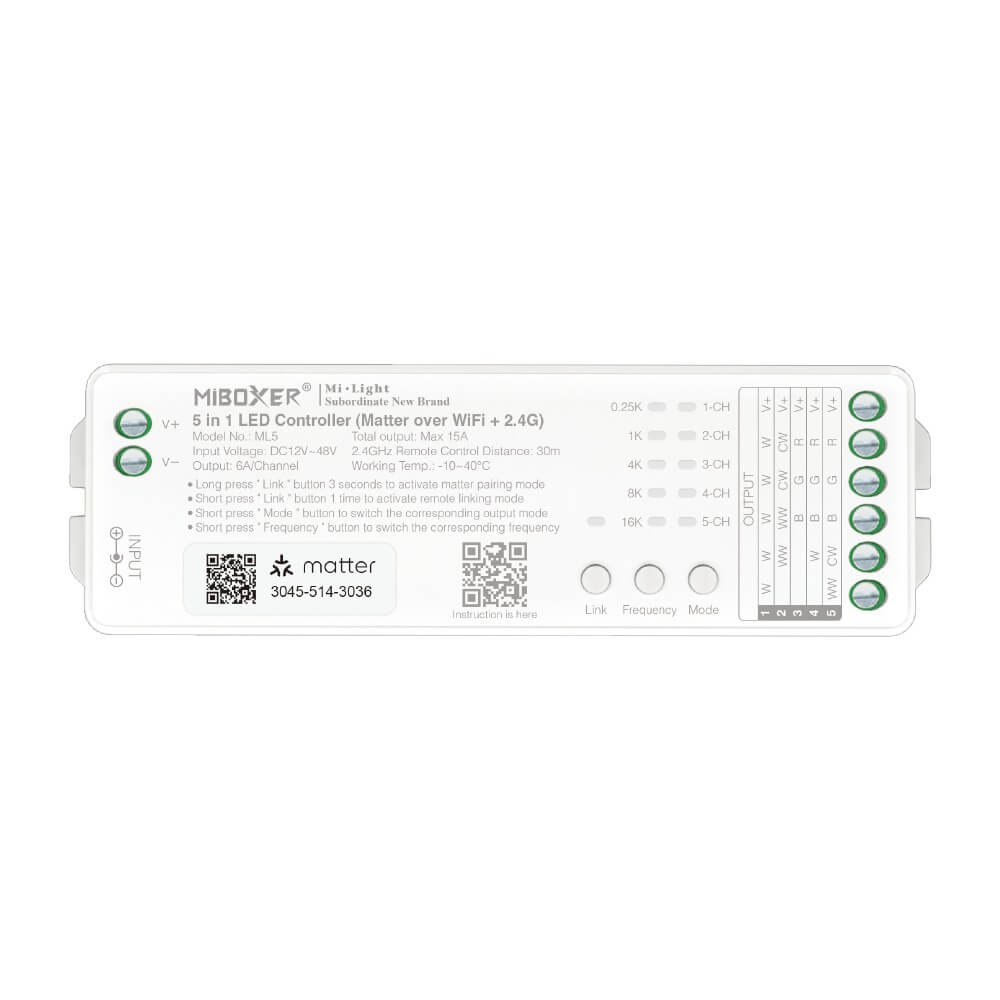

- Model: SM2 ( 2 In 1 for single-color/tunable white) / ML5 ( 5 In 1 for single-color, dual white, RGB, RGBW, RGBCCT)
- Size: 74.5mm x 36mm x 17mm / 2.93“ x 1.42" x 0.67" ( SM2 ); 124mm x 38mm x 23mm / 4.88" x 1.5" x0.9" ( ML5 )
- Input voltage: DC12-24V ( SM2 ); DC12-48V( ML5 )
- Output current: 12A/single channel ( SM2 ); 6A/single channel ( ML5 )
- Total output: Max 12A ( SM2 ); Max 15A ( ML5 )
- Protocols: WiFi+2.4G RF
- WiFi Standard: IEEE 802.11b/g/n 2.4GHz
- Control distance: ≤30m
- IP rate: IP20 non-waterproof
- Working temperature: -20℃-+40℃
- EMC standard(EMC): ETSI EN 301 489-1 v 2.2.3 (2019-11); ETSI EN 301 489-3 v 2.3.2 (2023-01)
- Safety standard(LVD): EN 61347-1: 2015+A1: 2021; EN 61347-2-11: 2001+A1:2019
- Radio equipment(RED): ETSI EN 300 440 V2.2.1
- Certification: CE, EMC, RED
- Warranty: 2 years
