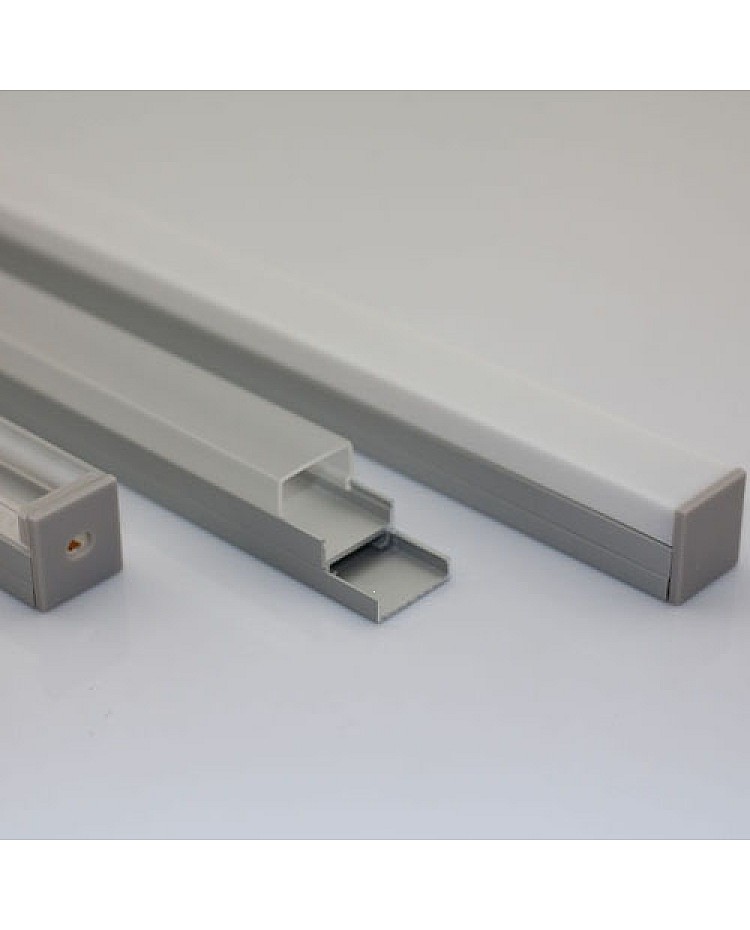

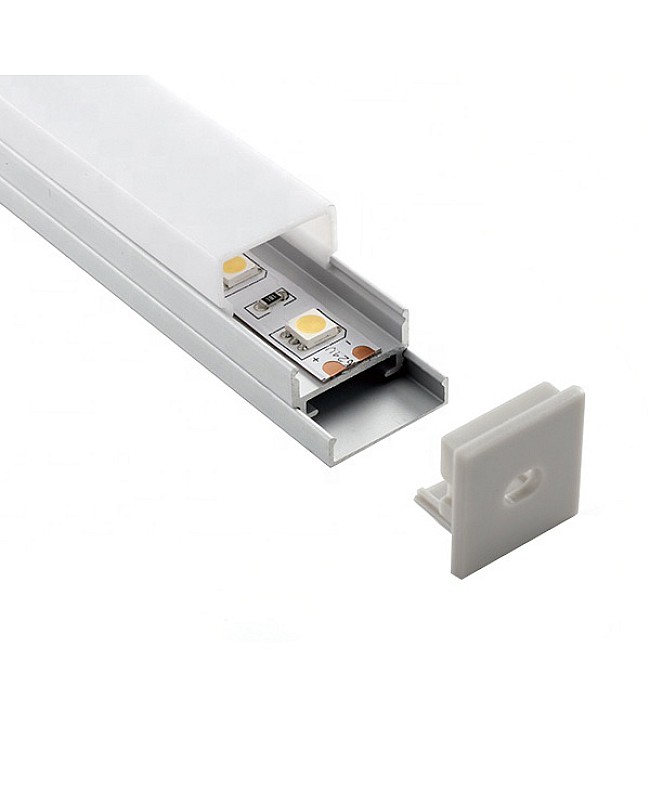

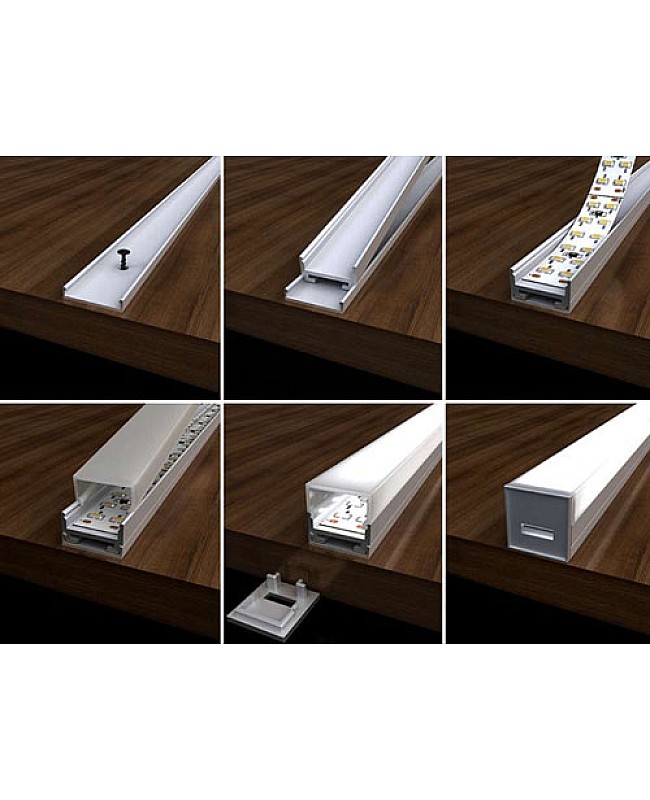

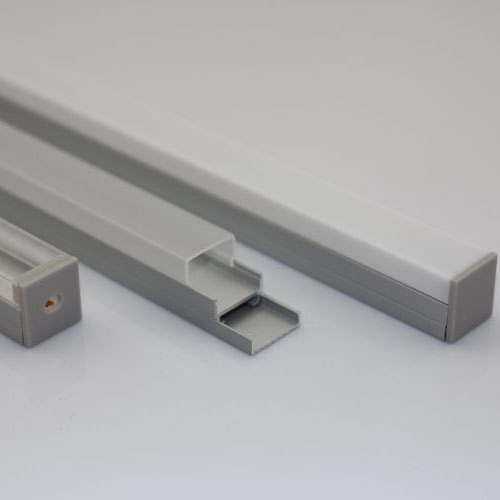

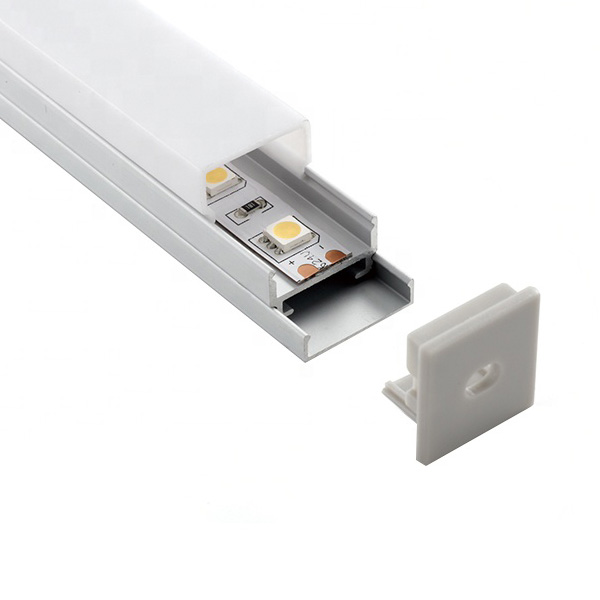

The U-shaped LED Lights Profile with a square diffuser provides a bright and stylish look. It is designed to be mounted directly to the surface of under cabinets, wardrobes, shelves, ceilings, walls, and more, and comes with a square diffuser to evenly disperse light. It is made of high-quality 6063-T5 aluminum alloy material with silver anodized surface treatment and anti-oxidation resistance. The aluminum material helps to protect the LED Strips from dirt and dust while providing a sleek and modern look. The standard length is 1M and 2M and can be cut to any length that fits your needs. There are 3 different types of covers available: PMMA Opal Matte Lens, PMMA Semi-Clear lens, PMMA Clear Lens, and PC diffused covers. They are made of brand material, anti-yellowing, and perfect light distribution. End caps with wire holes are included, and it is easy to connect the LED Lights to Light Drivers to light up or Light Dimmers to adjust the brightness. The aluminum Base can be used as a heat sinker for better heat dissipation to extend the lifespan of the Warm White LED Strips.

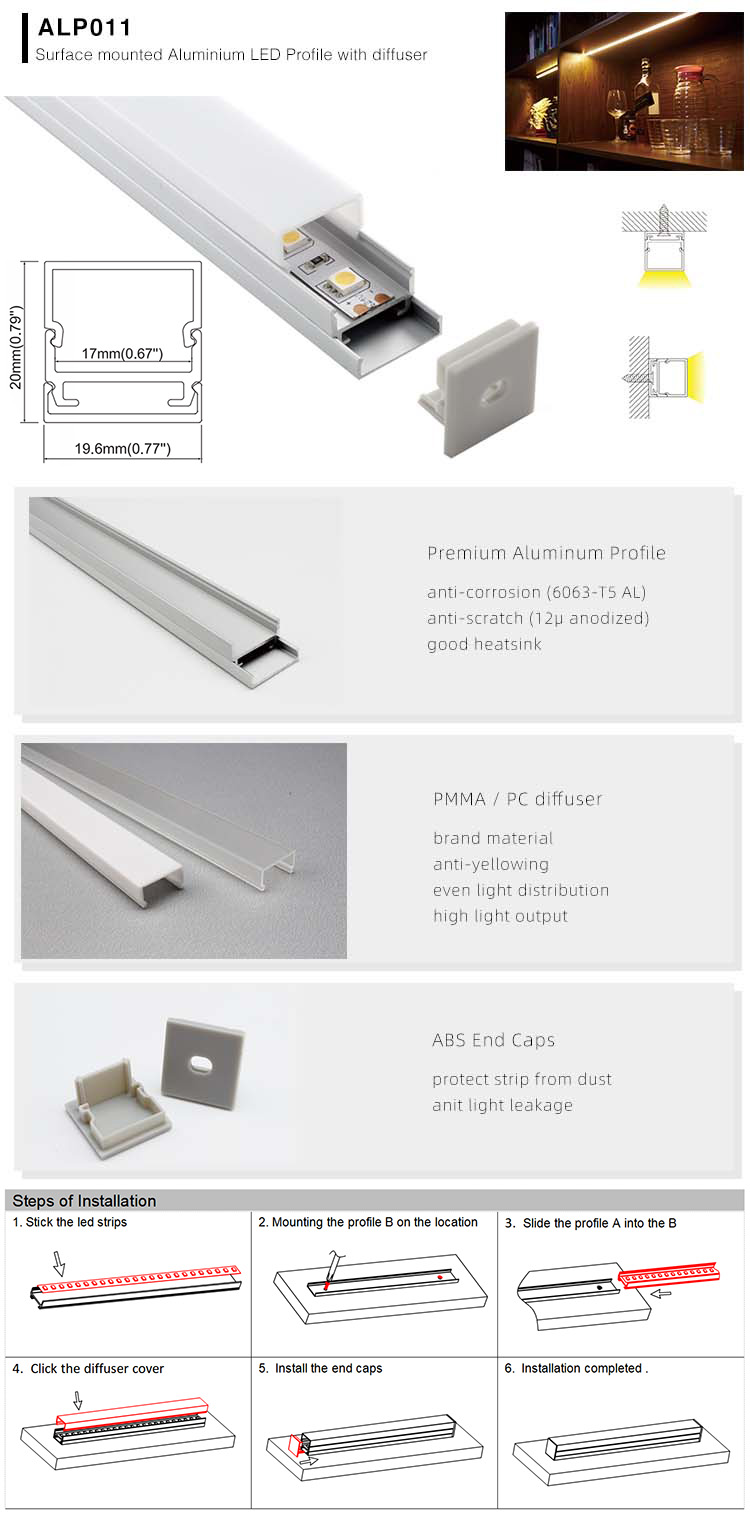

  • Model: ALP011
  • Material: Anodized Aluminum(6063-T5)
  • Surface Treatment: Silver Anodized
  • Color: Anodized Silver(Default), White, Black

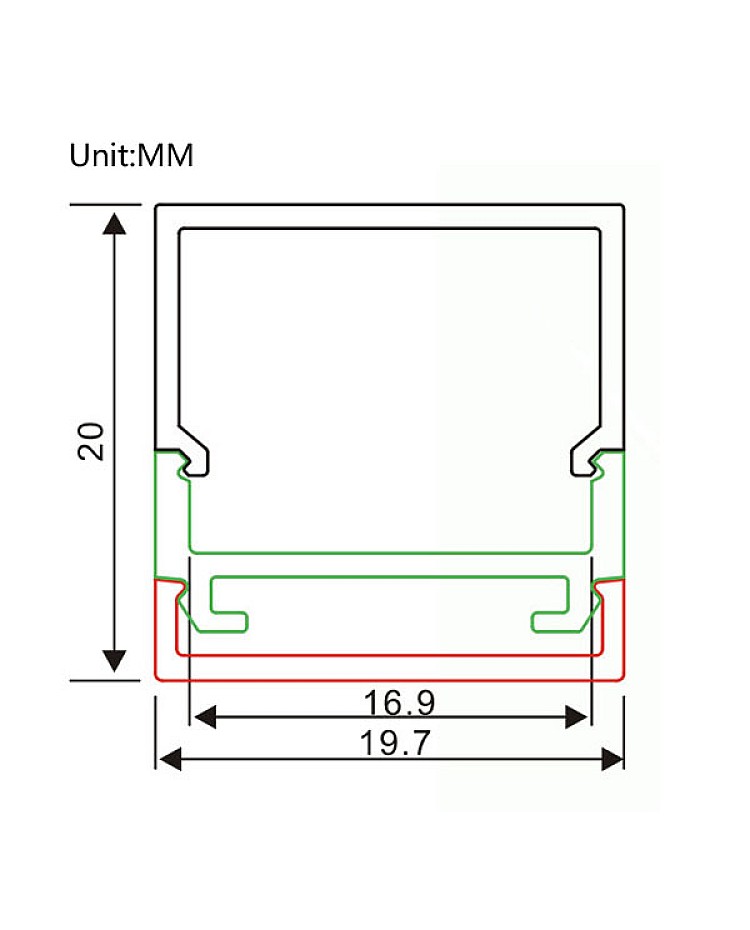

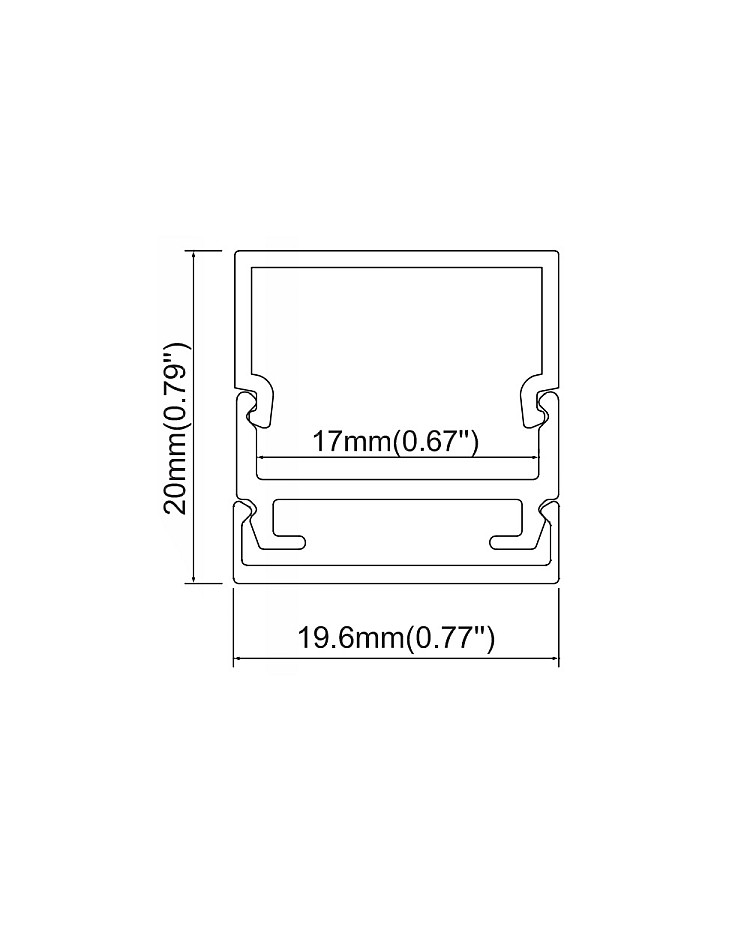

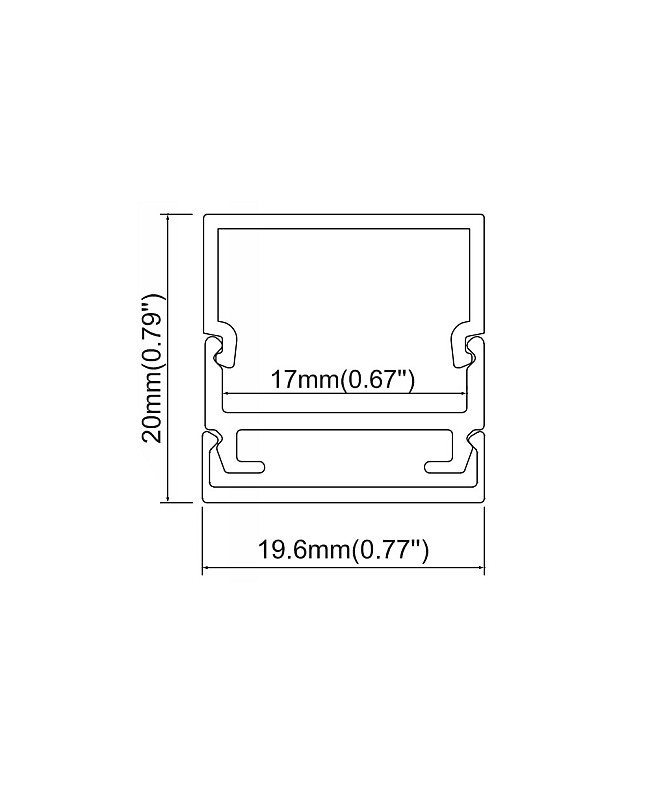

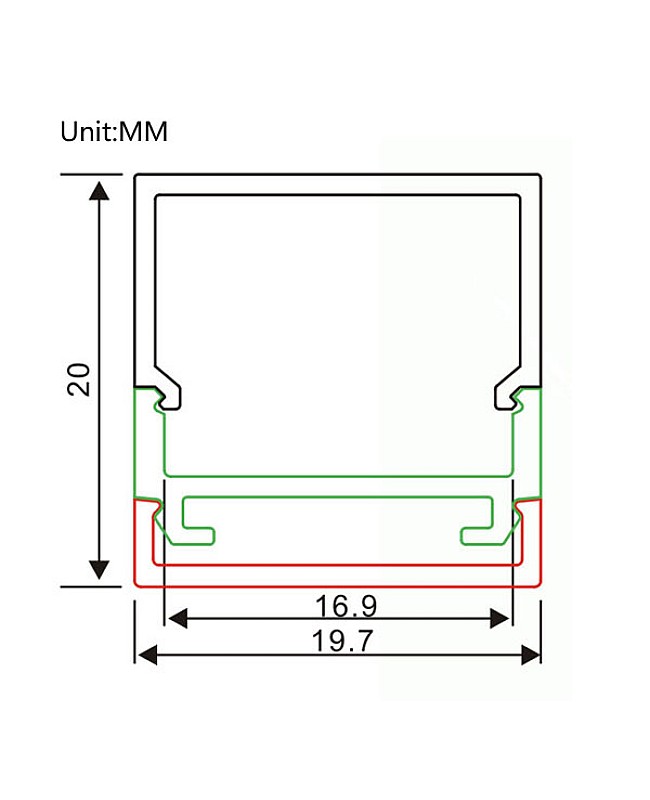

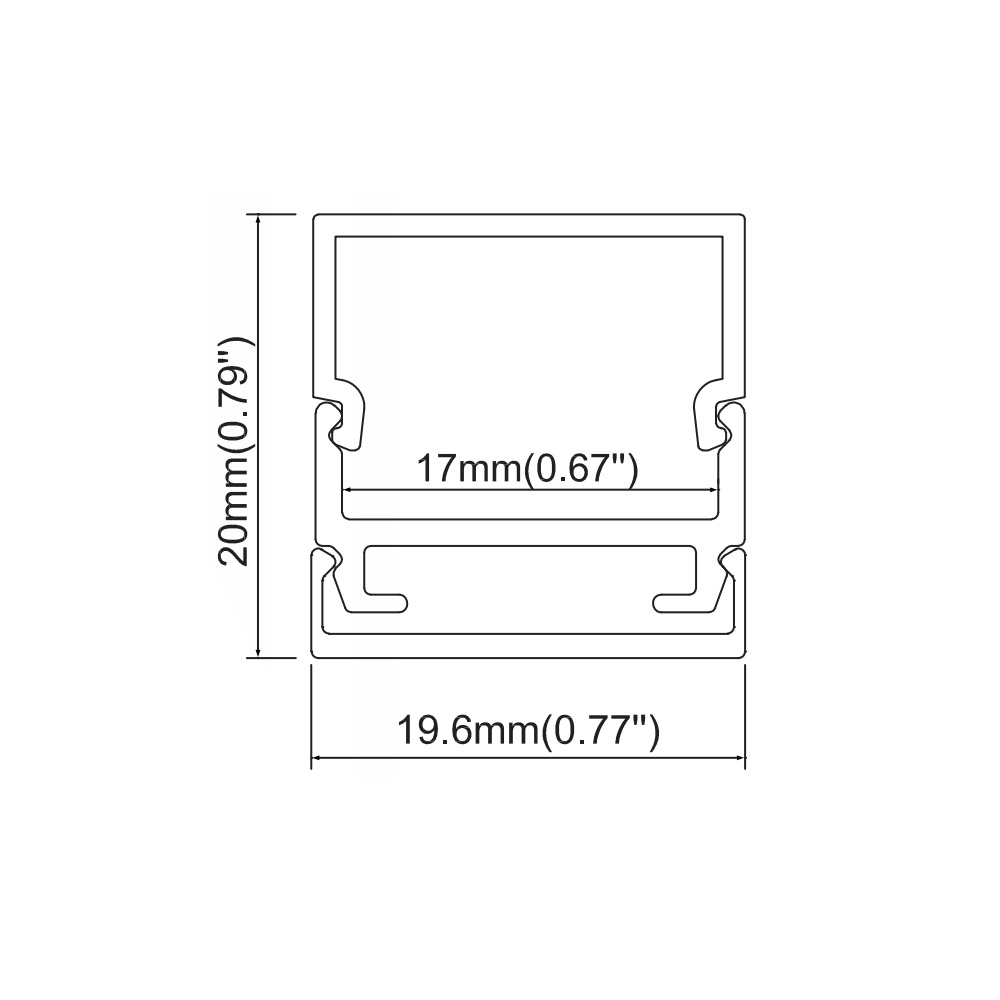

  • Size: 19.7mm(W)*20mm(H)

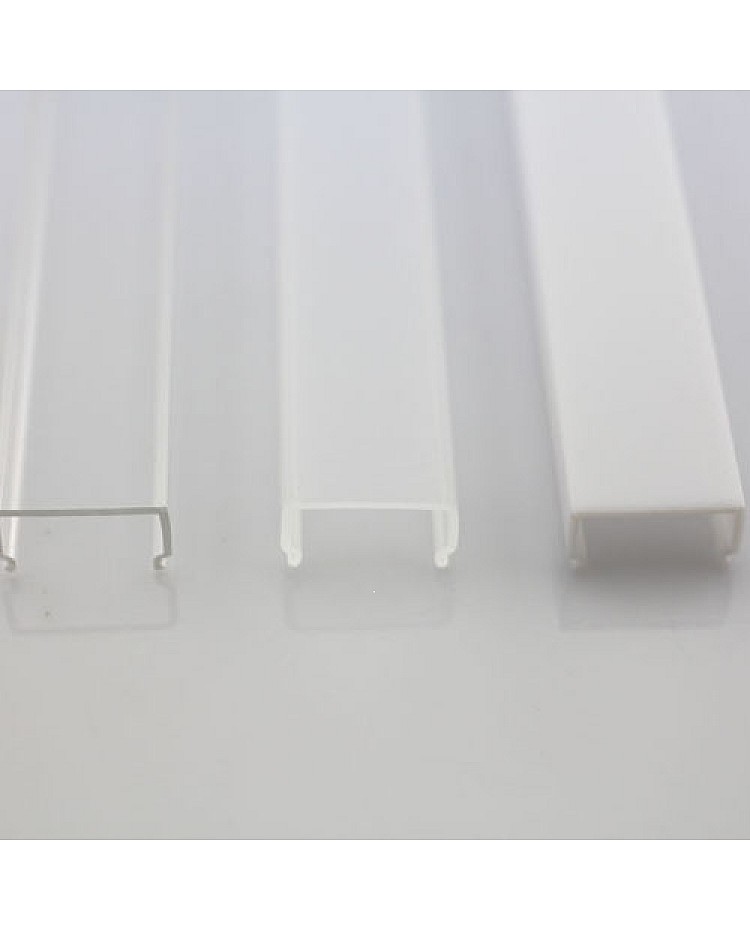

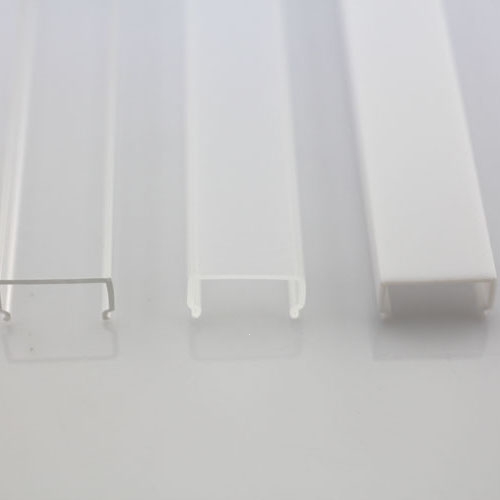

  • Diffusers: PMMA Opal Matte Cover / PMMA Semi-Clear Cover / PMMA Clear Cover / PC Diffused Cover
  • Default Length: 1Meter
  • Other Lengths Available: 0.5 Meter, 1Meter, 2Meter, 2.5Meter, 3Meter, Max 6 Meters
  • Custom Length Available: YES
  • Max LED Strip Width: 16.9mm
  • Allows The Max Width Of Strip Lights To be 16mm
  • Recommend LED Strips: SMD LED Strips, COB LED Strip Lights
  • Max Power: <15W/M
  • Waterproof Level: IP20 Non-Waterproof

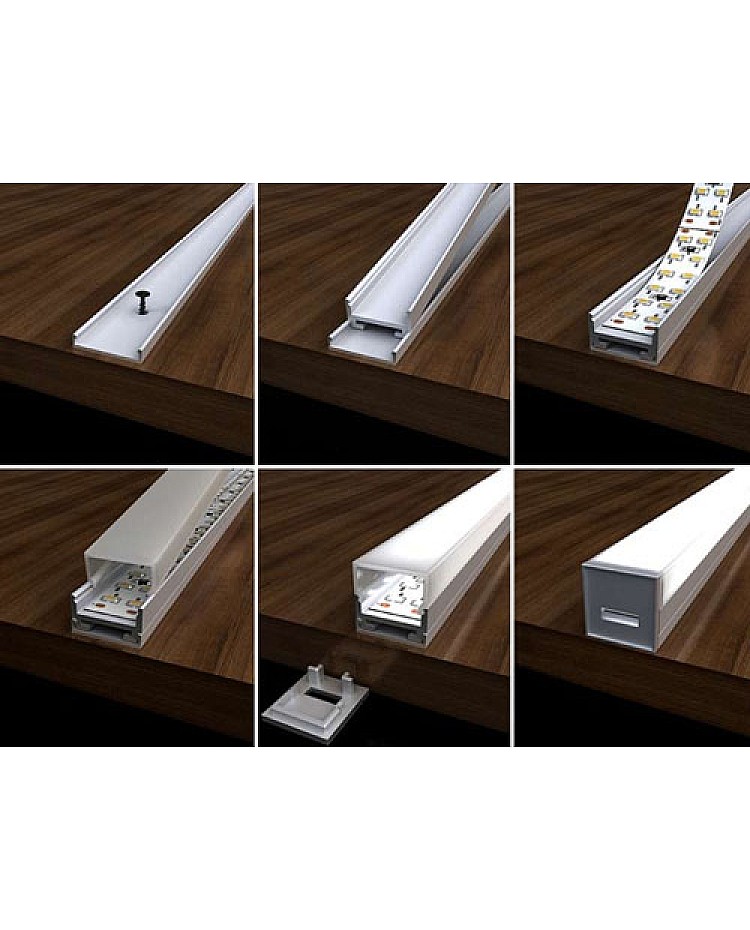

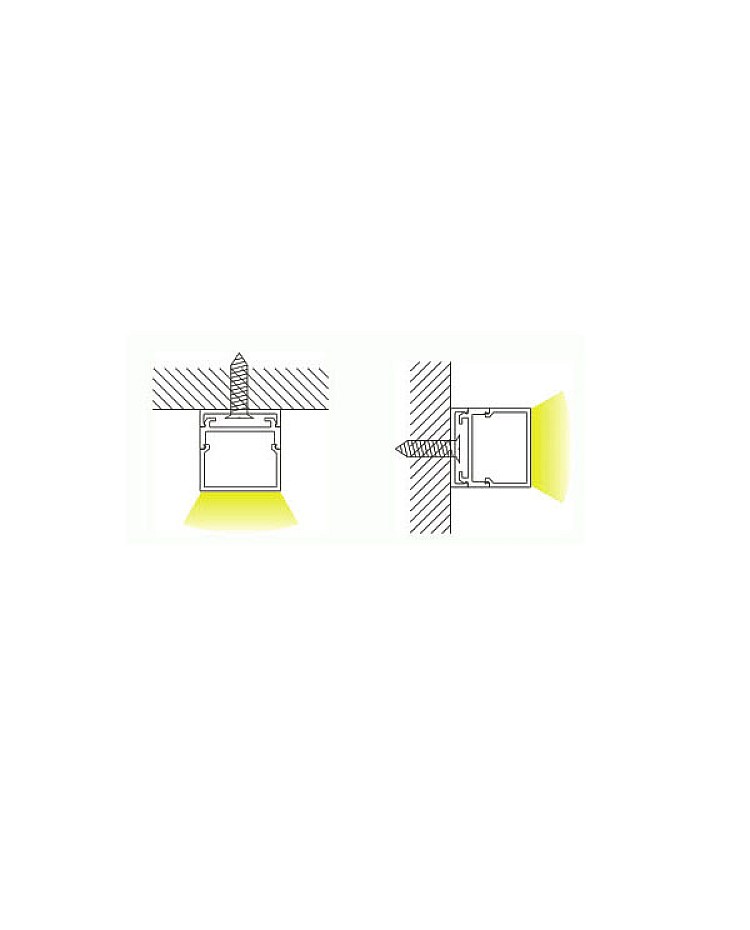

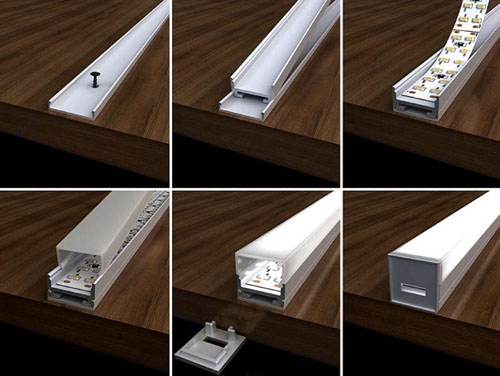

  • Installation: Surface Mounted
  • Applications: Under Cabinets, Wardrobes, Shelves, etc
  • 5 Years Warranty



1*LED Ribbon Aluminum Profile

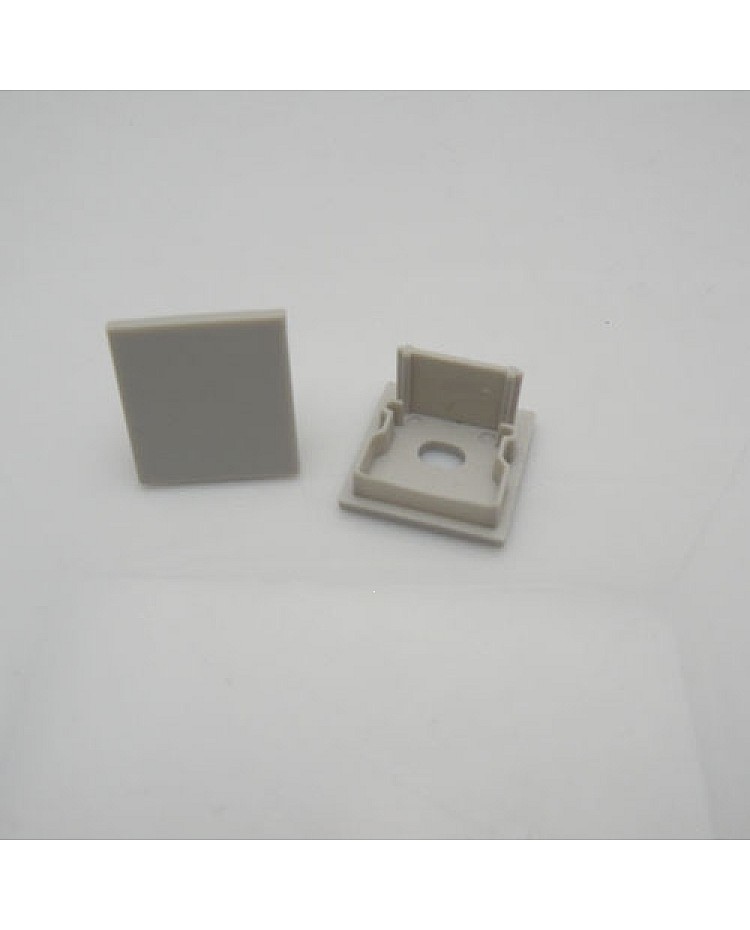

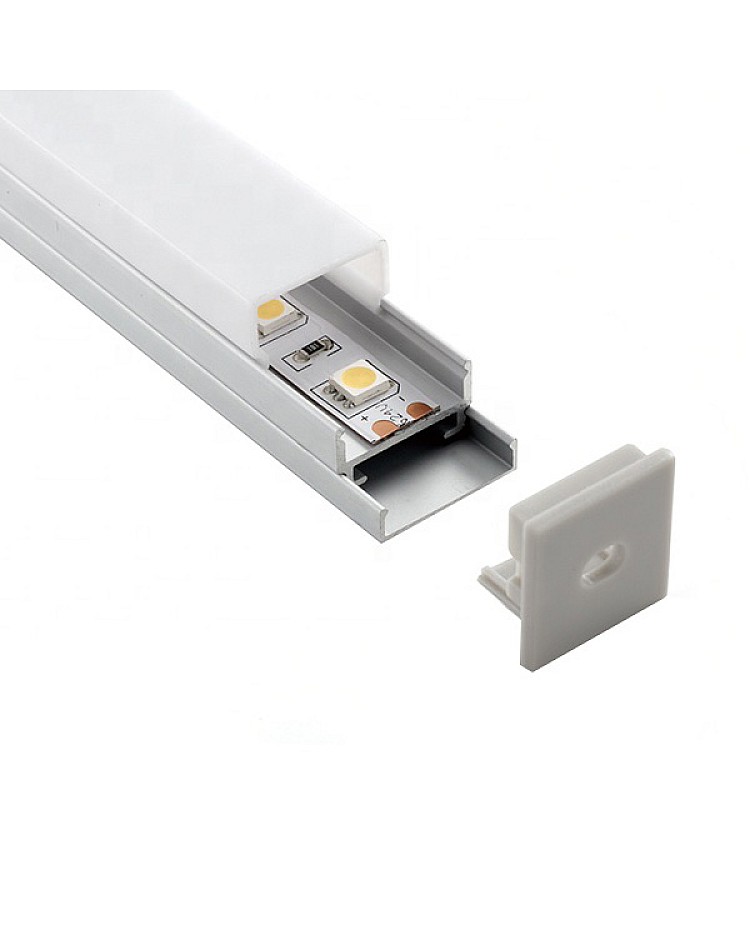

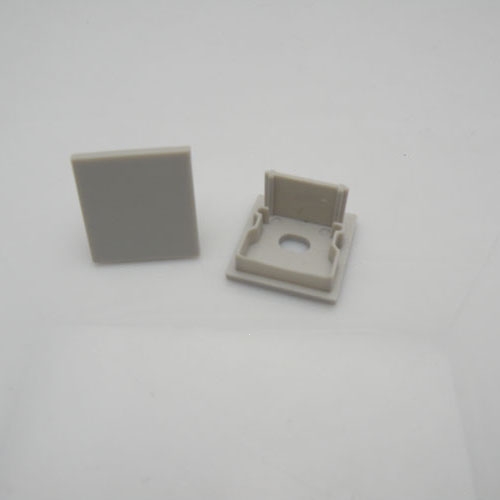

End Caps(With Hole/Without Hole)


Furniture Production

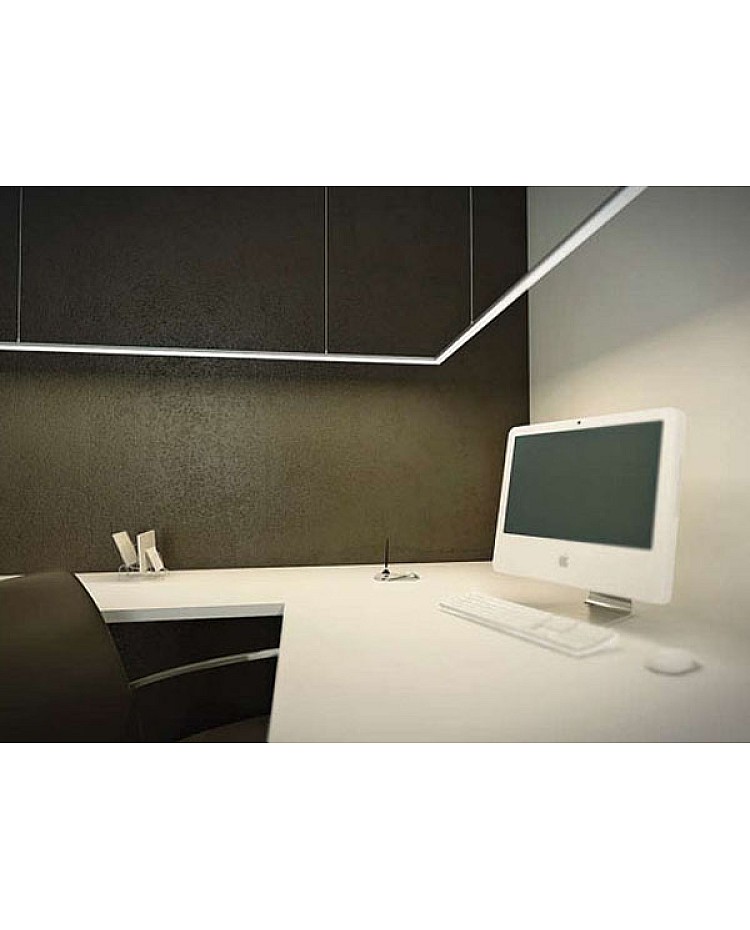

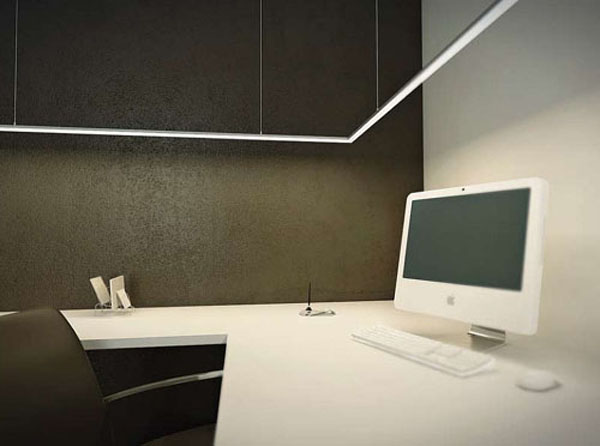

Linear Lighting On Ceilings, Walls, Under-cabinets, Wardrobes, Closets, Shopping Cases, Shelves, etc.
