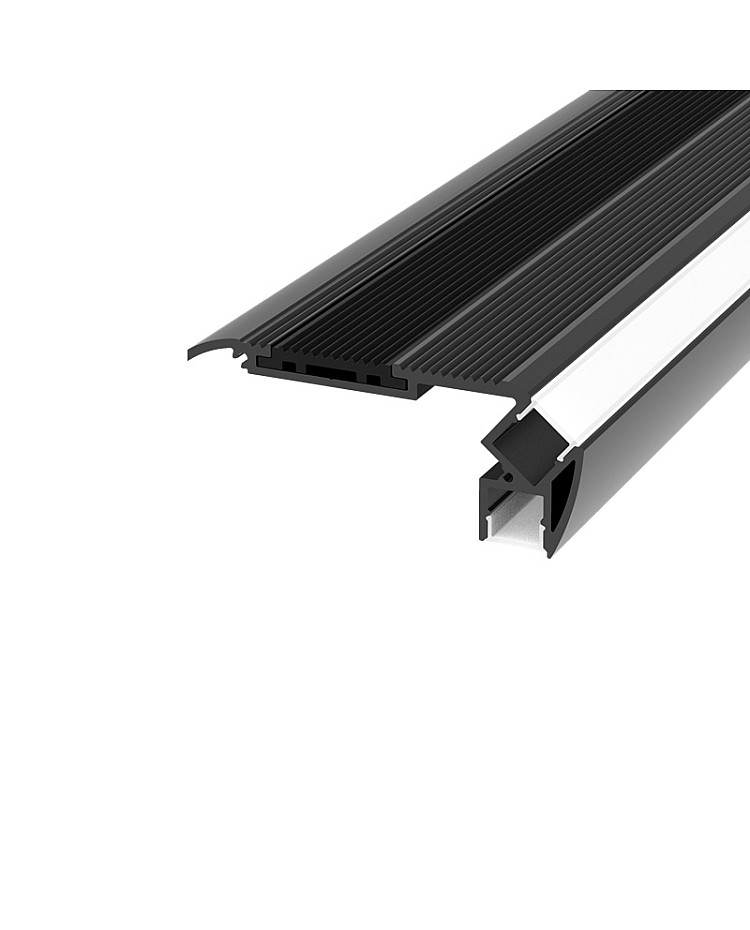

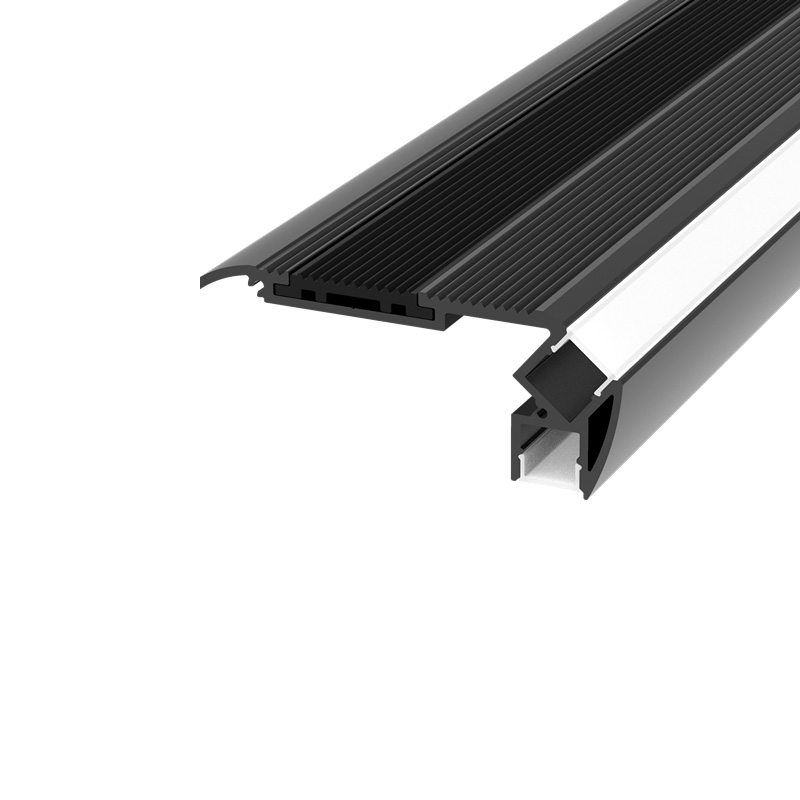

The ALP024-R1 is a heavy-duty black LED profile and is designed for safe, functional, and stylish step lighting. They can be installed along stair edges and feature an up-down lighting design. The downward lighting will illuminate the stair tread for safety and visibility, and the inclined upward lighting provides ambient or accent lighting along the stair edge or wall for aesthetics. They have an anti-skid surface and come with a PVC anti-skid cover to enhance aesthetics and prevent slips or falls. Ideal for both residential and commercial applications, such as staircases, hallways, hotel lobbies, theaters, and public spaces. The stairway light channels are constructed from durable extruded aluminum and have anodized finish for anti-oxidation resistance and a longer lifespan. Six types of diffused covers are available for various light transmittance. They are made of high-quality material, anti-yellowing, for perfect light distribution. The stock lengths of the stair tread light channels are 2 m, 2.5 m, 3 m, and custom lengths are supported. The inner width is 10.5 mm, allowing a maximum strip light width of 10mm. You can add our 10mm COB strip light as the light source to create uniform lighting without hotspots. The aluminum channels can work as heat sinks for better heat dissipation, which will extend the lifespan of LED strips. The end caps are included to provide a professional finish.

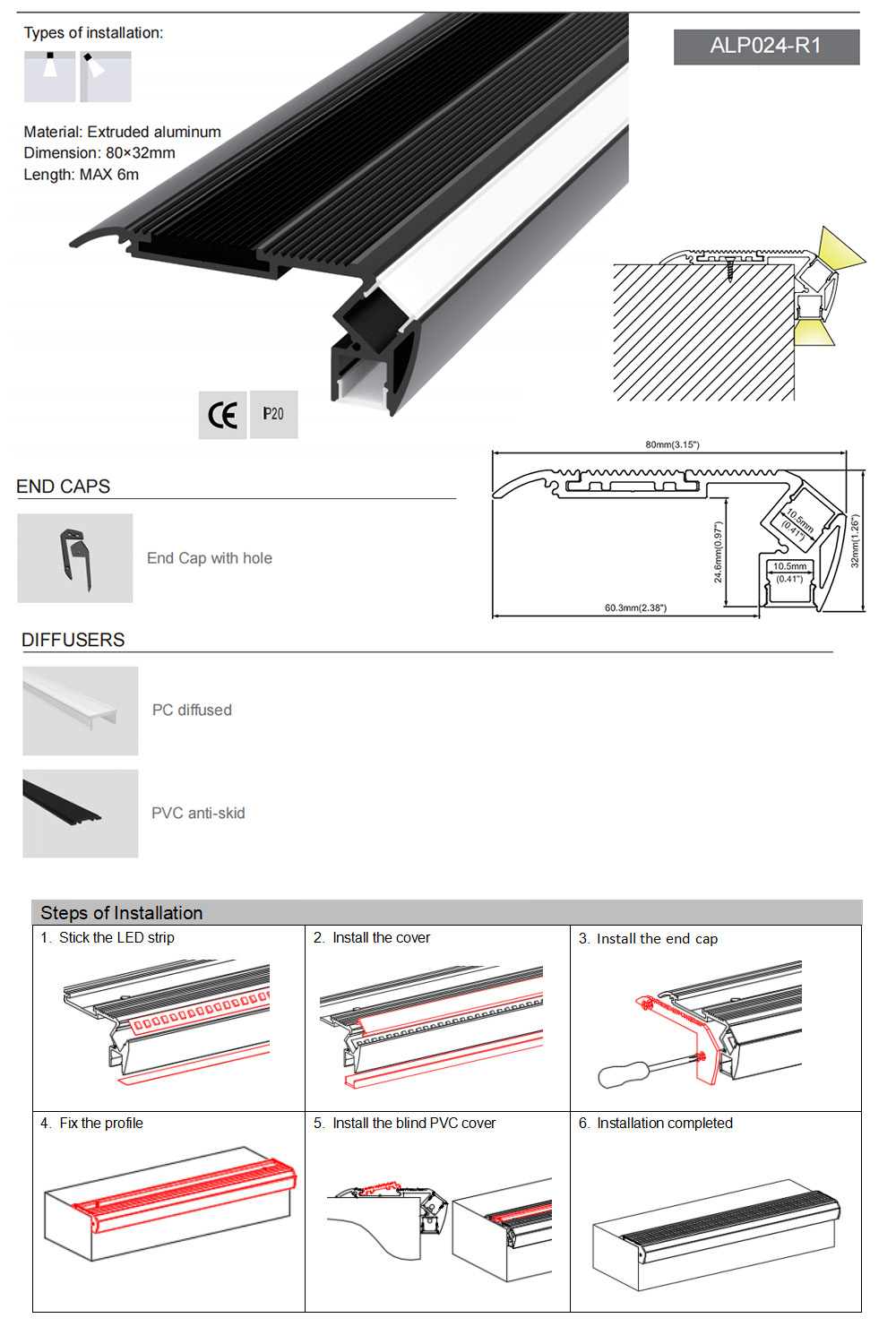

Specifications:
- Models: ALP024-R1
- Material: 6063-T5 extruded aluminium
- Surface treatment: Anodized
- Color: Black

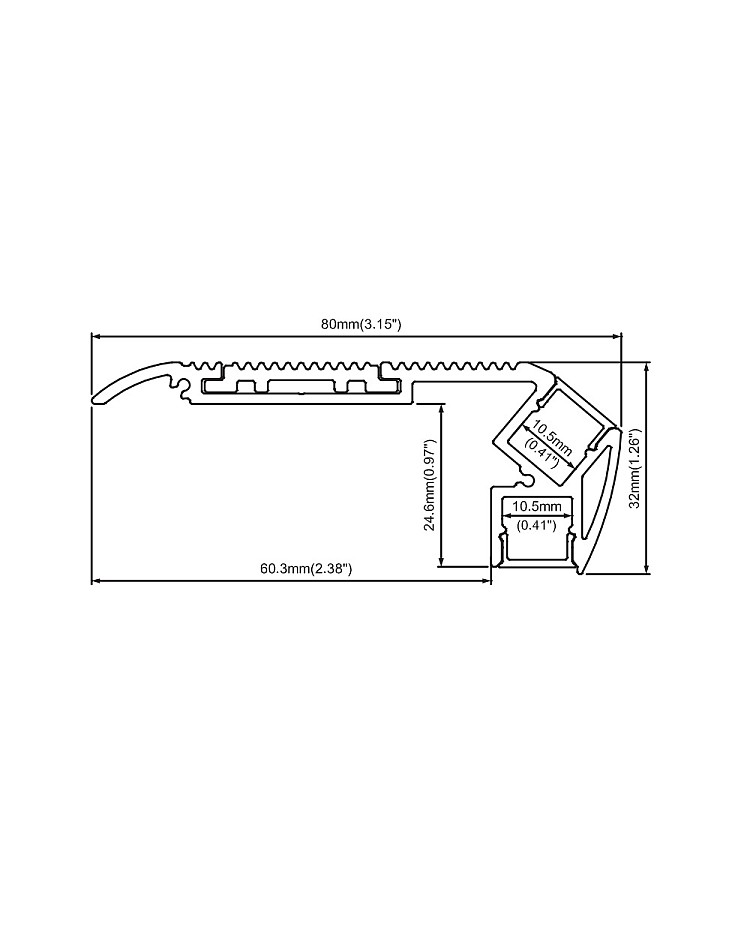

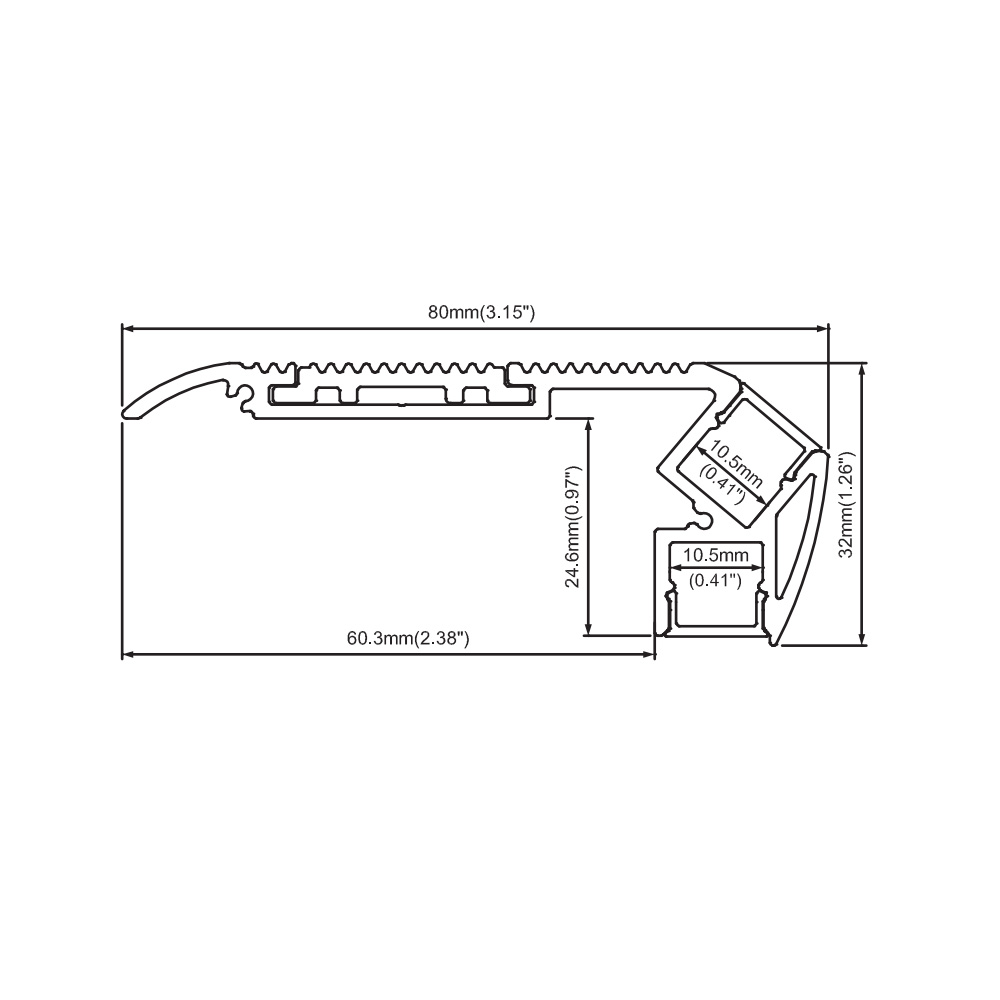

- Size (W x H): 80 mm x 32 mm ( 3.15" x 1.26" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" ), 2.5 m ( 98" ), 3 m ( 118" )
- Custom length: YES
- Inner width: 10.5 mm ( 0.41" )
- Maximum width of strip lights: 10 mm ( 0.39" )
- Max power: 24W/m

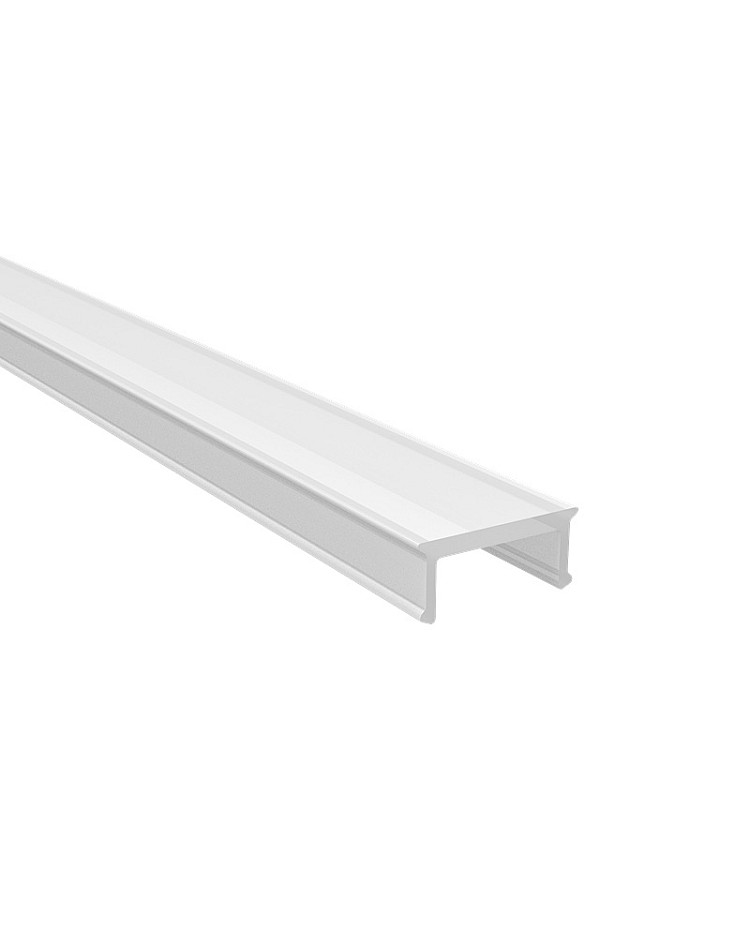

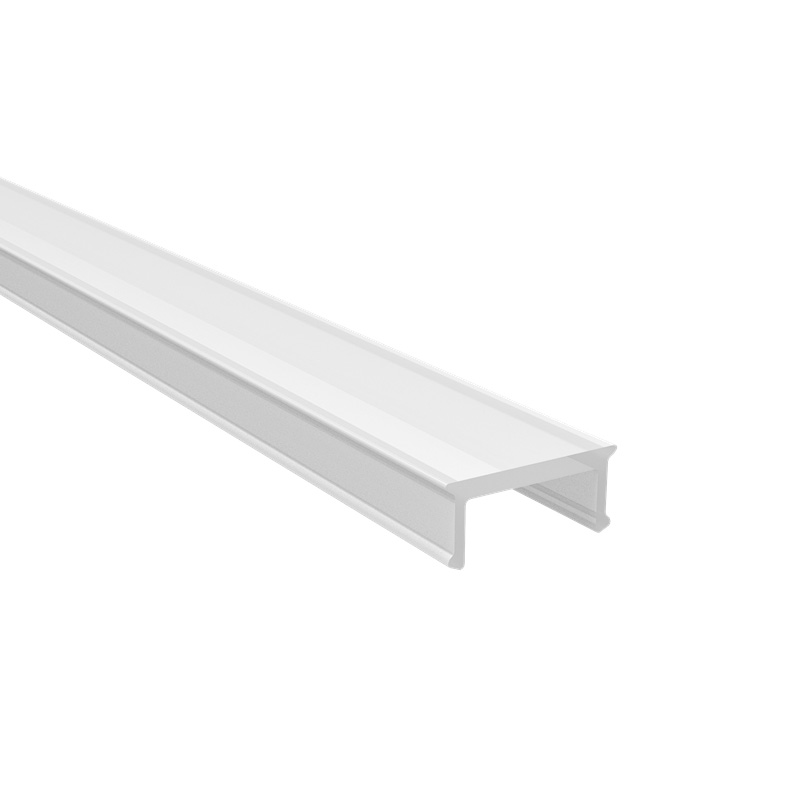

- Diffusers: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover, PC semi-clear cover, PC clear cover
- Beam angle: 100°
- IP rate: IP20 Non-waterproof
- Tolerance: ±1%

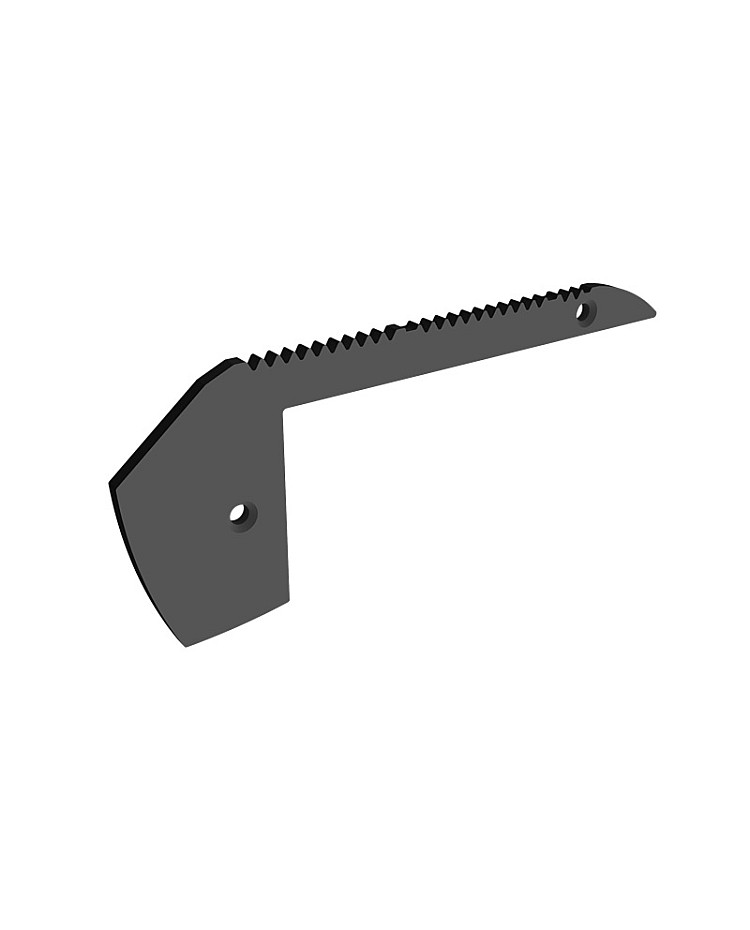

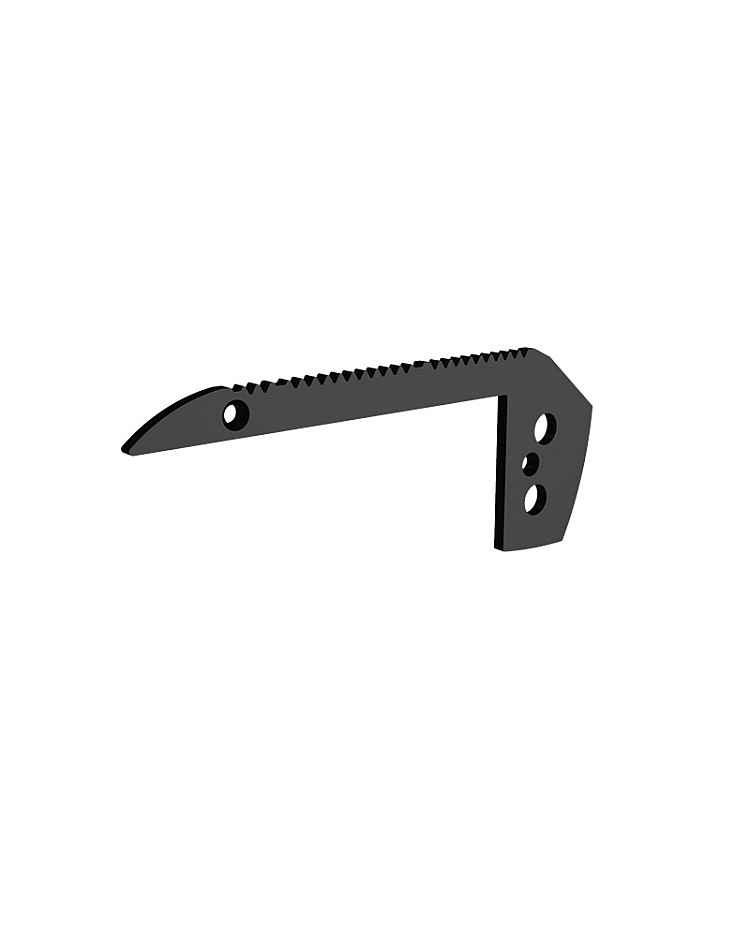

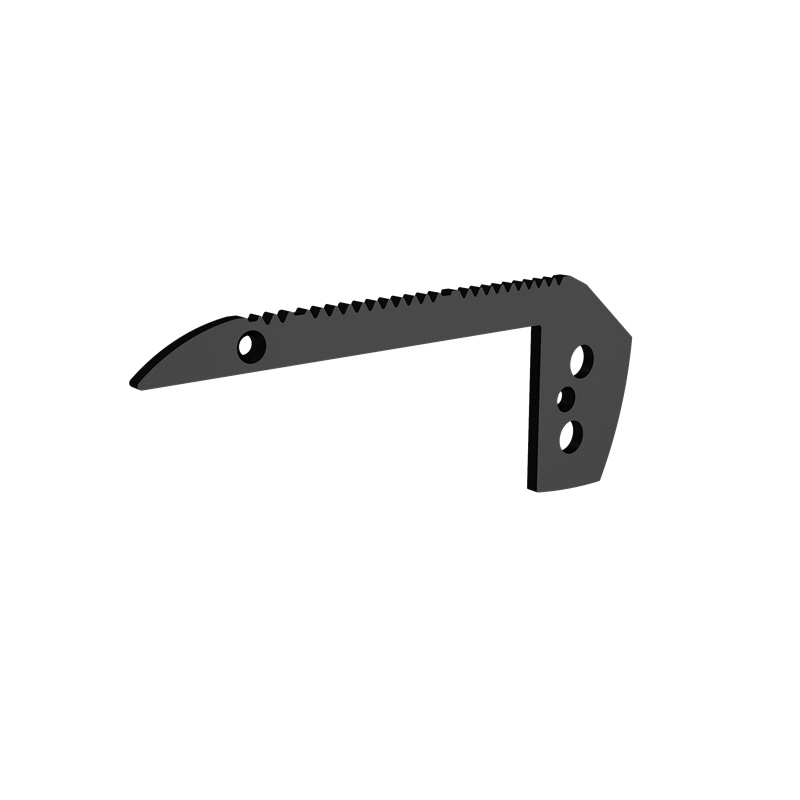

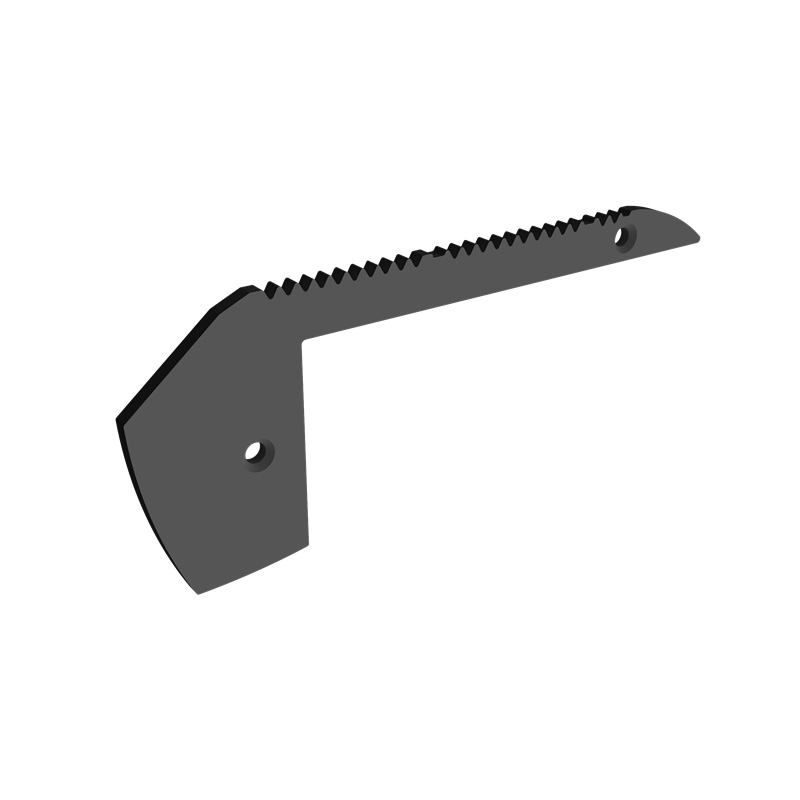

- End caps with and without wire holes are included

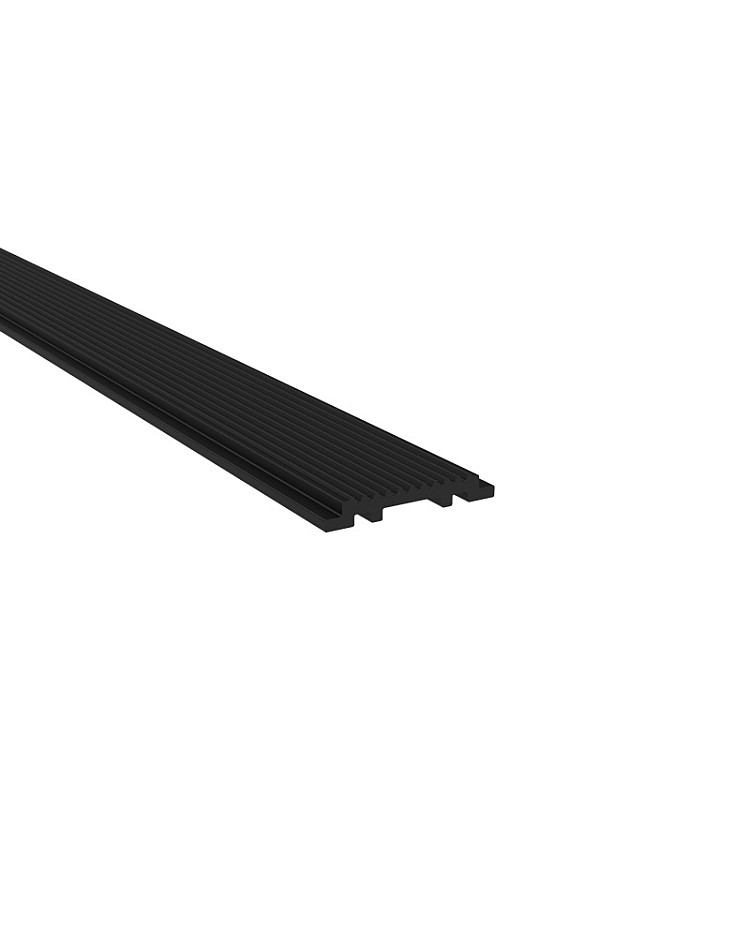

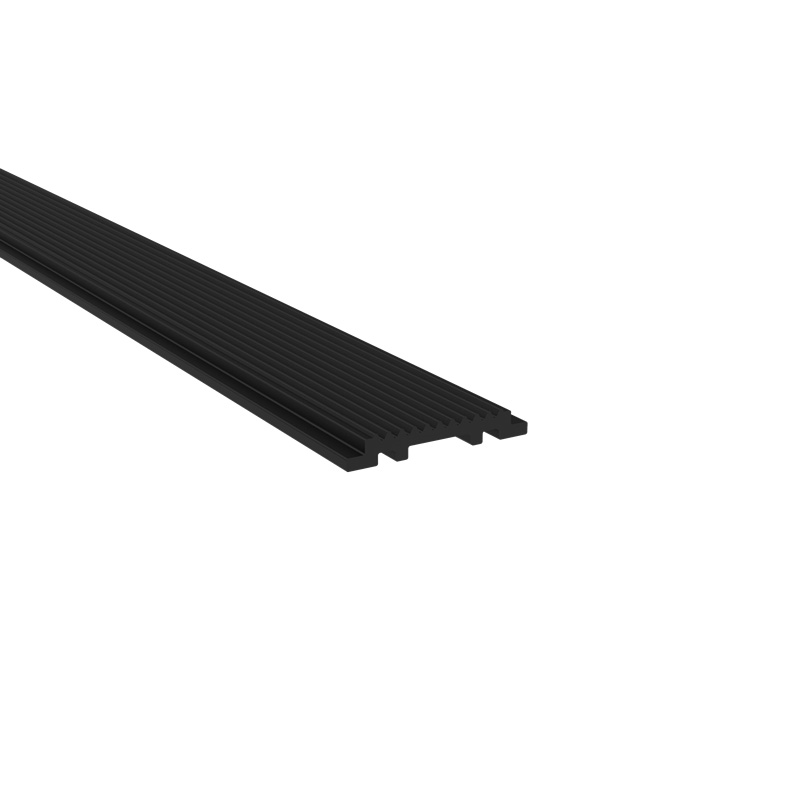

- PVC anti-skid covers are included

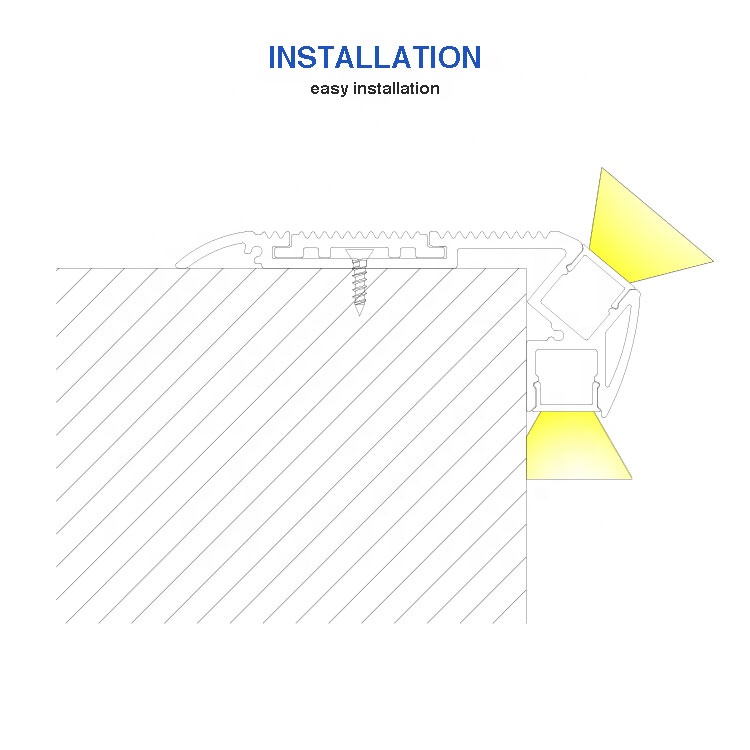

- Installation: Surface-mounted
- Warranty: 5 years
Applications:

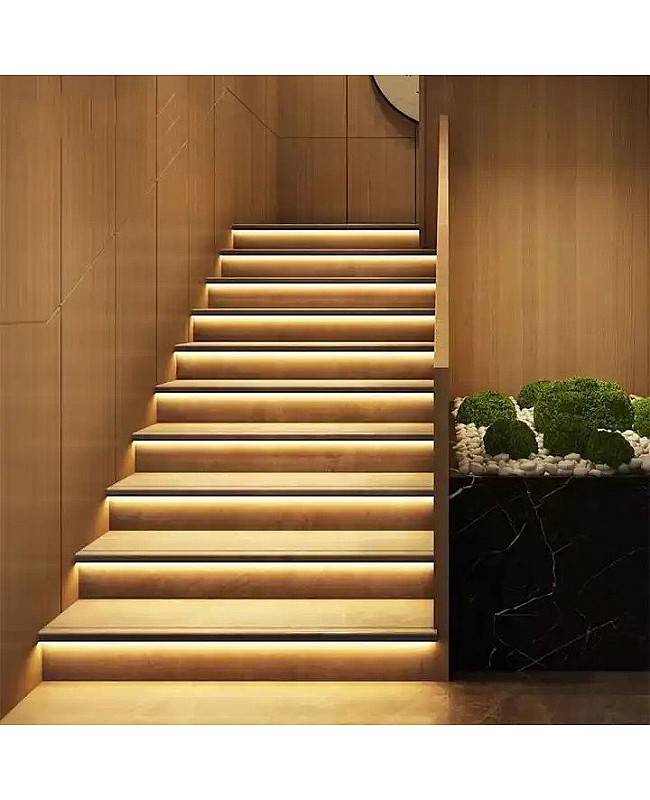

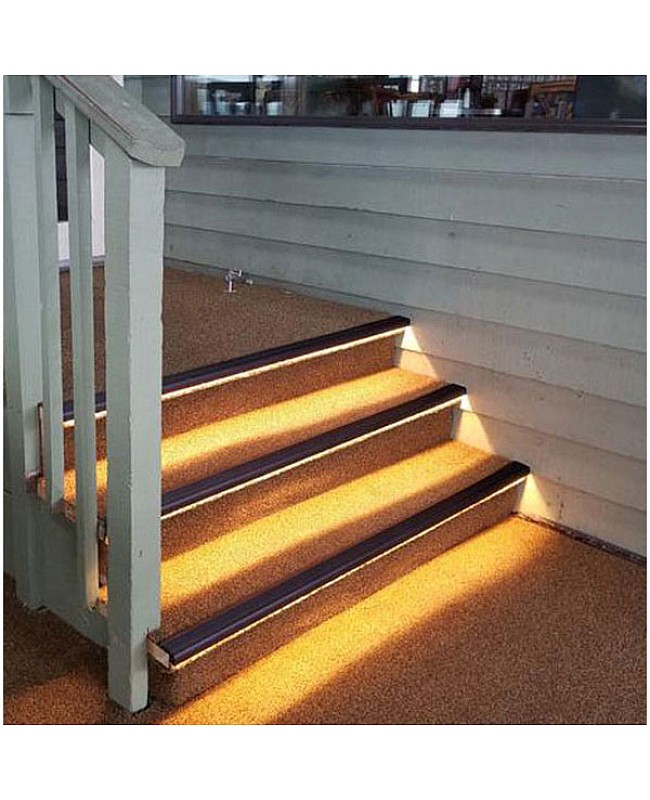

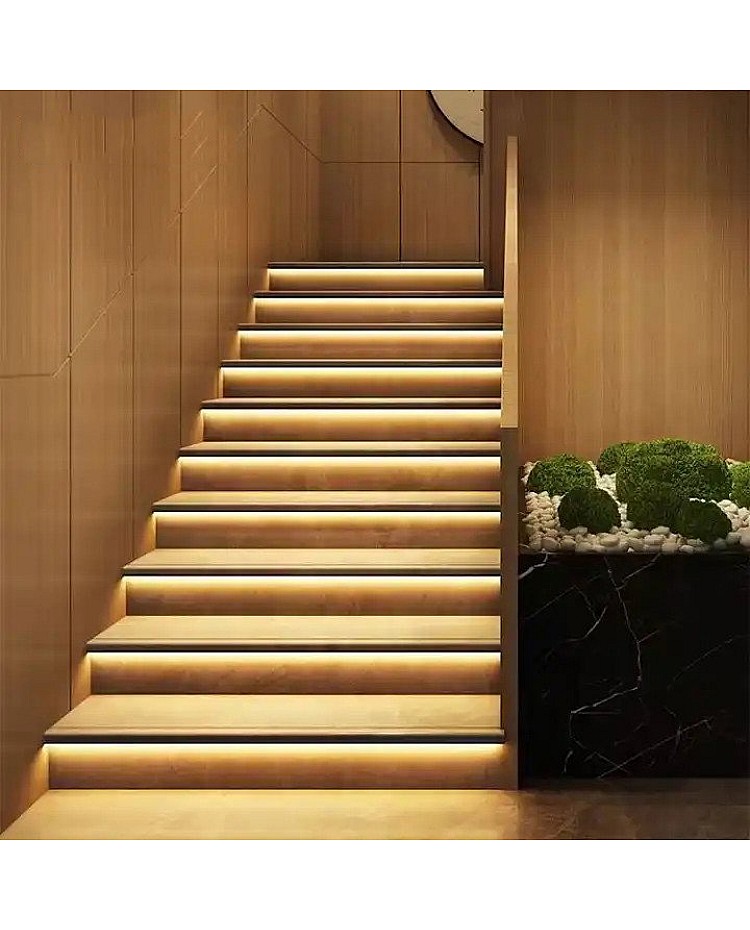

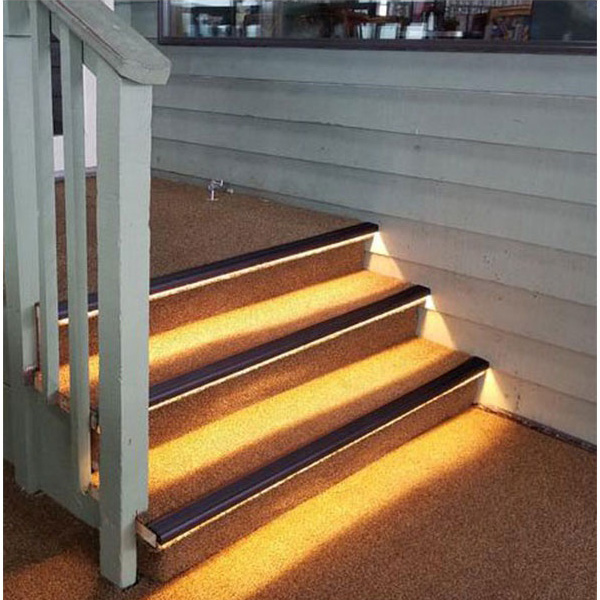

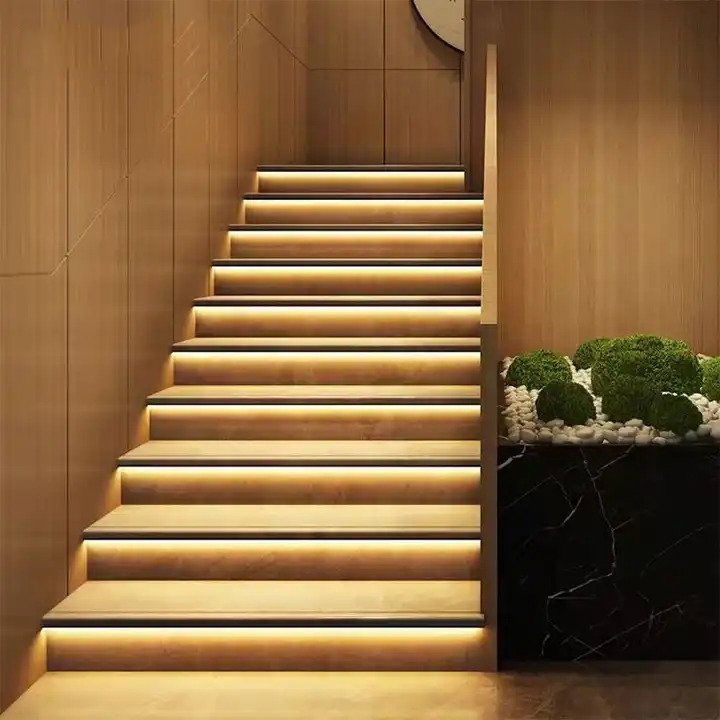

- Indoor stair lighting
- Step lighting in hotels, cinemas, and retail centers
- Modern home interiors for night visibility
- Safety lighting in gyms, spas, or pool areas
Includes:
1 * Black LED stairwell profile with diffuser
End caps
PVC anti-skid cover
