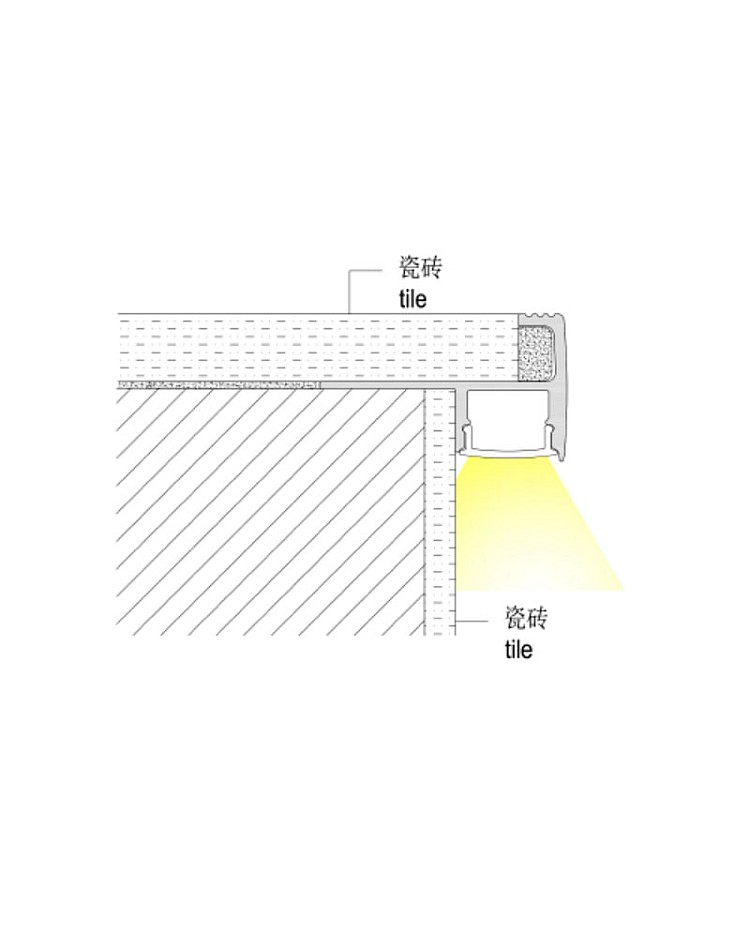

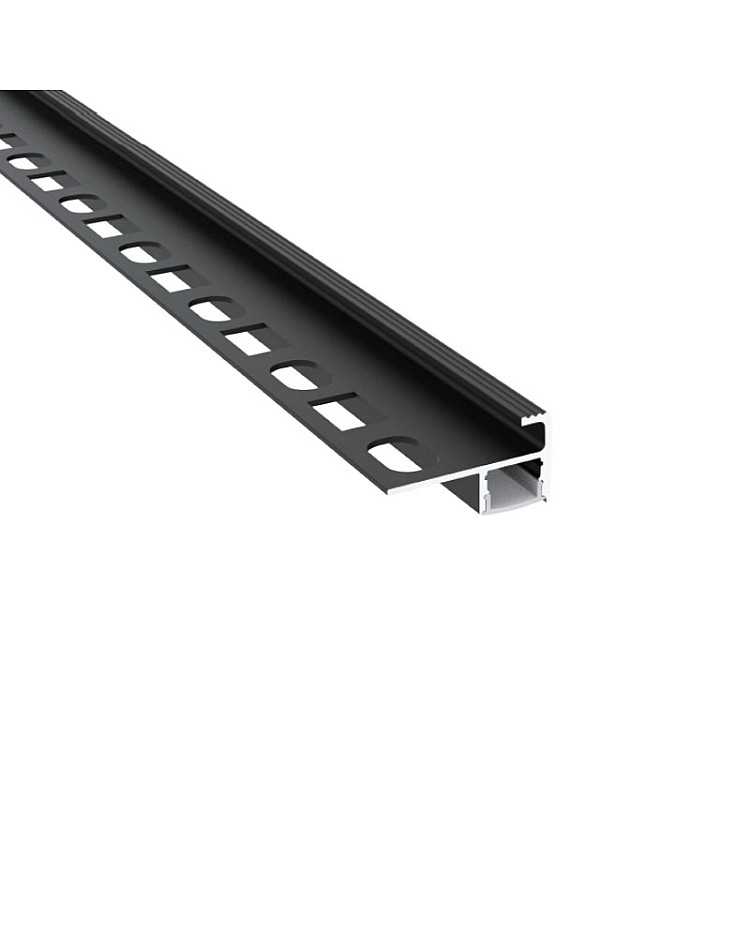

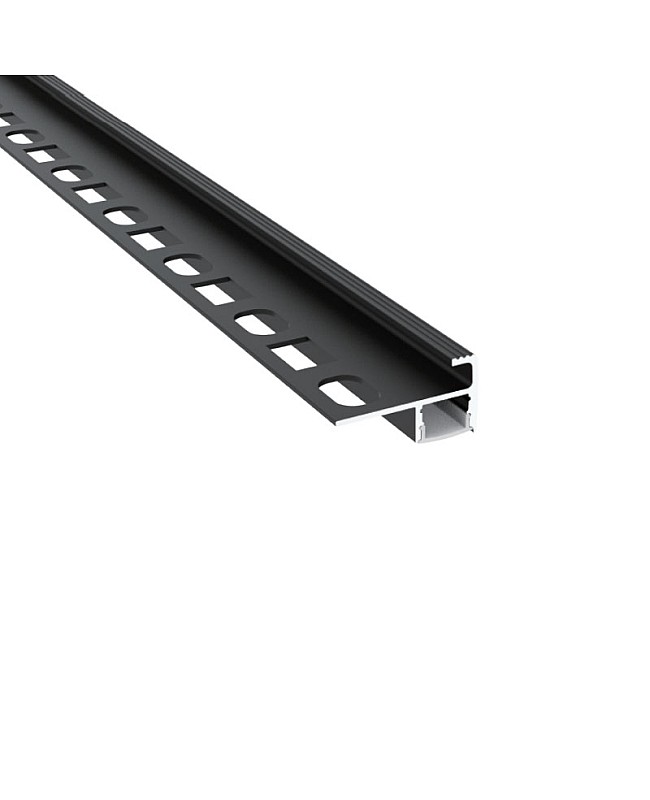

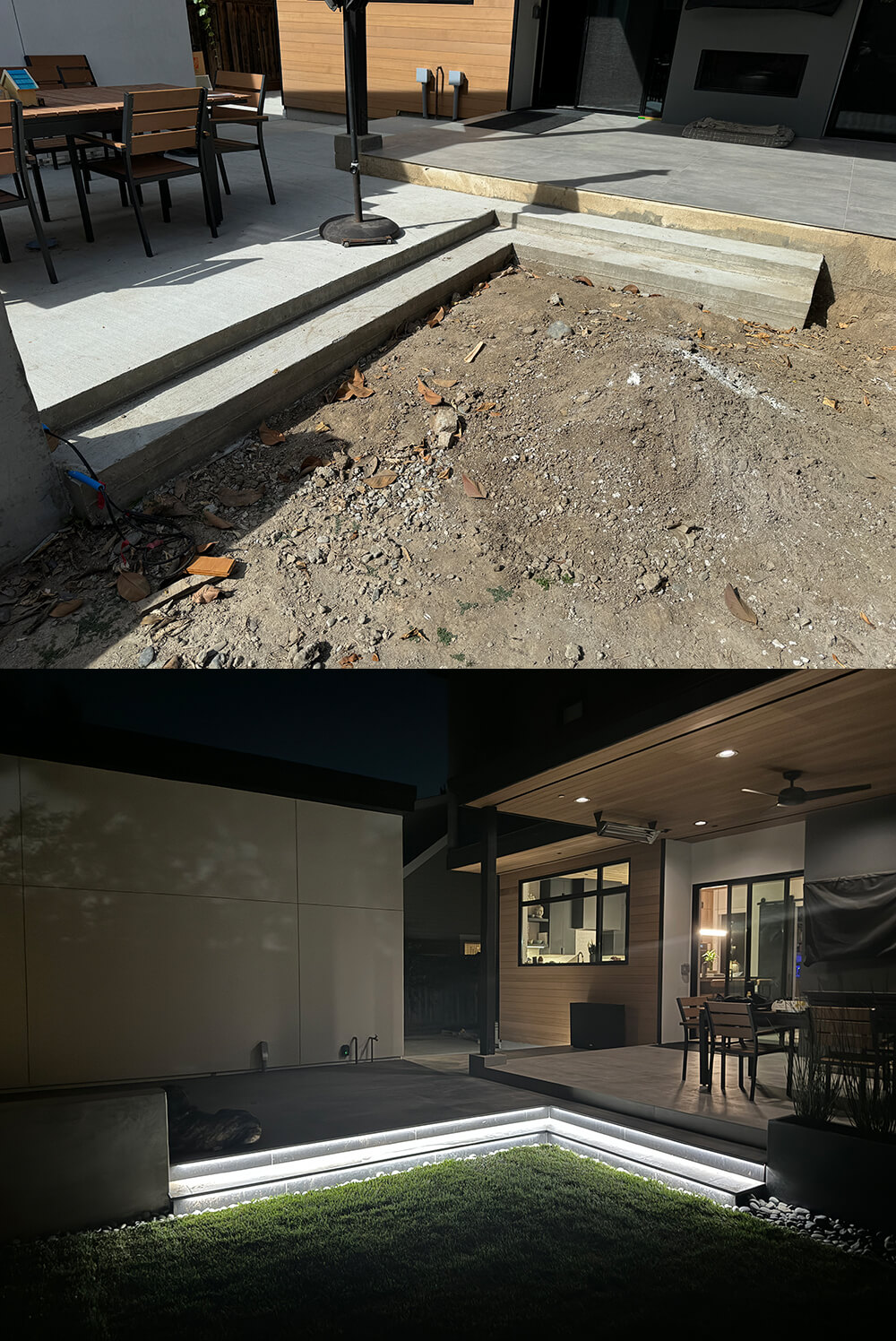

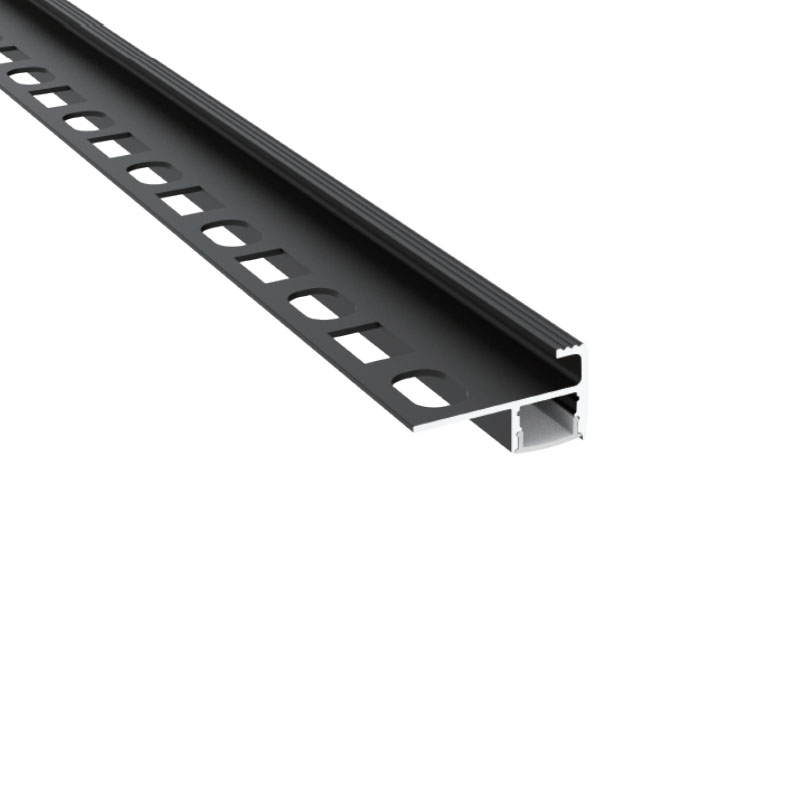

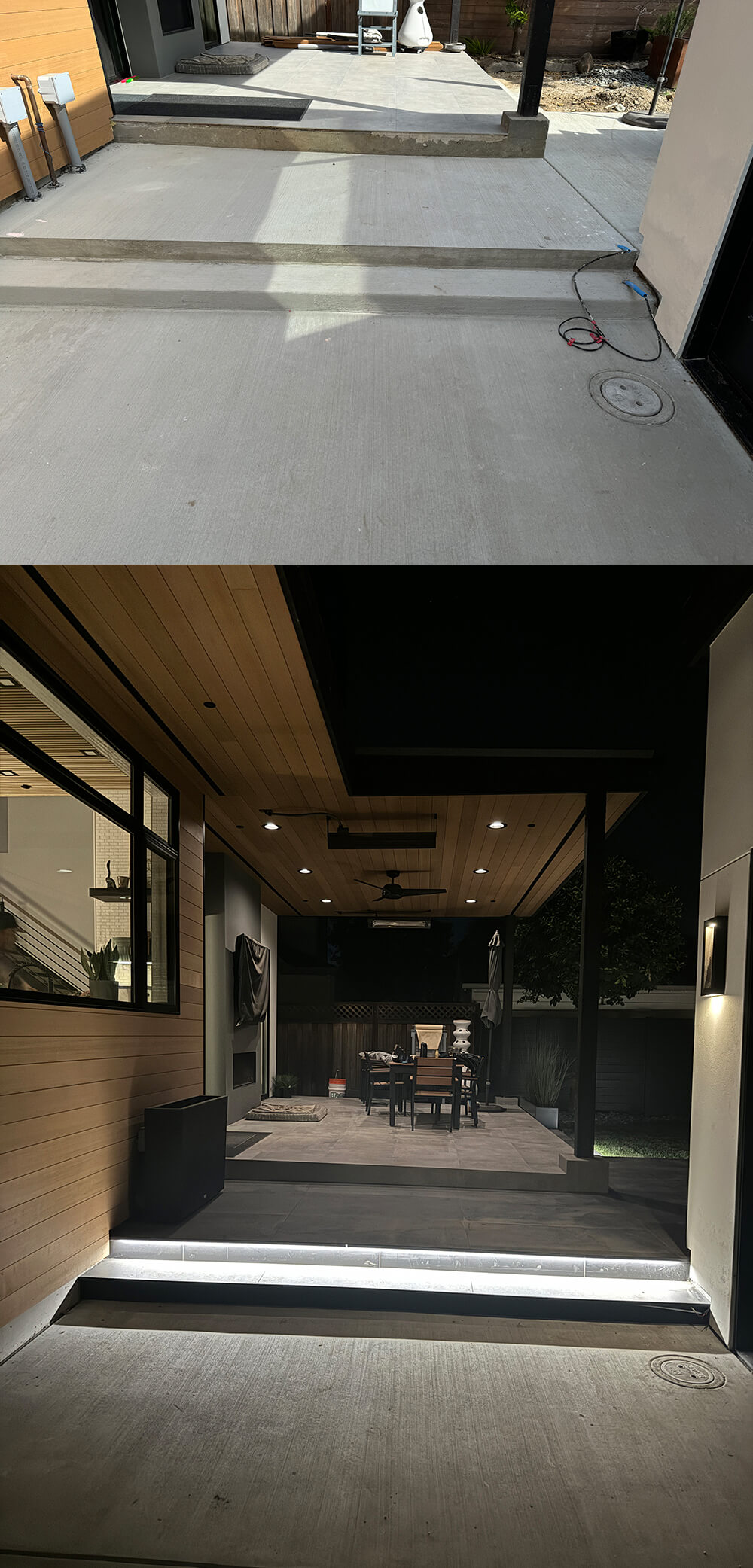

These LED channels with flanges can be flush-mounted into 8mm or 10mm tiles for stair nosing lighting. They feature a downward lighting design, providing uniform illumination on the steps to enhance the safety and aesthetics of staircases. They are made of solid extruded aluminum material and feature a black anodized surface coating for enhanced durability. They have anti-slip surfaces to prevent accidents, even in wet or rainy conditions. The lengths in stock are 1 m and 2 m; you can cut to any length for your project. Custom lengths are also available. Only one type of diffuser is available: the PC diffused covers, which are made of imported brand material, anti-yellowing, and have perfect light distribution. The inner width is 13.3mm, allowing a maximum width of 12 mm for the LED strips. It's easy to embed single-color or color-changing dotless LED strip lights in the aluminium channels to create uniform illumination, and the stair tread LED profiles can work as a heat sink for better heat dissipation. End caps with wire holes are included.
Specifications:
- Model: ALP184-9/ALP184-11
- Material: 6063-T5 extruded aluminum
- Surface Treatment: Anodized

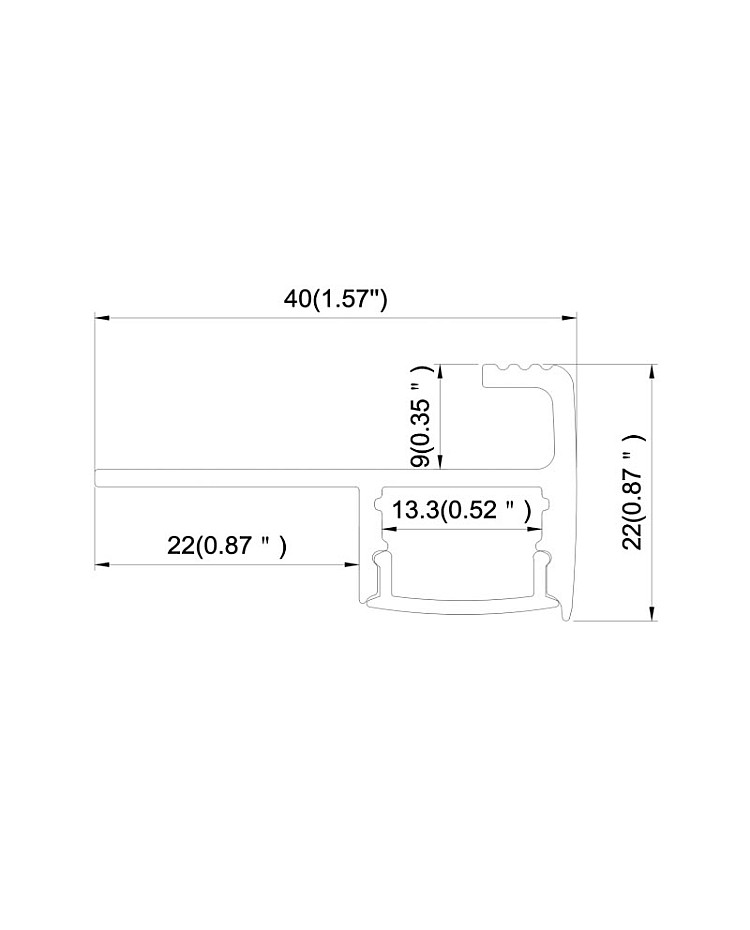

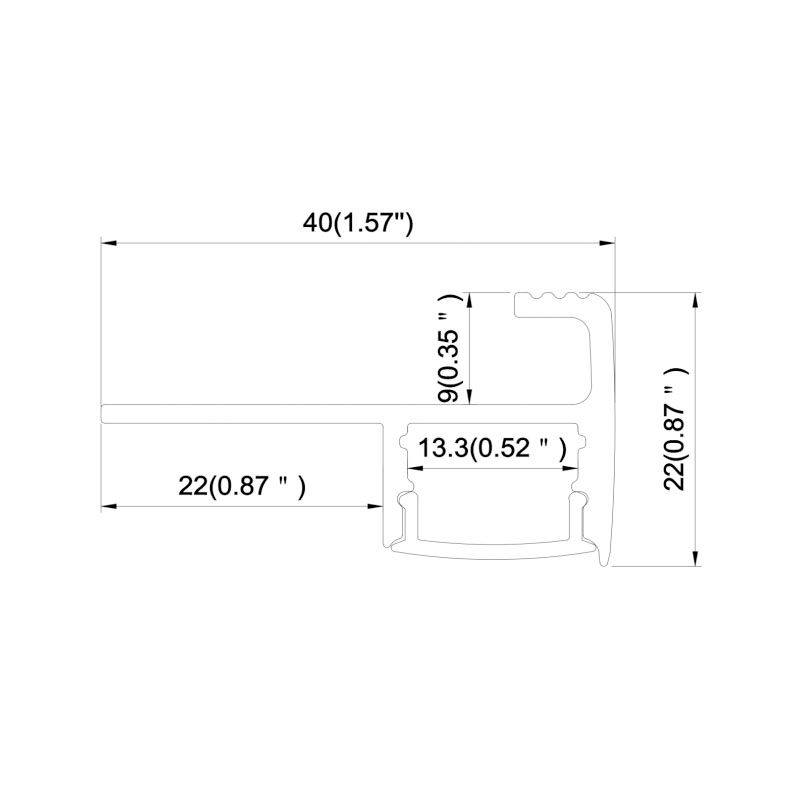

- Size(W*H): ALP184-9: 40.1 mm x 22mm ( 1.58" x 0.87") / ALP184-11: 40.1 mm x 24 mm ( 1.58" x 0.94" )
- Colors: Black
- Standard Length: 1 m ( 39" ), 2 m ( 78" )
- Custom Length Available: YES
- Diffusers: PC diffused cover
- Inner Width: 13.3 mm ( 0.52" )
- Max Width Of LED Strips: 12 mm ( 0.47" )
- Max Power: 15W/M
- Beam Angle: 100°
- IP Rate: IP20 Non-waterproof
- Tolerance: ±1%

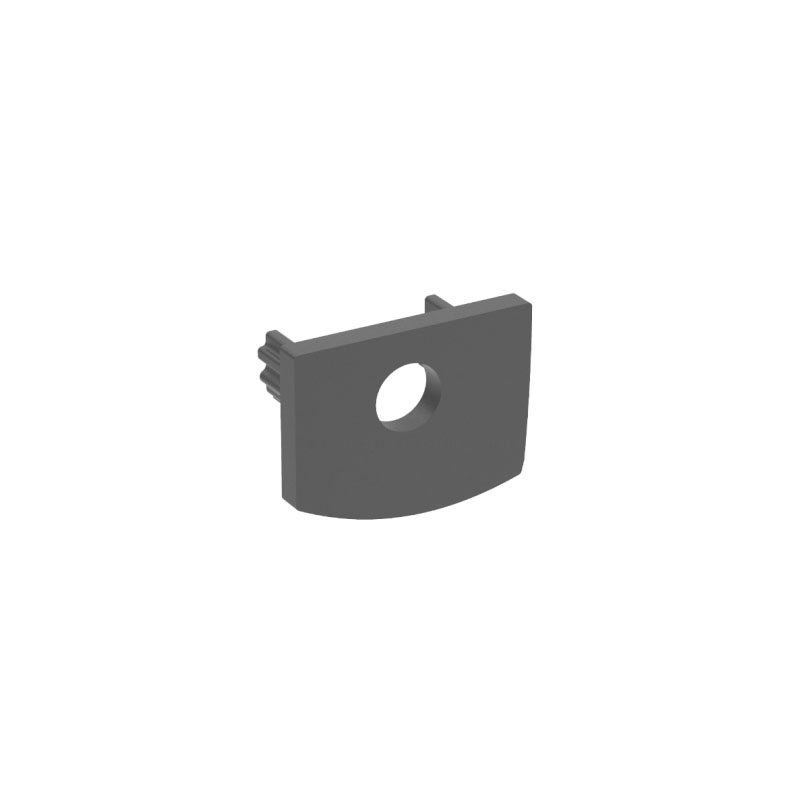

- End caps with/without wire holes included

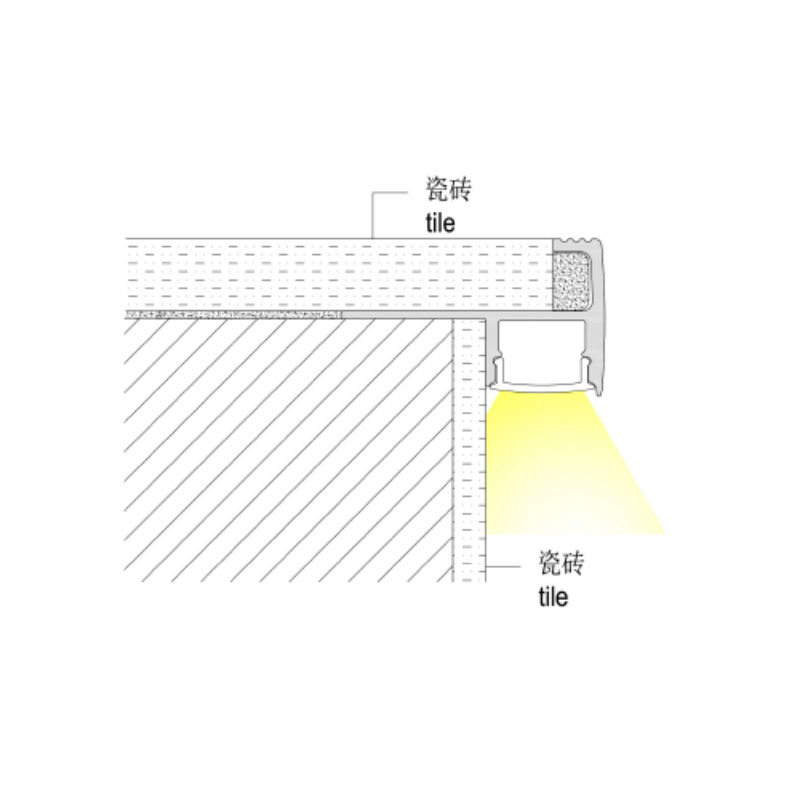

- Installation: Tile recessed
- Applications: Stair tread nosing lighting
- Certifications: CE, ROHS
- 5-year warranty
Includes:
1 * Stair nosing LED channel
1 * PC diffused cover

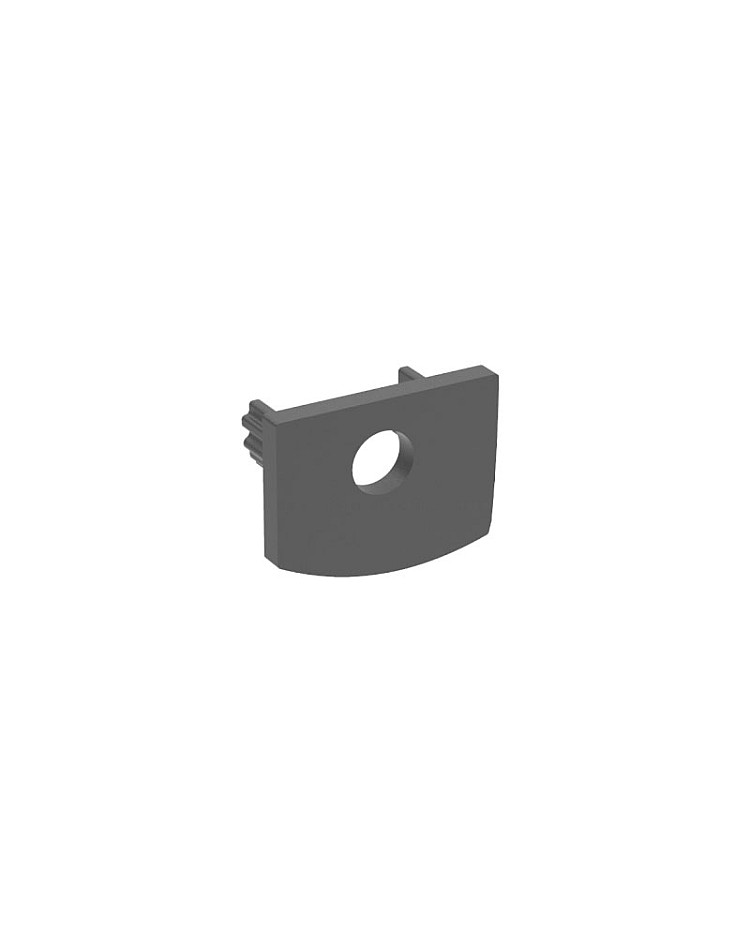

End caps(with and without wire holes)

+
+
+
+
+
+
