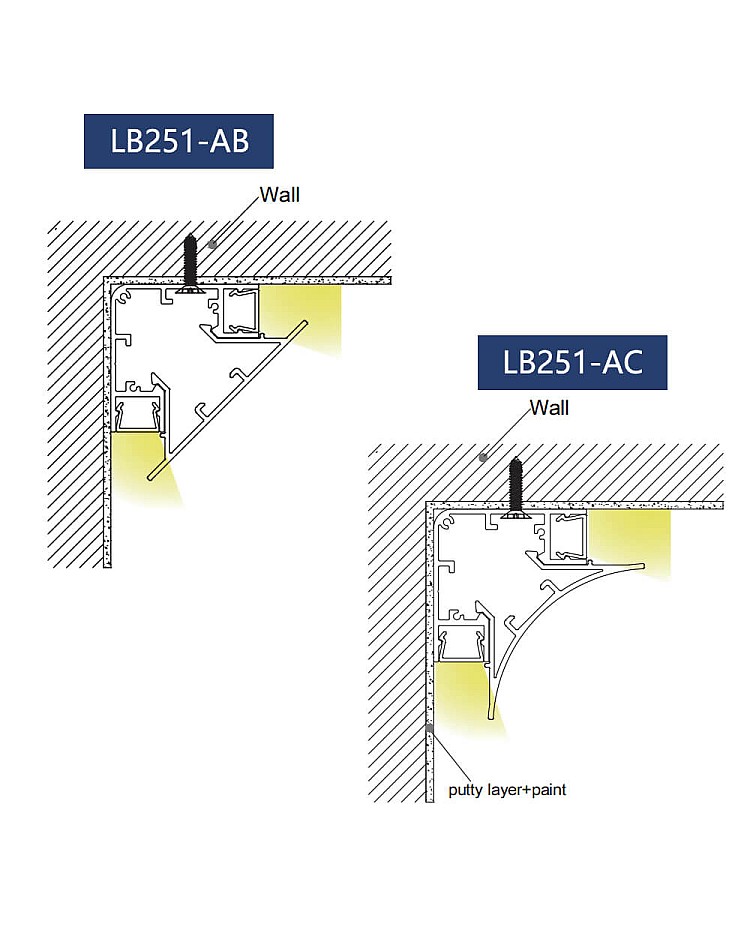

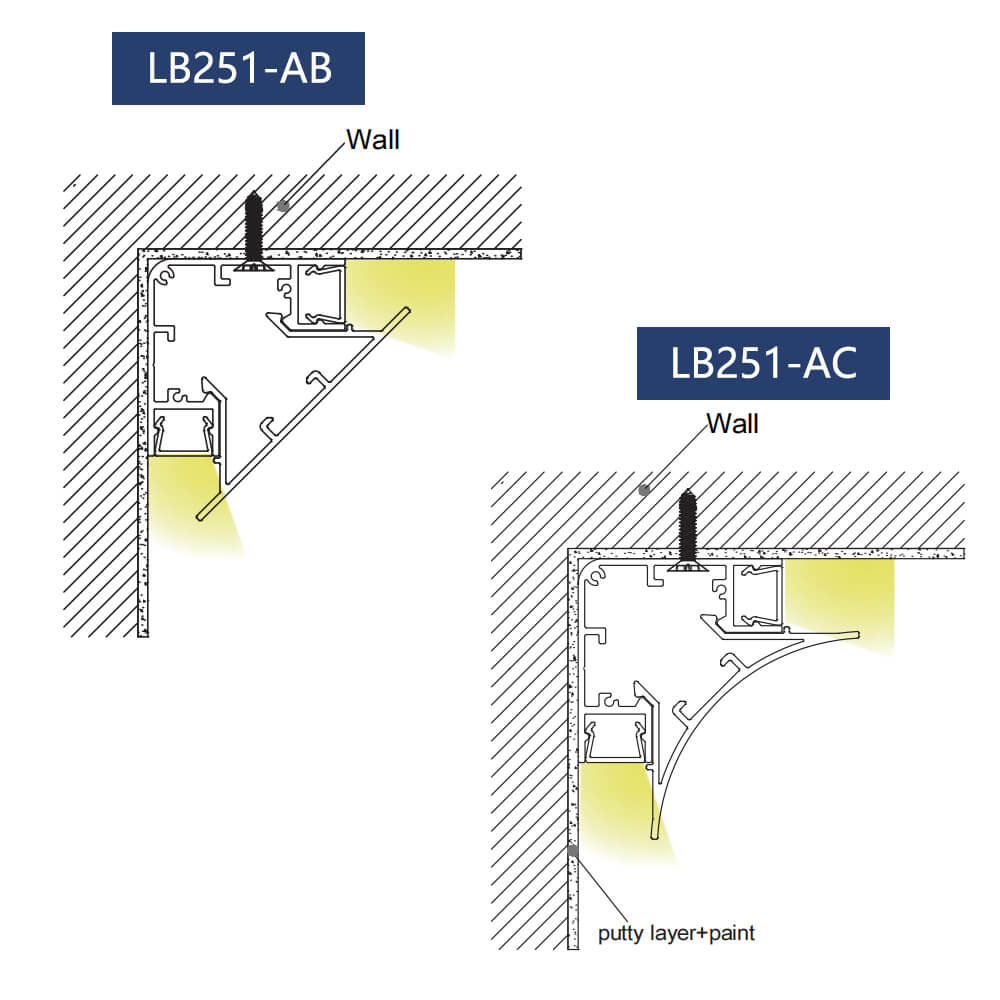

Our LB251 series LED strip channels are designed for creating elegant valance lighting. Featuring a corner-mount installation design to allow mounting at the ceiling-wall transition easily and provide upward and downward lighting at an optimal angle, light onto walls and ceilings, while keeping the light source hidden from view. You can use them to replace the gypsum line and provide soft, uniform illumination to enhance your space.
Manufactured from extruded aluminum for excellent heat dissipation to maximize LED strip performance and lifespan. The professional surface treatment on the lighted valance provides anti-oxidation resistance and extends lifespan. The inner width is 11.9mm, allowing the maximum strip light width to be 11mm. Recommend our high-density 10mm single-color or tunable-white COB LED strips as the light source for dotless lighting. The robust construction of the valance light fixtures protects the strip lights from dust, impacts, and other physical damage.

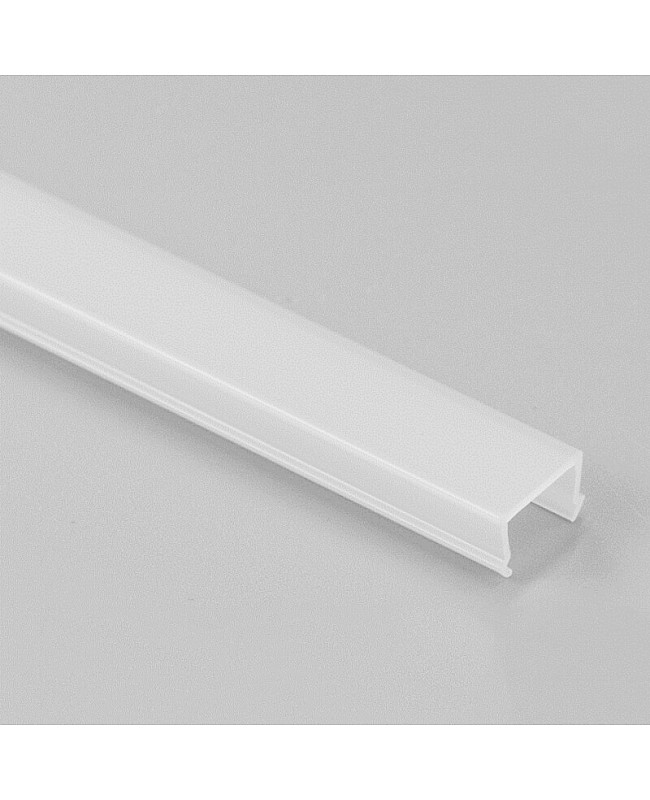

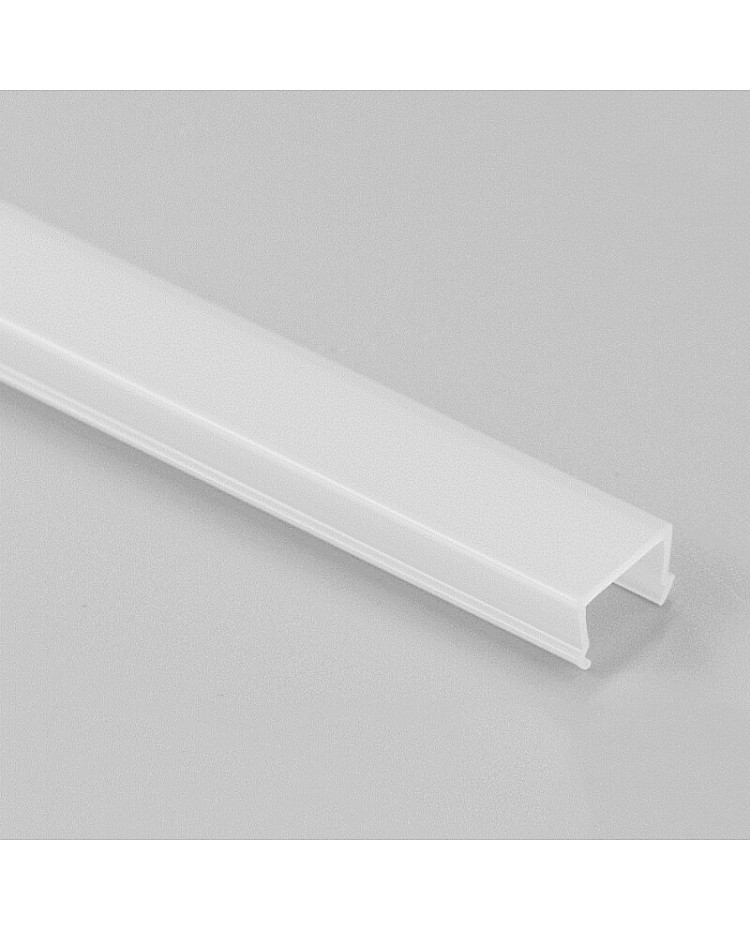

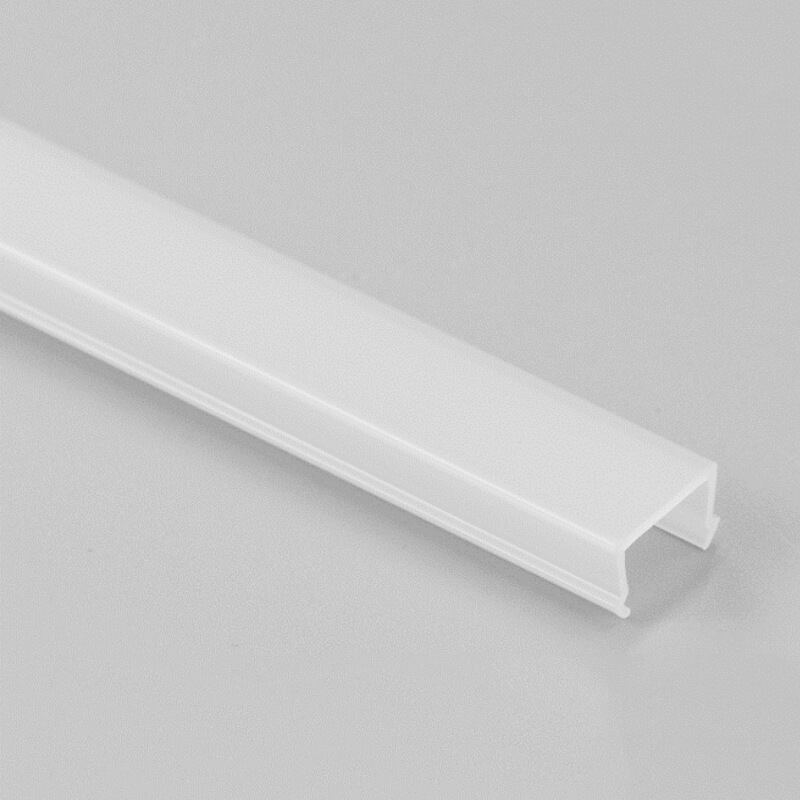

There is only one type of diffused cover available: PC diffused cover. It is made from brand-name material to prevent yellowing. The clip-in design allows for easy installation. The PC diffusers will spread the strip lighting evenly and help eliminate visible LED hotspots, delivering a smooth, continuous line of light.

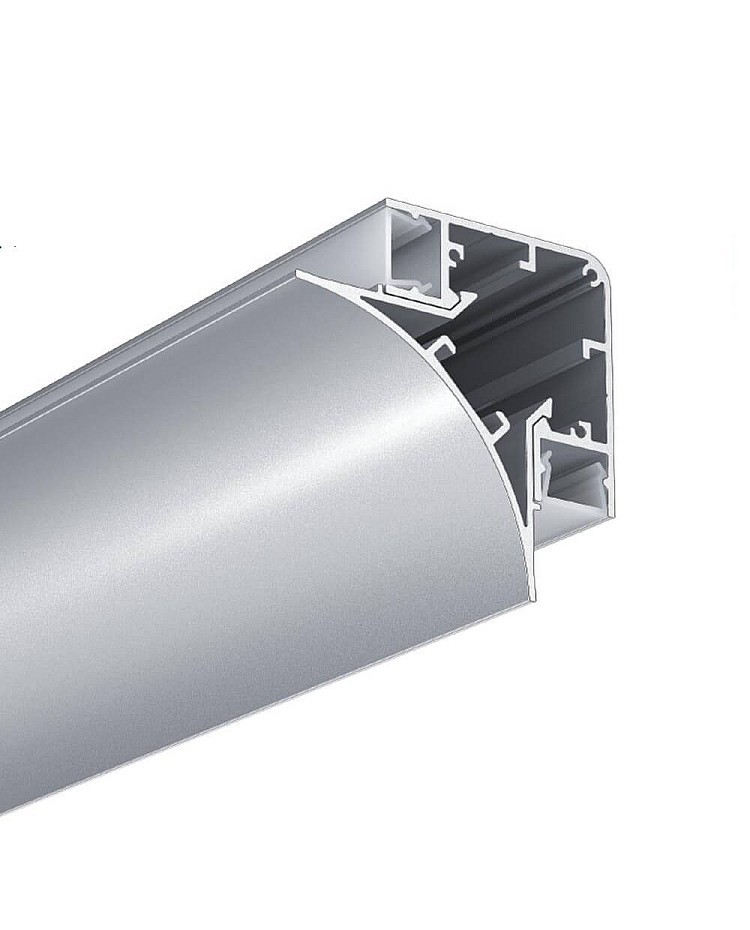

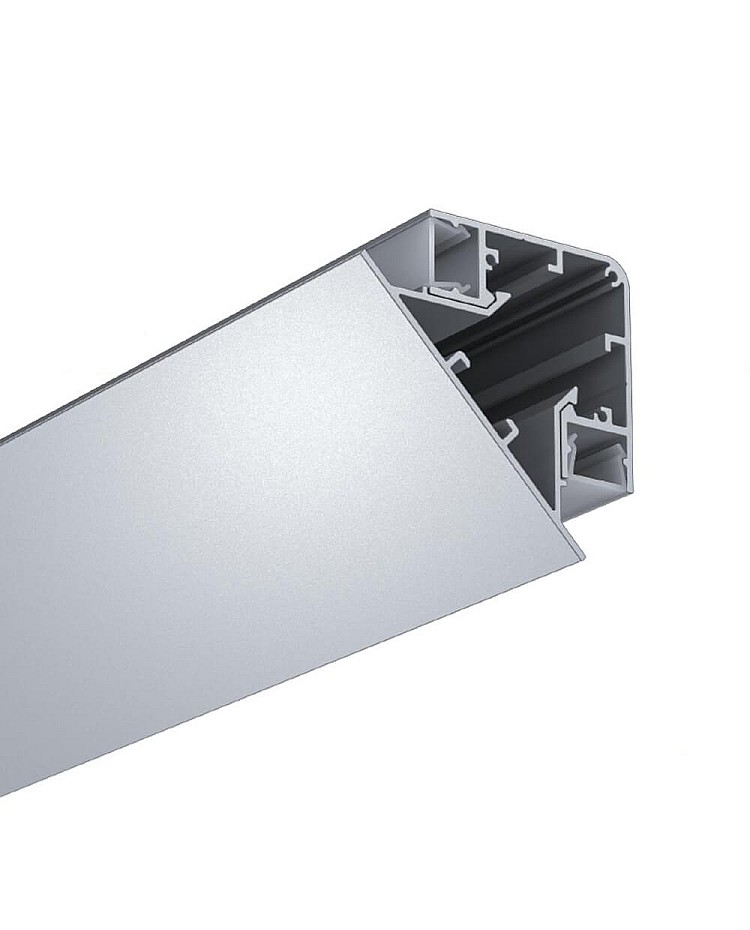

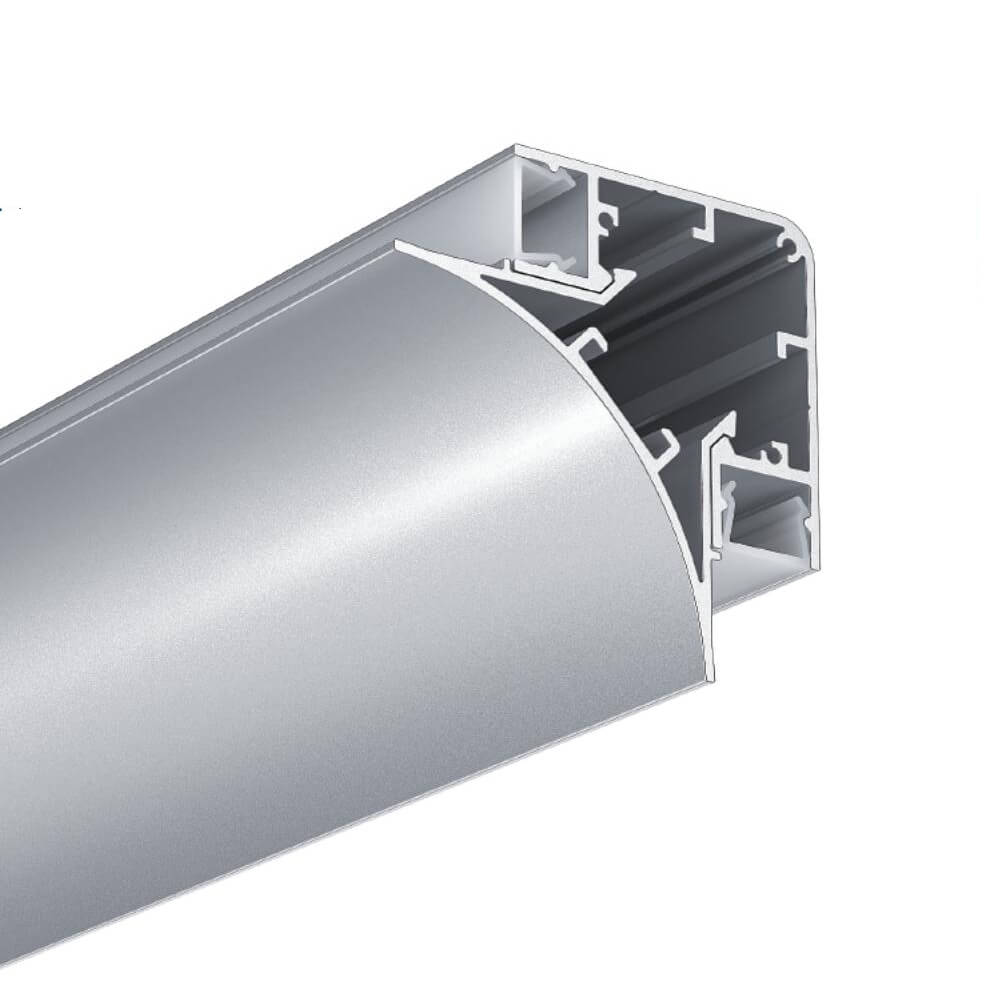

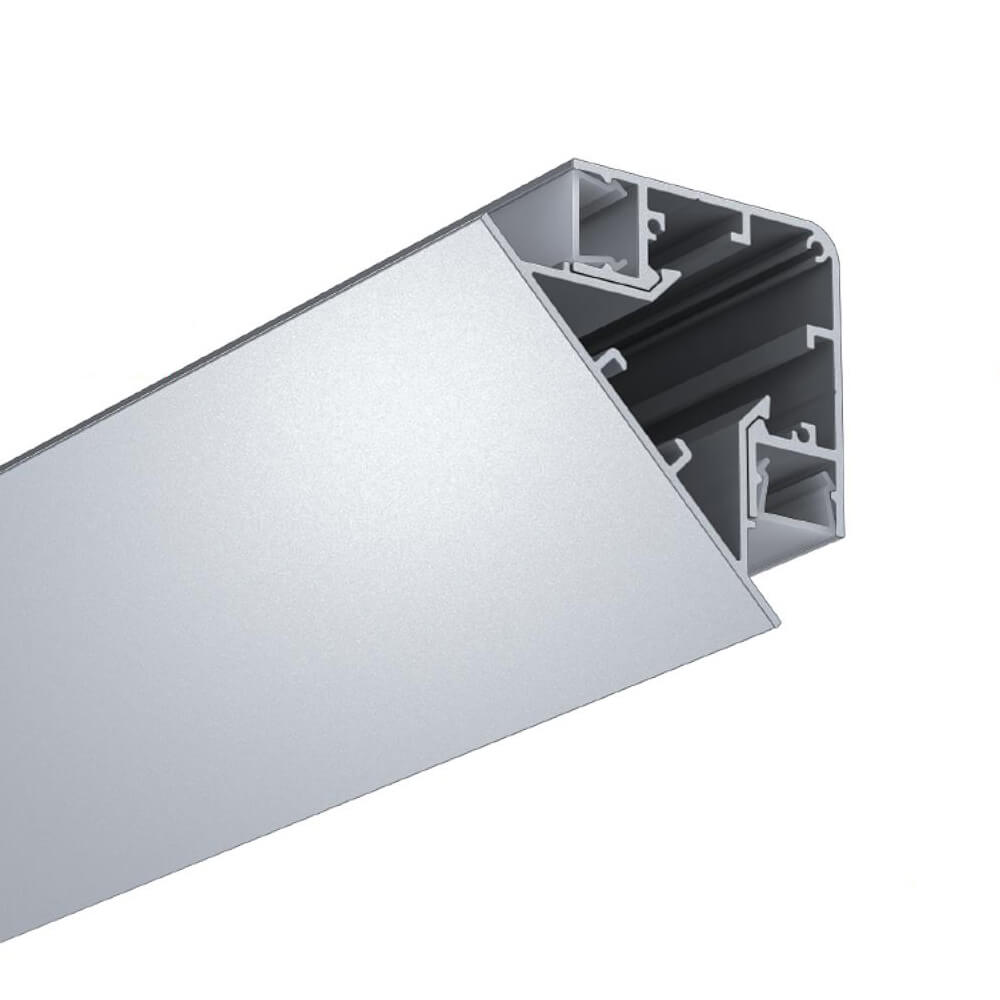

There are two different reveal sides available: straight and curved. You can choose them to pair with your interior design.

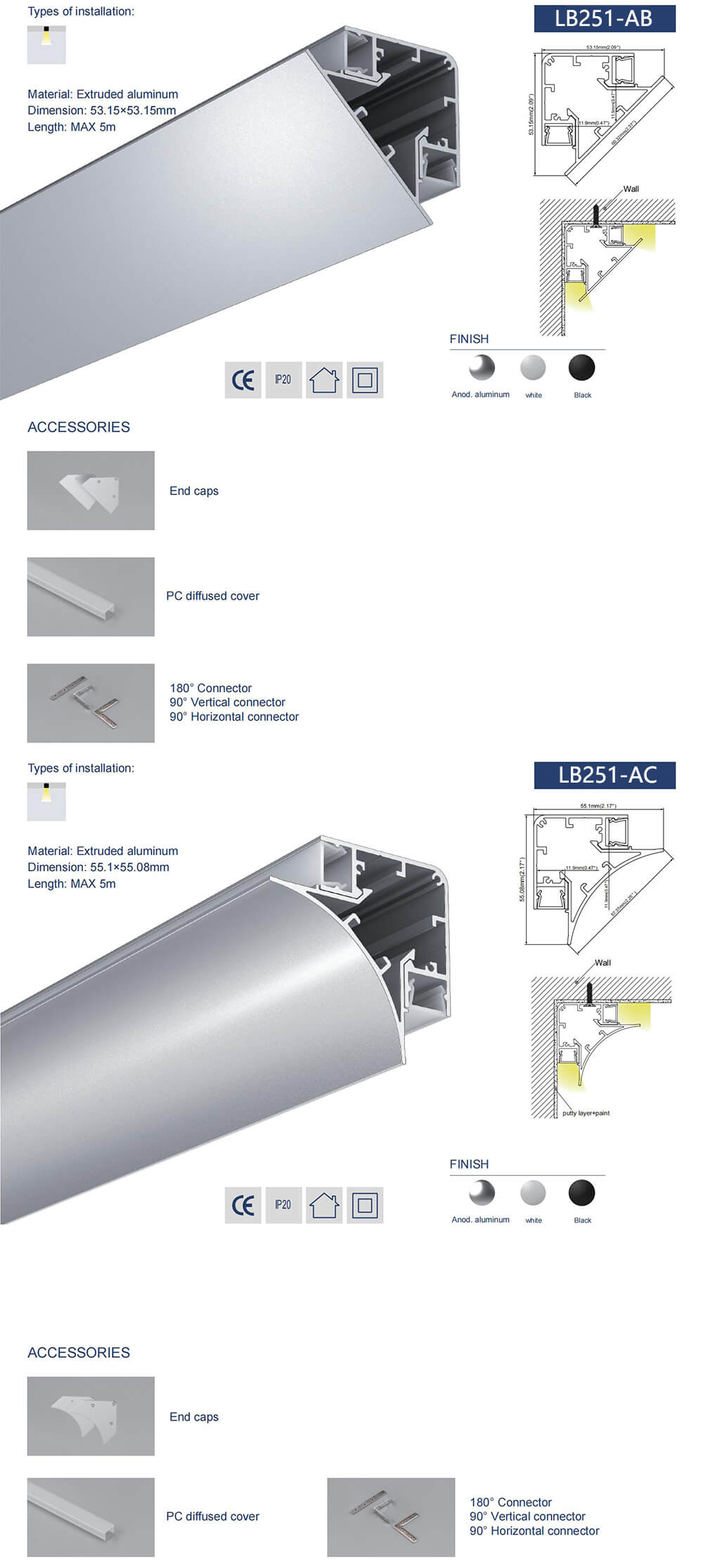

Specifications:
- Model: LB251
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

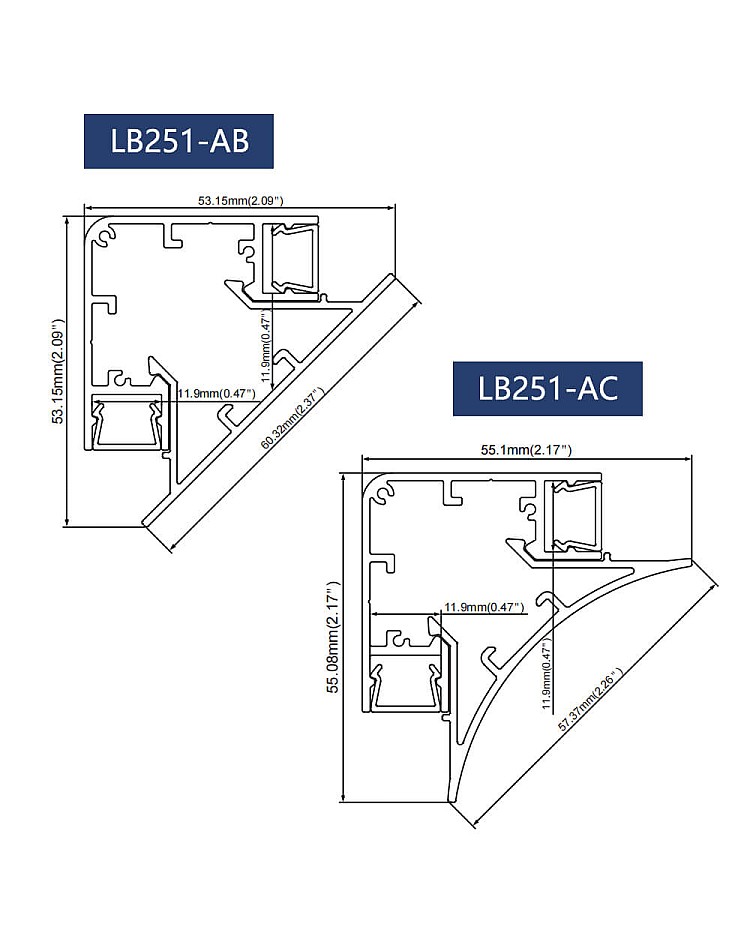

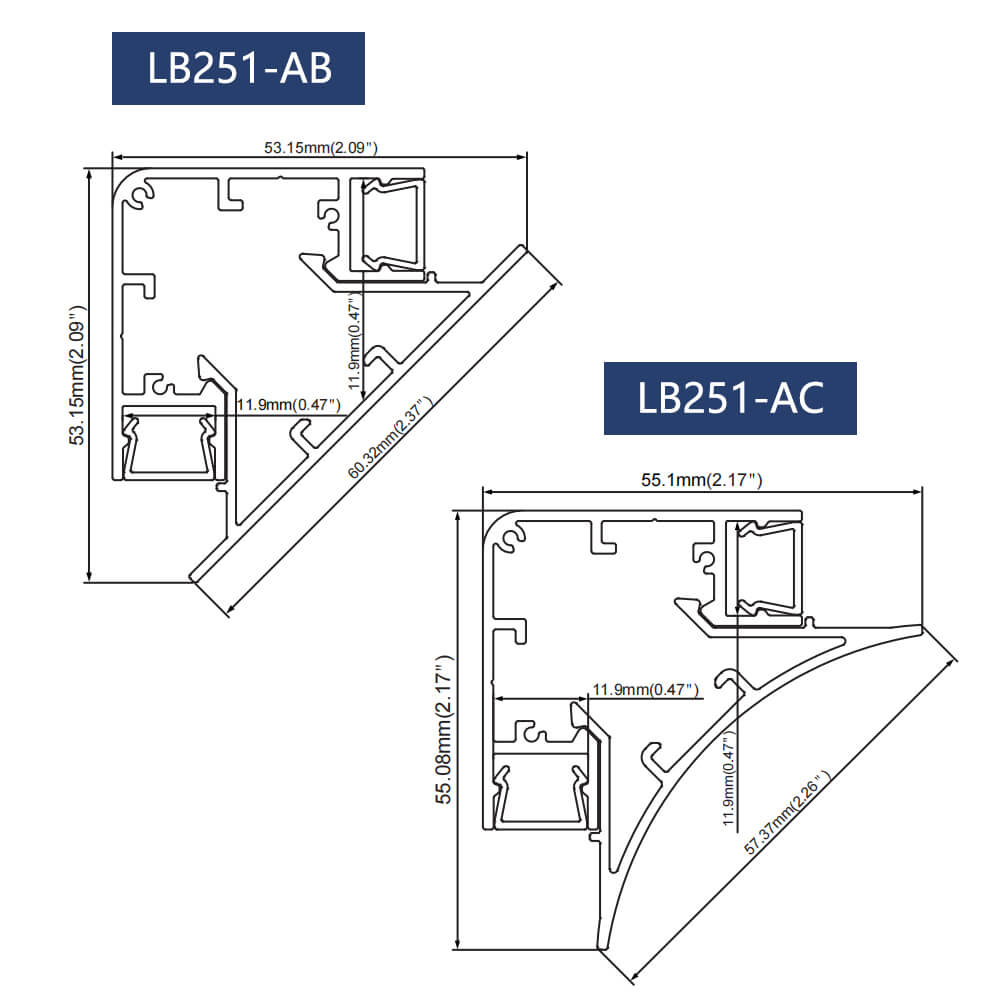

- Size: 53.15mm x 53.15mm / 2.09" x 2.09" (LB251-AB); 55.1mm x 55.08mm / 2.17" x 2.17" ( LB251-AC)
- Lengths available: 1m ( 39.37" ); 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 11.9mm/0.47"
- Maximum power: 30W/m
- Diffusers: PC diffused cover

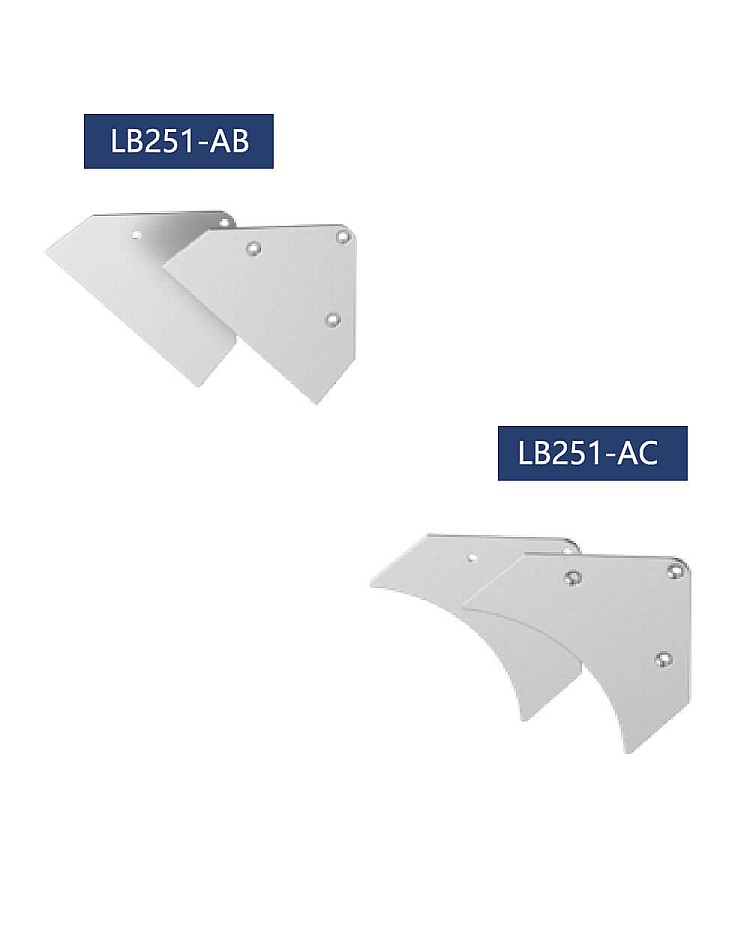

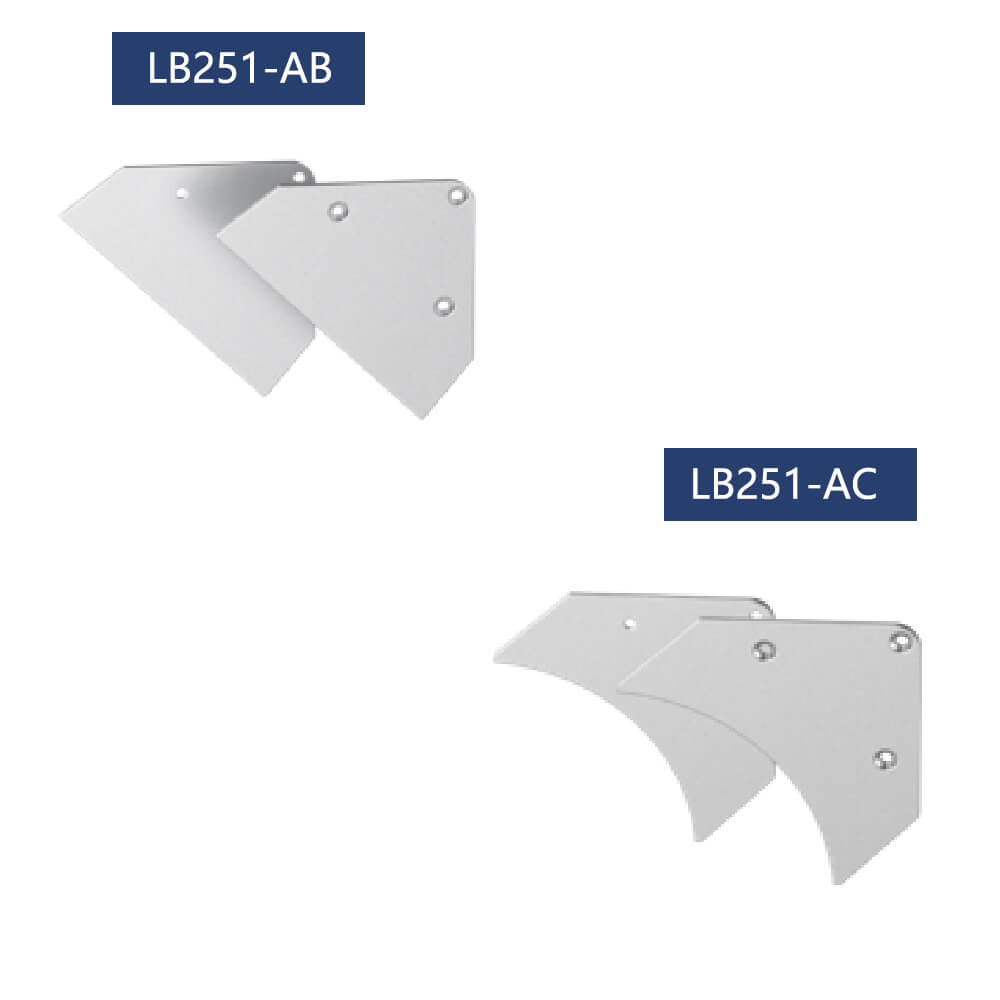

- End caps included
- 90°, 90° vertical, and 180° LED channel joiners sold separately
- Installation: Corner mount
- Application: Valance lighting
- 5 years warranty
Includes:
1 x Valance light fixture
1 x PC diffused
1 X End caps
