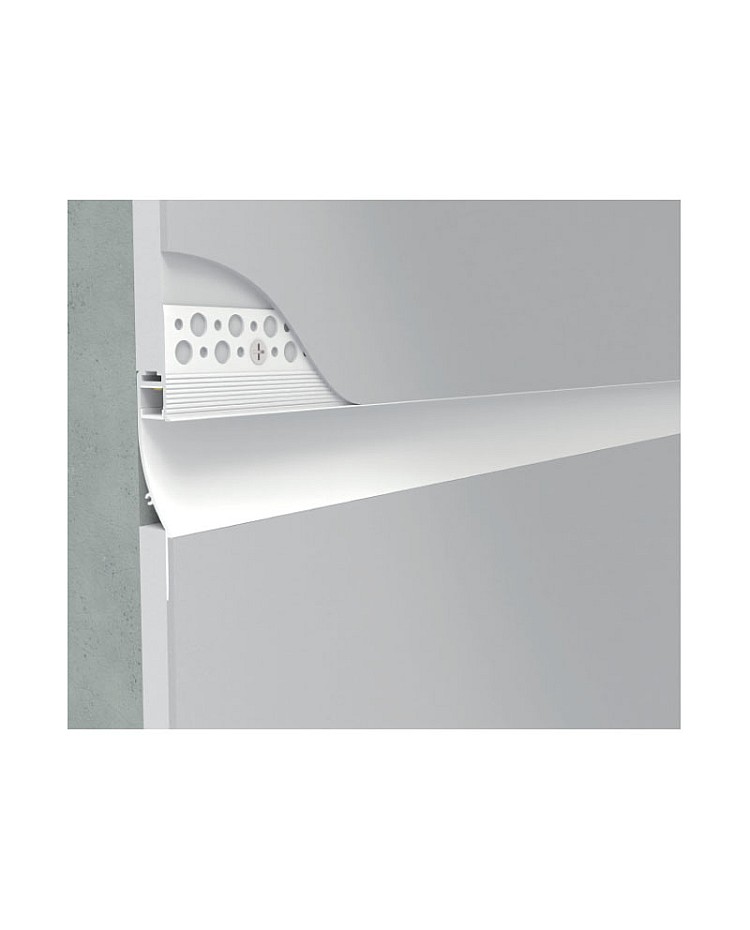

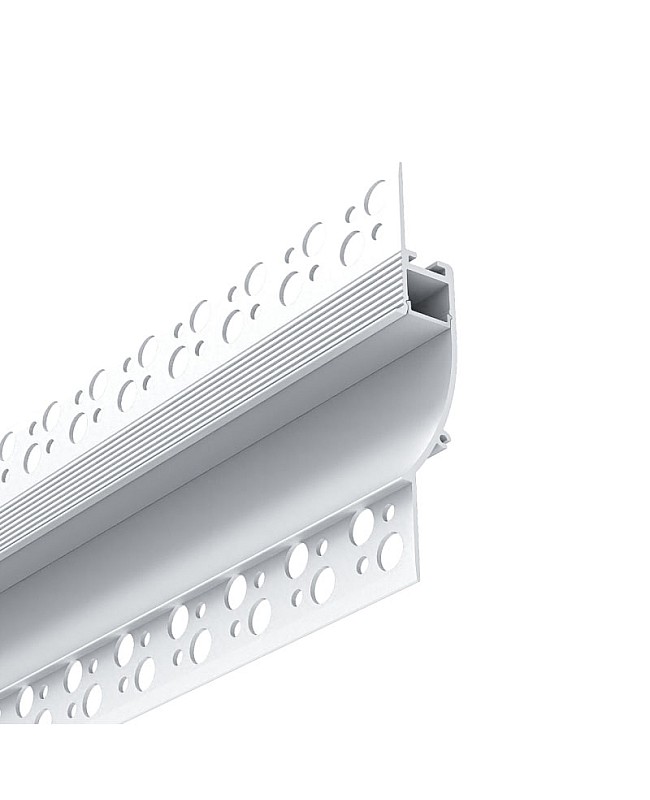

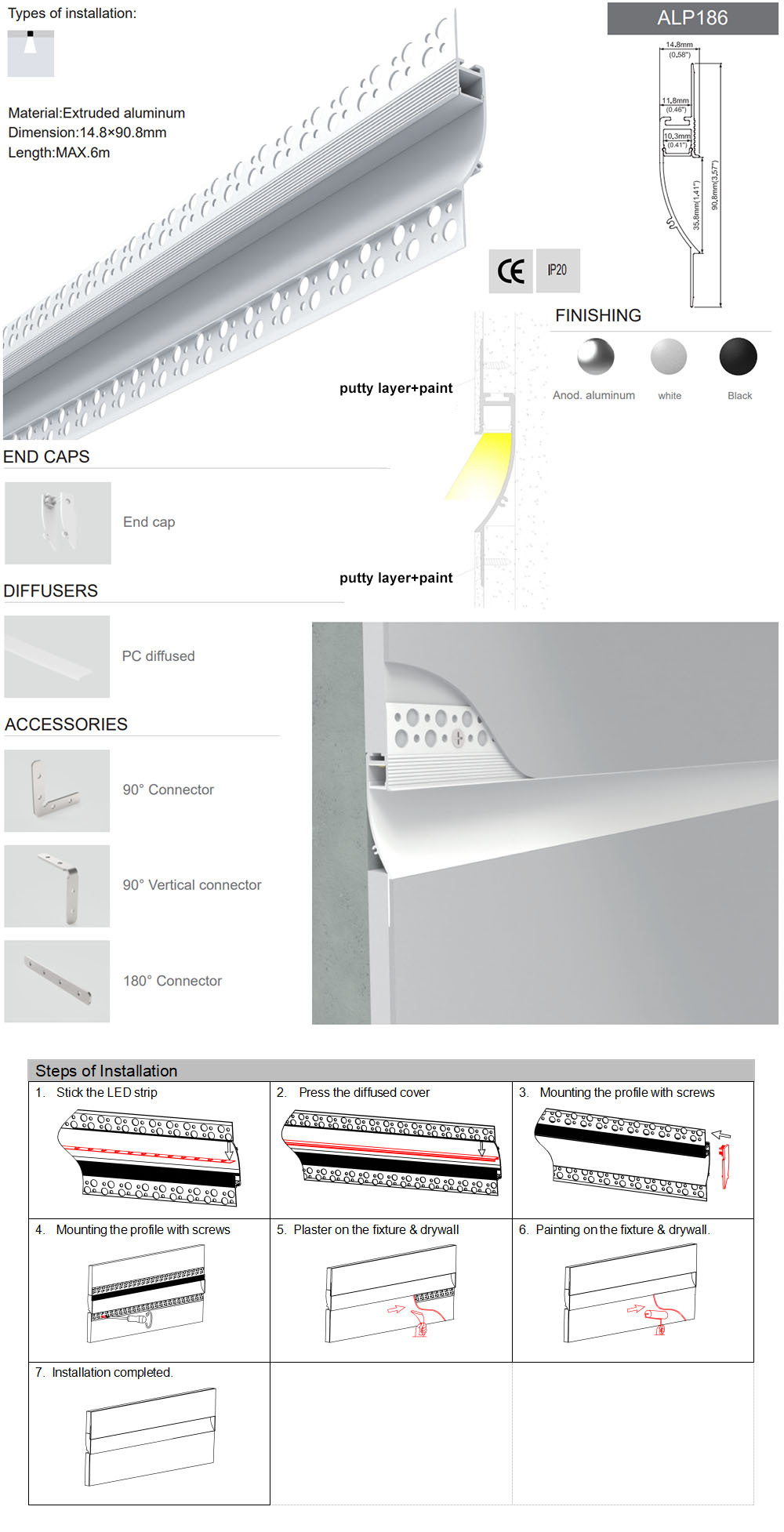

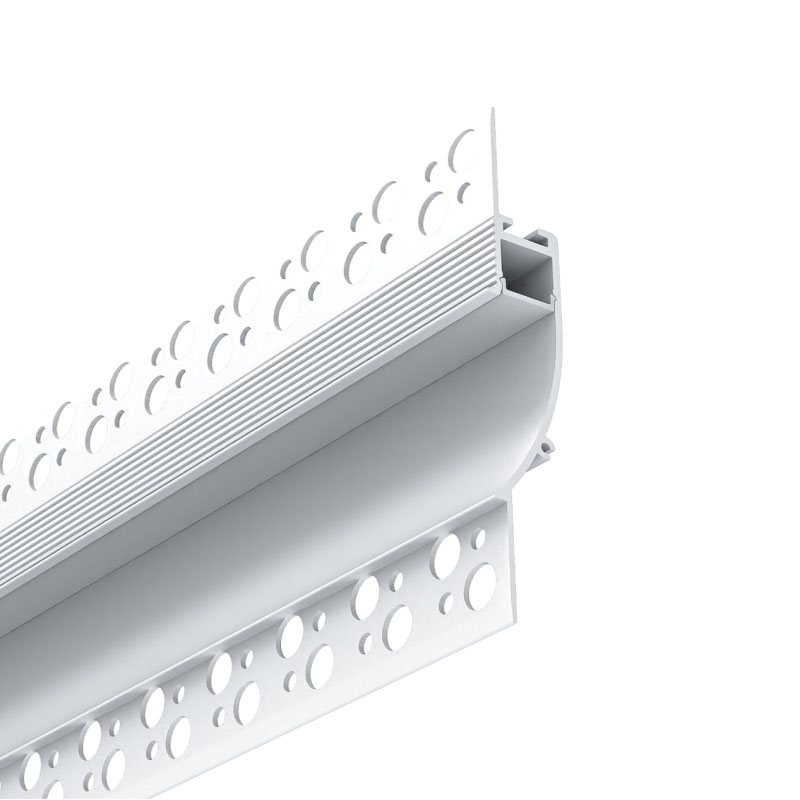

The wall-wash recessed lighting channel can be embedded into 1/2“ drywall or plasterboard walls. The trimless design features invisible edges, providing a clean, minimalist appearance. These white LED channels enable clean, architectural lighting effects, projecting soft, angled illumination that is ideal for wall grazing applications in residential and commercial interiors. With a curved inner area, the trimless aluminum channels optimize light diffusion, creating a smooth wall-washing glow. The inner width is 10.3 mm, allowing a maximum width of 10 mm for the LED strip. We recommend installing the 24V COB LED strips to create a seamless linear lighting effect, with no dark areas and light dots. The aluminum channel can also work as a heat sink for better heat dissipation. There are three types of connectors available, allowing you to choose from 90°, 90° Vertical, and 180° connectors for angled or straight connections. There is only one type of diffuser available, the PC diffused cover, which is made of brand-imported material, is anti-yellowing, and has perfect light distribution. The wall washing channels are made of 6063-T5 extruded aluminum material with a powder-coated surface treatment for anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and can be cut to any length for your project. Custom lengths are also available.
Specifications:
- Model: ALP186
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coated
- Colors: White

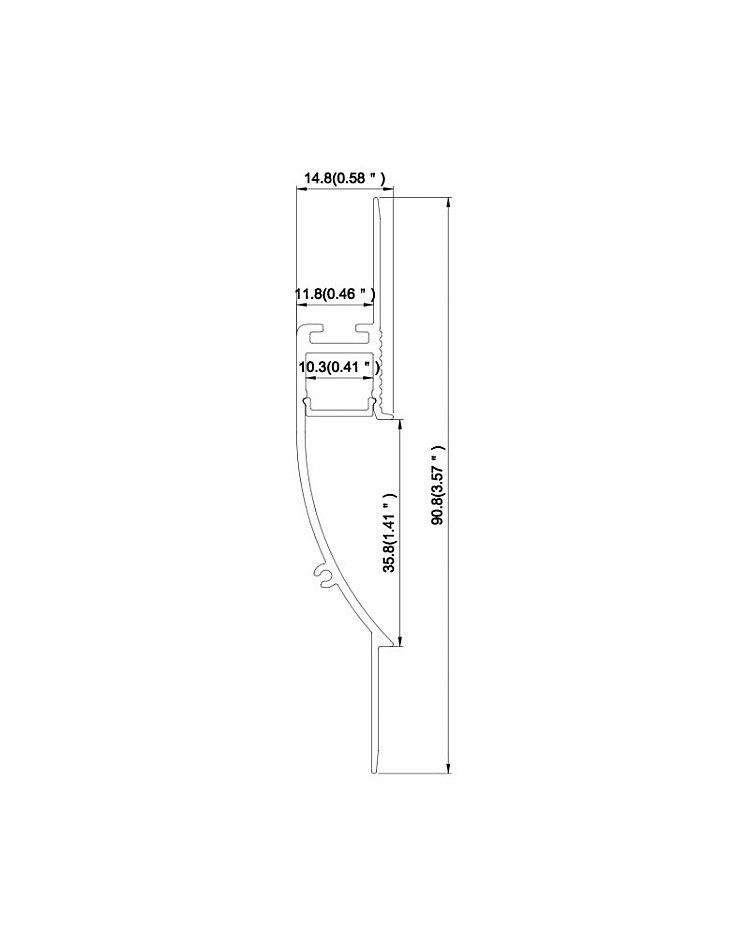

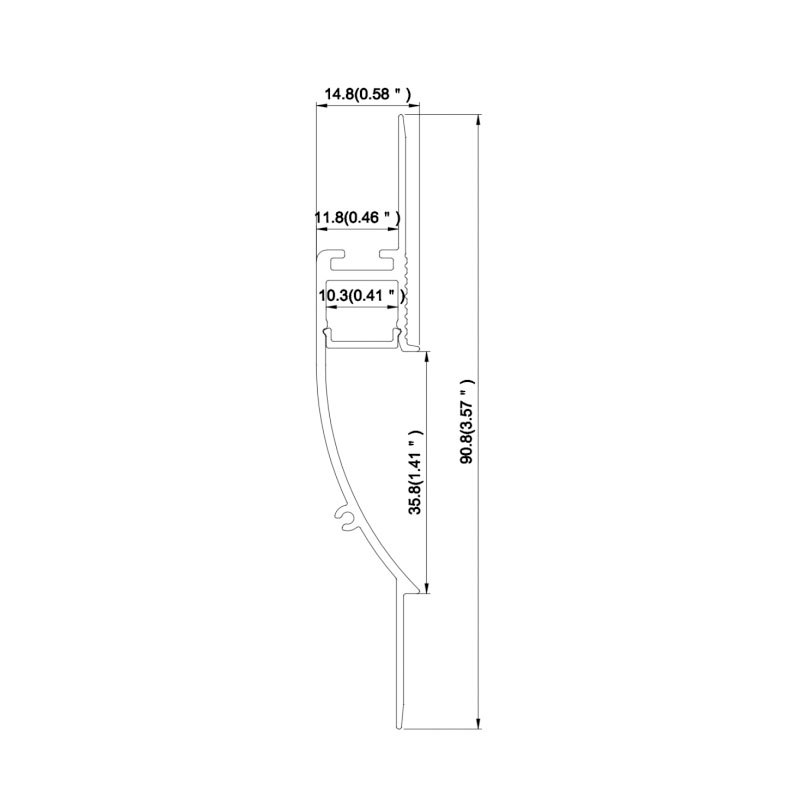

- Size ( H x W ): 90.8 mm x 14.8 mm ( 3.57" x 0.58" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom lengths available: YES
- Diffusers: PC diffused cover
- Inner width: 10.3 mm ( 0.41" )
- Max width of LED strips: 10 mm ( 0.39" )
- Max power: 15W/m
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

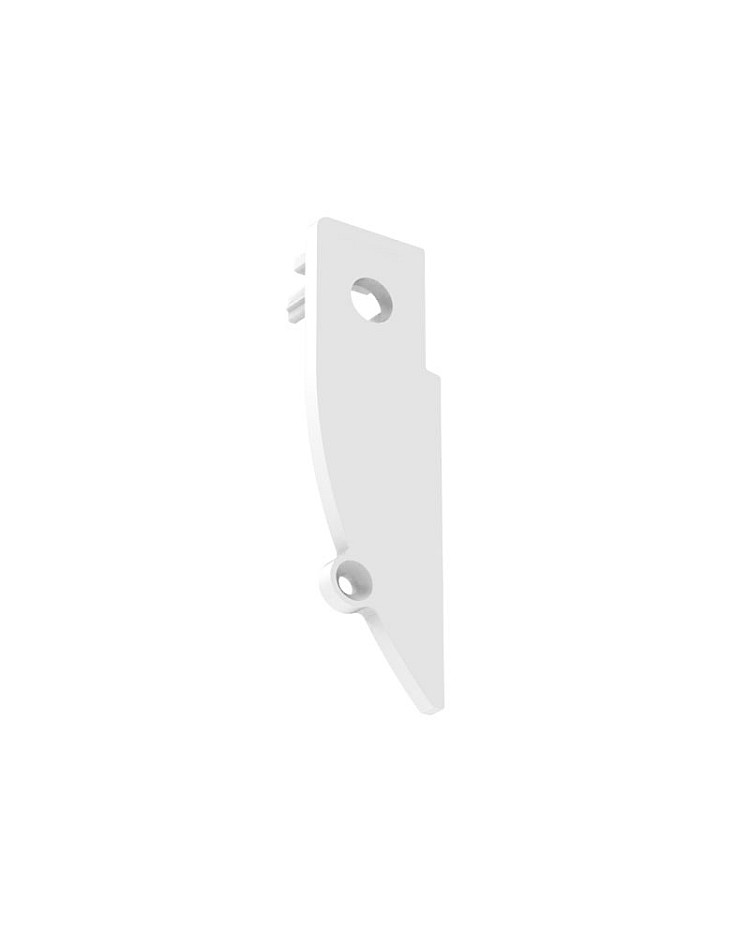

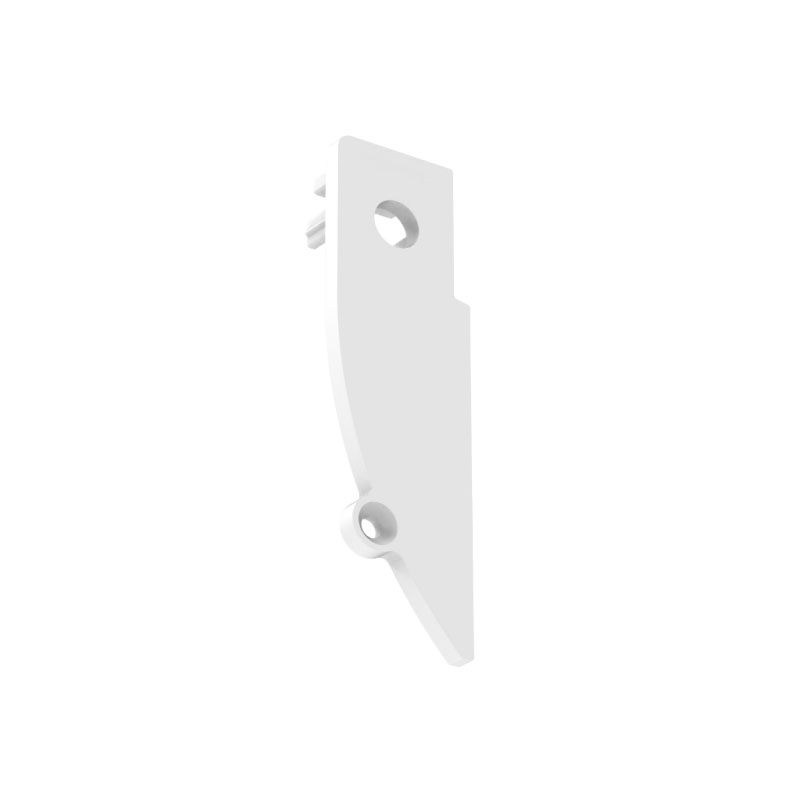

- End caps with and without wire holes are included

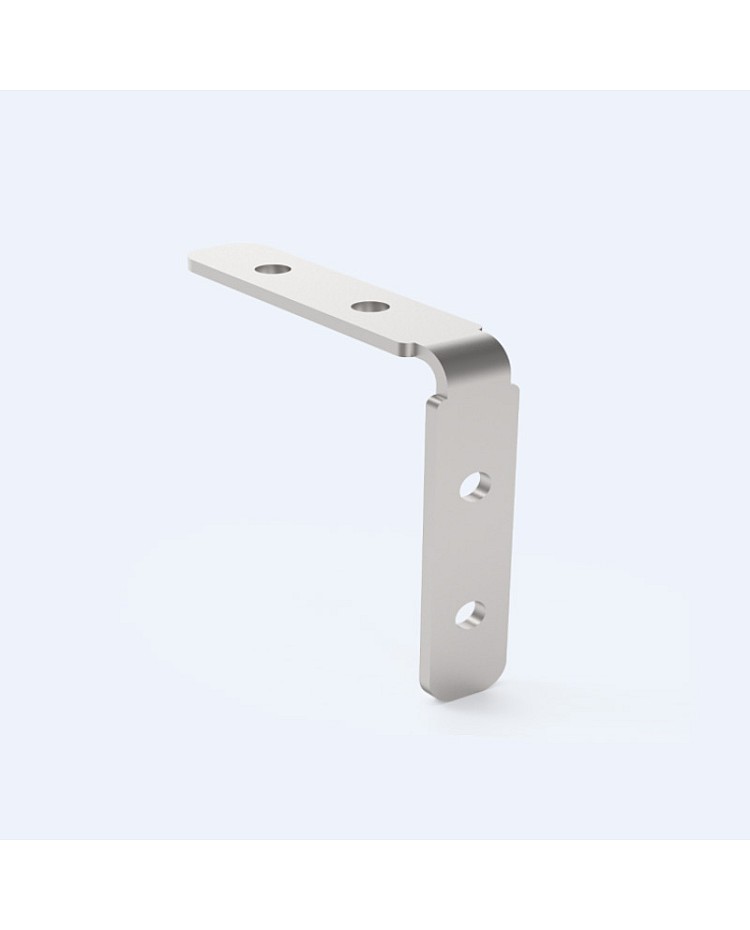

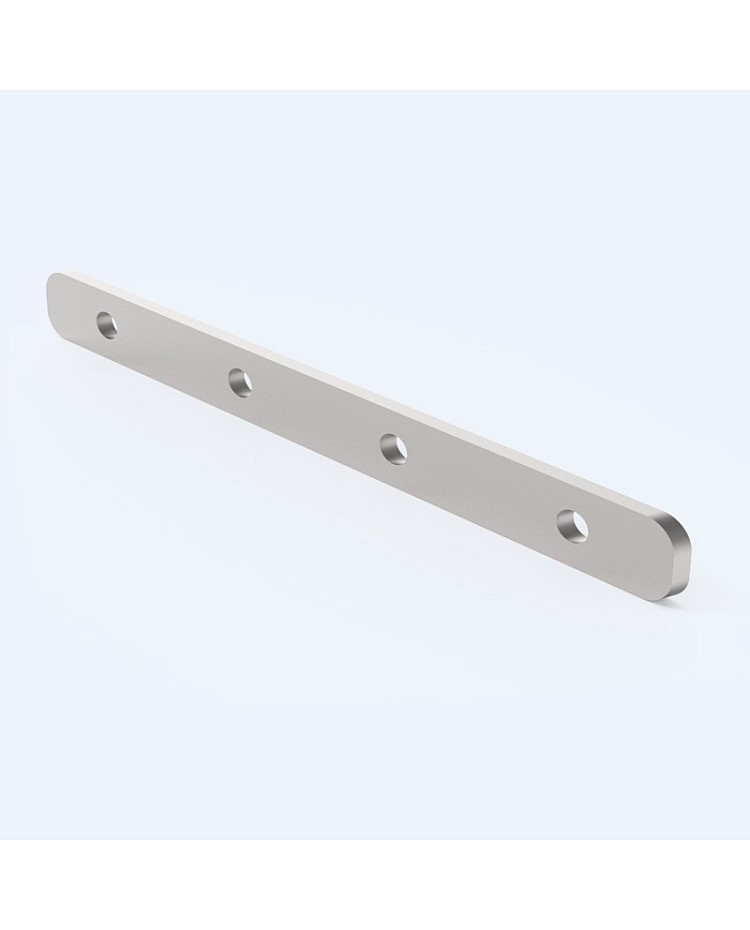

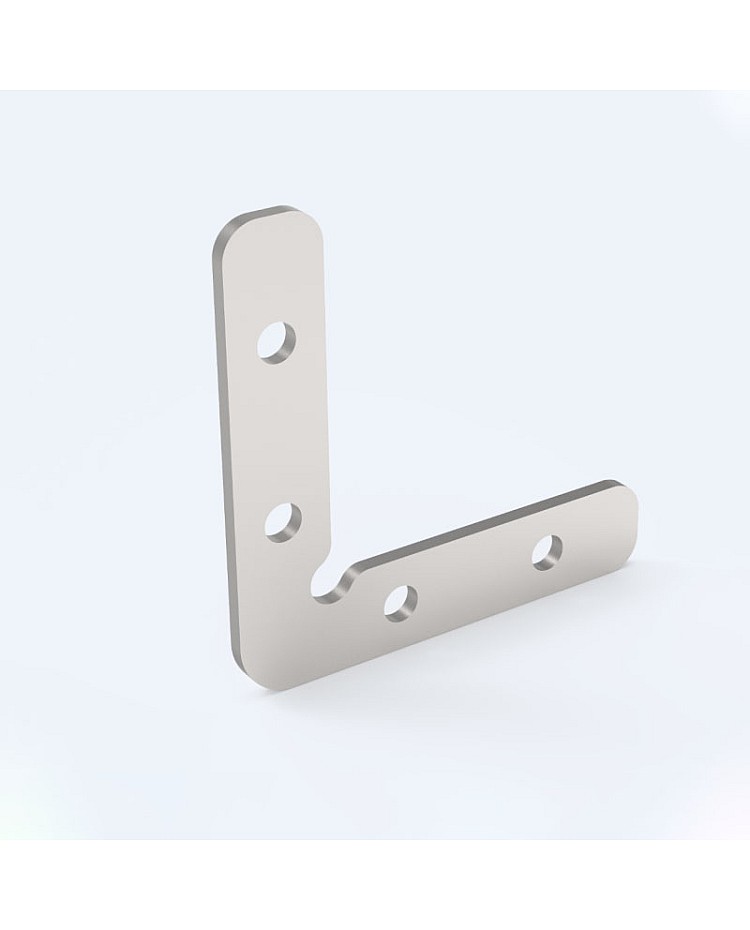

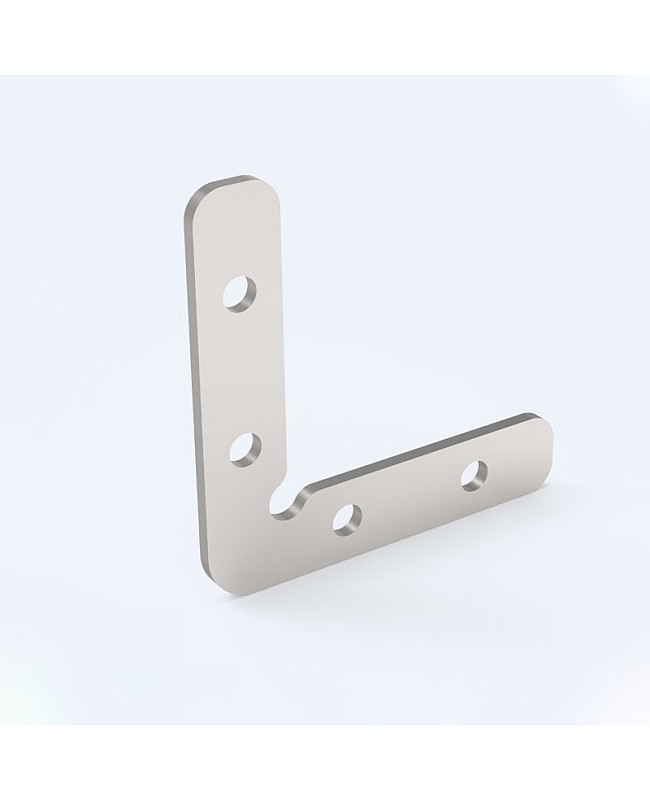

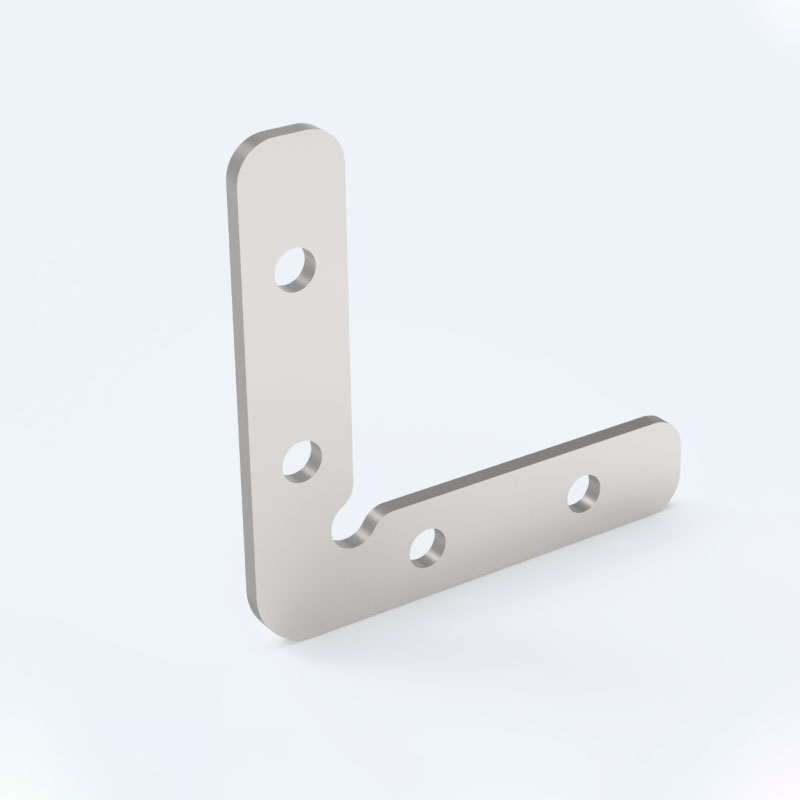

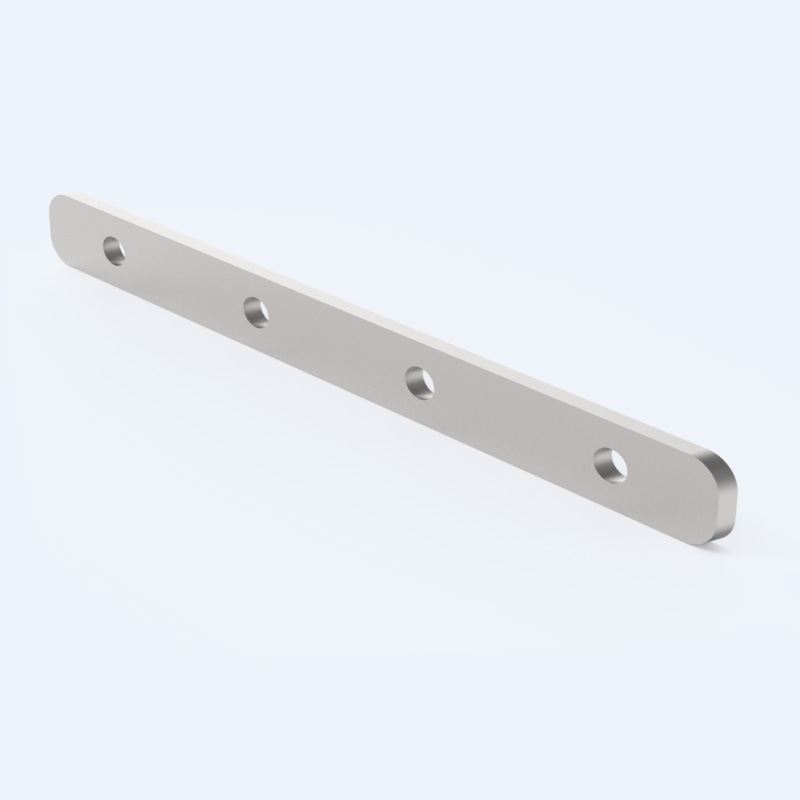

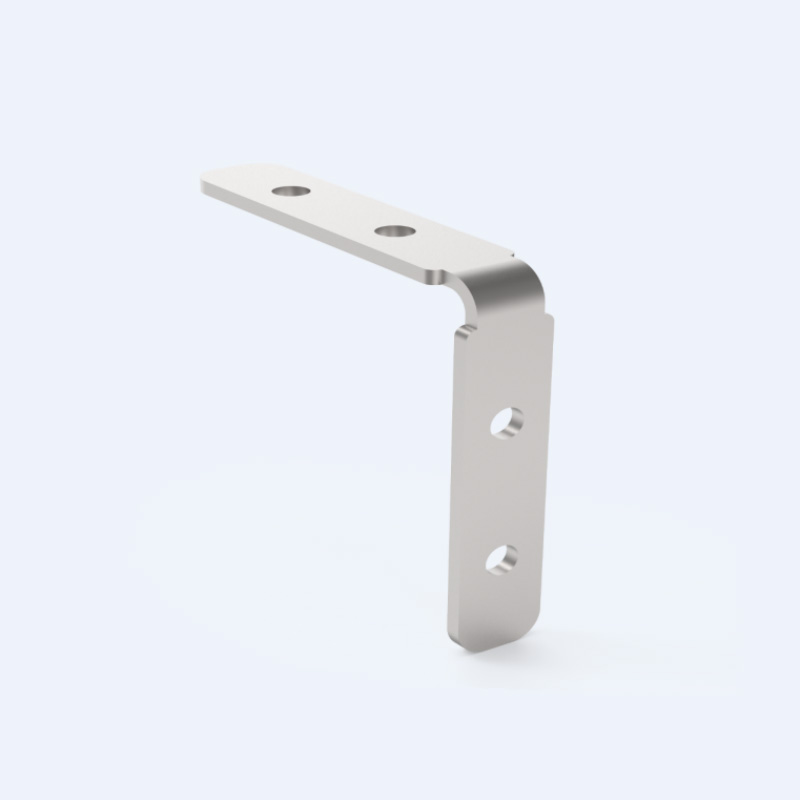

- 90°, 90° vertical, and 180° connectors are sold separately

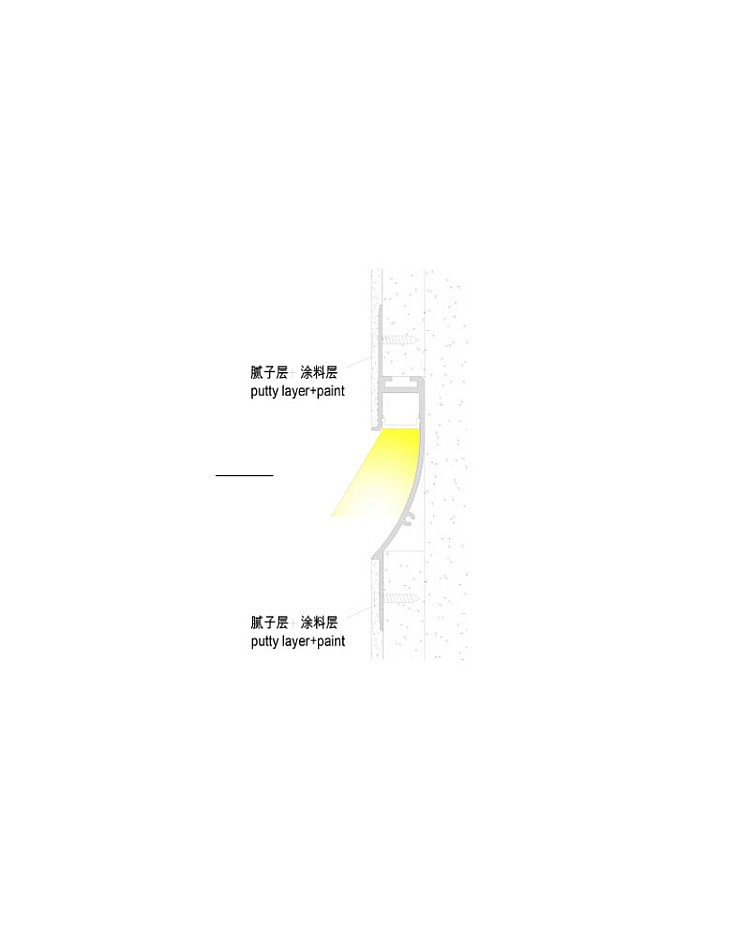

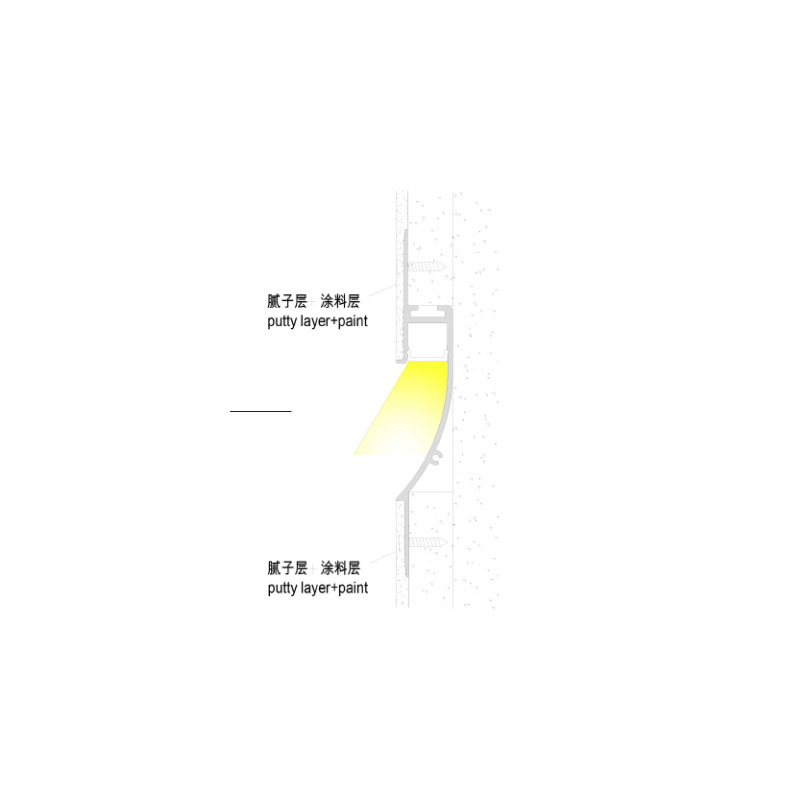

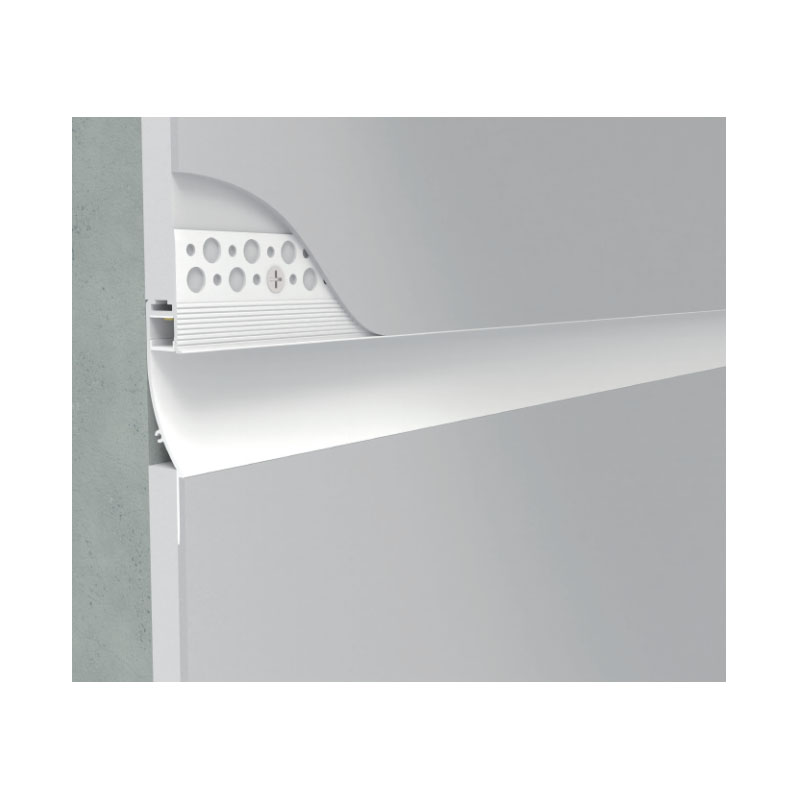

- Installation: Recessed into 1/2" drywall
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

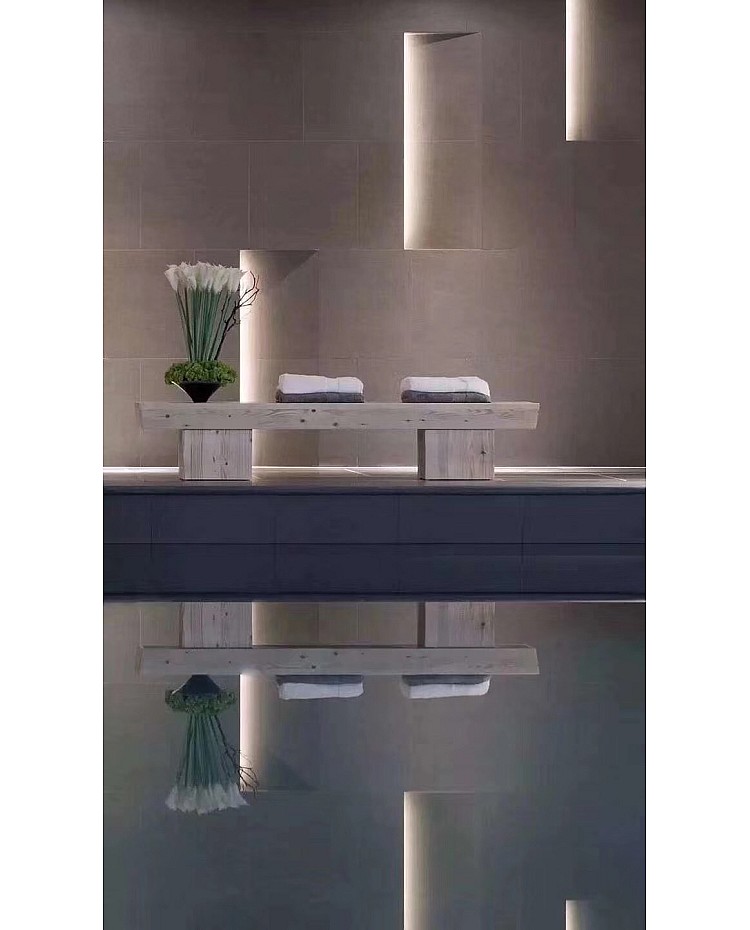

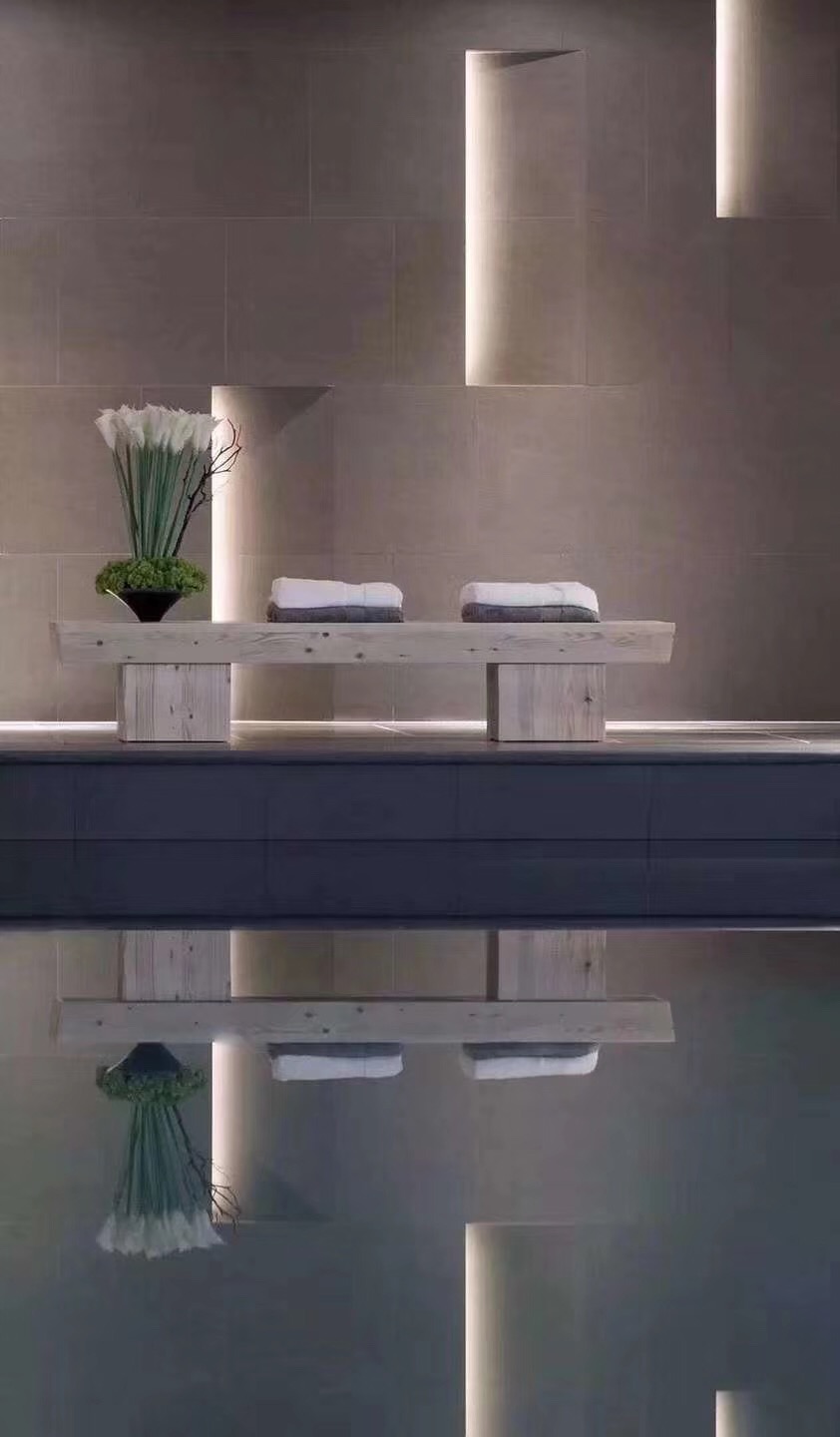

- Architectural wall washing: Highlights wall textures, artwork, or decorative finishes
- Indirect lighting for interiors in hallways, staircases, hotels, galleries, and showrooms
Includes:
1 * Wall wash light channel with diffuser
End caps(With and without wire holes)
